Replacing a wheel hub and bearing assembly is one of the most effective ways to restore smooth steering, eliminate grinding noise, and improve overall driving safety. Whether you’re working on a daily commuter, a truck, or an SUV, installing a new wheel hub isn’t as complicated as many people think—especially with the right tools and preparation.
This guide walks you through everything you need to know, from identifying symptoms to installing a new wheel hub properly.
Why Replace a Wheel Hub?
A worn wheel hub bearing can cause:
-
Grinding or humming noises while driving
-
Steering wheel vibration
-
ABS warning light
-
Uneven tire wear
-
Wheel play or looseness
-
Poor stopping performance
If you notice any of these issues, replacing the wheel hub assembly is a smart and safe solution.
Tools and Supplies Needed
Before starting, gather the following tools:
-
Jack and jack stands
-
Lug wrench
-
Socket set (metric & SAE)
-
Breaker bar
-
Torque wrench
-
Screwdriver or pry bar
-
Hammer or mallet
-
Penetrating oil (for rusted bolts)
-
Anti-seize compound
-
Replacement wheel hub assembly
-
New axle nut (recommended)
-
Brake cleaner
Tip: Always use a new axle nut and new bolts if supplied. Reusing old hardware can cause torque issues.

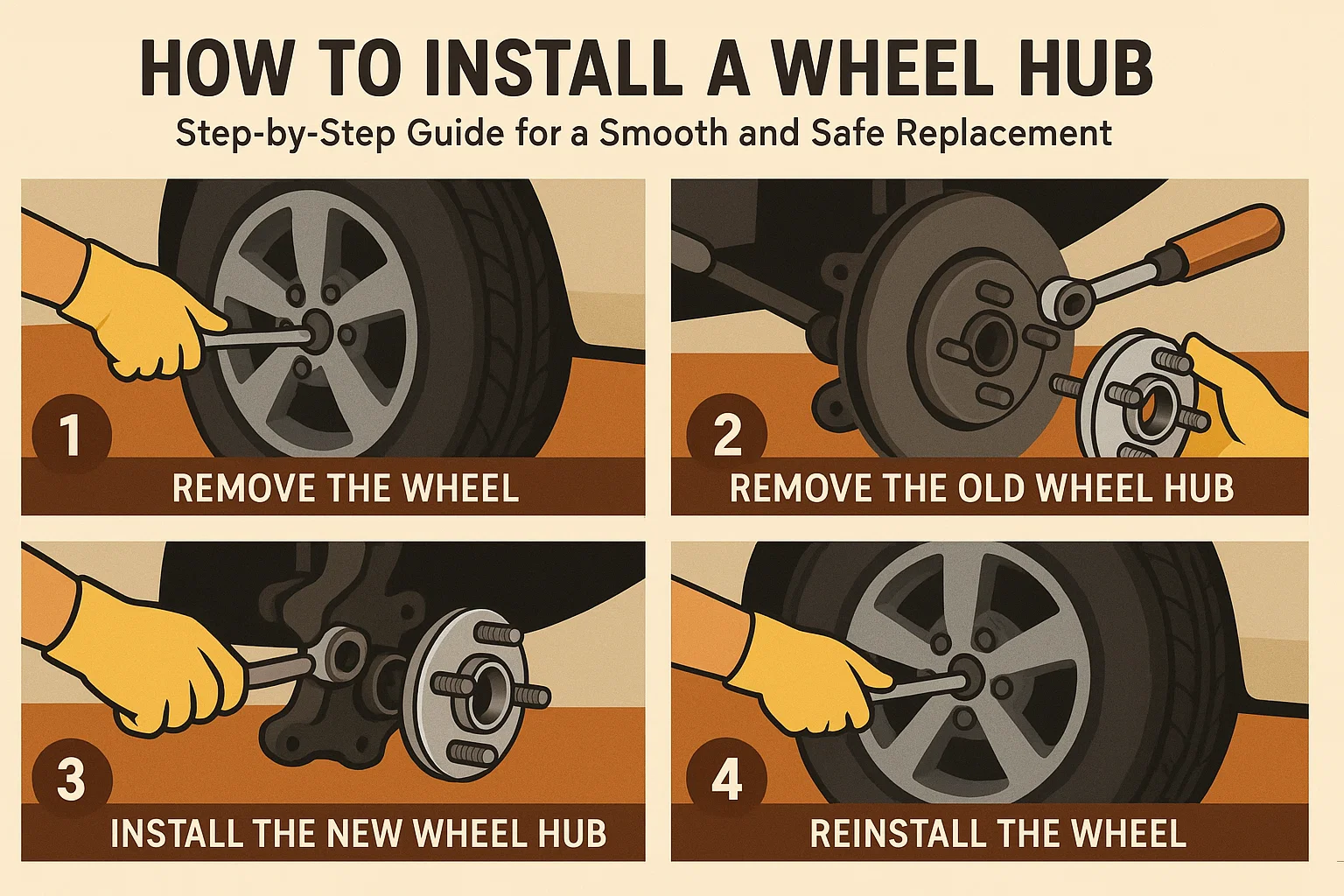

Step-by-Step Guide to Installing a Wheel Hub
1. Park on a Level Surface and Secure the Vehicle
-
Engage the parking brake
-
Use wheel chocks on the opposite wheels
-
Never work under a car supported only by a jack
2. Loosen Lug Nuts and Lift the Vehicle
-
Loosen lug nuts while the wheel is still on the ground
-
Raise the vehicle with a jack
-
Support with jack stands before removing wheels
3. Remove the Wheel and Brake Components
-
Remove the wheel
-
Take off the brake caliper and bracket
-
Hang the caliper using a bungee cord (do NOT let it hang by the brake hose)
-
-
Remove the brake rotor
Tip: If the rotor is stuck, apply penetrating oil and tap lightly with a mallet.
4. Disconnect the ABS Sensor (If Equipped)
-
Locate the ABS sensor plug
-
Disconnect the wiring safely
-
Avoid pulling directly on the wire
Modern wheel hubs often come with a built-in sensor—failure to reconnect properly may trigger ABS lights.
5. Remove the Axle Nut (Front Hubs Only)
-
Use a breaker bar or impact gun
-
Some axle nuts are staked—unstake before removal
-
Keep track of washer orientation
6. Remove the Old Wheel Hub Assembly
-
Remove the three (or four) mounting bolts on the back
-
If rusted, use penetrating oil
-
Tap the hub with a mallet to break it loose
Stubborn hubs may require a hub puller due to corrosion.
7. Clean the Knuckle Surface Thoroughly
This step prevents noise, vibration, and premature wear.
-
Use a wire brush
-
Clean rust, debris, and old corrosion
-
Spray with brake cleaner
Tip: Apply a thin coat of anti-seize to help future removal.
8. Install the New Wheel Hub Assembly
-
Align bolt holes and slide hub into place
-
Insert new hub bolts
-
Tighten evenly in a cross pattern
Do not fully tighten one bolt before the others are started.
9. Torque Bolts to Manufacturer Specifications
This is critical for safety and longevity.
Typical torque values (examples only — check factory specs):
-
Hub bolts: 75–150 ft-lbs
-
Axle nut: 150–300 ft-lbs
Always use a torque wrench.
Impact guns can over-torque and damage bearings.
10. Reinstall ABS Wiring and Brake Components
-
Plug in the ABS connector
-
Reinstall the brake rotor
-
Reinstall caliper bracket and caliper
-
Torque all bolts to spec
11. Reinstall the Wheel and Lower the Vehicle
-
Tighten lug nuts in a star pattern
-
Lower vehicle
-
Torque lug nuts to manufacturer specs (usually 95–140 ft-lbs)
12. Test Drive
After installation:
-
ABS light should be off
-
No grinding or humming noises
-
Steering should feel smooth
Drive for 5–10 miles, then recheck lug nut torque.
Common Installation Mistakes to Avoid
-
Using an impact gun on axle nuts
-
Not cleaning the knuckle surface
-
Forgetting the ABS sensor plug
-
Reusing old hub bolts
-
Over-torquing or under-torquing
-
Installing on the wrong side (some hubs are left/right specific)
Front vs. Rear Wheel Hub Installation
Front Hubs
-
Usually require removing axle nuts
-
May include steering knuckle work
Rear Hubs
-
Often simpler
-
Usually no axle spline on FWD vehicles
-
Still require careful torqueing
2WD vs. 4WD Wheel Hub Installation
-
2WD hubs: simpler, no axle shaft
-
4WD hubs: must remove axle nut and sometimes disconnect CV axle
For trucks (F-150, Silverado, Ram, Tacoma), rust is typically the biggest challenge.
FAQs About Wheel Hub Installation
How long does it take to install a wheel hub?
1–3 hours depending on rust and front/rear location.
Do I need an alignment afterward?
Usually no—unless suspension components are disturbed.
Can I replace only one wheel hub?
Yes, but many replace both for balance and even wear.
Should I use ceramic brake pads with new hubs?
Yes—smooth, quiet, and less dust.
Conclusion
Installing a wheel hub is one of the most effective ways to restore smooth steering, eliminate noise, and improve safety. With basic tools and a reliable replacement hub, most DIY mechanics can complete this job at home and extend the life of their vehicle’s suspension and braking system. The key is proper torqueing, clean mounting surfaces, and safe reassembly.
If you’re experiencing noise, vibration, or ABS issues, a new wheel hub could solve the problem and get you back on the road confidently
