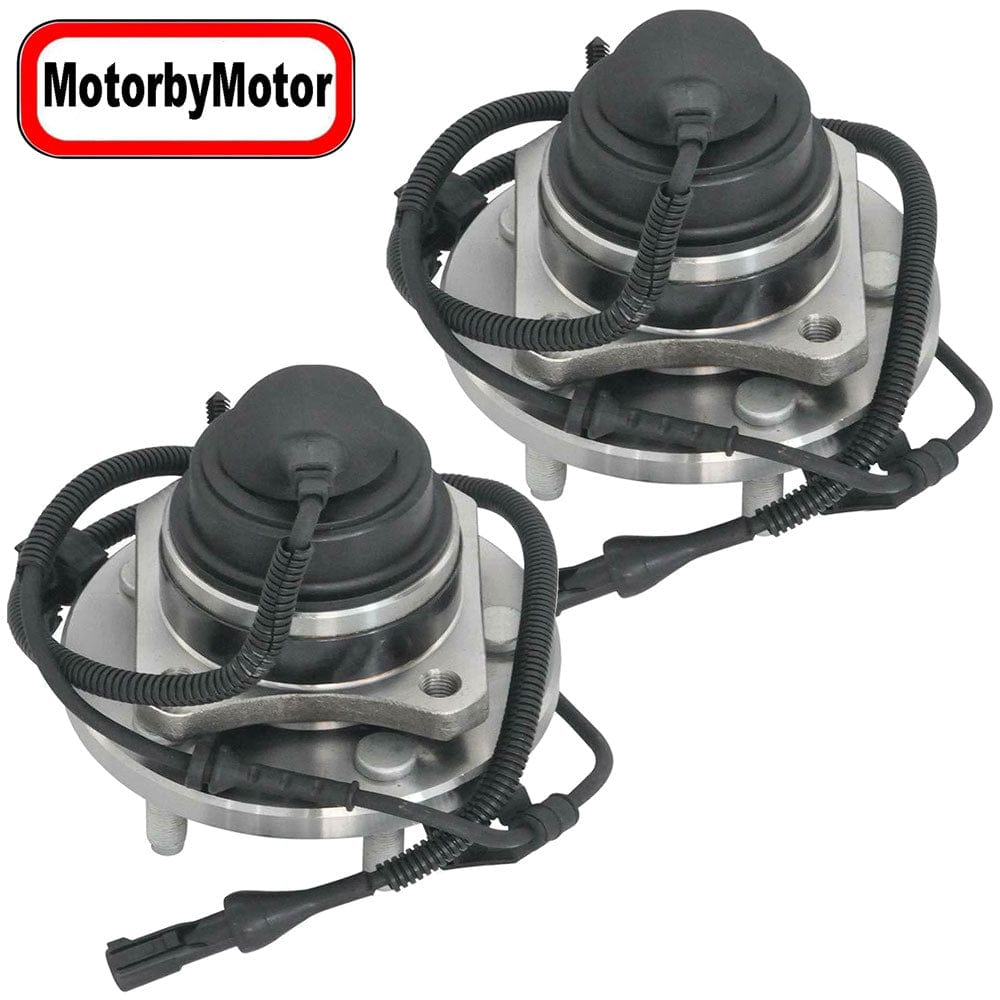

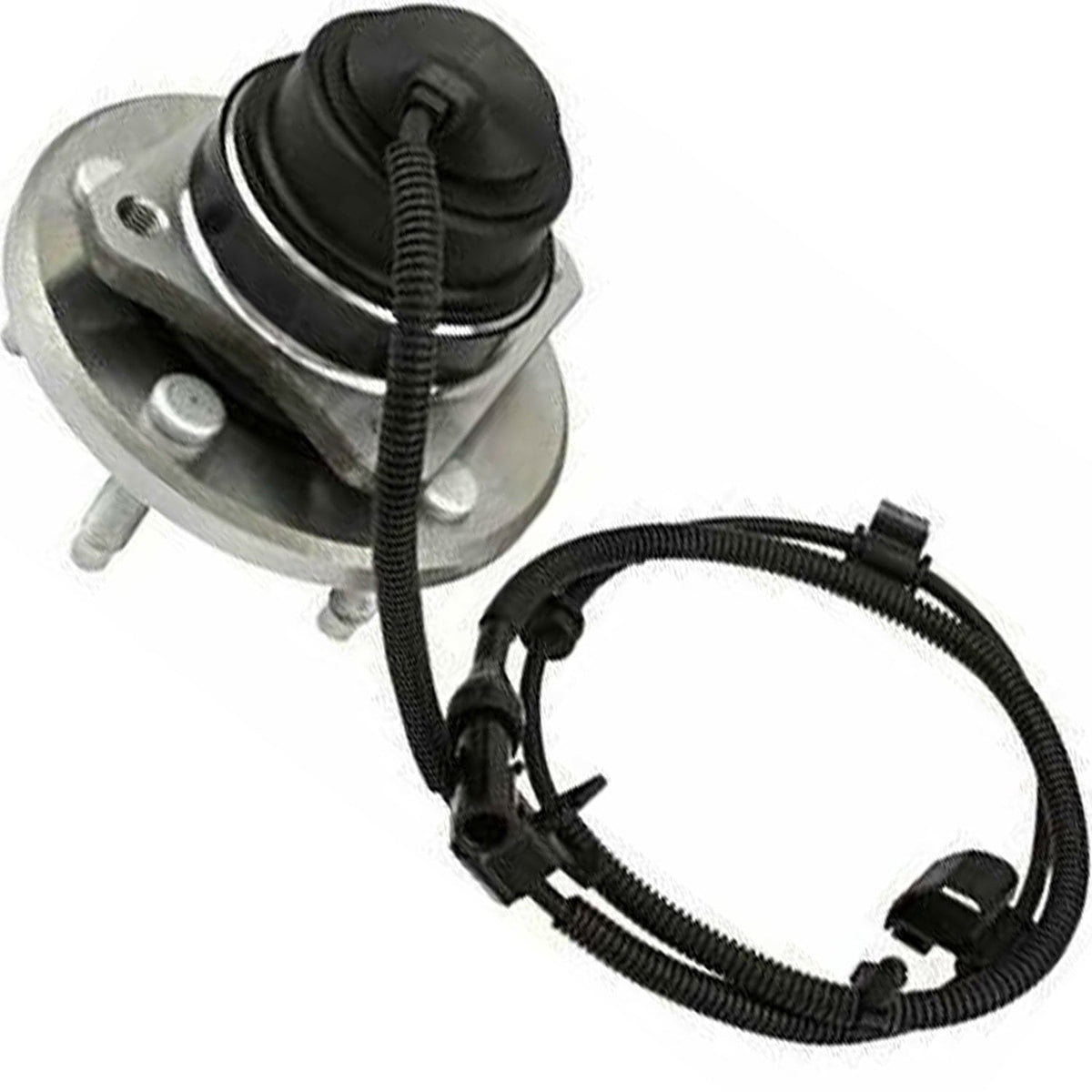

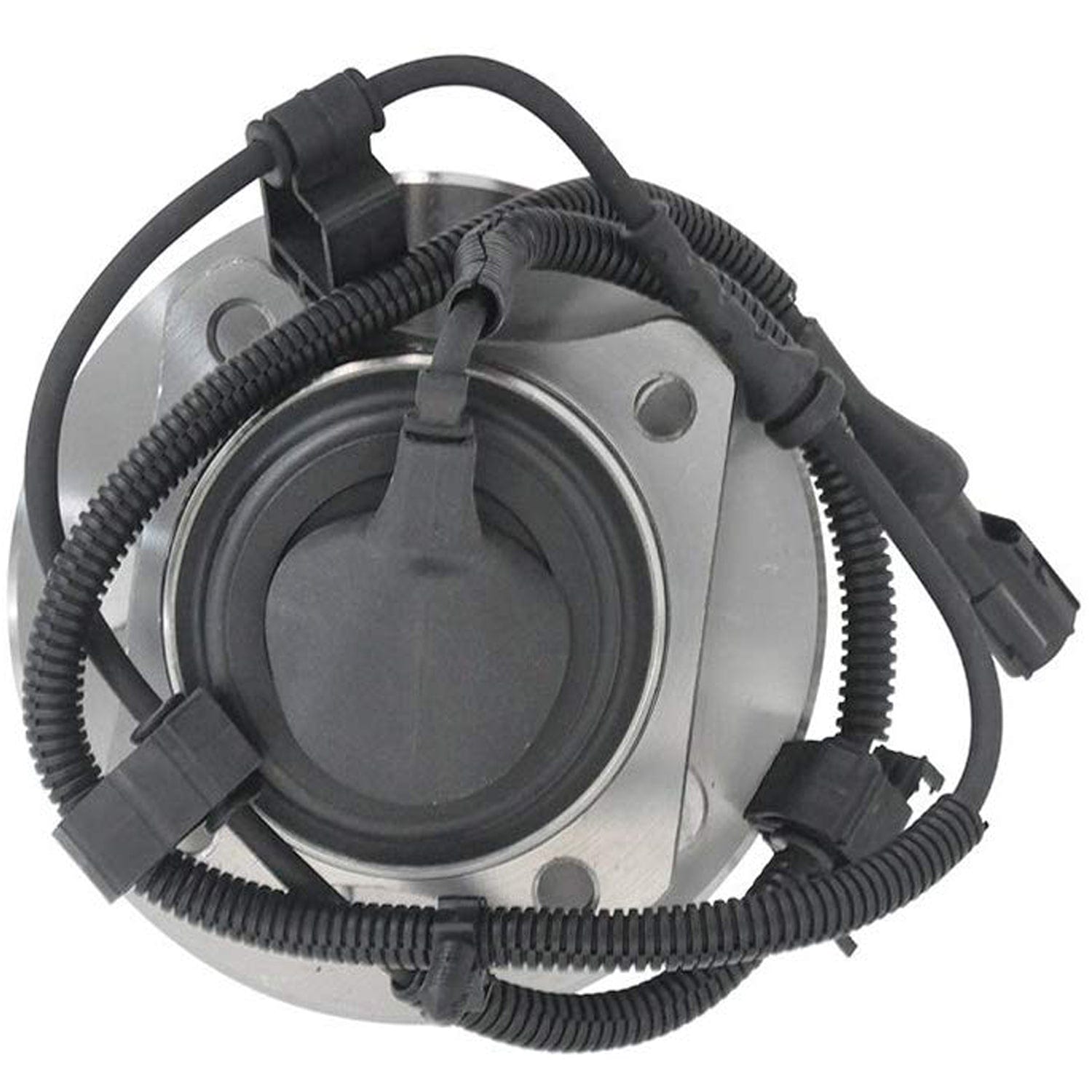

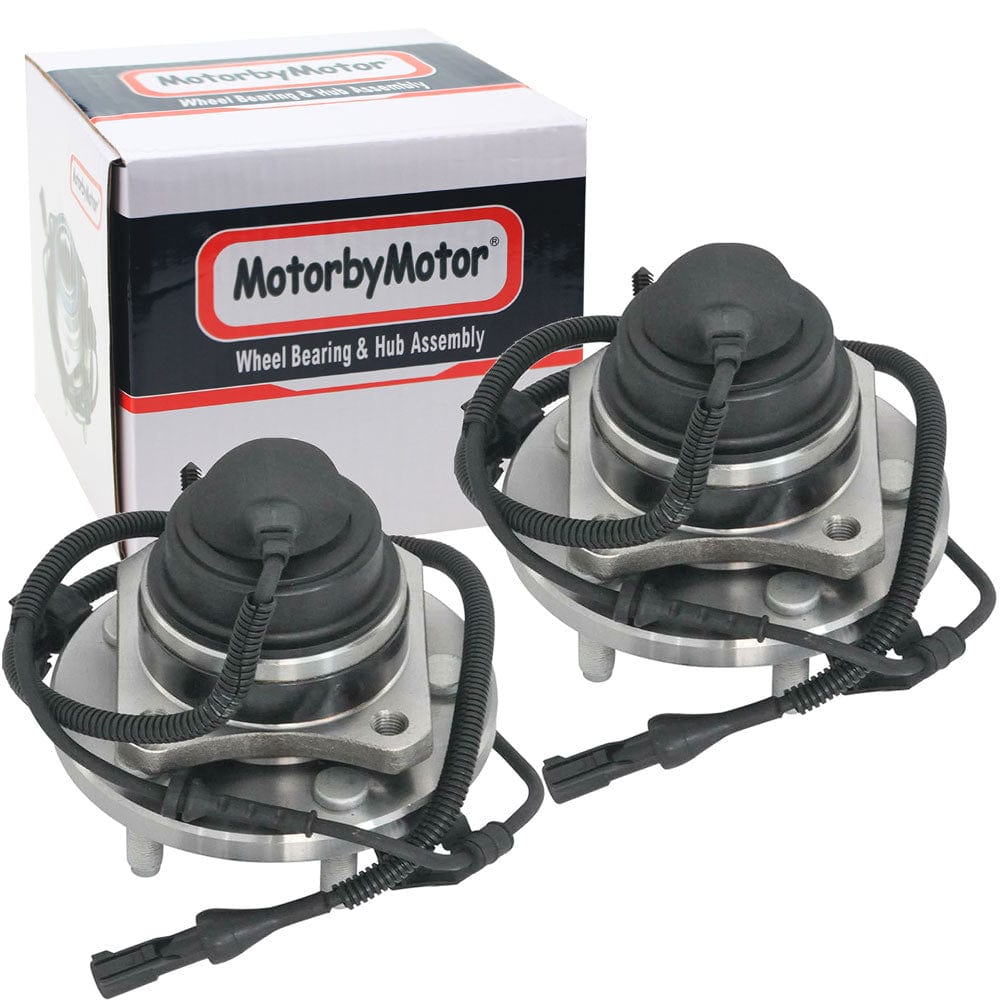

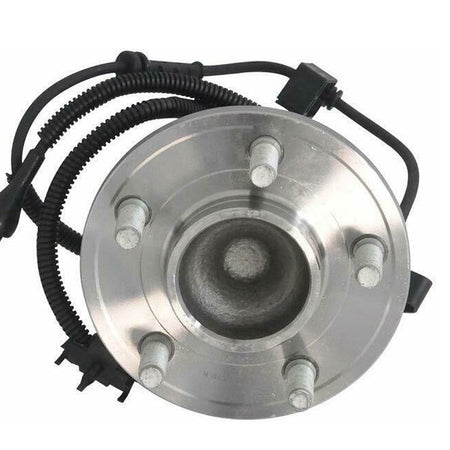

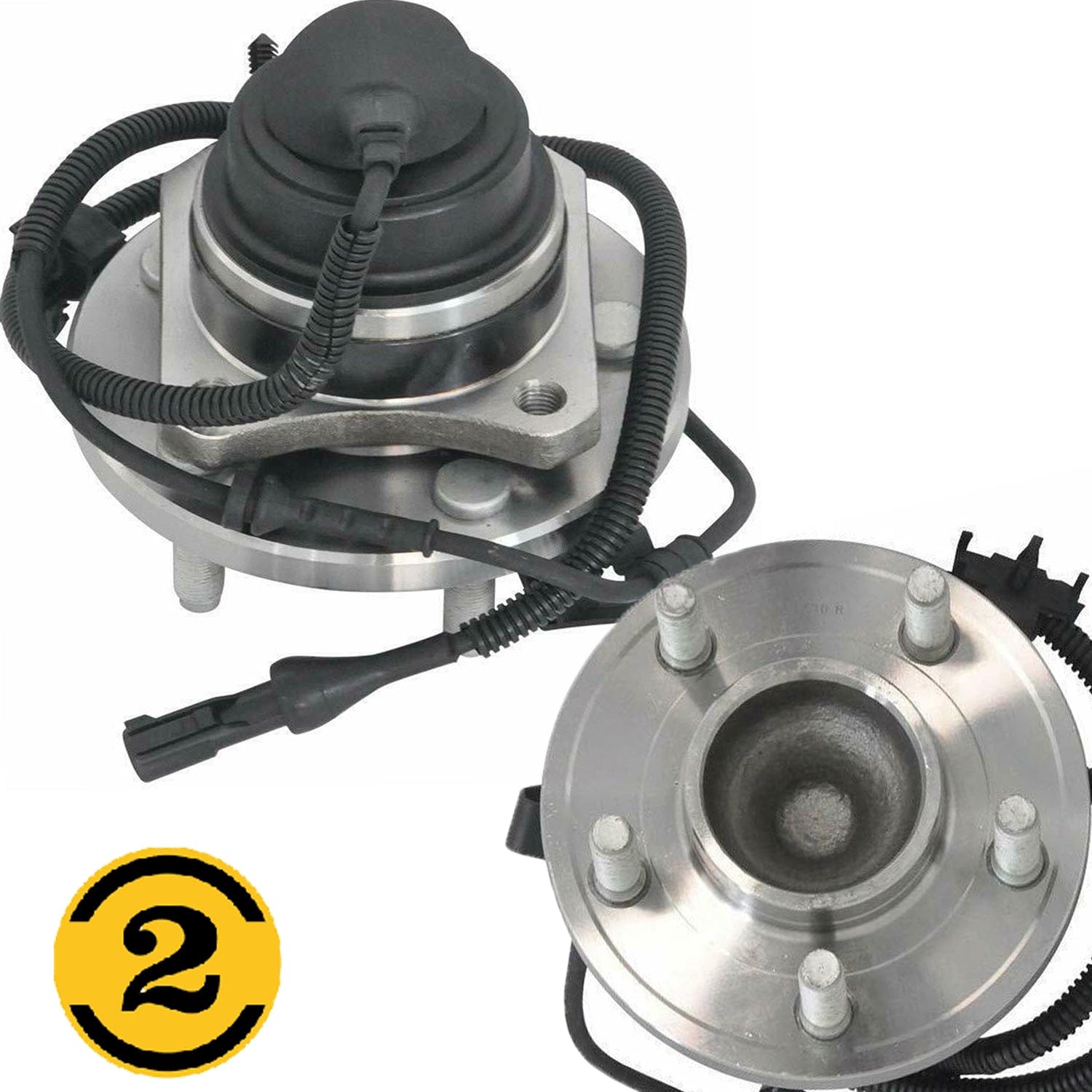

Front Wheel Bearing Fit Ford Crown Victoria, Mercury Grand Marquis, Lincoln Town Car Wheel Hub w/ABS, 5 Lugs RWD, 513230 (2 Pack)
Front Wheel Bearing Fit Ford Crown Victoria, Mercury Grand Marquis, Lincoln Town Car Wheel Hub w/ABS, 5 Lugs RWD, 513230 (2 Pack)
Fit:
2005 2006 2007 2008 2008 2010 2011 Ford Crown Victoria (Front, 2WD)
2005 2006 2007 2008 2008 2010 2011 Mercury Grand Marquis (Front, 2WD)
2005 2006 2007 2008 2008 2010 2011 Lincoln Town Car (Front, 2WD)
Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 49.21 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Non-Driven
Number Of Splines: 0
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 50
Total Hub Diameter (in): 5.94 Inch
Total Hub Diameter (mm): 151mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 5.57 Inch
Total Hub Height (mm): 141.5mm
Flange Diameter (in): 2.82 Inch
Flange Diameter (mm): 71.65mm
Flange Offset (in): 1.48 Inch
Flange Offset (mm): 37.5mm
Flange Shape: Round
Flange Bolt Size (in): 1.73 Inch
Flange Bolt Size (mm): 43.9mm
Flange Bolt Thread Size: 1/2-20 Inch
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.53 Inch
Hub Pilot Diameter (mm): 89.6mm
