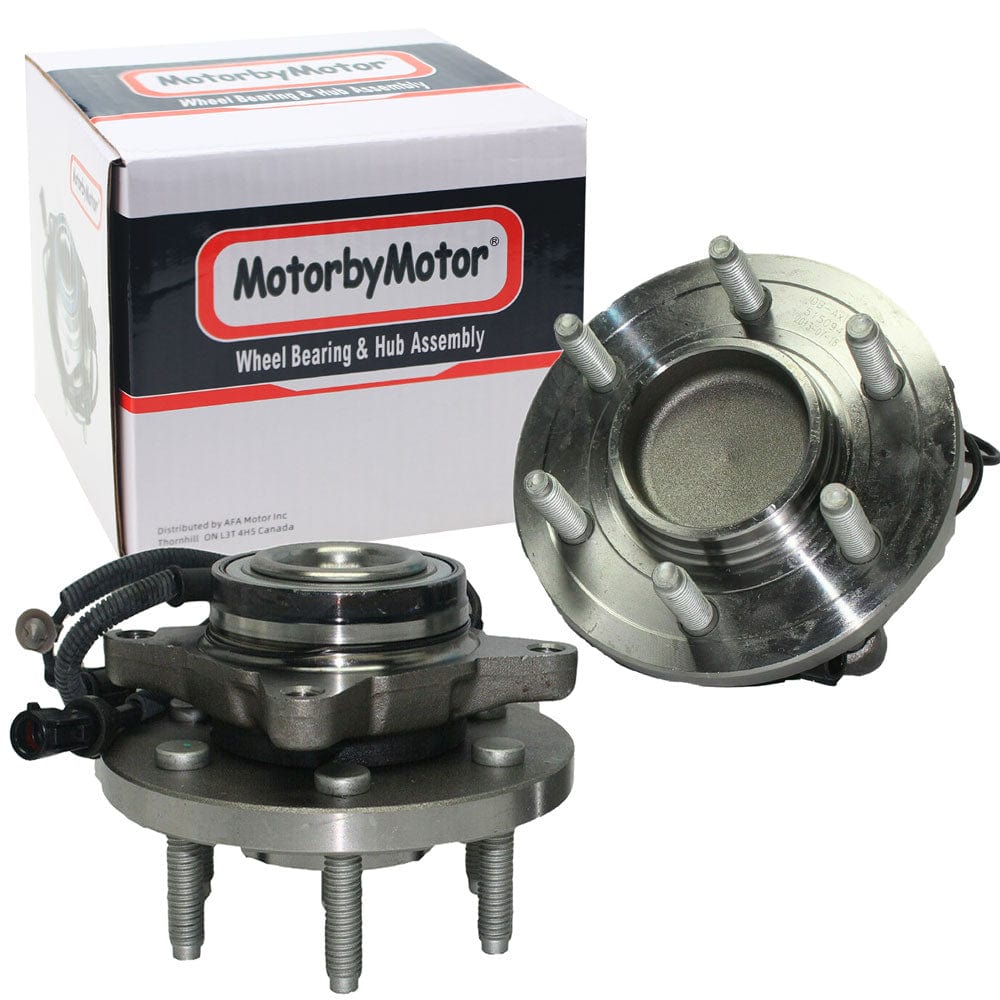

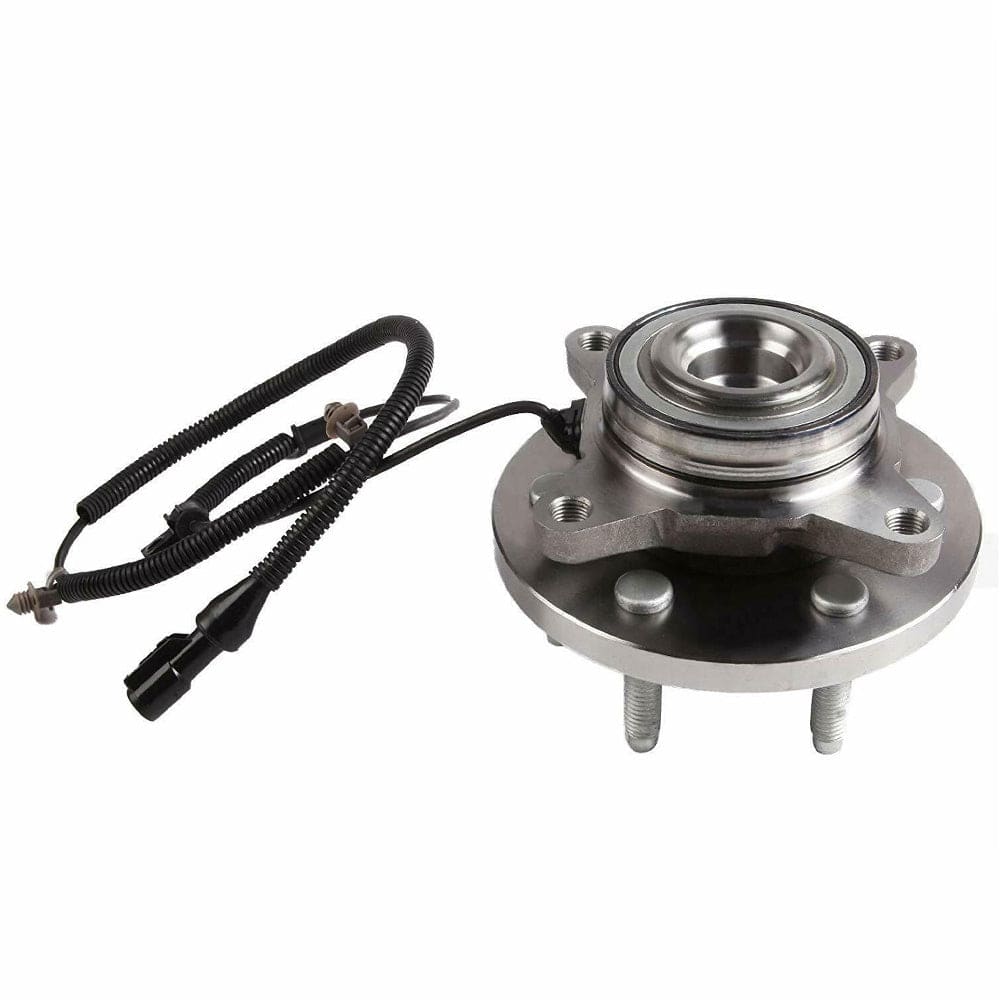

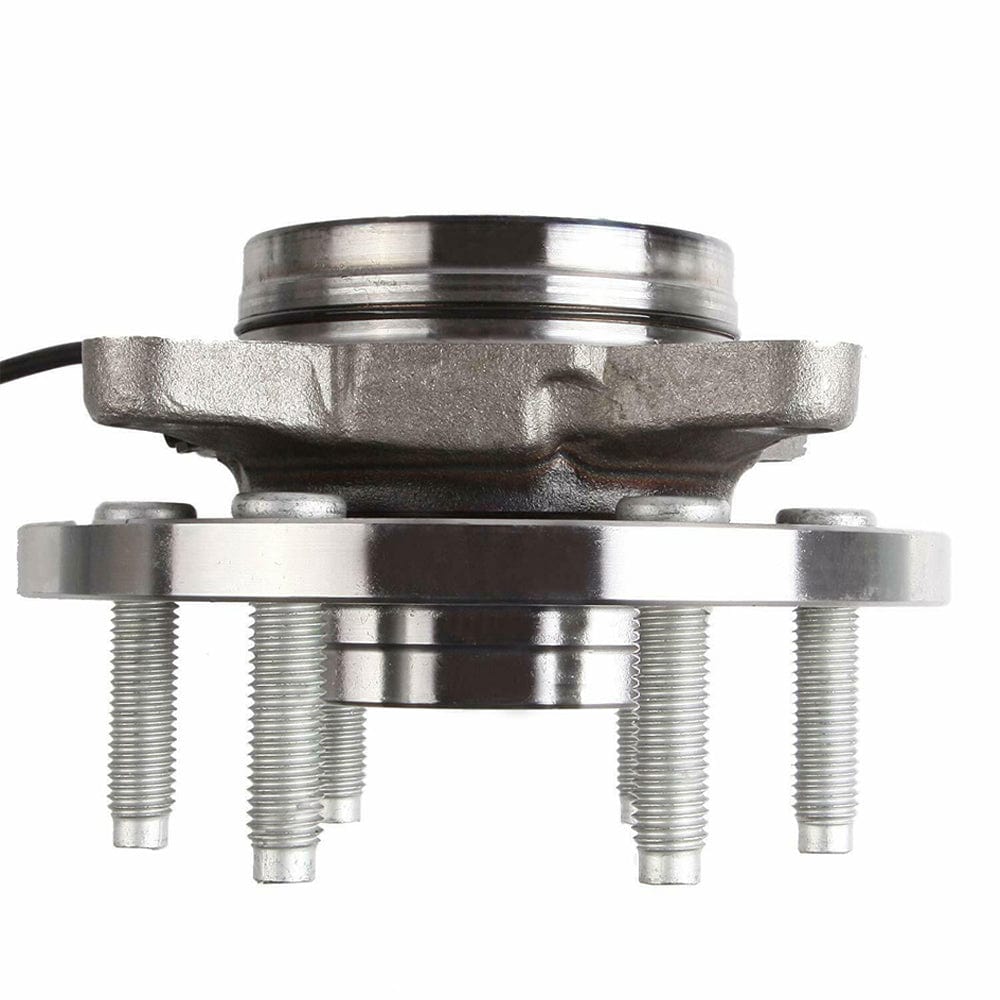

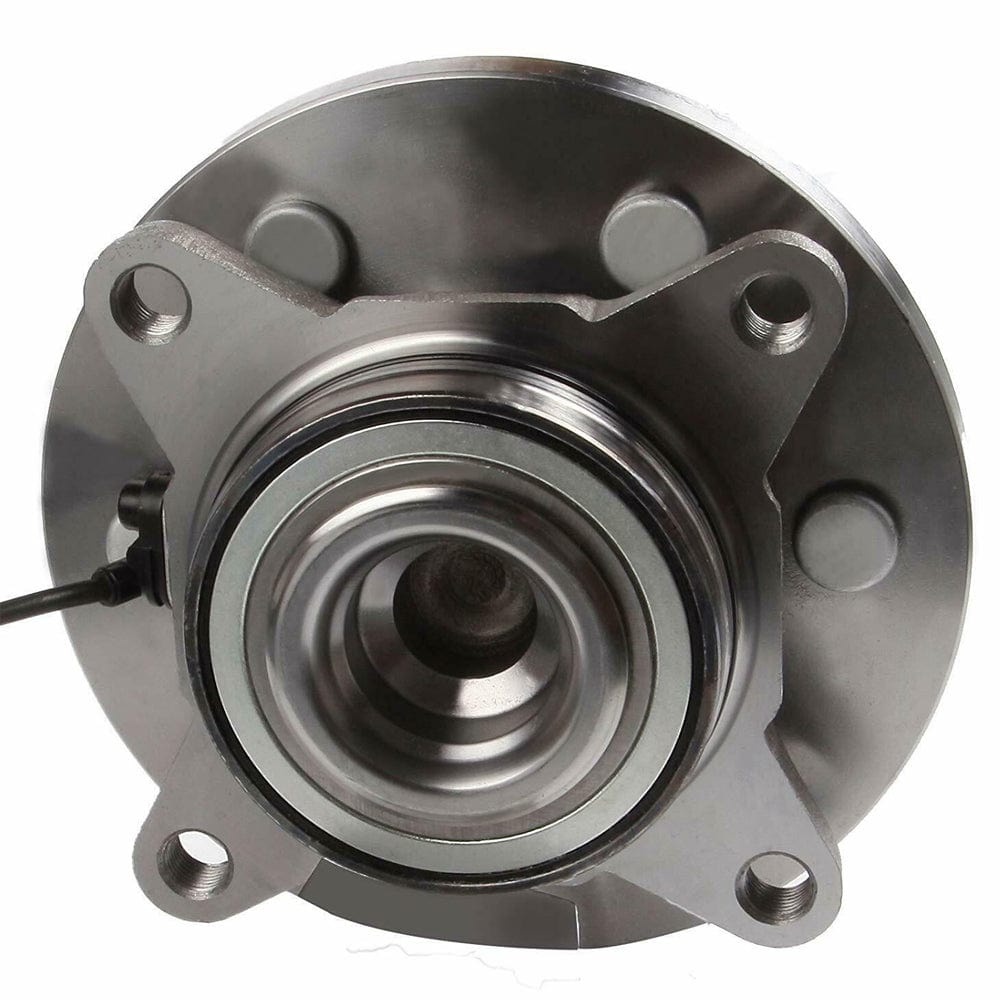

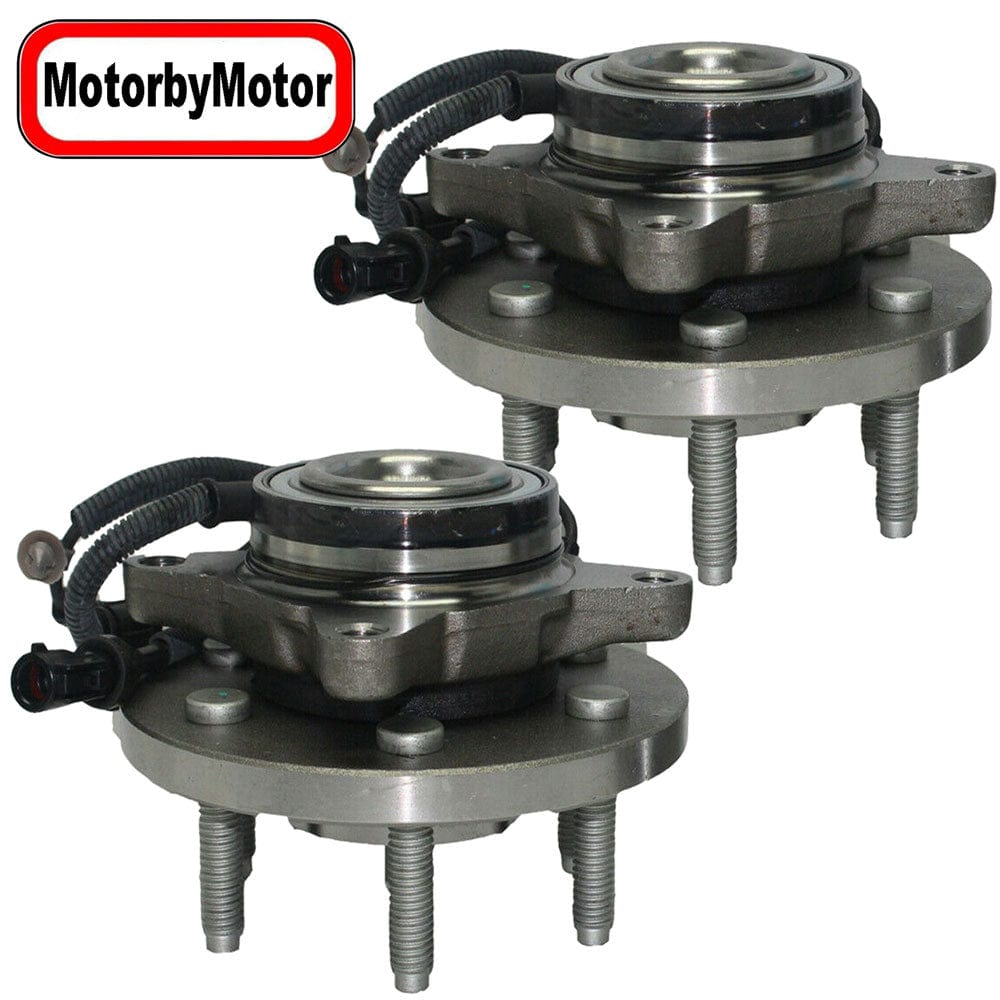

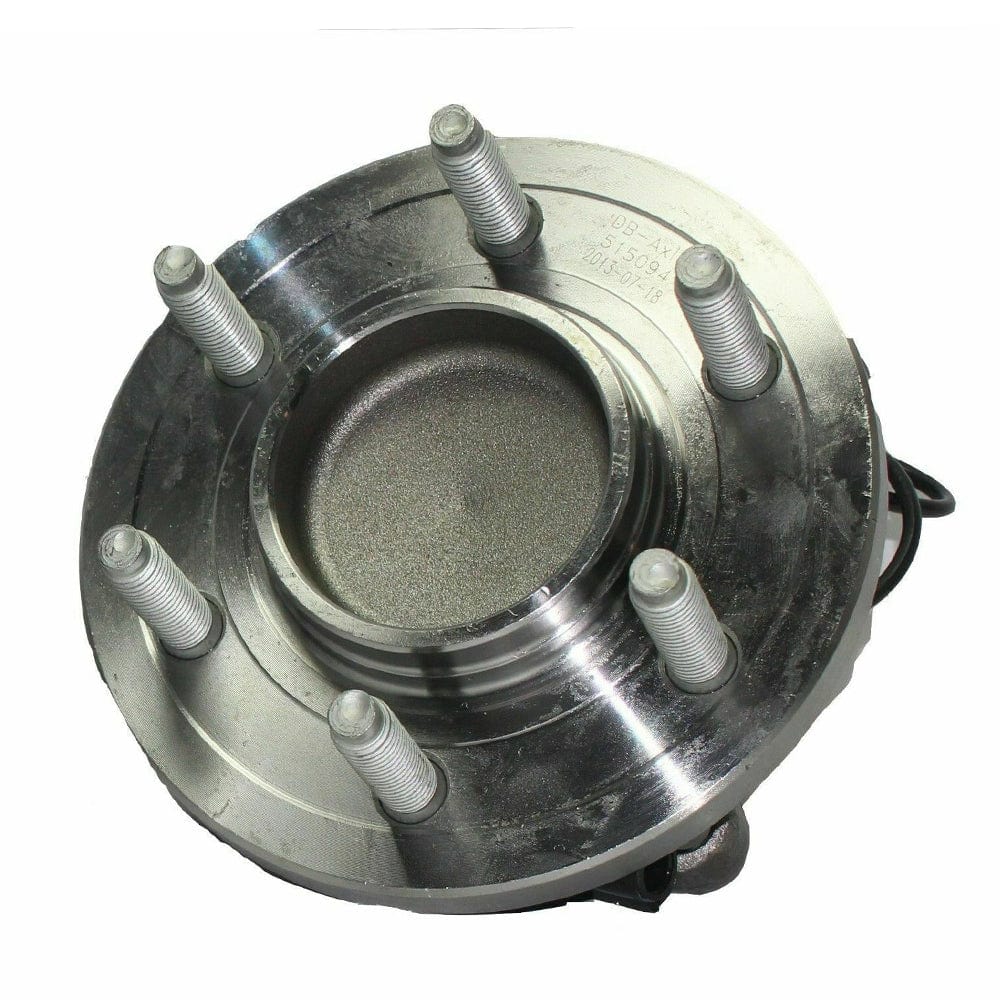

Front Wheel Bearing Fit 2007-2010 Ford Expedition Lincoln Navigator Wheel Hub w/ABS 6 Lugs 2WD RWD, 515094 (2 PACK)

Front Wheel Bearing Fit 2007-2010 Ford Expedition Lincoln Navigator Wheel Hub w/ABS 6 Lugs 2WD RWD, 515094 (2 PACK)

Fit

2007-2010 Ford Expedition (Front, 2WD)
2007-2010 Lincoln Navigator (Front, 2WD)

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: No
ABS Connector Shape: Round
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Non-Driven
Number Of Splines: 0
Total Hub Diameter (in): 7.20 Inch
Total Hub Diameter (mm): 183mm
Hub Centerbore Diameter (in): 5.31 Inch
Hub Centerbore Diameter (mm): 135mm
Total Hub Height (in): 4.78 Inch
Total Hub Height (mm): 121.5mm
Flange Diameter (in): 3.54 Inch
Flange Diameter (mm): 90mm
Flange Offset (in): 1.80 Inch
Flange Offset (mm): 45.6mm
Flange Shape: Round
Flange Bolt Size (in): 1.87 Inch
Flange Bolt Size (mm): 47.5mm
Flange Bolt Thread Size: M14-2.0
Material: Steel
Bearing Type: Tapered
?Hub Pilot Diameter (in): 3.91 Inch
Hub Pilot Diameter (mm): 99.3mm
