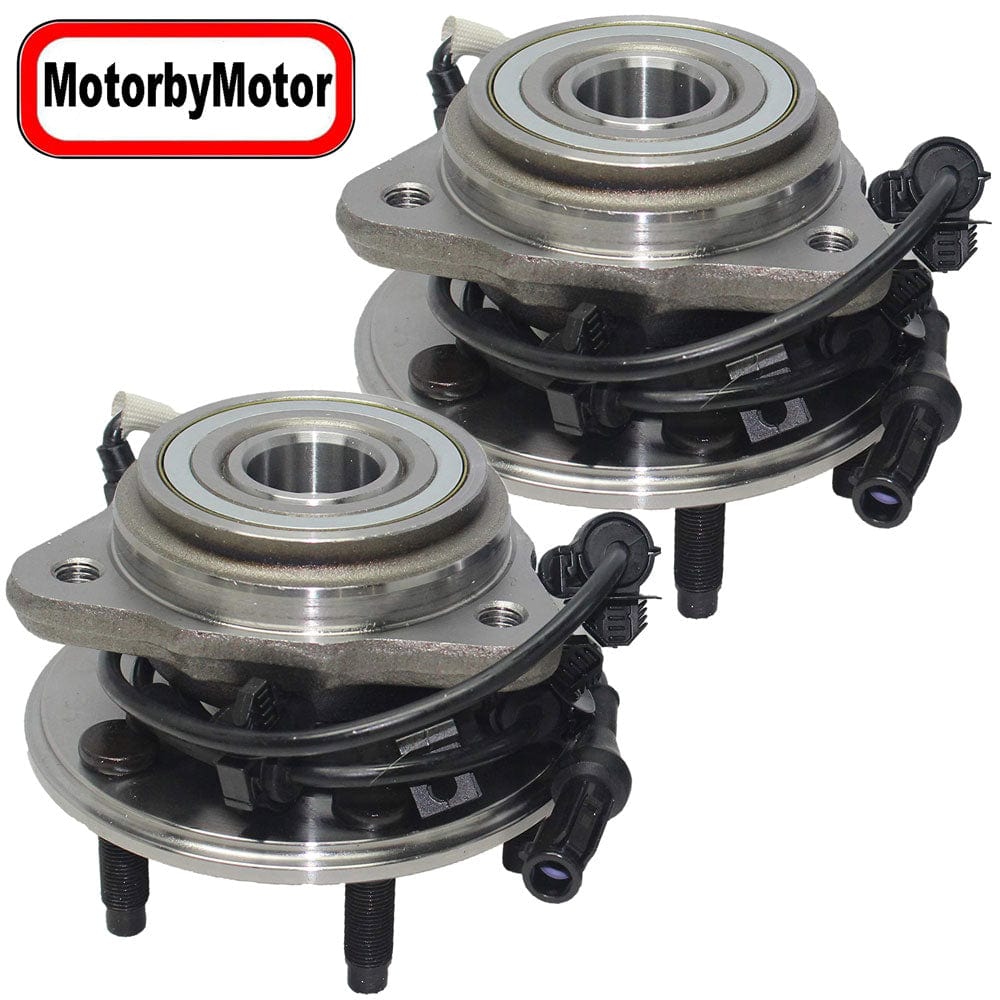

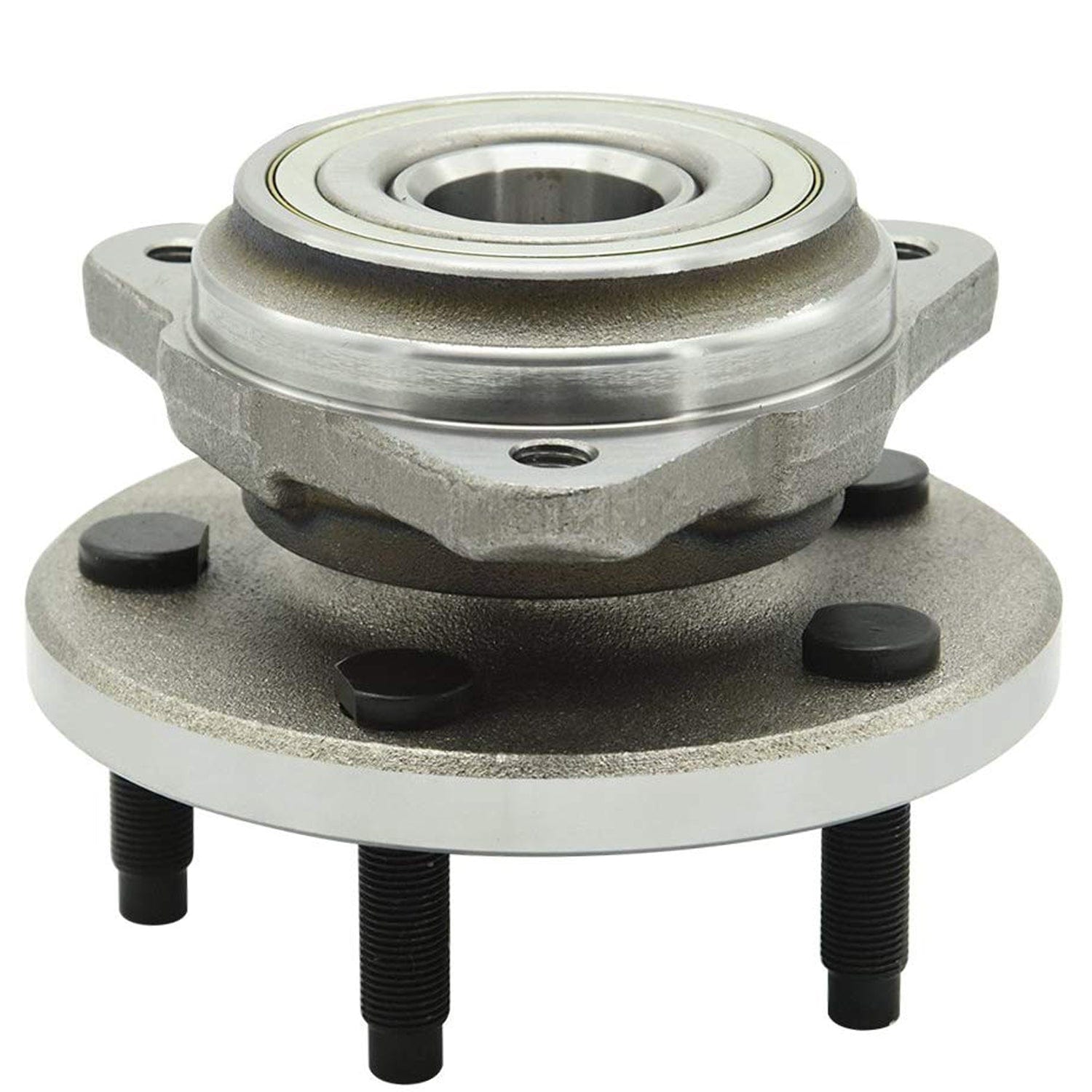

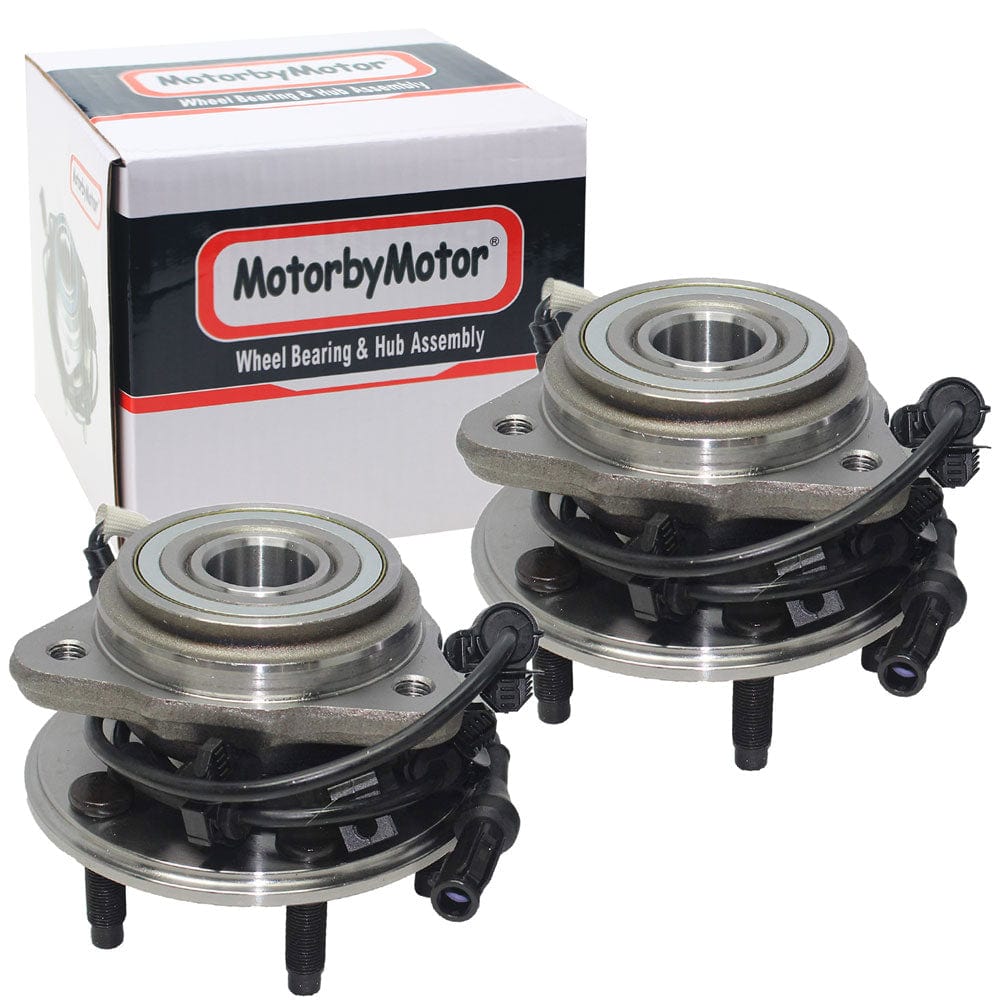

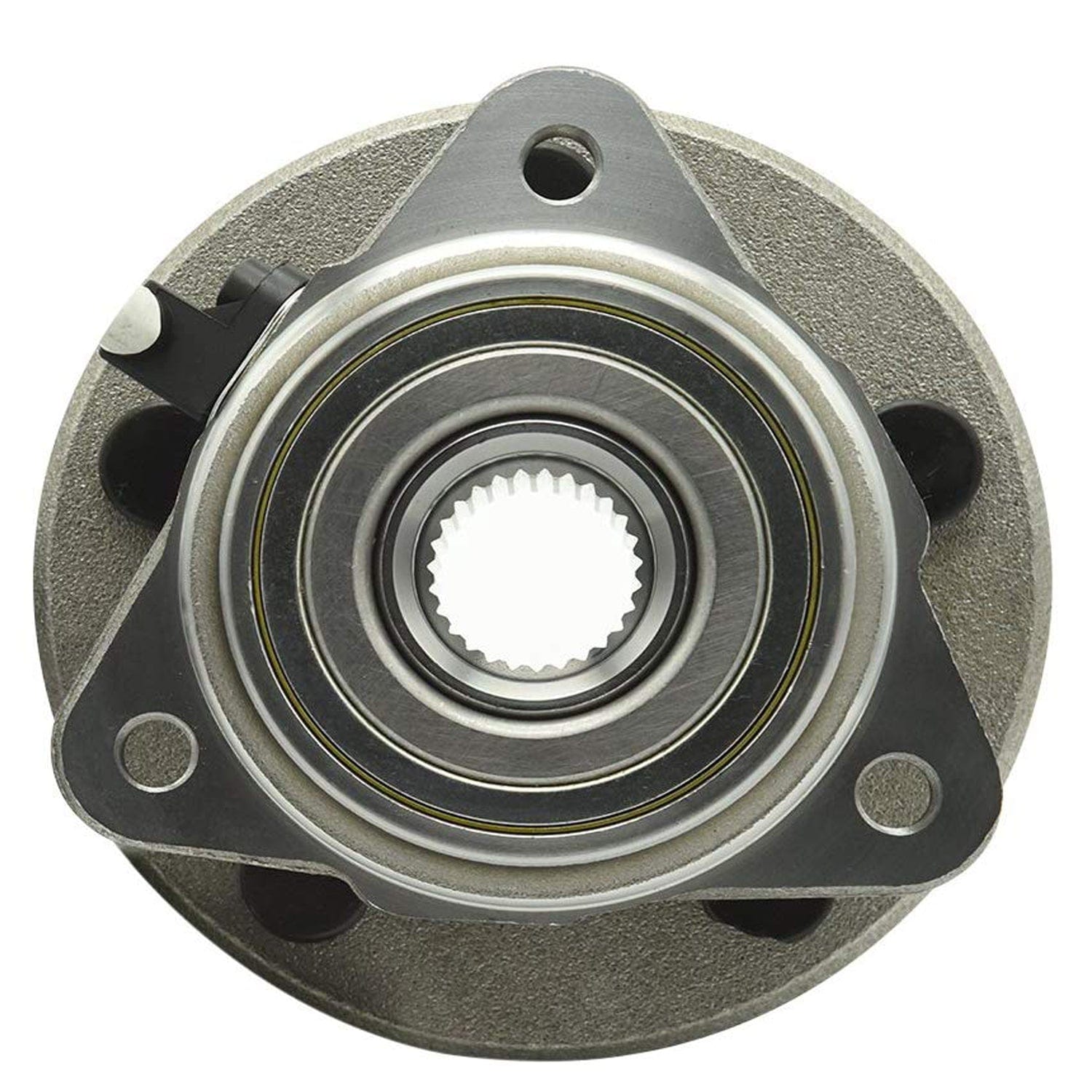

Front Wheel Bearing Fit Ford Ranger Explorer(Explorer Sport Trac), Mazda B4000 B3000, Mercury Mountaineer Wheel Hub w/ABS 5 Lugs, 4WD, 515051 (2 Pack)
Front Wheel Bearing Fit Ford Ranger Explorer(Explorer Sport Trac), Mazda B4000 B3000, Mercury Mountaineer Wheel Hub w/ABS 5 Lugs, 4WD, 515051 (2 Pack)
Fit
1995 1996 1997 1998 1999 2000 2001 Ford Explorer
2002 2003 2004 2005 2006 2007 2008 2009 Ford Ranger
2001 2002 2003 2004 2005 Ford Explorer Sport Trac
2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 Mazda B4000
2001 2002 Mazda B3000
1997 1998 1999 2000 2001 Mercury Mountaineer
Description:
Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
Wiring Harness Included: Yes
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
ABS Ring Type: Sensor
Number Of Mounting Bolts To Knuckle: 3
Number Of Splines: 27
Number Of ABS Sensor Ring Teeth: 54
Total Hub Diameter (mm): 149.4mm
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (mm): 121.2mm
Flange Diameter (mm): 71.8mm
Flange Offset (mm): 56mm
Total Hub Diameter (in): 5.88 Inch
Hub Centerbore Diameter (in): 4.5 Inch
Total Hub Height (in): 4.77 Inch
Flange Diameter (in): 2.83 Inch
Flange Offset (in): 2.20 Inch
Flange Bolt Size (in): 1.48 Inch
Flange Bolt Thread Size: 1/2-20 Inch
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.94 Inch
Hub Pilot Diameter (mm): 100mm
ABS Connector Shape: Round
Flange Bolt Size (mm): 37.6mm
Material: Steel
