Ford Excursion Front Wheel Bearing Hub Assembly 2000-2002 515020
Regular price
$61.95
Regular price
$71.95
-14%
Sale price
$61.95

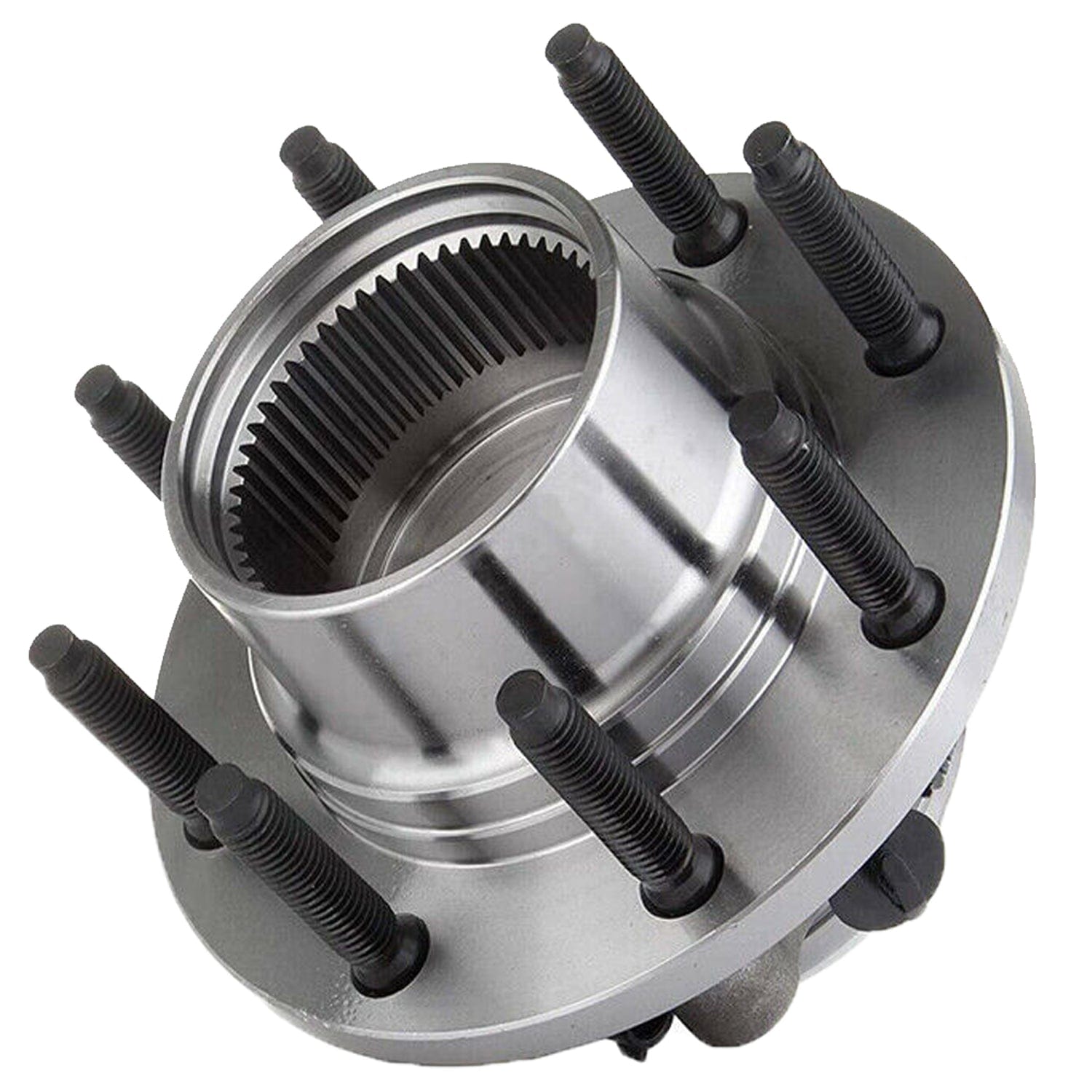

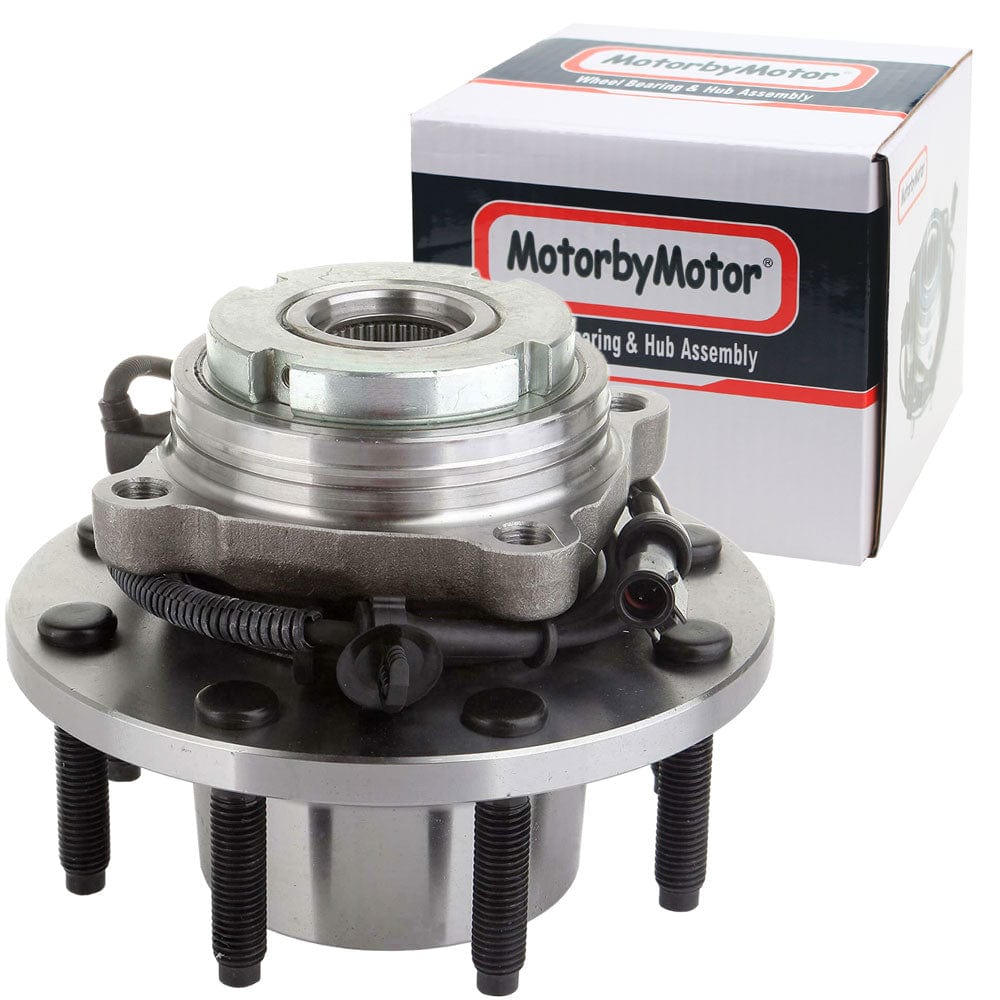

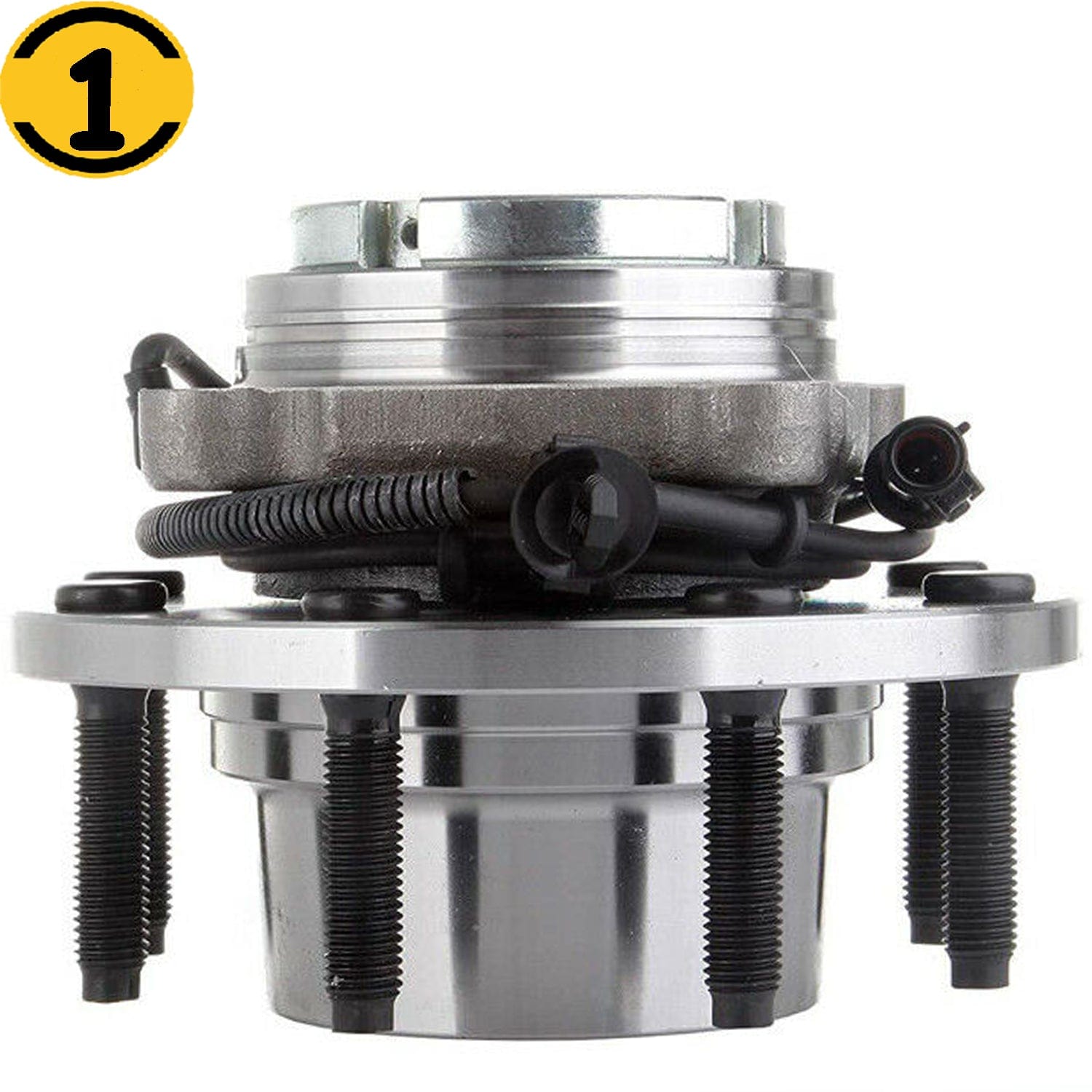

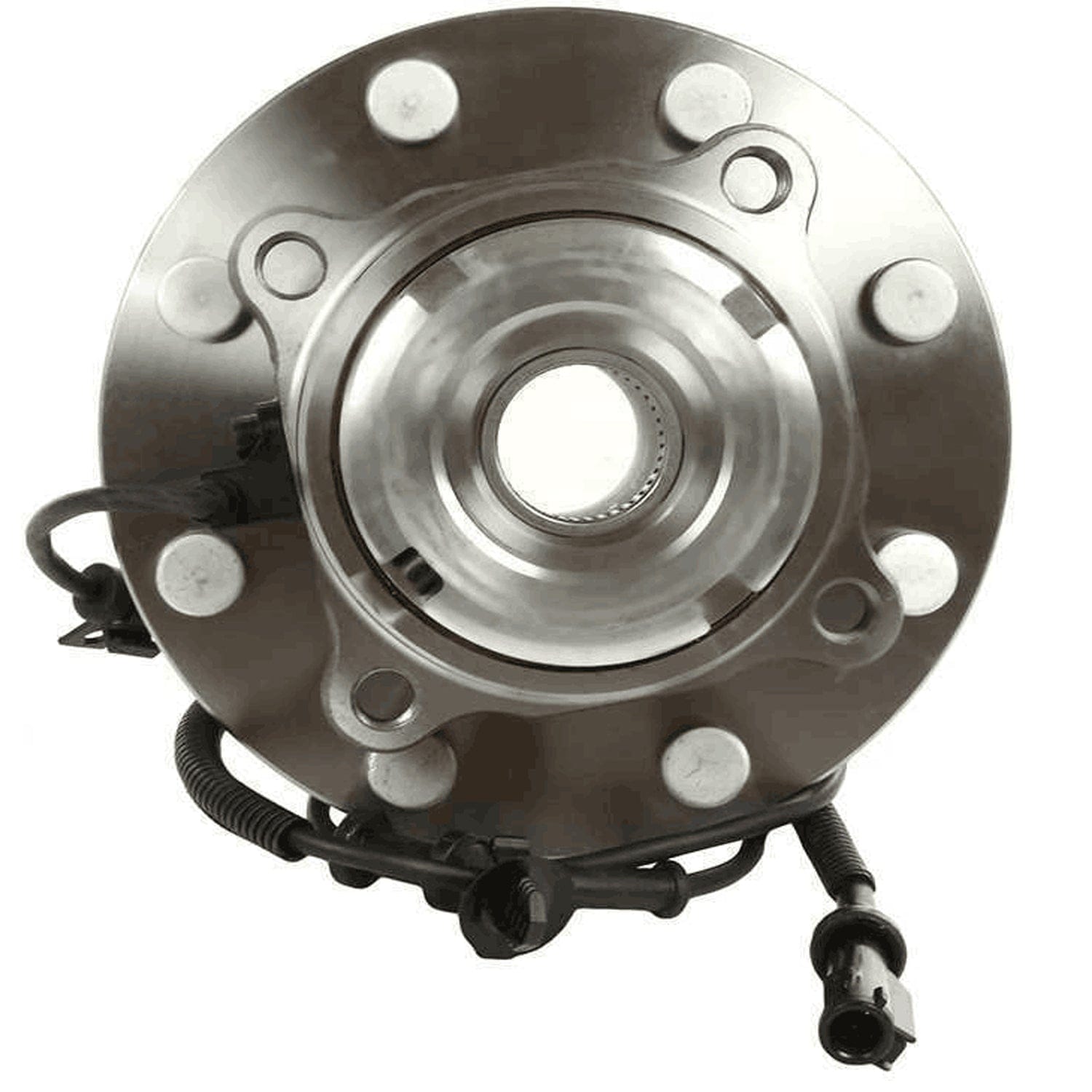

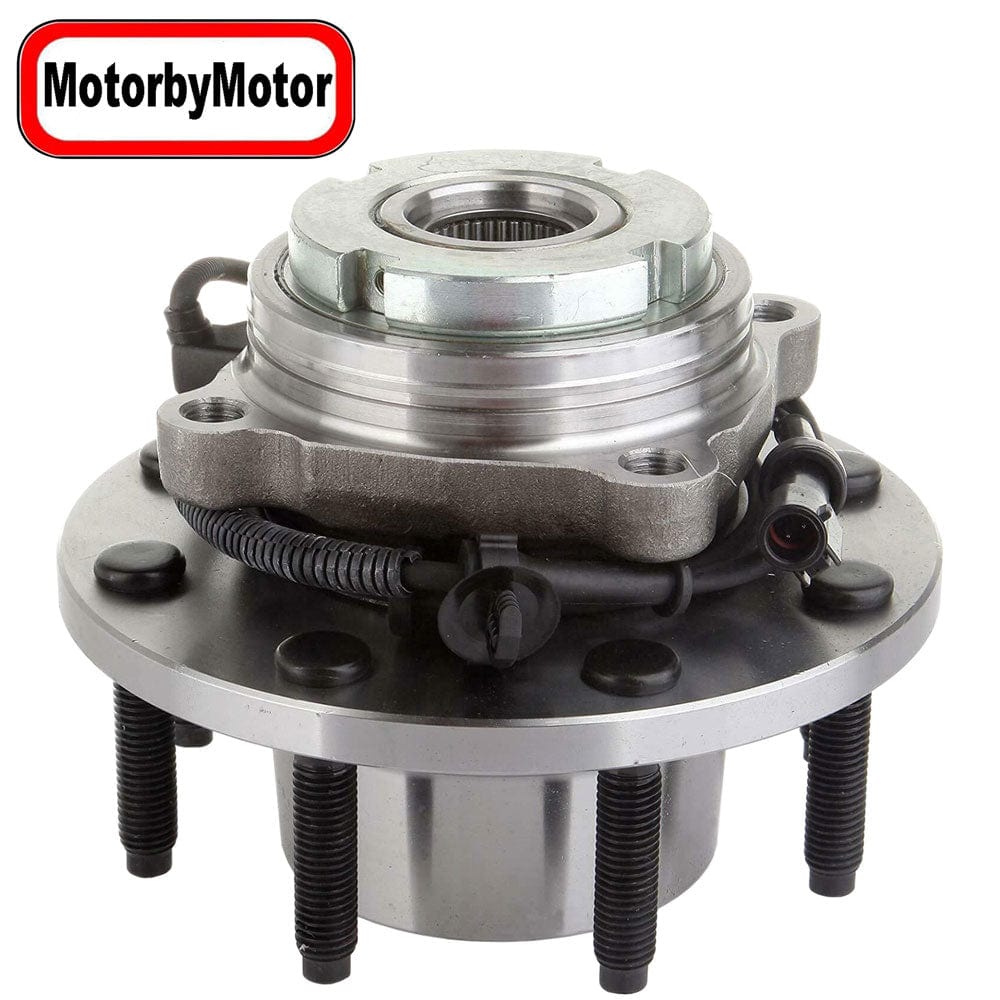

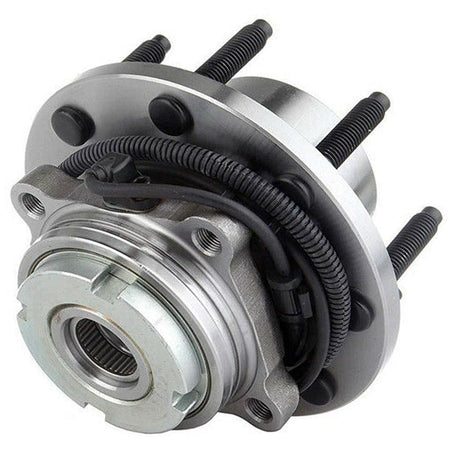

Motorbymotor 515020 front wheel bearing hub assembly 4wd
Specifications:
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter (IN) | 6.690 |
| Bolt Circle Diameter (MM) | 170.000 |
| Brake Pilot Diameter (MM) | 4.920 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter (MM) | 7.990 |
| Flange Offset (MM) | 2.160 |
| Flange Shape | Modified Circle |
| Hub Pilot Diameter (MM) | 3.330 |
| Spline Quantity | 55 |
| Wheel Pilot Diameter (MM) | 4.920 |
| Wheel Stud Quantity | 8 |
Fitment for Motorbymotor - 515020
**with ABS - 4x4 ONLY**
**Single Rear Wheel - Coarse Thread**
Coarse Threaded Lugs on Bolts - Look at the bolts the Lug Nuts ride on....they must be Coarse Threaded!
Manufacturing Date After 03/22/1999
| MAKE | MODEL | YEAR RANGE | SPECIFIC DETAILS |
| FORD | F-350 SUPER DUTY | 1999 |
SRW; (Coarse Threads); From 03/22/99 - 4x4 Only; w/ 4-Wheel ABS |
| FORD | F-350 SUPER DUTY | 2000 2001 2002 2003 2004 | SINGLE REAR WHEEL, COARSE THREADS - 4x4 ; w/ 4-Wheel ABS |
| FORD | F-250 SUPER DUTY | 1999 2000 2001 2002 2003 2004 |
SRW; (Coarse Threads); From 03/22/99 - 4x4 Only; w/ 4-Wheel ABS |
| FORD | EXCURSION | 2000 2001 2002 2003 2004 2005 | COARSE THREADS - 4x4 ; w/ 4-Wheel ABS |
