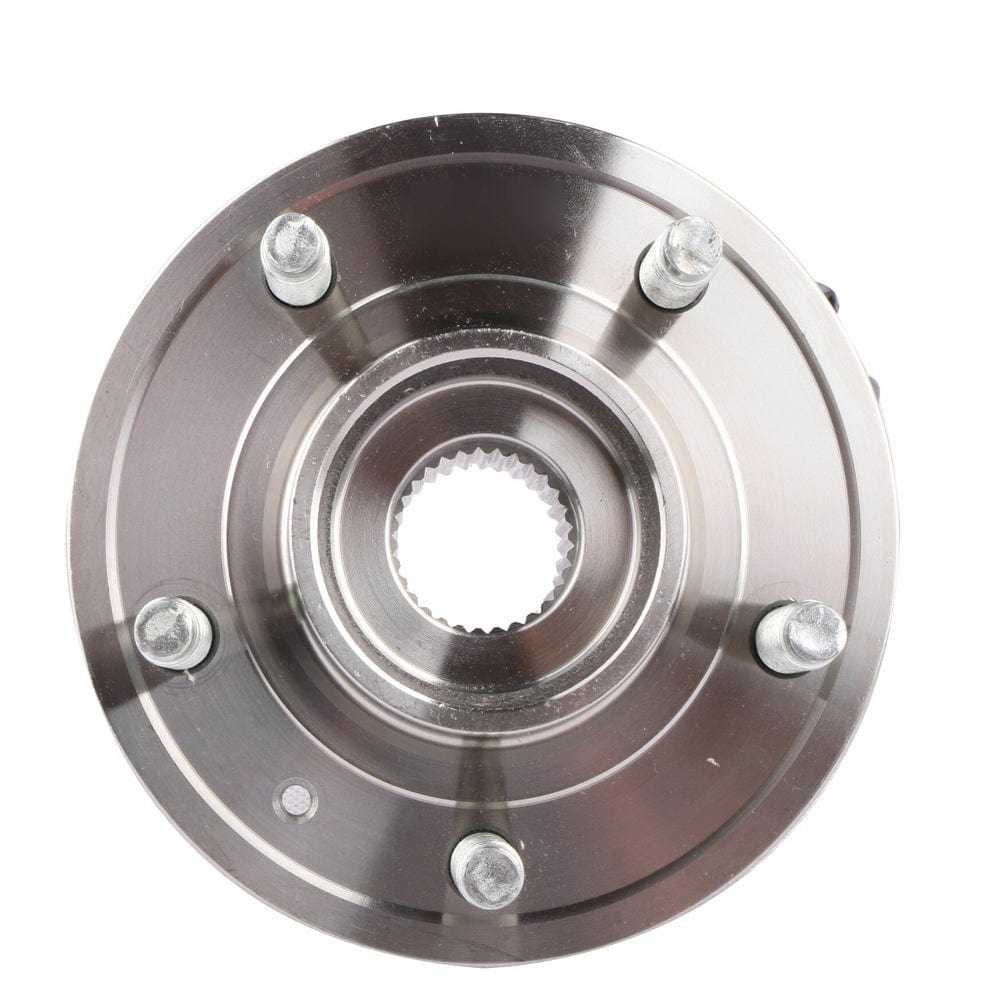

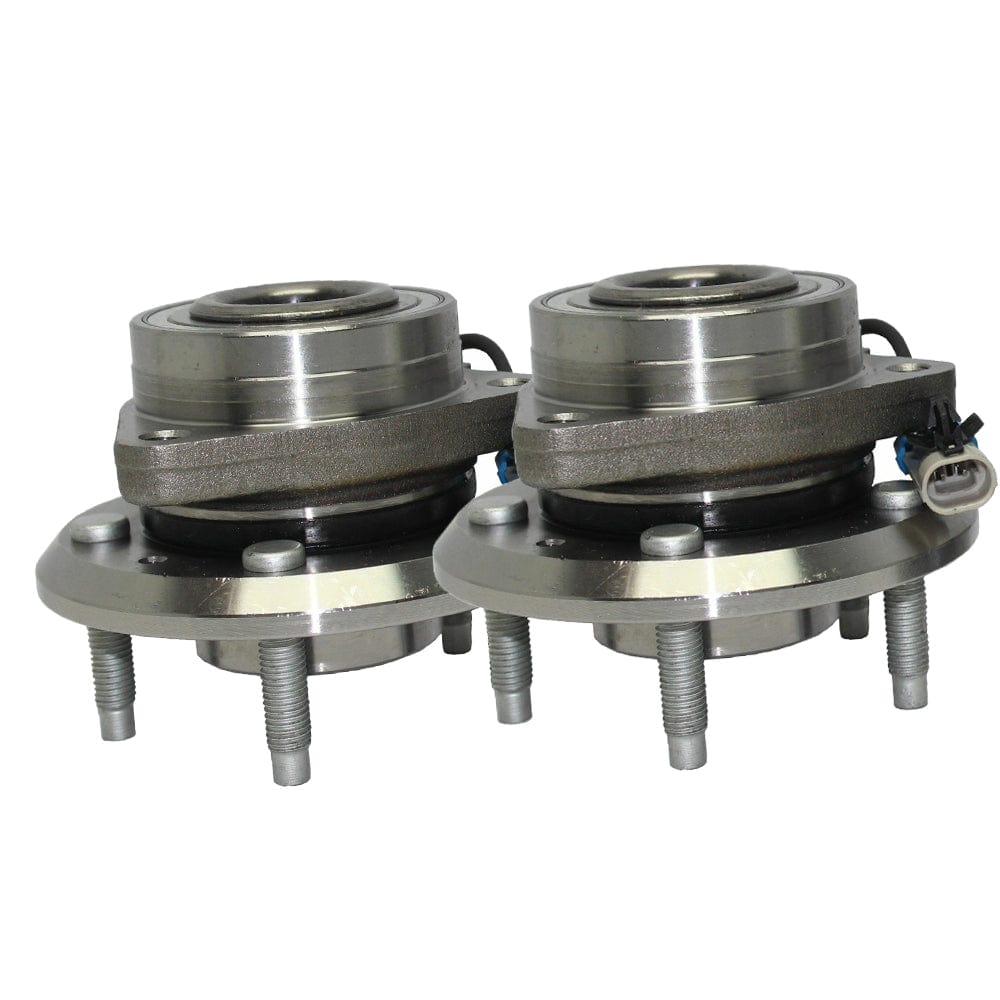

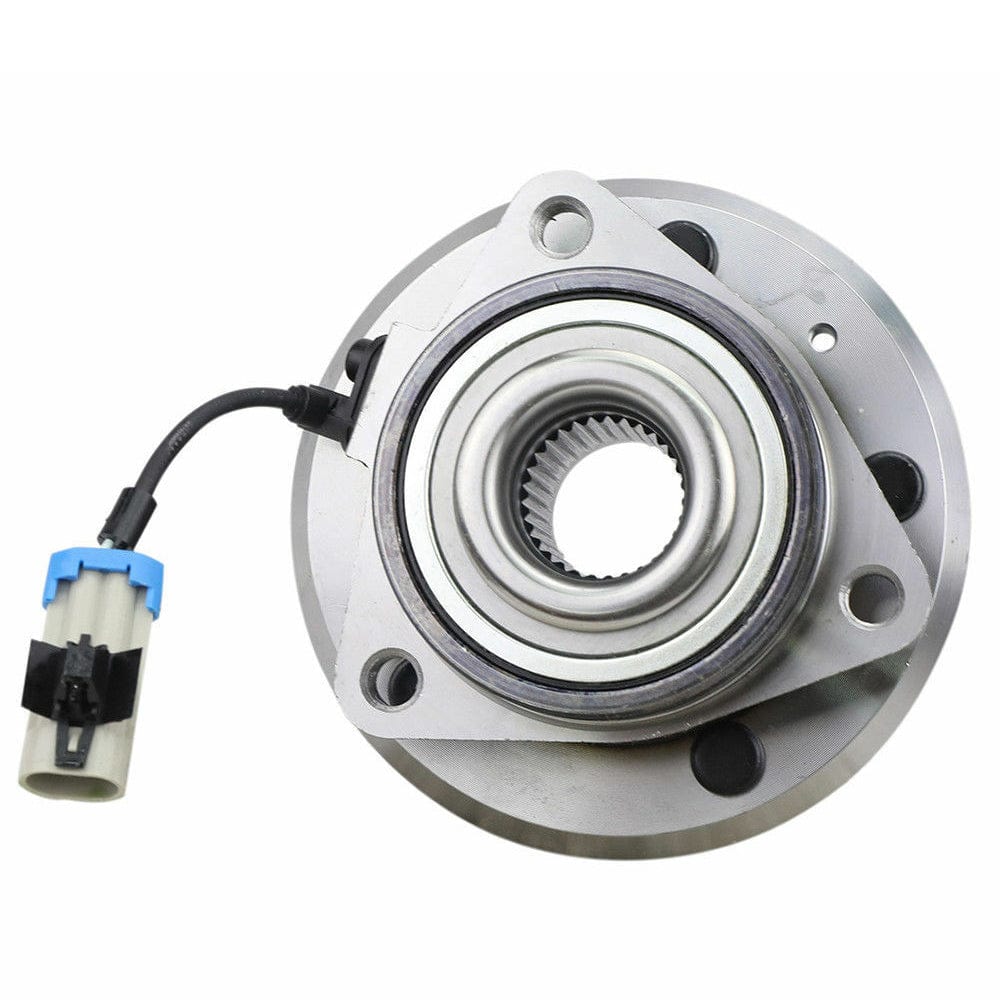

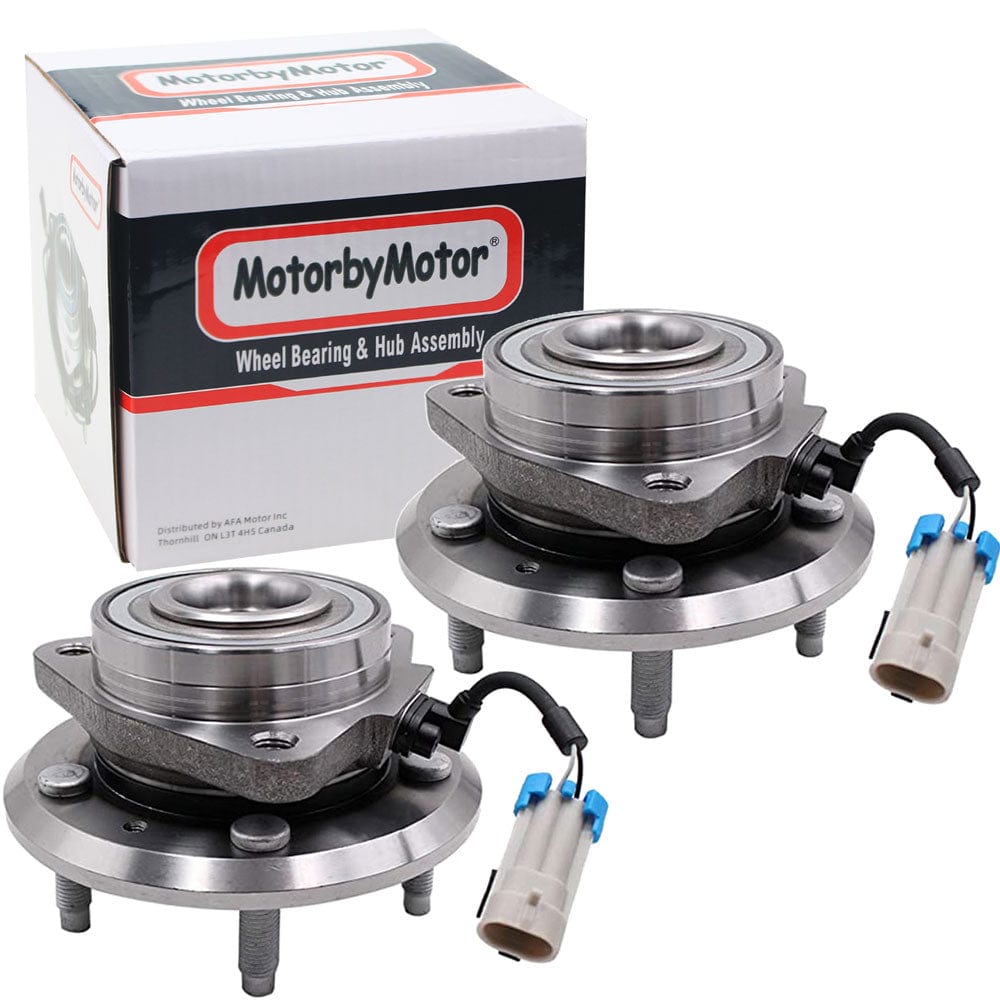

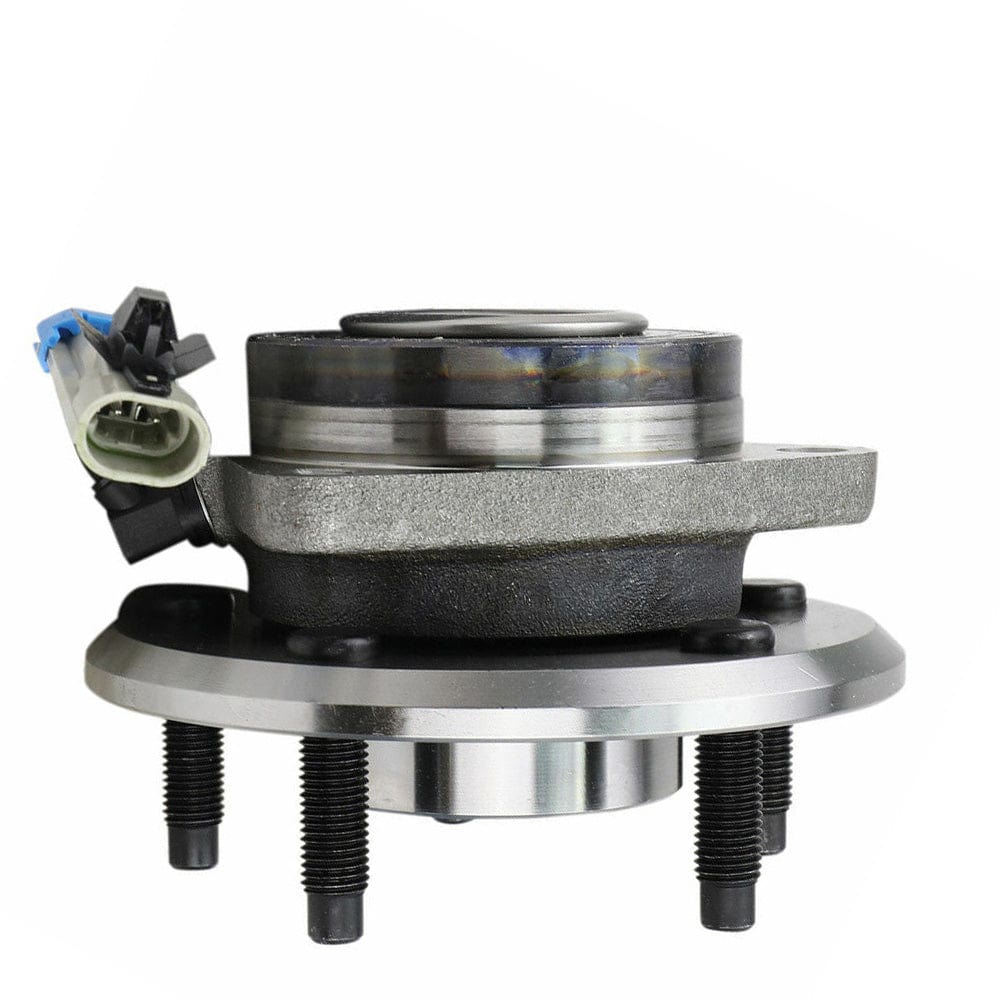

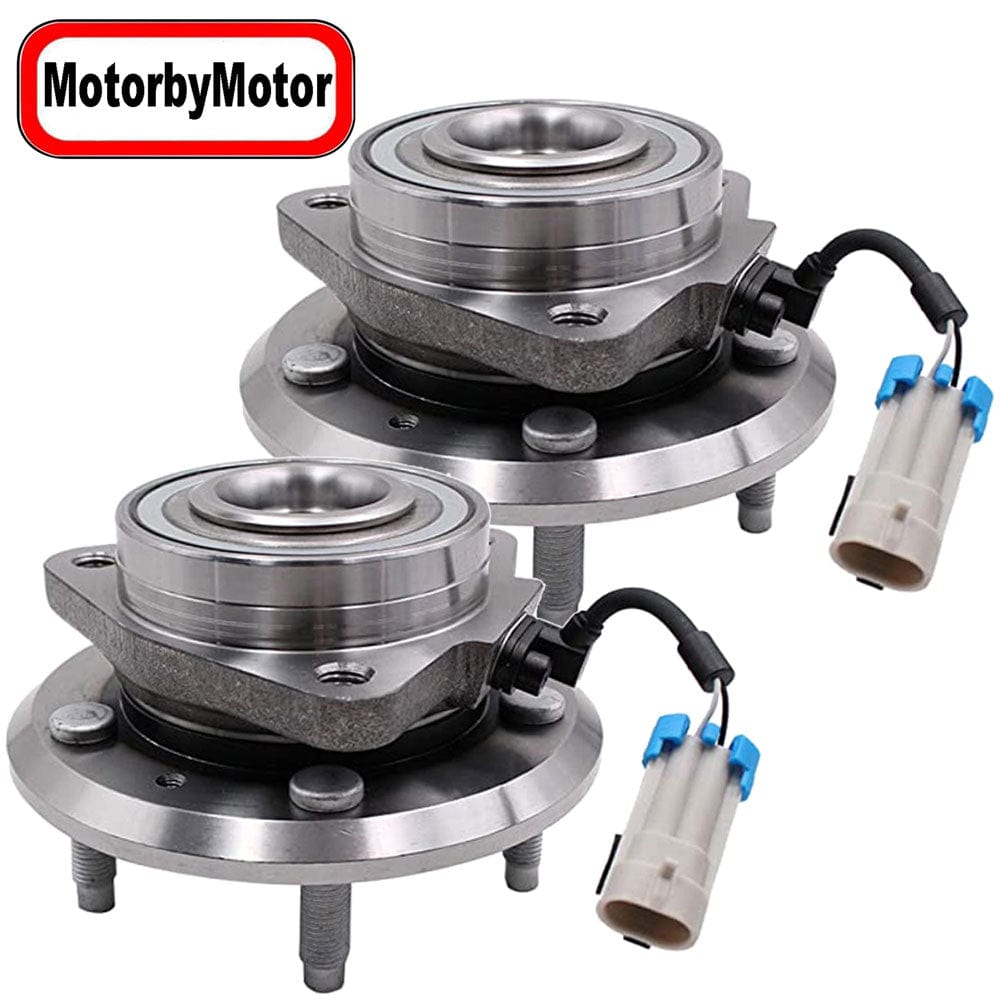

Front Wheel Bearing fit Chevy Equinox Pontiac Torrent Suzuki , Saturn Vue, Chevy Captiva Wheel Hub 5 Lugs, w/ABS, 513276 (2 PACK)
Front Wheel Bearing fit Chevy Equinox Pontiac Torrent Suzuki , Saturn Vue, Chevy Captiva Wheel Hub 5 Lugs, w/ABS, 513276 (2 PACK)
Fit:
2007 2008 2009 Chevrolet Equinox
2007 2008 2009 Pontiac Torrent
2007 2008 2009 Suzuki XL-7
2008 2009 2010 Saturn Vue
2012 2013 2014 2015 Chevrolet Captiva Sport
Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes

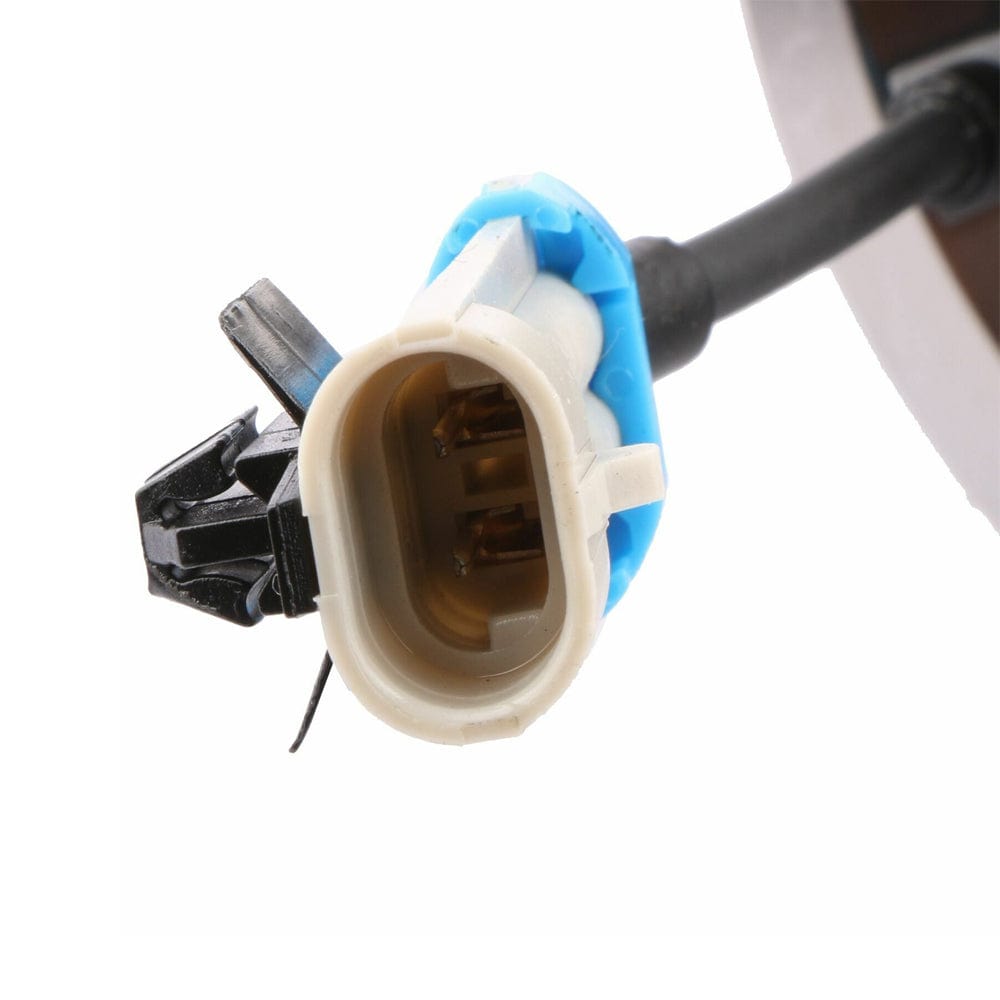

ABS Connector Shape: Oval
Wiring Harness Included: Yes
Wiring Harness Length (in): 5.51 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 47
Total Hub Diameter (in): 5.94 Inch
Total Hub Diameter (mm): 151mm
Hub Centerbore Diameter (in): 4.53 Inch
Hub Centerbore Diameter (mm): 115mm
Total Hub Height (in): 4.09 Inch
Total Hub Height (mm): 104mm
Flange Diameter (in): 2.78 Inch
Flange Diameter (mm): 70.6mm
Flange Offset (in): 1.65 Inch
Flange Offset (mm): 42mm
Flange Shape: Round
Flange Bolt Size (in): 1.44 Inch
Flange Bolt Size (mm): 36.6mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.59 Inch
Hub Pilot Diameter (mm): 91.15mm
