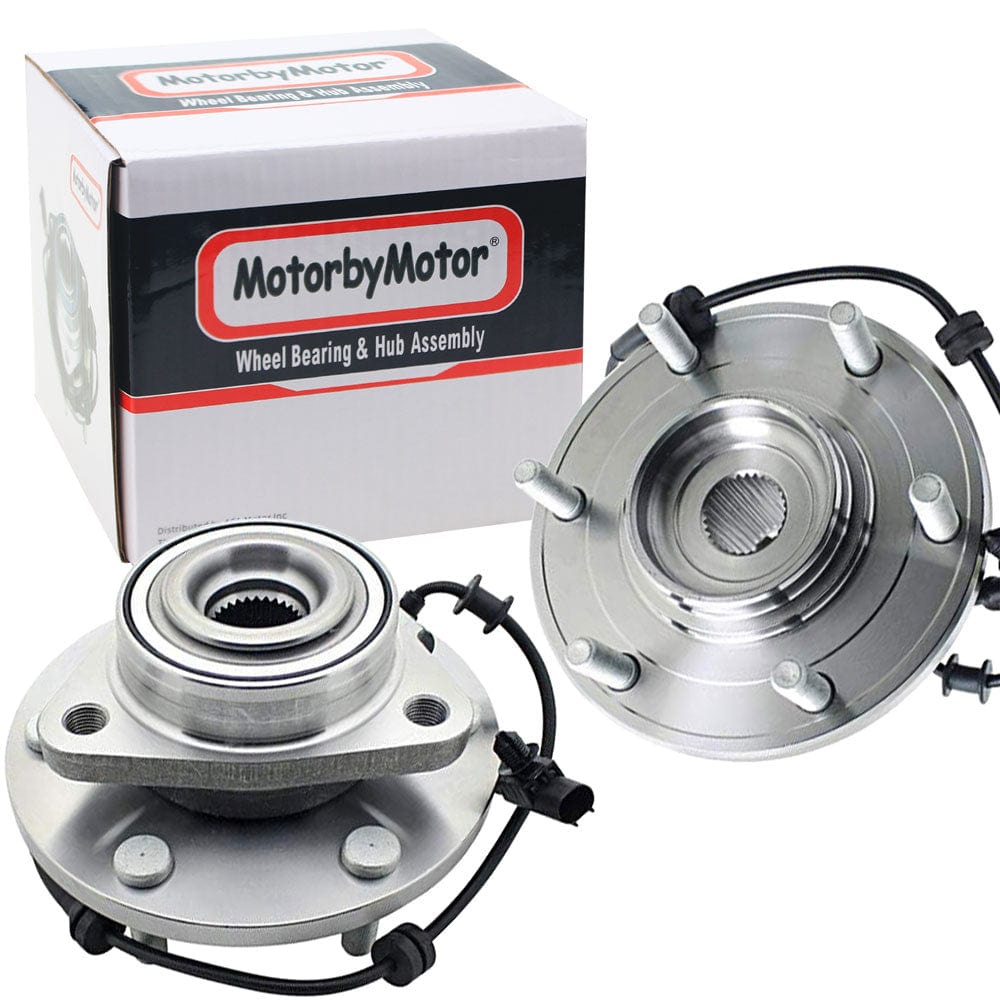

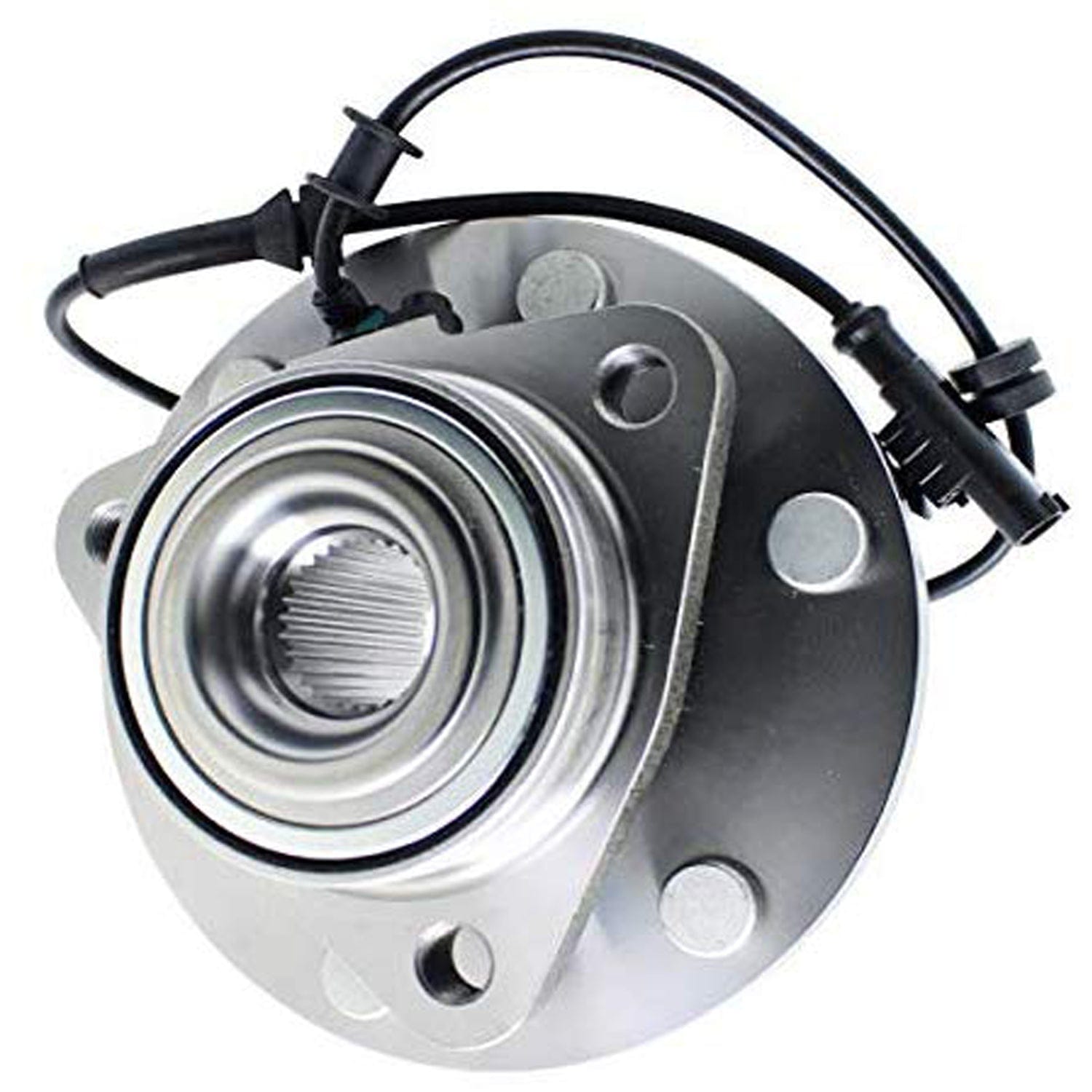

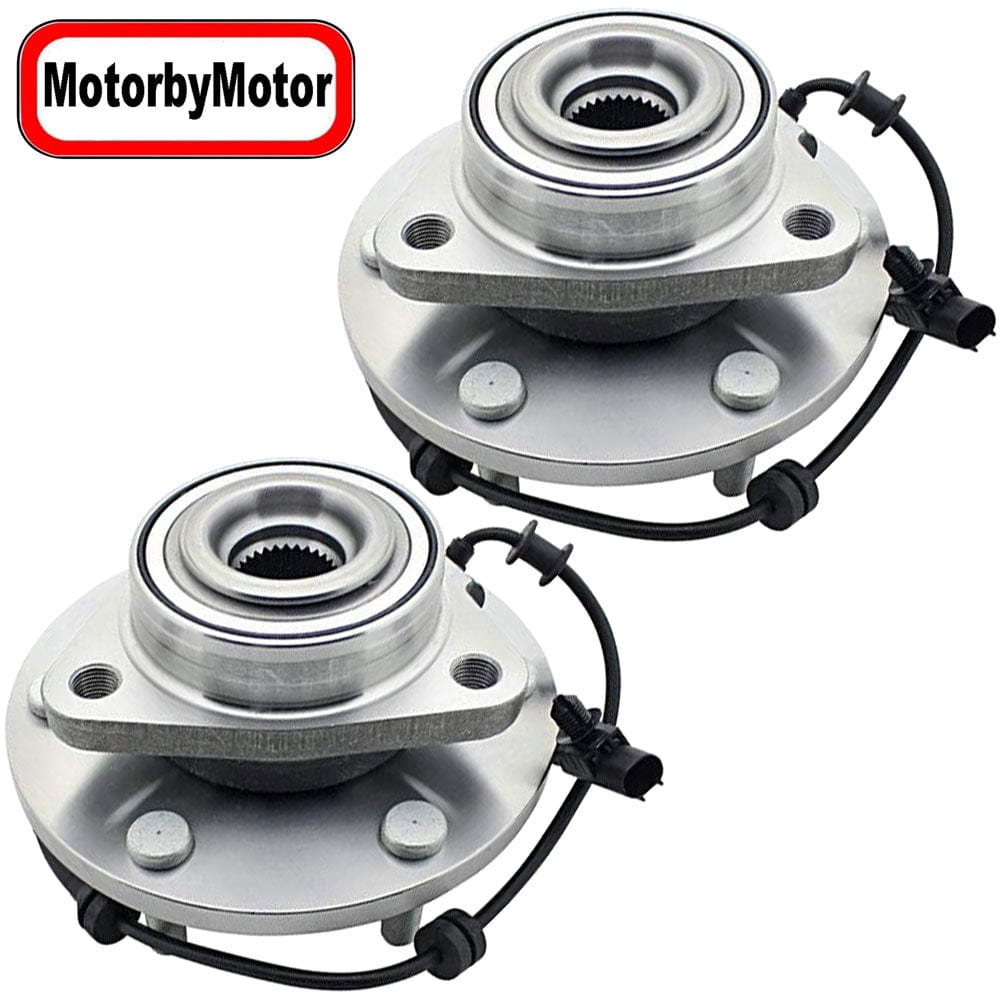

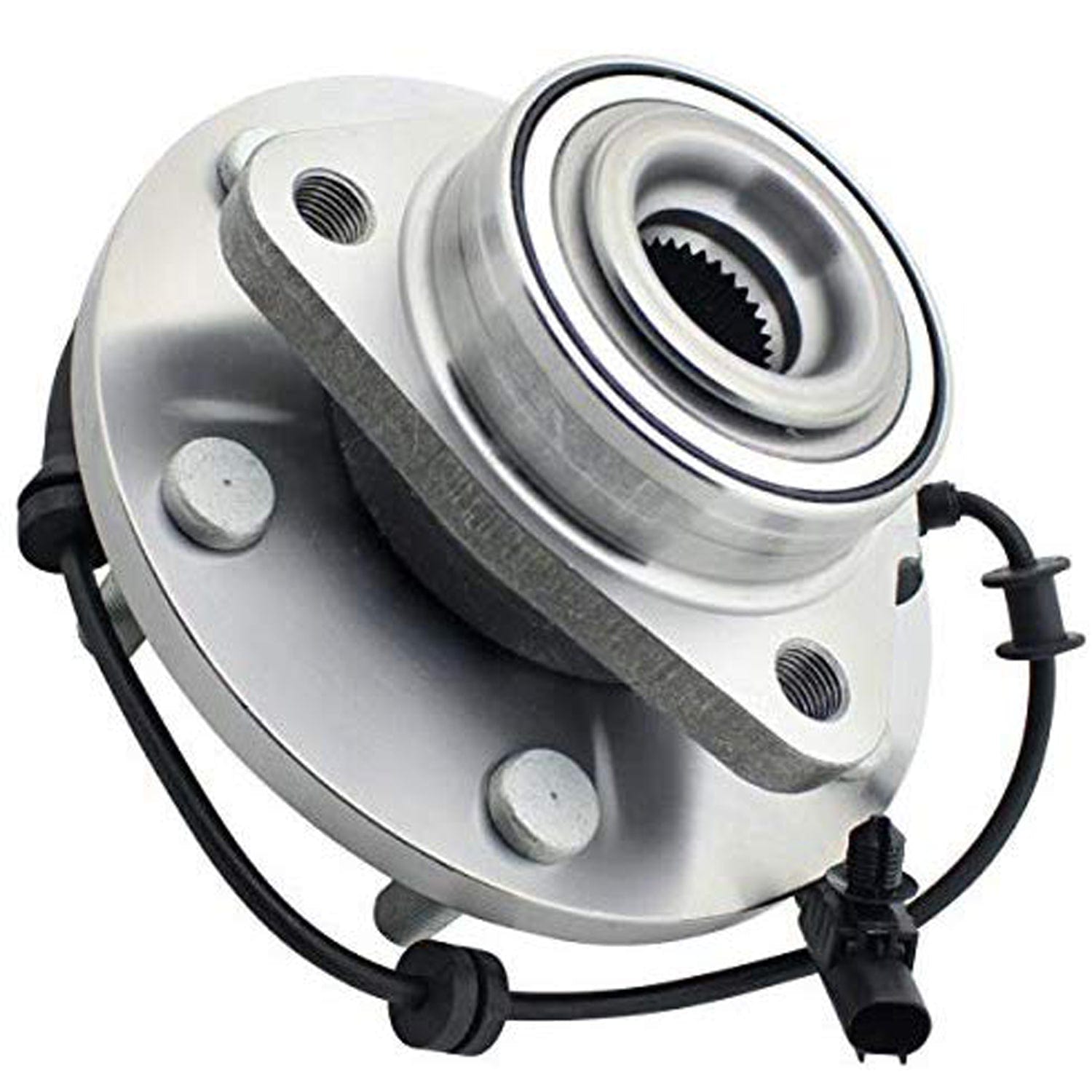

Front Wheel Bearing Fit Nissan Armada, Nissan Titan 2012-2015 Wheel Hub w/ABS 6 Lugs, RWD, 515156 (2 Pack)

Front Wheel Bearing Fit Nissan Armada, Nissan Titan 2012-2015 Wheel Hub w/ABS 6 Lugs, RWD, 515156 (2 Pack)

Fit
2012 2013 2014 2015 Nissan Armada(Front, RWD)
2012 2013 2014 2015 Nissan Titan(Front, RWD)

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
Wiring Harness Included: Yes
Number Of Lug Bolts Included: 6
Driven Or Non-Driven: Driven
ABS Ring Type: Sensor
ABS Connector Shape: Oval
Number Of Mounting Bolts To Knuckle: 4
Number Of Splines: 29
Number Of ABS Sensor Ring Teeth: 54
Total Hub Diameter (mm): 171mm
Hub Centerbore Diameter (mm): 139.7mm
Total Hub Height (mm): 107.1mm
Flange Diameter (mm): 90mm
Flange Offset (mm): 45.5mm
Total Hub Diameter (in): 6.73 Inch
Hub Centerbore Diameter (in): 5.5 Inch
Total Hub Height (in): 4.22 Inch
Flange Diameter (in): 3.54 Inch
Flange Offset (in): 1.79 Inch
Flange Bolt Size (mm): 34mm
Flange Bolt Size (in): 1.34 Inch
Hub Pilot Diameter (mm): 89mm
Hub Pilot Diameter (in): 3.50 Inch
Flange Bolt Thread Size: M12-1.25
Bearing Type: Tapered
Flange Shape: Round
Material: Steel
