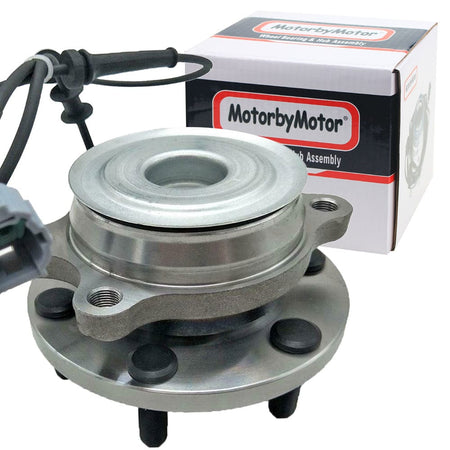

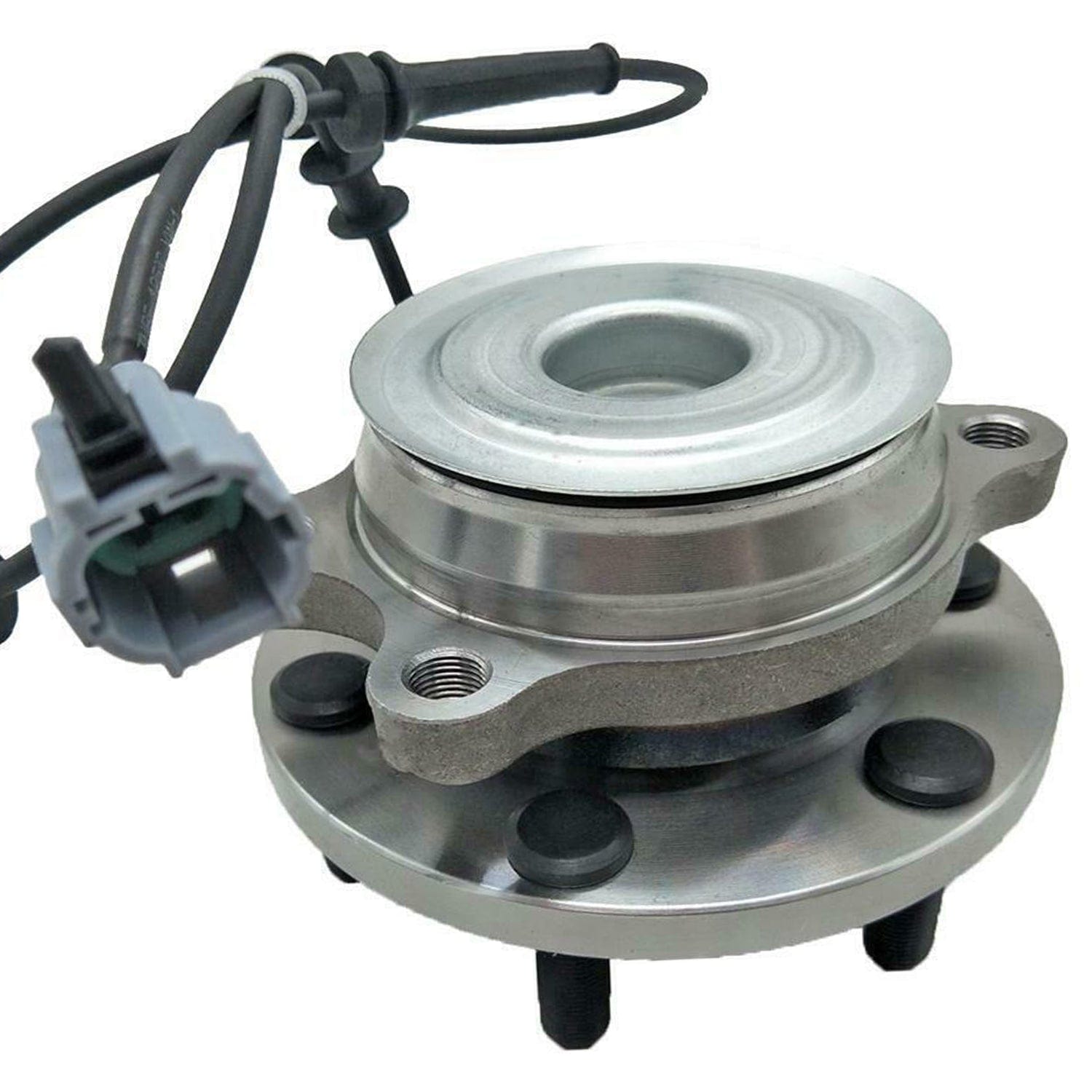

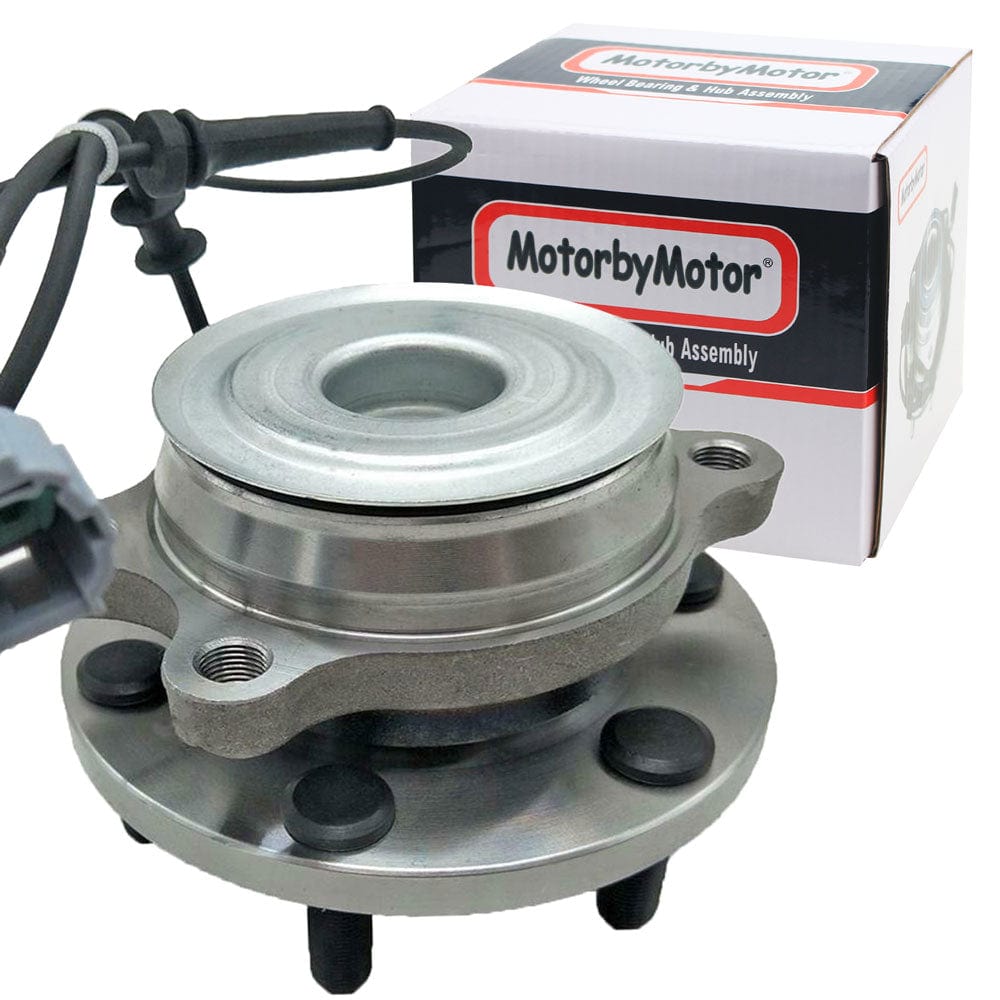

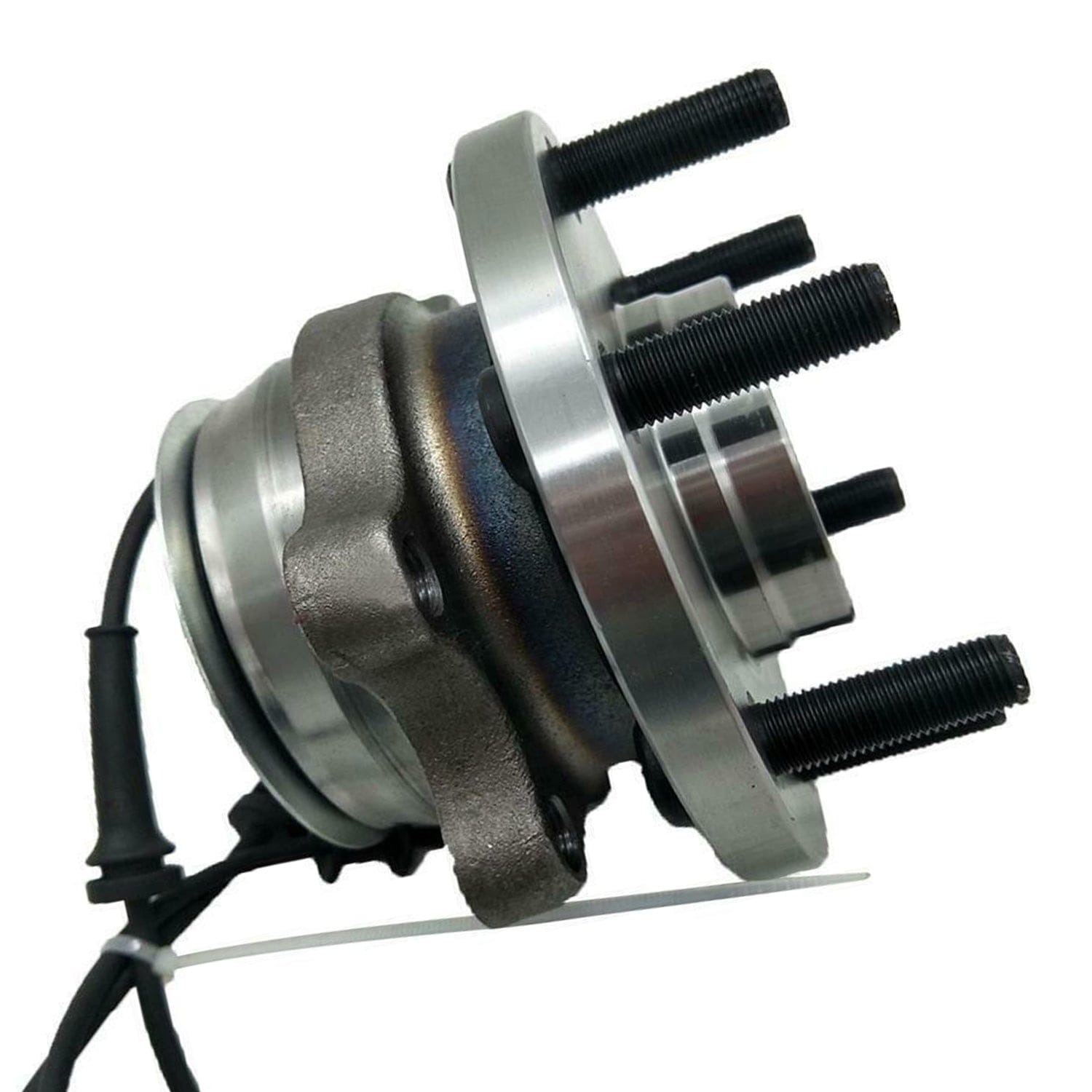

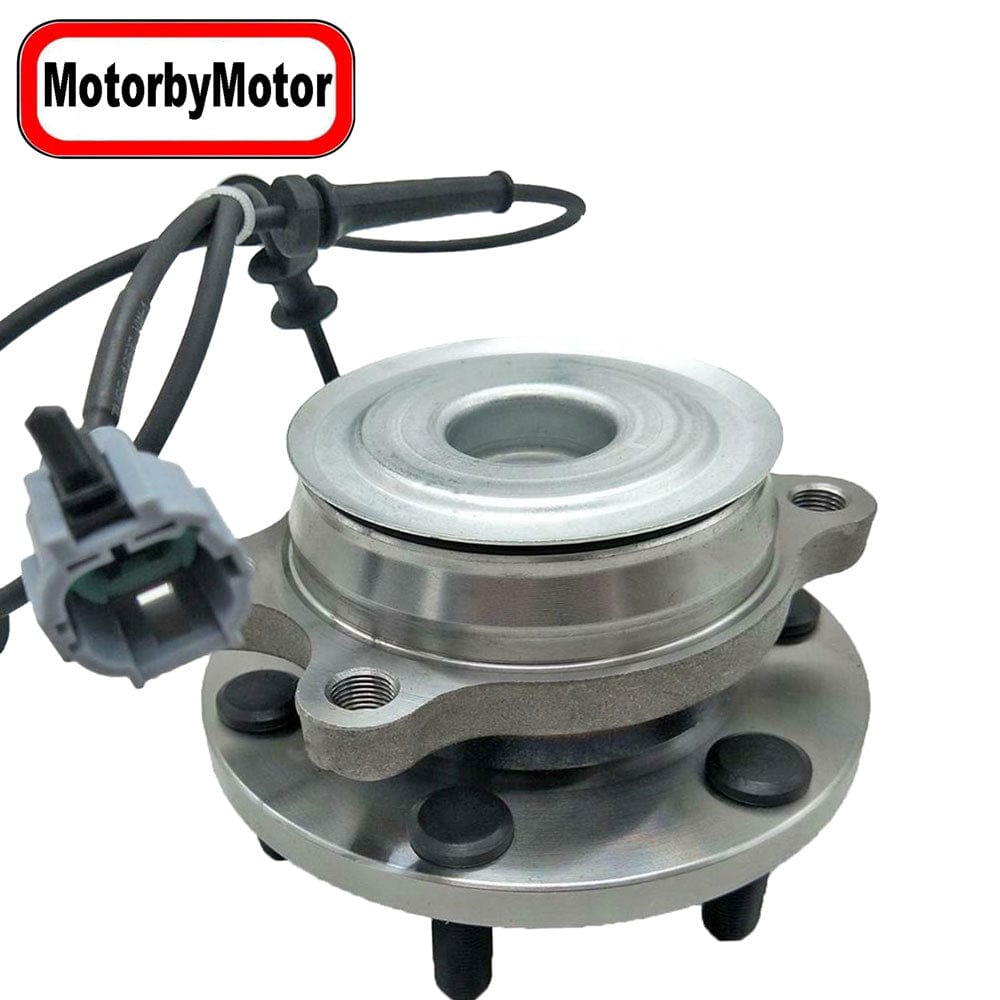

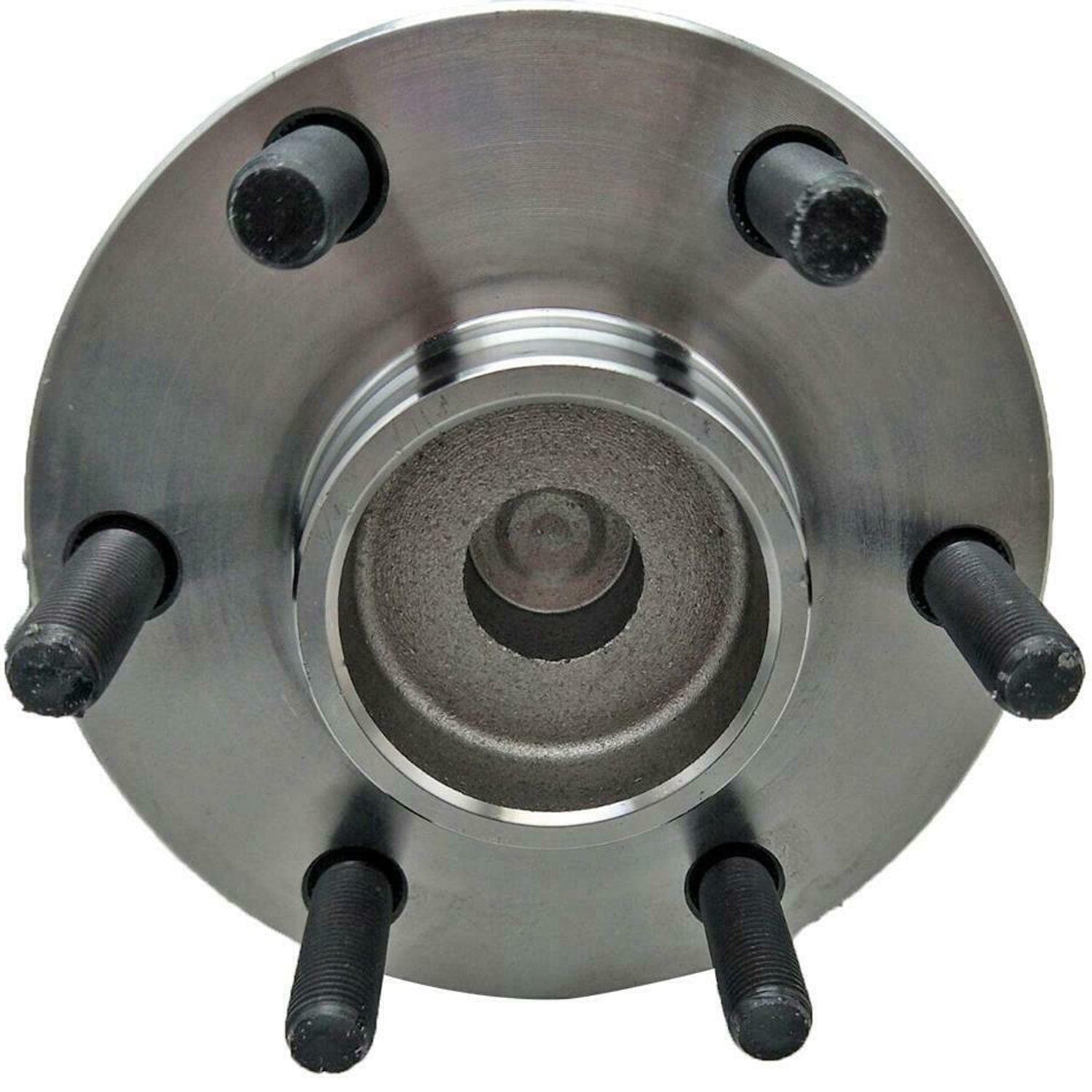

Front Wheel Bearing Fit 09-12 Suzuki Equator, 05-18 Nissan Frontier 05-12 Nissan Pathfinder 05-15 Nissan Xterra Wheel Hub 6 Lugs w/ABS RWD-515064

Front Wheel Bearing Fit 09-12 Suzuki Equator, 05-18 Nissan Frontier 05-12 Nissan Pathfinder 05-15 Nissan Xterra Wheel Hub 6 Lugs w/ABS RWD-515064

Fit:
2005-2018 Nissan Frontier (Front, 2WD)
2005-2012 Nissan Pathfinder (Front, 2WD)
2005-2015 Nissan Xterra (Front, 2WD)
2009-2012 Suzuki Equator (Front, 2WD)

Description:

Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 25.98 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 6
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 54
Lug Bolt Thread Size: M12-1.25
Total Hub Diameter (in): 5.511 Inch
Total Hub Diameter (mm): 140mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 4.153 Inch
Total Hub Height (mm): 105.5mm
Flange Diameter (in): 5.511 Inch
Flange Diameter (mm): 140mm
Flange Offset (in): 1.814 Inch
Flange Offset (mm): 46.1mm
Flange Shape: Rectangle
Flange Bolt Size (in): 1.338 Inch
Flange Bolt Size (mm): 34mm
Flange Bolt Thread Size: M12-1.25
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2 Inch
Inner Ring Width (in): 0.83 Inch
Hub Pilot Diameter (in): 2.677 Inch
Hub Pilot Diameter (mm): 68mm
