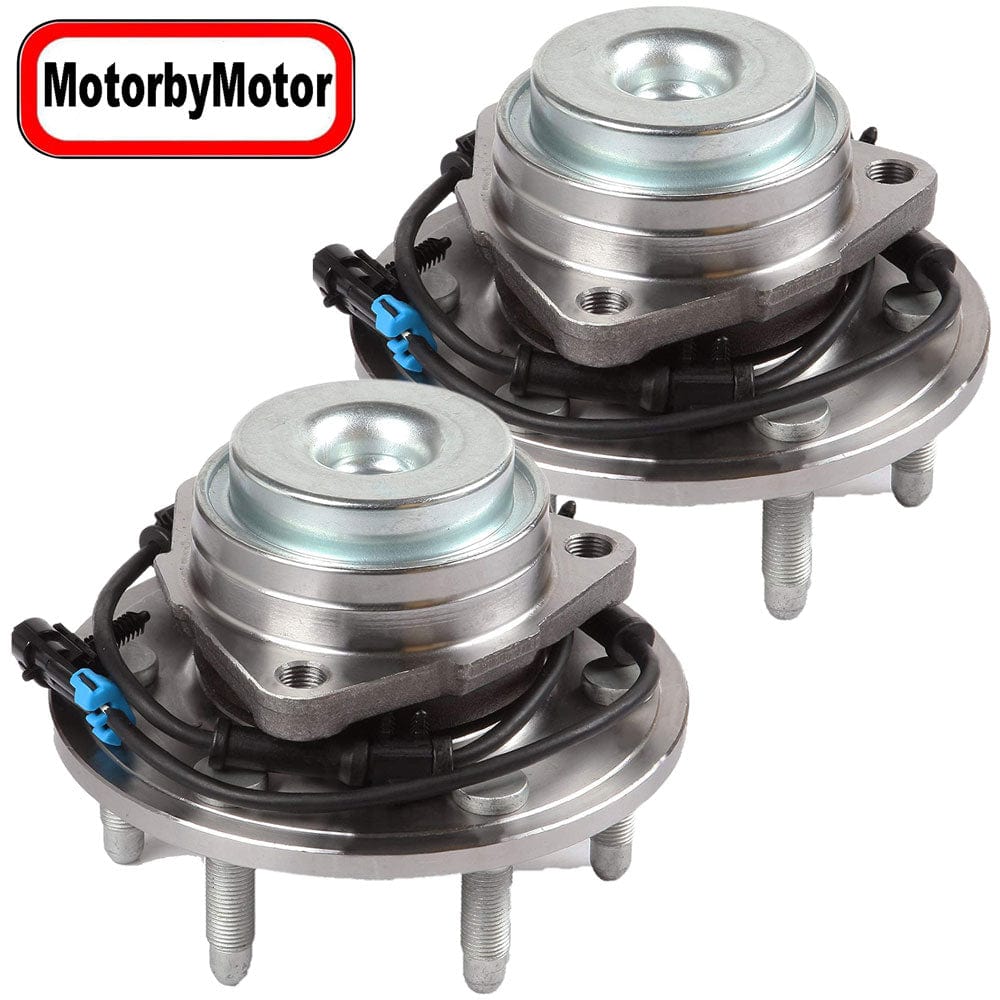

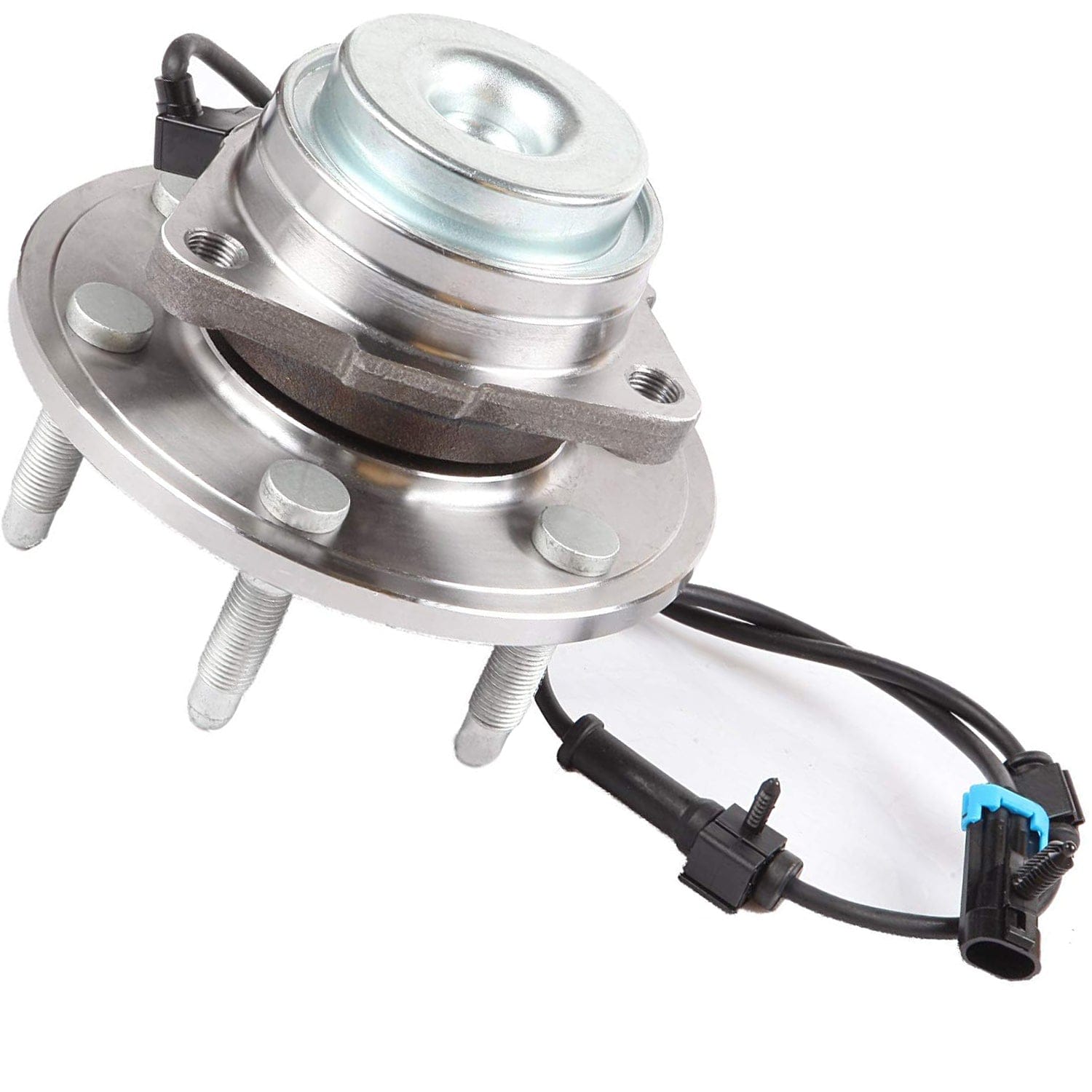

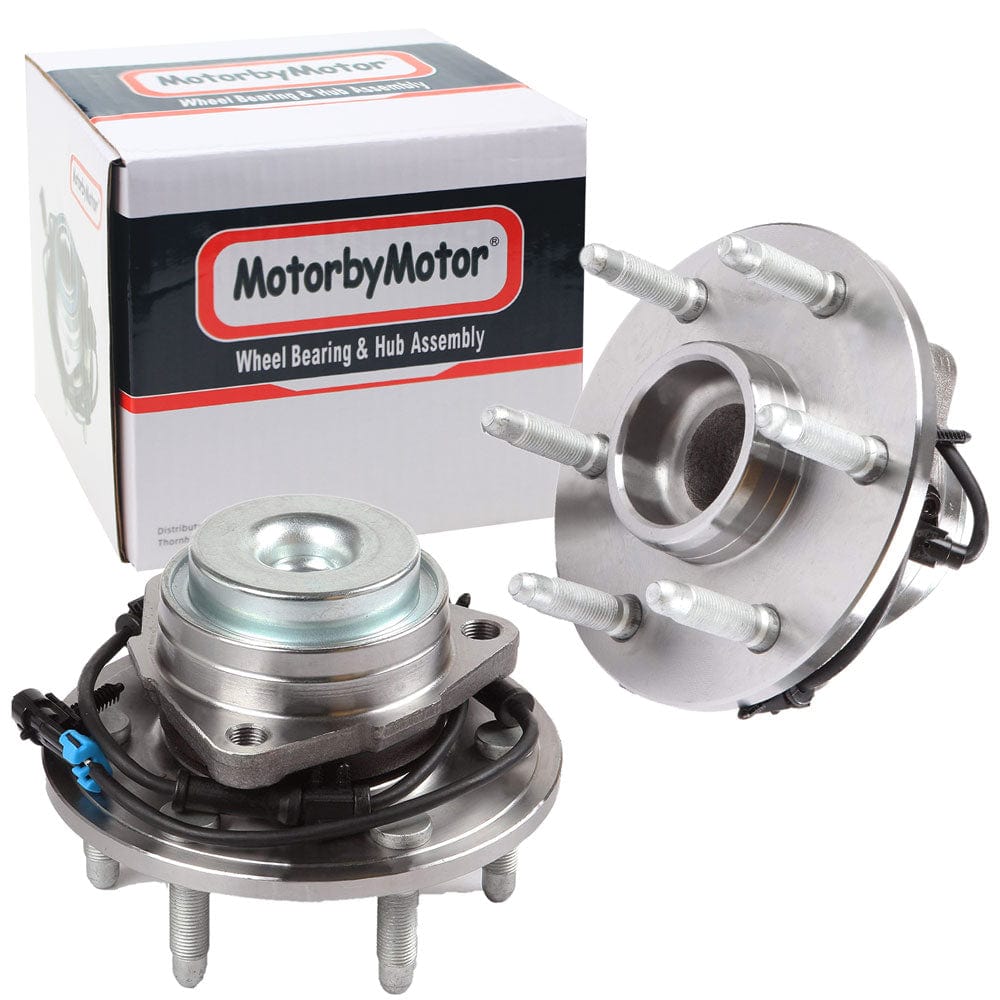

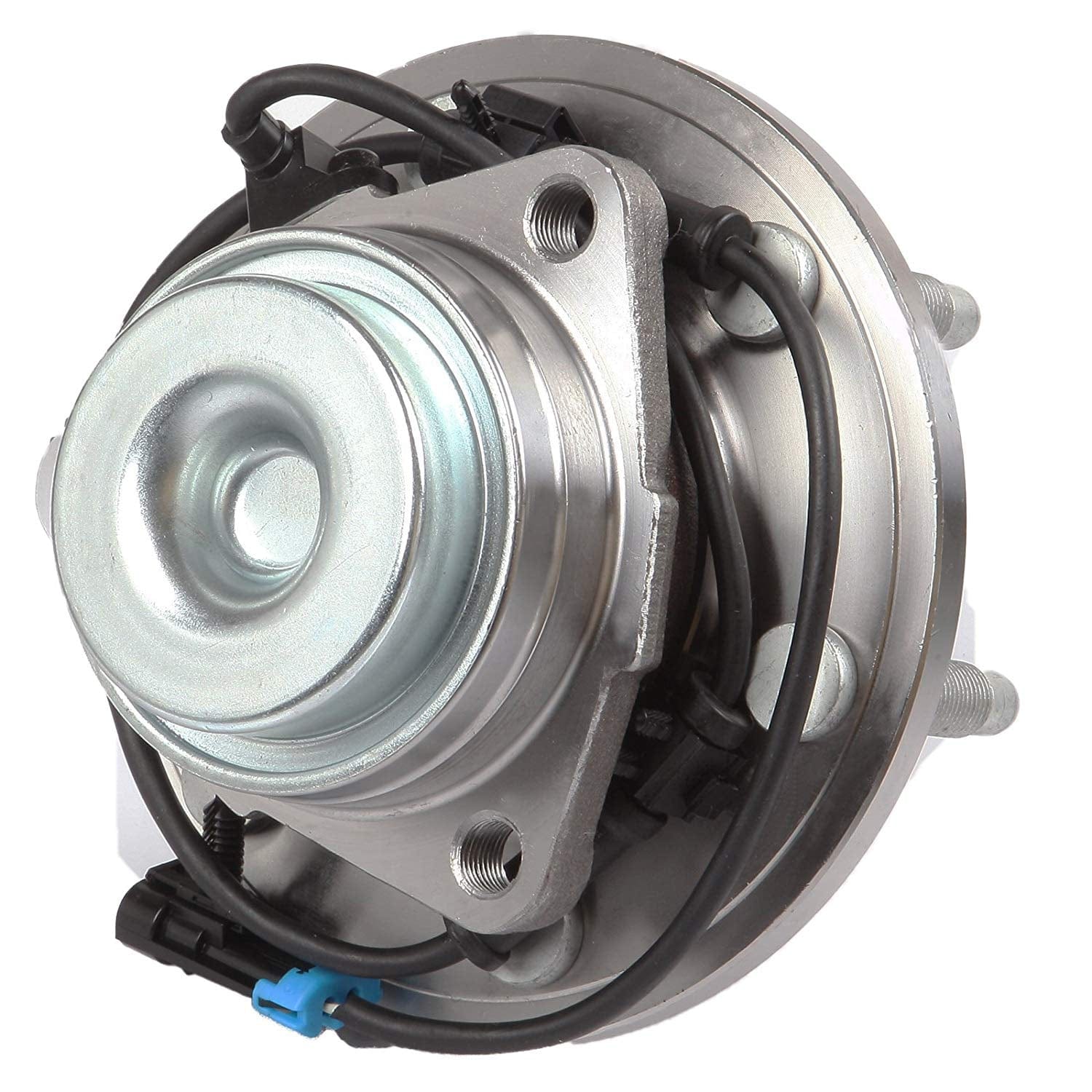

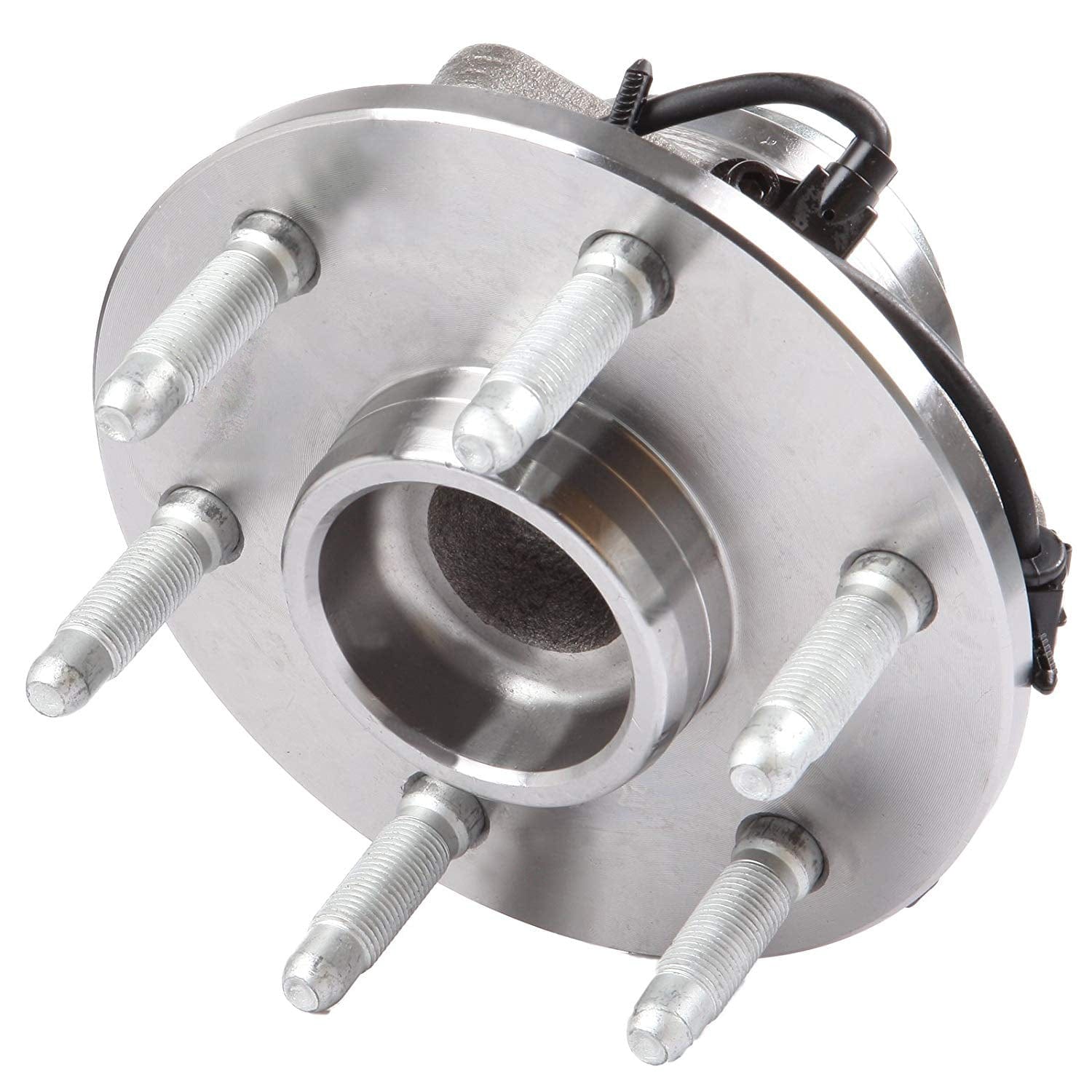

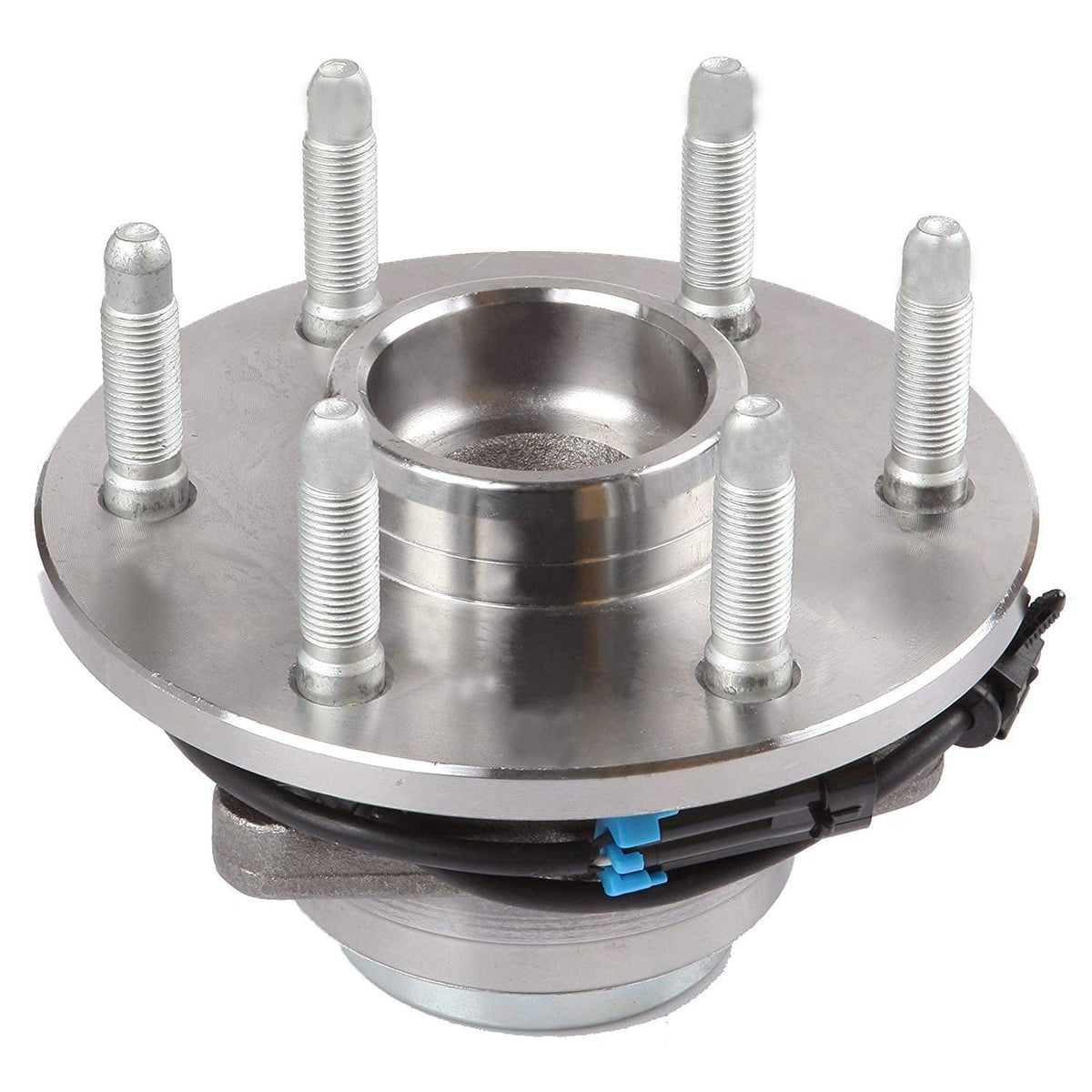

Front Wheel Bearing Fit 2003-2005 GMC Safari, Chevrolet Astro Wheel Hub w/ABS, 6 Lugs, 2WD RWD, 515044 (2 Pack)

Front Wheel Bearing Fit 2003-2005 GMC Safari, Chevrolet Astro Wheel Hub w/ABS, 6 Lugs, 2WD RWD, 515044 (2 Pack)

Fit

2003-2005 Chevrolet Astro
2003-2005 GMC Safari

Description:
Position:Driver (LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 31.5 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 6
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: M14-1.50
Total Hub Diameter (in): 7.086 Inch
Total Hub Diameter (mm): 180mm
Hub Centerbore Diameter (in): 5.5 Inch
Hub Centerbore Diameter (mm): 139.7mm
Total Hub Height (in): 5.767 Inch
Total Hub Height (mm): 146.5mm
Flange Diameter (in): 7.086 Inch
Flange Diameter (mm): 180mm
Flange Offset (in): 1.968 Inch
Flange Offset (mm): 50mm
Flange Shape: Triangle
Flange Bolt Size (in): 2.141 Inch
Flange Bolt Size (mm): 54.4mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.082 Inch
Hub Pilot Diameter (mm): 78.3mm
