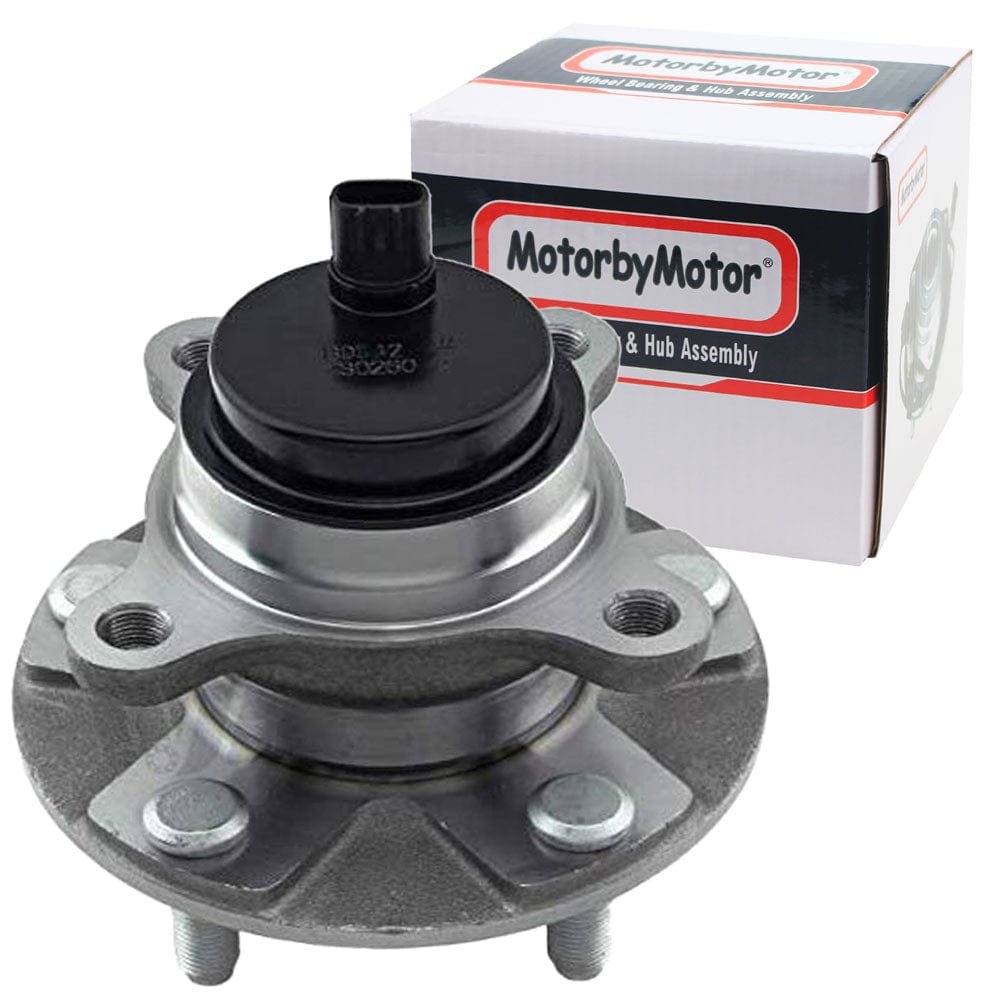

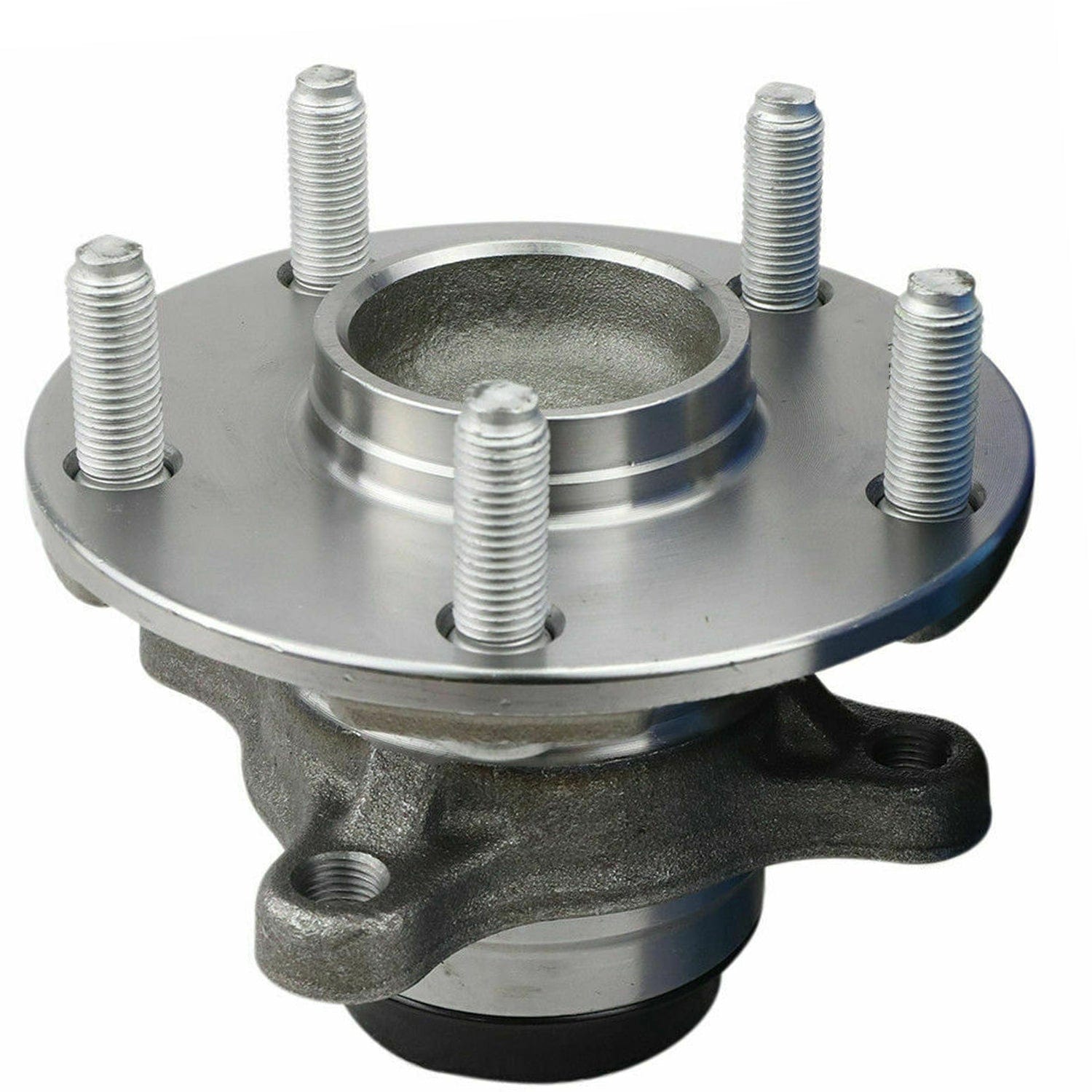

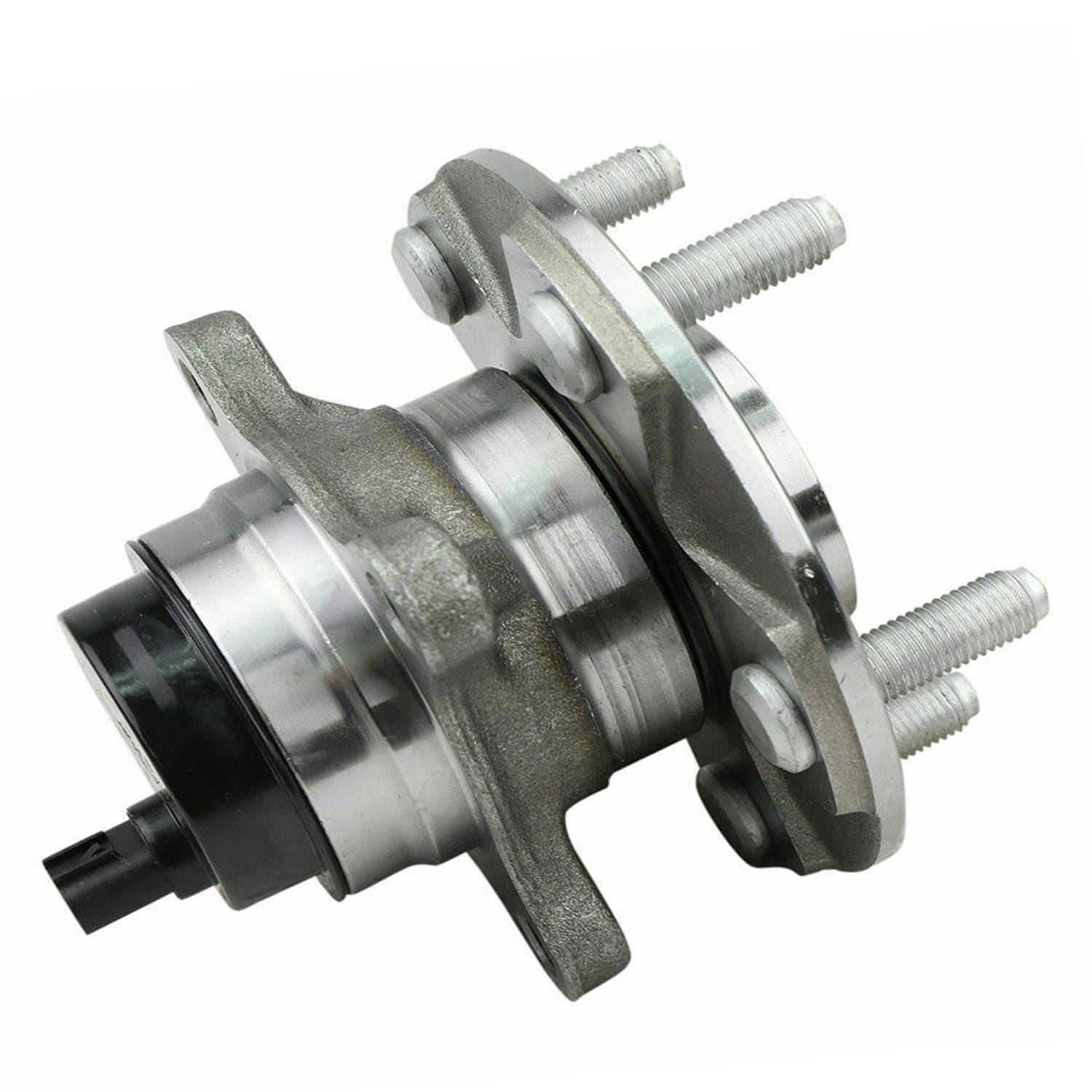

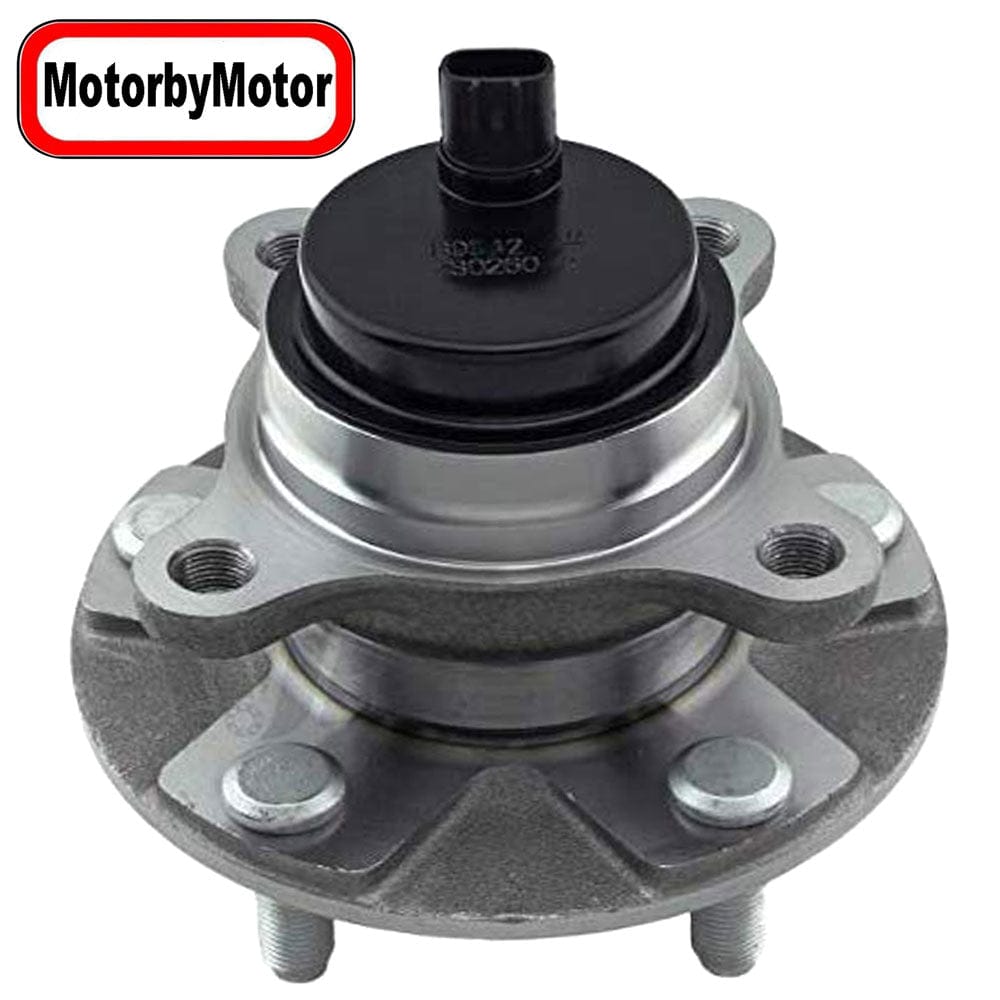

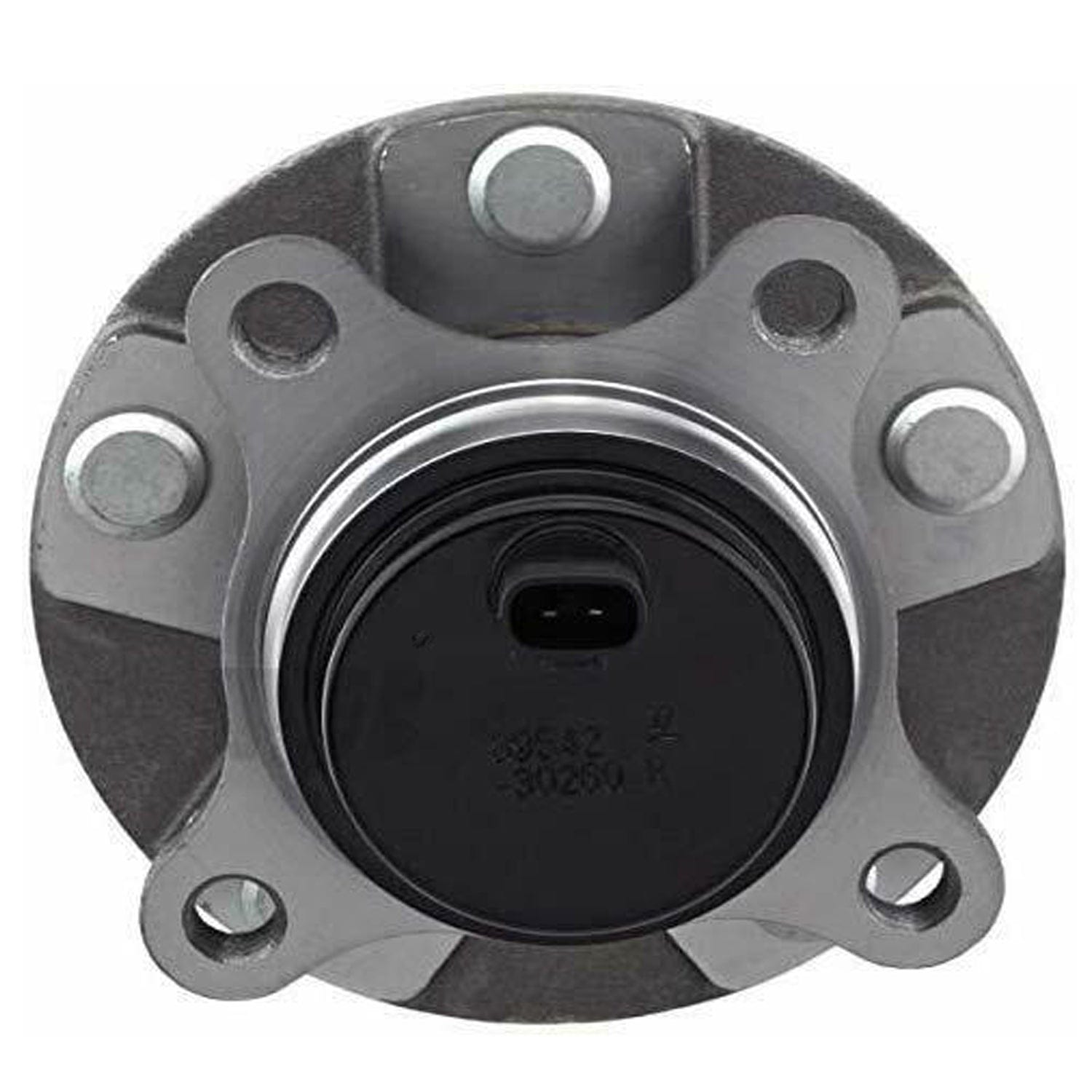

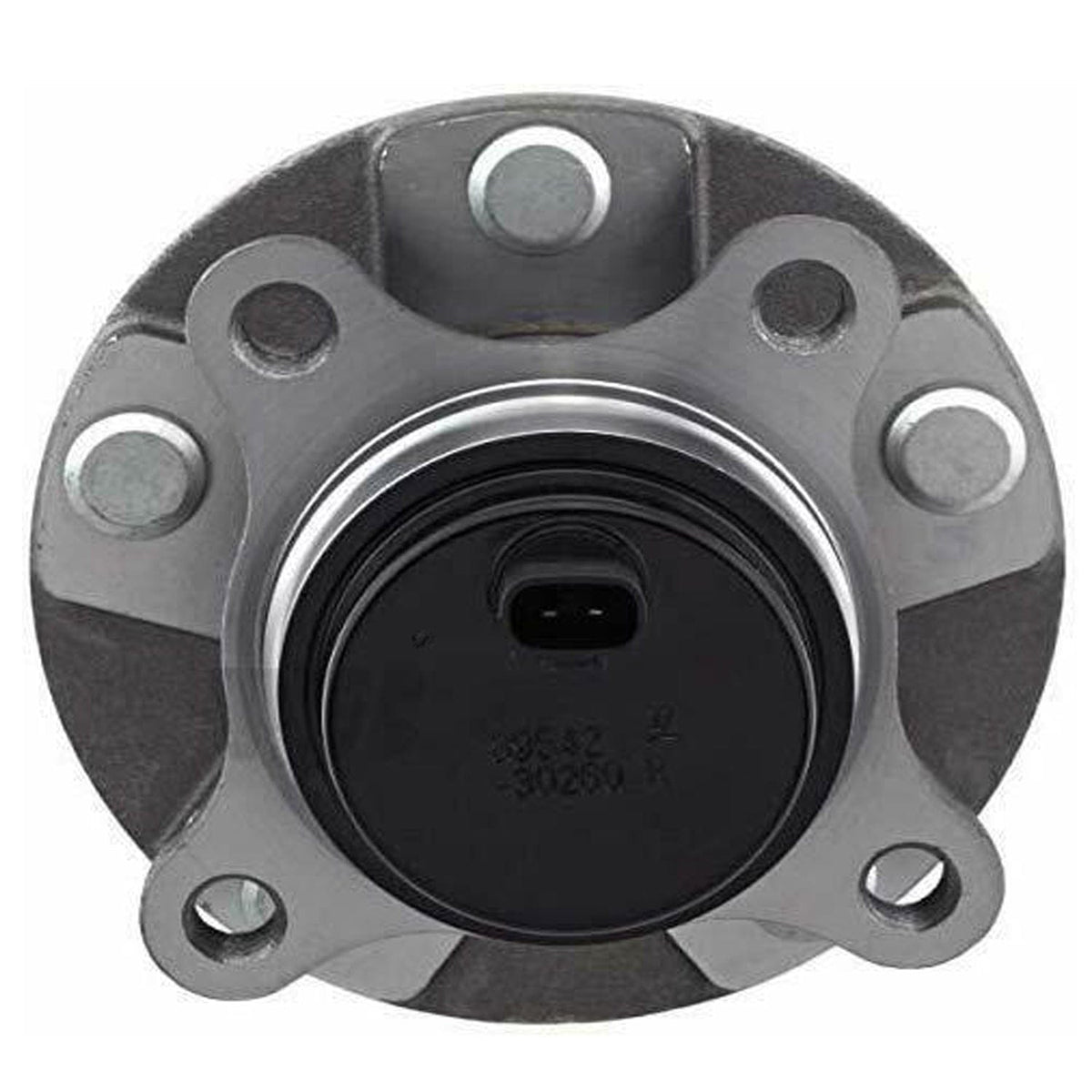

Front RH Wheel Bearing Fit Lexus GS300 GS350 GS430 GS450H GS460 IS250 IS350 Wheel Hub w/ABS 5 Lugs RWD, Passenger Right Side-513285

Front RH Wheel Bearing Fit Lexus GS300 GS350 GS430 GS450H GS460 IS250 IS350 Wheel Hub w/ABS 5 Lugs RWD, Passenger Right Side-513285

Fit:
2006 Lexus GS300
2007-2011 Lexus GS350
2006 2007 Lexus GS430
2007-2011 Lexus GS450H
2008-2011 Lexus GS460
2006-2015 Lexus IS250
2006-2015 IS350

Description:

Position:Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Rectangle
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Non-Driven
Number Of Splines: 0
ABS Ring Type: Sensor
Total Hub Diameter (in): 5.51 Inch
Total Hub Diameter (mm): 140mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 5.74 Inch
Total Hub Height (mm): 145.8mm
Flange Diameter (in): 2.44 Inch
Flange Diameter (mm): 62mm
Flange Offset (in): 2.17 Inch
Flange Offset (mm): 55mm
Flange Shape: Round
Flange Bolt Size (in): 1.26 Inch
Flange Bolt Size (mm): 31.9mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 2.91 Inch
Hub Pilot Diameter (mm): 73.9mm
