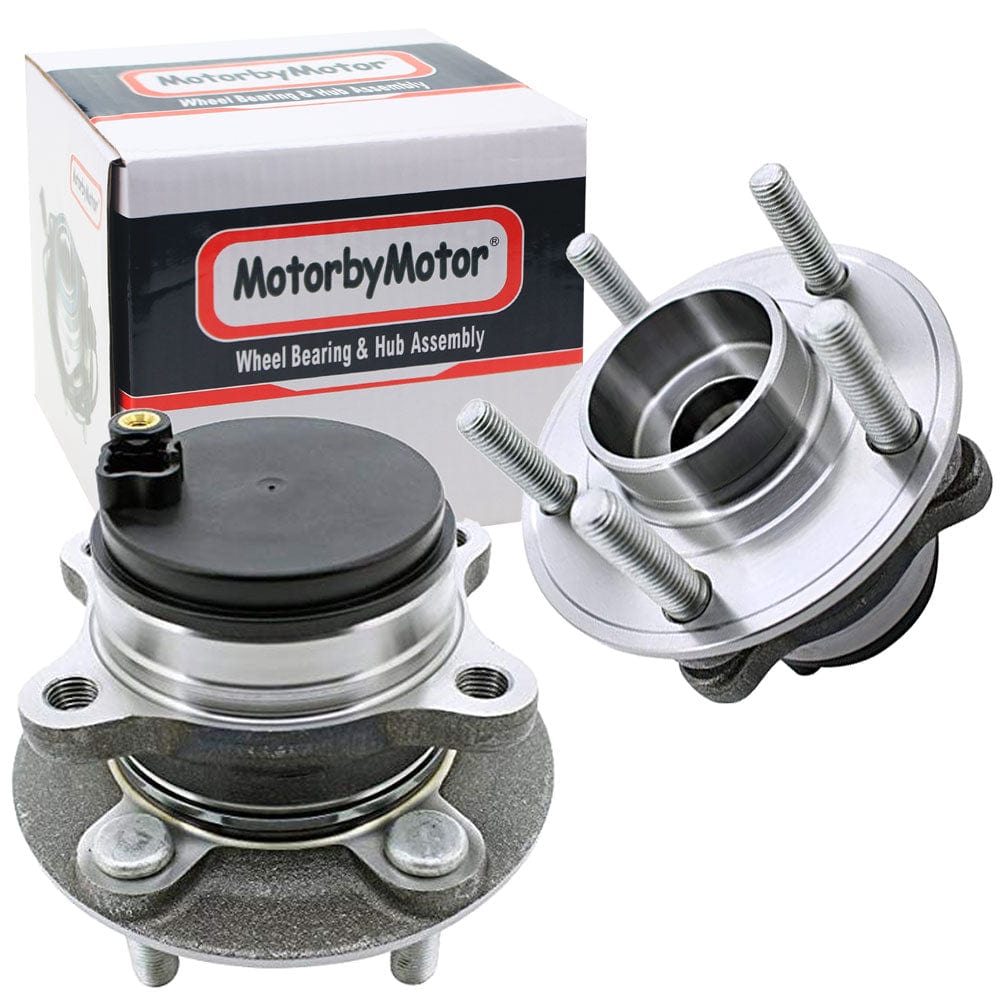

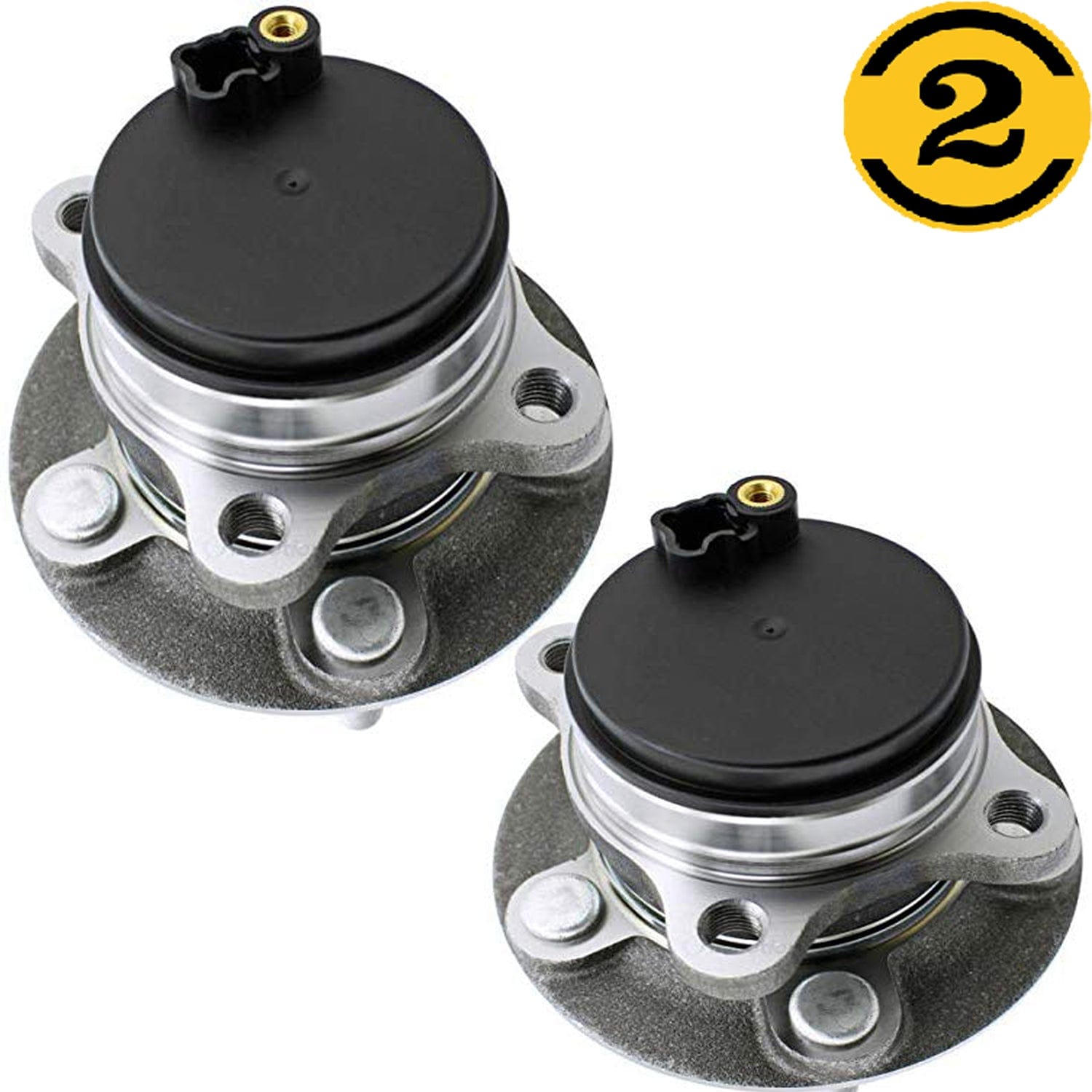

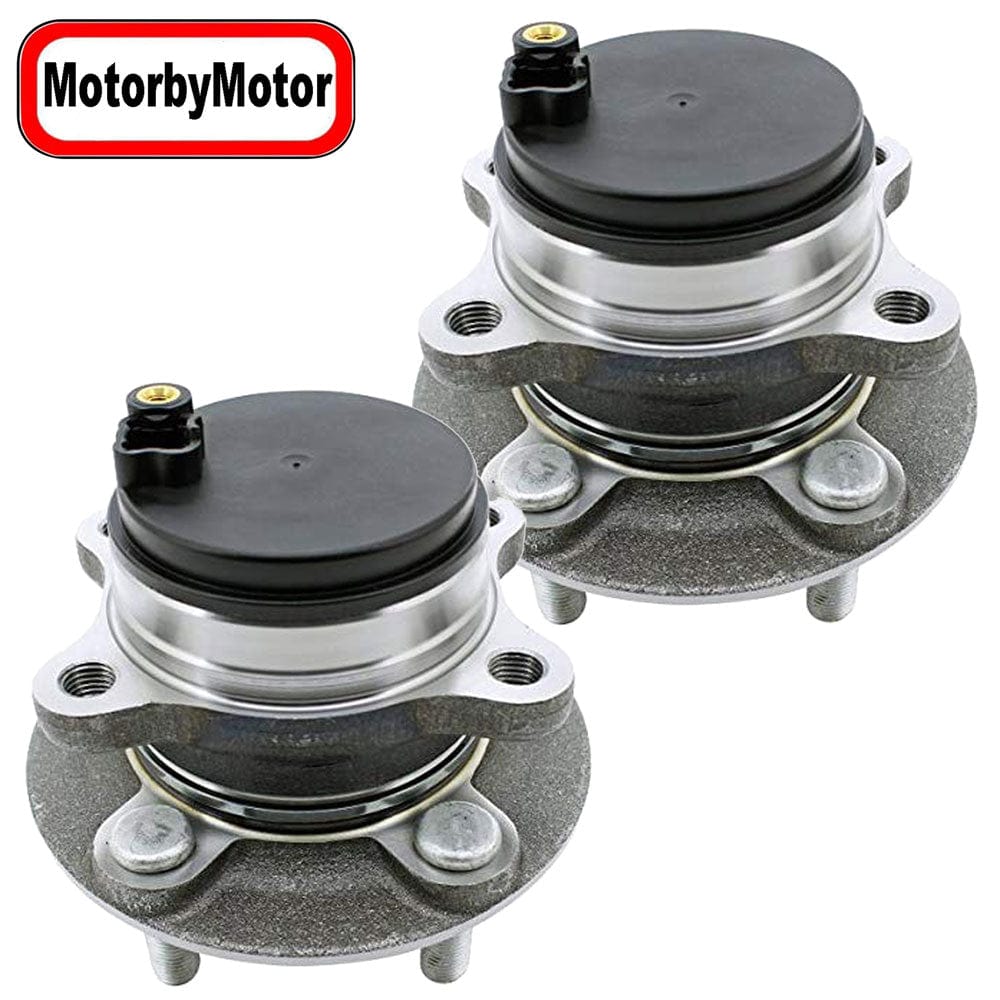

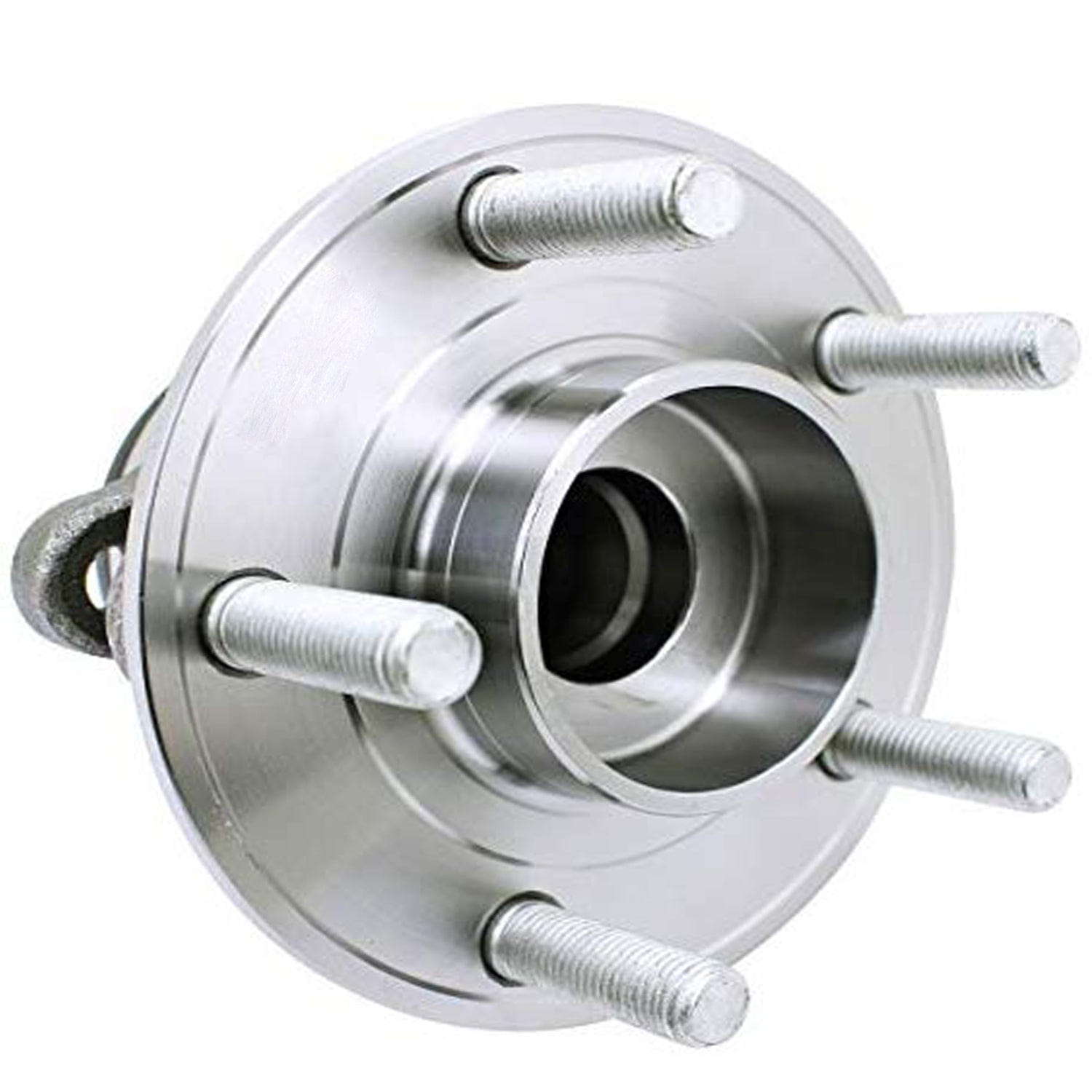

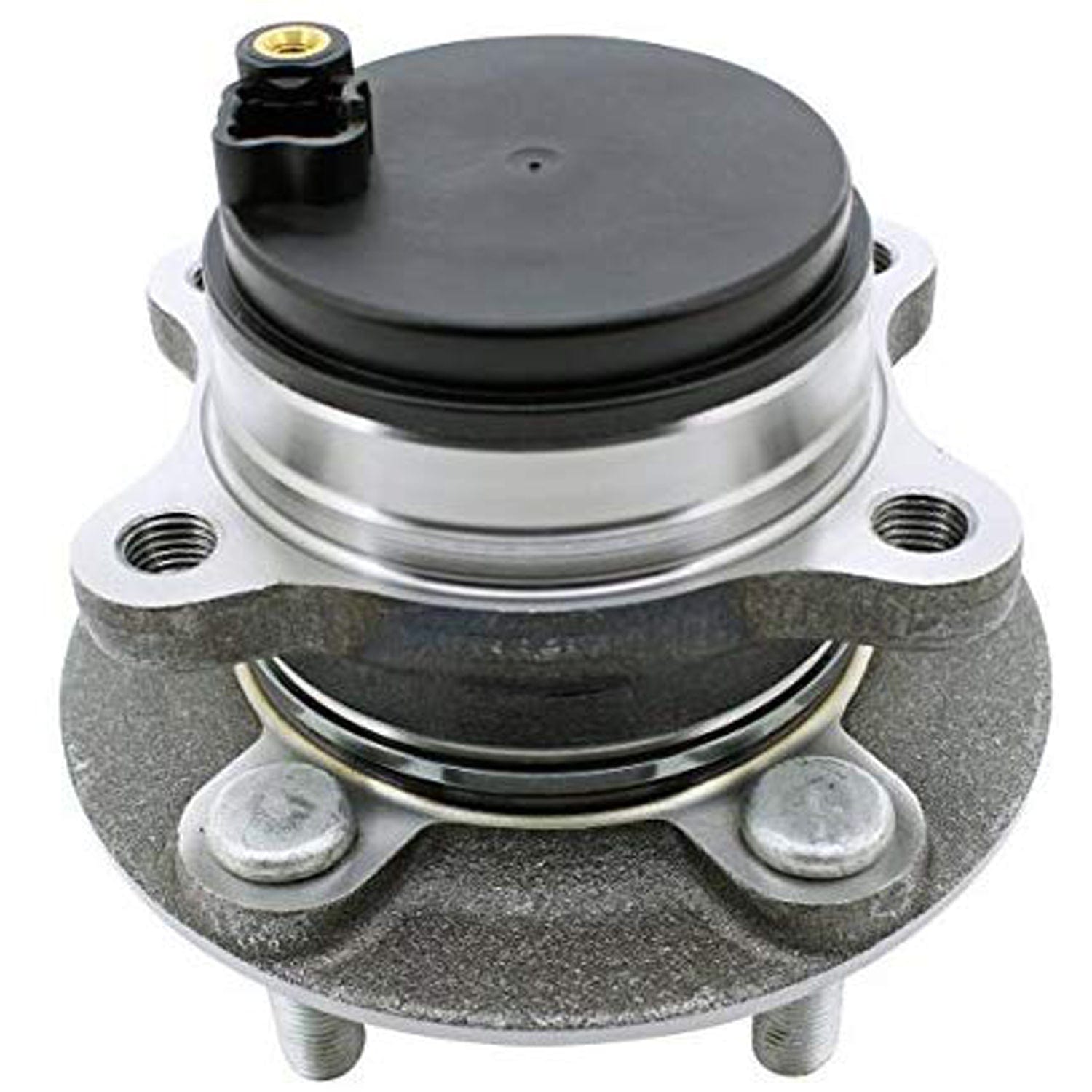

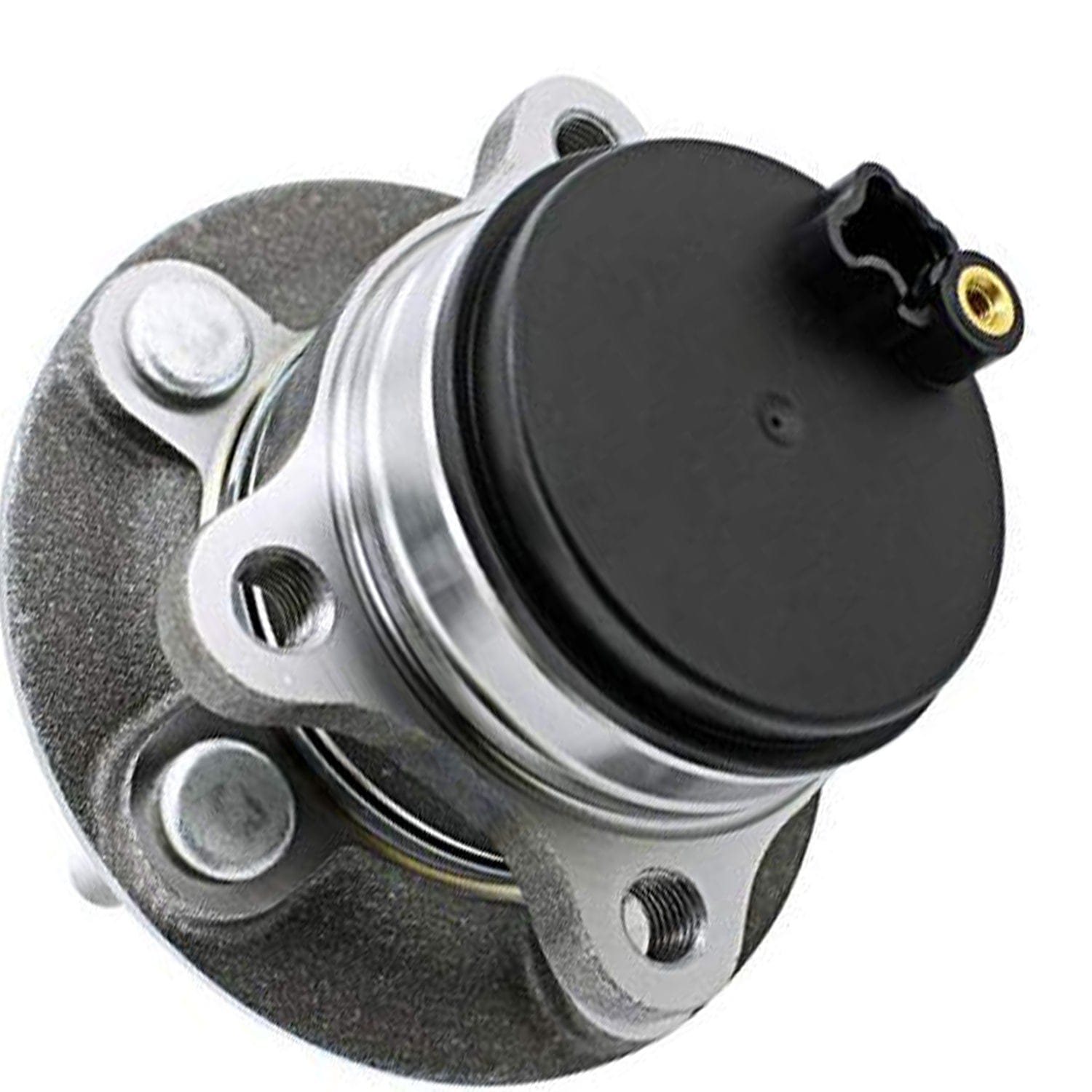

Rear Wheel Bearing Fit 2014-2018 Ford Fusion, 2014-2016 Lincoln MKZ Wheel Hub w/ABS Cap, 5 Lugs 2WD FWD, 512497 (2 PACK)

Rear Wheel Bearing Fit 2014-2018 Ford Fusion, 2014-2016 Lincoln MKZ Wheel Hub w/ABS Cap, 5 Lugs 2WD FWD, 512497 (2 PACK)

Rear wheel bearing and hub assembly with ABS sensor. Fits 2014-2018 Ford Fusion and 2014-2016 Lincoln MKZ. Designed for 2WD/FWD with 5 lugs.

What's Included

• 2 Rear Wheel Bearings and Hubs
• Part Number: 512497

Product Specifications

• Position: Driver (LH) or Passenger (RH) Side Rear
• Bearing Type: Ball
• ABS Sensor Included: Yes
• Mounting Bolts to Knuckle: 4
• Total Hub Diameter: 5.35 in (135.8 mm)
• Hub Centerbore Diameter: 4.25 in (108 mm)
• Total Hub Height: 4.92 in (125 mm)
• Flange Diameter: 2.5 in (63.5 mm)
• Flange Offset: 1.89 in (48 mm)
• Flange Shape: Round
• Flange Bolt Size: 1.38 in (35 mm), Thread M12-1.50
• Material: Steel
• Hub Pilot Diameter: 3.15 in (80 mm)
• Wiring Harness Included: No
• Number of Lug Bolts Included: 5
• Driven or Non-Driven: Non-Driven
• ABS Ring Type: Sensor

Vehicle Compatibility
