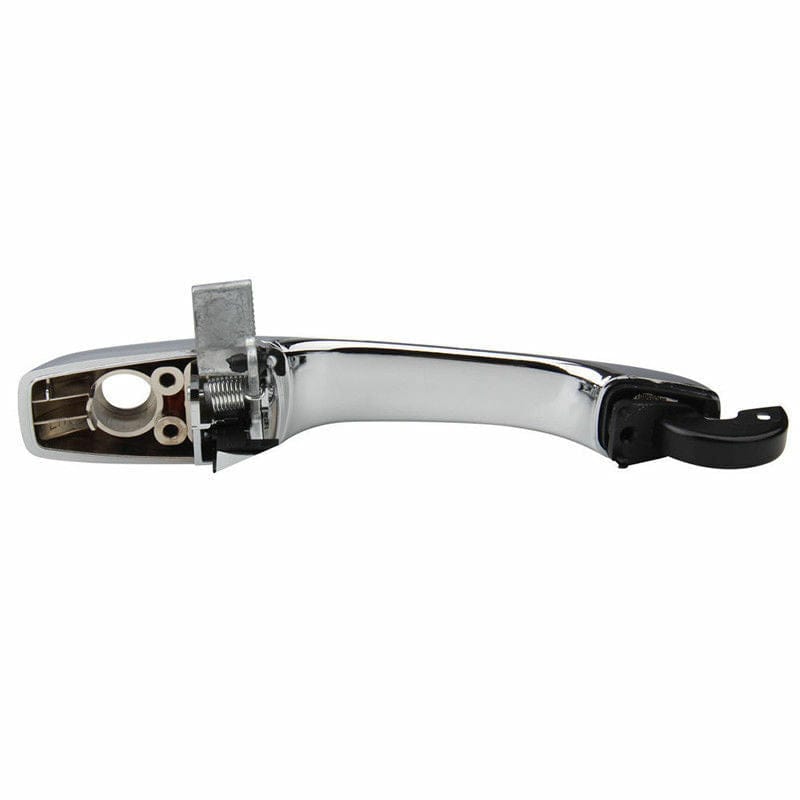

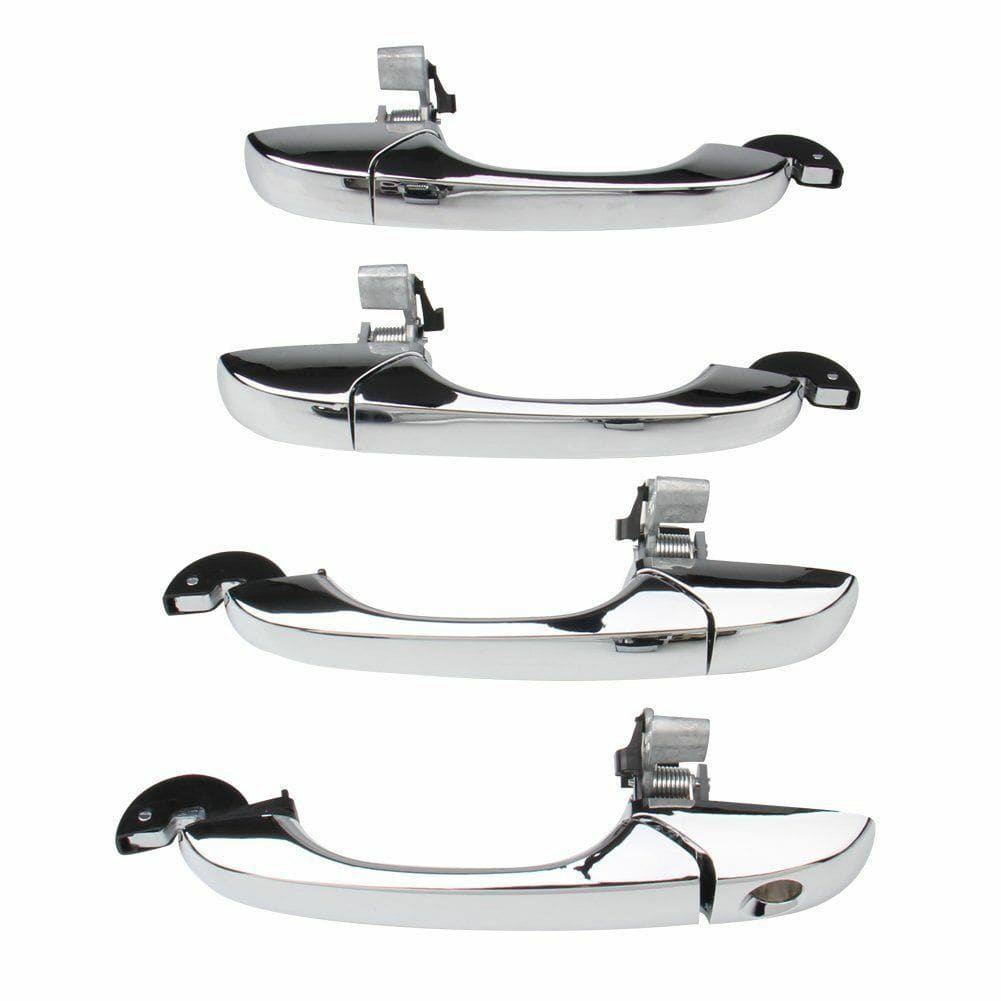

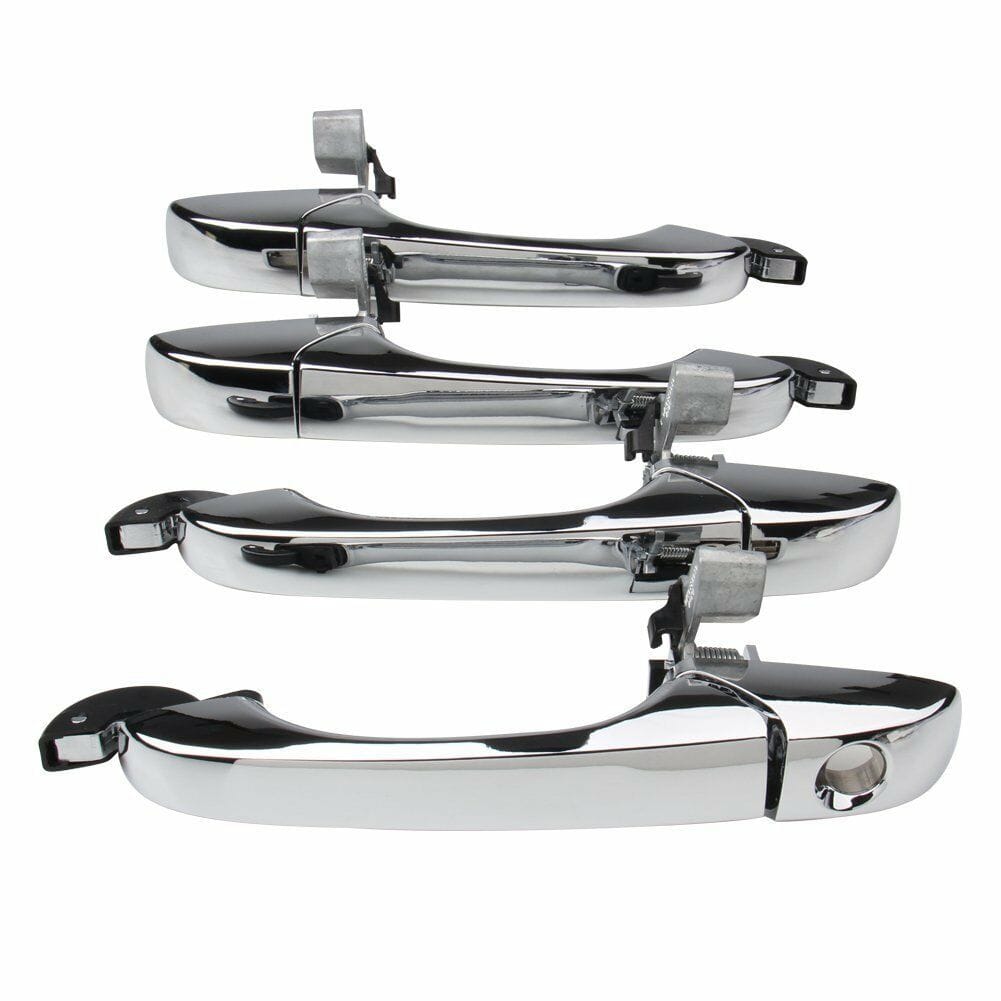

4 Outer Door Handle Chrome for CHRYSLER 300 / 300C 2005 2006 2007 2008 2009 2010

In stock
$38.99

Dear Customer,

Thank you for your interest in our store!

If you have specific requirements or need bulk pricing, please feel free to contact us. Our team is here to assist you and provide the best possible pricing tailored to your needs.

Product details

  • Vendor AFA-Motors
  • SKU Afa-458909AH

Please contact us if you are unsure about the fitment.

Description Warranty
Specifications:
  • Material: Plastic
  • Type: Door Handle
  • Placement on Vehicle: Left, Right, Front, Rear Side
  • Primary Color: Chrome
  • Surface Finish: Chrome
  • Replaces OEM Part Number: 4589009AH , 4589009AD , 4589009AG , 5065800AE , 5065800AG , 5065801AE , 5065801AG
  • Interchange Part Number: 5065801AG, 80609, CH-3300M-RL, 735-6710, 5065800AH,5065800AG,80607, 4589009AH,4589009AD,80608, 5065800AE, 5065800AG, 5065801AE
  • Manufacturer Part Number: 4589009AH , 4589009AD , 4589009AG

Fitment

  • 2005 - 2010 Chrysler 300 / 300C
  • 2005 - 2008 Dodge Magnum
  • 2007 Dodge Charger
Installation Instruction:

STEP 1: REMOVING THE DOOR PANEL
  • Pry out the trim piece inside the door handle
  • Remove the Phillips screw behind the handle
  • Remove the tan circle clips by pressing in the center and prying out the clip
  • Remove the four Phillips head screws on the bottom of the panel
  • Pry out the panel below the door pull
  • Pry out the door panel with a door panel clip tool or putty knife
  • Release the door handle cable by popping the clip, rotating the handle, and popping the hook out
  • Disconnect the window switch wiring harnesses
  • Pop out the wire harness retainers
  • Unplug the courtesy light and its wire retainers
  • Lift the door panel up and off
STEP 2: REMOVING THE EXTERIOR DOOR HANDLE
  • Disconnect the connectors on the door control module
  • Pry out the plastic clips on the module
  • Pry off the wire harness retainers
  • Pry off the adhesive on the weather shield
  • Release the lock and latch rod clips
  • Remove the two 8mm bolts from the door handle
  • Remove the door lock cylinder
  • Remove the door handle
STEP 3: INSTALLING THE DOOR HANDLE
  • Insert the door handle into the door, starting with the front
  • Tighten the 8mm screw to the door handle
  • Insert the door lock cylinder into the handle
  • Tighten the 8mm bolt to the cylinder
  • Connect the lock and latch rod clips
  • Connect the wire harness retainers
  • Press the module into the door
  • Connect the connectors to the module

STEP 4: INSTALLING THE DOOR PANEL
  • Connect the courtesy light
  • Clip in the wire harness retainers
  • Connect the window switch wiring harnesses
  • Insert the latch rod into the door handle
  • Slide the clip over the latch rod
  • Lift the panel up over the door lock
  • Press the panel into place
  • Press the clips into the door panel
  • Tighten the four Phillips screws to the bottom of the panel
  • Tighten the Phillips screws beneath the door and pull
  • Tighten the Phillips screw into the door handle
  • Press on the trim buttons
Tools needed for replacement:

  • General Tools
  • Pick
  • Utility Knife
  • Ratchets & Related
  • Ratchet
  • Socket Extensions
  • Screwdrivers & Related
  • Phillips Head Screwdriver
  • Sockets - Metric
  • 8mm Socket
  • Specialty Tools
  • Trim Tool Set
Note:
  • Please allow 1-3mm differences due to manual measurement.
