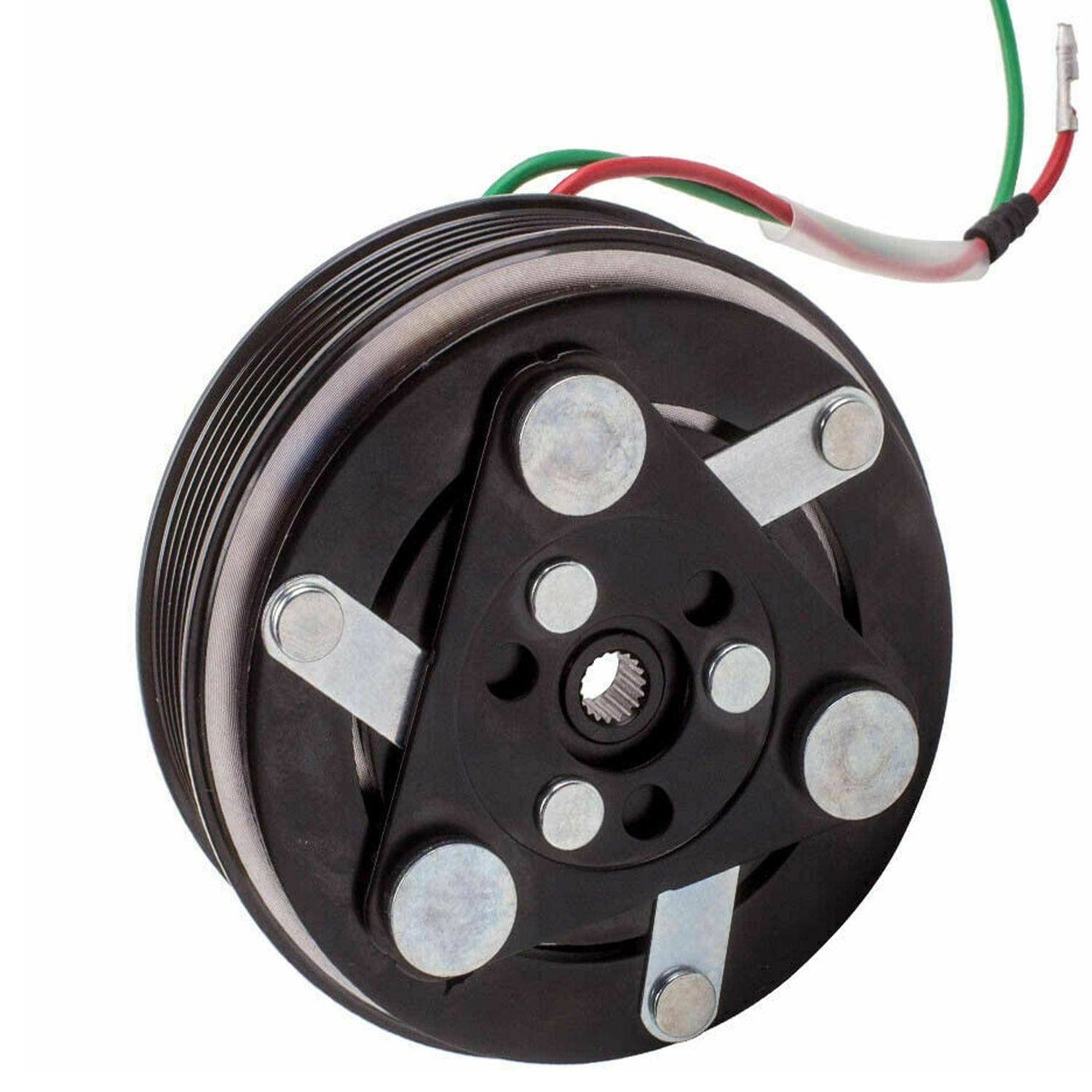

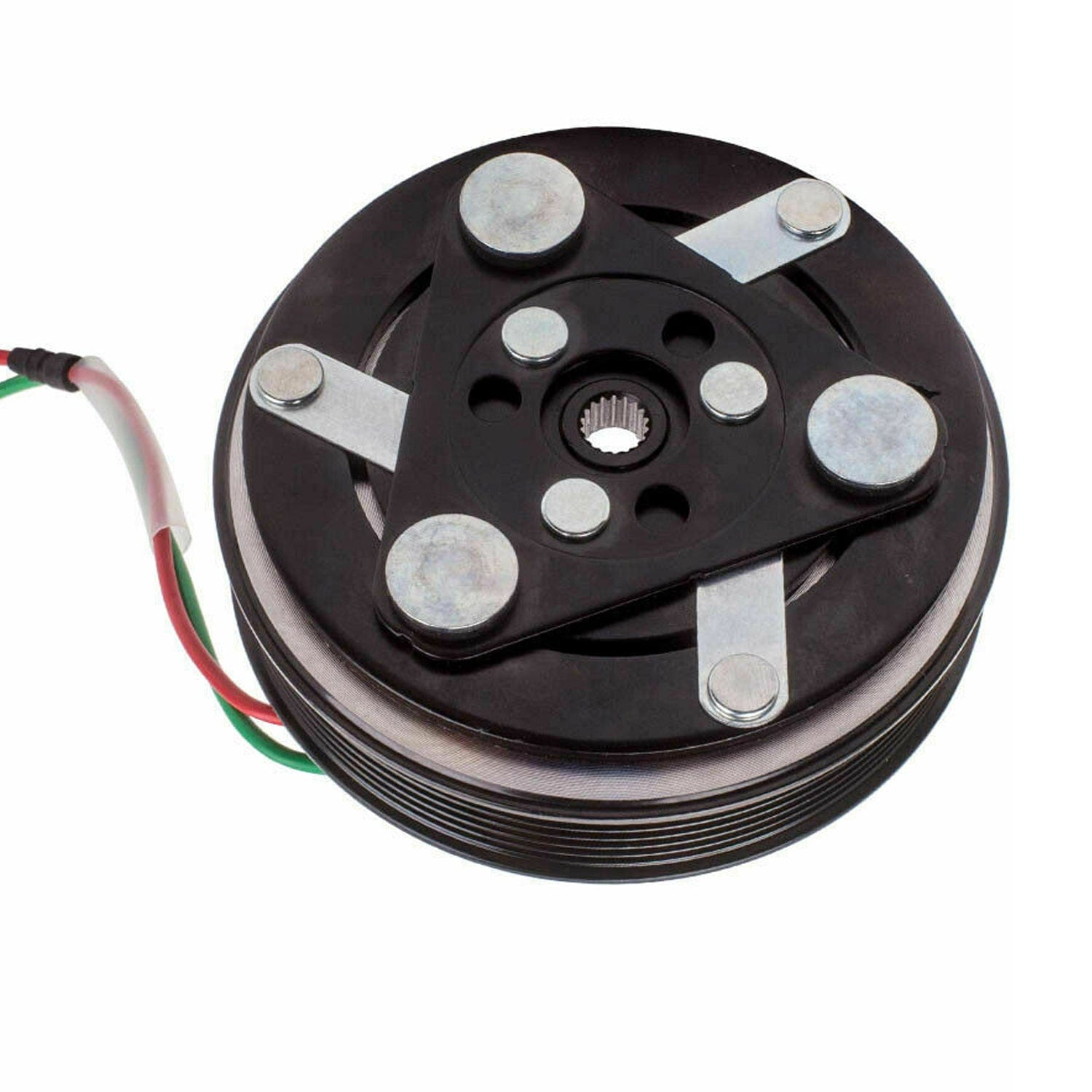

Professional AC Compressor Clutch Assembly Kit
Product Overview
High-quality replacement AC compressor clutch assembly designed for Honda Civic 1.7L (2001-2005). This complete kit ensures optimal cooling system performance with precision-engineered components.
Working Principle
The compressor clutch is an electromagnet that engages the clutch plate with the pulley when energized. This connection transfers power from the drive belt to the compressor shaft, enabling the AC system operation.
Key Components
- Electromagnetic Coil
- Clutch Pulley with Bearing
- Clutch Drive Plate
Technical Specifications
| Electromagnetic Coil Width | 8.1 cm |
| Clutch Plate Width | 10.5 cm |
| Pulley Assembly Width | 10.9 cm |
| Pulley Assembly Height | 3.0 cm |
| A/C Clutch Height | 5.3 cm |
Vehicle Compatibility
Honda Civic 1.7L (2001-2005)

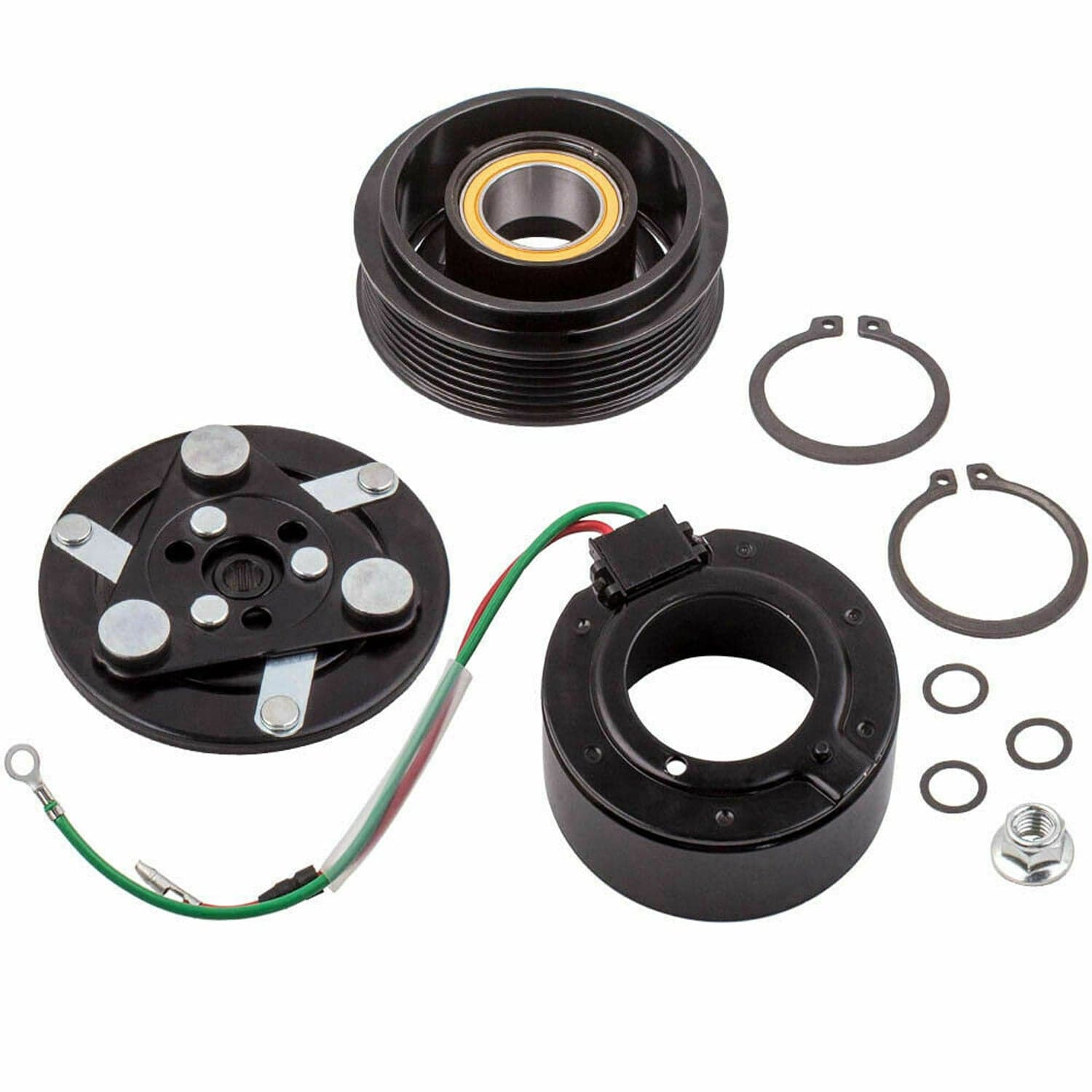

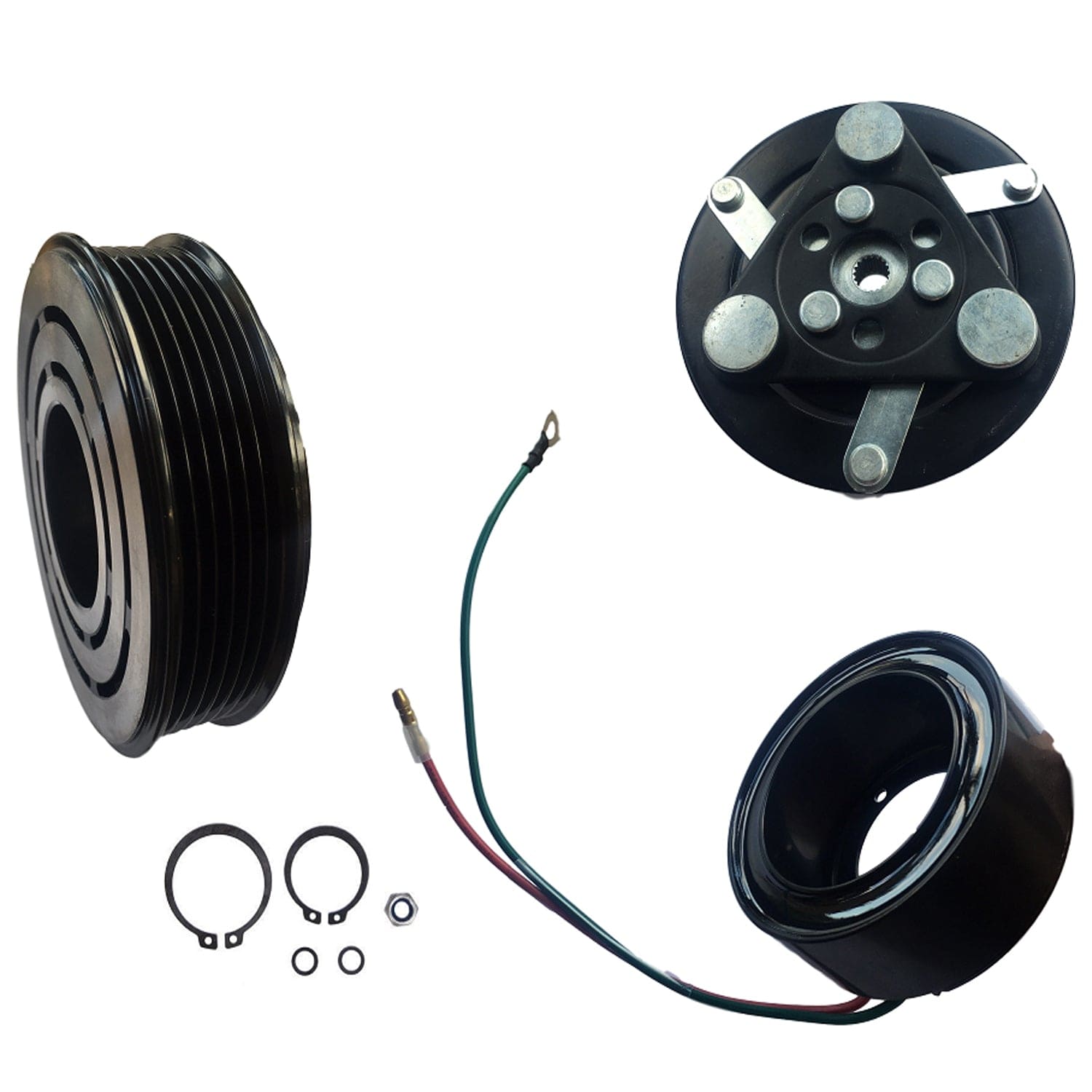

Package Contents
- 1 x Pulley With Bearing
- 1 x Front Plate
- 1 x Electromagnetic Coil
OEM Cross Reference
38800PLMA021M2, 38810PLMA11, 38810PLMA12, TRSA090
Professional installation is highly recommended
