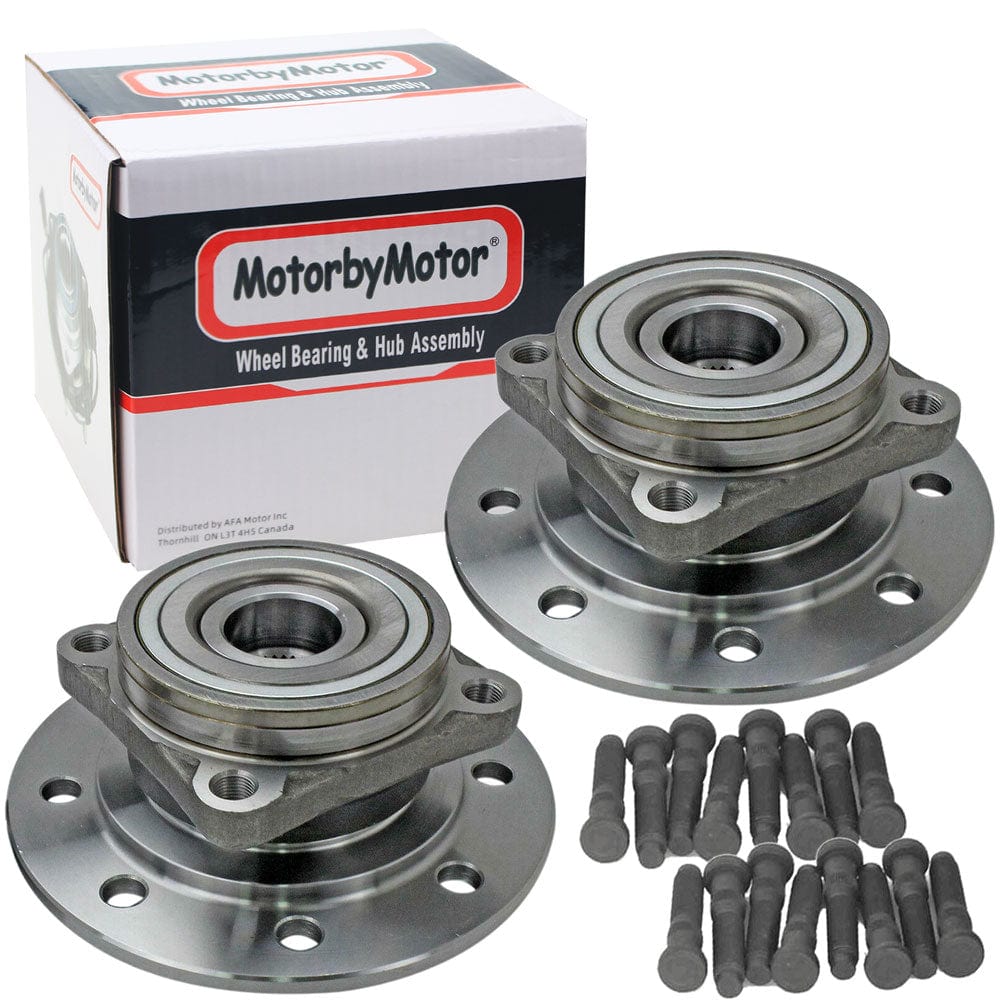

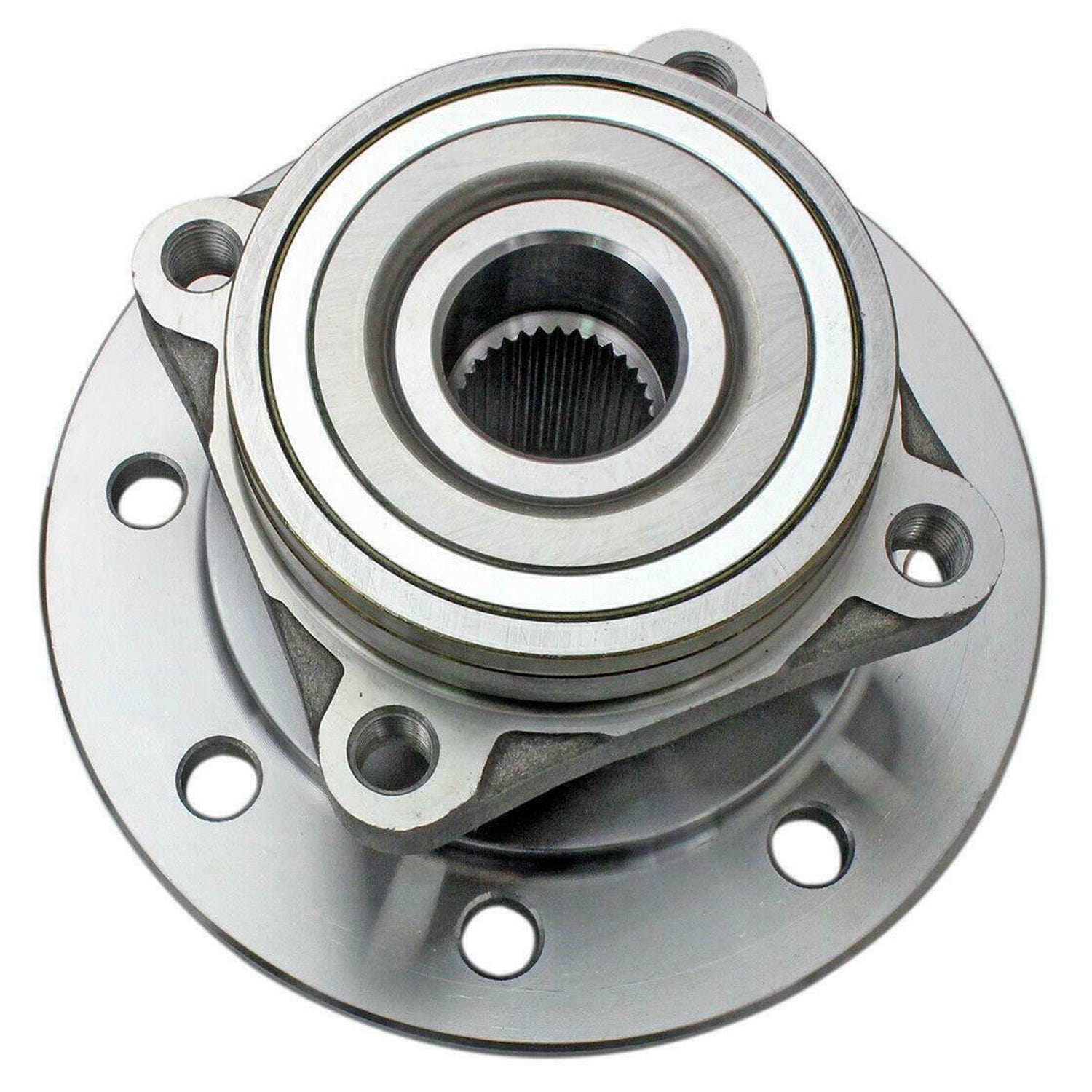

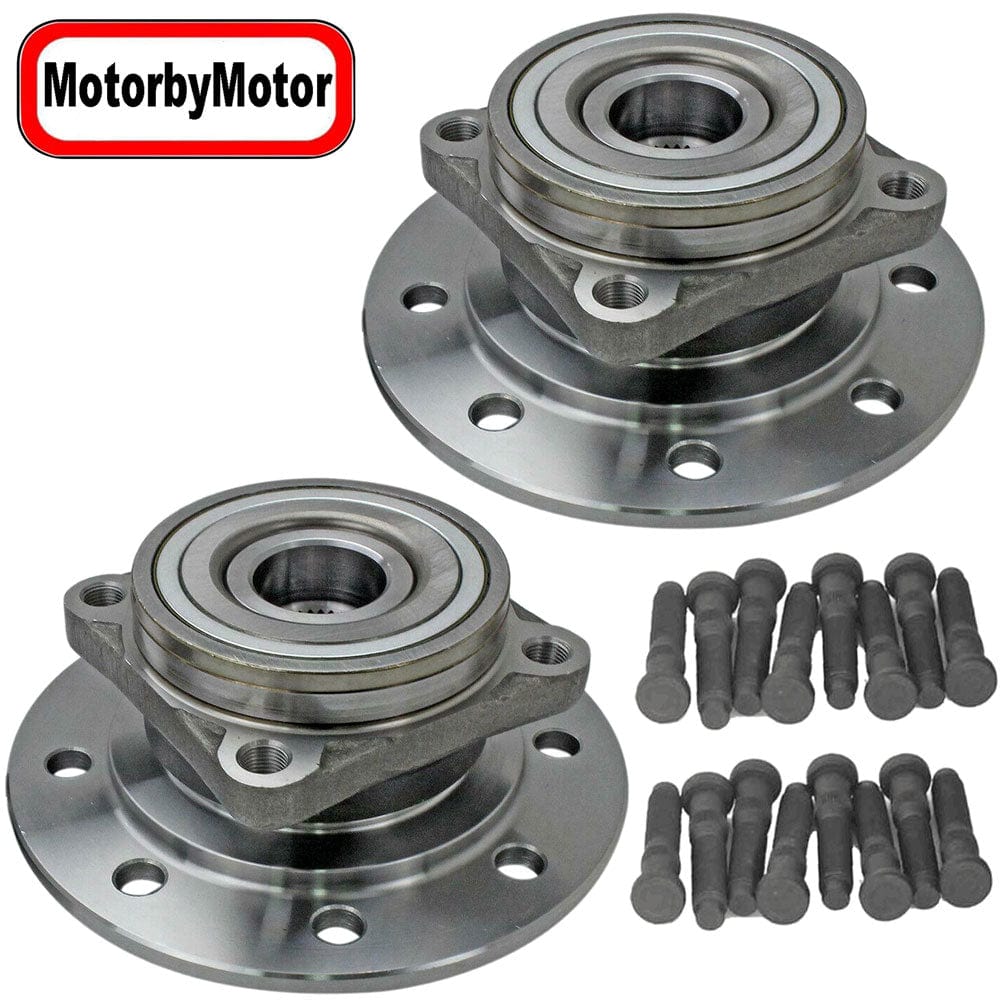

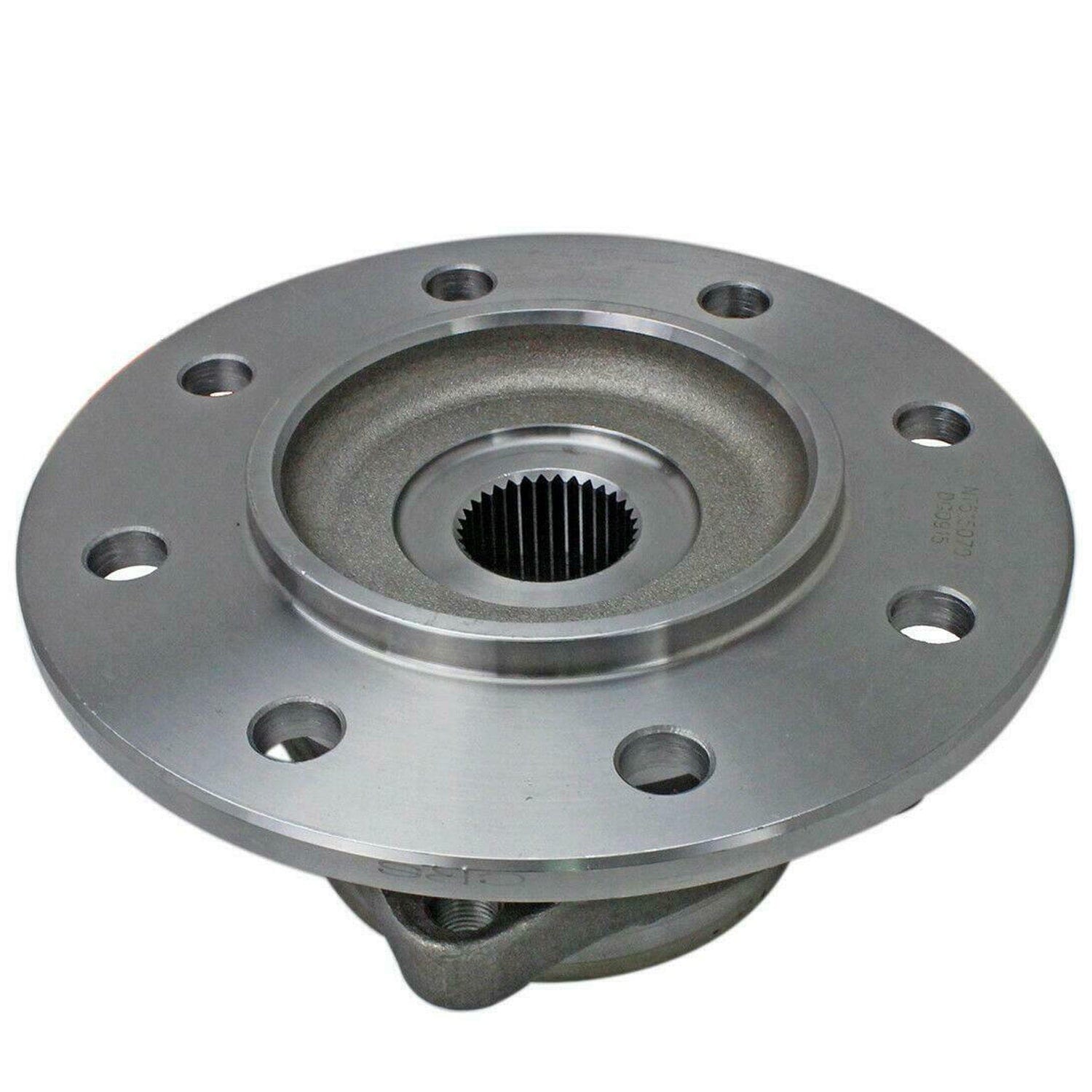

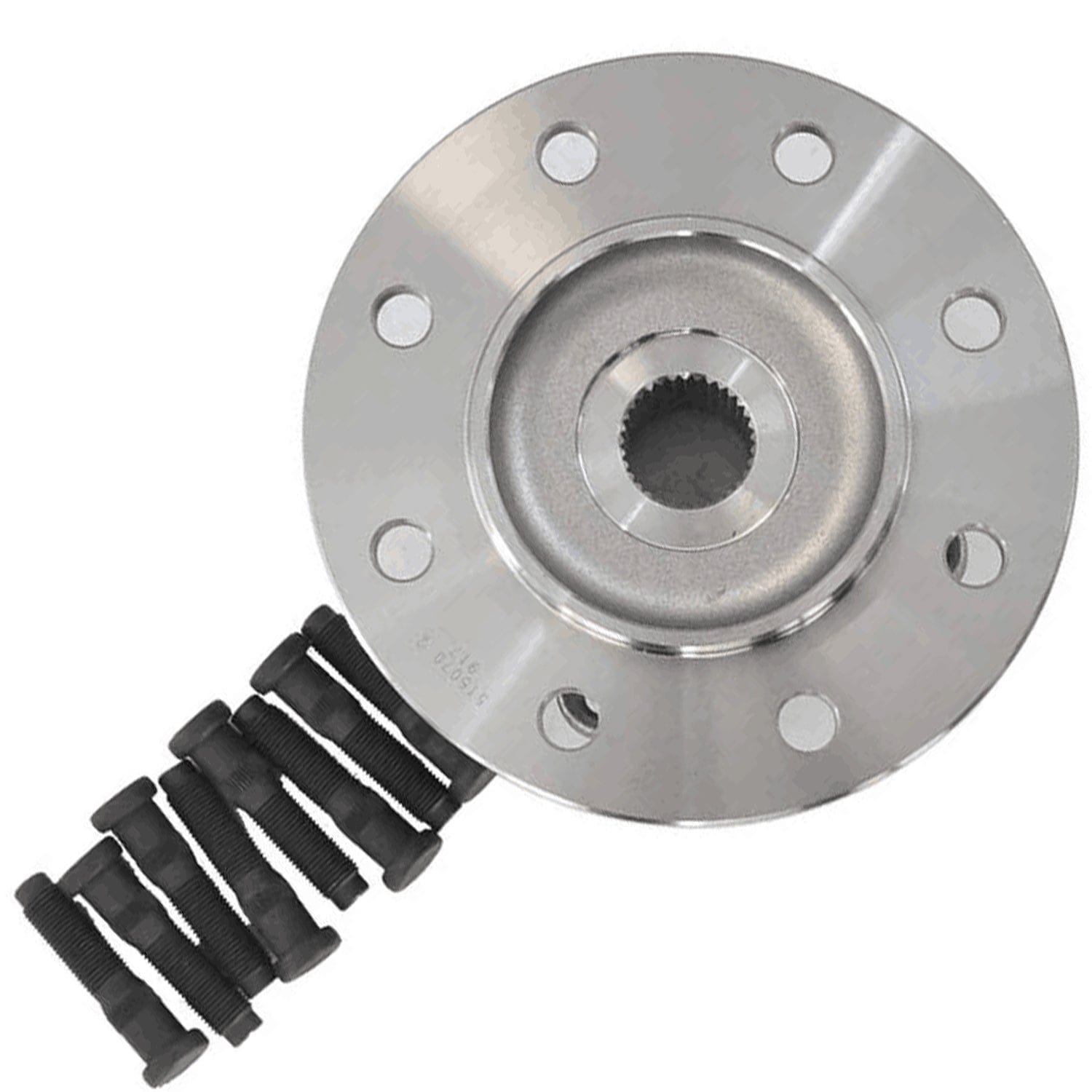

Front Wheel Bearing Fit 1994-1999 Dodge Ram 3500 Pickup Wheel Hub w/8 Lugs, 4WD, w/2ABS 515070 (2 Pack)
Front Wheel Bearing Fit 1994-1999 Dodge Ram 3500 Pickup Wheel Hub w/8 Lugs, 4WD, w/2ABS 515070 (2 Pack)
Fit:
1994 Dodge Ram 3500 (Front,4WD )
1995 Dodge Ram 3500(Front,4WD )
1996 Dodge Ram 3500 (Front,4WD )
1997 Dodge Ram 3500 (Front,4WD )
1998 Dodge Ram 3500 (Front,RWD, 4WD )
1999 Dodge Ram 3500 (Front,RWD, 4WD )
Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: No
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Driven
Number Of Splines: 33
Total Hub Diameter (in): 8.188 Inch
Total Hub Diameter (mm): 208mm
Hub Centerbore Diameter (in): 6.496 Inch
Hub Centerbore Diameter (mm): 165mm
Total Hub Height (in): 3.909 Inch
Total Hub Height (mm): 99.3mm
Flange Diameter (in): 8.188 Inch
Flange Diameter (mm): 208mm
Flange Offset (in): 2.688 Inch
Flange Offset (mm): 68.3mm
Flange Shape: Square
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.44 Inch
Inner Ring Width (in): 1.17 Inch
Hub Pilot Diameter (in): 4.590 Inch
Hub Pilot Diameter (mm): 116.6mm
