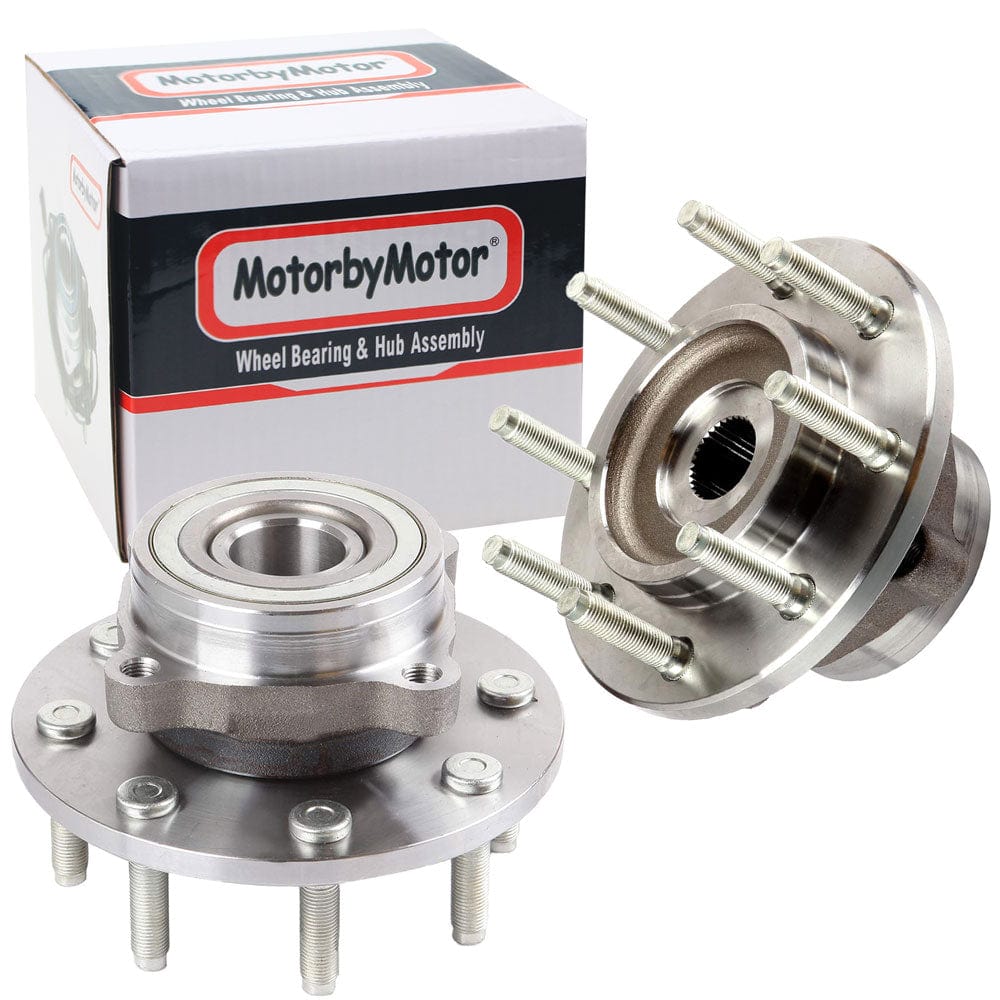

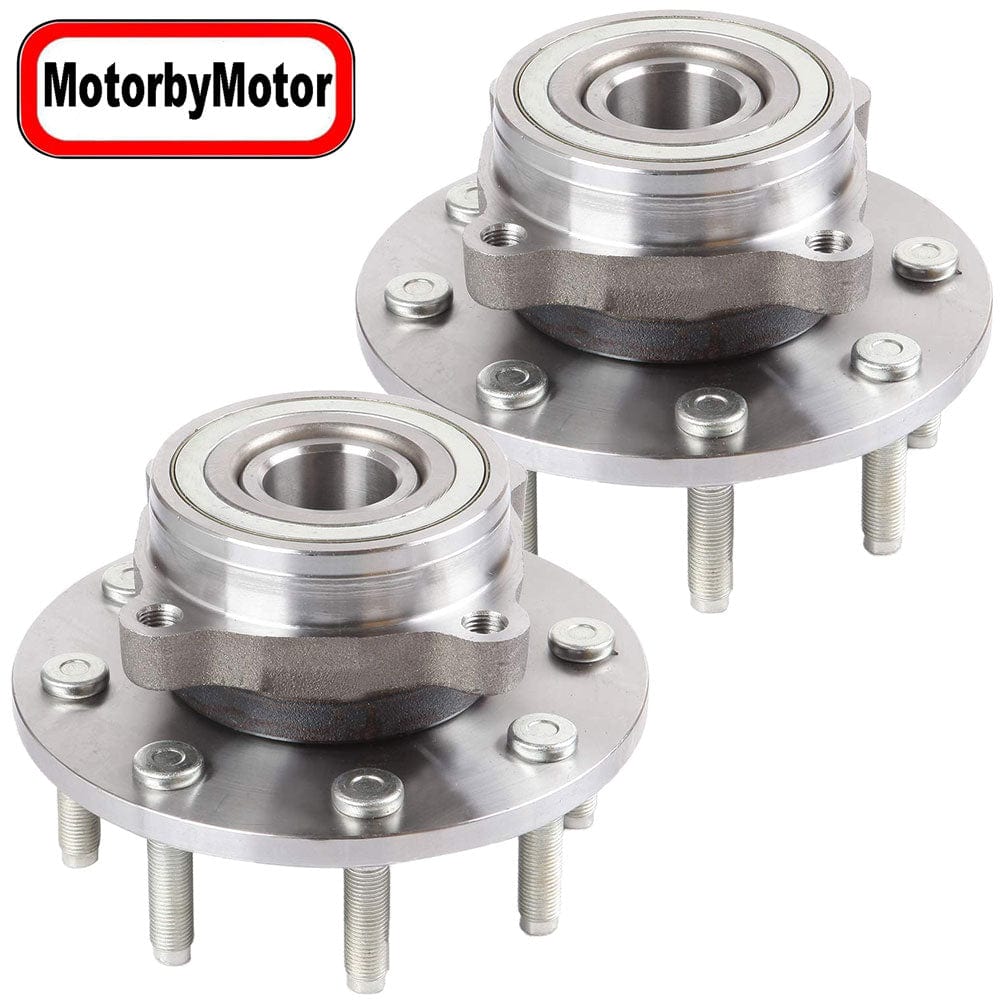

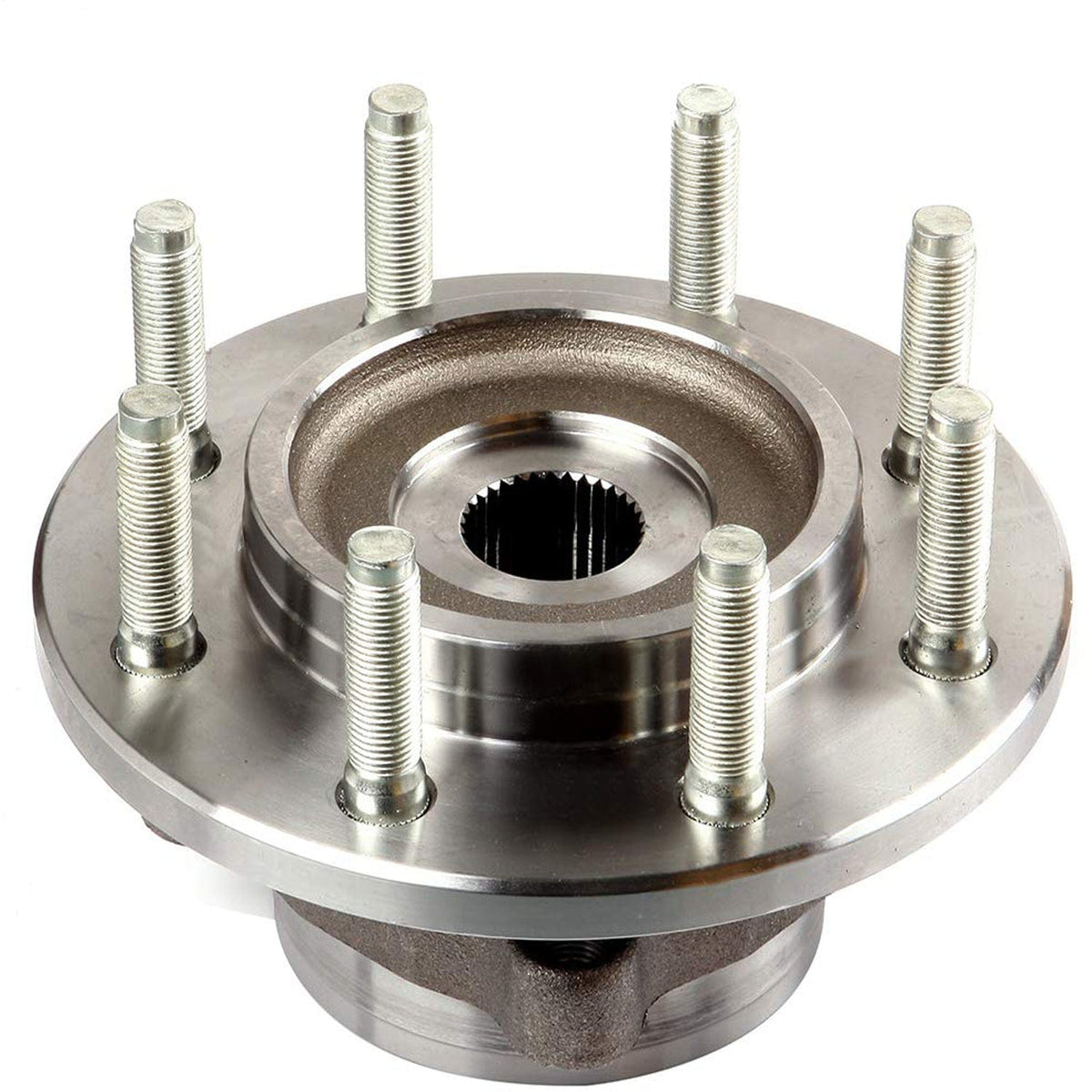

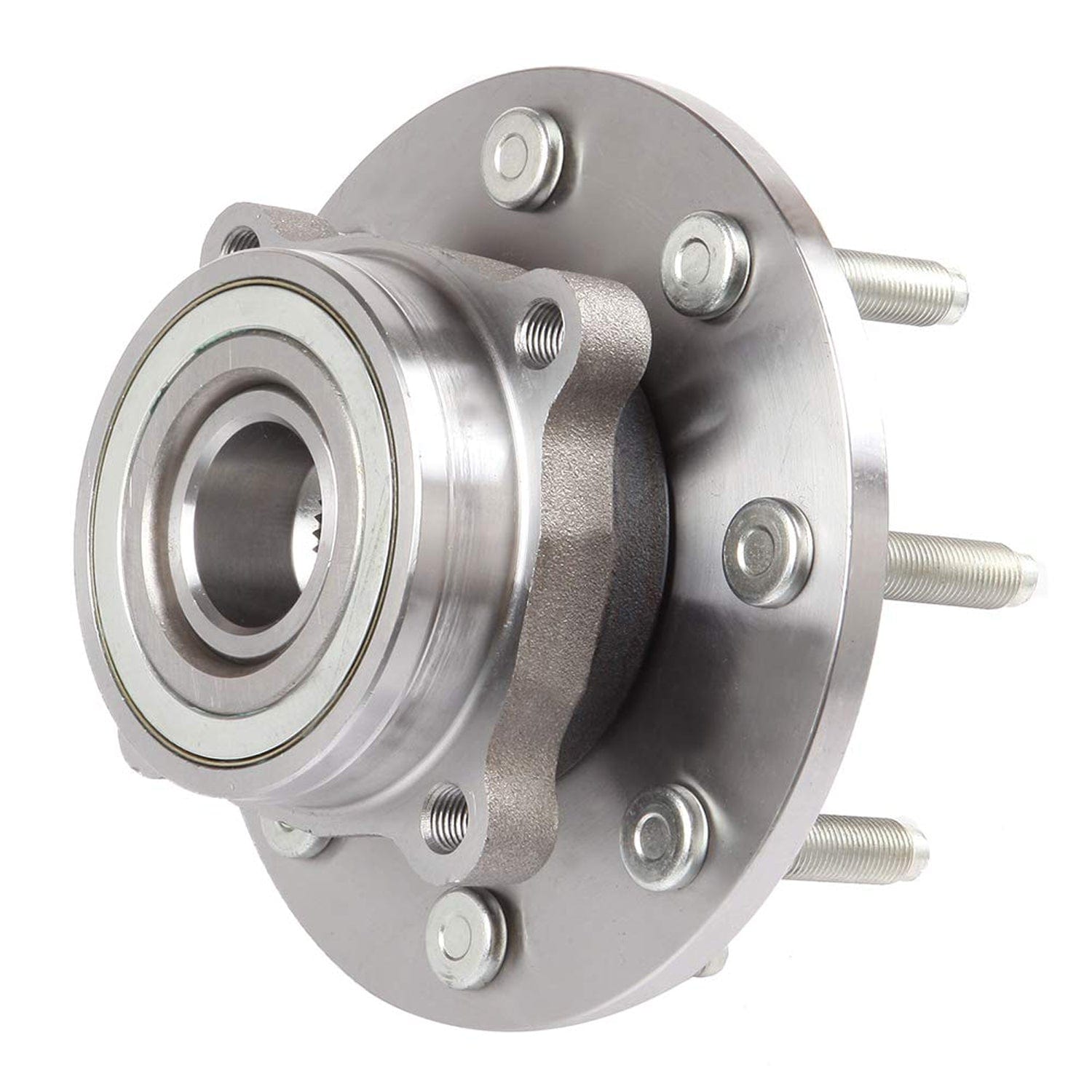

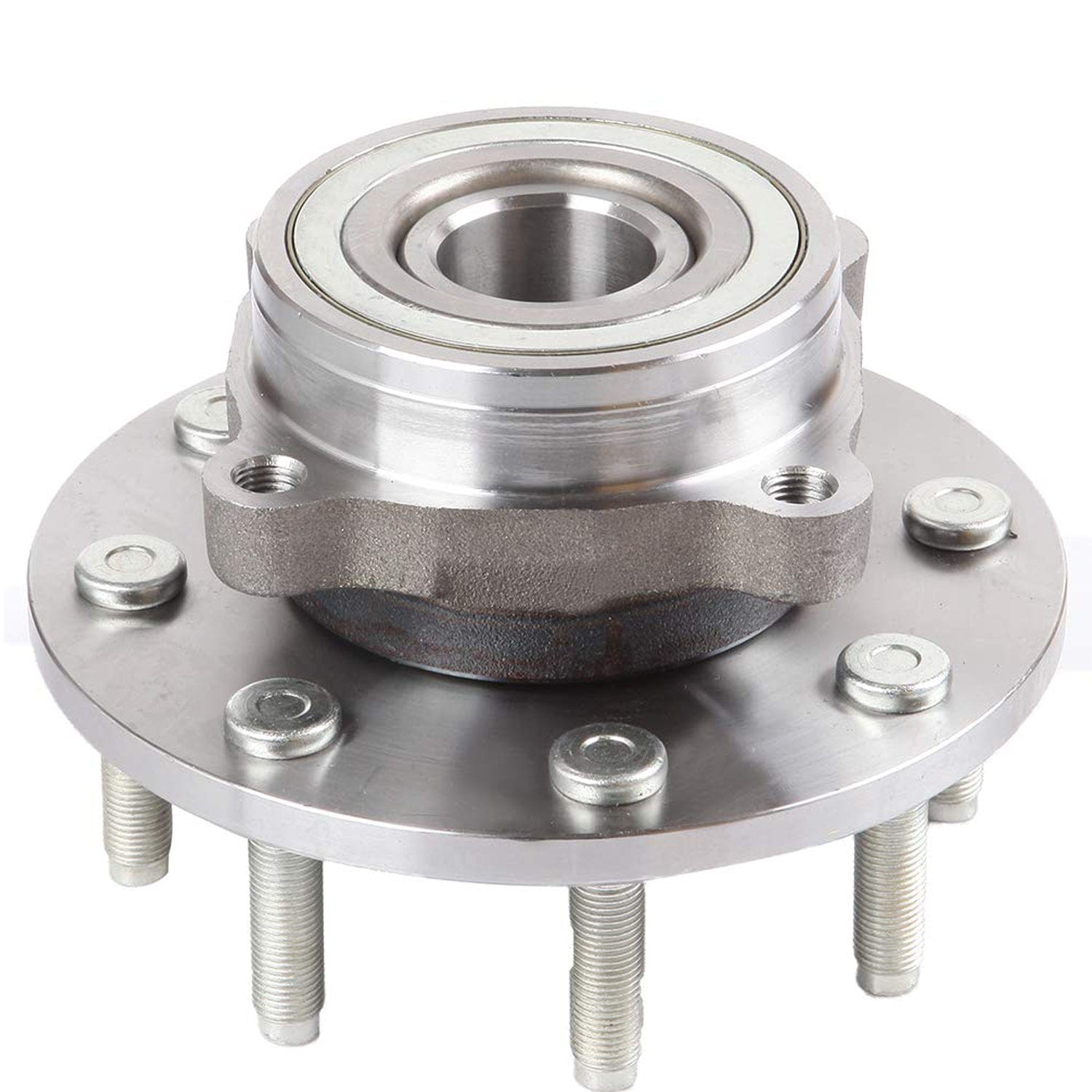

Front Wheel Bearing Fit 2000 2001 Dodge Ram 2500 Pickup Wheel Hub 4WD w/8 Lugs, 515062 (2 Pack)

Front Wheel Bearing Fit 2000 2001 Dodge Ram 2500 Pickup Wheel Hub 4WD w/8 Lugs, 515062 (2 Pack)

Fit
2000 2001 Dodge Ram 2500 Pickup

Description:

Position:Driver(LH Left) or Passenger(RH Right) Front
ABS Sensor Included: 2-Wheel ABS
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Driven
Number Of Splines: 33
Lug Bolt Thread Size: 9/16-18 Inch
Total Hub Diameter (in): 8.070 Inch
Total Hub Diameter (mm): 205mm
Hub Centerbore Diameter (in): 6.496 Inch
Hub Centerbore Diameter (mm): 165mm
Total Hub Height (in): 5.078 Inch
Total Hub Height (mm): 129mm
Flange Diameter (in): 8.07 Inch
Flange Diameter (mm): 205mm
Flange Offset (in): 2.145 Inch
Flange Offset (mm): 54.5mm
Flange Shape: Square
Flange Bolt Size (in): 1.948 Inch
Flange Bolt Size (mm): 49.5mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.55 Inch
Inner Ring Width (in): 1.07 Inch
Hub Pilot Diameter (in): 4.803 Inch
Hub Pilot Diameter (mm): 122mm
