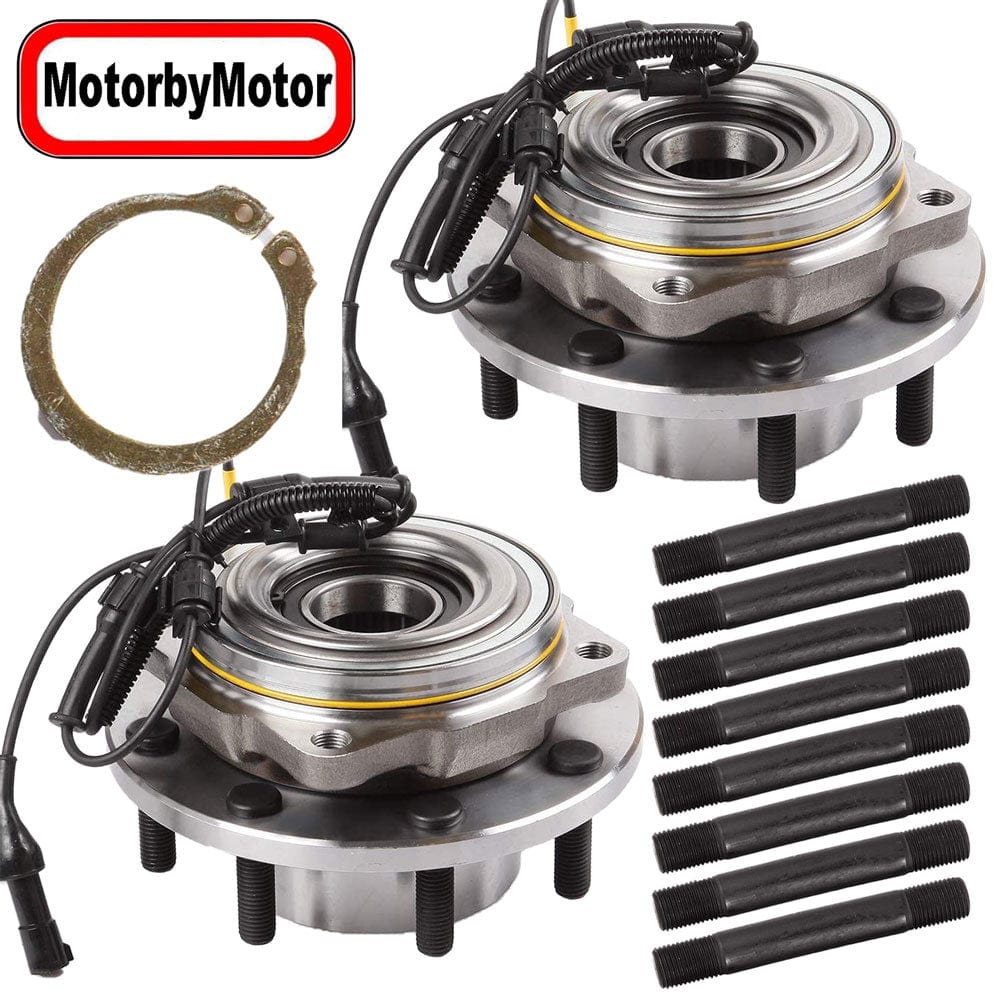

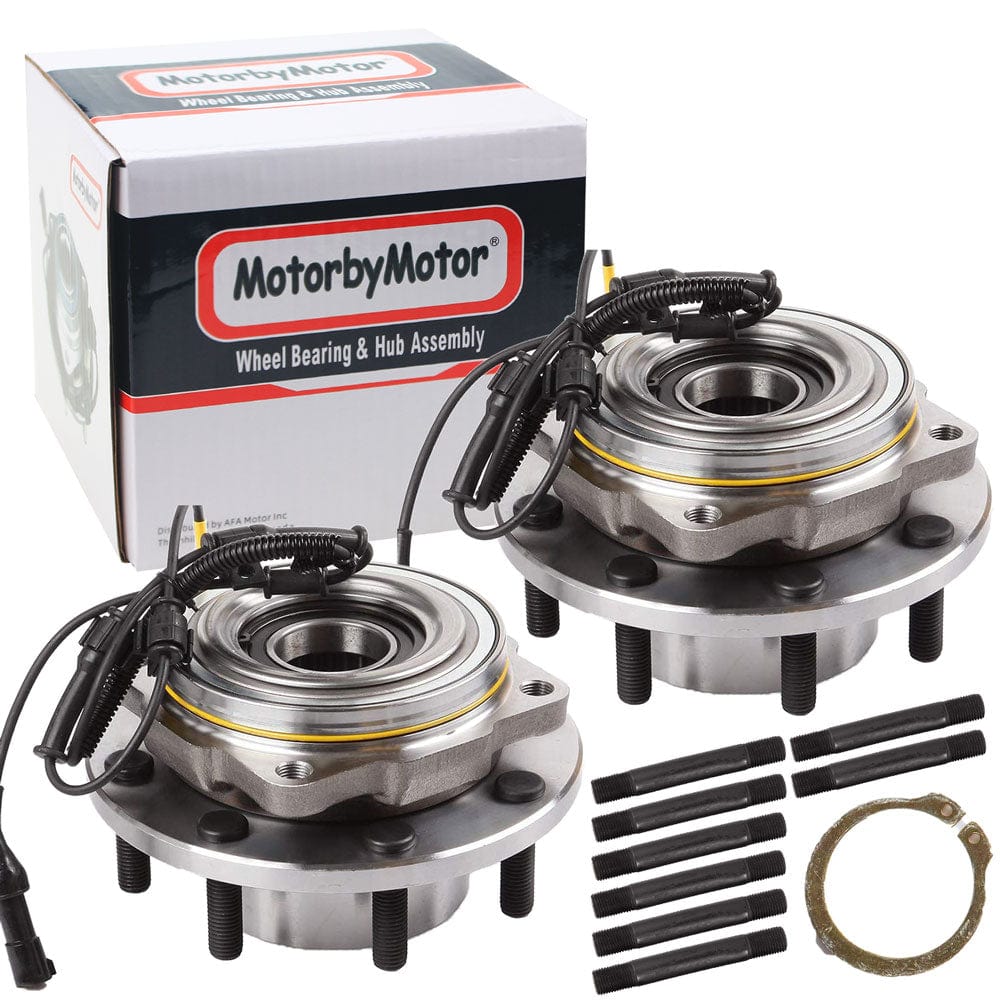

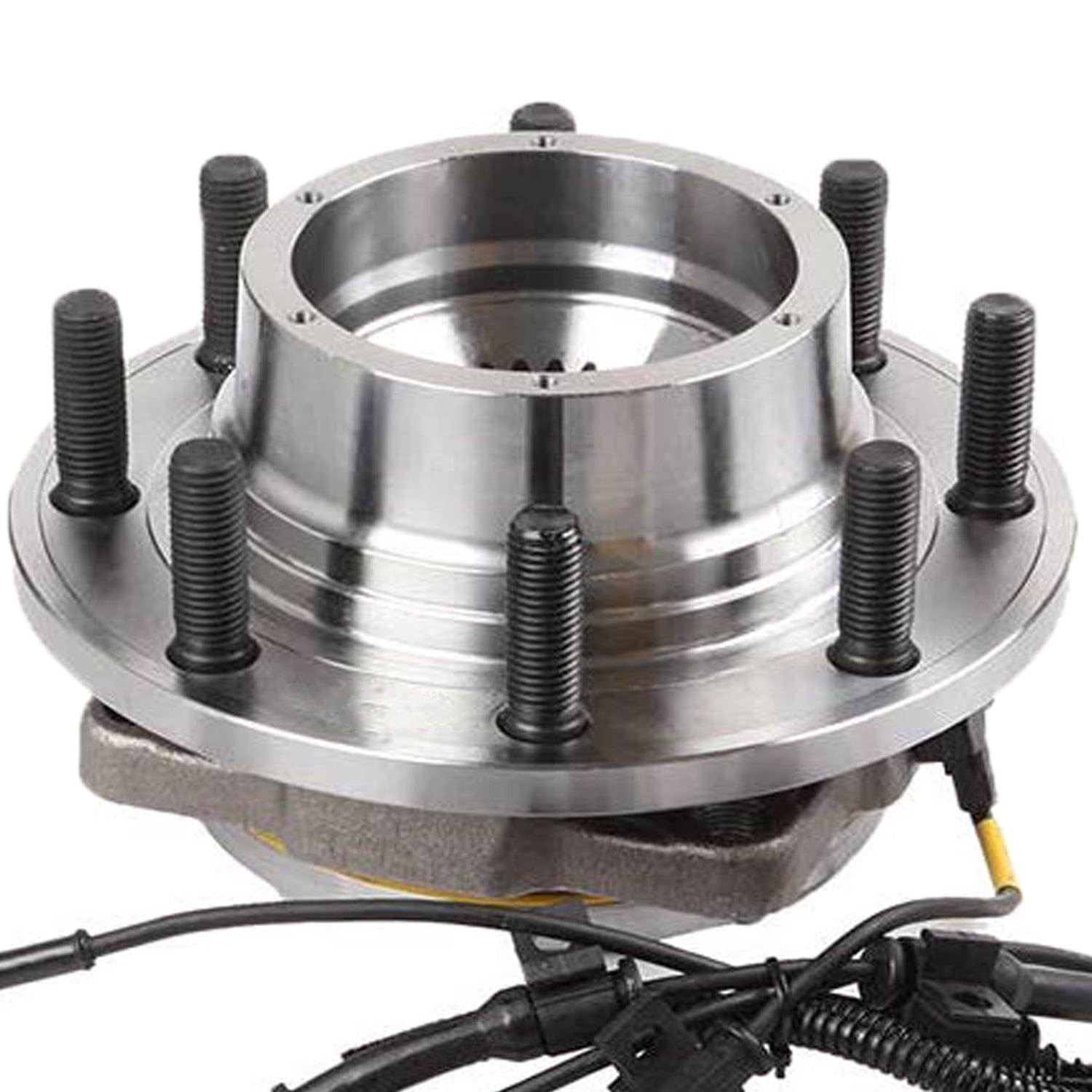

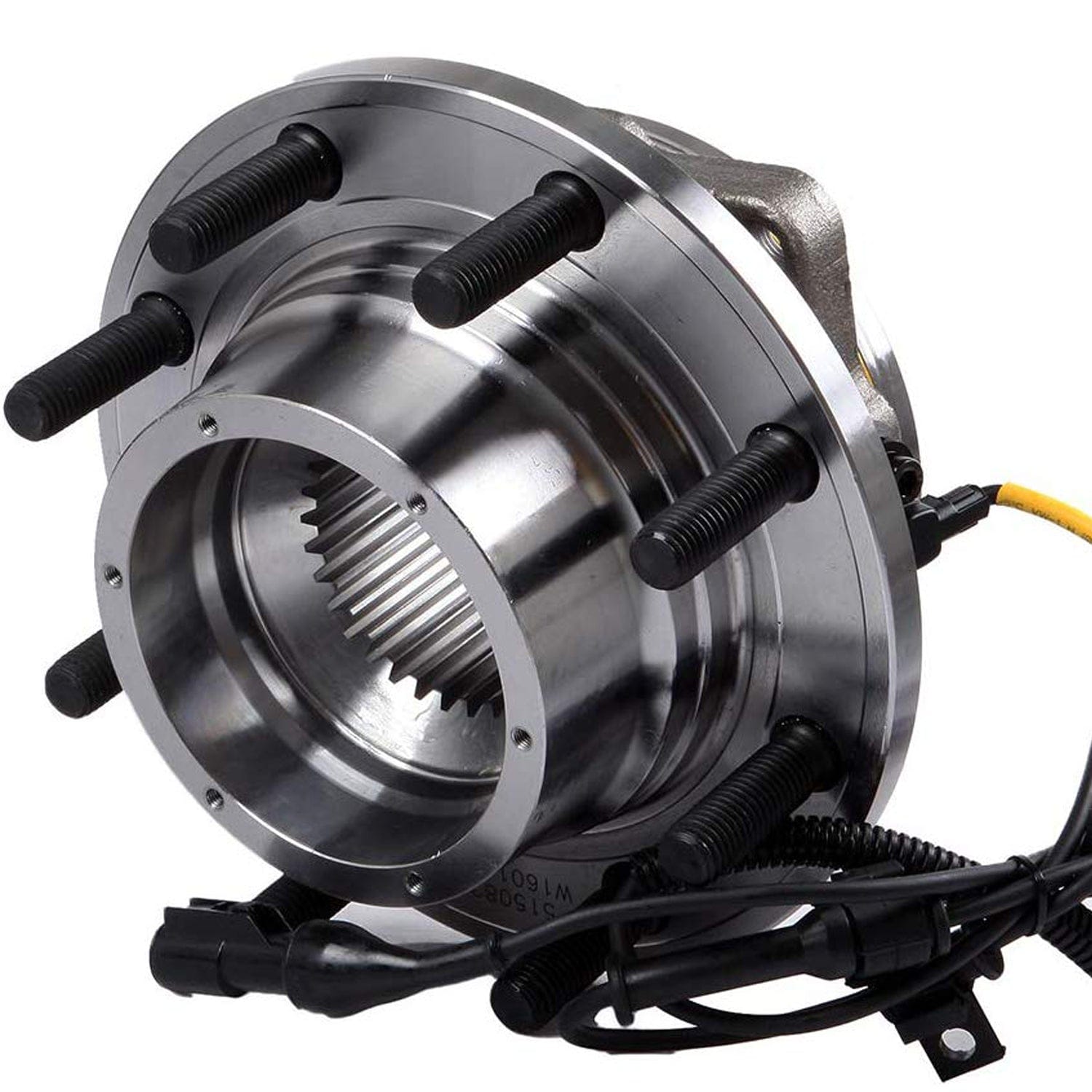

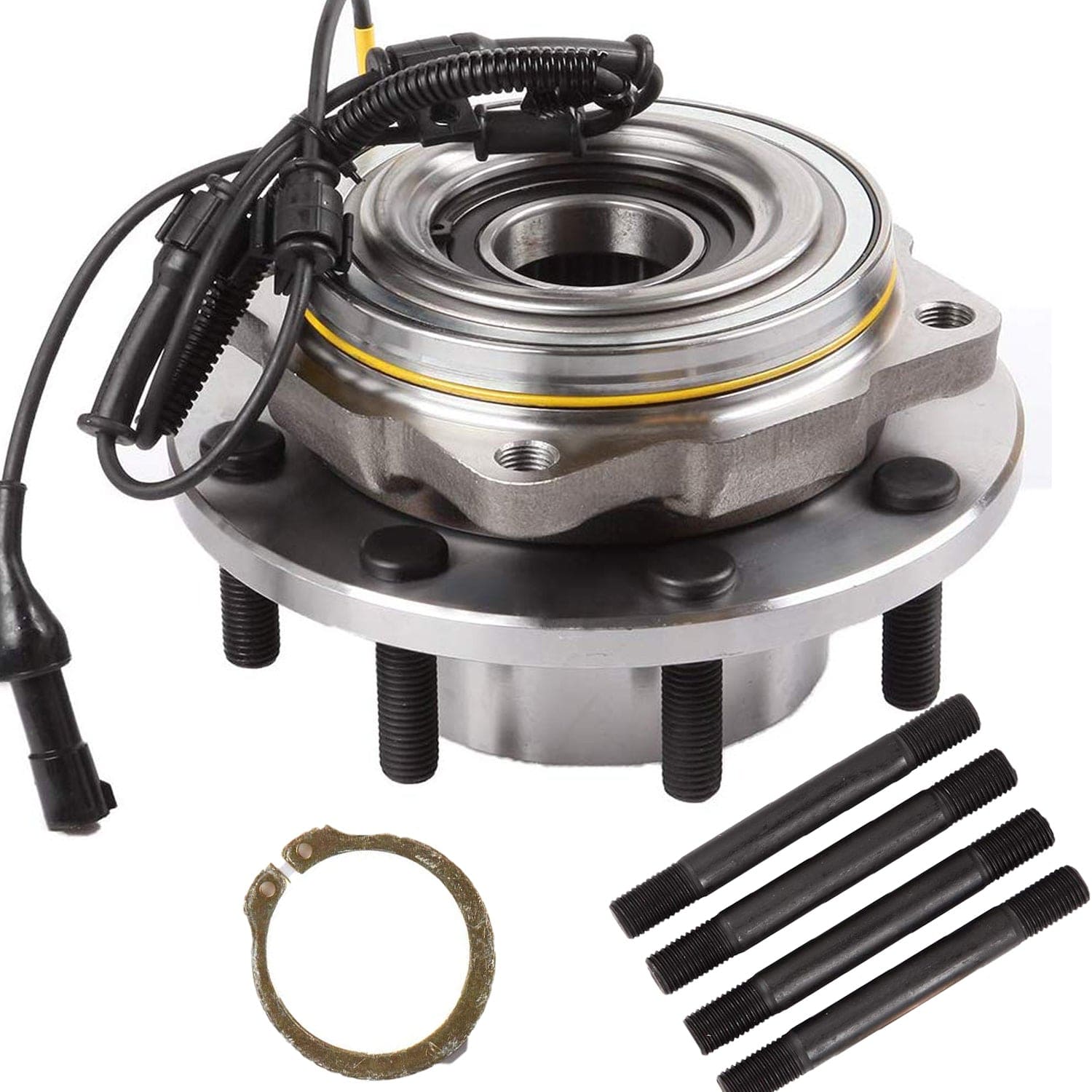

Front Wheel Bearing Fit 2005-2010 Ford F-350 Super Duty, 2005-2009 Ford F-250 Super Duty Wheel Hub 8 Lugs, 4WD,w/ABS, 515082 (2 Pk)

Front Wheel Bearing Fit 2005-2010 Ford F-350 Super Duty, 2005-2009 Ford F-250 Super Duty Wheel Hub 8 Lugs, 4WD,w/ABS, 515082 (2 Pk)

 Fit:
2005-2009 Ford F-250 Super Duty
2005-2010 Ford F-350 Super Duty

Description:
Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 43.39 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 60
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.992 Inch
Total Hub Diameter (mm): 203mm
Hub Centerbore Diameter (in): 6.692 Inch
Hub Centerbore Diameter (mm): 170mm
Total Hub Height (in): 5.078 Inch
Total Hub Height (mm): 129mm
Flange Diameter (in): 7.992 Inch
Flange Diameter (mm): 203mm
Flange Offset (in): 1.811 Inch
Flange Offset (mm): 46mm
Flange Shape: Square
Flange Bolt Size (in): 1.791 Inch
Flange Bolt Size (mm): 45.5mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.07 Inch
Inner Ring Width (in): 1.03 Inch
Hub Pilot Diameter (in): 5.078 Inch
Hub Pilot Diameter (mm): 129mm
