Ford Ranger Explorer, Mazda B4000 B3000, Mercury Mountaineer Wheel Hub

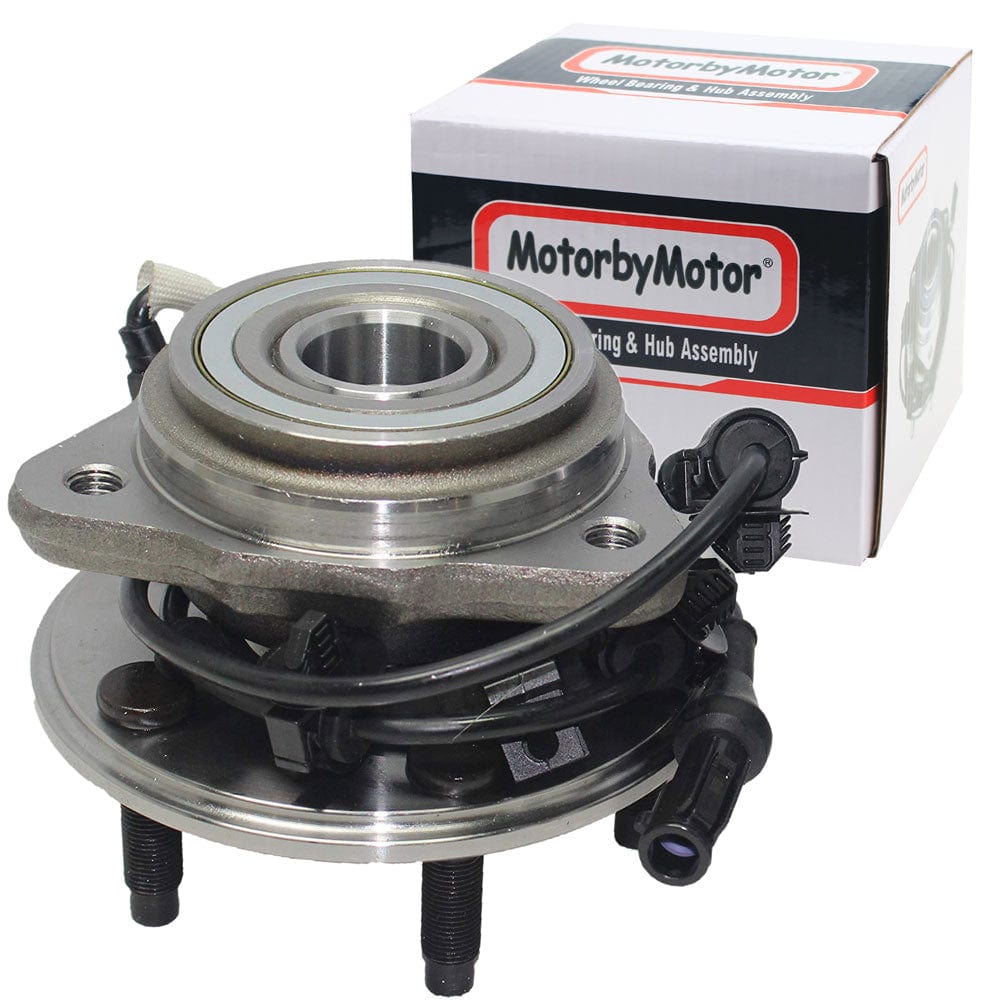

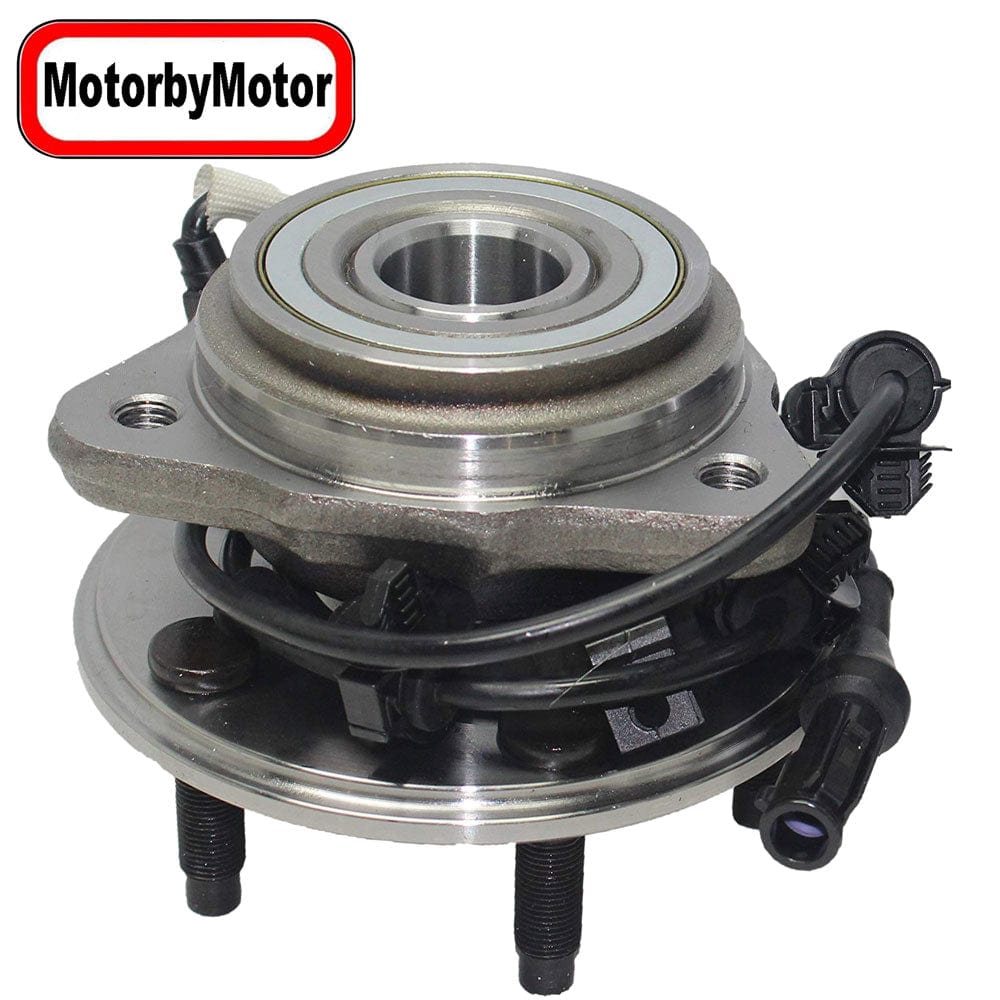

Front Wheel Bearing and Hub Assembly Fit Ford Ranger Explorer, Mazda B4000 B3000, Mercury Mountaineer - 515051

Fitment:

• Ford Explorer: 1995-2001
• Ford Ranger: 2002-2009
• Ford Explorer Sport Trac: 2001-2005
• Mazda B4000: 2000-2009
• Mazda B3000: 2001-2002
• Mercury Mountaineer: 1997-2001

Description:

• Position: Driver (LH Left) or Passenger (RH Right) Side Front
• ABS Sensor Included: Yes
• Wiring Harness Included: Yes
• Number of Lug Bolts: 5
• Driven or Non-Driven: Driven
• ABS Ring Type: Sensor
• Number of Mounting Bolts to Knuckle: 3

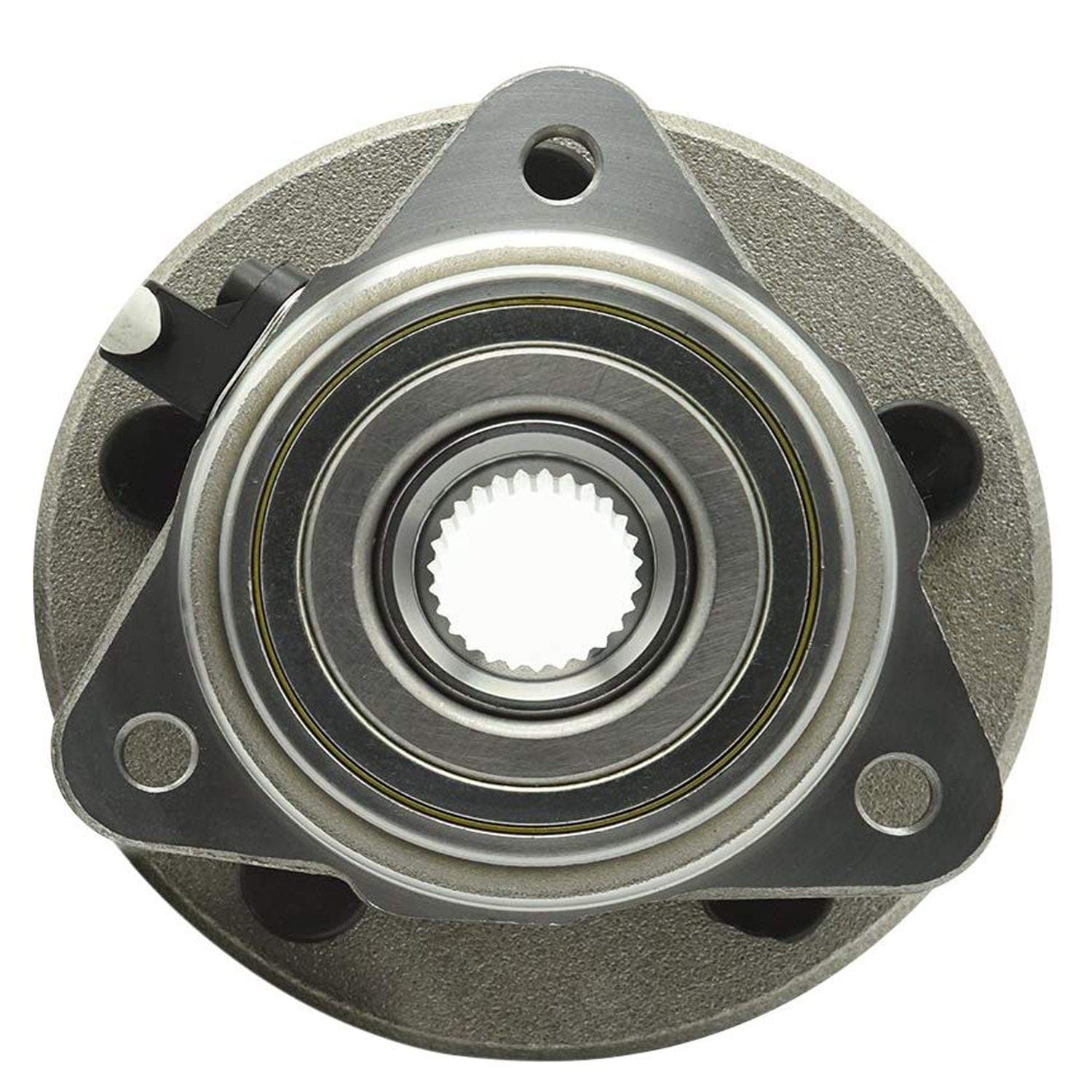

• Number of Splines: 27
• Number of ABS Sensor Ring Teeth: 54

Dimensions:

• Total Hub Diameter: 149.4 mm (5.88 Inch)
• Hub Centerbore Diameter: 114.3 mm (4.5 Inch)
• Total Hub Height: 121.2 mm (4.77 Inch)
• Flange Diameter: 71.8 mm (2.83 Inch)
• Flange Offset: 56 mm (2.20 Inch)
• Flange Bolt Size: 37.6 mm (1.48 Inch)
• Flange Bolt Thread Size: 1/2-20 Inch
• Bearing Type: Tapered
• Hub Pilot Diameter: 100 mm (3.94 Inch)
• ABS Connector Shape: Round

Material: Steel

Upgrade your vehicle with this high-quality front wheel bearing and hub assembly, designed for durability and easy installation. Perfect fit for Ford, Mazda, and Mercury models listed above.
