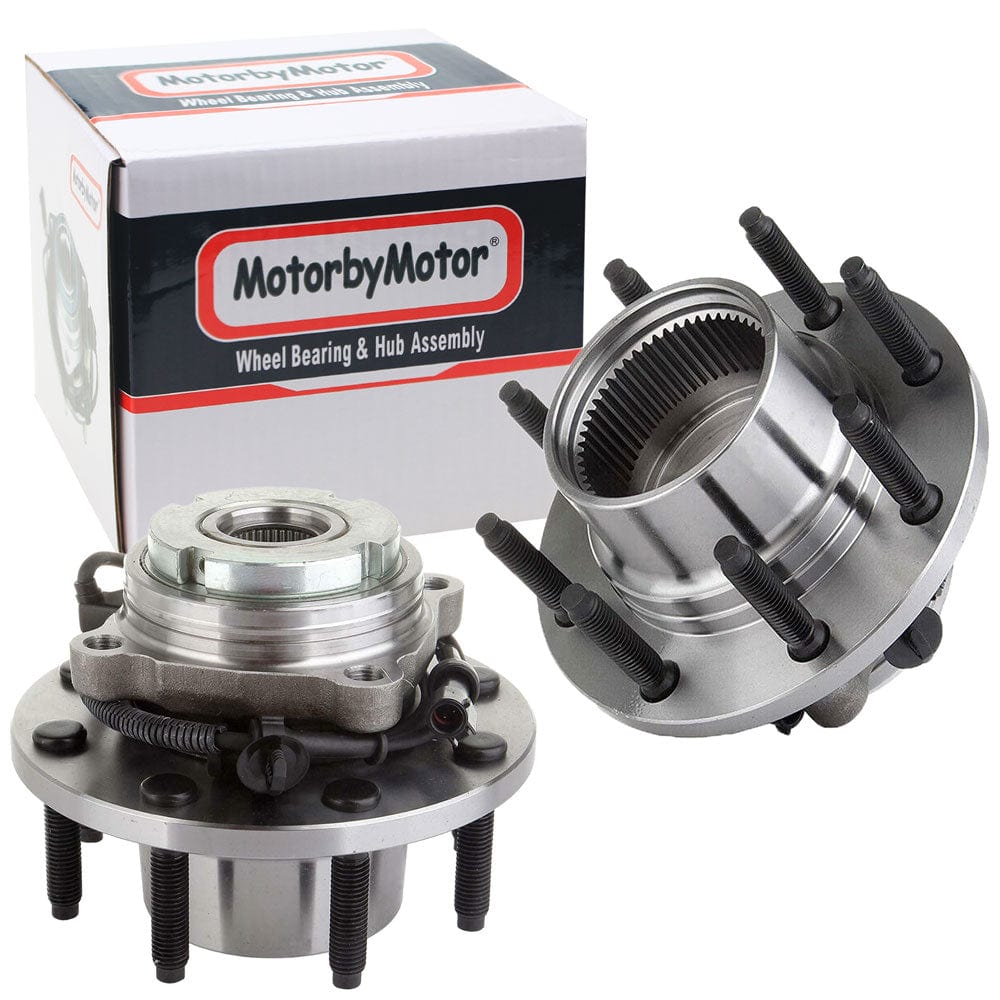

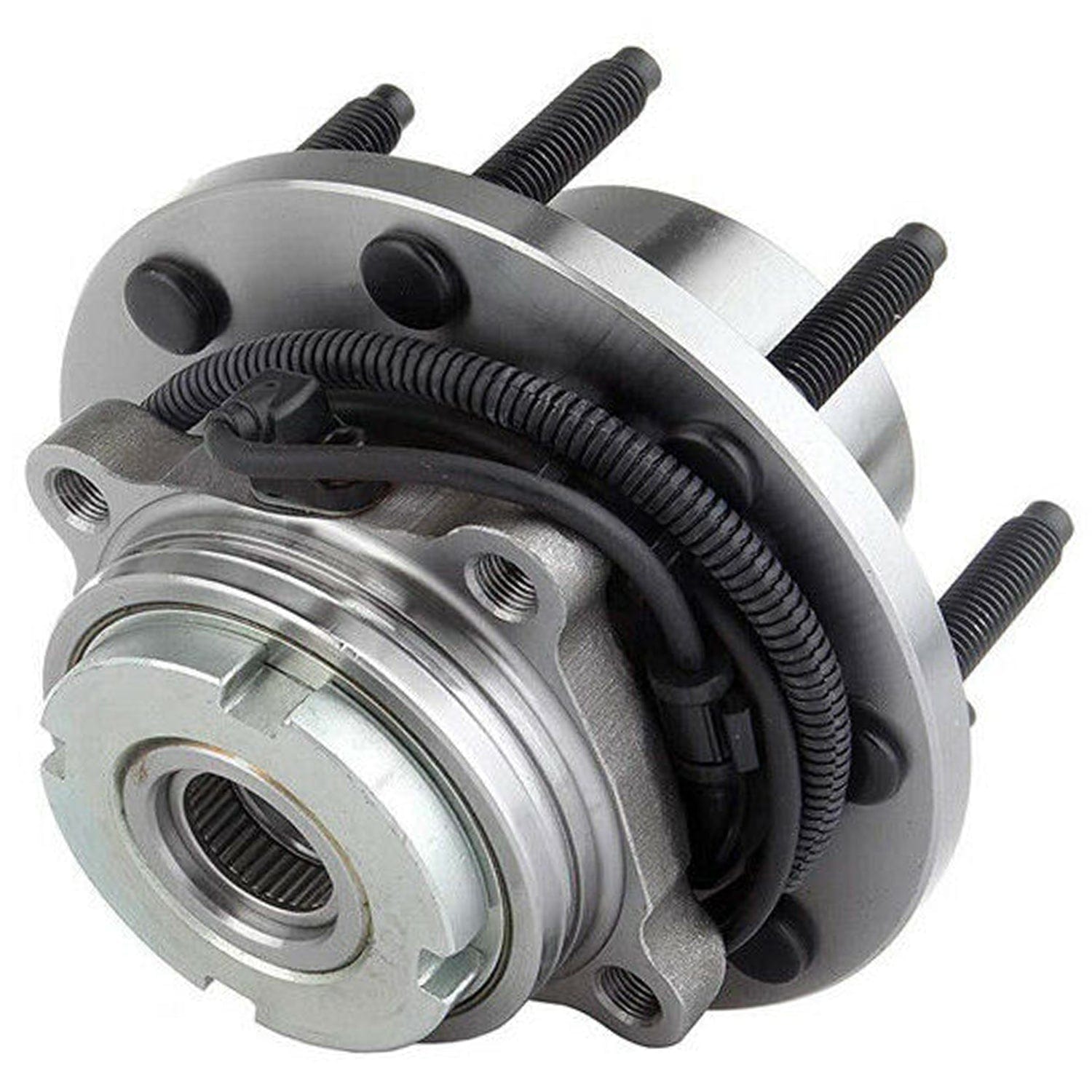

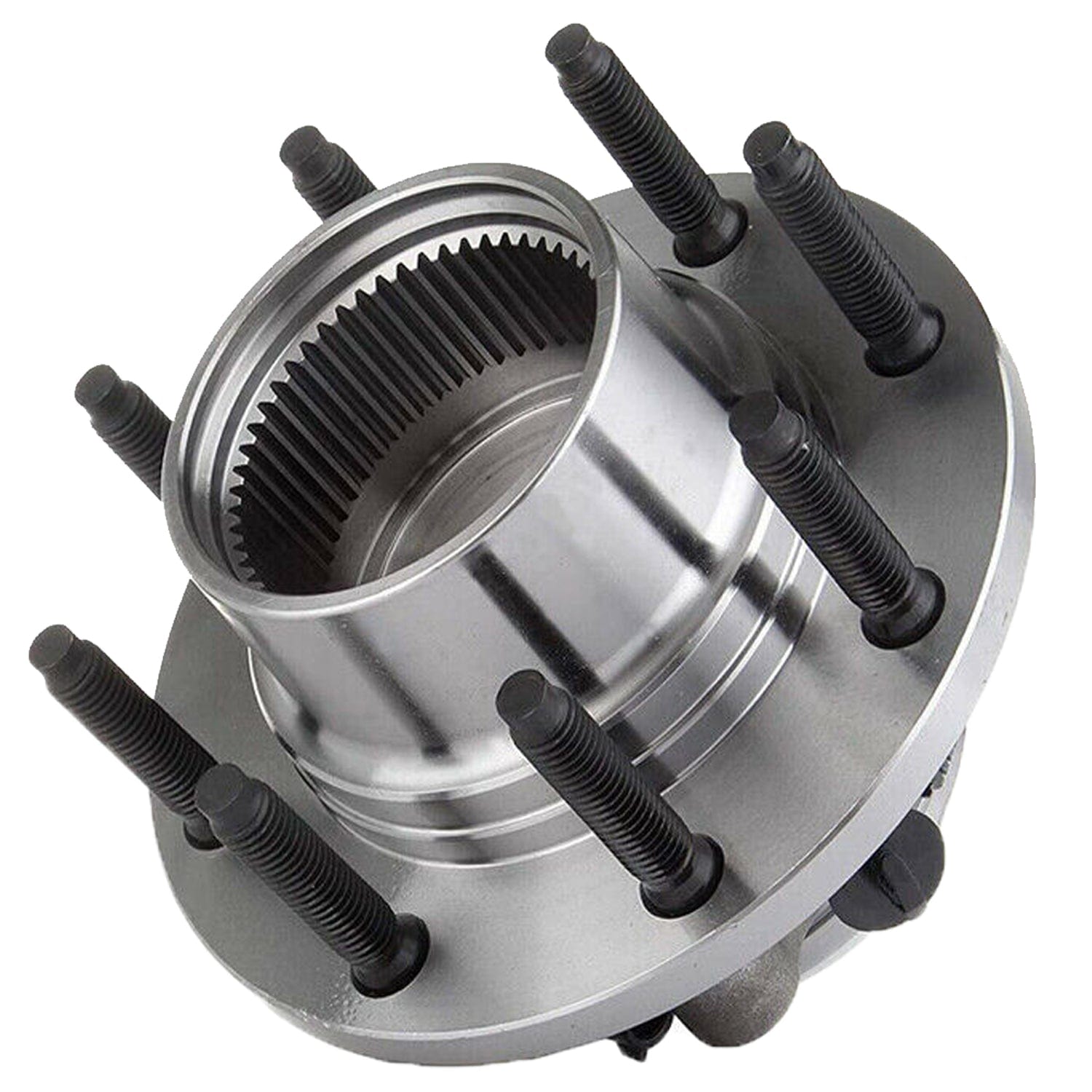

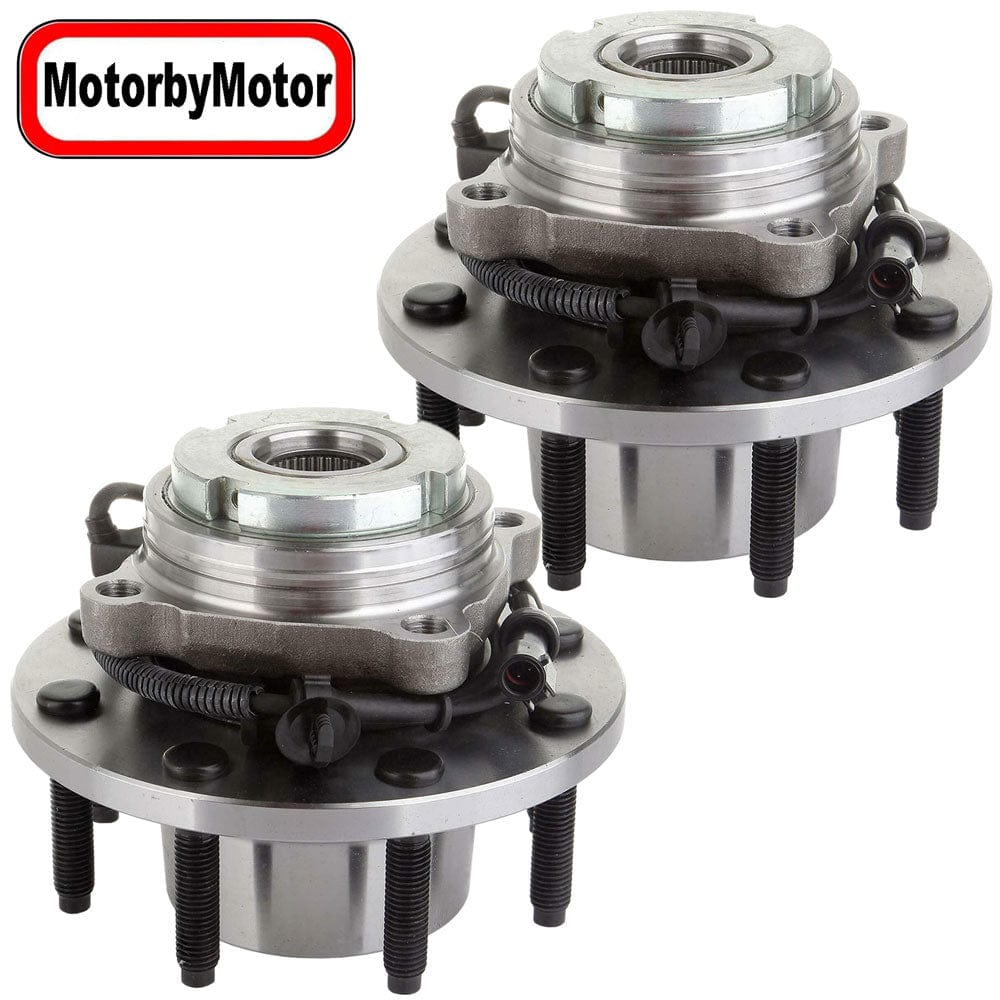

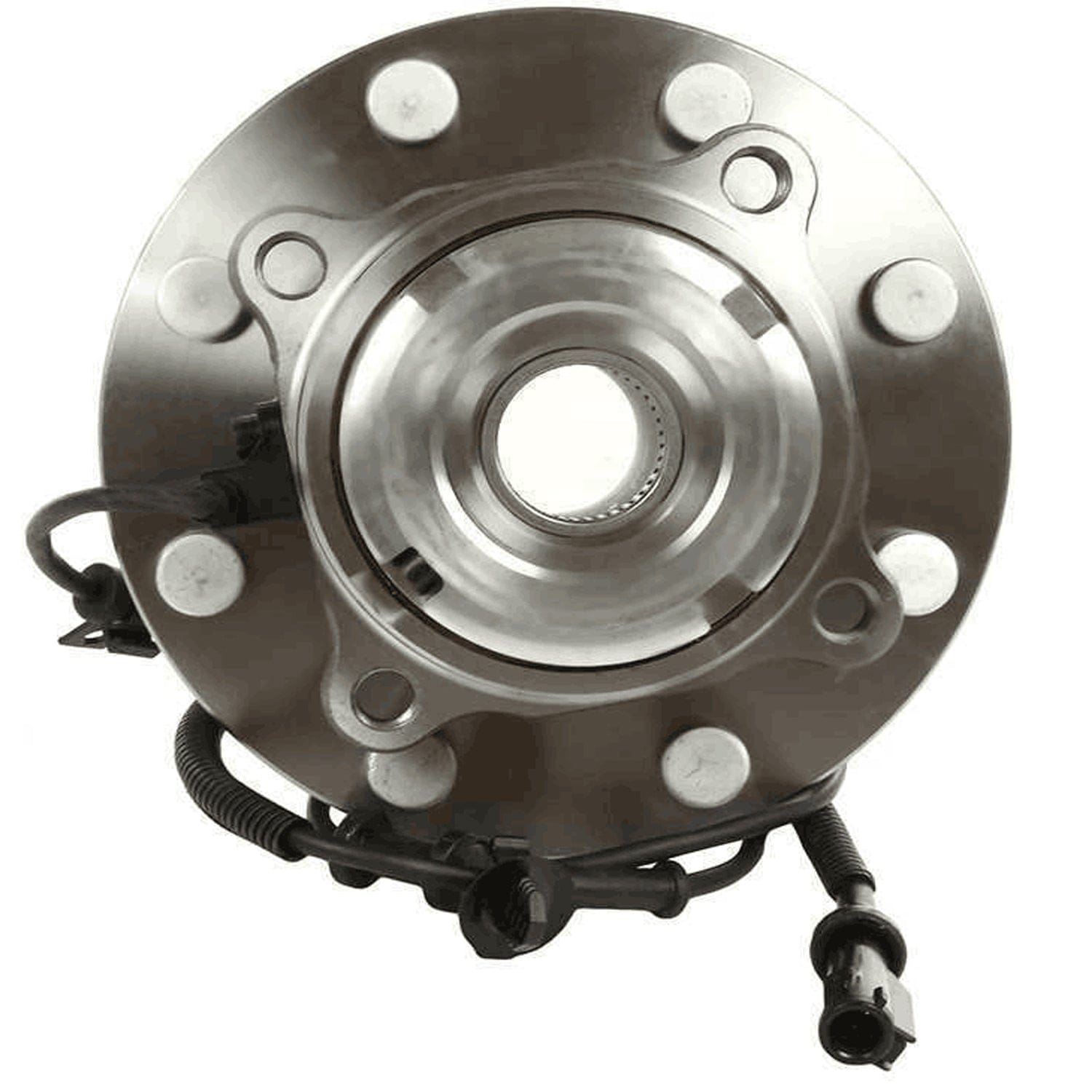

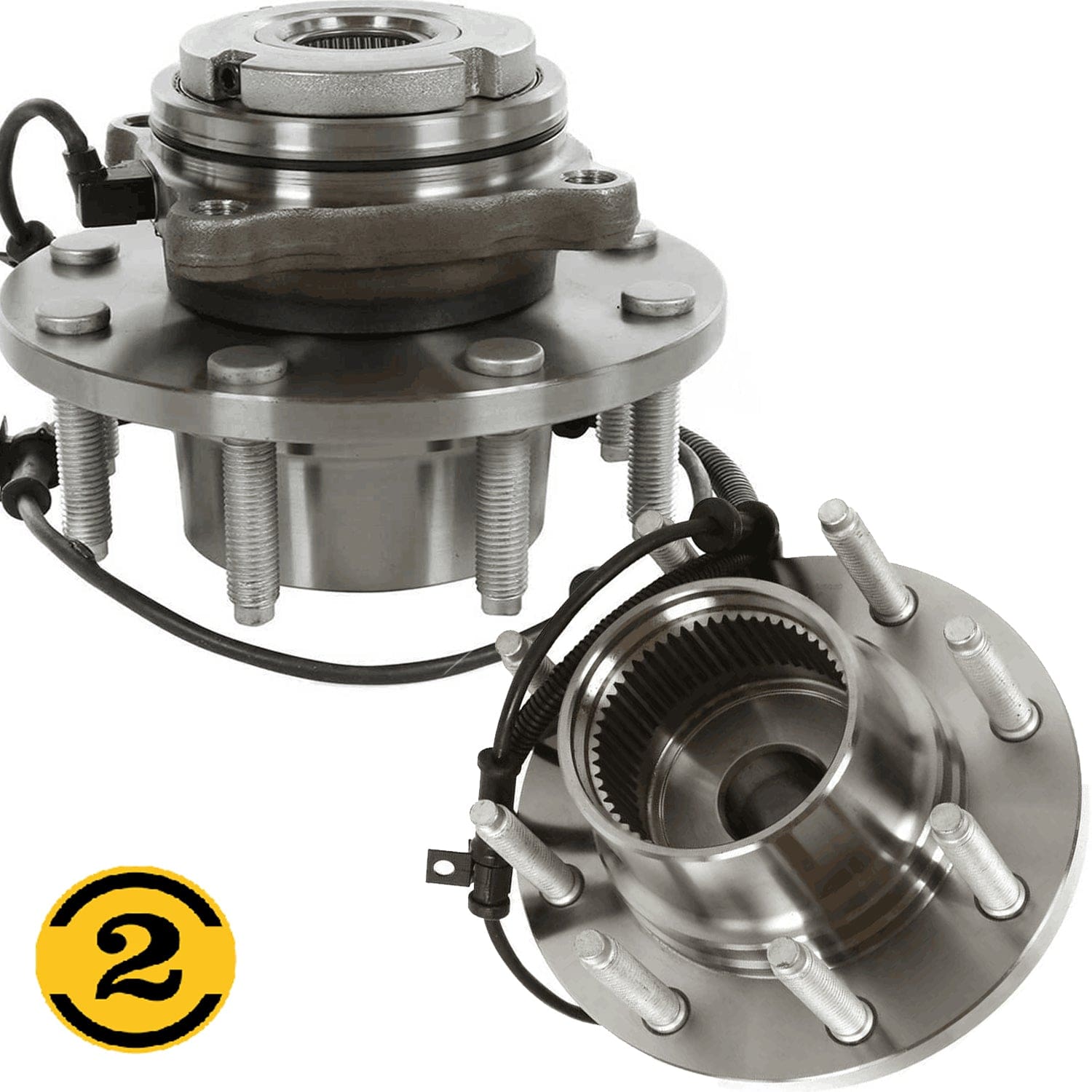

Front Wheel Bearing Fit 2000-2004 Ford F-250 F-350 Super Duty, 2000-2002 Ford Excursion Wheel Hub w/ABS 8 Lugs, 4WD, 515020 (2 Pack)

Front Wheel Bearing Fit 2000-2004 Ford F-250 F-350 Super Duty, 2000-2002 Ford Excursion Wheel Hub w/ABS 8 Lugs, 4WD, 515020 (2 Pack)

Fit:

2000-2002 Ford Excursion
2000-2004 Ford F-250 Super Duty
2000-2004 Ford F-350 Super Duty

Description:
Position:Driver (LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 46.85 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Driven
Number Of Splines: 55
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 60
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.992 Inch
Total Hub Diameter (mm): 203mm
Hub Centerbore Diameter (in): 6.692 Inch
Hub Centerbore Diameter (mm): 170mm
Total Hub Height (in): 5.661 Inch
Total Hub Height (mm): 143.8mm
Flange Diameter (in): 7.992 Inch
Flange Diameter (mm): 203mm
Flange Offset (in): 2.145 Inch
Flange Offset (mm): 54.5mm
Flange Shape: Square
Flange Bolt Size (in): 2.409 Inch
Flange Bolt Size (mm): 61.2mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.44 Inch
Inner Ring Width (in): 1.07 Inch
Hub Pilot Diameter (in): 5.078 Inch
Hub Pilot Diameter (mm): 129mm
