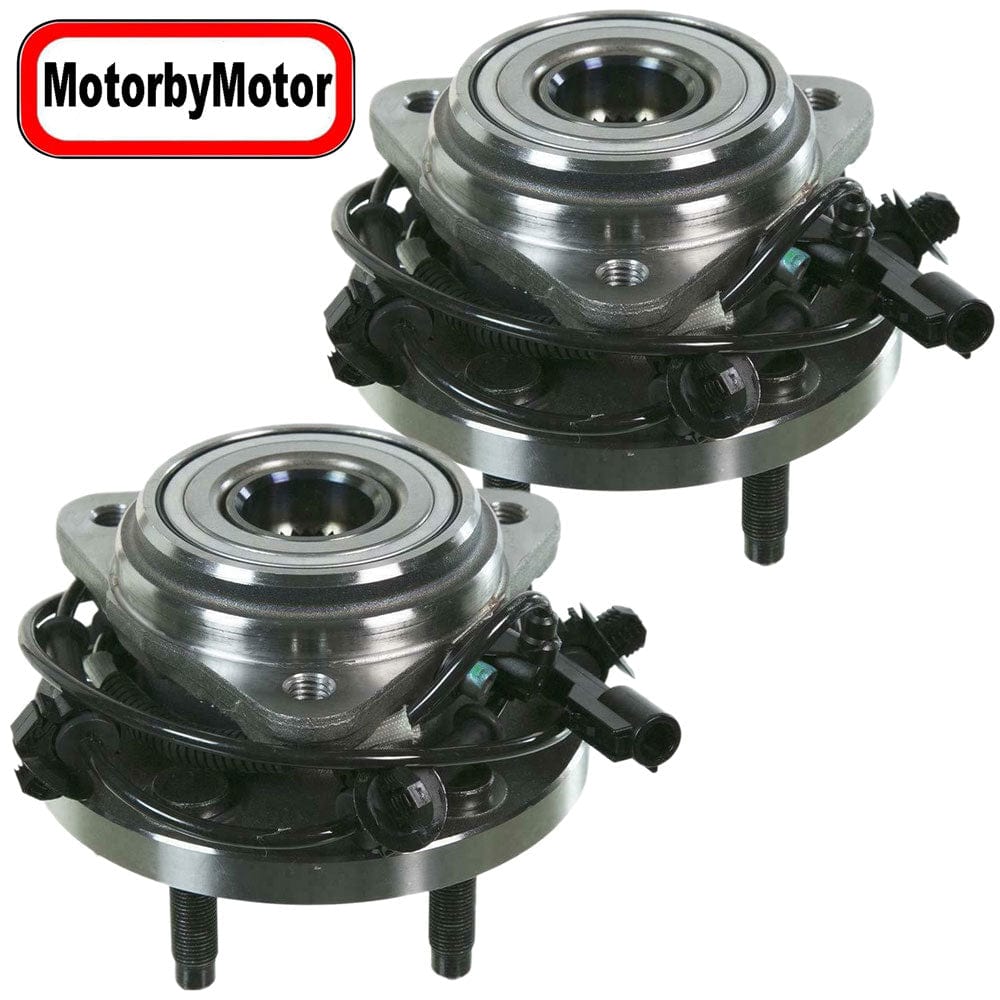

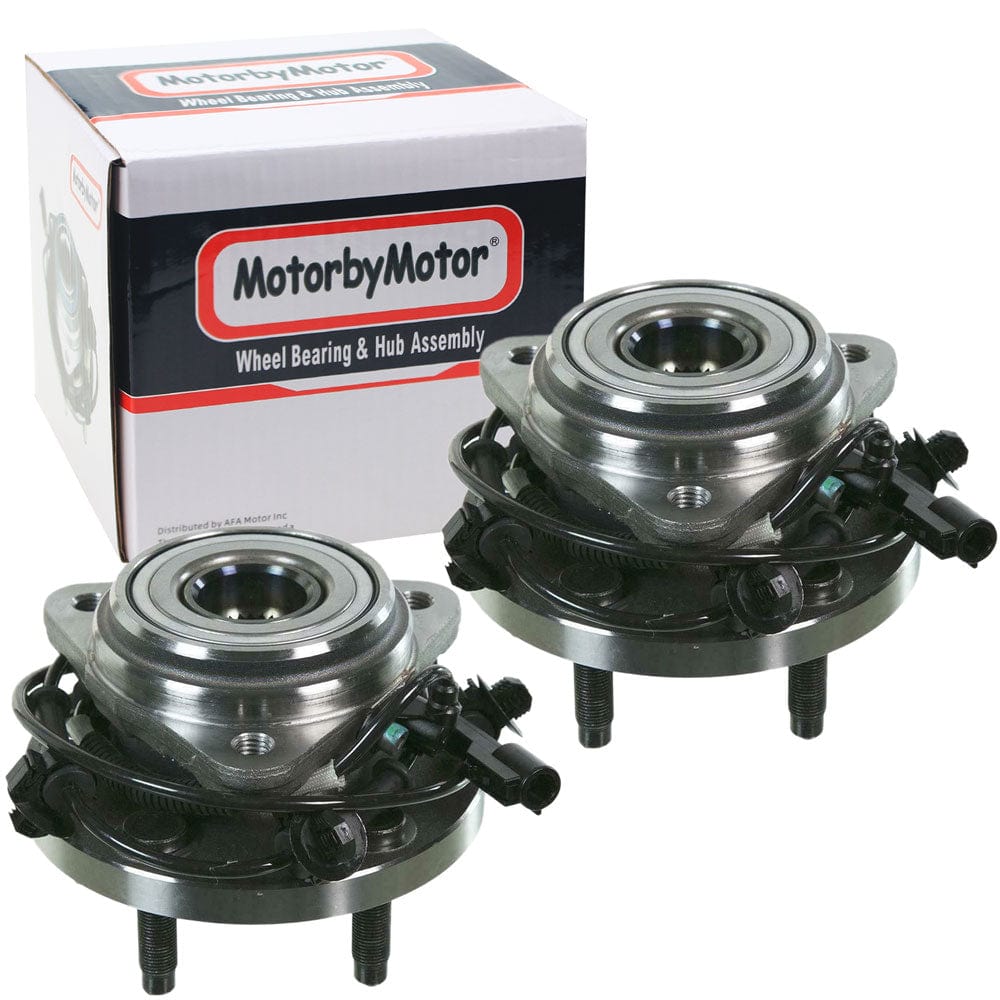

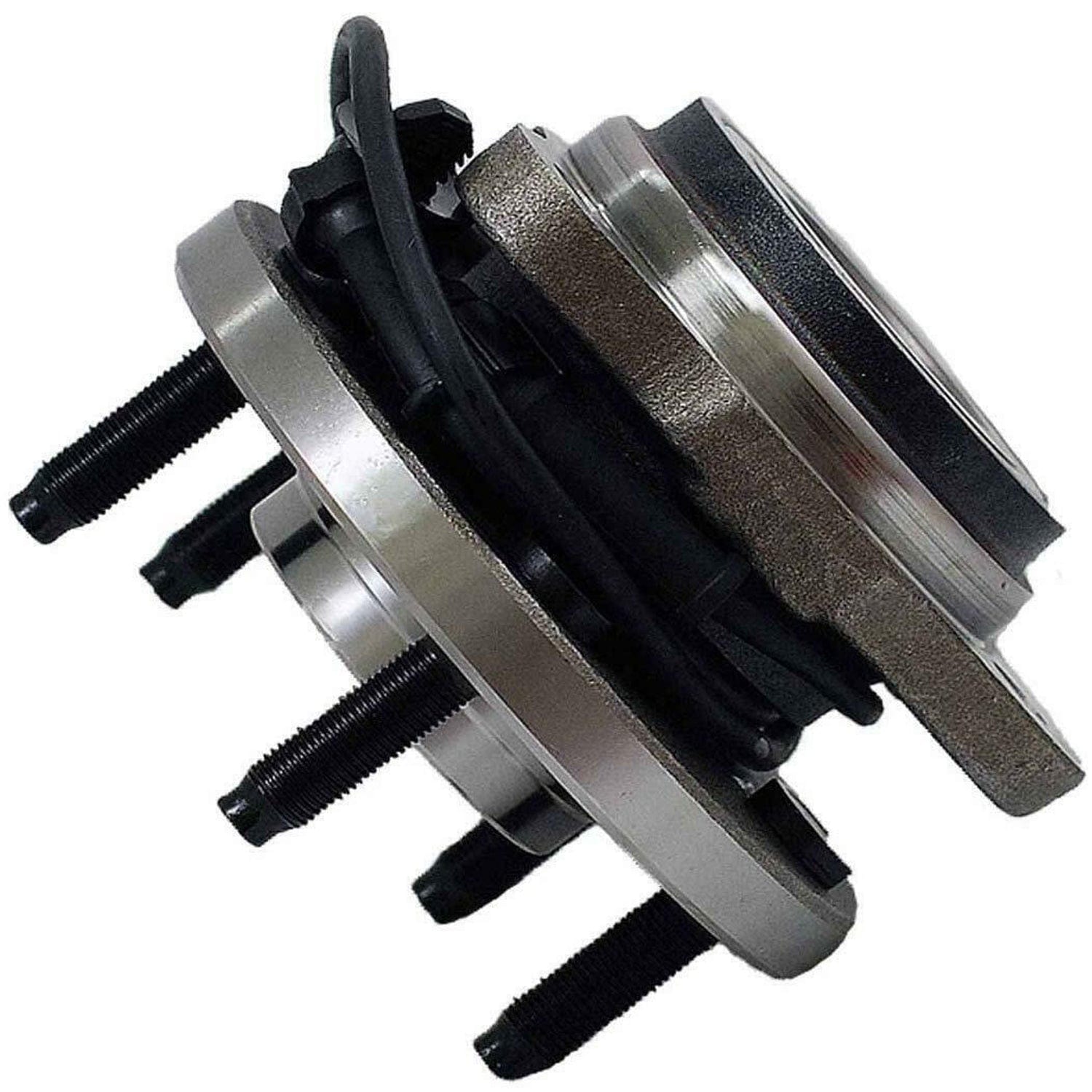

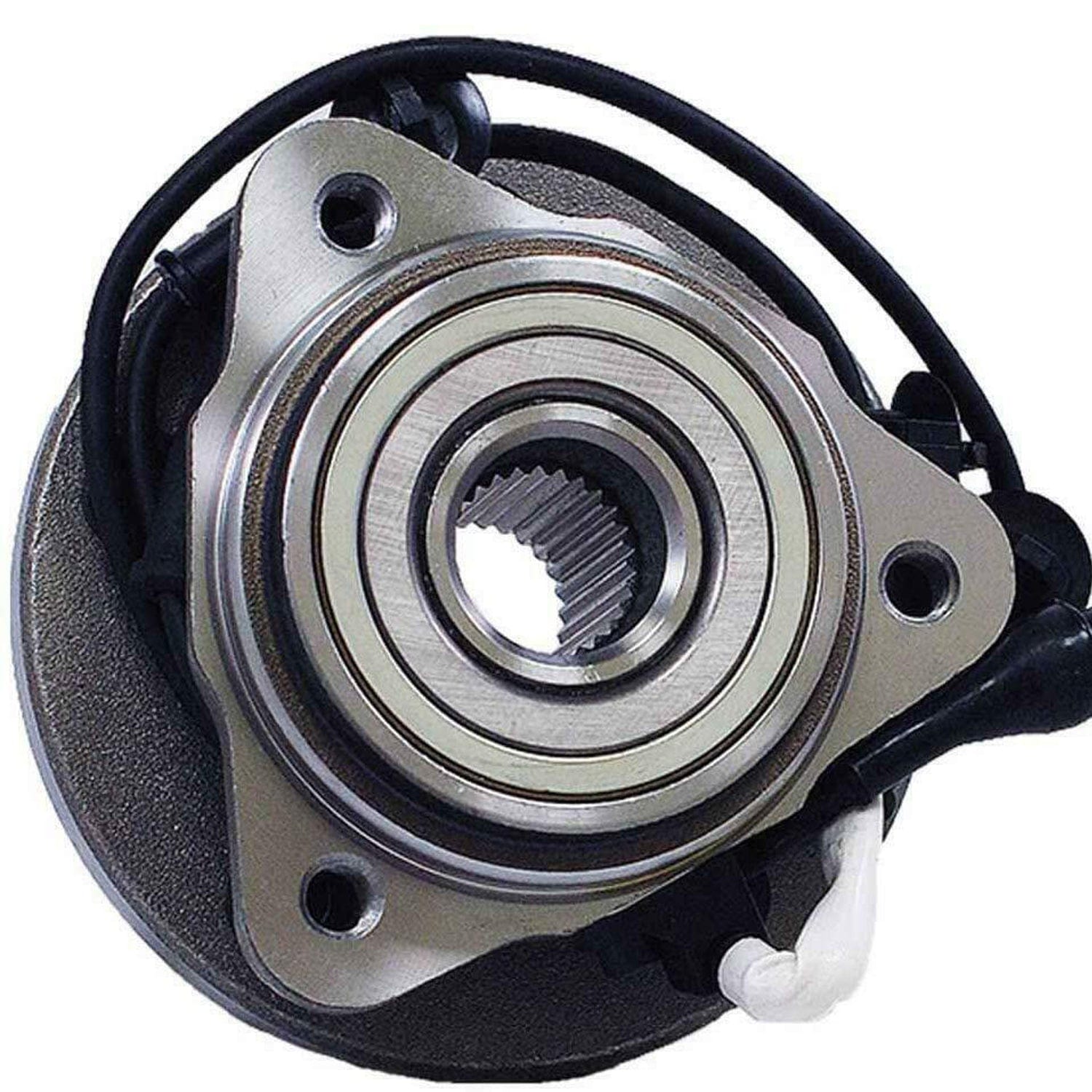

Front Wheel Bearing Fit Mazda B4000, Mercury Mountaineer,Ford Explorer Sport Trac Ranger Wheel Hub AWD 4WD, w/ABS 5 Lugs-515052 (2 Pack)
Front Wheel Bearing Fit Mazda B4000, Mercury Mountaineer,Ford Explorer Sport Trac Ranger Wheel Hub AWD 4WD, w/ABS 5 Lugs-515052 (2 Pack)
Fit:
1995 1996 1997 1998 1999 2000 2001 Ford Explorer
2001 2002 2003 Ford Explorer Sport
2001 2002 2003 2004 2005 Ford Explorer Sport Trac
2003 2004 2005 2006 2007 2008 2009 Ford Ranger
2003 2004 2005 2006 2007 2008 2009 2010 Mazda B4000
1997 1998 1999 2000 2001 Mercury Mountaineer
Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes

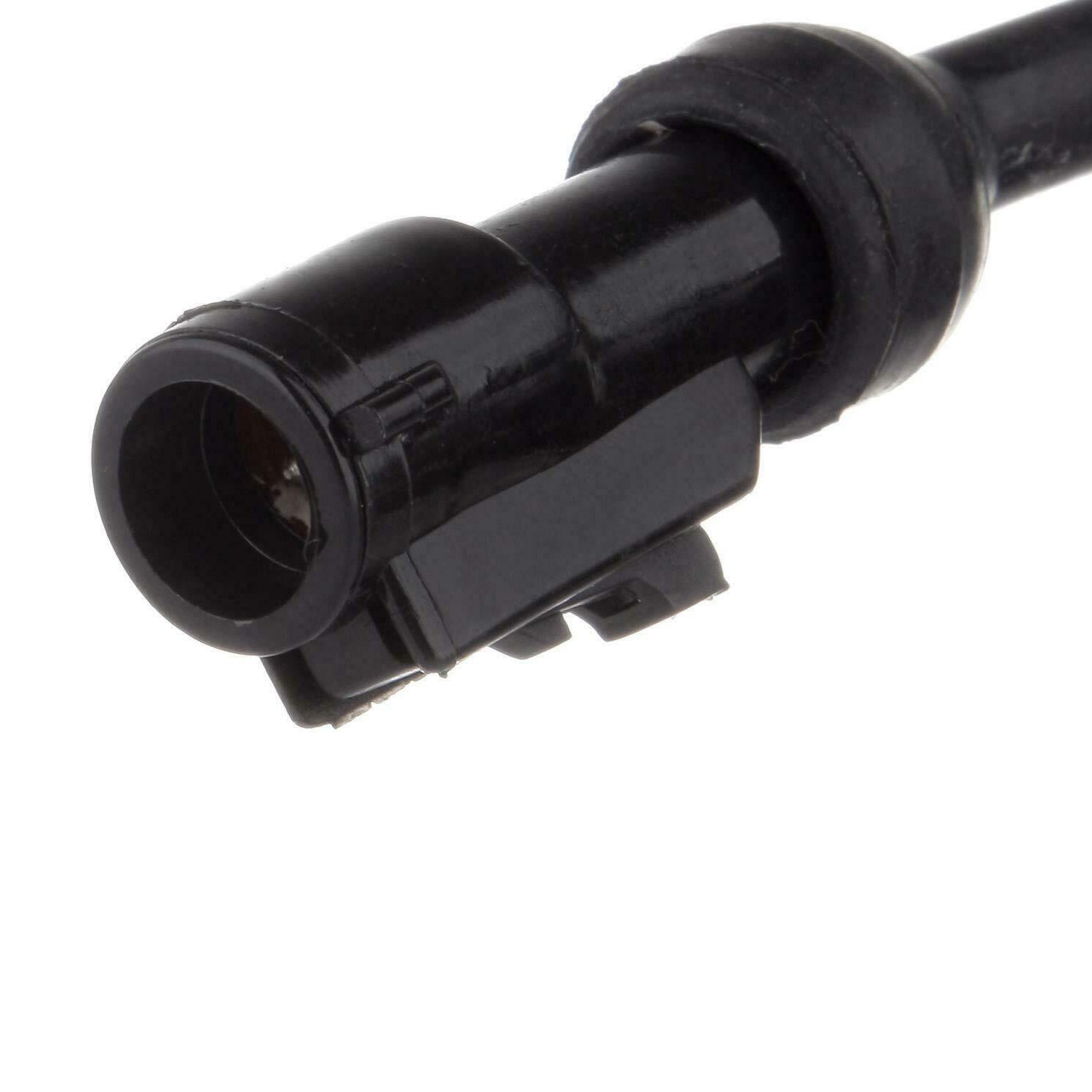

ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 50 Inch
Number Of Mounting Bolts To Knuckle: 3

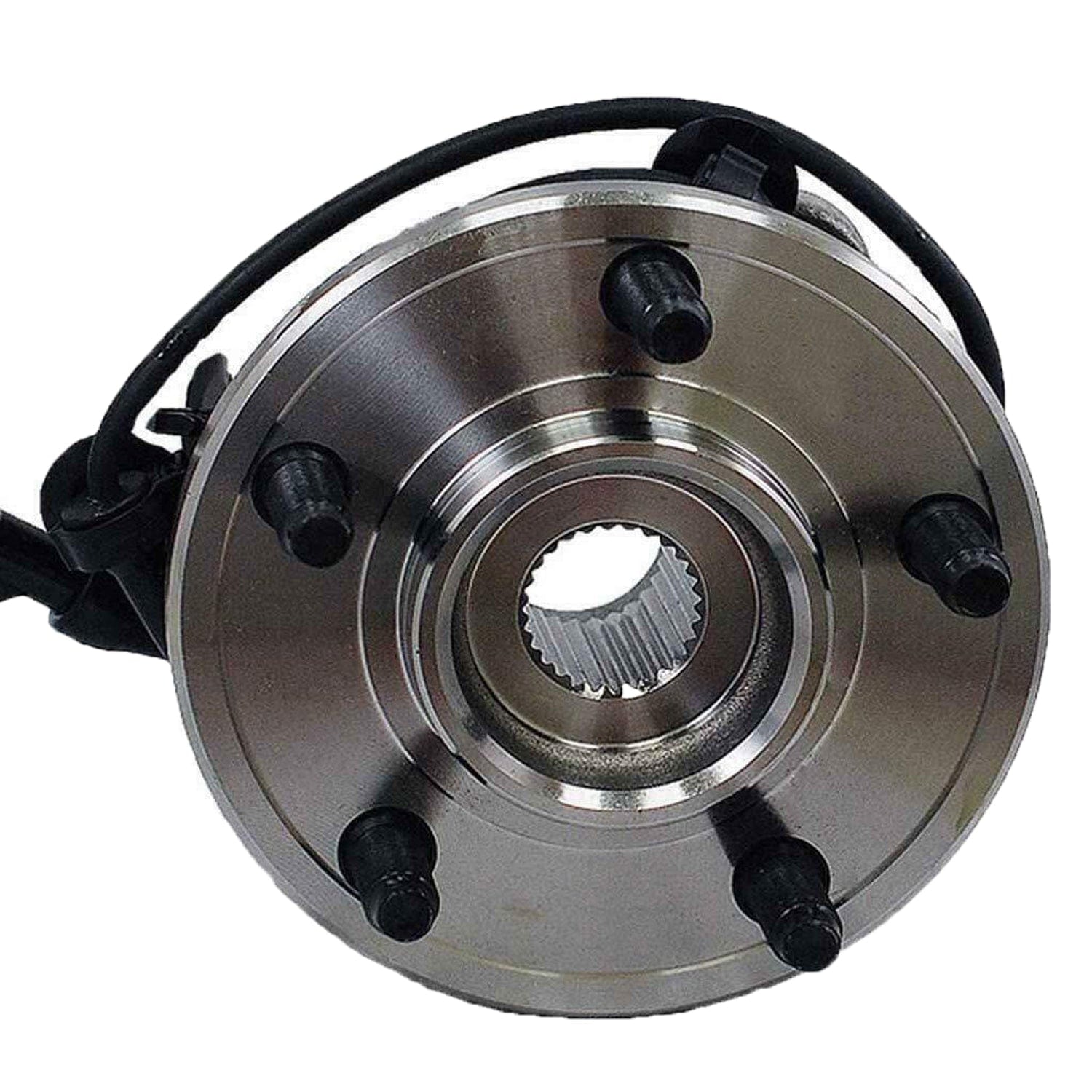

Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven

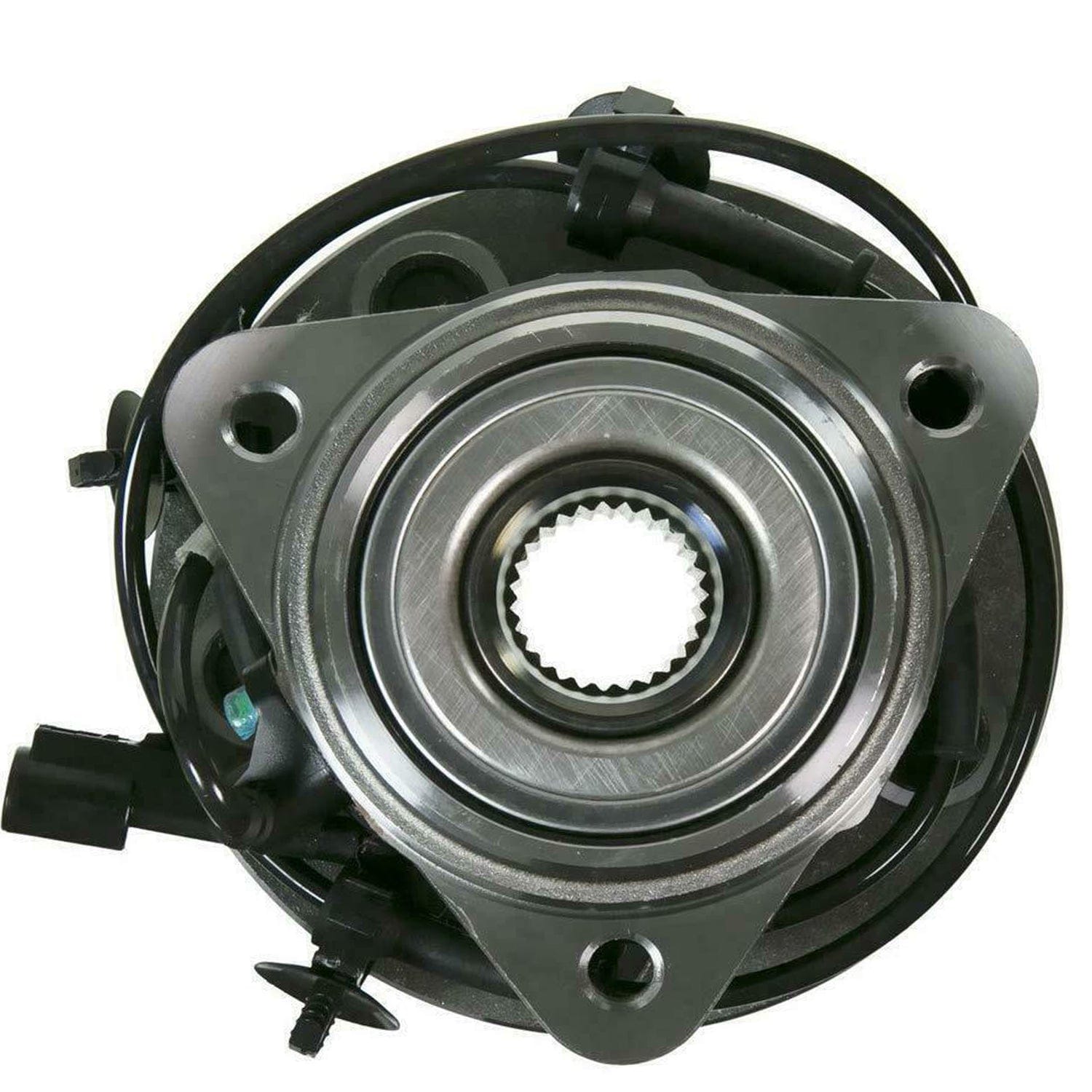

Number Of Splines: 27
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 54
Lug Bolt Thread Size: 1/2-20 Inch
Total Hub Diameter (in): 5.685 Inch
Total Hub Diameter (mm): 144.4mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 4.704 Inch
Total Hub Height (mm): 119.5mm
Flange Diameter (in): 5.881 Inch
Flange Diameter (mm): 149.4mm
Flange Offset (in): 2.208 Inch
Flange Offset (mm): 56.1mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.645 Inch
Flange Bolt Size (mm): 41.8mm
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2 Inch
Inner Ring Width (in): 0.83 Inch
Hub Pilot Diameter (in): 2.828 Inch
Hub Pilot Diameter (mm): 71.85mm
