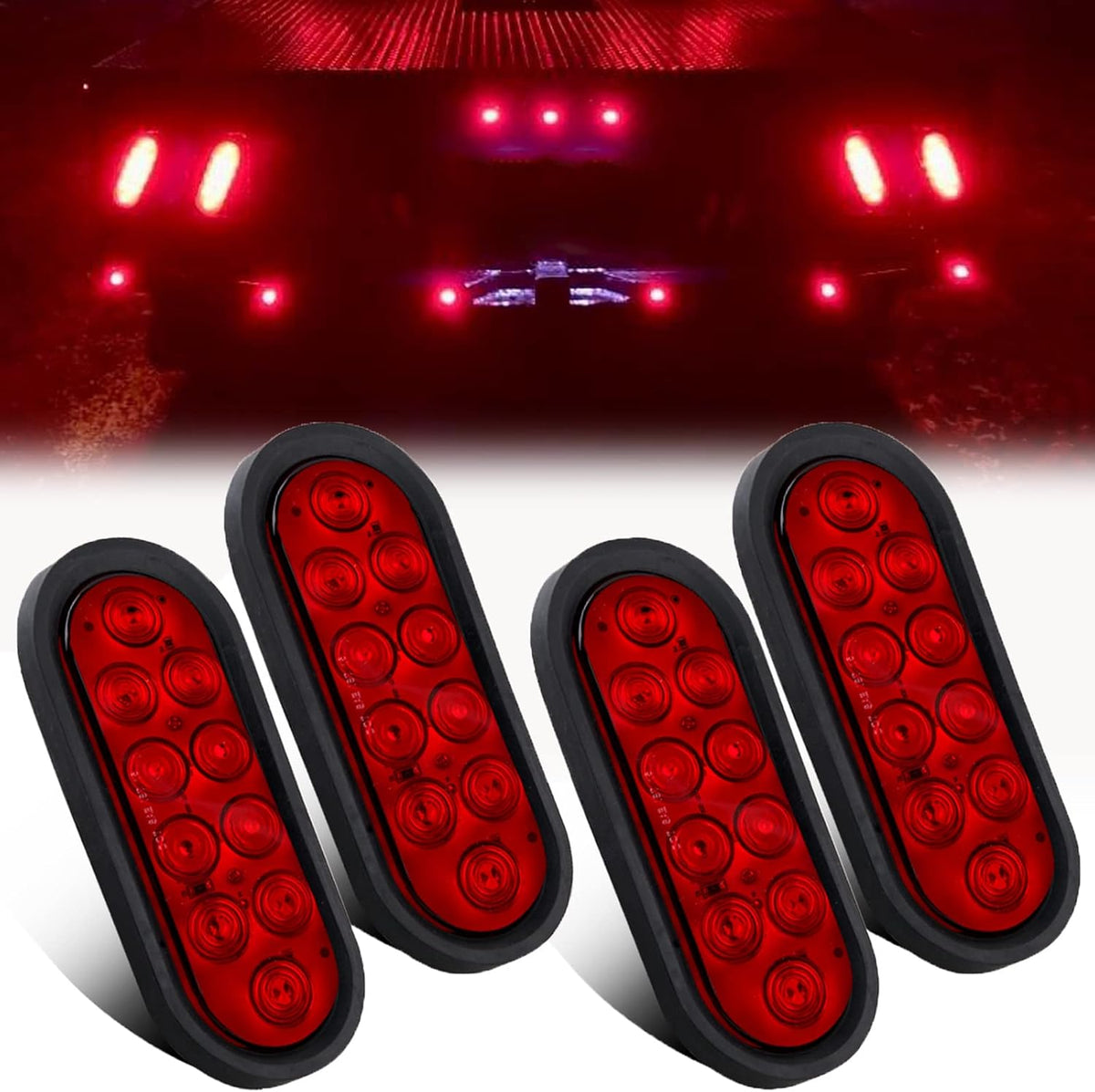

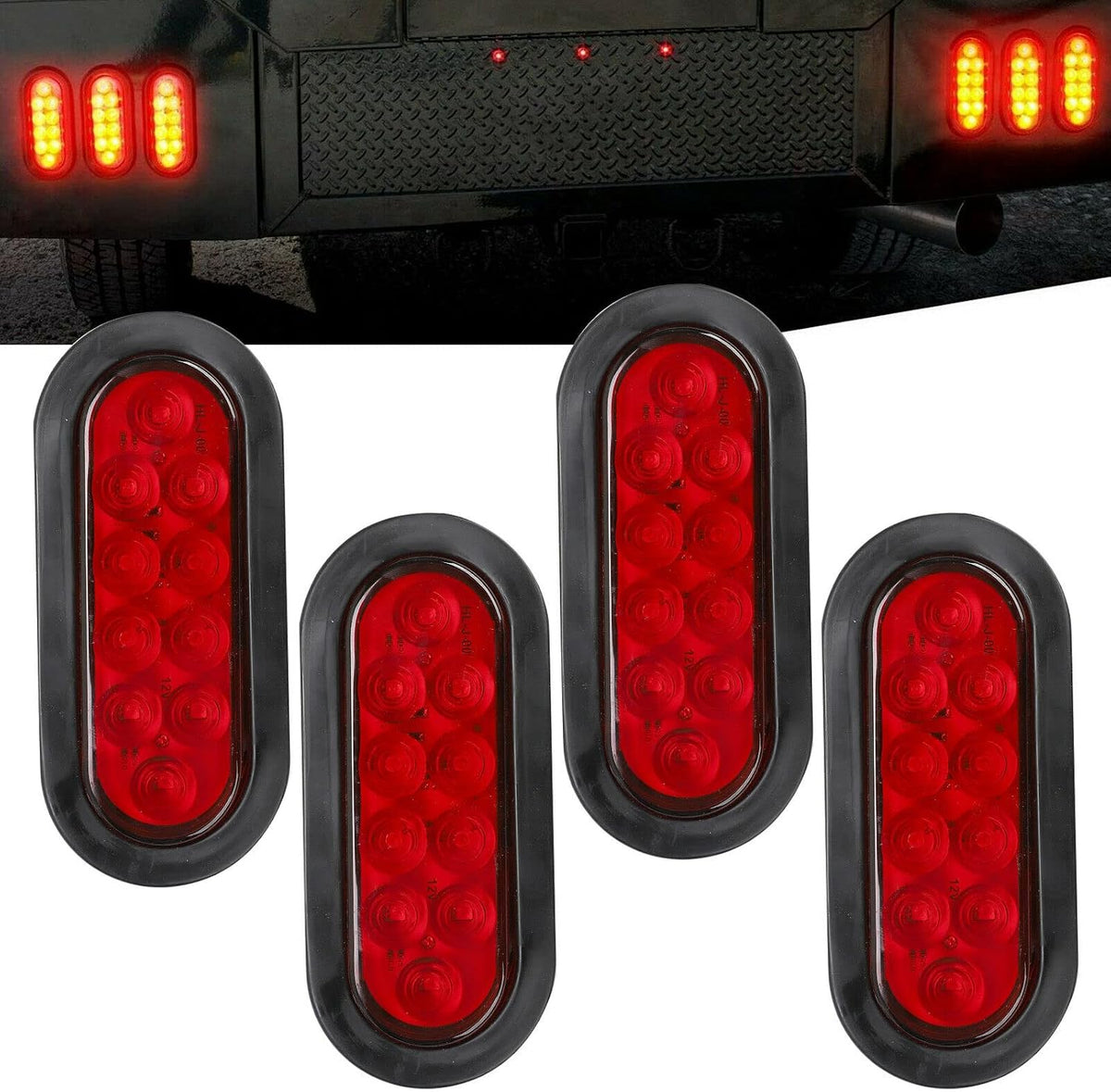

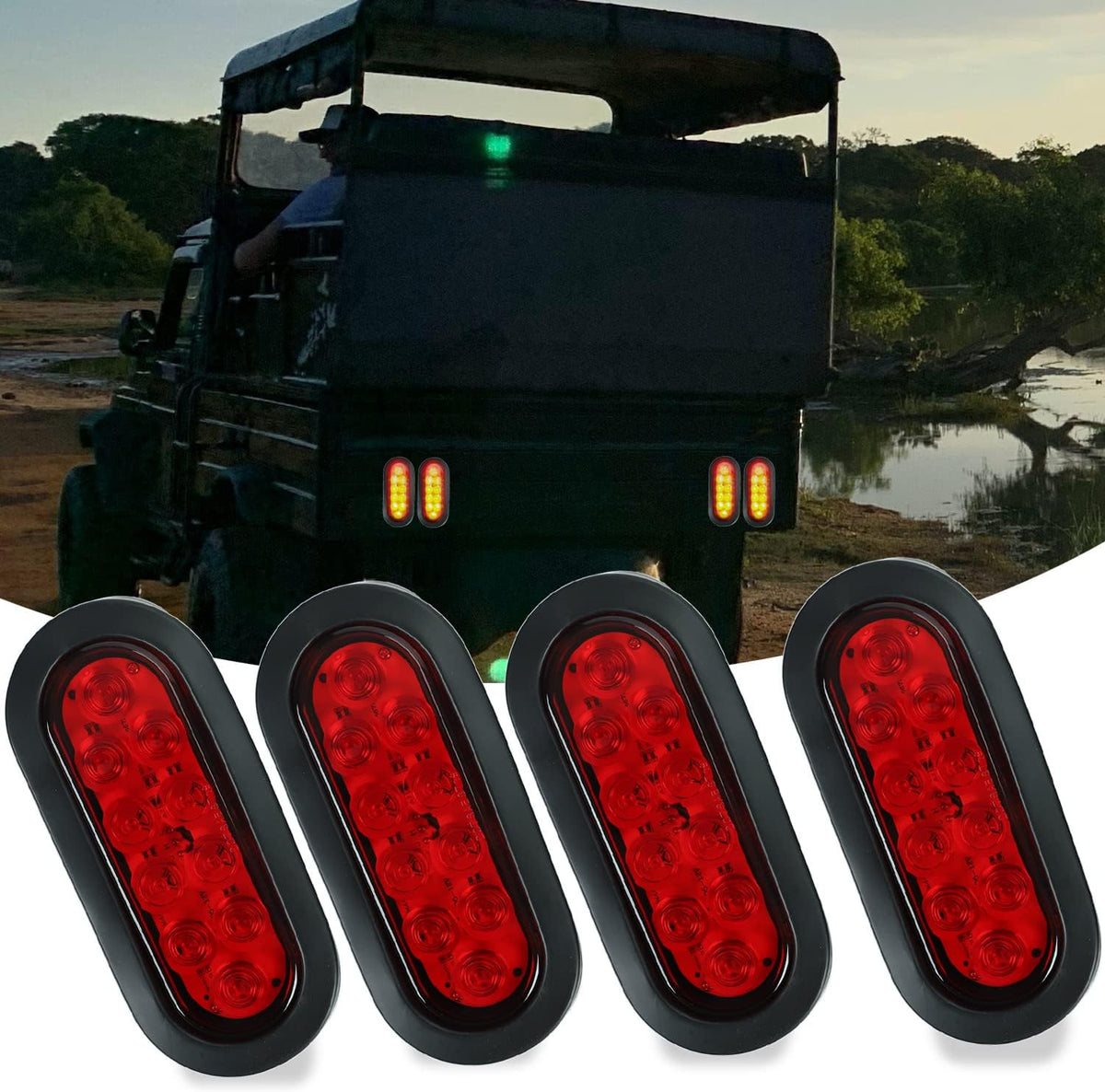

6 Inch Oval LED Trailer Tail Lights Red 12V 4PCS
Upgrade your trailer or commercial vehicle lighting with this 4-piece set of 6-inch oval LED tail lights. Each light uses 10 high-quality SMD LEDs to produce bright red illumination and supports both high- and low-brightness operation for turn, brake, and tail light functions.
Each light comes with a black rubber grommet and a standard 3-prong plug with attached wires for convenient installation on compatible 12V vehicles.
Product Specifications
| Product Type | Oval LED Trailer Tail Light |
| Light Size | 6 Inch Oval |
| Light Color | Red |
| LED Type | SMD LED |
| LED Quantity | 10 LEDs Per Light |
| Working Voltage | 12V DC |
| Waterproof Rating | IP67 |
| Light Functions | Turn Light / Brake Light / Tail Light |
| Brightness Output | High & Low Brightness |
| Overall Light Size | Approx. 2-5/16" × 6-7/16" |
| Light Thickness | Approx. 1" / 1-3/4" at Wiring Connection |
| Recommended Mounting Hole | Approx. 2-1/2" × 6-3/4" |
| Connector | 3-Prong Plug with Wires |
| Mounting Style | Rubber Grommet Mount |
| Quantity | 4PCS |
Compatibility
| Vehicle / Equipment Type | Electrical System | Fitment Details |
|---|---|---|
| Trailer | 12V DC | Compatible with suitable 6-inch oval light mounting locations |
| Truck | 12V DC | Verify mounting hole and electrical connector before installation |
| Semi-Trailer | 12V DC | Universal-style application |
| Tractor | 12V DC | Universal-style application |
| Dump Truck | 12V DC | Universal-style application |
| RV / Camper | 12V DC | Verify light dimensions and mounting opening |
| Bus | 12V DC | Verify electrical compatibility before ordering |
| Boat | 12V DC | Verify mounting location and wiring configuration |
| UTV | 12V DC | Verify mounting dimensions and electrical system |
Product Features
✔ 10 SMD LEDs Per Light
Each oval light contains 10 SMD LEDs designed to provide bright red illumination.
✔ Turn, Brake & Tail Light Functions
High brightness can be used for turn and brake functions, while low brightness can be used for tail light operation.
✔ 12V DC Operation
Designed for compatible 12V vehicles and equipment including trailers, trucks, tractors, RVs, campers, buses, boats, and UTVs.
✔ IP67 Waterproof Rating
Designed for exterior vehicle lighting applications where resistance to water and road conditions is important.
✔ Rubber Grommet Mount
Each light includes an oval rubber grommet for installation into a compatible mounting opening.
✔ 3-Prong Plug Included
Each light is supplied with a matching 3-pin plug and attached wires for connection.
✔ Lower Power Consumption
LED construction draws less current than traditional incandescent lighting while providing bright illumination.
How to Verify Fitment
| Check | Required Specification |
|---|---|
| Voltage | 12V DC |
| Light Shape | 6-Inch Oval |
| Light Size | Approx. 2-5/16" × 6-7/16" |
| Mounting Hole | Approx. 2-1/2" × 6-3/4" |
| Connector | Compatible 3-Prong Connection |
| Light Color | Red |
| Functions | Tail / Brake / Turn Light |
Package Includes
- 4 × 6" Oval LED Trailer Tail Lights
- 4 × Oval Rubber Grommets
- 4 × 3-Prong Waterproof Plugs with Wires
Installation Notes
- Confirm the vehicle uses a compatible 12V DC electrical system.
- Measure the existing mounting opening before ordering.
- Install the rubber grommet securely into the mounting opening before inserting the light.
- Connect the supplied 3-prong plug according to the vehicle's wiring configuration.
- Test tail, brake, and turn functions before completing installation.
- Professional installation is recommended if you are unfamiliar with vehicle electrical wiring.
