Cadillac ATS CTS Wheel Bearing Hub Assembly 2016-2019 Rear 512579
Cadillac ATS CTS Wheel Bearing Hub Assembly 2016-2019 Rear 512579
Cadillac ATS CTS Wheel Bearing Hub Assembly 2016-2019 Rear 512579
Cadillac ATS CTS Wheel Bearing Hub Assembly 2016-2019 Rear 512579
Click to zoom in




Cadillac ATS CTS Wheel Bearing Hub Assembly 2016-2019 Rear 512579

In stock
Wheel Bearings, Hubs & Seals
$82.99 $69.05

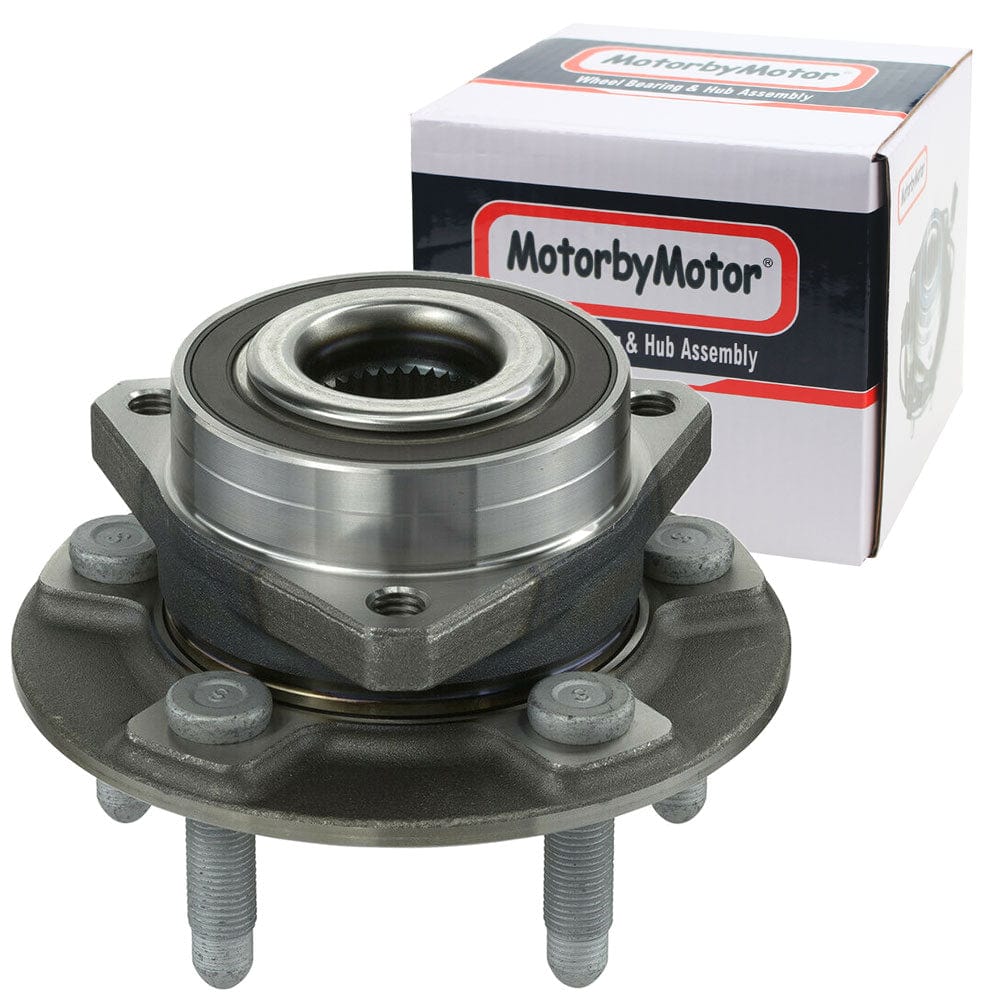

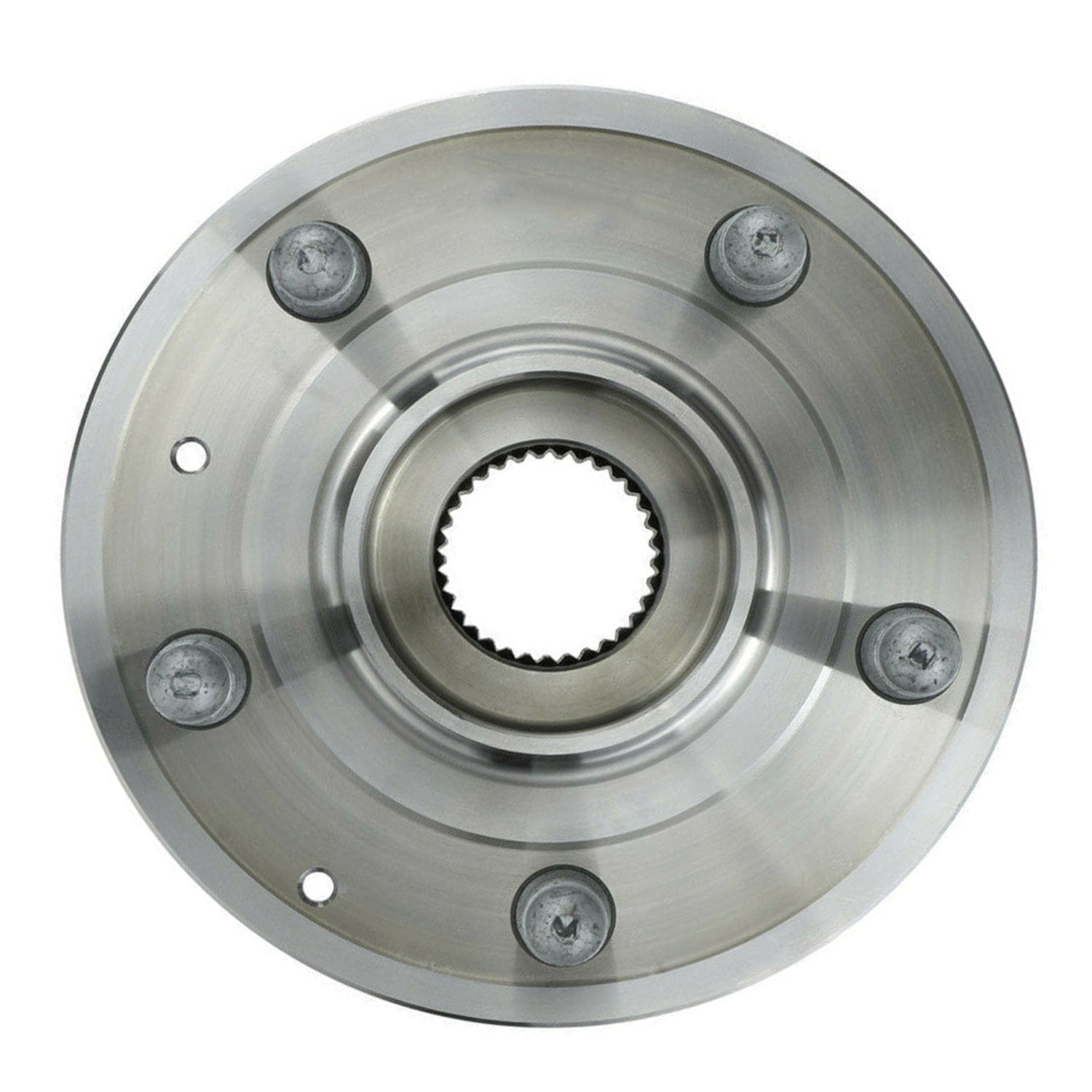

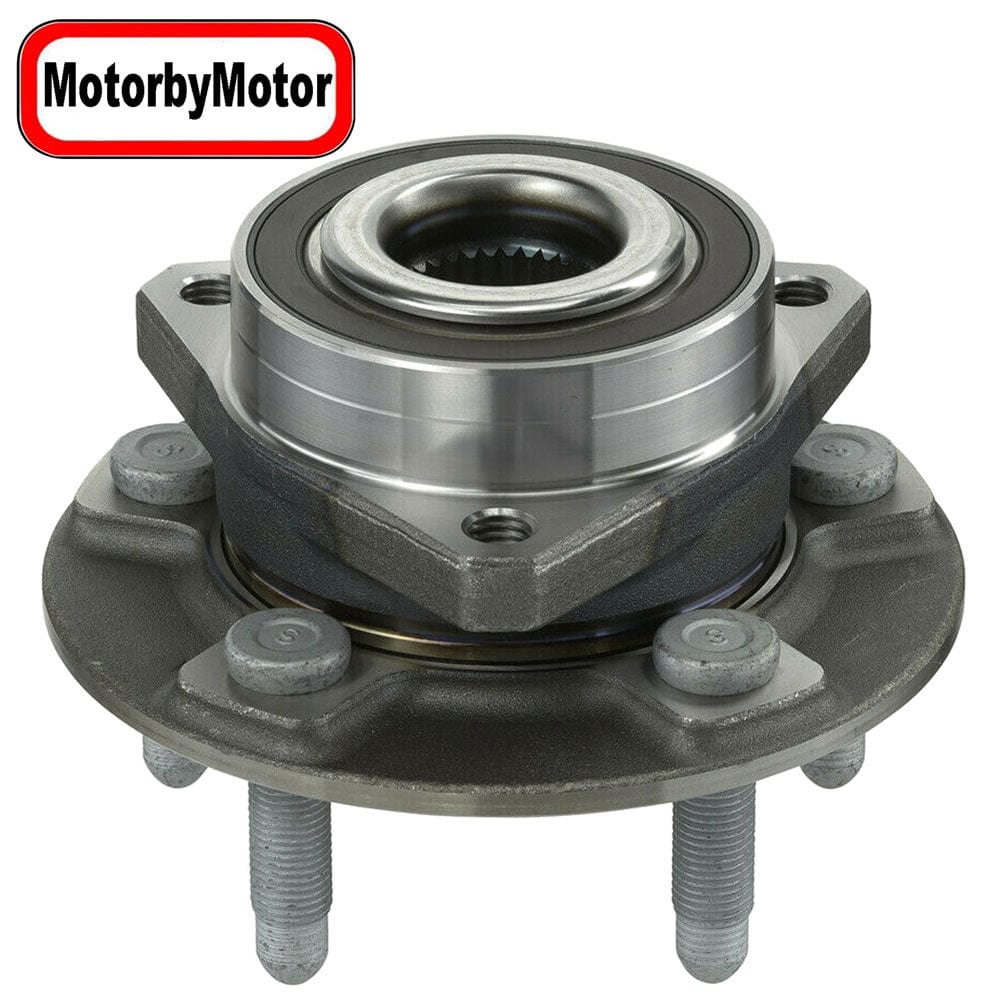

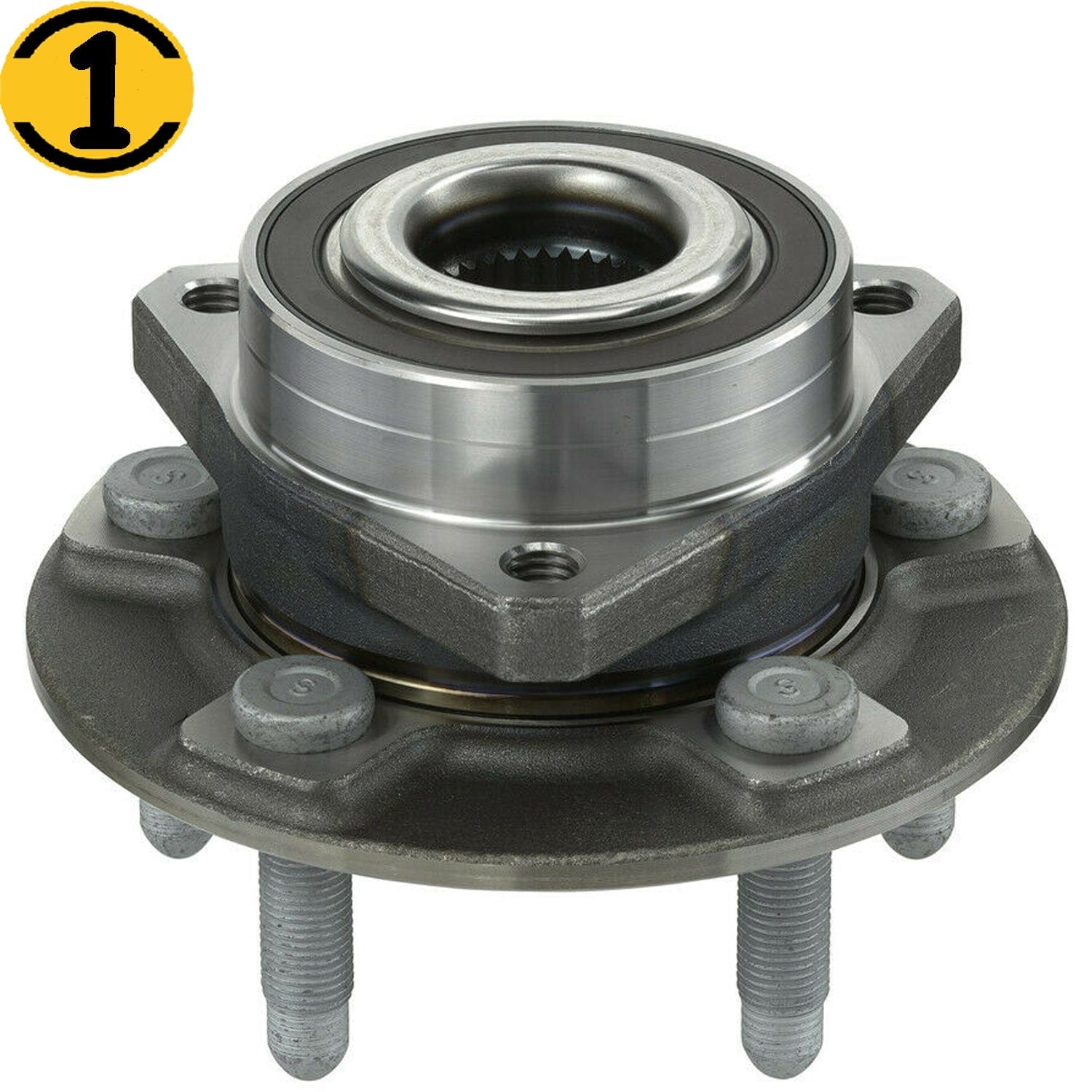

Cadillac ATS CTS Wheel Bearing Hub Assembly 2016-2019 Rear 512579

MotorbyMotor Rear Wheel Bearing Fit Buick Envision 2019, Cadillac ATS CT6 CTS 2016-2019 Wheel Hub w/5 Lugs, 512579


Buick Envision 2019 Front
Buick Envision 2019 Rear AWD
Cadillac ATS 2016 - 2019 Rear
Cadillac CT6 2016 - 2019 Front AWD
Cadillac CT6 2016 - 2020 Rear
Cadillac CTS 2016 - 2019 Rear
Chevrolet Camaro 2016 - 2020 Rear


Position:Driver(LH Left) or Passenger(RH Right) Rear
ABS Sensor Included: No
Material: Steel
Number Of Flange Bolts Included: 5
Number Of Splines: 33
Number Of ABS Sensor Ring Teeth: 48
Number Of Mounting Bolts To Knuckle: 3
Driven Or Non-Driven: Driven
ABS Ring Type: Magnetic
Lug Bolt Thread Size: M12-1.75
Total Hub Diameter (in): 6.181 Inch
Hub Centerbore Diameter (in): 4.724 Inch
Total Hub Diameter (mm): 157mm
Hub Centerbore Diameter (mm): 120mm
Total Hub Height (in): 4.5 Inch
Flange Diameter (in): 2.65 Inch
Flange Offset (in): 1.654 Inch
Total Hub Height (mm): 114.3mm
Flange Diameter (mm): 67.3mm
Flange Offset (mm): 42mm
Hub Pilot Diameter (in): 3.593 Inch
Flange Bolt Size (mm): 46.5mm
Flange Shape: Circle
Flange Bolt Size (in): 1.831 Inch
Flange Bolt Thread Size: M14-1.5

Read More
Read Less
