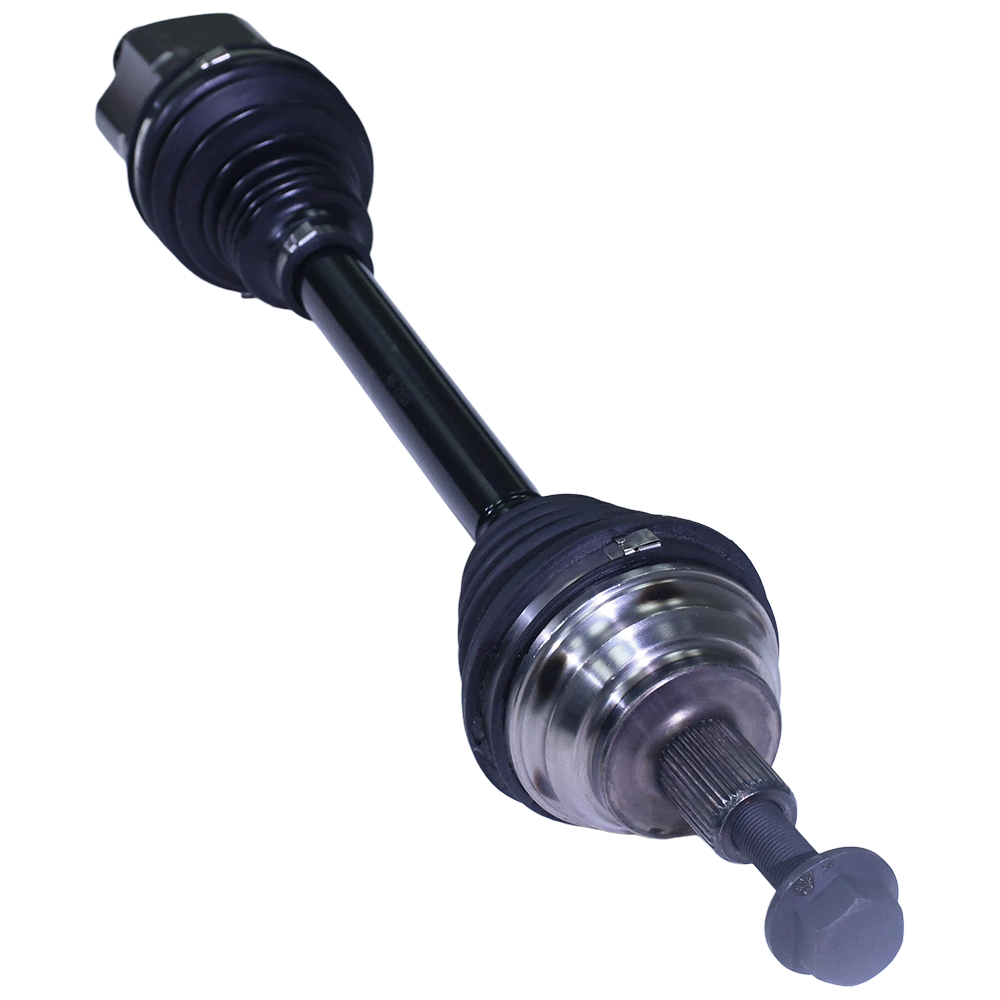

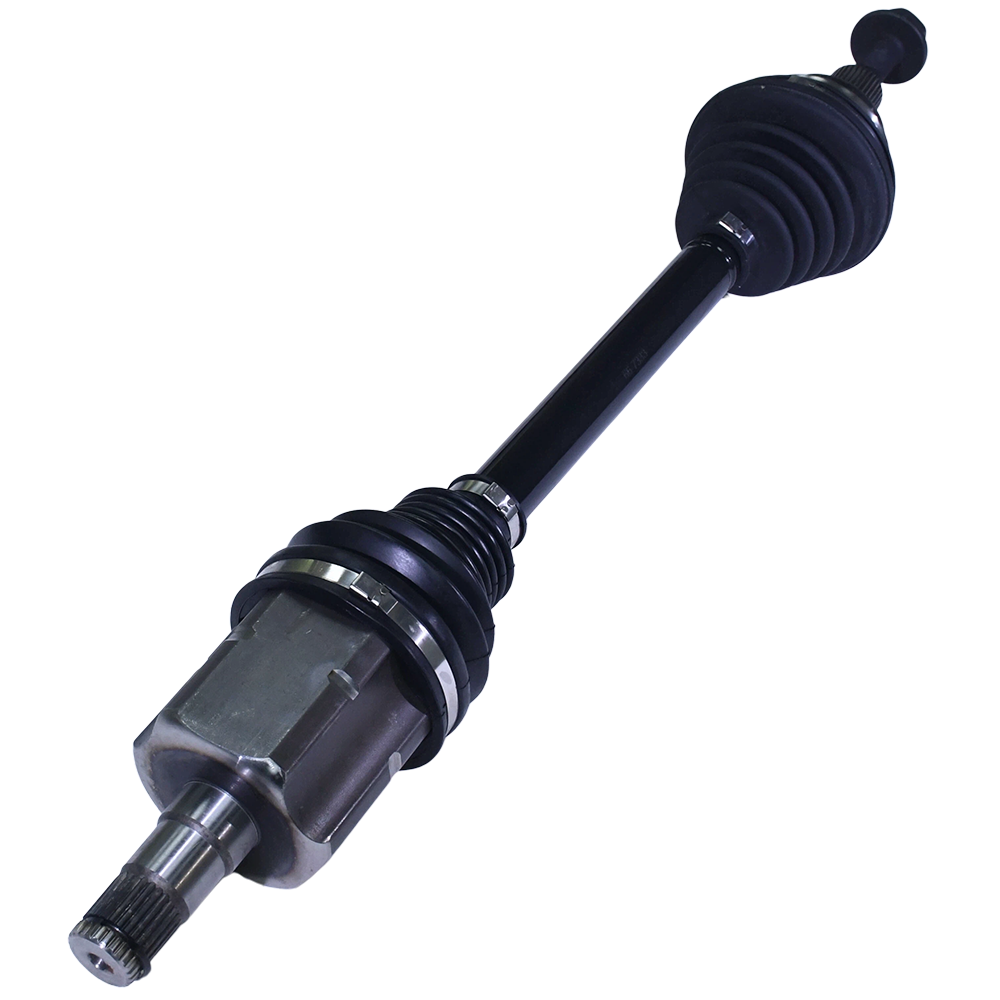

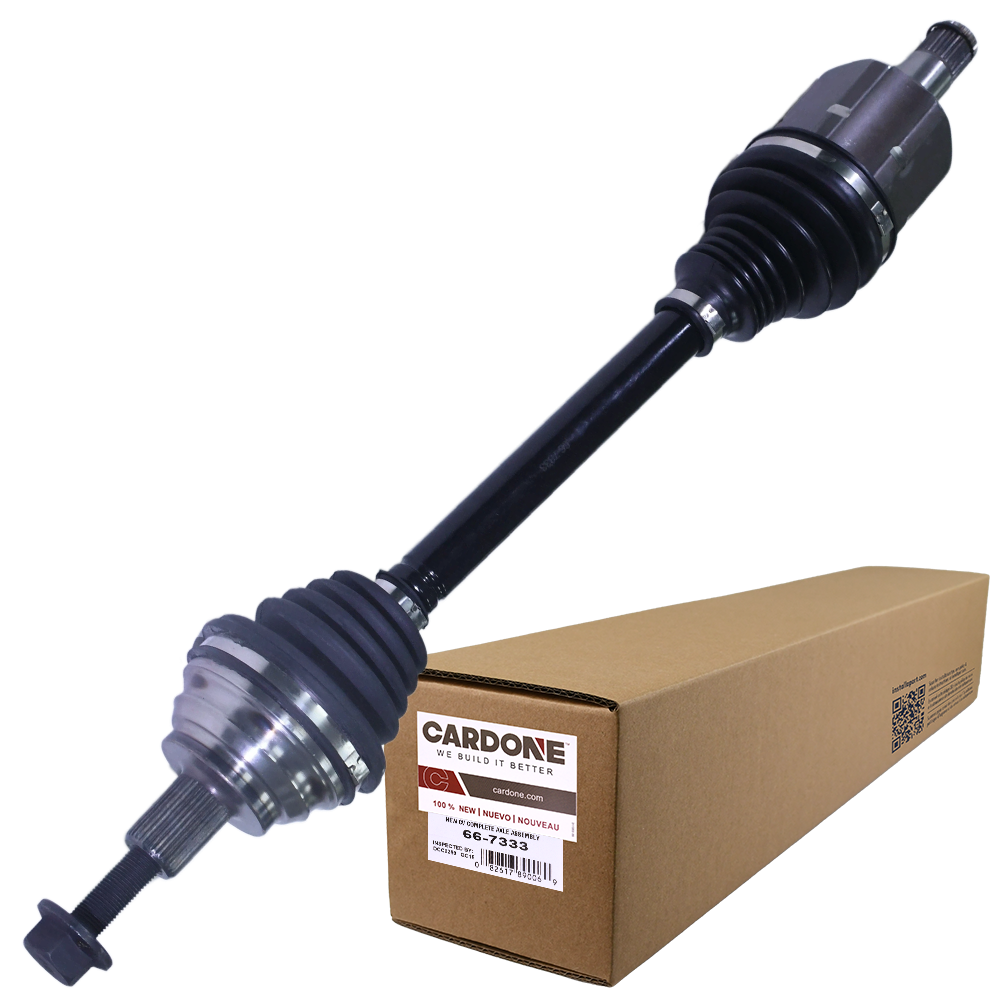

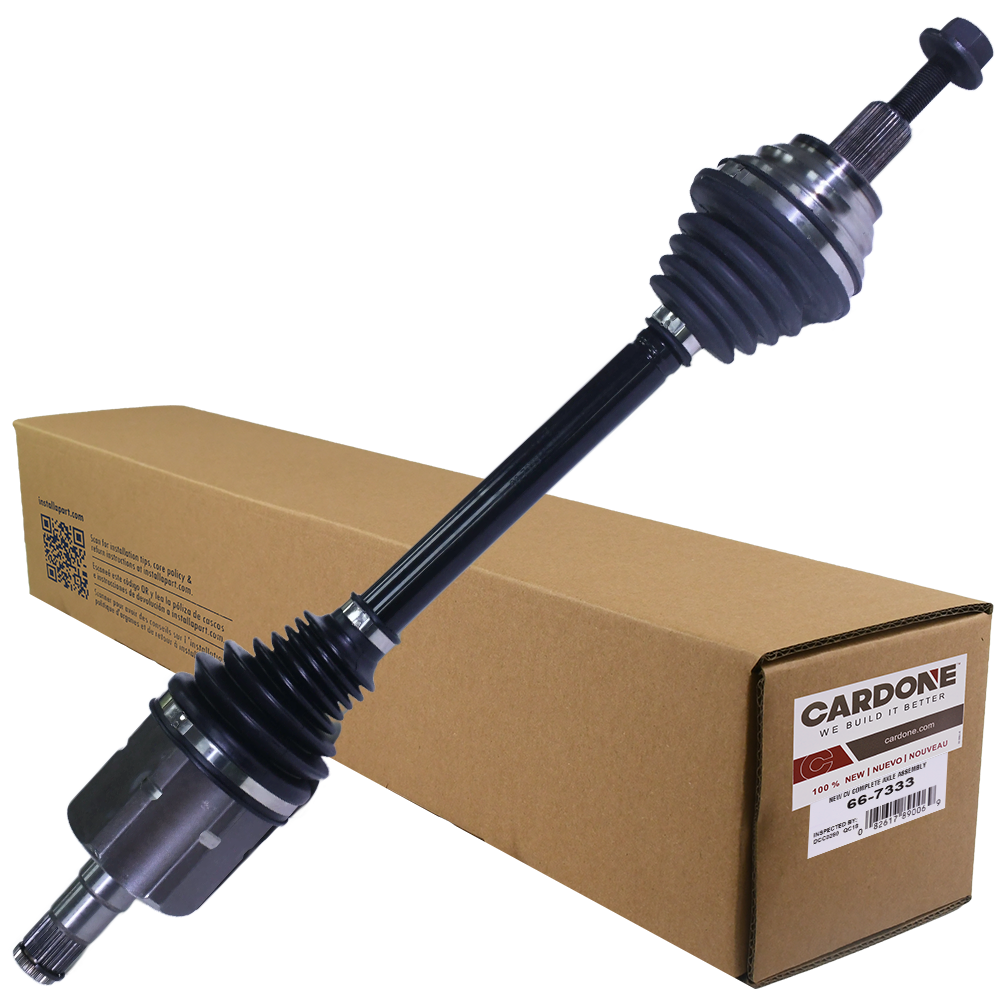

Volkswagen Front Left CV Axle Shaft Assembly FWD Automatic Transmission
Front left CV axle shaft assembly designed for compatible Volkswagen FWD models equipped with automatic transmission. Precision-machined splines, durable neoprene boots, high-quality grease, and a steel axle shaft help provide proper fitment, smooth power transfer, and reliable driveline performance.
Kit Includes
- 1 × Front Left / Driver Side CV Axle Shaft Assembly
- 1 × Axle Retaining Nut
Product Specifications
| Product Type | CV Drive Axle / CV Axle Shaft Assembly |
| Position | Front Left / Driver Side |
| Drive Type | FWD |
| Transmission | Automatic Transmission |
| Compressed Length | 23.062 in. / 585.79 mm |

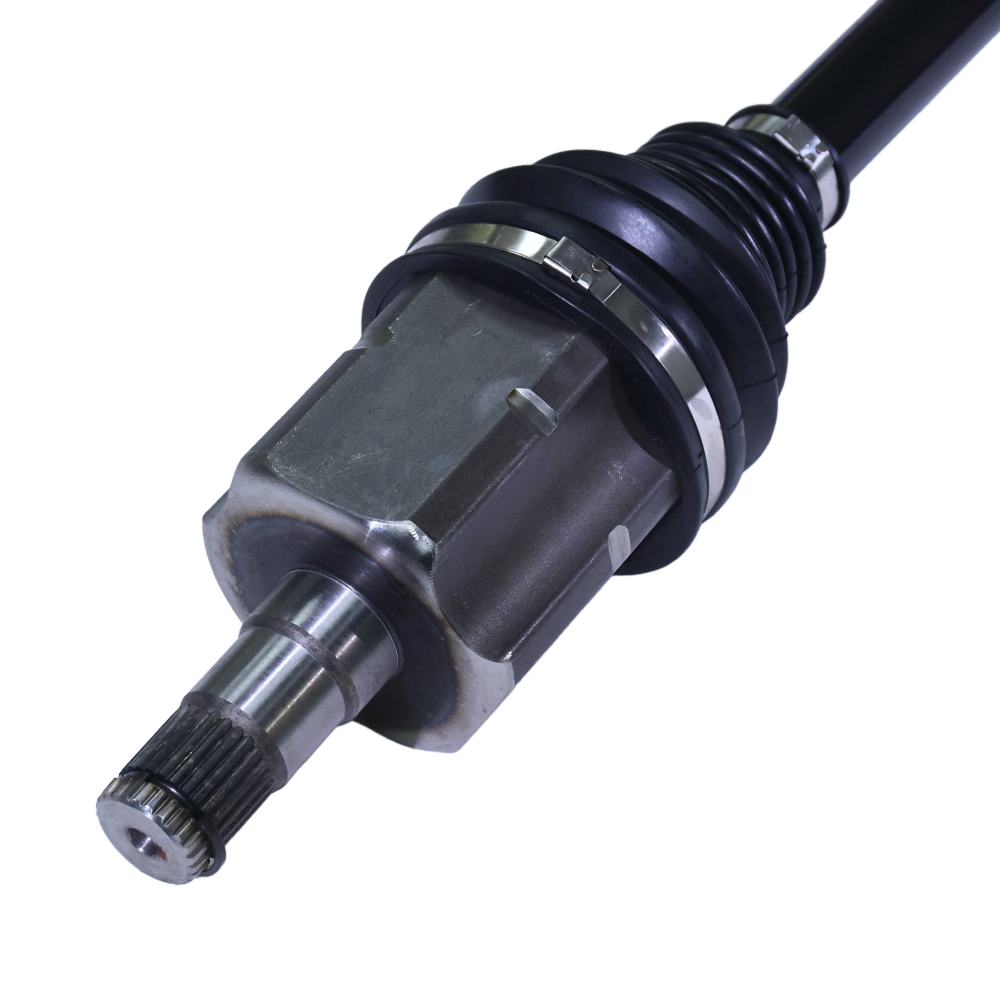

| Inboard Joint Type | Splined |
| Inboard Spline Quantity | 26 Teeth |
| Outboard Joint Type | Splined |
| Outboard Spline Quantity | 36 Teeth |
| Mount Type | Spline |
| Shaft Diameter | 0.96 in. / 24.38 mm |
| Shaft Material | Steel |
| CV Joints Included | Yes |
| Boot Material | Neoprene |
| Boot Color | Black |
| Boot Rib Quantity | 4 |
| ABS Tone Ring Included | No |
| Axle Nut Included | Yes |
| Axle Nut Socket Size | 27 mm / 1.063 in. |
| Axle Nut Thread Size | M16 × 1.5 |
| Axle Nut Type | Hex |
| Dynamic Damper Attached | No |
| Slip Yoke | No |
| Universal Joints Included | No |
| Grade Type | Standard |
Vehicle Fitment
| Make | Model | Year | Engine | Position | Fitment Details |
|---|---|---|---|---|---|
| Volkswagen | CC | 2009 | 2.0L L4 | Front Left | FWD, Automatic Transmission |
Product Features
✔ Precision-Machined Fitment
Axle dimensions are checked after assembly to help provide proper installation and driveline fit.

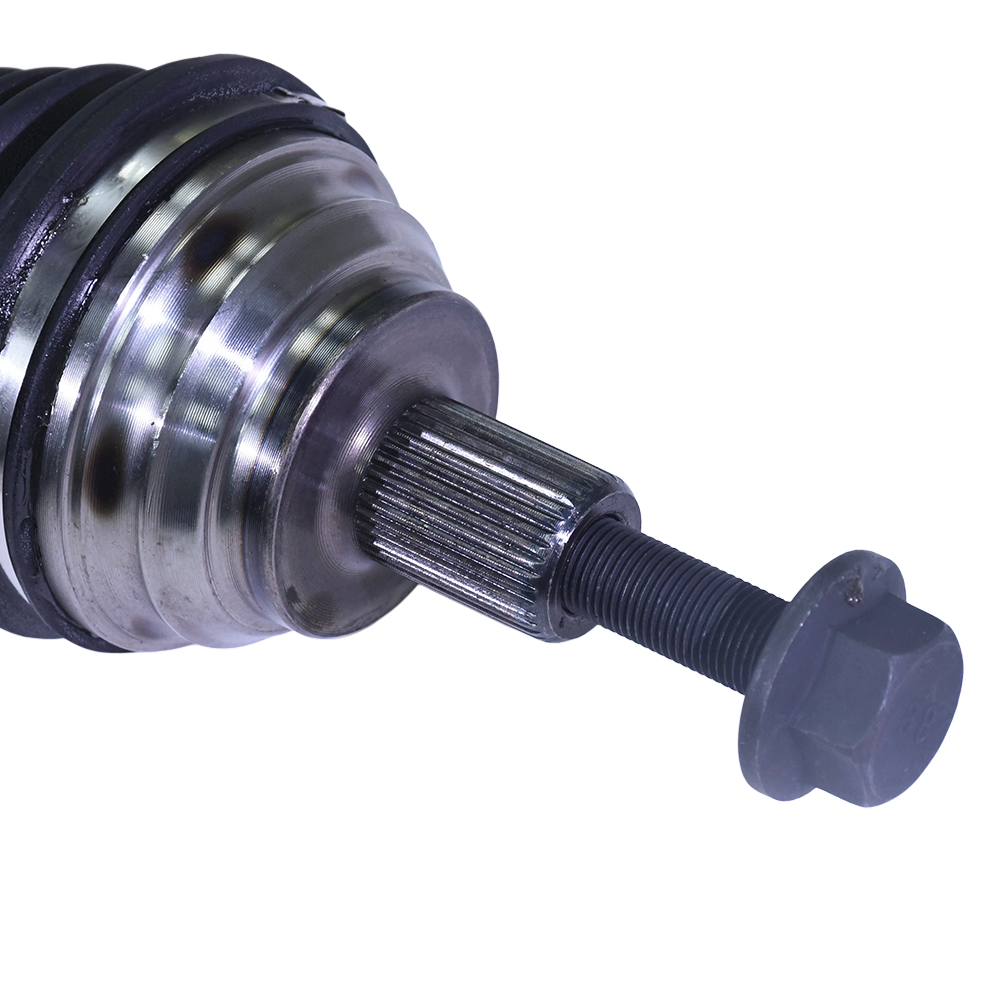

✔ Precision-Rolled Splines
Inboard and outboard splines are precision formed to provide proper engagement with the transmission and wheel hub.

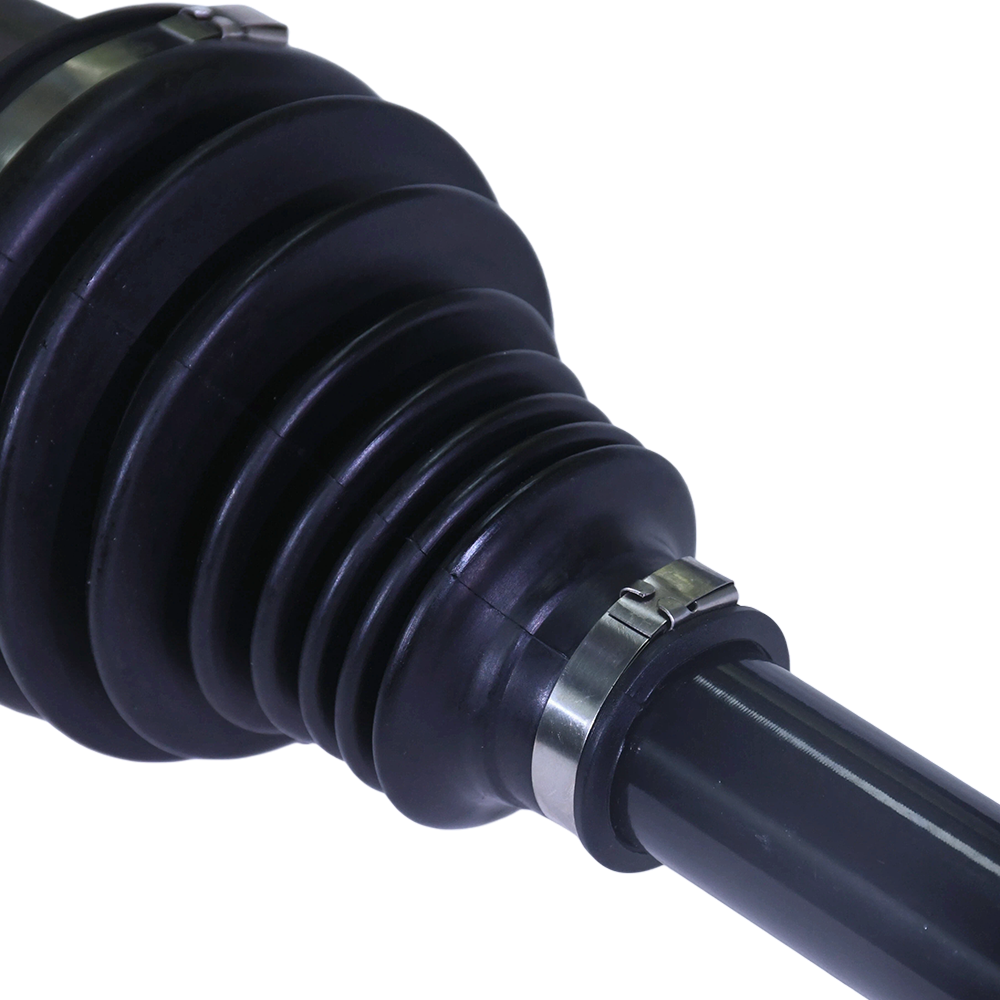

✔ Durable Neoprene Boots
Neoprene CV boots are designed to help resist stress and cracking while protecting the CV joints from dirt, moisture, and road debris.
✔ Secure Boot Clamps
Boot clamps are pneumatically crimped to help create a secure seal between the CV boot and joint housing.
✔ High-Quality CV Joint Grease
Lubrication is designed to withstand the temperature and torque demands encountered during normal driveline operation.
✔ Steel Axle Shaft
Features a steel shaft with a diameter of approximately 24.38 mm / 0.96 in. for dependable power transfer.
✔ New Axle Nut Included
A new M16 × 1.5 hex axle retaining nut is included for replacement installation.
How to Verify Fitment
| Check | Required Specification |
|---|---|
| Axle Position | Front Left / Driver Side |
| Drive Type | FWD |
| Transmission | Automatic Transmission |
| Compressed Length | 23.062 in. / 585.79 mm |
| Inboard Splines | 26 Teeth |
| Outboard Splines | 36 Teeth |
| Axle Nut Thread | M16 × 1.5 |
| Axle Nut Socket | 27 mm / 1.063 in. |
| ABS Tone Ring | Not Included |
Package Includes
- 1 × Front Left / Driver Side CV Axle Shaft Assembly
- 1 × Axle Retaining Nut
Installation Notes
- Confirm the vehicle uses a front left CV axle for FWD and automatic transmission.
- Compare the original axle compressed length with 23.062 in. / 585.79 mm.
- Confirm 26 inboard splines and 36 outboard splines before installation.
- Verify the M16 × 1.5 axle nut specification.
- ABS tone ring is not included.
- Professional installation is recommended.
