Cardone Front Right CV Axle Assembly for 2006-2011 Honda Civic

In stock
$119.99

Dear Customer,

Thank you for your interest in our store!

If you have specific requirements or need bulk pricing, please feel free to contact us. Our team is here to assist you and provide the best possible pricing tailored to your needs.

Product details

  • Vendor AFA-Motors
  • SKU CCV66-4233

Free Shipping

FREE Standard Shipping | Located in: United States

Returns

30 days returns | Seller pays for return shipping

Please contact us if you are unsure about the fitment.

Description Warranty

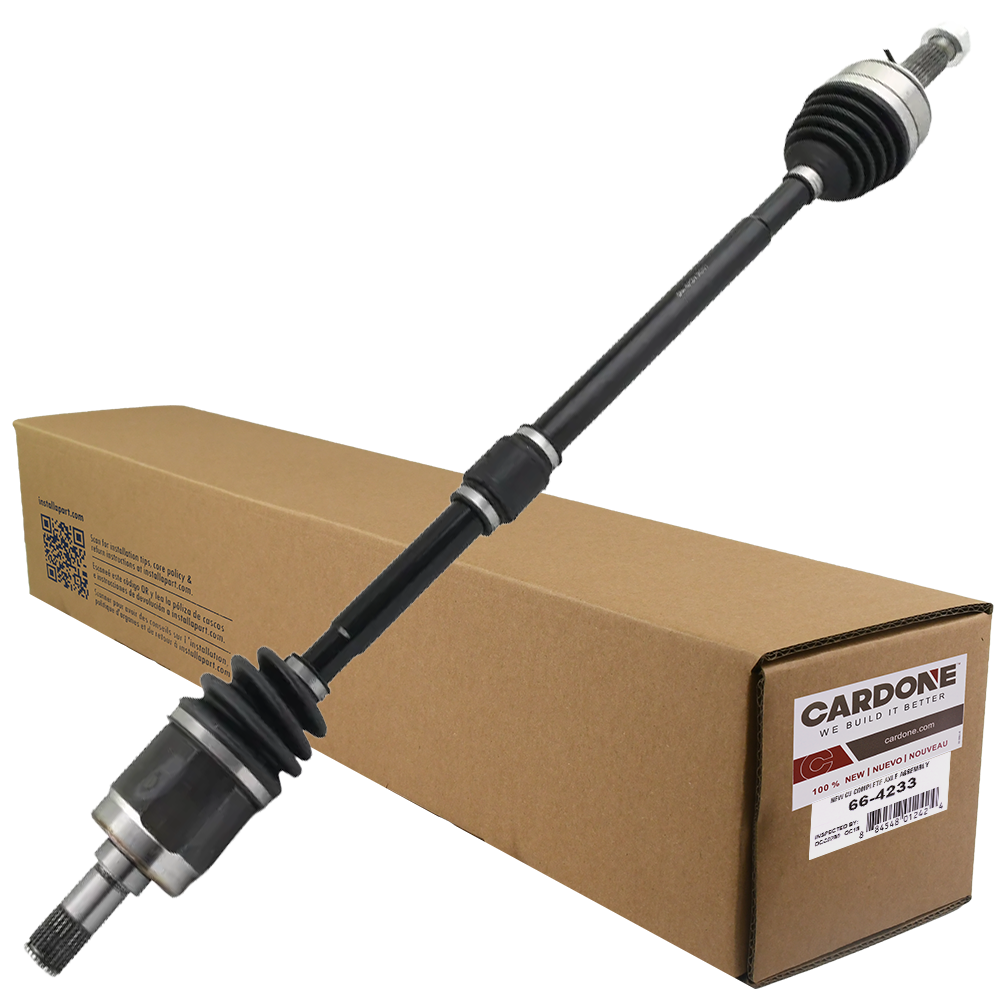

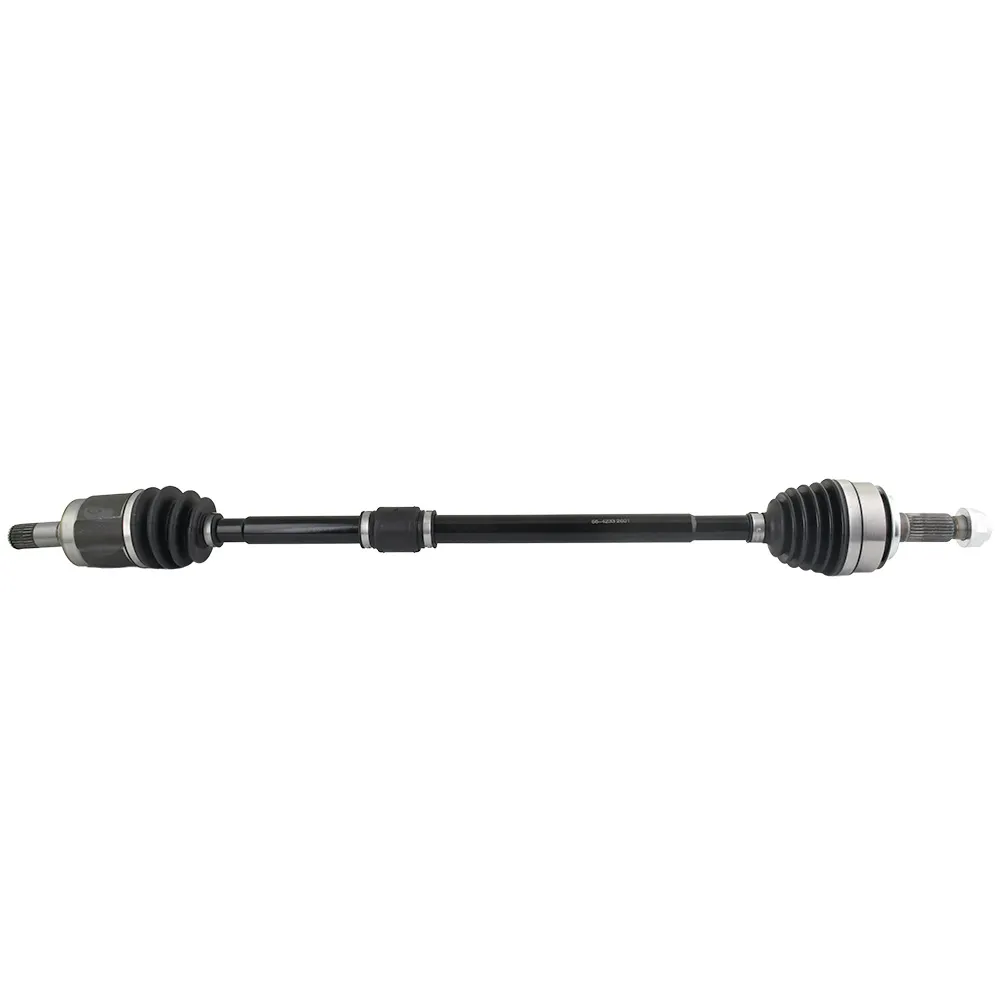

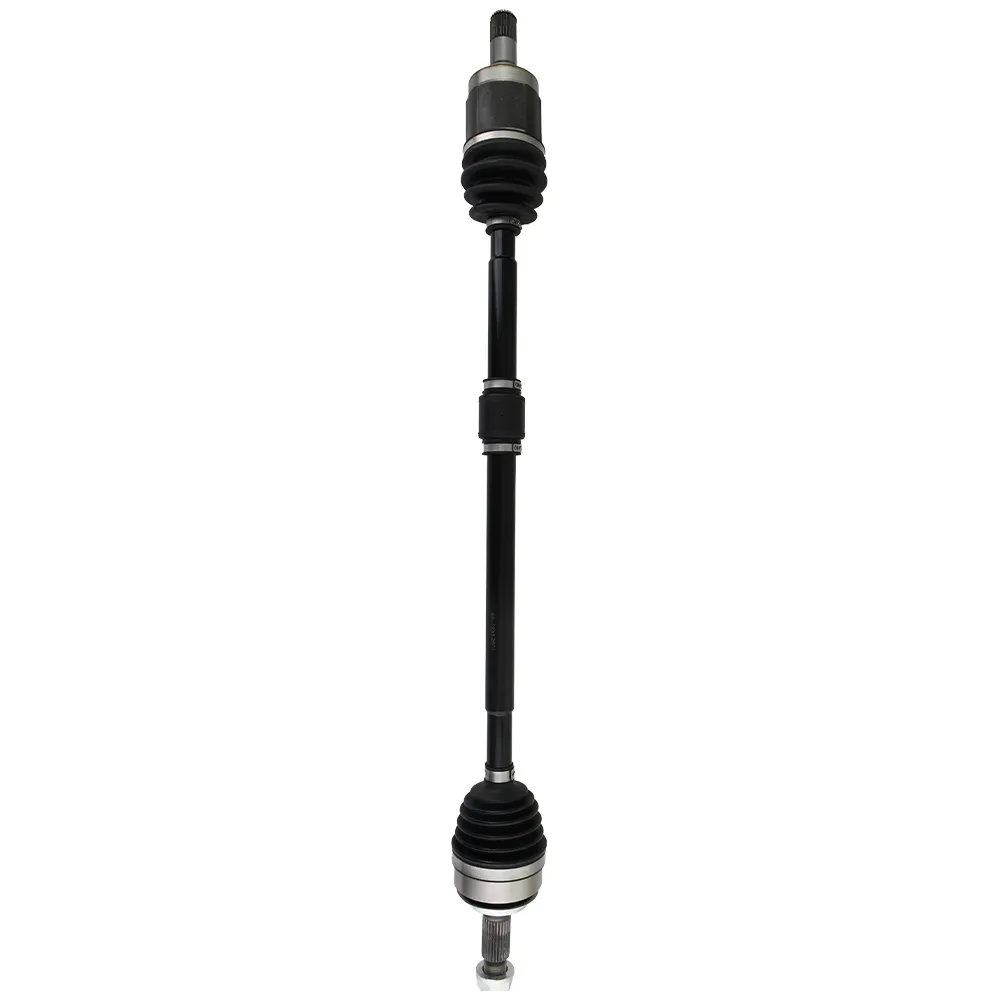

2006-2011 Honda Civic Front Right CV Axle Shaft Assembly

Front right CV axle shaft assembly designed as a direct replacement for compatible 2006-2011 Honda Civic models. Precision-machined for proper fitment, smooth power transfer, and stable driveline operation without cutting, drilling, or modification.

Kit Includes

  • 1 × Front Right / Passenger Side CV Axle Shaft Assembly
  • 1 × Axle Nut

Product Specifications

Product Type CV Axle Shaft Assembly
Position Front Right / Passenger Side
Quantity 1 Piece
Condition Brand New
Fitment Type Direct Replacement
Overall Compressed Length 36.1 in. / 917 mm
Inboard Splines 25 Teeth
Outboard Splines 26 Teeth
Axle Nut Included Yes
Axle Nut Hex Size 32 mm / 1.26 in.
Axle Nut Thread Size M22 × 1.5
Axle Nut Locking Type Open Groove
Boot Material Neoprene Rubber
Boot Color Black
Grease Type Molybdenum Disulfide Lithium Grease
Shaft Material 40CR High-Strength Alloy Steel
Surface Finish Black Corrosion-Resistant Coating
Input Shaft Connection Spline
Output Shaft Connection Spline
ABS Ring Included No
Cotter Pin Included No
Quality Specification ISO 16949
Weight Approx. 15.4 lbs
Package Dimensions Approx. 39.2 × 4.5 × 4.5 in.

Vehicle Fitment

Year Make Model Position Fitment Details
2006-2011 Honda Civic Front Right / Passenger Side All Models
Important Fitment Note: This listing is for the front right / passenger side CV axle only. Please verify your vehicle year, model, axle position, spline count, compressed length, axle nut size, and ABS configuration before ordering.

Product Features

✔ Direct-Fit Replacement
Designed for compatible 2006-2011 Honda Civic applications without cutting, drilling, or modification.

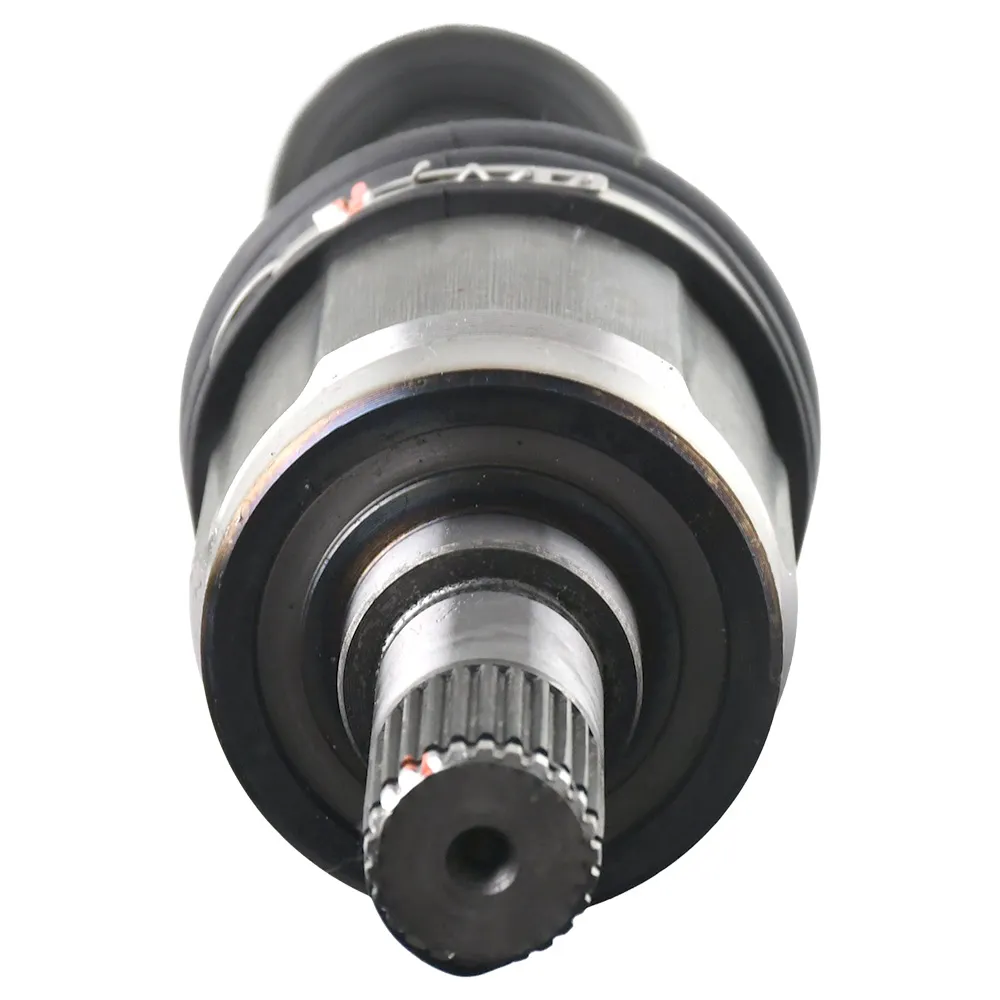

✔ Precision-Machined Splines
Features 25 inboard splines and 26 outboard splines for secure connection to the transmission and wheel hub.

✔ 40CR Alloy Steel Shaft
High-strength alloy steel shaft construction is designed for reliable power transfer and driveline durability.

✔ Pre-Lubricated CV Joints
Filled with molybdenum disulfide lithium grease to support smooth articulation and reliable operation.

✔ Durable Neoprene Boots
Black neoprene rubber boots help protect the CV joints from moisture, dirt, and road debris.

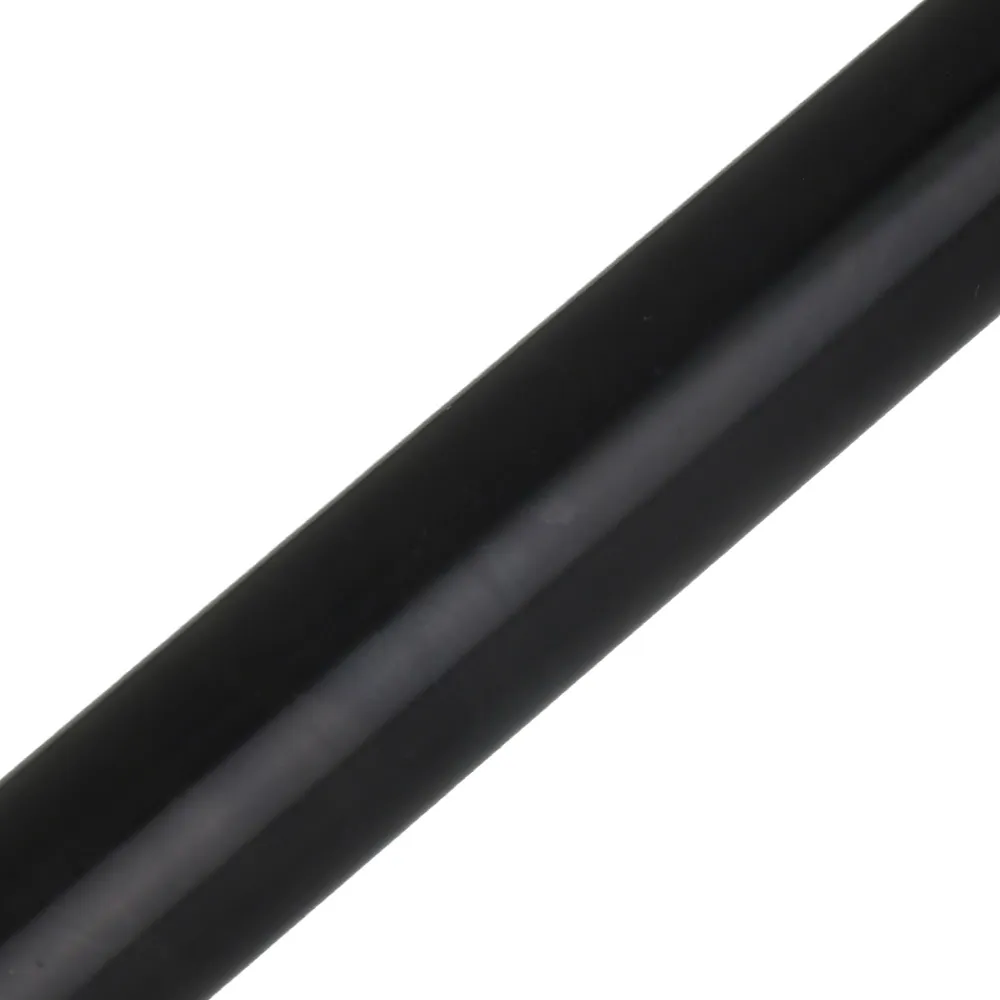

✔ Corrosion-Resistant Finish
Black protective coating helps protect the axle shaft surface from corrosion during normal service.

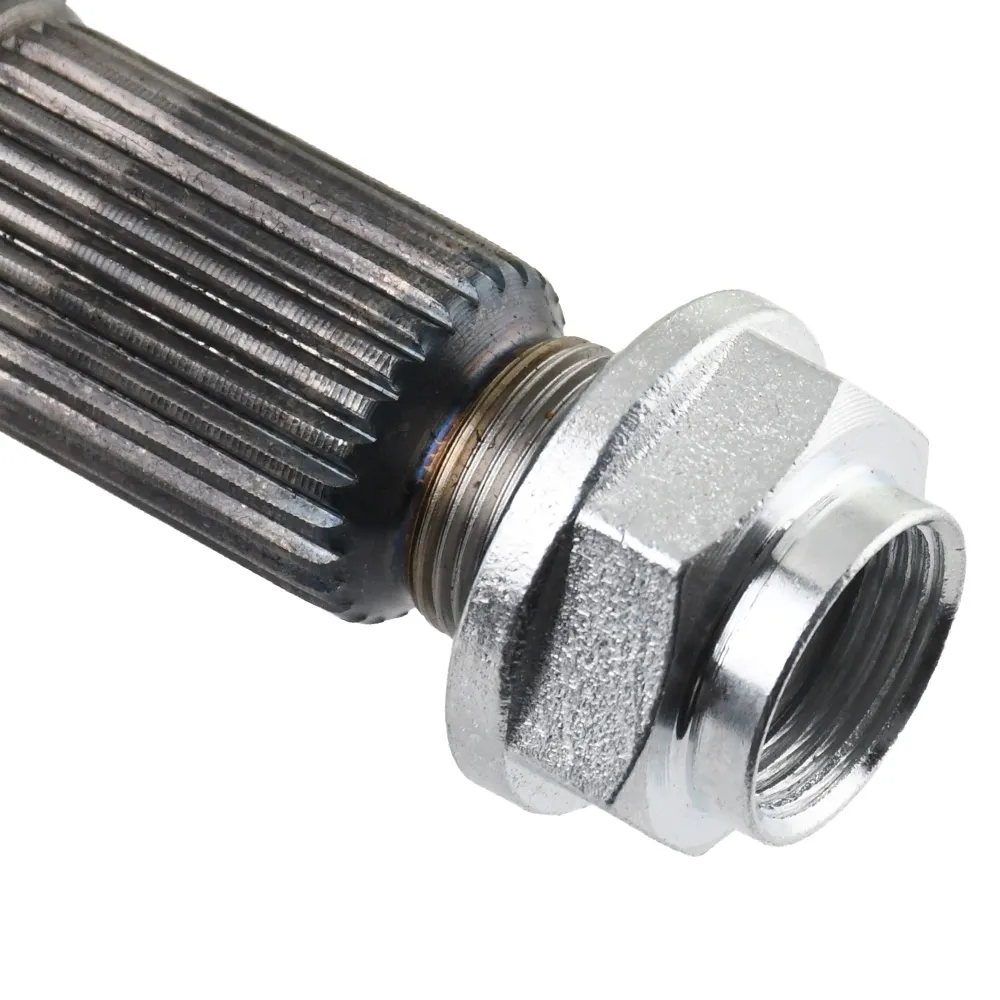

✔ Axle Nut Included
Includes the required axle nut for convenient replacement installation.

Package Includes

  • 1 × Front Right / Passenger Side CV Axle Shaft Assembly
  • 1 × Axle Nut

Installation Notes

  • Verify the axle is for the front right / passenger side before installation.
  • Confirm 25 inboard splines and 26 outboard splines.
  • Confirm compressed axle length is approximately 36.1 in. / 917 mm.
  • Verify axle nut size M22 × 1.5 with 32 mm hex.
  • ABS ring is not included.
  • Cotter pin is not included; reuse the existing cotter pin or purchase separately if required.
  • Professional installation is recommended.
