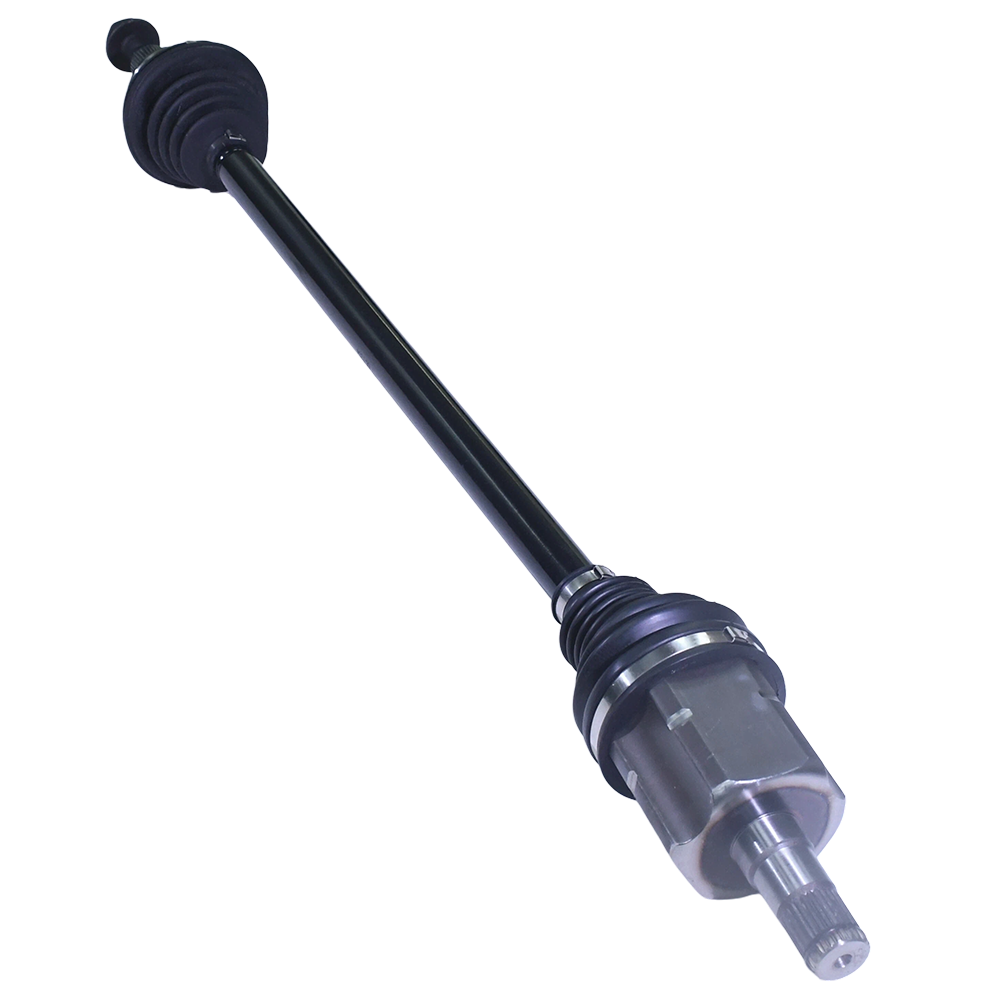

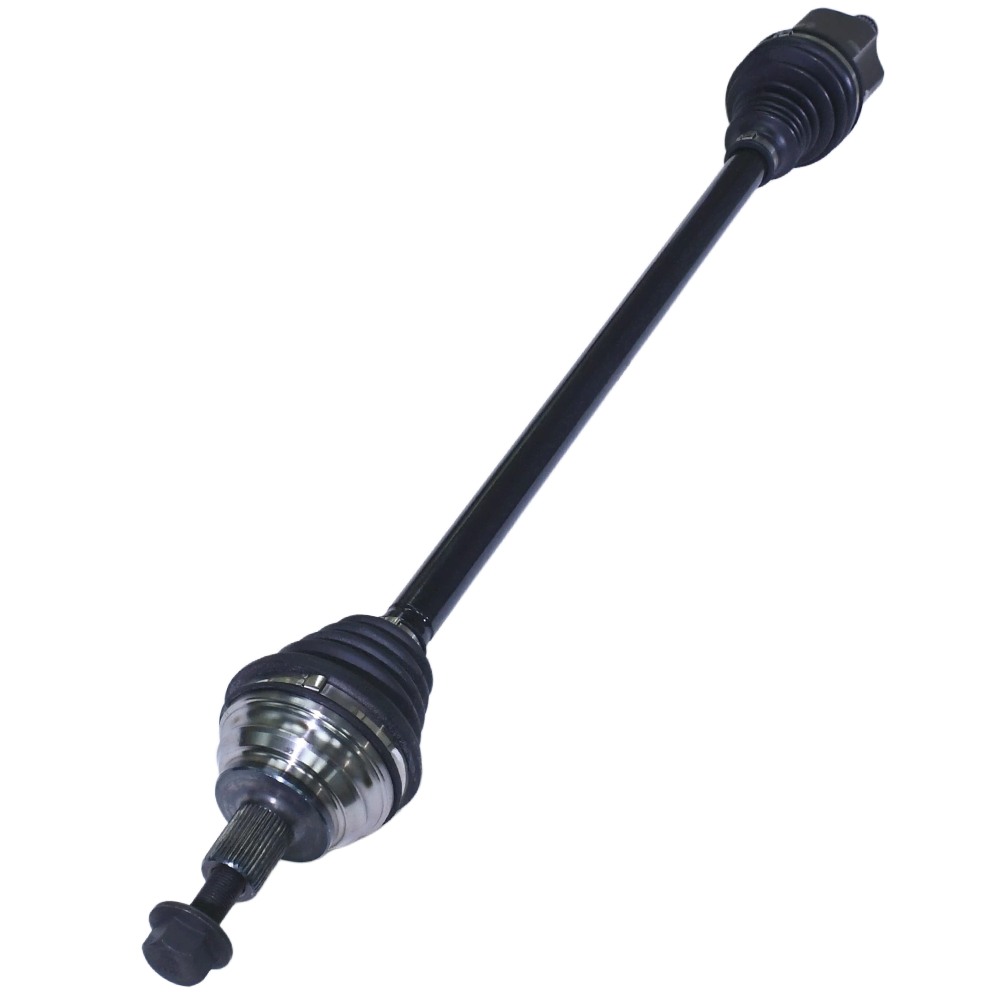

Volkswagen Front Right CV Axle Shaft Assembly Automatic Transmission
Front right CV axle shaft assembly designed as a direct replacement for compatible Volkswagen models equipped with automatic transmission. Precision-machined splines, durable neoprene boots, steel shaft construction, and a new axle retaining nut help provide proper fitment, smooth power transfer, and reliable driveline performance.
Kit Includes
- 1 × Front Right / Passenger Side CV Axle Shaft Assembly
- 1 × Axle Retaining Nut
Reference Part Numbers

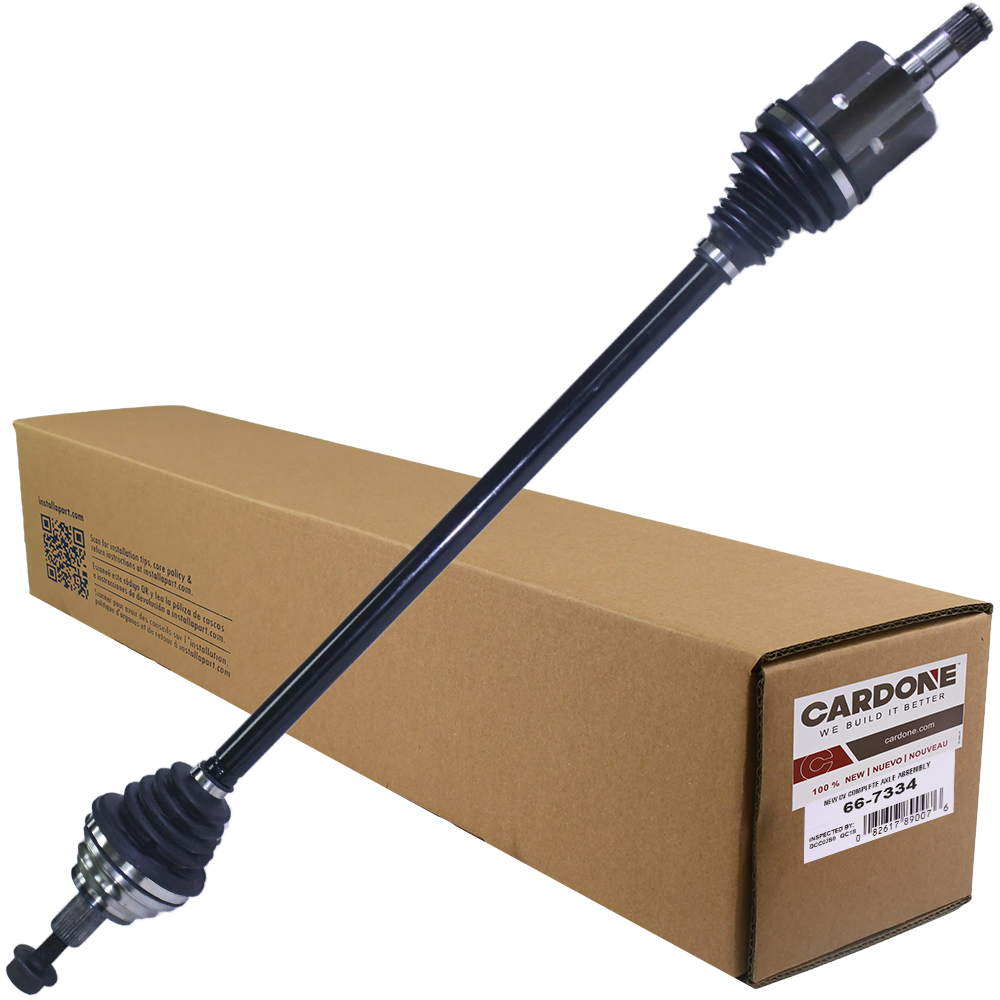

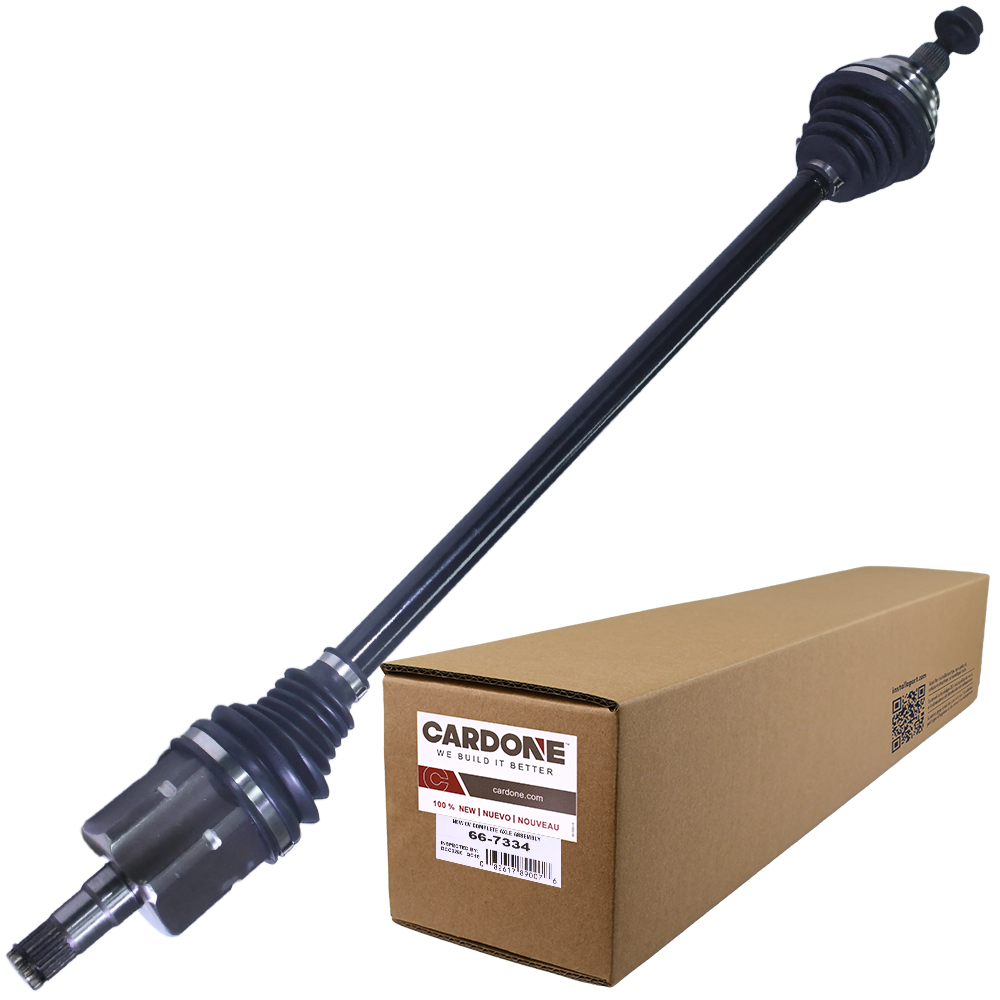

| Reference Numbers | 66-7334, 667334, 60-7334, 607334 |
| Interchange Numbers | 1K0407272EF, 1K0407272GE, 3C0407272D |
Product Specifications
| Product Type | CV Axle Assembly / CV Drive Axle |
| Condition | Brand New |
| Position | Front Right / Passenger Side |
| Fitment Type | Direct Replacement |
| Compressed Length | 34.75 in. / 882.65 mm |
| Inboard Joint Type | Splined |
| Inboard Spline Quantity | 26 Teeth |
| Outboard Joint Type | Splined |
| Outboard Spline Quantity | 36 Teeth |
| Input Shaft Connection | Spline |
| Output Shaft Connection | Spline |
| Mount Type | Spline |
| Shaft Diameter | 0.96 in. / 24.38 mm |
| Shaft Material | Steel |
| Surface Finish | Black Coating |
| Boot Material | Neoprene |
| Boot Color | Black |
| Boot Rib Quantity | 4 |
| CV Joints Included | Yes |
| ABS Tone Ring Included | No |
| Axle Nut Included | Yes |
| Axle Nut Socket Size | 27 mm / 1.063 in. |
| Axle Nut Thread Size | M16 × 1.5 |
| Axle Nut Type | Hex |
| Dynamic Damper Attached | No |
| Grade Type | Standard |
| Slip Yoke | No |
| Universal Joints Included | No |
Vehicle Fitment
| Year | Make | Model | Engine / Trim | Transmission | Position |
|---|---|---|---|---|---|
| 2005 | Volkswagen | Jetta | 6-Speed | Applicable Configuration | Front Right |
| 2005-2014 | Volkswagen | Jetta | 2.5L | Automatic | Front Right |
| 2014-2018 | Volkswagen | Jetta | 1.4L / 1.8L | Automatic | Front Right |
| 2006-2007 | Volkswagen | Passat Value Edition | 2.0L | Automatic | Front Right |
| 2006-2008 | Volkswagen | Passat 2.0T | 2.0L | Automatic | Front Right |
| 2007 | Volkswagen | Passat Wolfsburg Edition | 2.0L | Automatic | Front Right |
| 2008 | Volkswagen | Passat Base / Lux / Turbo | 2.0L | Automatic | Front Right |
| 2008-2009 | Volkswagen | Passat Komfort | 2.0L | Automatic | Front Right |
| 2009 | Volkswagen | Passat Comfortline / Highline / Trendline | 2.0L | Automatic | Front Right |
| 2012 | Volkswagen | Passat SE | 2.5L | Automatic | Front Right |
| 2010-2014, 2018 | Volkswagen | Golf | Specified Applications | Automatic | Front Right |
| 2014-2015 | Volkswagen | Golf | 1.8L / 2.5L | Specified Applications | Front Right |
| 2016-2017 | Volkswagen | Golf | Engine Design: CXBB | Specified Applications | Front Right |
| 2006-2009 | Volkswagen | Rabbit | Specified Applications | Automatic | Front Right |
| 2015 | Volkswagen | Golf SportWagen | 1.8L | Specified Applications | Front Right |
| 2016-2017 | Volkswagen | Golf SportWagen | Engine Design: CXBB | Specified Applications | Front Right |
| 2018 | Volkswagen | Golf SportWagen | Specified Applications | Automatic | Front Right |
| 2009 | Volkswagen | CC | 2.0L | Automatic | Front Right |
| 2009 | Volkswagen | Passat CC | 2.0L | Automatic | Front Right |
Product Features
✔ Direct Replacement Design
Designed to match the form, fit, and function required for compatible Volkswagen driveline applications.
✔ Precision-Rolled Splines
Features 26 inboard splines and 36 outboard splines for proper engagement with the transmission and wheel hub.

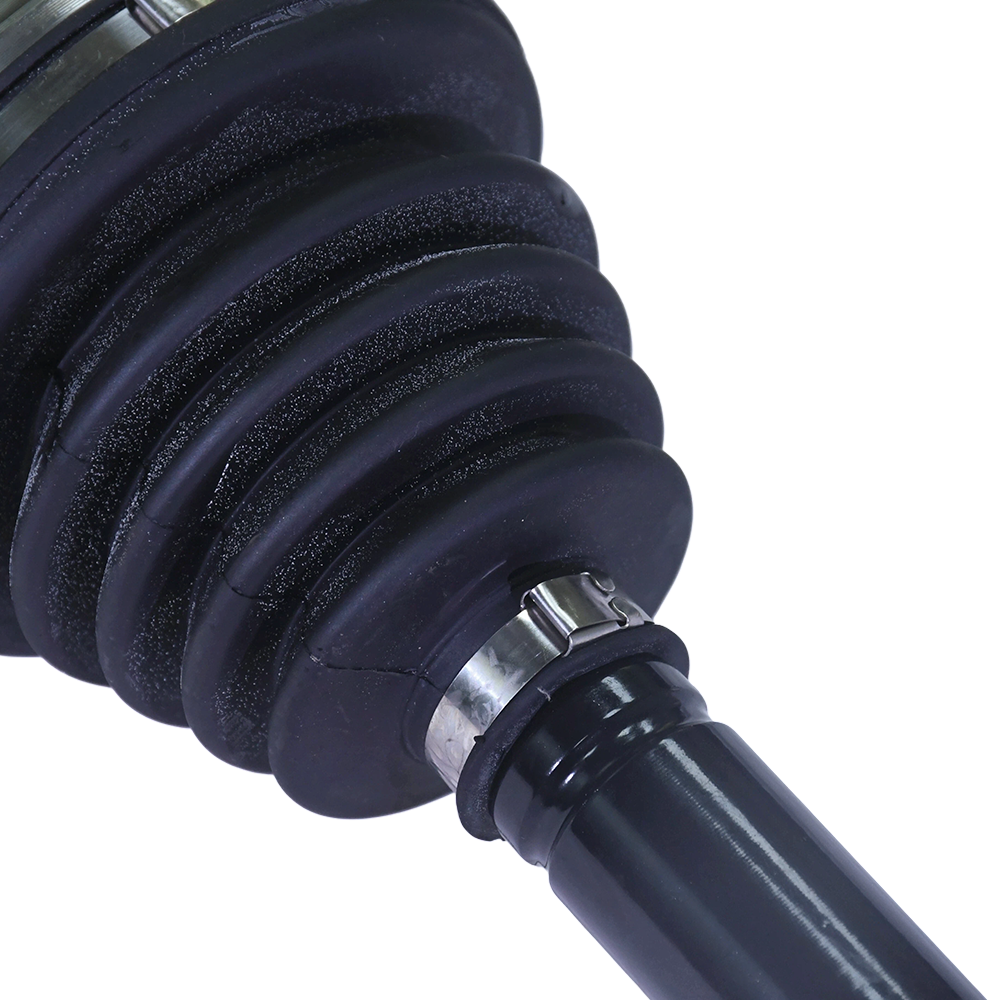

✔ Durable Neoprene CV Boots
Neoprene boots help resist cracking and protect the CV joints from dirt, moisture, and road debris.
✔ Secure Boot Clamps
Pneumatically crimped clamps help maintain a secure seal between the boot and CV joint housing.
✔ High-Quality CV Joint Grease
Lubrication is designed to withstand demanding temperature and torque conditions during normal operation.

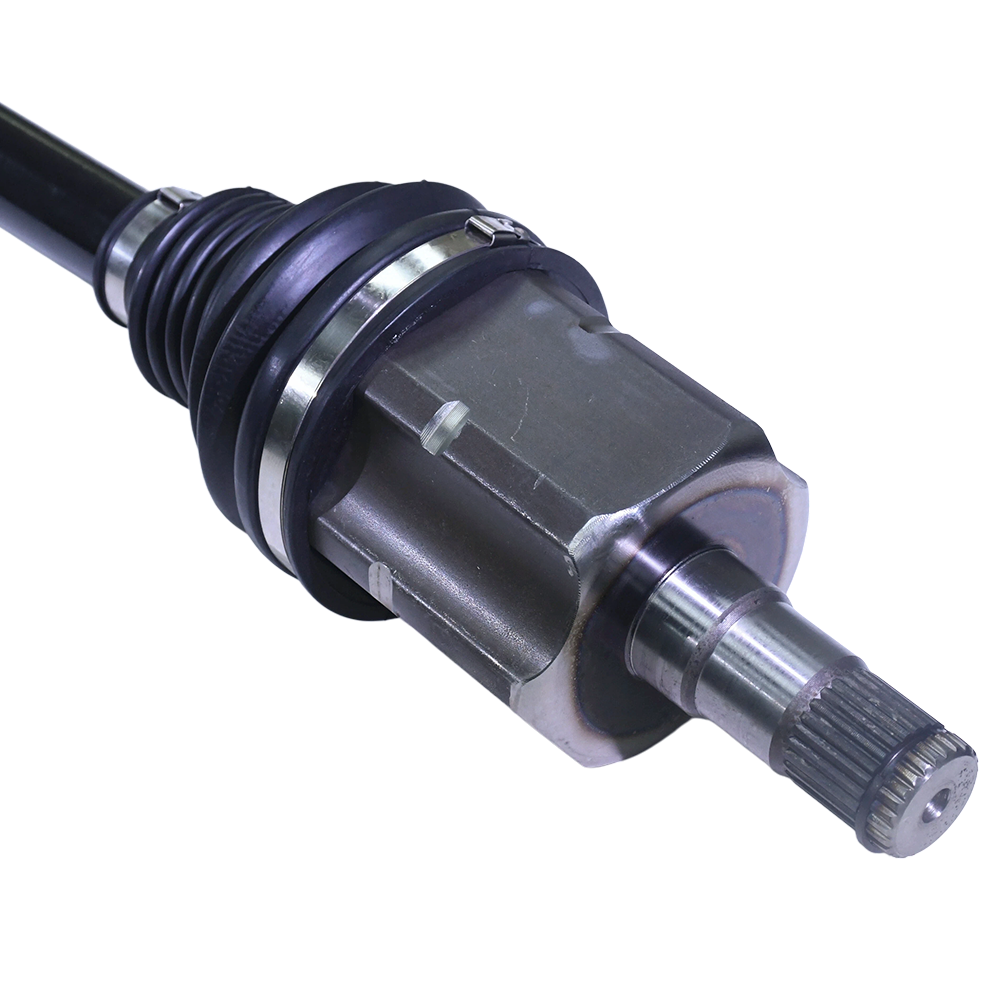

✔ Precision-Machined Seal Surface
Transmission seal contact surfaces are precision-machined to support proper sealing and long service life.

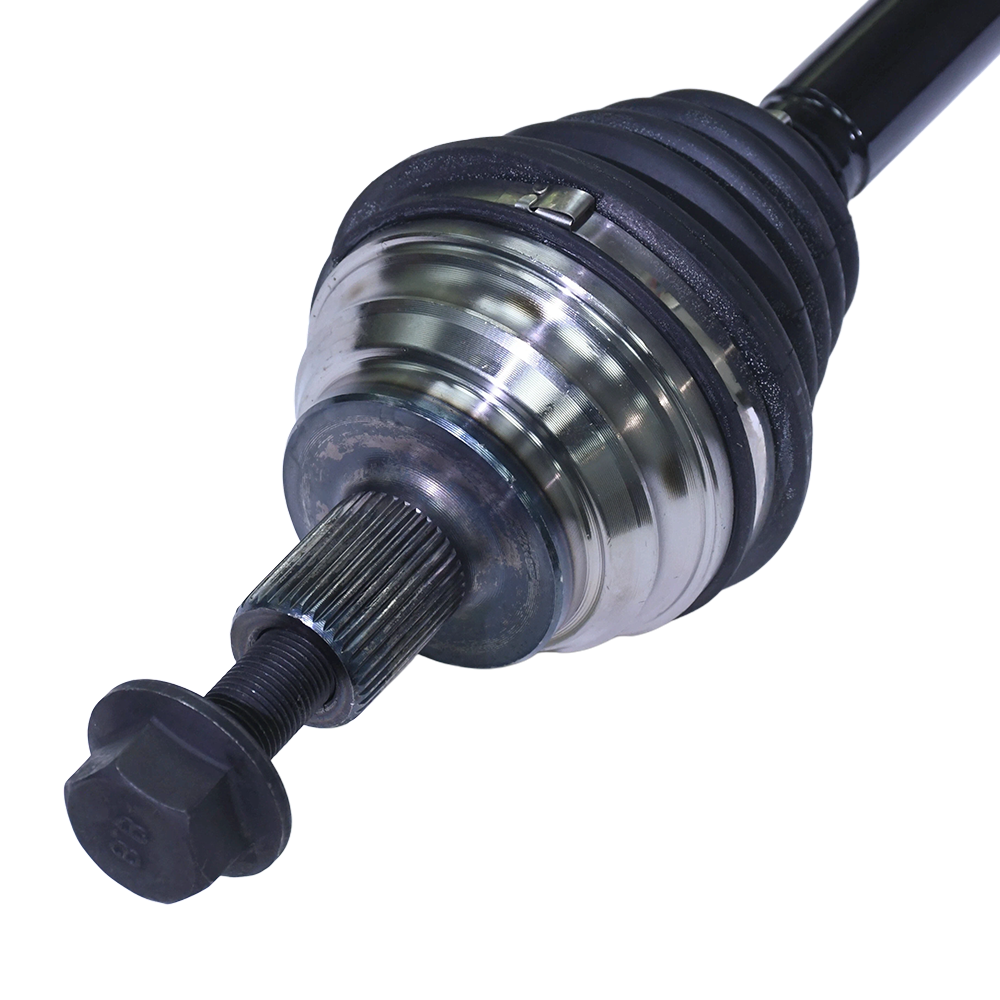

✔ New Axle Nut Included
Includes a new M16 × 1.5 hex axle retaining nut for replacement installation.
How to Verify Fitment
| Check | Specification |
|---|---|
| Position | Front Right / Passenger Side |
| Compressed Length | 34.75 in. / 882.65 mm |
| Inboard Splines | 26 Teeth |
| Outboard Splines | 36 Teeth |
| Shaft Diameter | 0.96 in. / 24.38 mm |
| Axle Nut Thread | M16 × 1.5 |
| Axle Nut Socket | 27 mm / 1.063 in. |
| ABS Tone Ring | Not Included |
| Reference Numbers | 66-7334 / 667334 / 60-7334 / 607334 / 1K0407272EF / 1K0407272GE / 3C0407272D |
Package Includes
- 1 × Front Right / Passenger Side CV Axle Shaft Assembly
- 1 × Axle Retaining Nut
Installation Notes
- Verify the vehicle requires a front right / passenger side CV axle.
- Confirm compressed length is approximately 34.75 in. / 882.65 mm.
- Confirm 26 inboard splines and 36 outboard splines.
- Verify axle nut specification M16 × 1.5 with 27 mm socket size.
- ABS tone ring is not included.
- Compare the original axle and reference numbers before installation.
- Professional installation is recommended.
