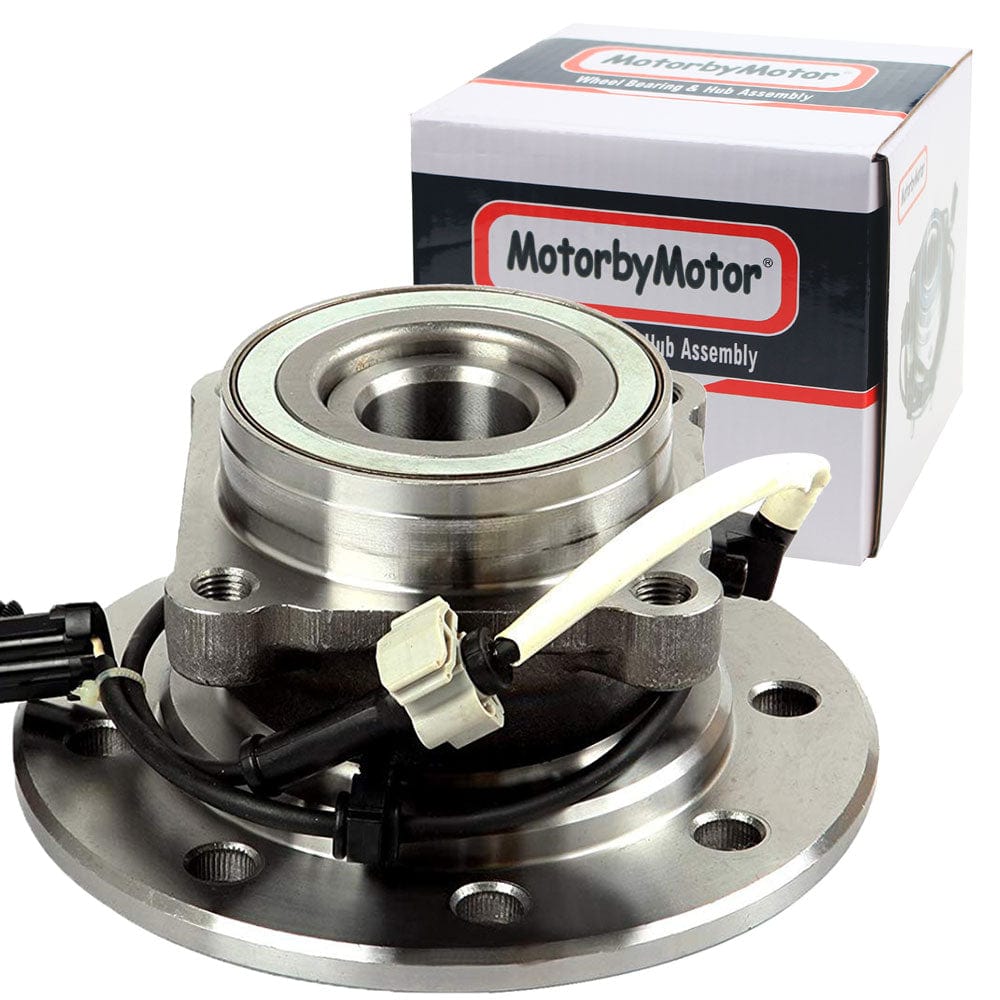

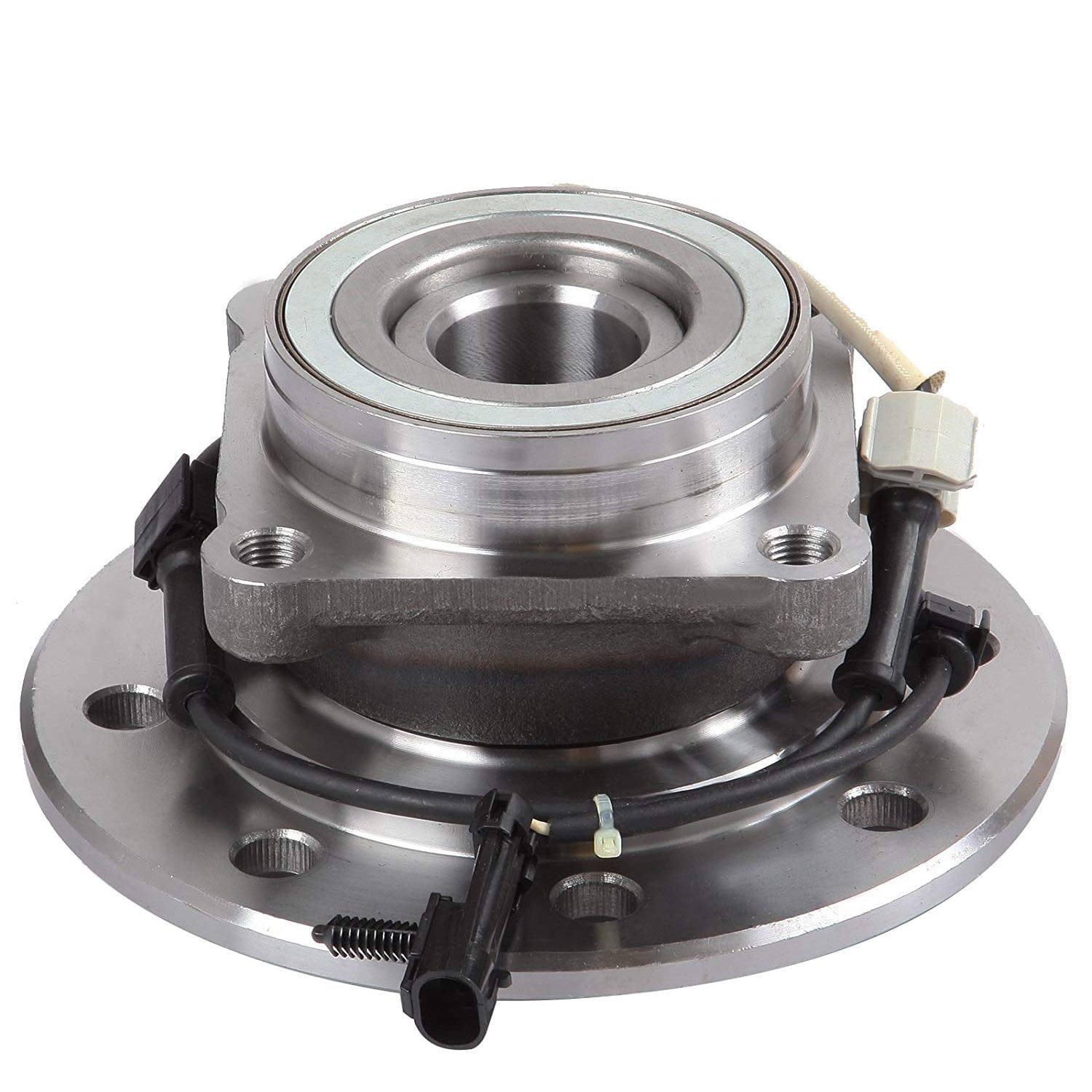

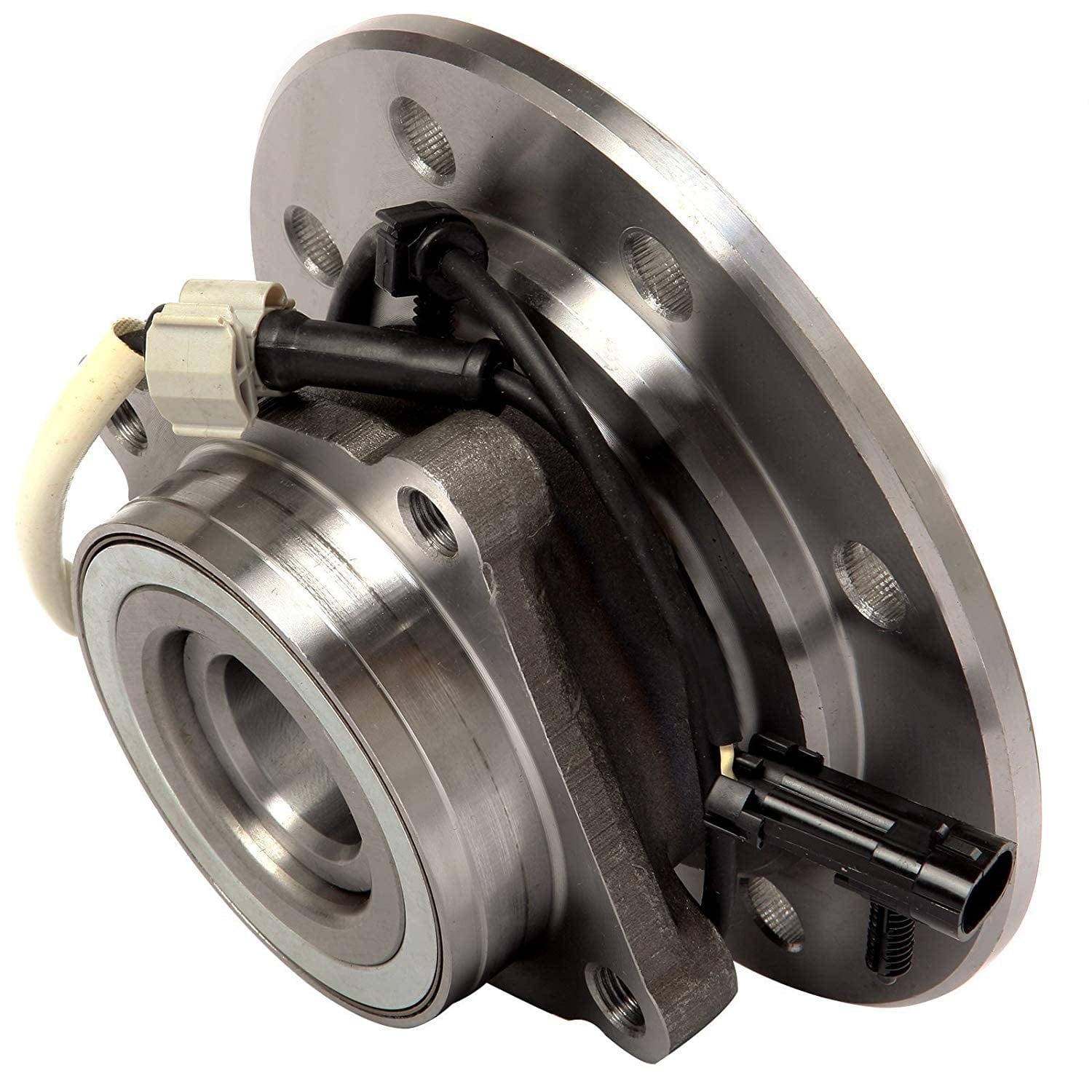

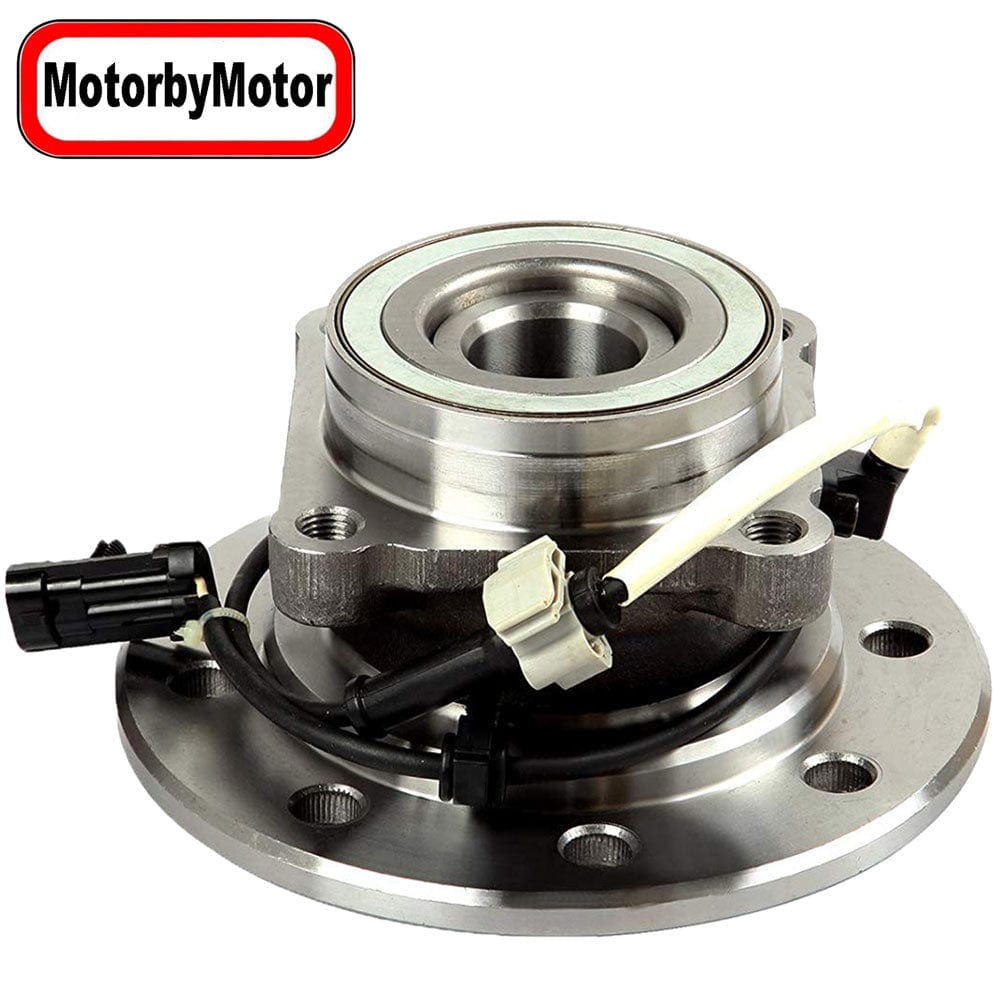

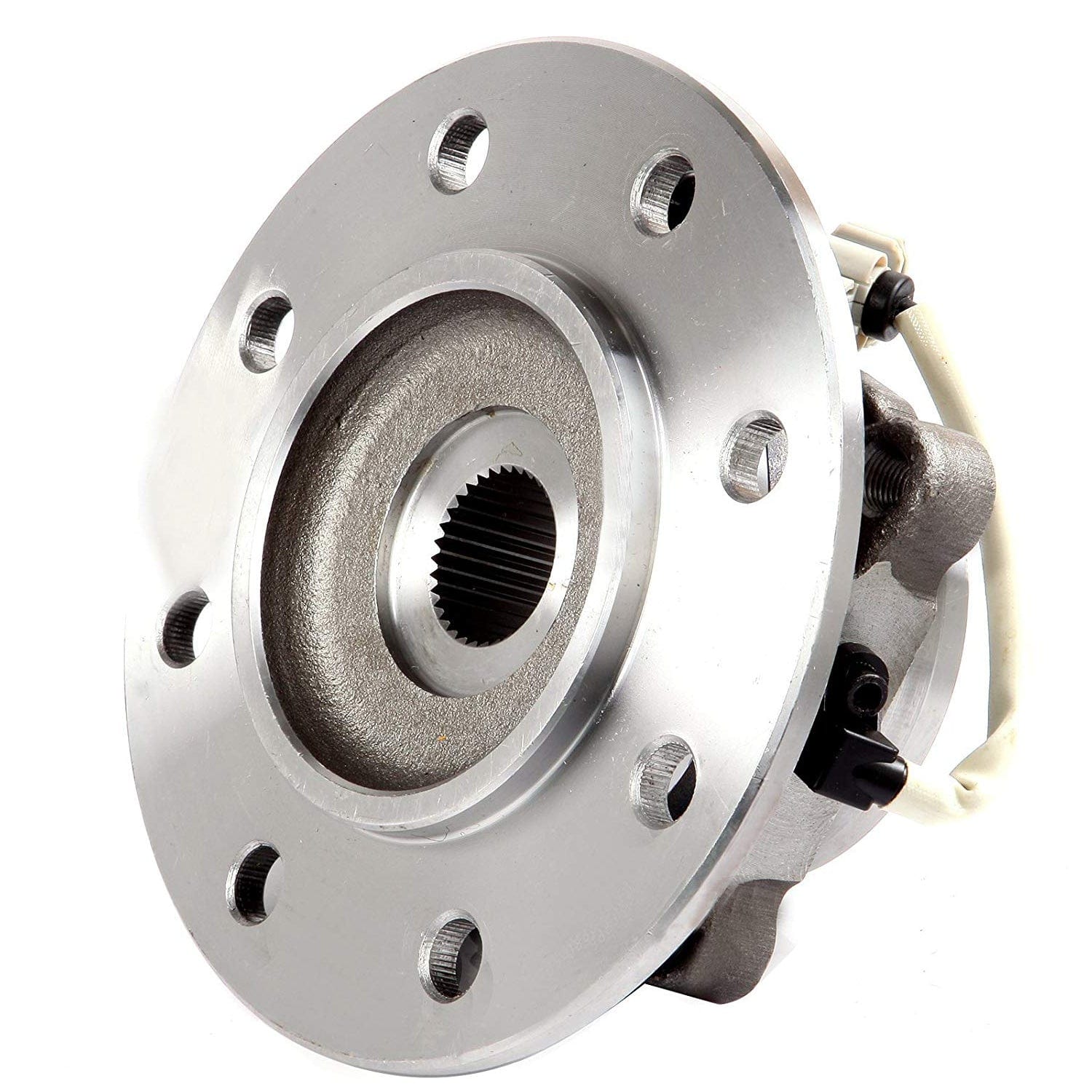

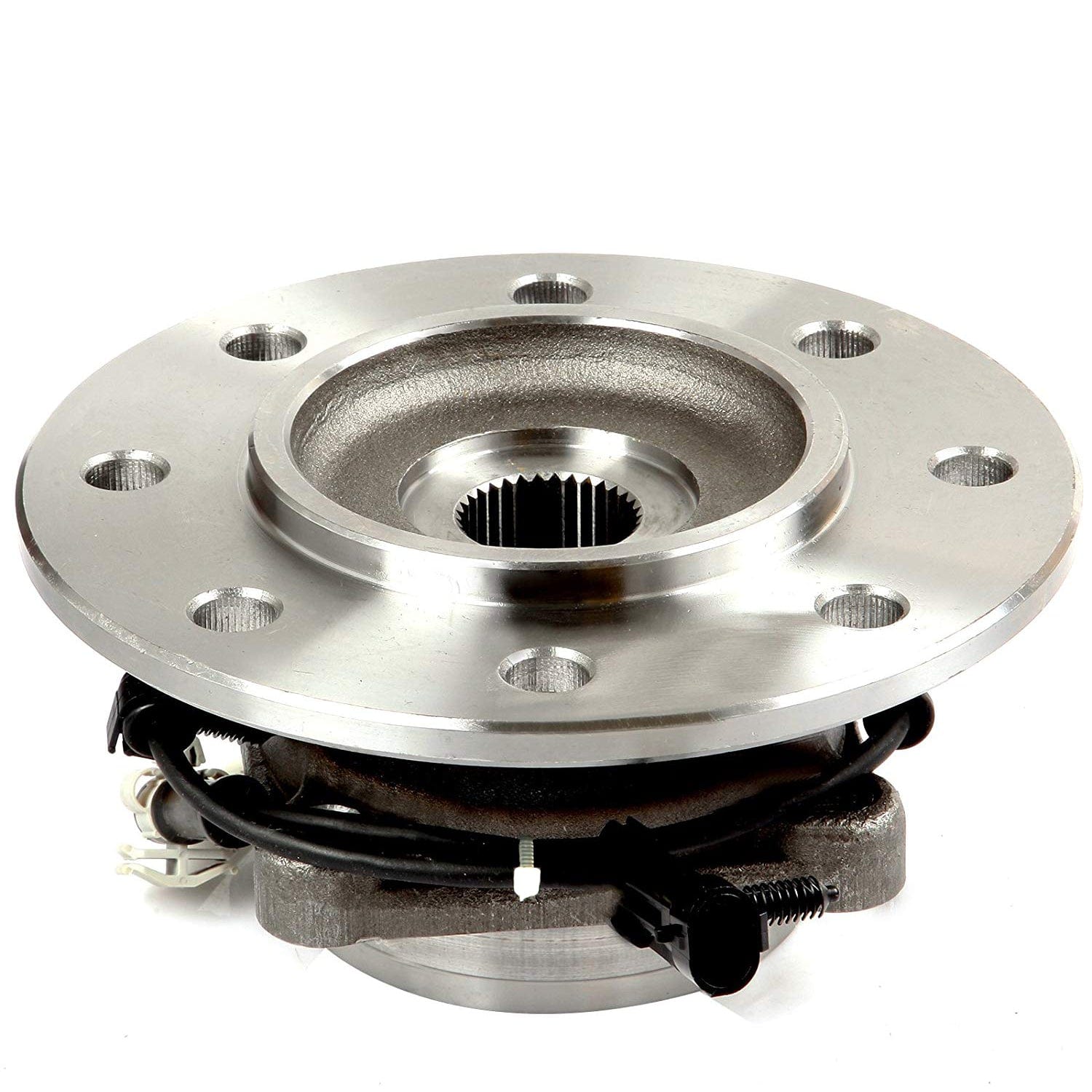

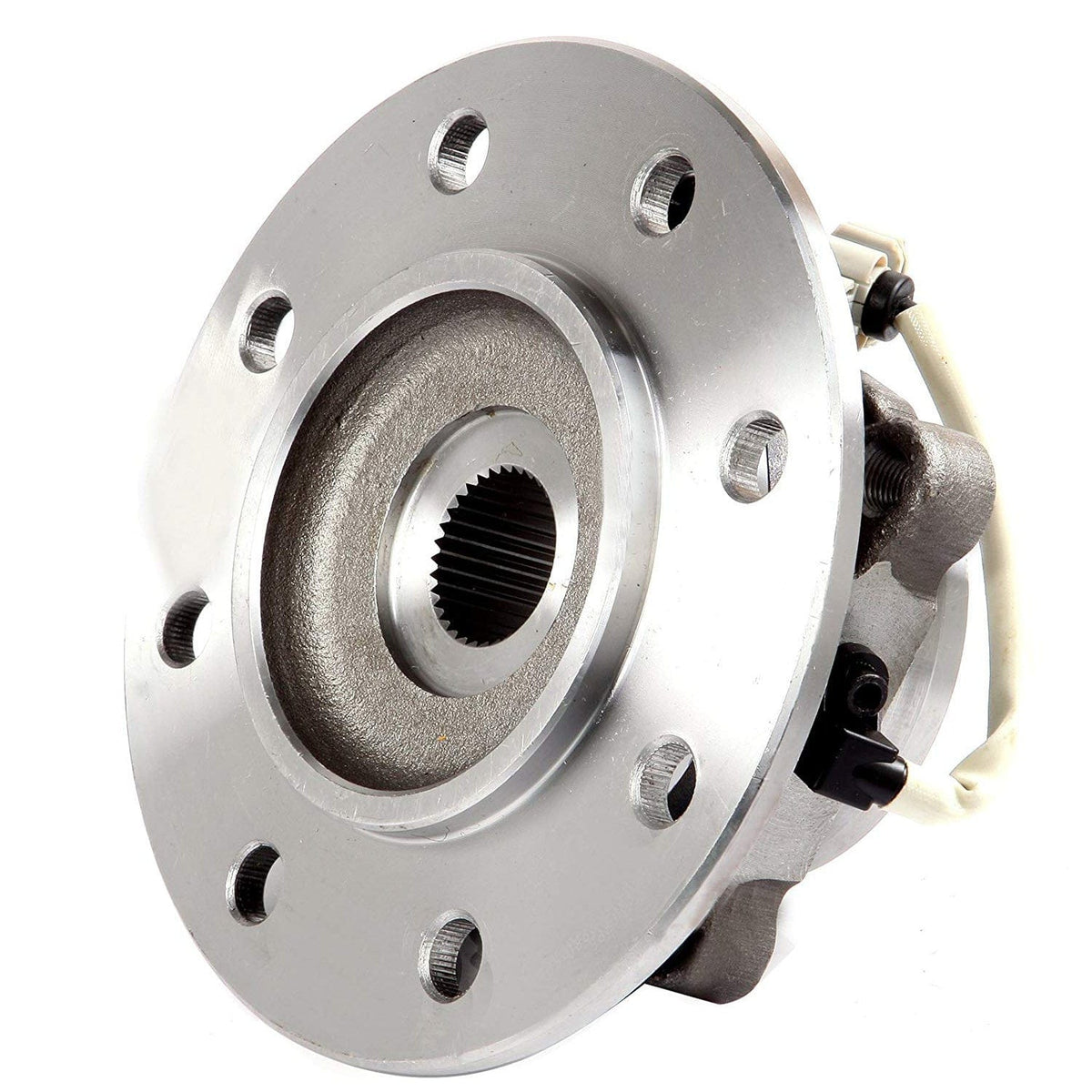

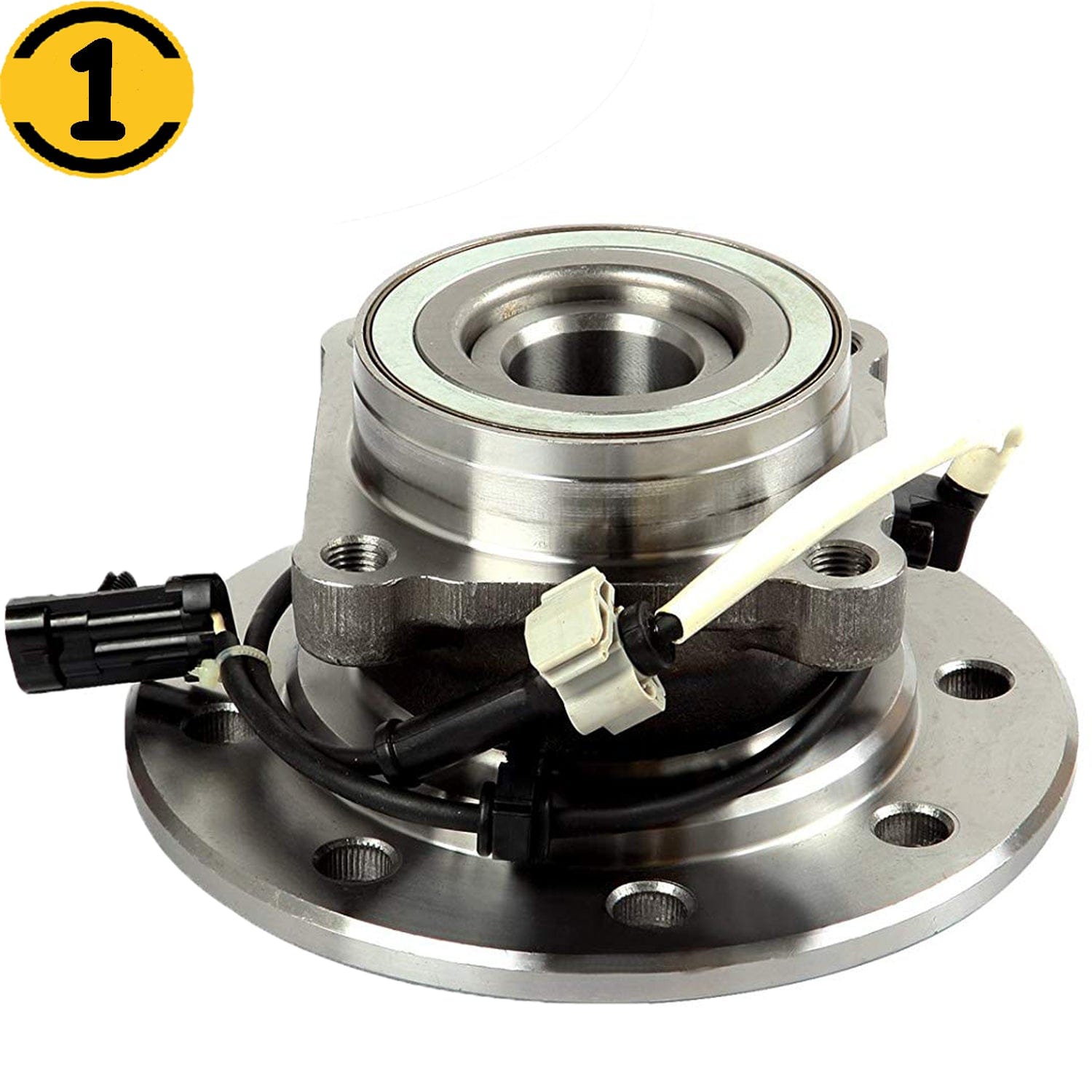

motorbymotor 515041 Front Wheel Bearing Hub Assembly 4WD
specifications:
| ABS Sensor Included | Yes |
| ABS Connector Shape | Oval |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 31 Inch |
| Number Of Mounting Bolts To Knuckle | 4 |
| Number Of Lug Bolts Included | 0 |
| Number Of Flange Bolts Included | 0 |
| Driven Or Non-Driven | Driven |
| Number Of Splines | 33 |
| ABS Ring Type | Sensor |
| Lug Bolt Thread Size | M0.6 |
| Total Hub Diameter (in) | 8.19 Inch |
| Total Hub Diameter (mm) | 208.026mm |
| Total Hub Height (in) | 4.026 Inch |
| Total Hub Height (mm) | 102.26mm |
| Flange Diameter (in) | 8.19 Inch |
| Flange Diameter (mm) | 208.03mm |
| Flange Offset (in) | 2.71 Inch |
| Flange Offset (mm) | 68.834mm |
| Flange Shape | Square |
| Flange Bolt Thread Size | M14-1.50 |
| Material | Steel |
| Bearing Type | Tapered |
| Hub Pilot Diameter (in) | 4.165 Inch |
| Hub Pilot Diameter (mm) | 105.791mm |
Fitment for motorbymotor 515041:
1996 1997 1998 1999 Chevrolet K1500 Pickup
1996 1997 1998 1999 2000 Chevrolet K2500 Pickup
1996 1997 1998 1999 Chevrolet K2500 Suburban
1996 1997 1998 1999 2000 Chevrolet K3500 Pickup
1996 1997 1998 1999 GMC K1500 Pickup
1997 1998 1999 GMC K1500 Suburban
1996 1997 1998 1999 2000 GMC K2500 Pickup
1996 1997 1998 1999 GMC K2500 Suburban
1996 1997 1998 1999 2000 GMC K3500
