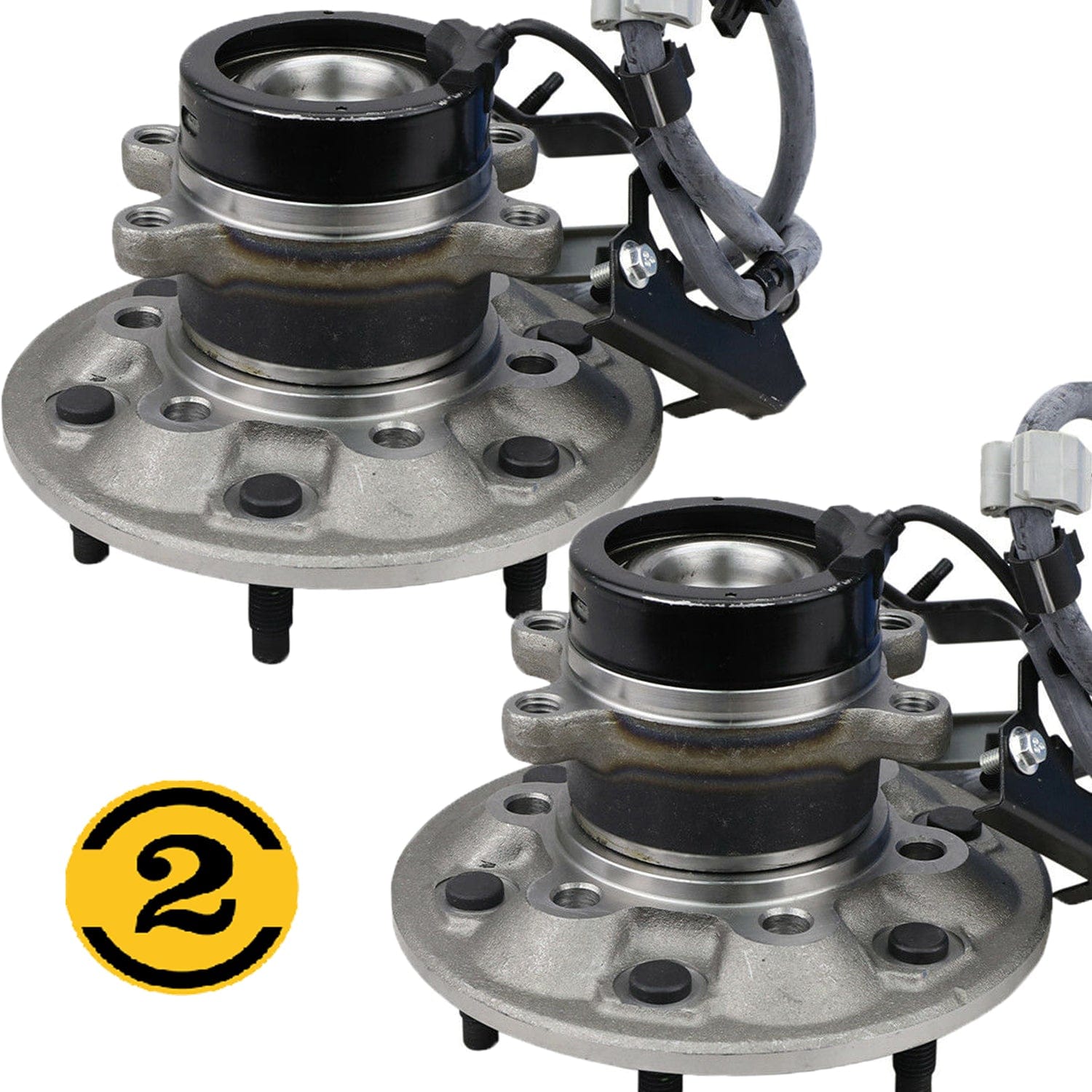

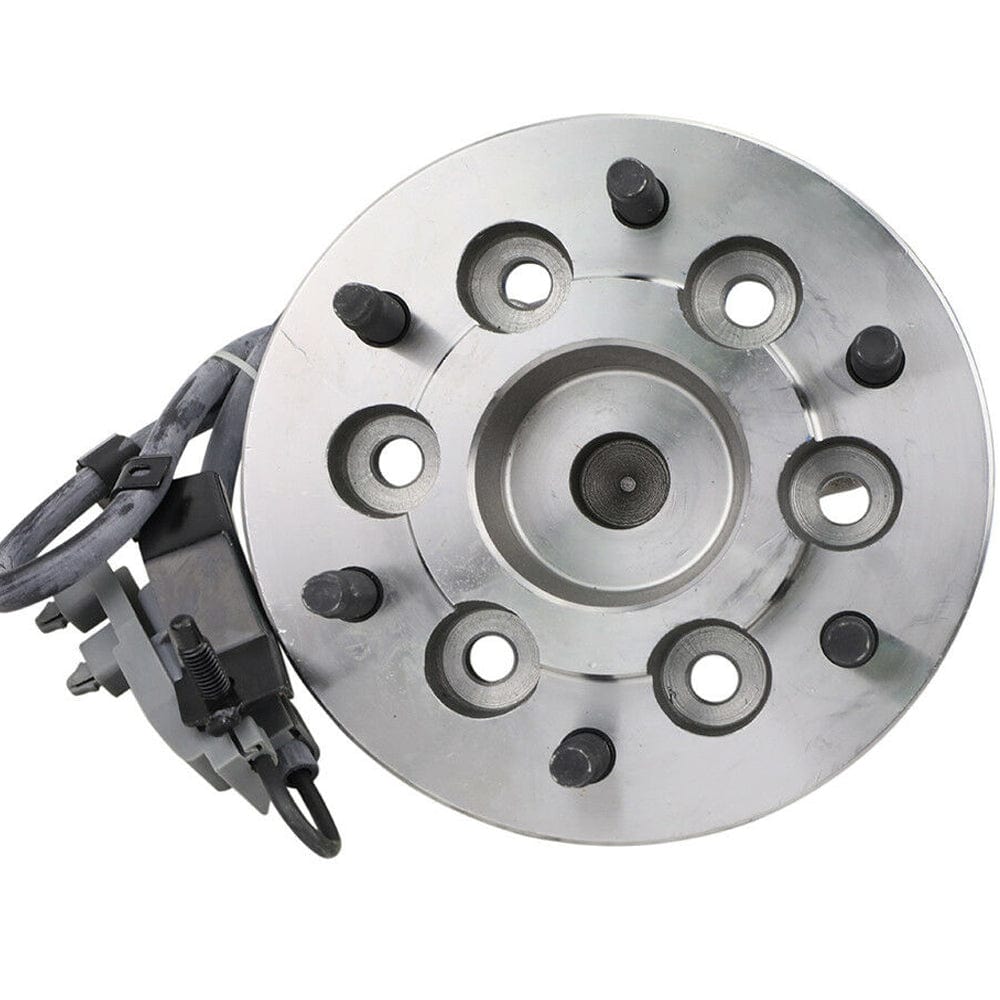

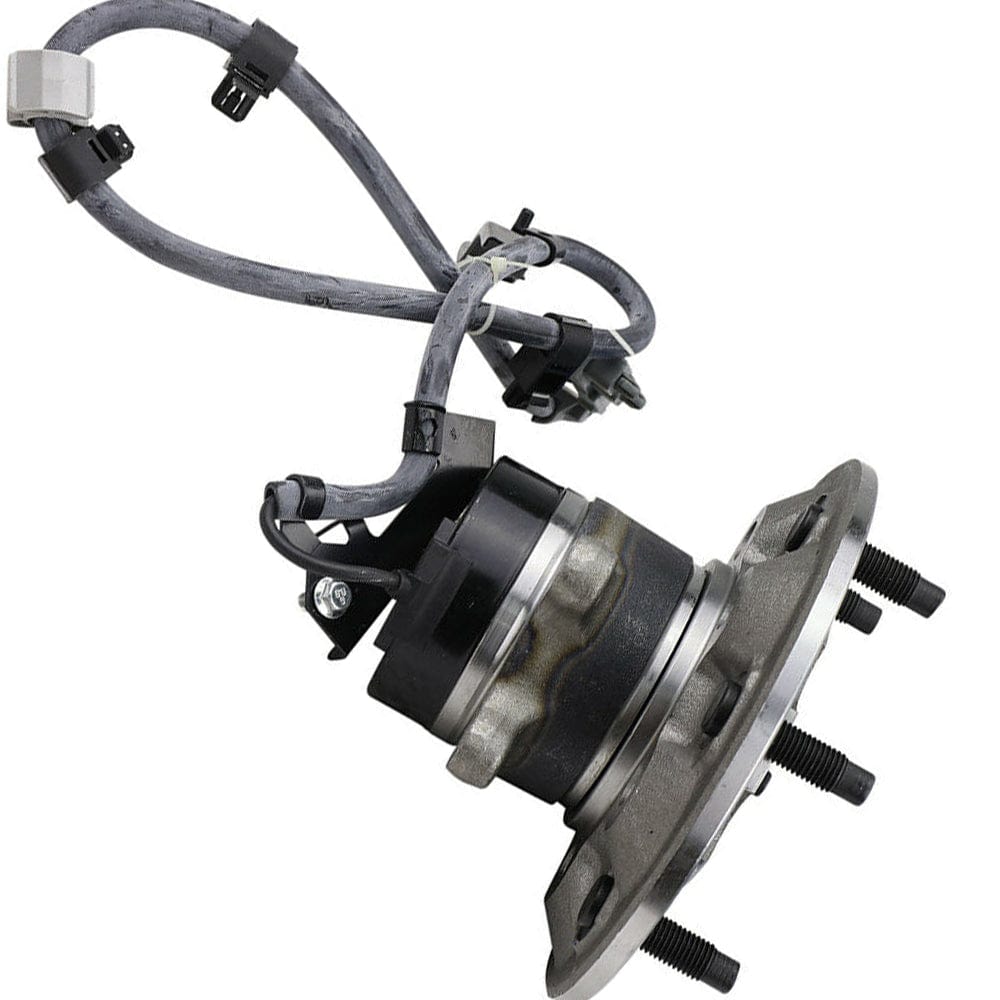

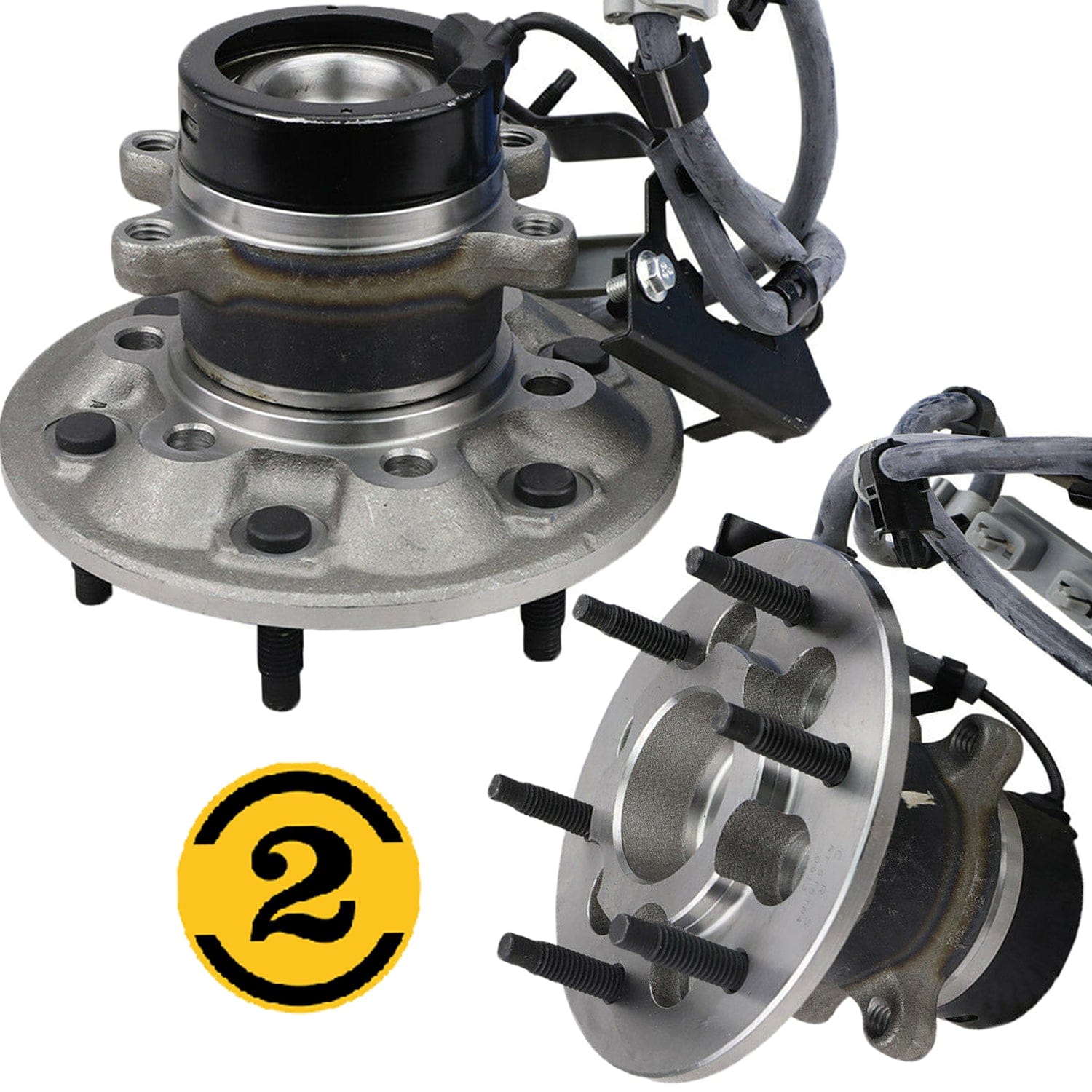

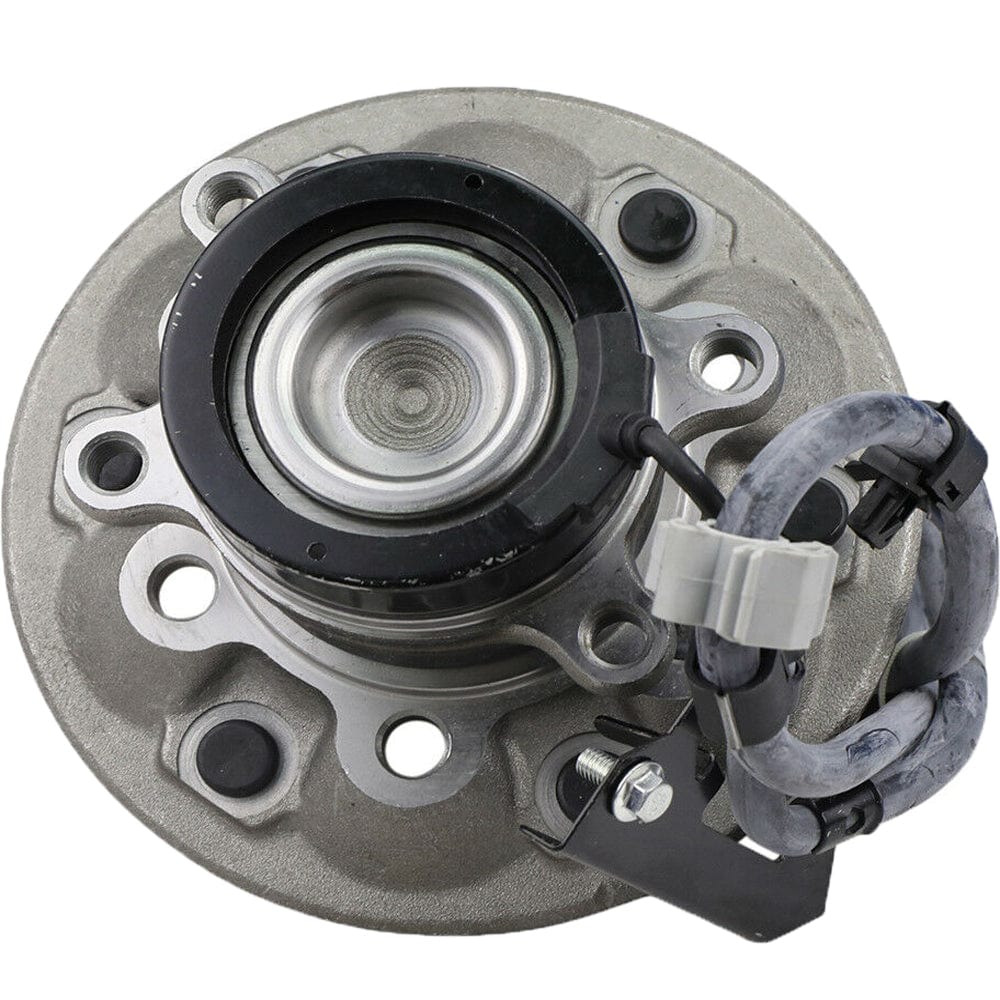

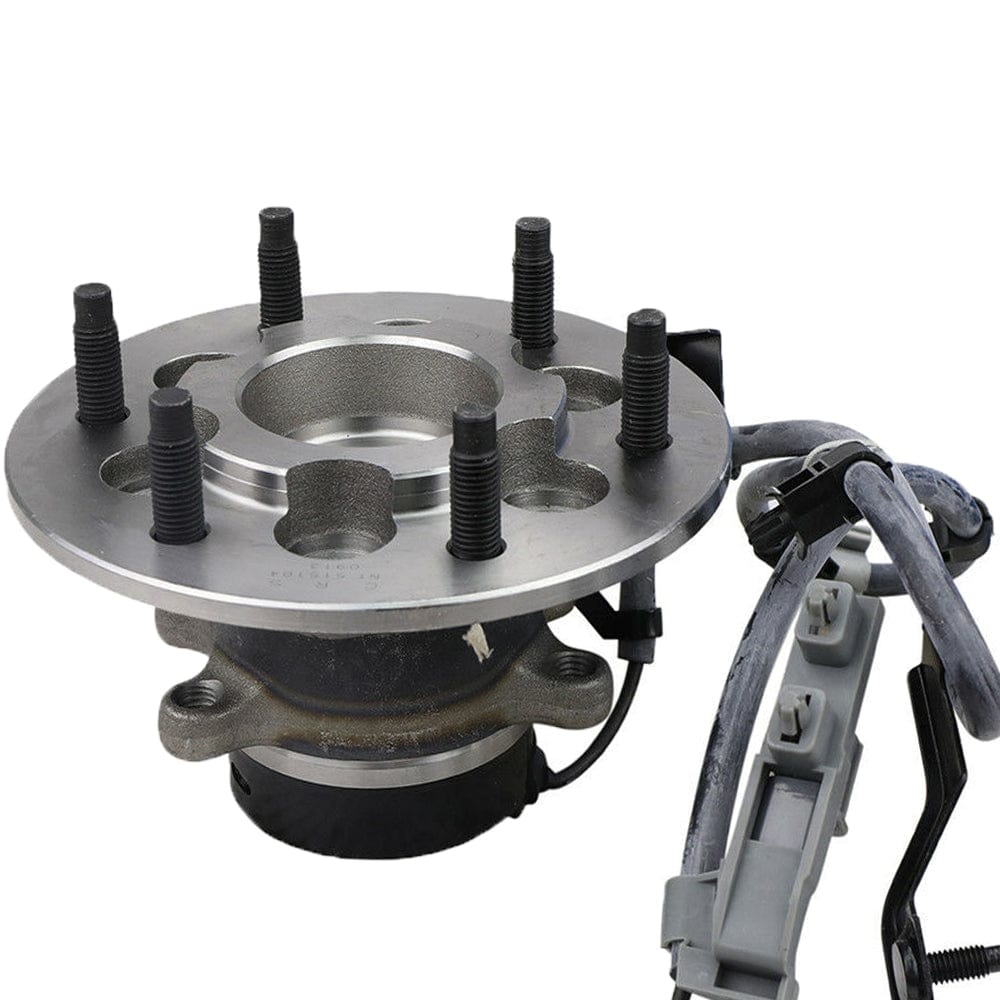

MotorbyMotor Front Wheel Bearing Fit 2006-2008 Isuzu I-280 I-290 I-370, 2004-2008 GMC Canyon Chevy Colorado Wheel Hub w/ABS, 6 Lugs,RB515104+RB515105

MotorbyMotor Front Wheel Bearing Fit 2006-2008 Isuzu I-280 I-290 I-370, 2004-2008 GMC Canyon Chevy Colorado Wheel Hub w/ABS, 6 Lugs,RB515104+RB515105

Fit:
2004 2005 2006 2007 2008 Chevrolet Colorado 2WD
2004 2005 2006 2007 2008 GMC Canyon 2WD
2006 Isuzu I-280
2007 2008 Isuzu I-290
2007 2008 Isuzu I-370 2WD

Description:
ABS Sensor Included: Yes

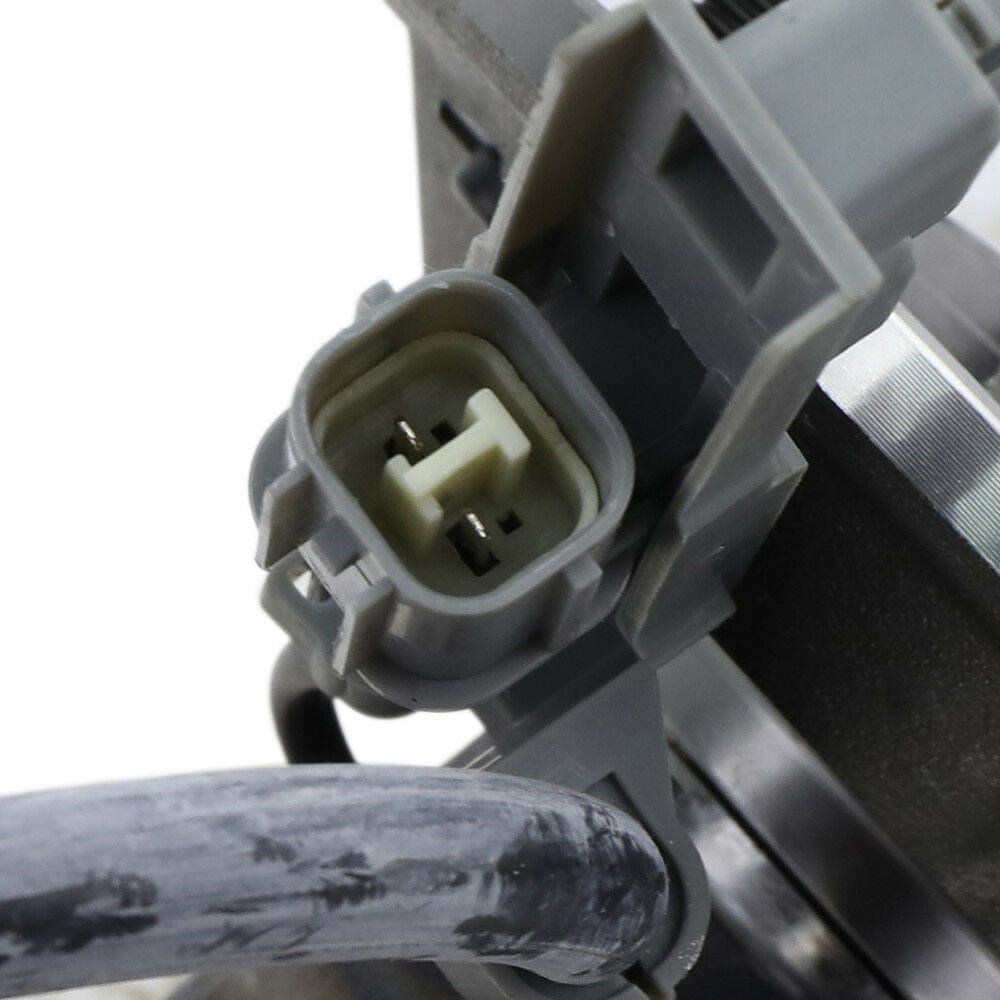

ABS Connector Shape: Square
Wiring Harness Included: Yes
Wiring Harness Length (in): 27.76 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 6
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Magnetic
Number Of ABS Sensor Ring Teeth: 50
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 7.244 Inch
Hub Centerbore Diameter (in): 5.5 Inch
Total Hub Height (in): 4.944 Inch
Flange Diameter (in): 7.244 Inch
Flange Offset (in): 2.645 Inch
Flange Shape: Rectangle
Flange Bolt Size (in): 1.322 Inch
Outer Ring Width (in): 2.36 Inch
Inner Ring Width (in): 1.18 Inch
Hub Pilot Diameter (in): 3.937 Inch
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Tapered
