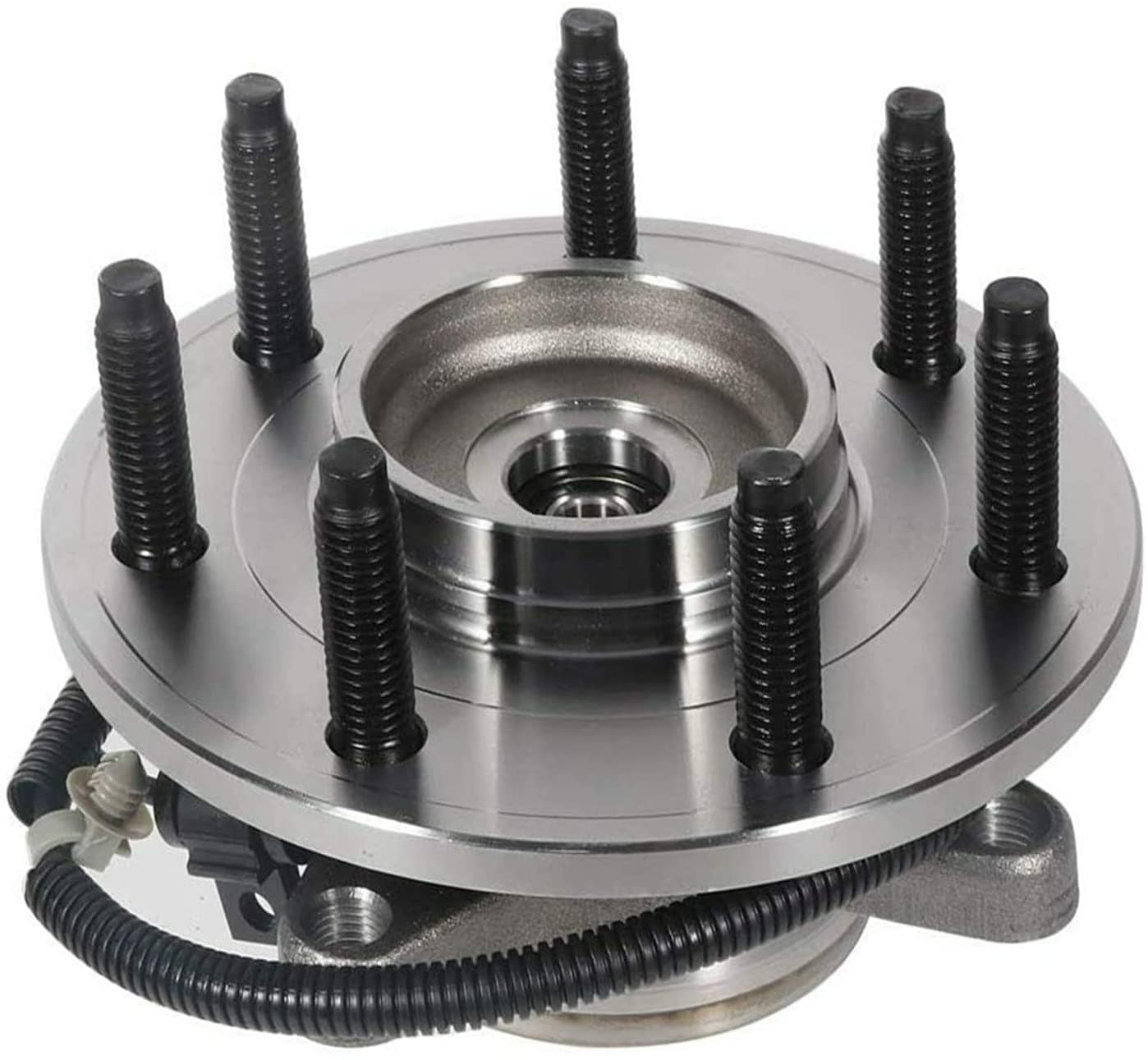

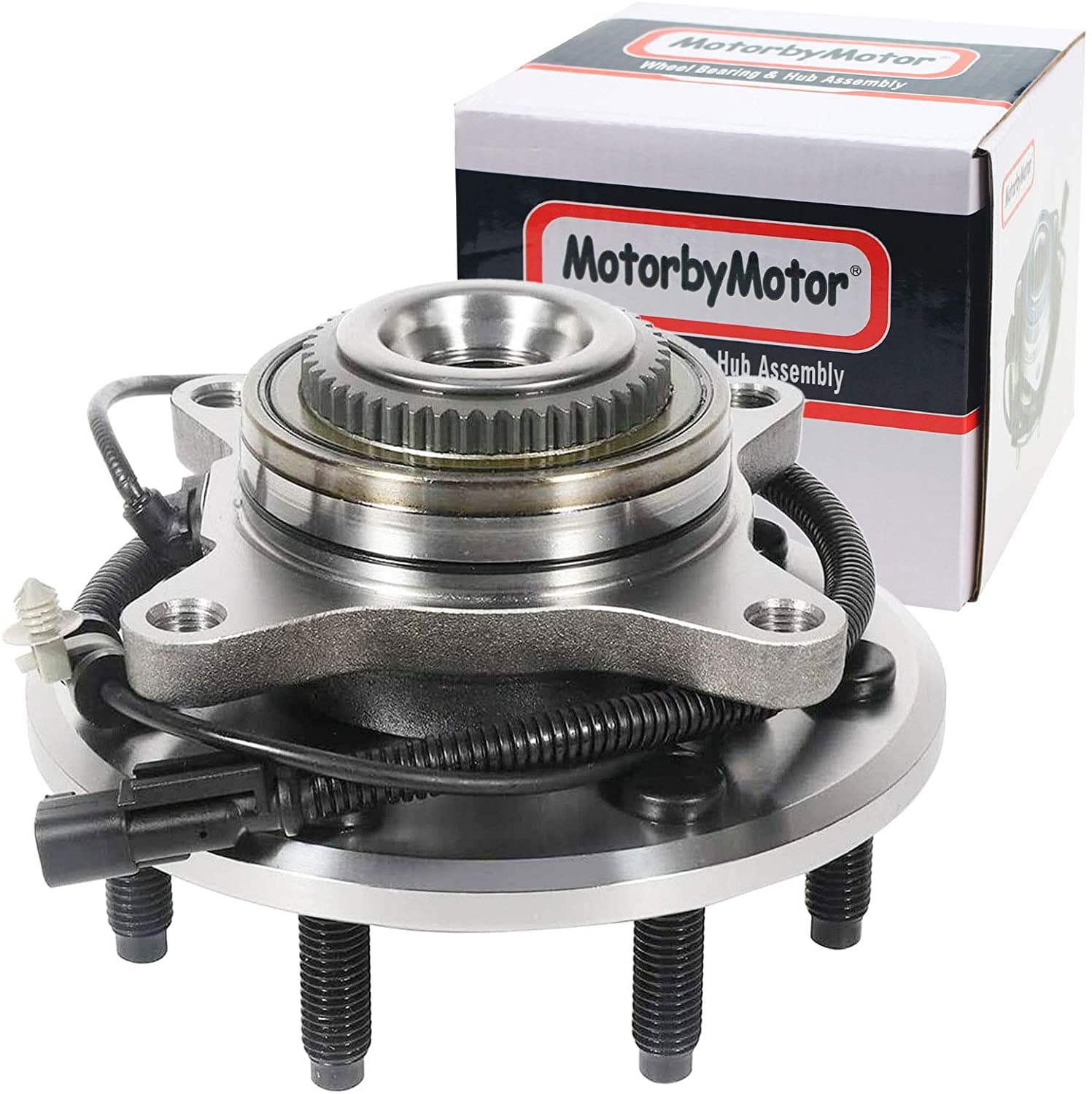

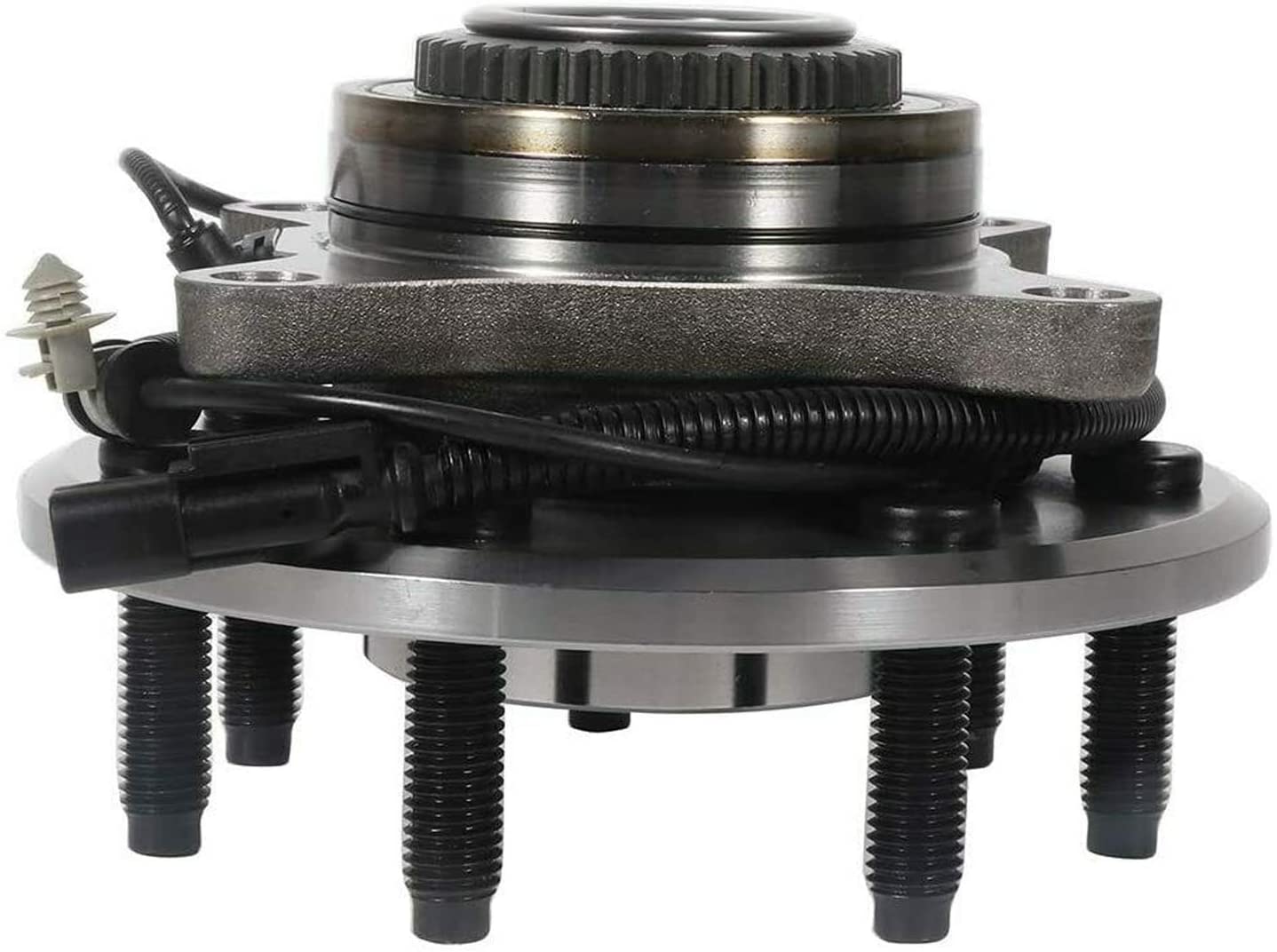

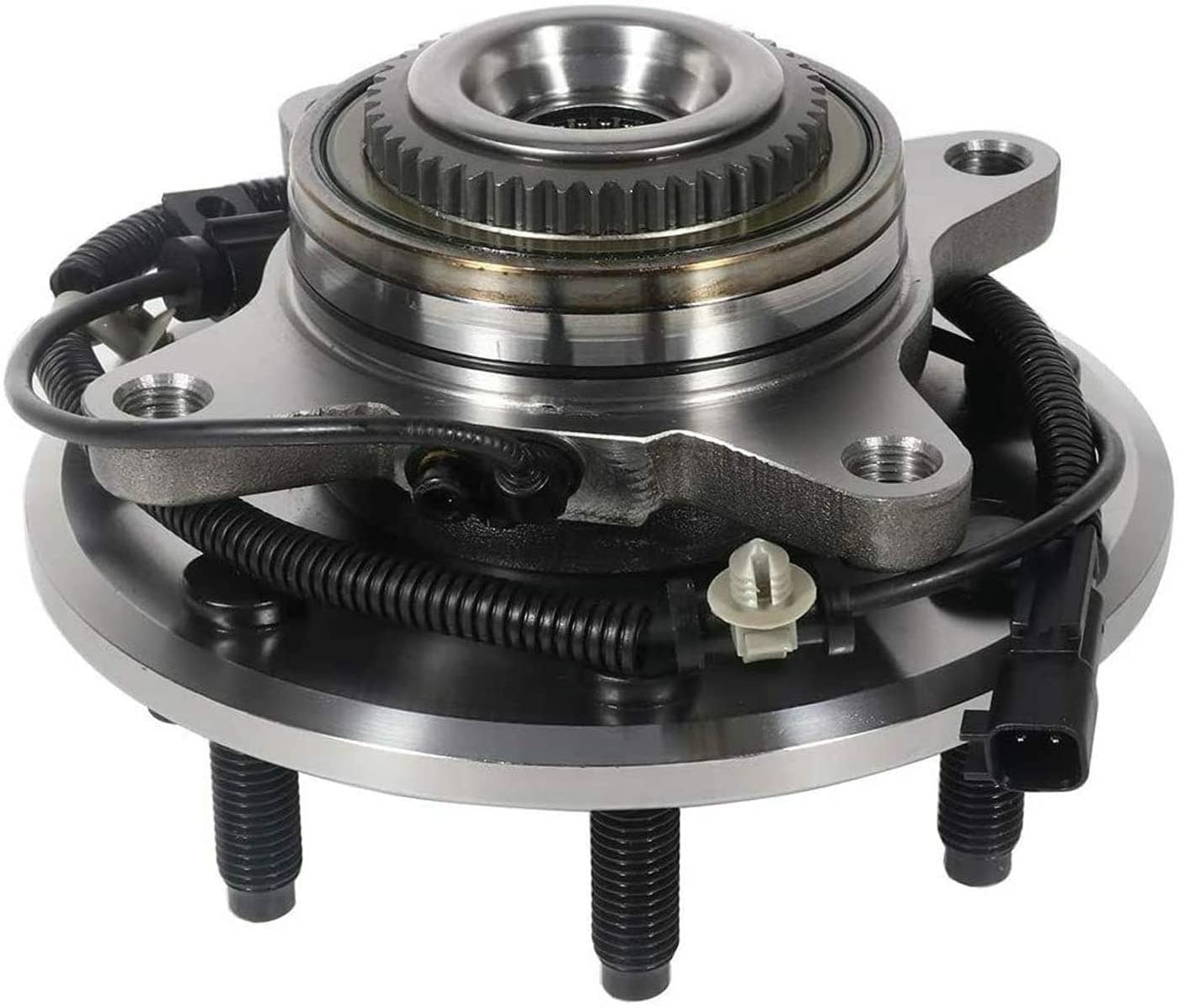

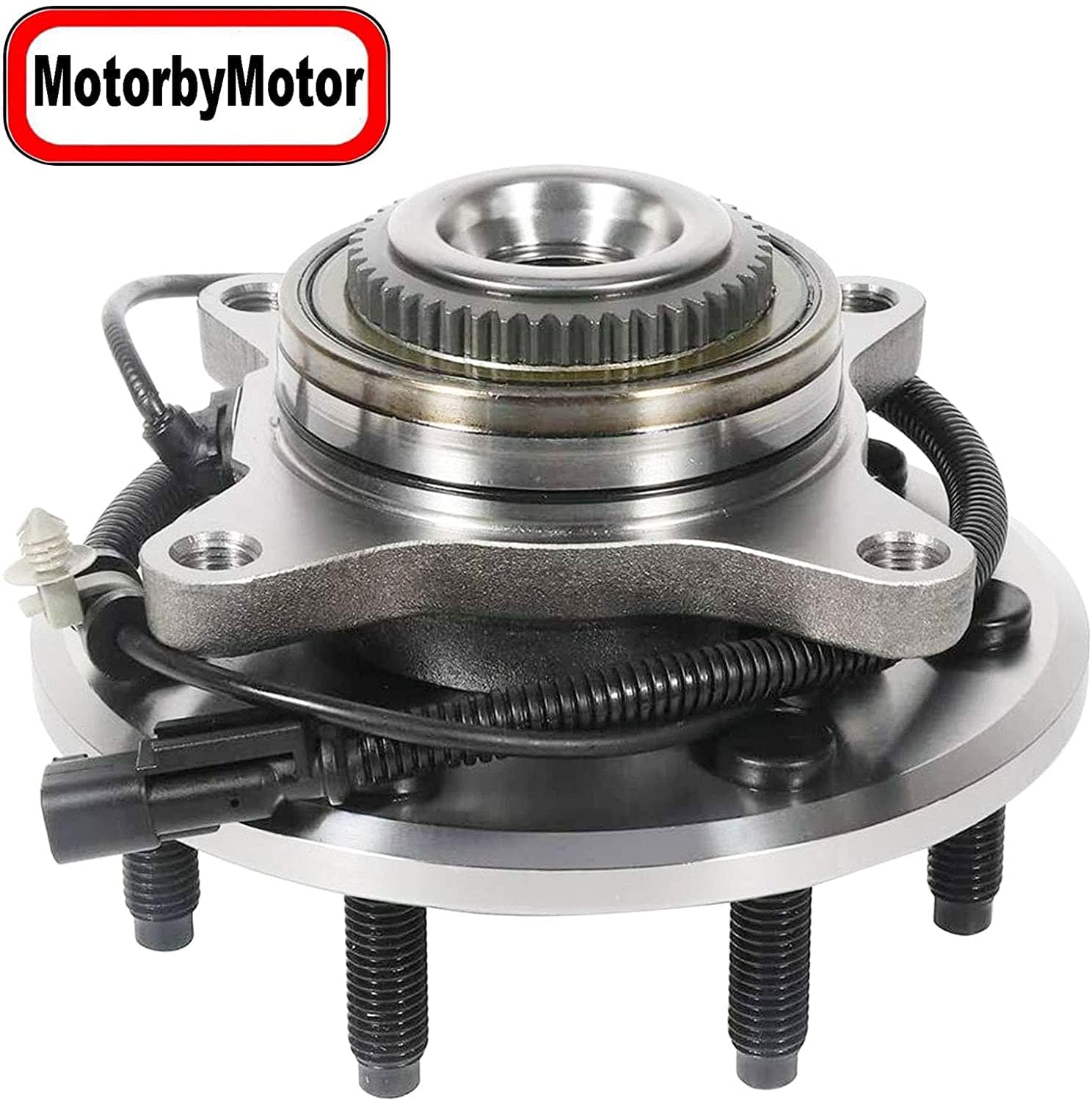

MotorbyMotor Front Wheel Bearing Hub Assembly Compatible with 2011-2014 Ford F-150 Hub Bearing w/7 Lugs w/ABS-513326

MotorbyMotor Front Wheel Bearing Hub Assembly Compatible with 2011-2014 Ford F-150 Hub Bearing w/7 Lugs w/ABS-513326

Fit

2011 2012 2013 2014 Ford F-150.

Description:
Position: Driver(LH Left) or Passenger(RH Right) Front
ABS Sensor Included: Yes
Wiring Harness Included: Yes
Number Of Mounting Bolts To Knuckle: 4
Driven Or Non-Driven: Non-Driven
Number Of ABS Sensor Ring Teeth: 54
Lug Bolt Thread Size: M14-1.50
Wiring Harness Length (in): 39.37 Inch
Number Of Flange Bolts Included: 7
ABS Sensor Ring Diameter (in): 2.937 Inch
Total Hub Diameter (in): 7.48 Inch
Hub Centerbore Diameter (in): 5.906 Inch
Total Hub Height (in): 5.15 Inch
Flange Diameter (in): 3.543 Inch
Flange Offset (in): 1.795 Inch
Hub Pilot Diameter (in): 3.909 Inch
Material: Steel
