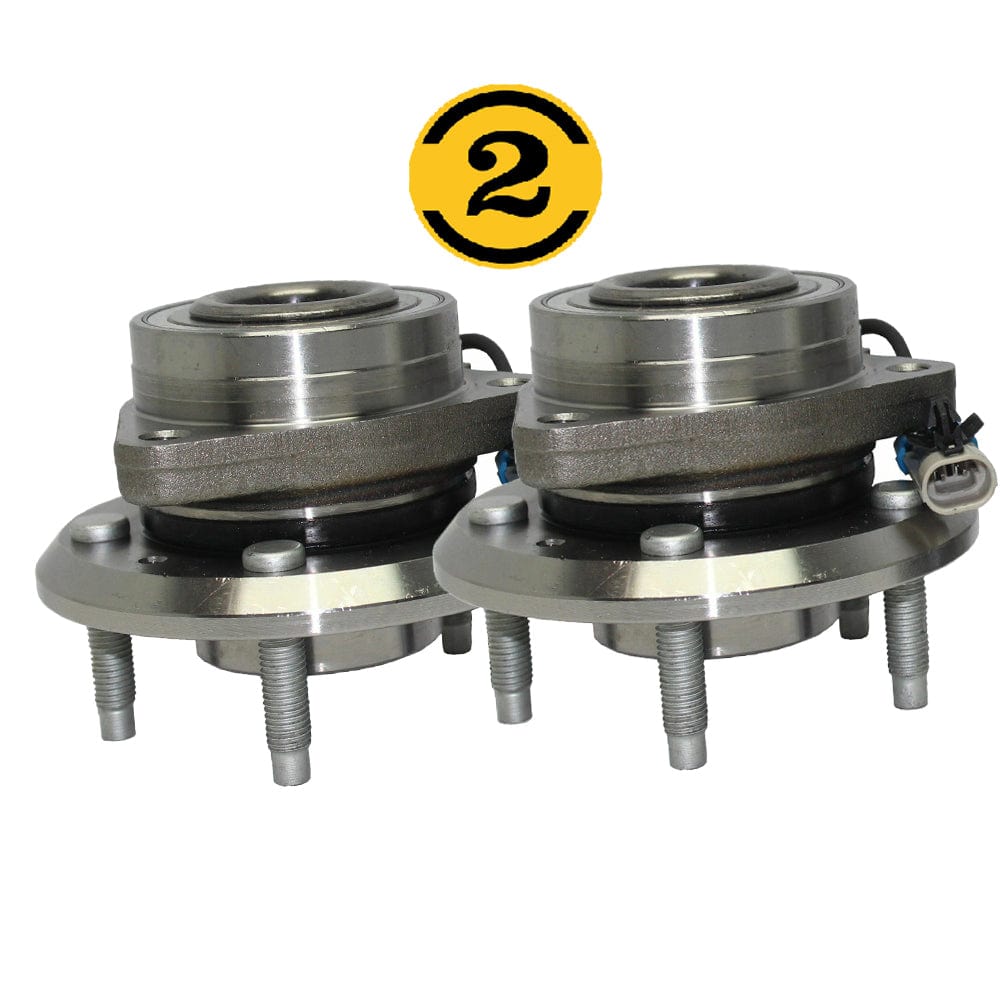

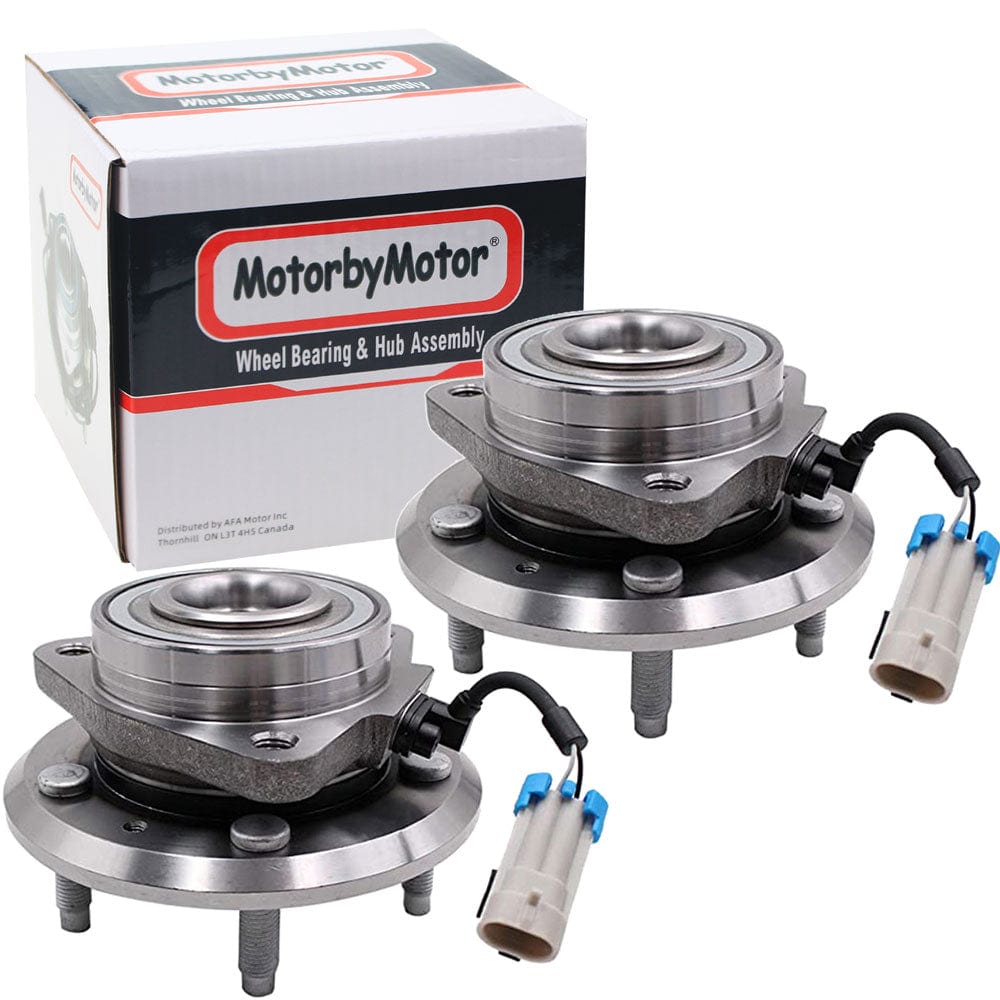

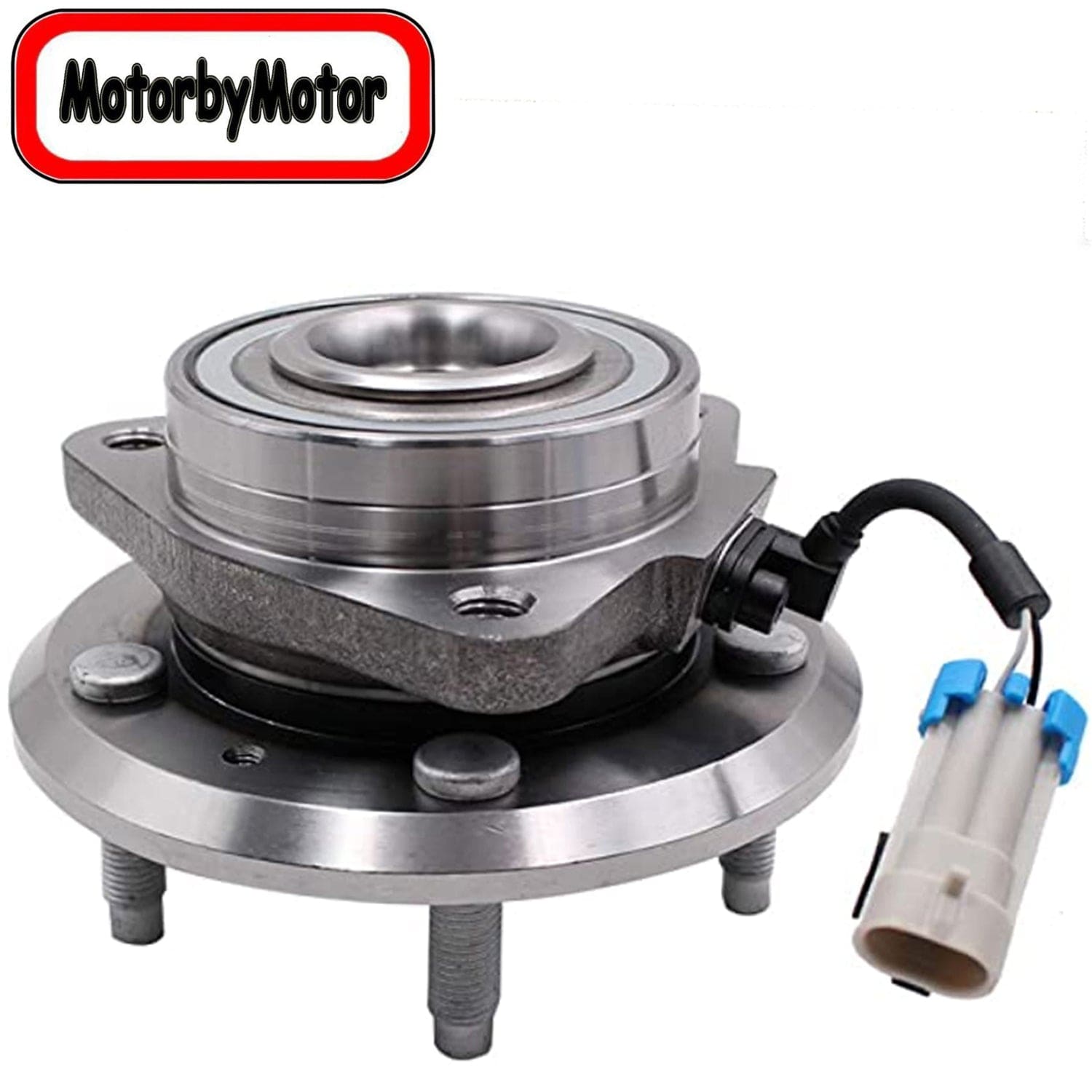

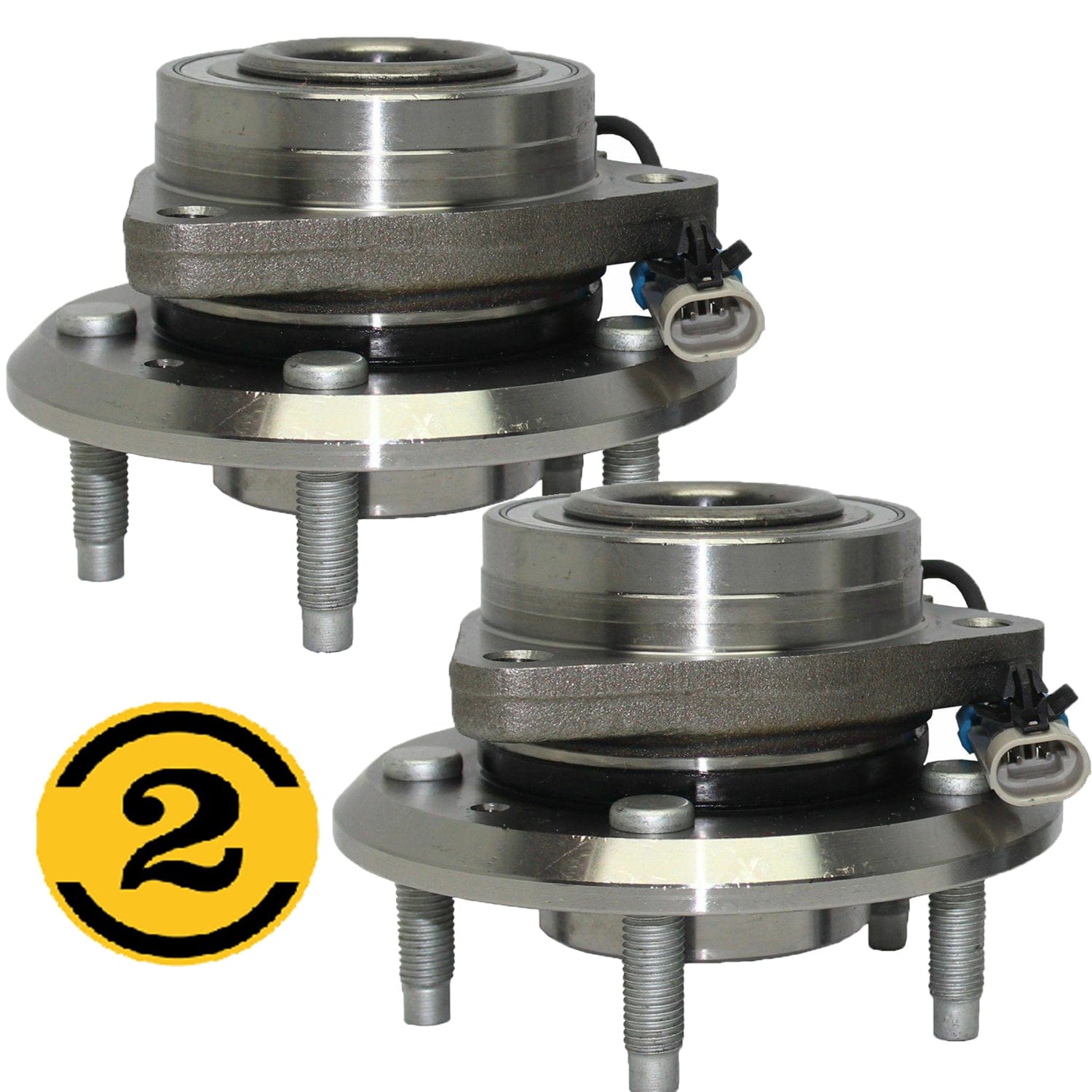

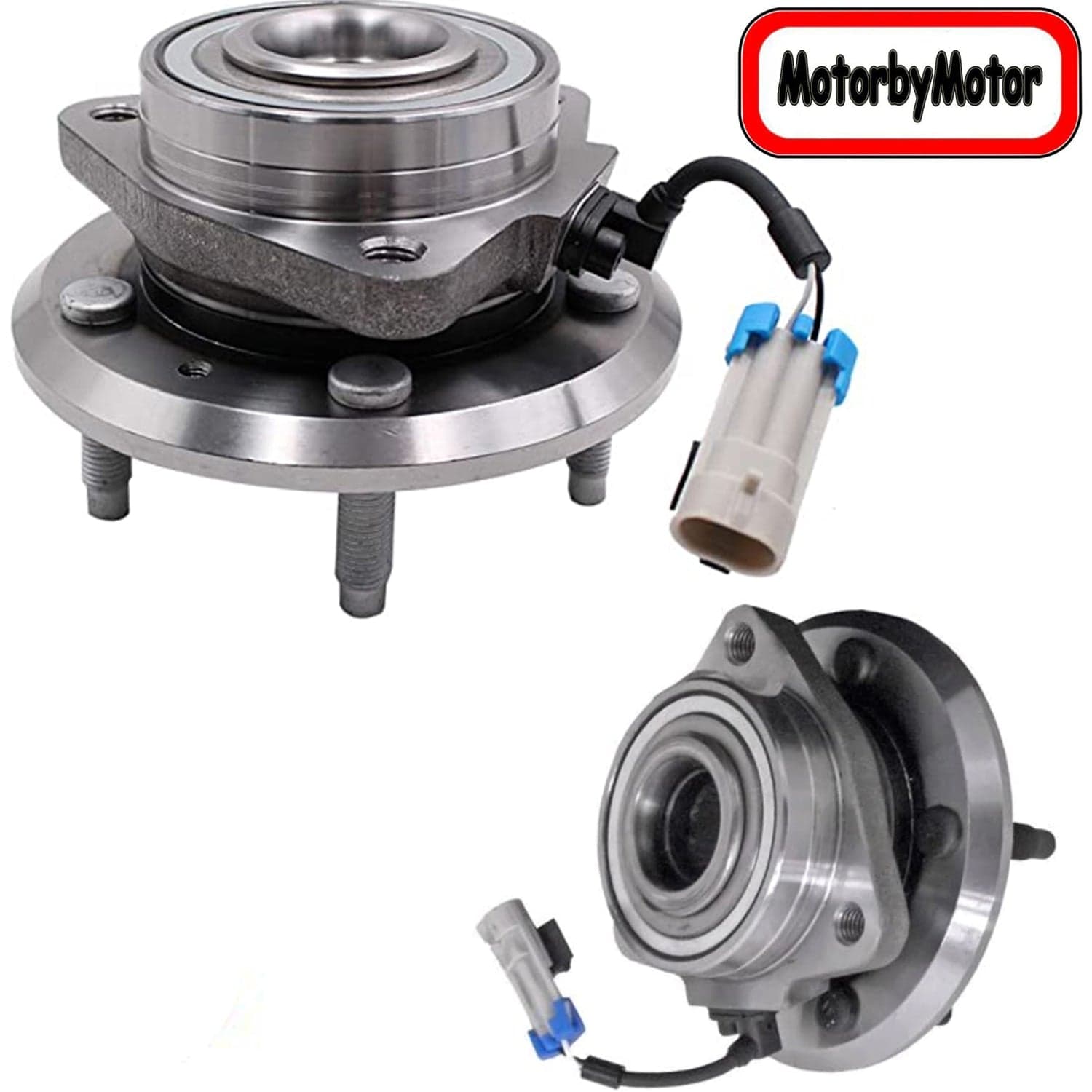

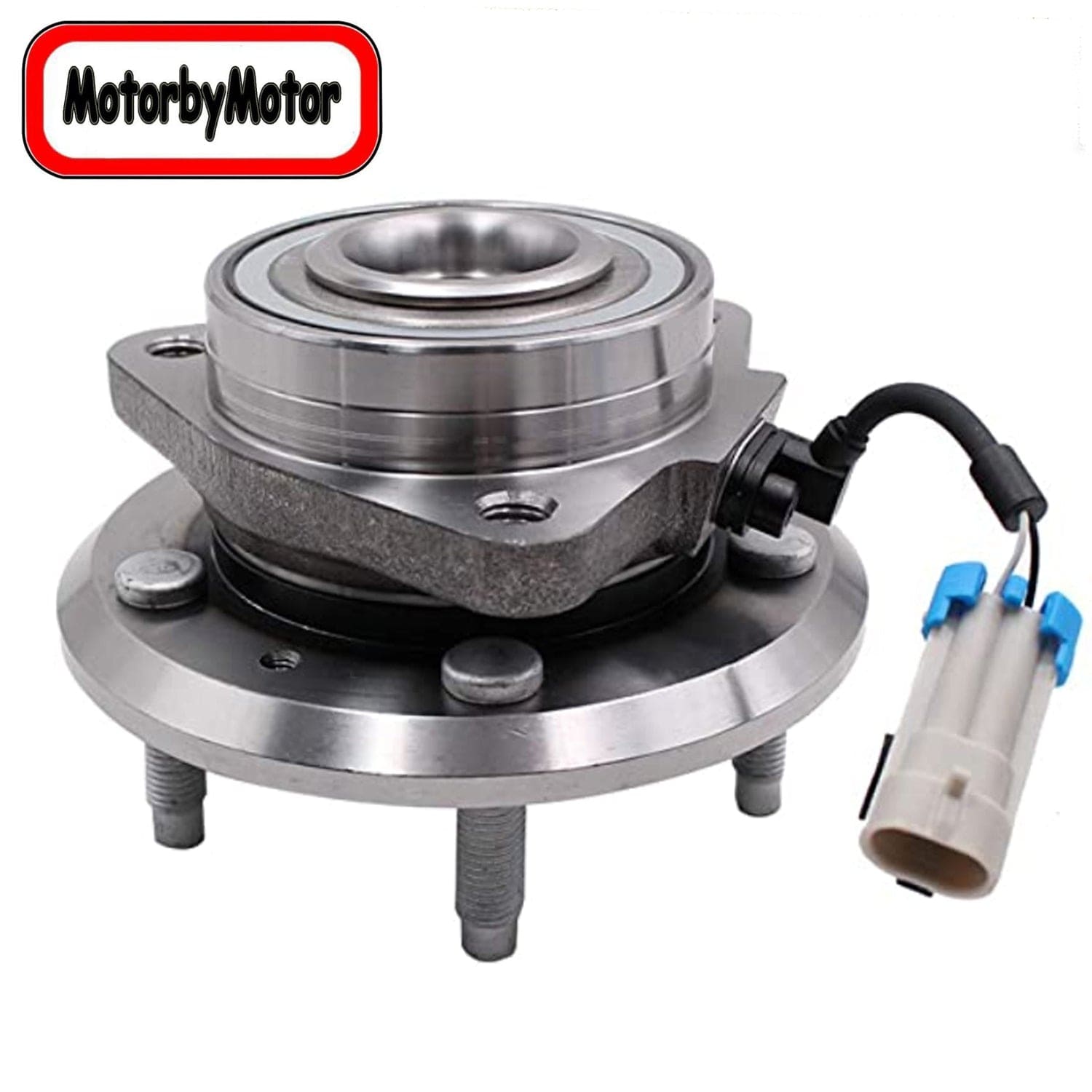

Front Wheel Bearing Fit Chevrolet Equinox Pontiac Torrent Suzuki, Chevrolet Captiva, Saturn Vue Wheel Hub w/ABS, 5 Lugs, 513276 (2 PACK)
Front Wheel Bearing Fit Chevrolet Equinox Pontiac Torrent Suzuki, Chevrolet Captiva, Saturn Vue Wheel Hub w/ABS, 5 Lugs, 513276 (2 PACK)
Fit
2012 2013 2014 2015 Chevrolet Captiva Sport LS 2WD
2012 2013 2014 2015 Chevrolet Captiva Sport LT 2WD
2012 2013 2014 2015 Chevrolet Captiva Sport LTZ 2WD, AWD
2007 2008 2009 Chevrolet Equinox 2WD, AWD
2007 2008 2009 Pontiac Torrent 2WD, AWD
2008 2009 2010 Saturn VUE 2WD,AWD
2008 2009 2010 Saturn VUE Hybrid 2WD
2008 2009 2010 Saturn VUE XE 2WD
2008 2009 2010 Saturn VUE XR 2WD, AWD
2007 2008 2009 Suzuki XL-7 2WD, AWD
Description:
Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Oval
Wiring Harness Included: Yes
Wiring Harness Length (in): 5.51 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 47
Total Hub Diameter (in): 5.94 Inch
Total Hub Diameter (mm): 151mm
Hub Centerbore Diameter (in): 4.53 Inch
Hub Centerbore Diameter (mm): 115mm
Total Hub Height (in): 4.09 Inch
Total Hub Height (mm): 104mm
Flange Diameter (in): 2.78 Inch
Flange Diameter (mm): 70.6mm
Flange Offset (in): 1.65 Inch
Flange Offset (mm): 42mm
Flange Shape: Round
Flange Bolt Size (in): 1.44 Inch
Flange Bolt Size (mm): 36.6mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.59 Inch
Hub Pilot Diameter (mm): 91.15mm
