Exterior Door Handle Left Right Side for Chevy Prizm 1998-2002 Set of 4
Regular price
$19.49
Product description:

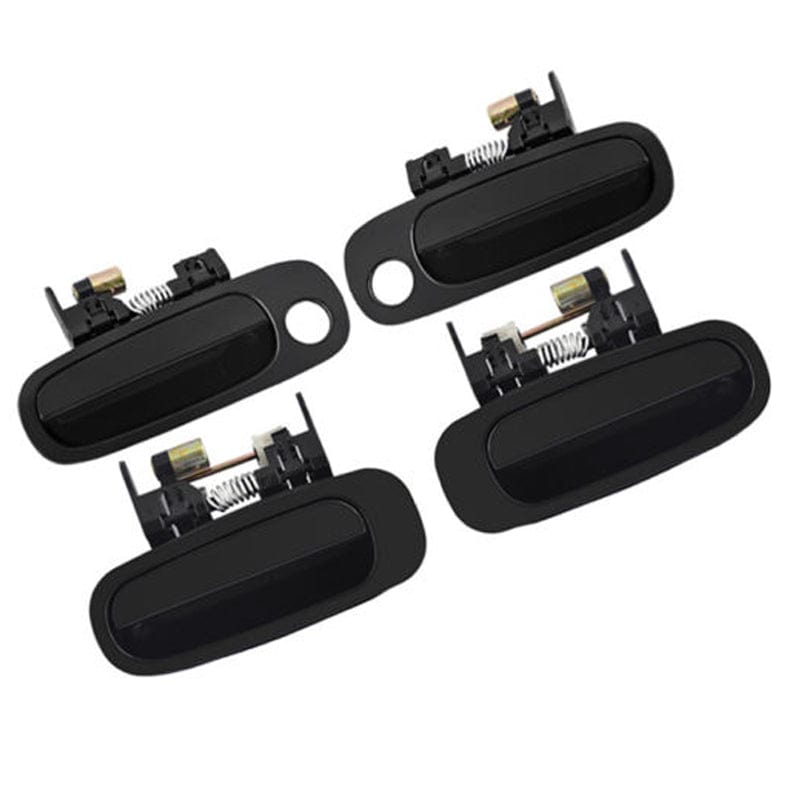

This set includes the following exterior door handles:
(1) - LH (Driver Side) FRONT
(1) - RH (Passenger Side) FRONT
(1) - LH (Driver Side) REAR
(1) - RH (Passenger Side) REAR
Injected molded plastic with black textured finish
Direct replacement for original handles
Durable construction
Steel center rod and return spring
These exterior door handles are direct bolt-ons and are built to strict quality control standards. It is a great replacement and has good cost savings over the dealer units.
(1) - LH (Driver Side) FRONT
(1) - RH (Passenger Side) FRONT
(1) - LH (Driver Side) REAR
(1) - RH (Passenger Side) REAR
Injected molded plastic with black textured finish
Direct replacement for original handles
Durable construction
Steel center rod and return spring
These exterior door handles are direct bolt-ons and are built to strict quality control standards. It is a great replacement and has good cost savings over the dealer units.
VEHICLE FIT
1998-2002 Chevy Prizm Textured Black Exterior Door Handle 4 Piece Set
1998-2002 Toyota Corolla Textured Black Exterior Door Handle 4 Piece Set
1998-2002 Toyota Corolla Textured Black Exterior Door Handle 4 Piece Set
Installation Instruction
STEP 1: REMOVING THE INSIDE DOOR PANEL
Remove the Phillips screw from the inside door handle.
Slide the handle forward and pull it out.
Disconnect the clip on the back from the rod using a flat blade screwdriver.
Pry up the switch panel and pull it forward.
Disconnect the window switch lead.
Pry up the armrest pad
Remove the screws from underneath the pad.
Turn the Phillips head until it pops out.
Remove the panel by the mirror.
Remove the side panel.
Remove the water shield.
STEP 2: REMOVING THE EXTERIOR HANDLE
From the inside of the door, remove the upper yellow clip attached to the handle.
Use a flat blade screw driver through the smaller hole and push the rod out of the handle.
Remove the lower yellow clip. And pull the rod out.
Remove the upper 10 mm bolt from the inside of the handle. Then the one below it.
From the outside lift the door handle up and pull it free.
STEP 3: INSTALLING THE NEW HANDLE.
Remove the locking mechanism from the old handle and attach it to the new handle.
While inserting the handle into the door reconnect the lower rod and clip.
Replace the 10 mm bolts.
Reattach the upper rod and clip and flip the clip down.
Line up and reinstall the door panel.
Reinsert all of the screws and panels.
Insert the Phillips head clip.
Tools needed for replacement:
General Tools
Flashlight
Ratchets & Related
Ratchet
Screwdrivers & Related
Phillips Head Screwdriver
Flat Blade Screwdriver
Sockets - Metric
10mm Socket
