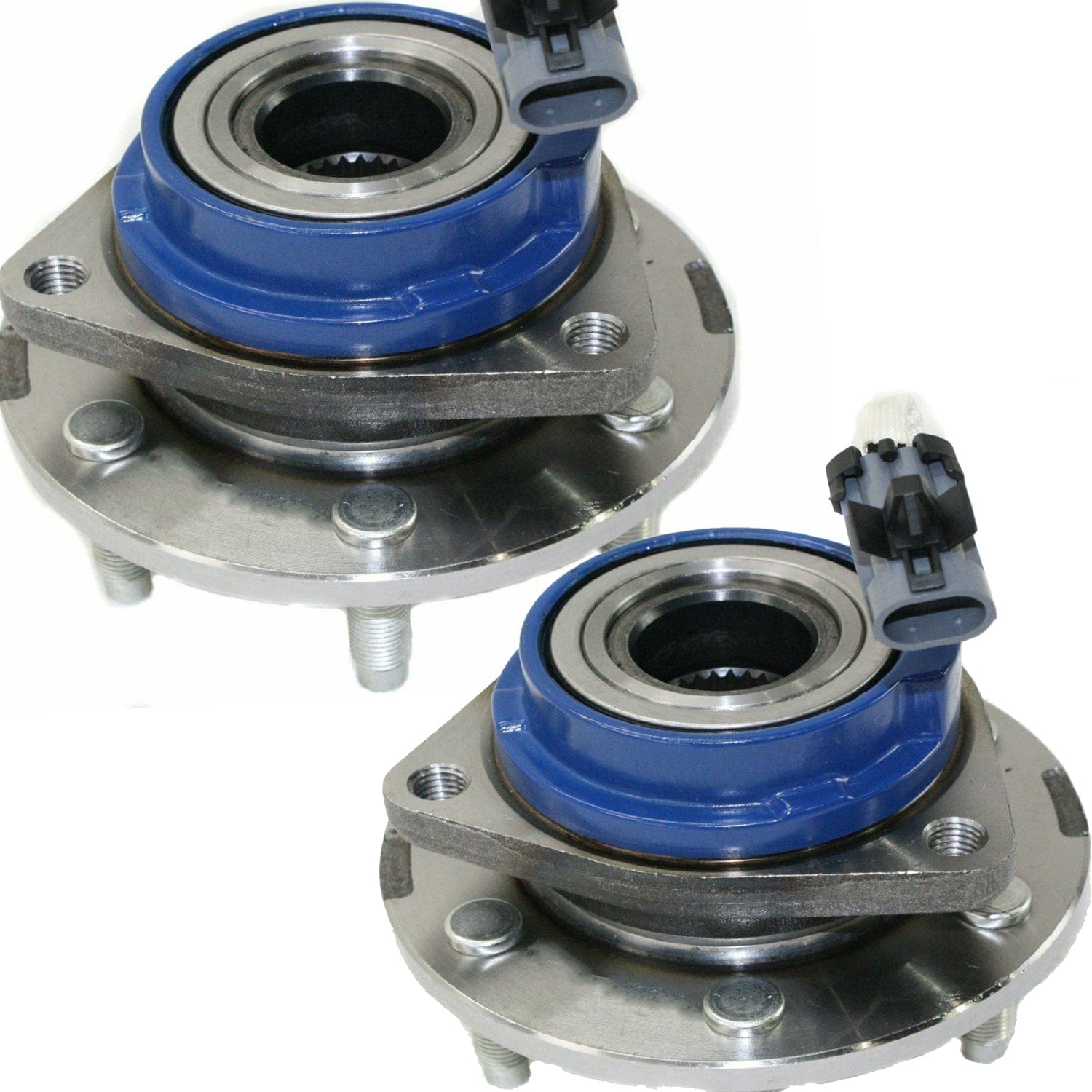

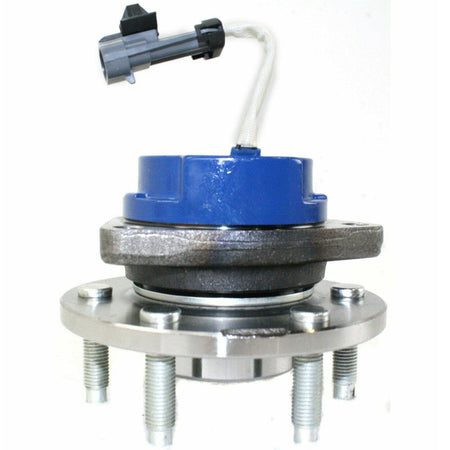

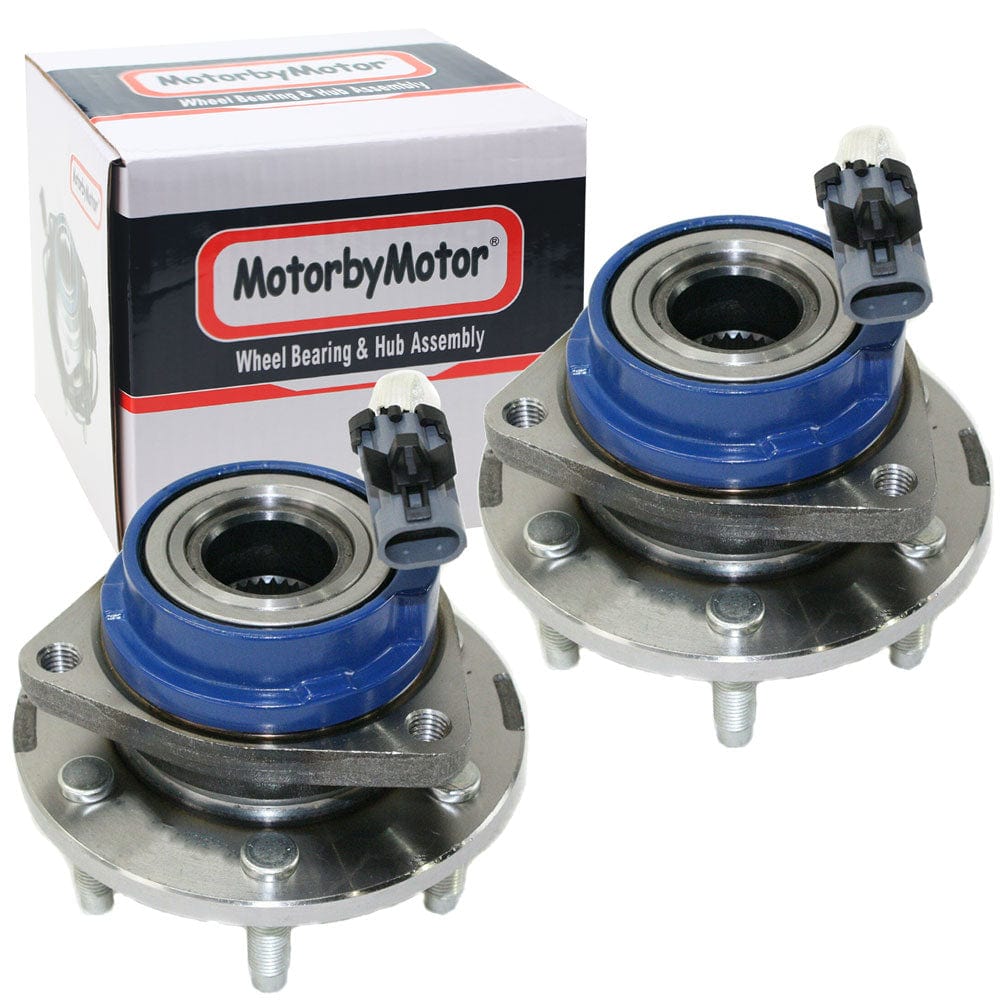

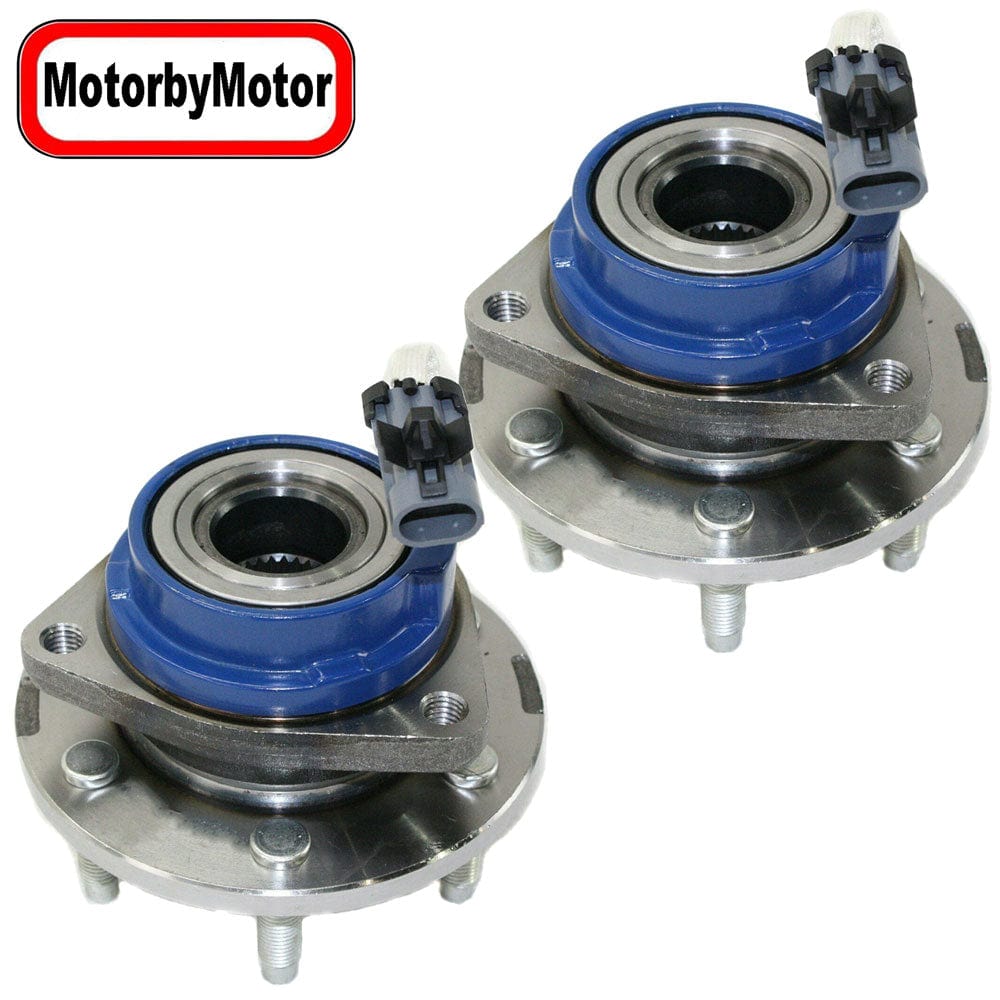

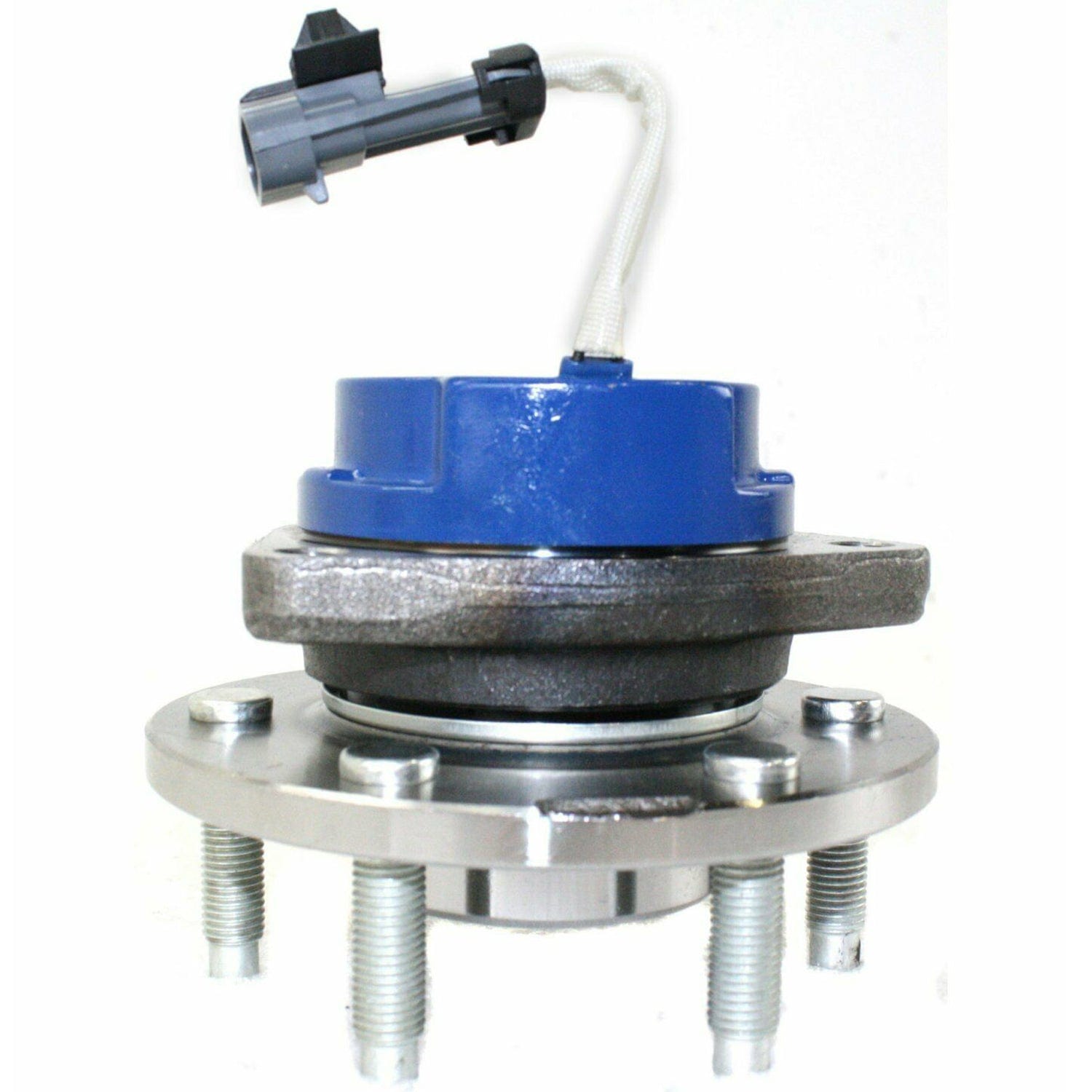

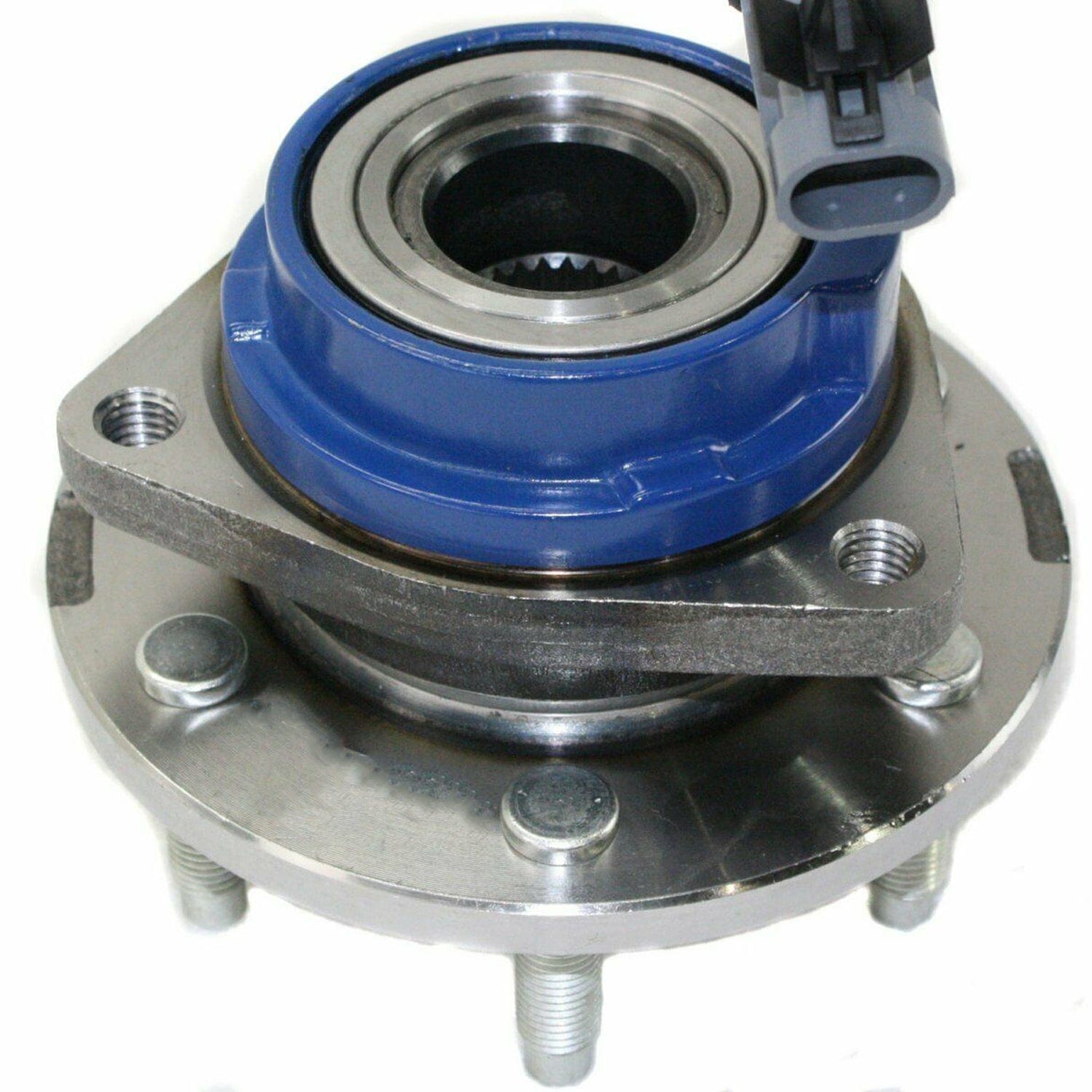

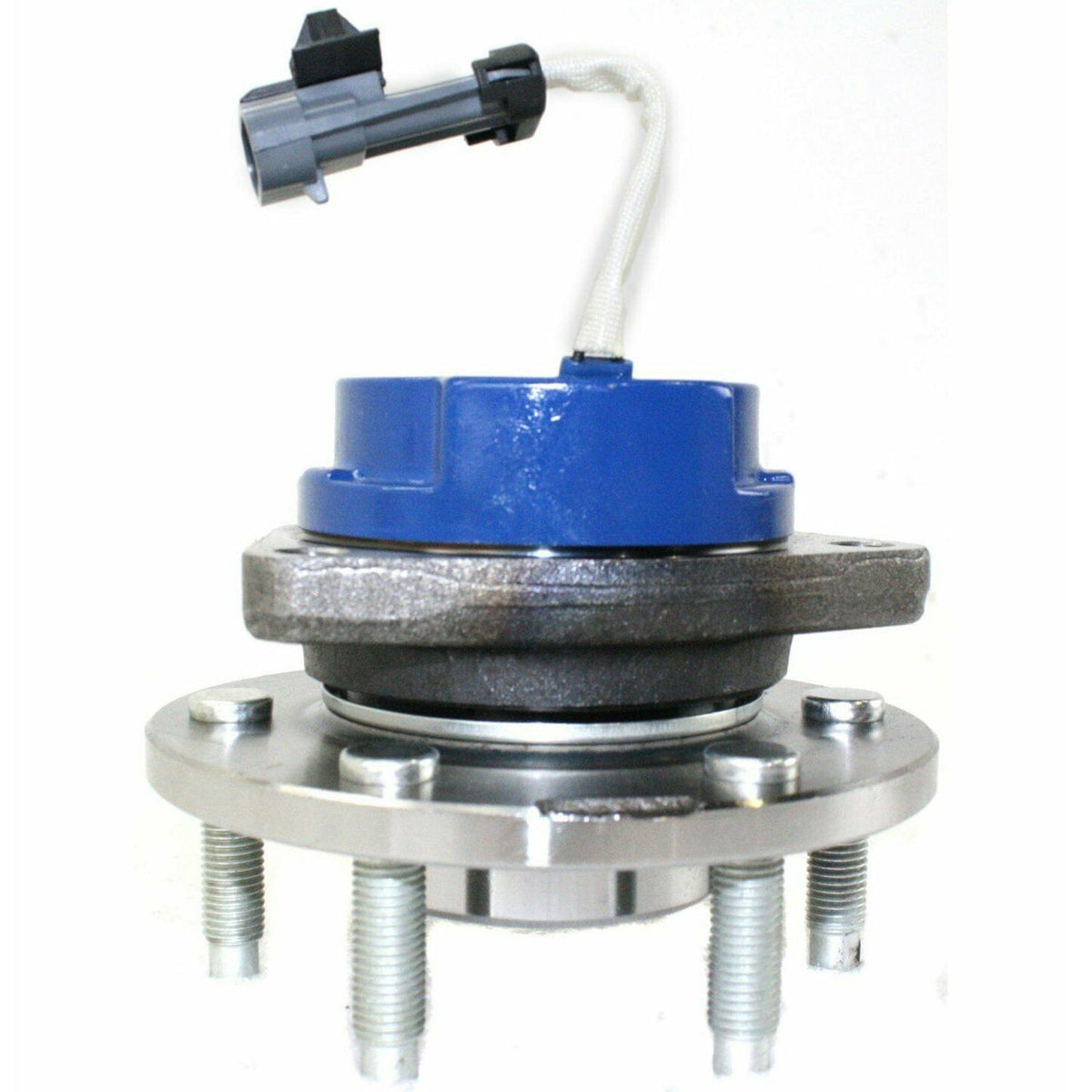

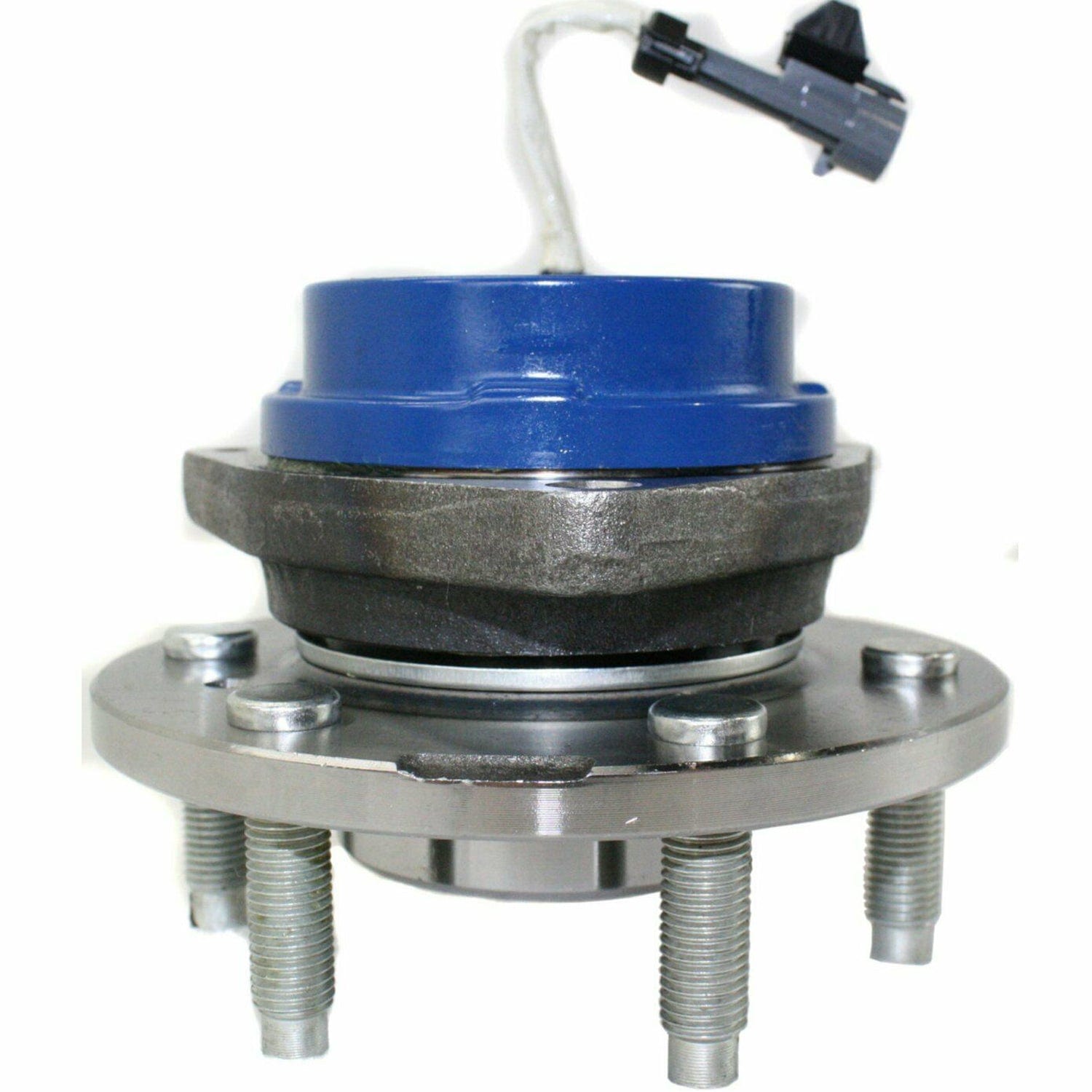

Front Wheel Bearing Fit 2004-2009 Cadillac SRX, w/ABS Wheel Hub 6 Lugs AWD, 513198 (2 Pack)

Front Wheel Bearing Fit 2004-2009 Cadillac SRX, w/ABS Wheel Hub 6 Lugs AWD, 513198 (2 Pack)

Fit:
2004-2009 Cadillac SRX (Front, AWD)

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes

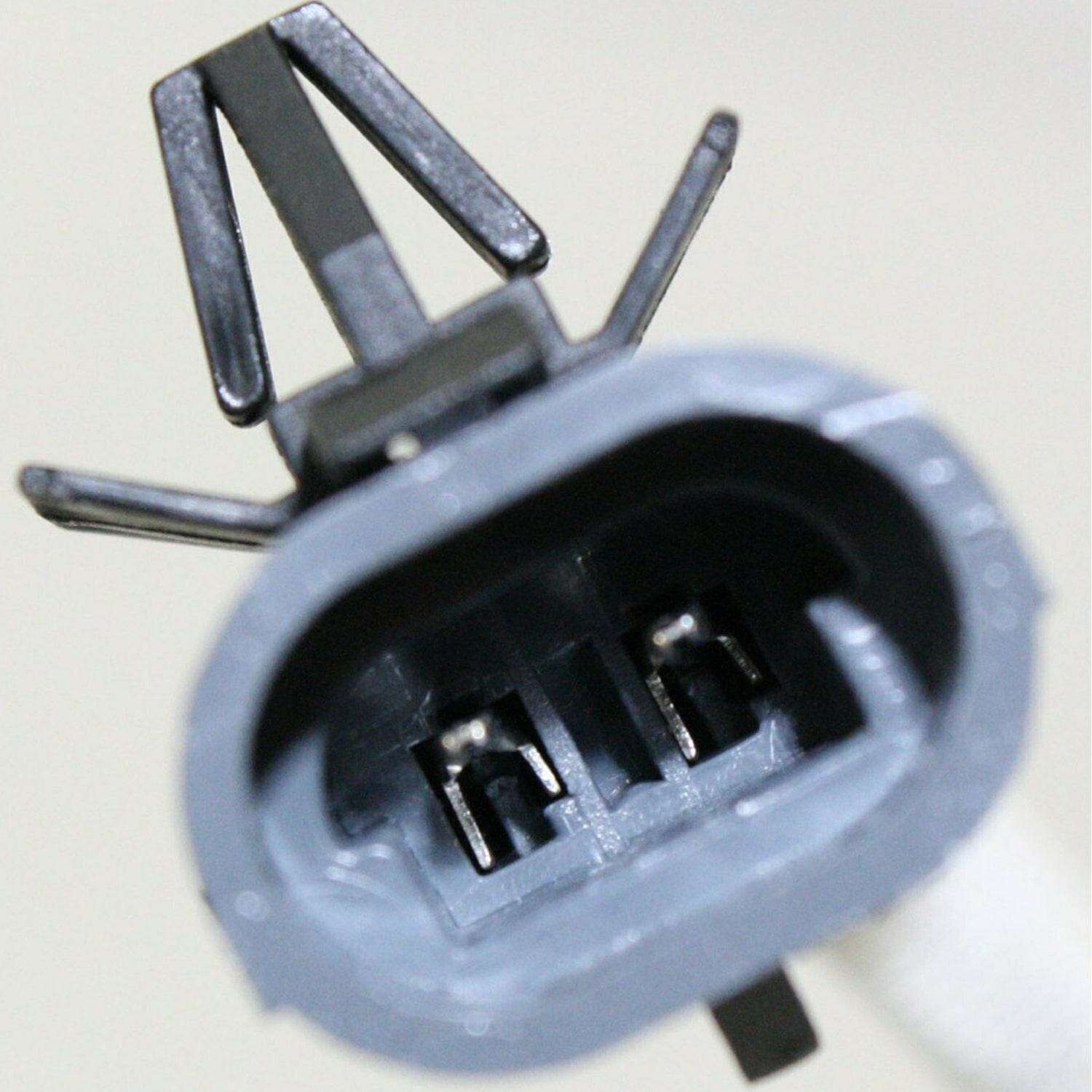

ABS Connector Shape: Oval
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 47
Total Hub Diameter (in): 5.73 Inch
Total Hub Diameter (mm): 145.5mm
Hub Centerbore Diameter (in): 4.53 Inch
Hub Centerbore Diameter (mm): 115mm
Total Hub Height (in): 4.26 Inch
Total Hub Height (mm): 108.2mm
Flange Diameter (in): 2.78 Inch
Flange Diameter (mm): 70.6mm
Flange Offset (in): 1.65 Inch
Flange Offset (mm): 42.01mm
Flange Shape: Round
Flange Bolt Size (in): 1.54 Inch
Flange Bolt Size (mm): 39.1mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.59 Inch
Hub Pilot Diameter (mm): 91.25mm
