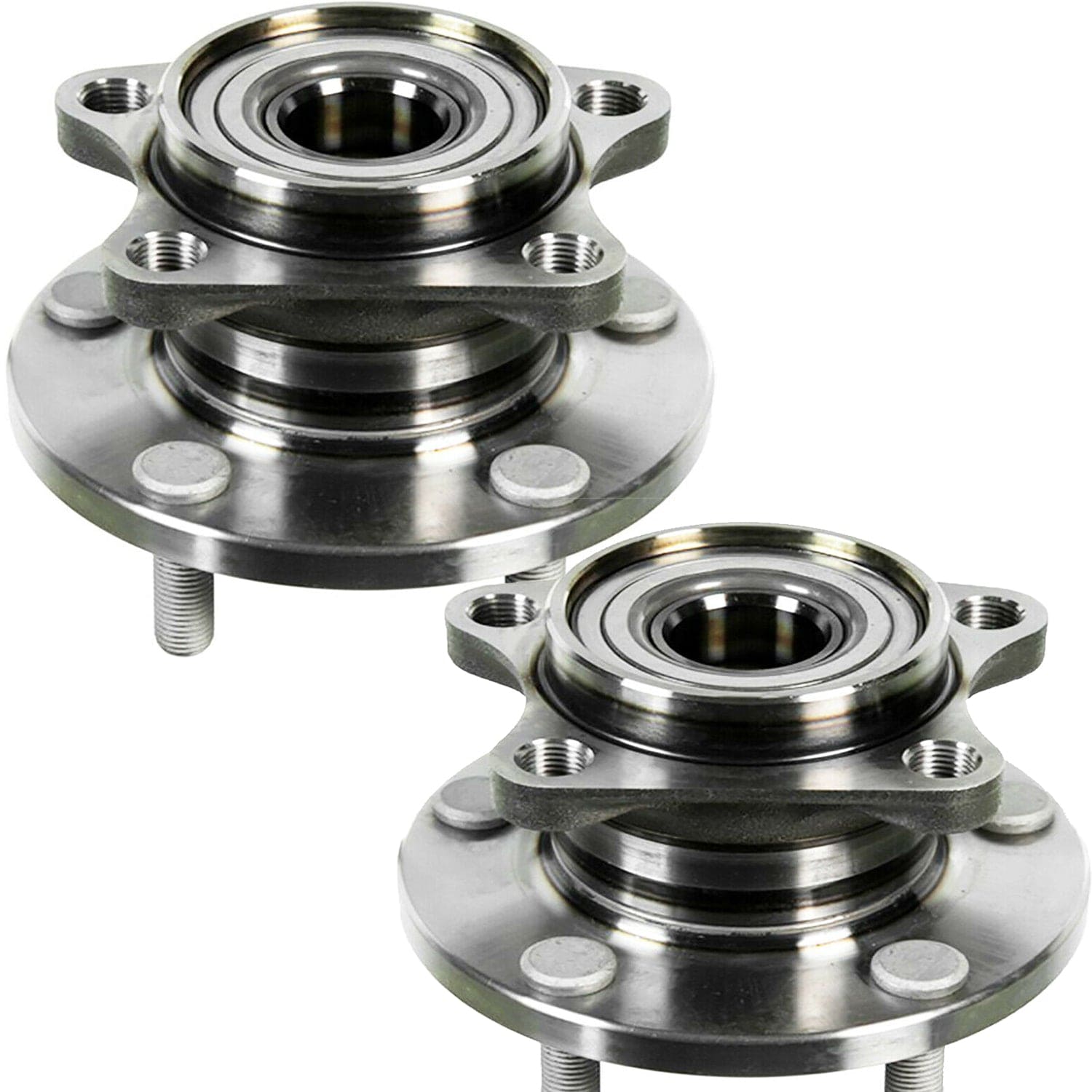

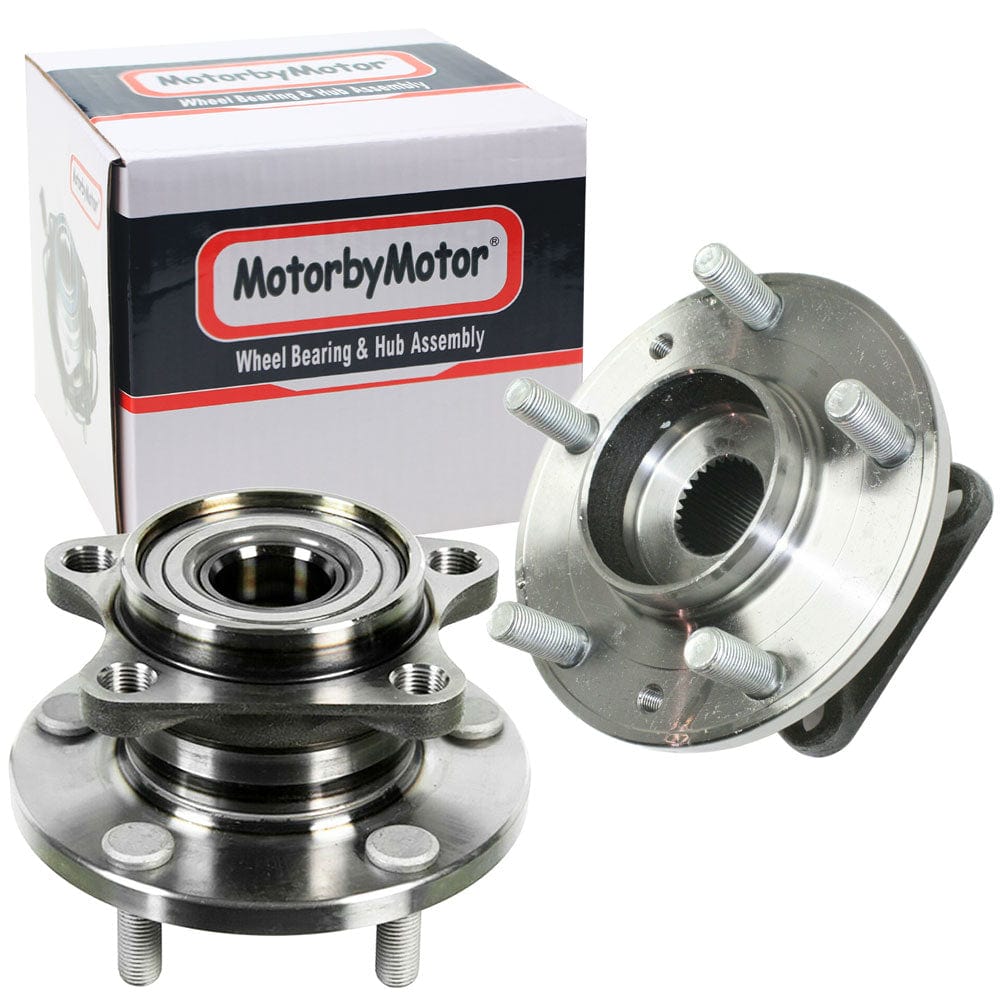

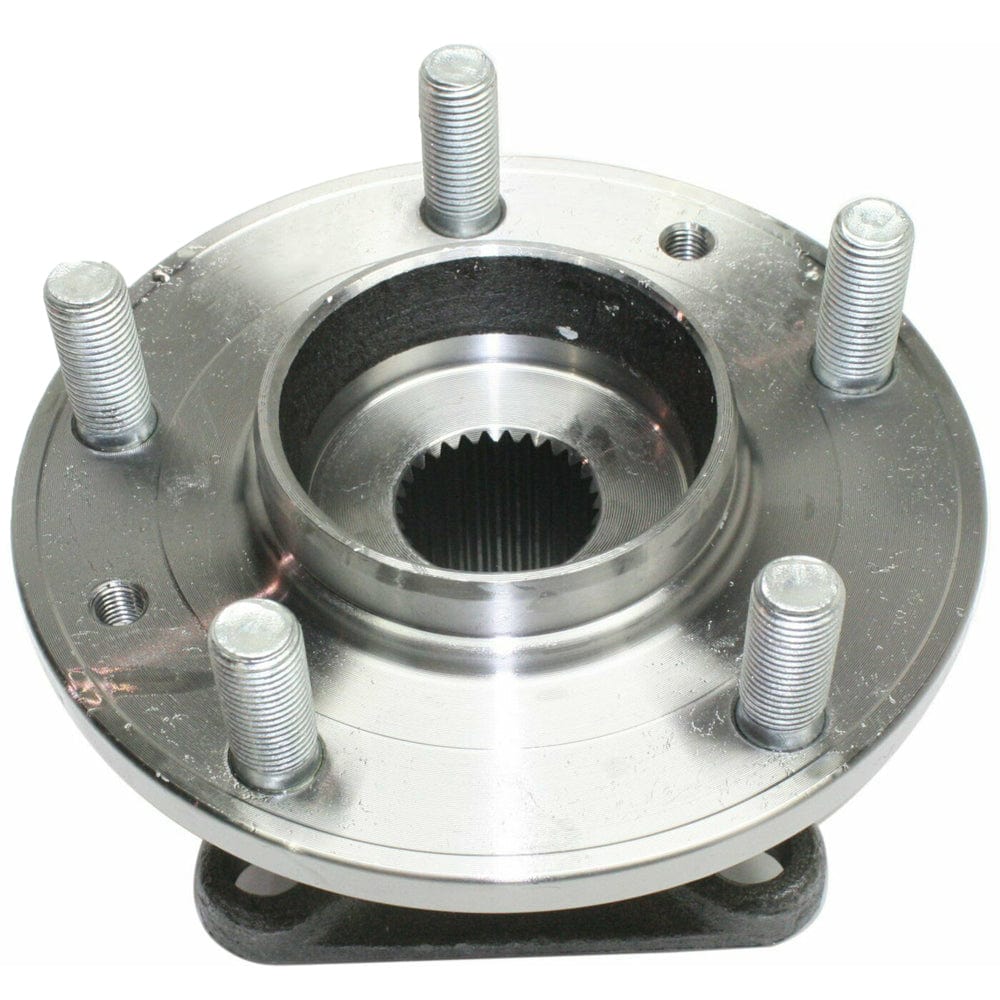

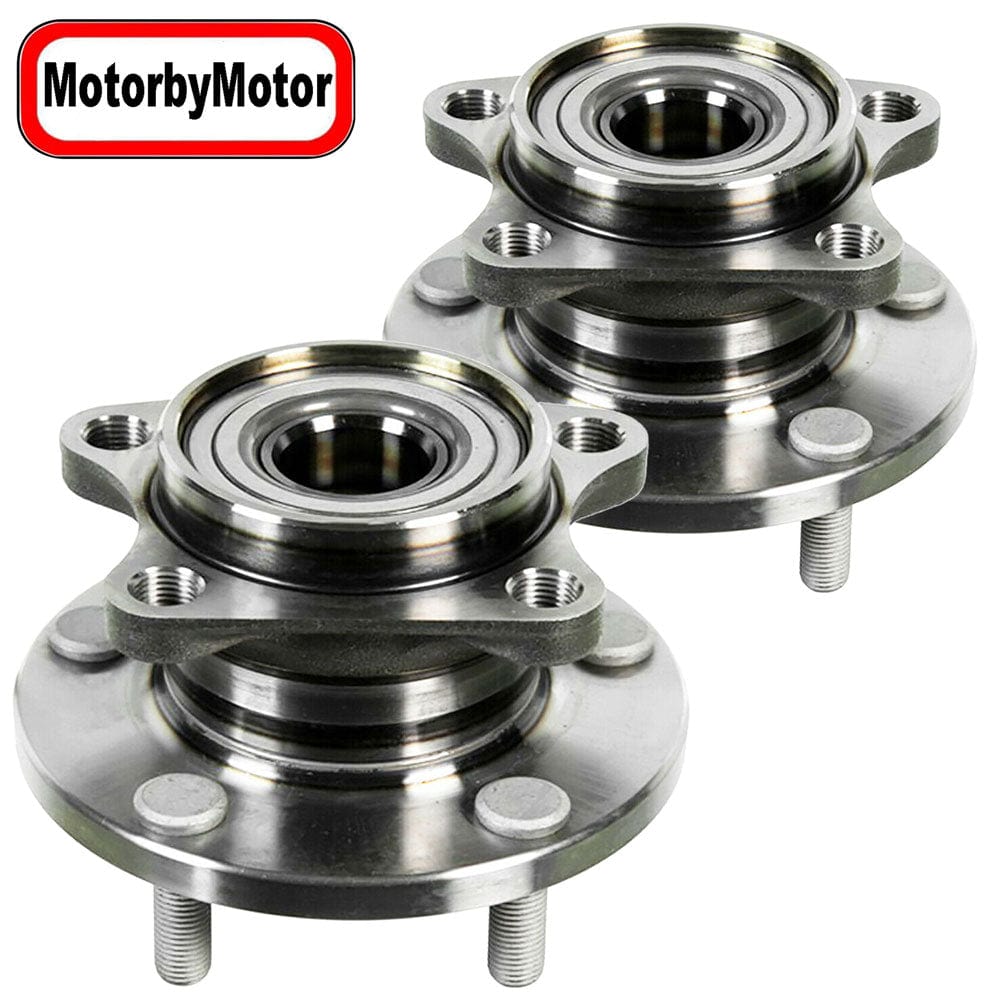

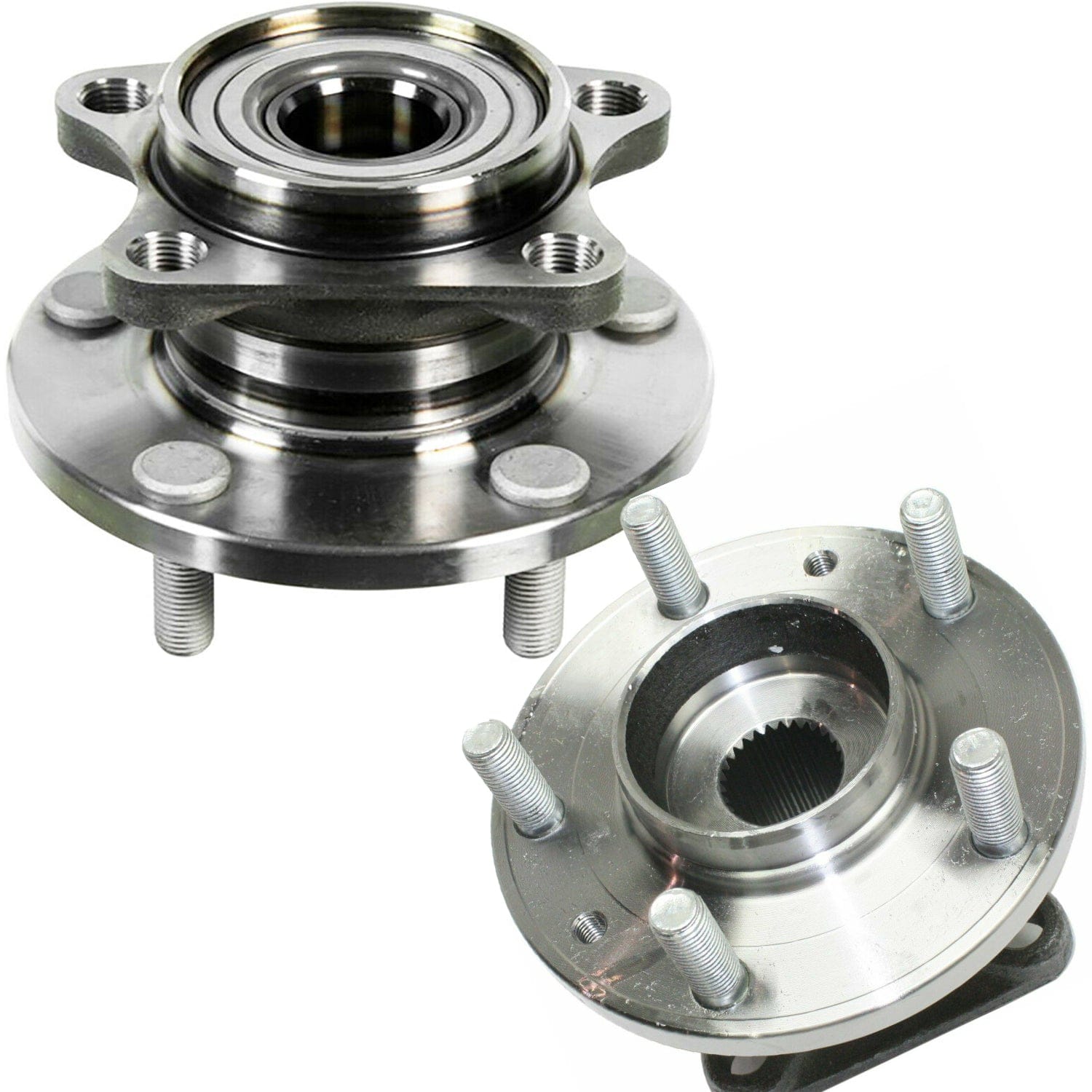

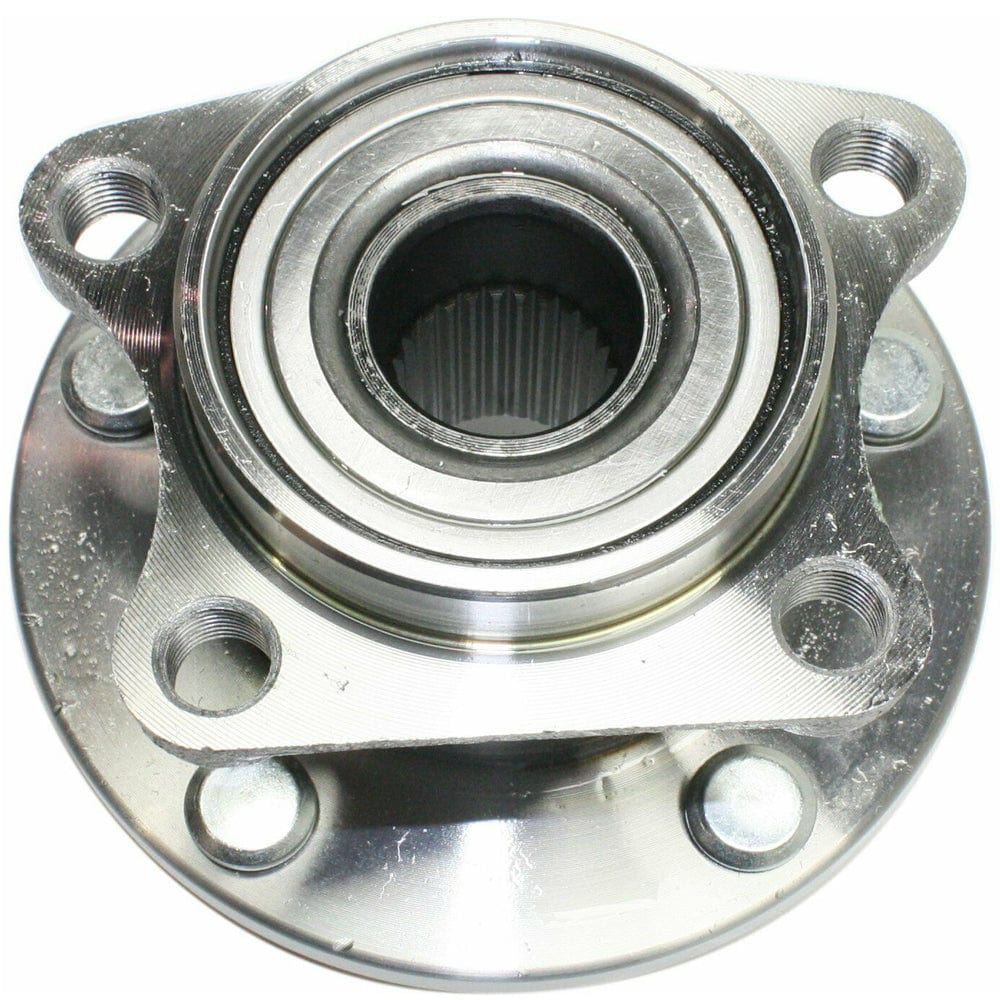

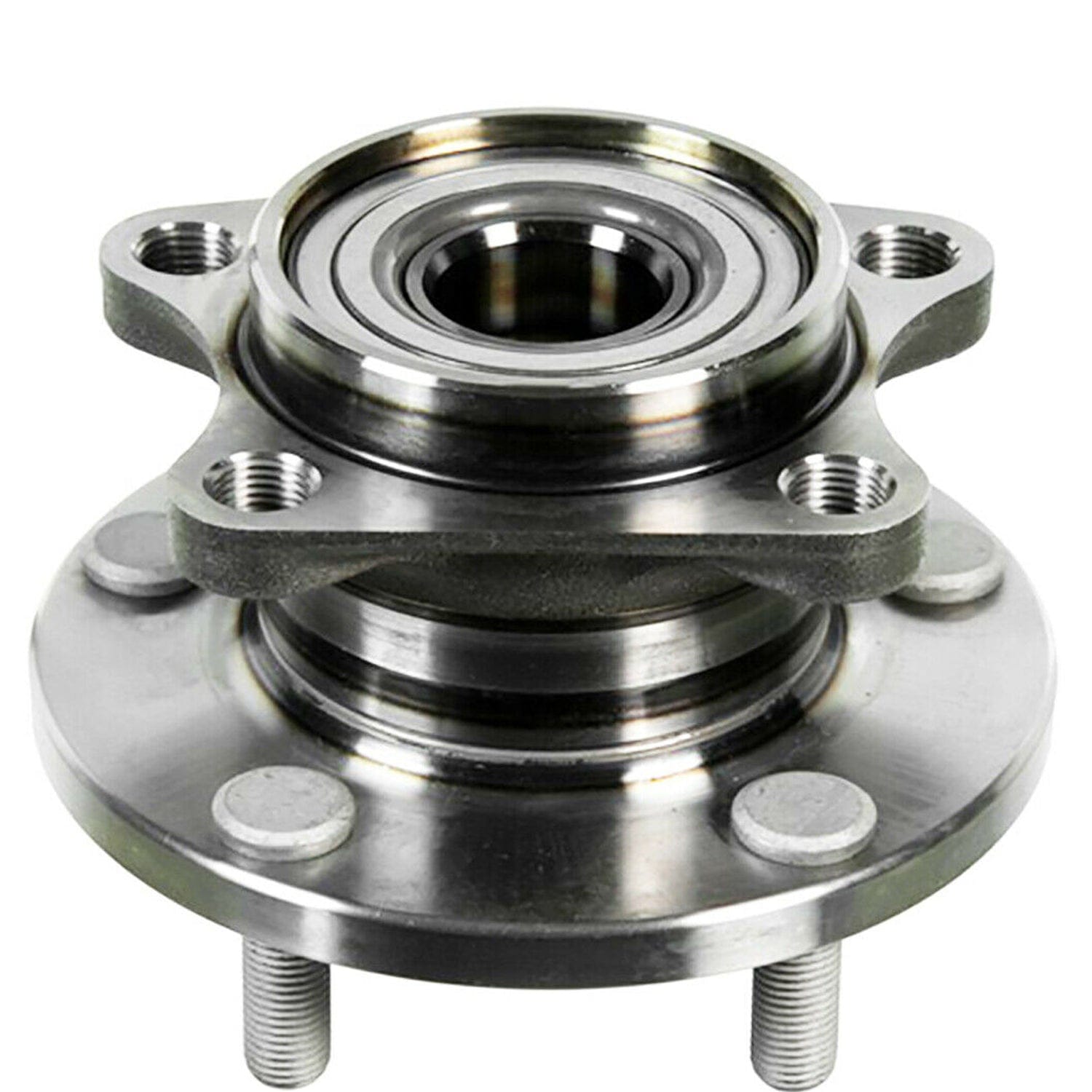

Rear Wheel Bearing Fit 2007-2015 Mazda CX9 with 5 Lugs, Wheel Hub AWD, 512249 (2 Pack)
2007 2008 2009? 2010 2011 2012 2013 2014 2015 Mazda CX9.
Position:Driver(LH Left) or Passenger(RH Right) Side Rear
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 47
Total Hub Diameter (in): 5.73 Inch
Total Hub Diameter (mm): 145.5mm
Hub Centerbore Diameter (in): 4.53 Inch
Hub Centerbore Diameter (mm): 115mm
Total Hub Height (in): 4.26 Inch
Total Hub Height (mm): 108.24mm
Flange Diameter (in): 2.78 Inch
Flange Diameter (mm): 70.6mm
Flange Offset (in): 1.65 Inch
Flange Offset (mm): 42.01mm
Flange Shape: Round
Flange Bolt Size (in): 1.54 Inch
Flange Bolt Size (mm): 39.1mm
Flange Bolt Thread Size: M12-1.50
Bearing Type: Ball
Hub Pilot Diameter (in): 3.59 Inch
Hub Pilot Diameter (mm): 91.25mm
