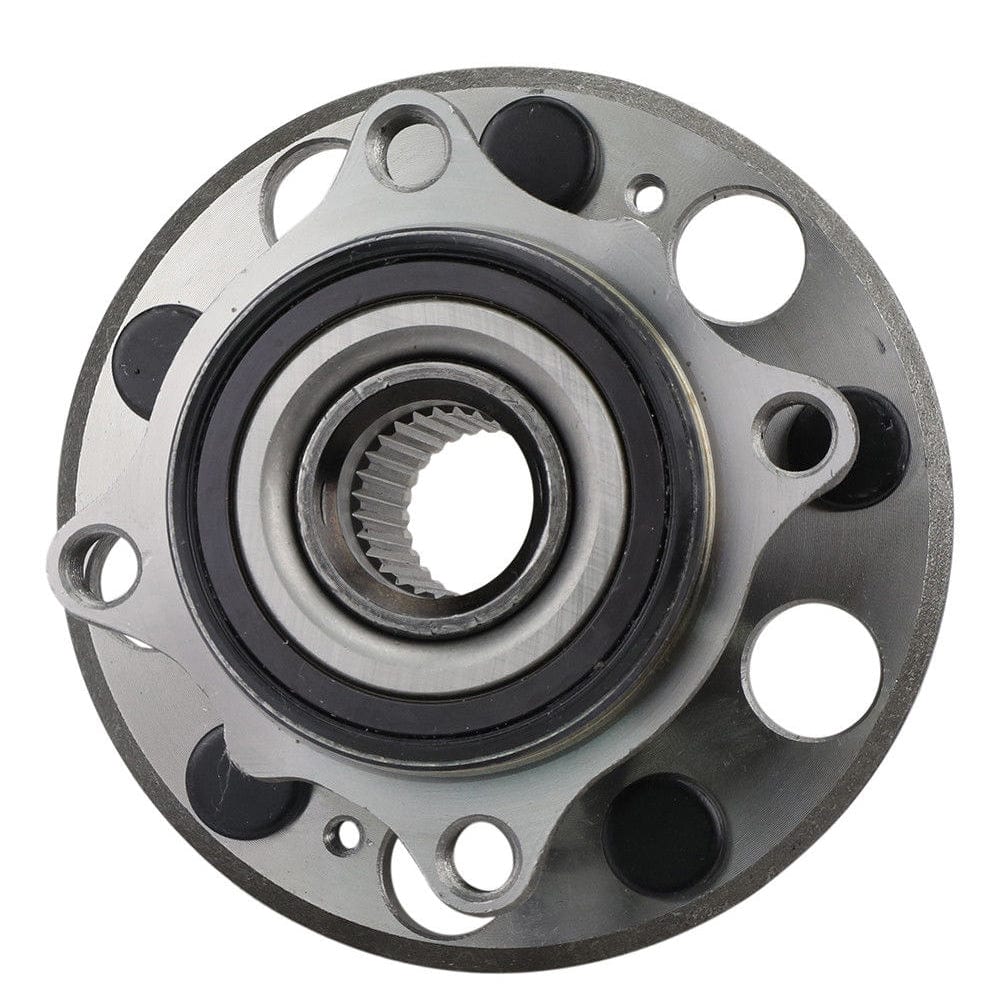

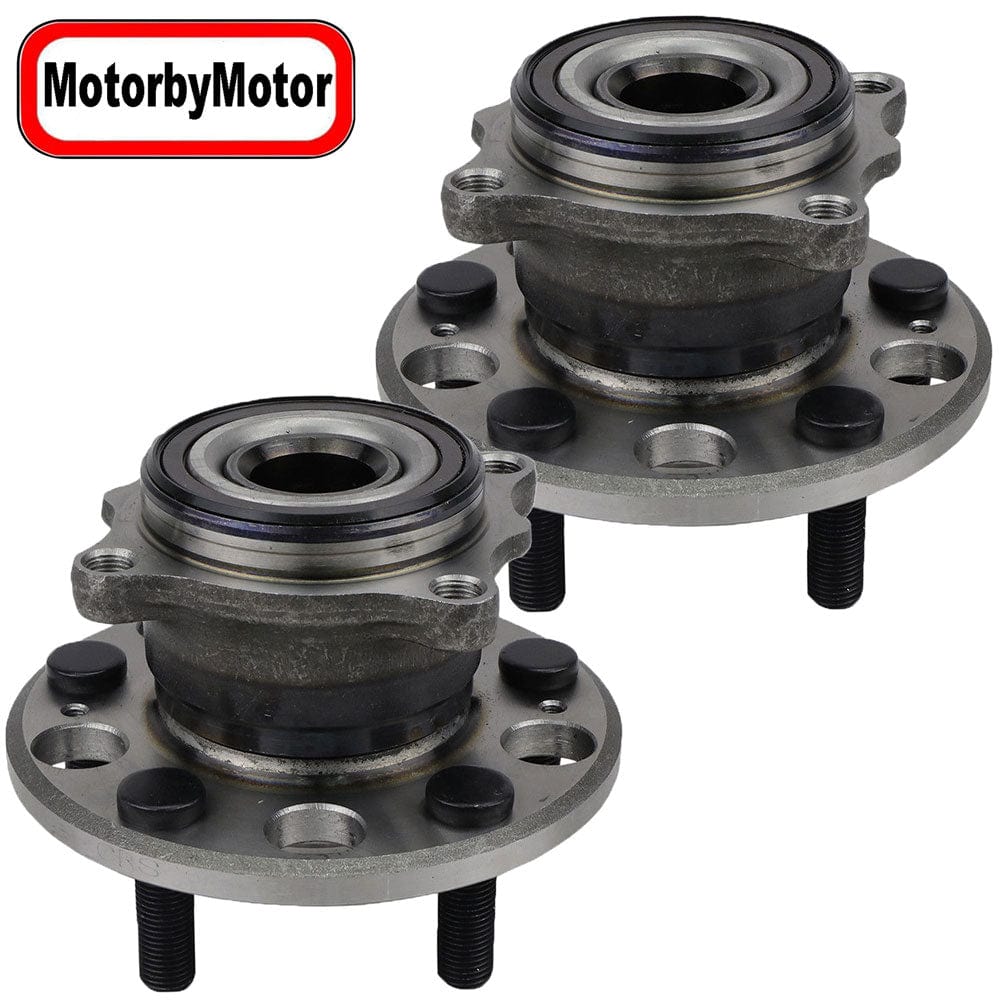

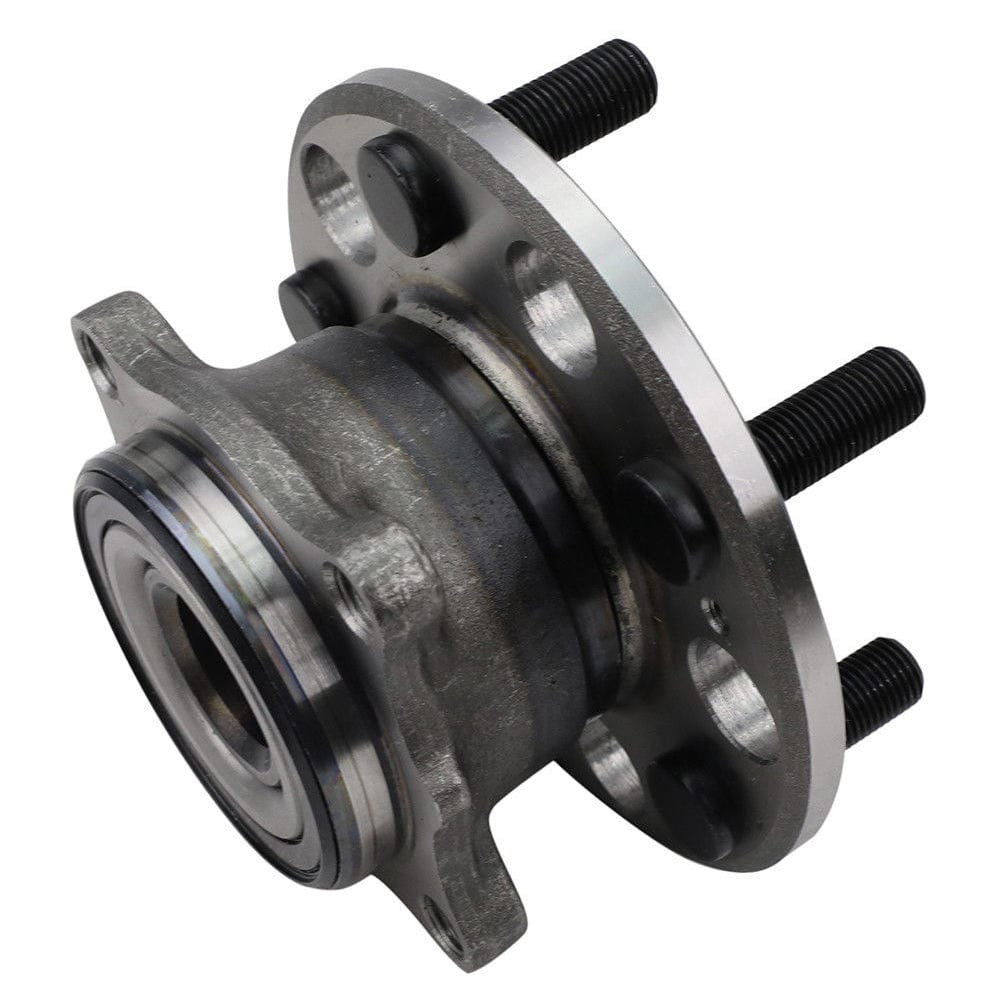

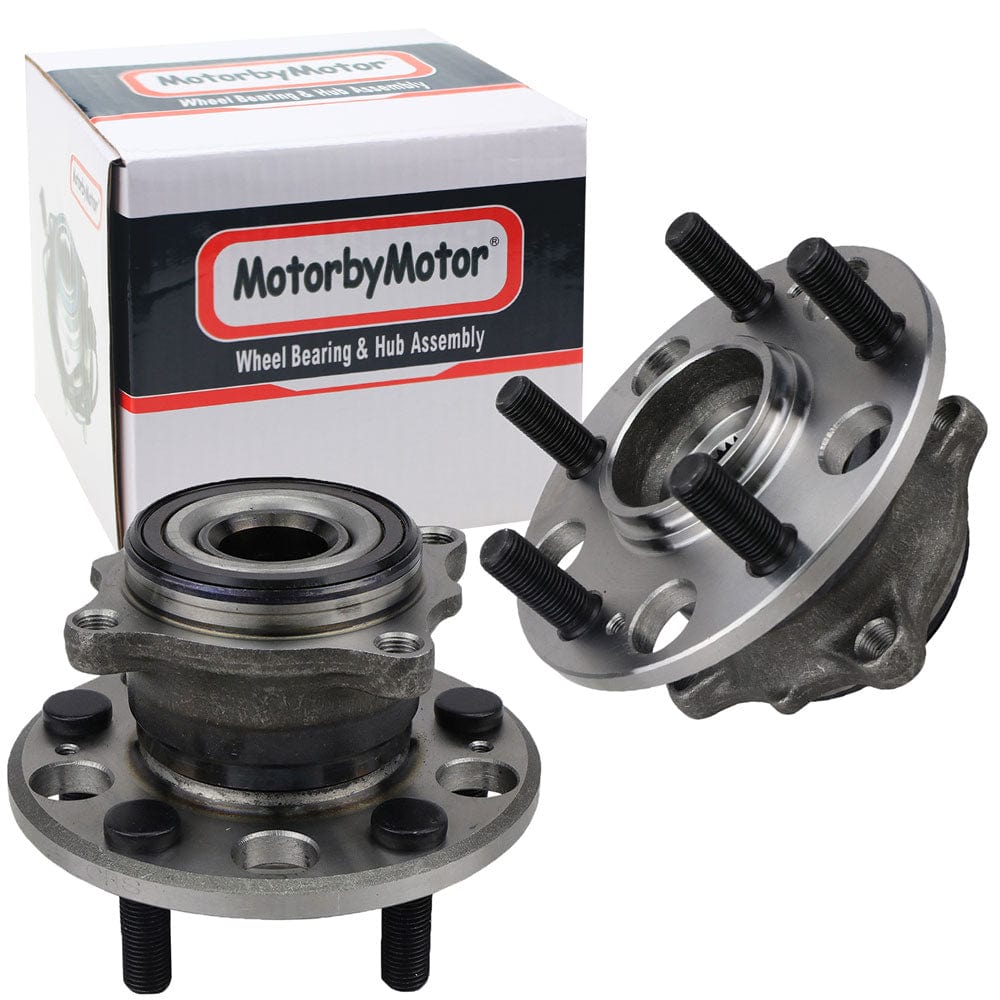

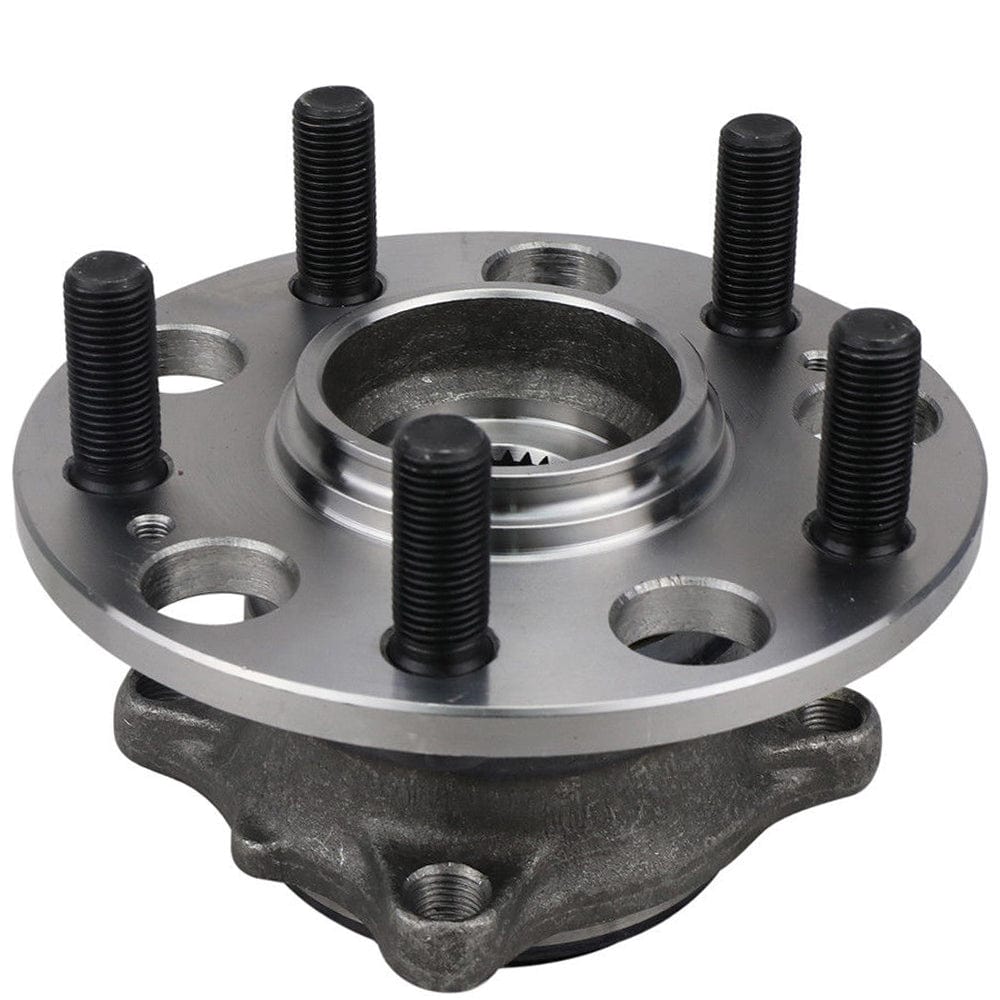

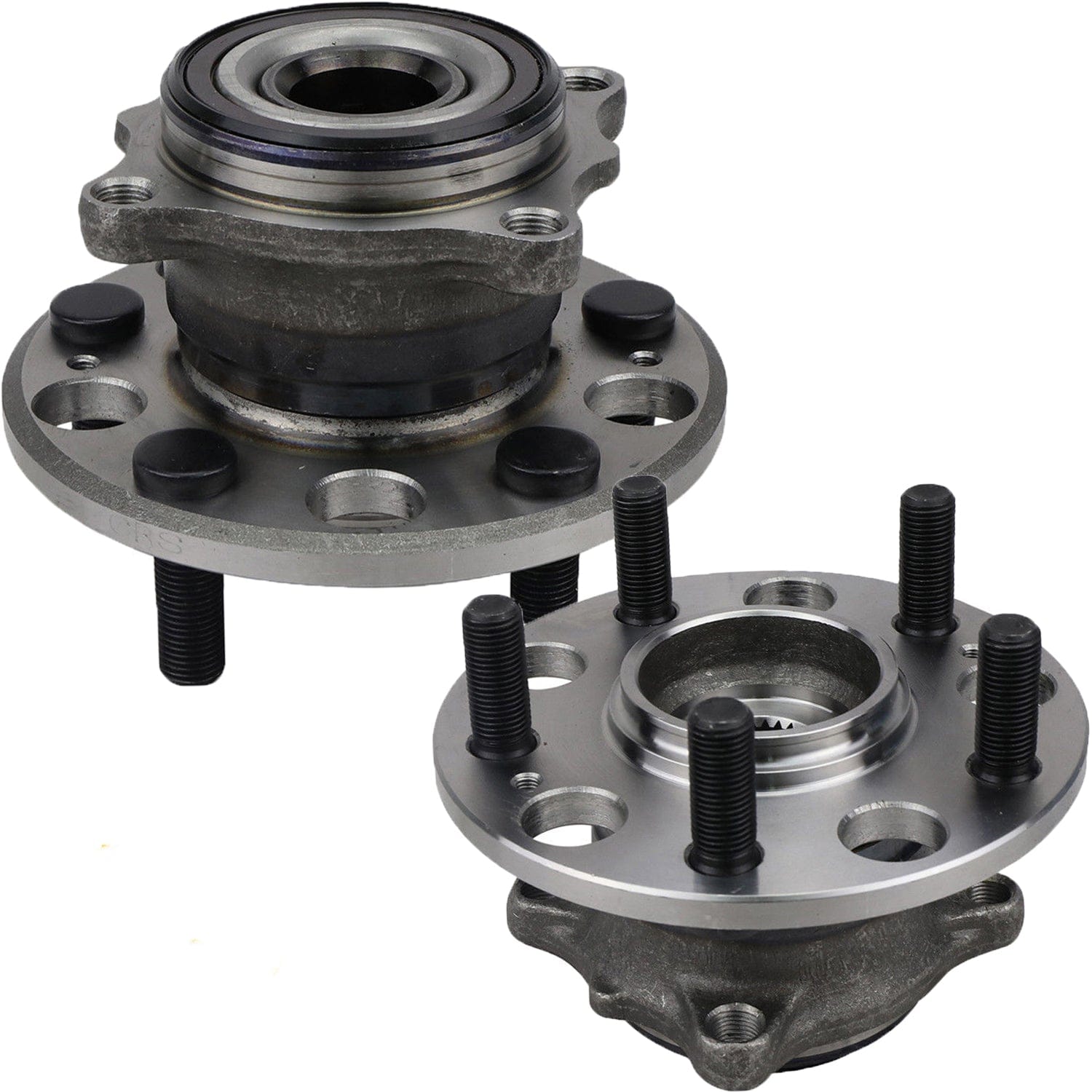

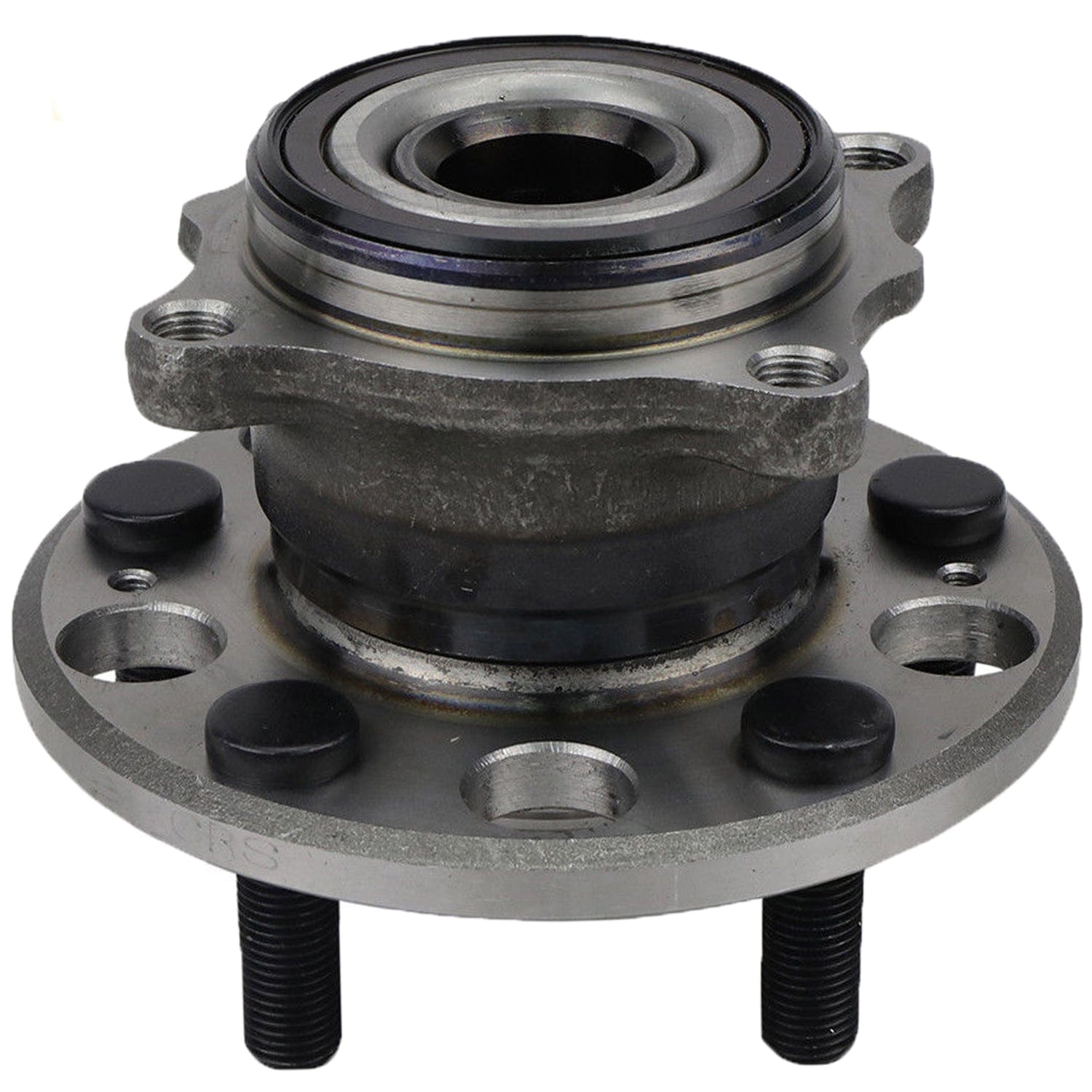

Acura RL Rear Wheel Bearing Hub Assembly 2005–2012, AWD, 5 Lugs, w/ABS – 512321 (2 Pack)

MotorbyMotor Rear Wheel Bearing Fit 2005-2012 Acura RL, 2009-2013 Acura TL Wheel Hub w/ABS, 5 Lugs AWD-512321 (2 Pack)

Rear wheel bearing and hub assembly with ABS sensor for select Acura RL and TL models. Designed for AWD, driven wheels with 5 lug bolts.

What's Included

• 2 Rear Wheel Bearings and Hubs
• ABS Sensor Included
• Flange Bolts Included: 5

Product Specifications

• Position: Driver (LH) or Passenger (RH) Rear
• Number of Mounting Bolts: 4
• Number of Lug Bolts: 0
• Number of Flange Bolts: 5
• Driven: Yes
• Number of Splines: 28
• ABS Ring Type: Encoder
• Lug Bolt Thread Size: M12-1.50
• Total Hub Diameter: 5.35 Inch
• Hub Centerbore Diameter: 4.72 Inch
• Total Hub Height: 6.457 Inch
• Flange Diameter: 5.349 Inch
• Flange Offset: 2.549 Inch
• Flange Shape: Square
• Material: Steel
• Bearing Type: Ball
• Hub Pilot Diameter: 3.21 Inch
