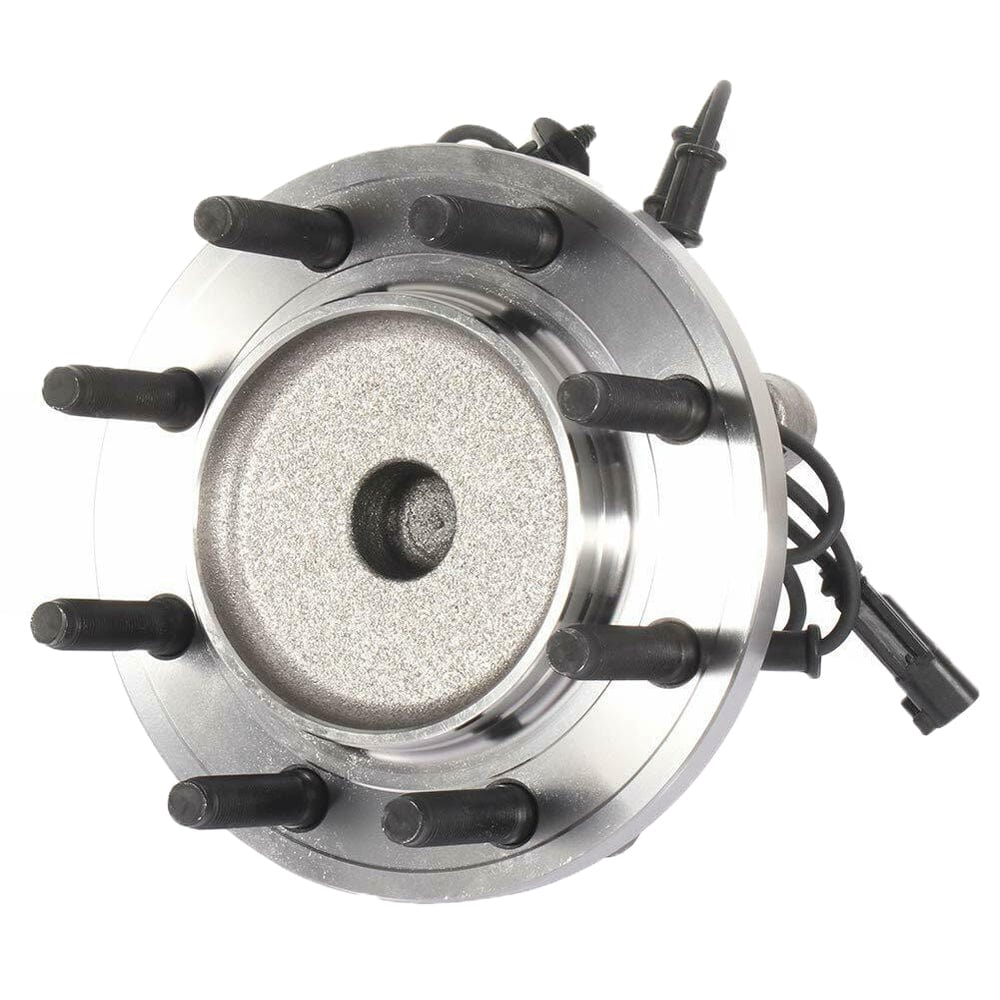

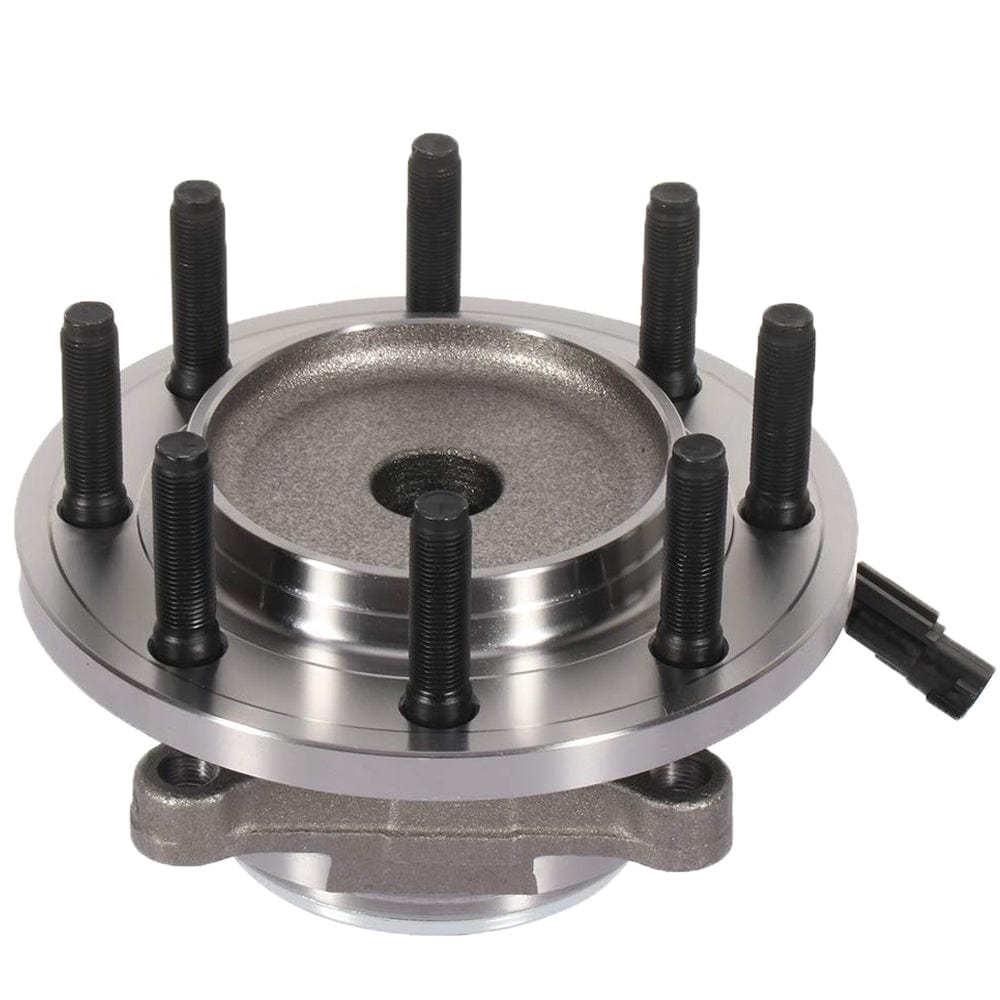

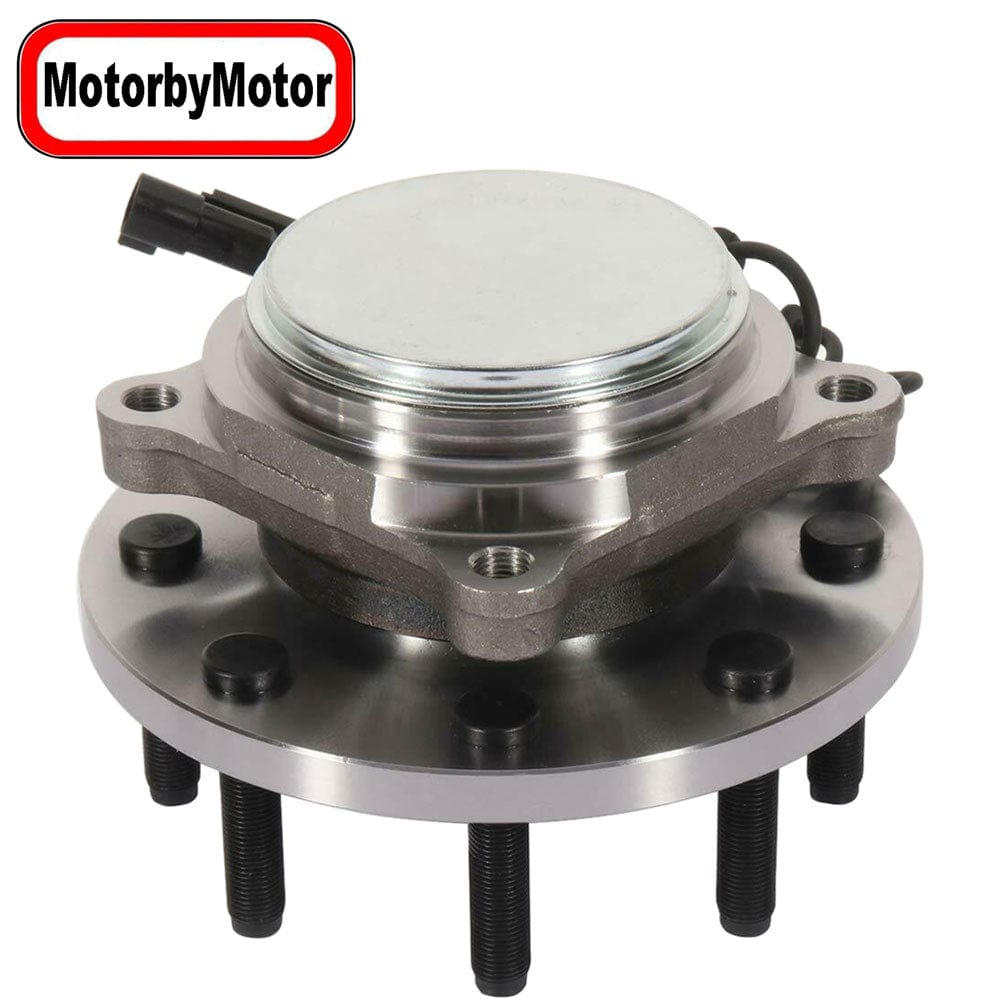

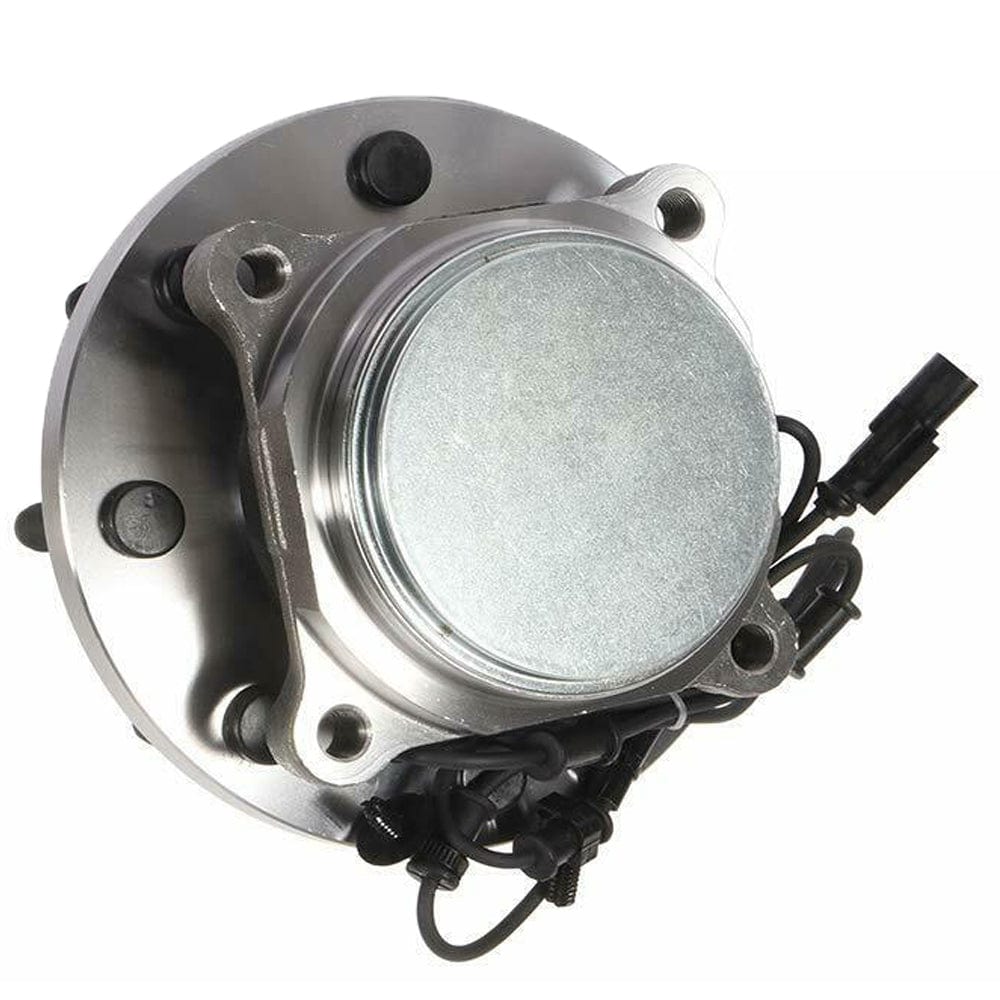

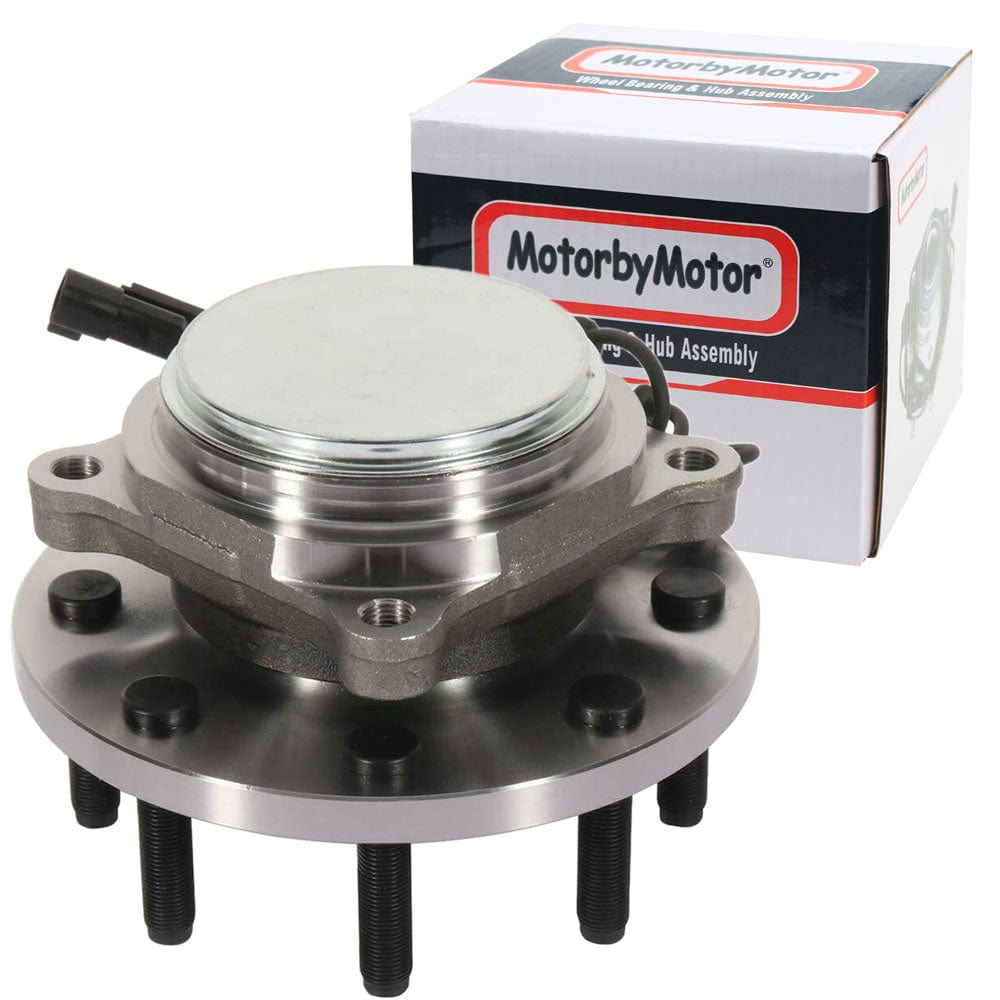

Front Wheel Bearing Fit Dodge Ram 2500 3500 Pickup 2009-2011 Ram 2500 3500 Wheel Hub 8 Lugs w/ABS, 2WD RWD, 515123

Front Wheel Bearing Fit Dodge Ram 2500 3500 Pickup 2009-2011 Ram 2500 3500 Wheel Hub 8 Lugs w/ABS, 2WD RWD, 515123

Fit:
2011 Ram 2500 (Front, 2WD)
2011 Ram 3500 (Front, 2WD)
2009 2010 Dodge Ram 2500 Pickup (Front, 2WD)
2009 2010 Dodge Ram 3500 Pickup (Front, 2WD)

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Square
Wiring Harness Included: Yes
Wiring Harness Length (in): 45.5 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 35
ABS Ring Type: Sensor
Lug Bolt Thread Size: 9/16-18 Inch
Total Hub Diameter (in): 8.075 Inch
Total Hub Diameter (mm): 205.105mm
Total Hub Height (in): 5.586 Inch
Total Hub Height (mm): 141.884mm
Flange Diameter (in): 8.075 Inch
Flange Diameter (mm): 205.11mm
Flange Offset (in): 2.225 Inch
Flange Offset (mm): 56.515mm
Flange Shape: Square
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 4.726 Inch
Hub Pilot Diameter (mm): 120.04mm
