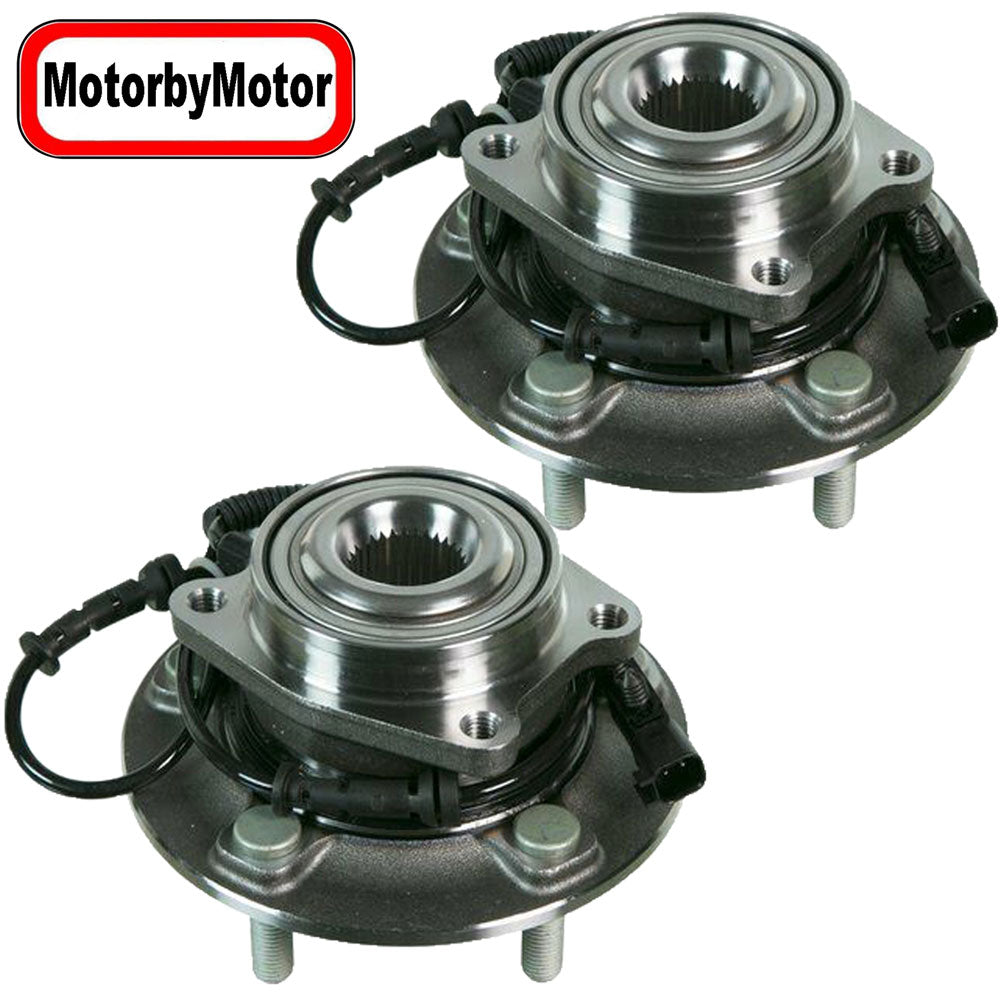

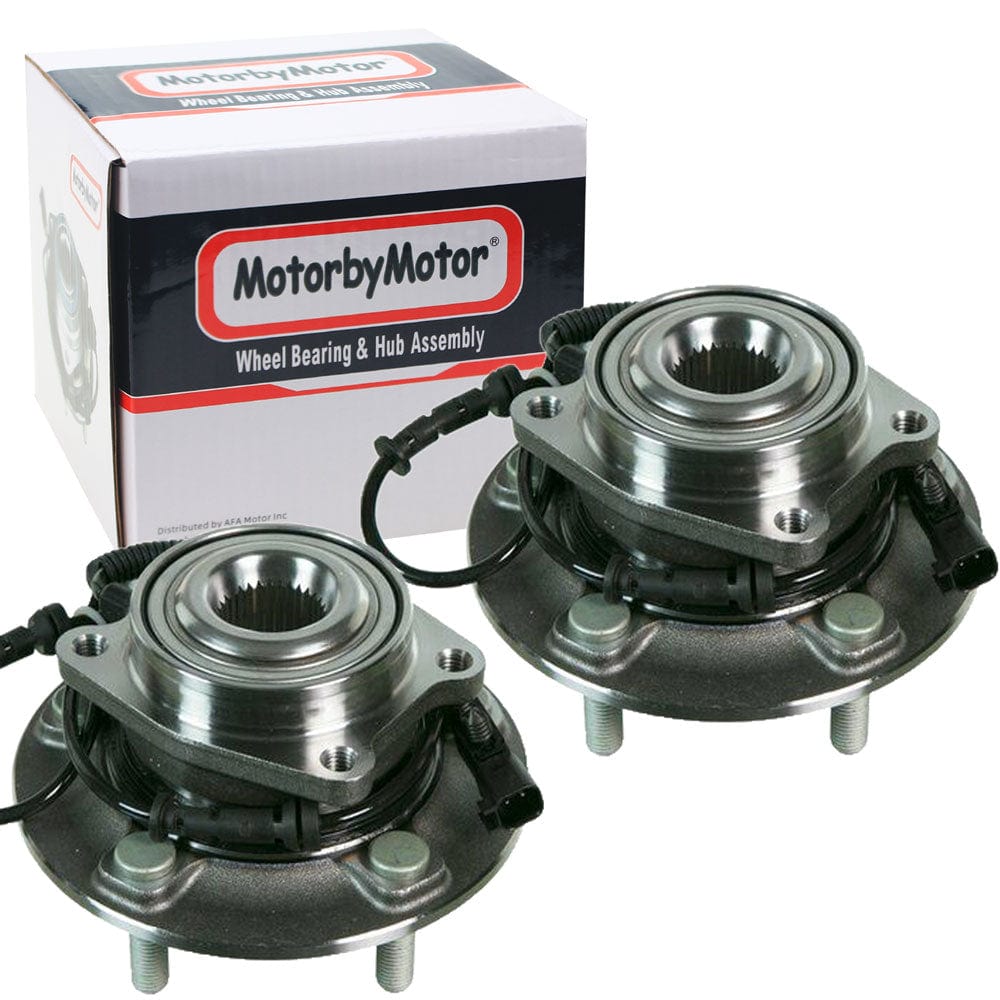

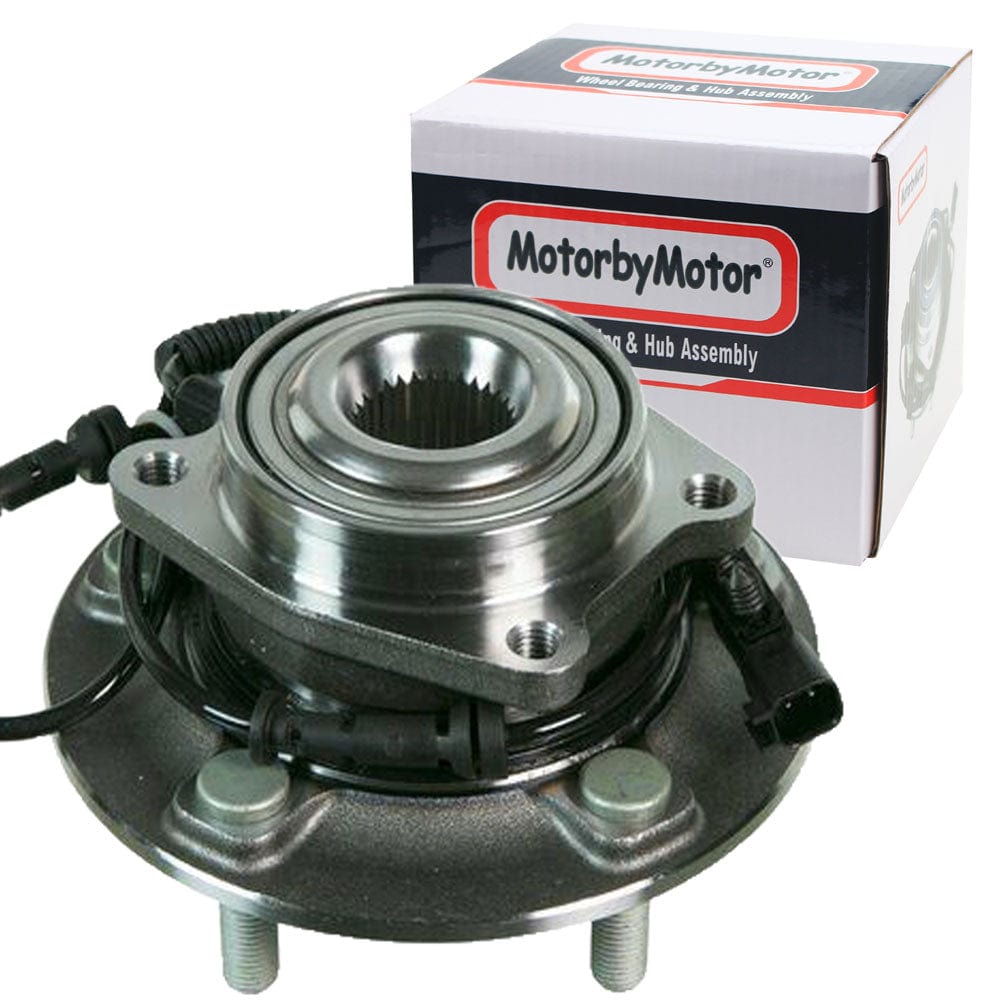

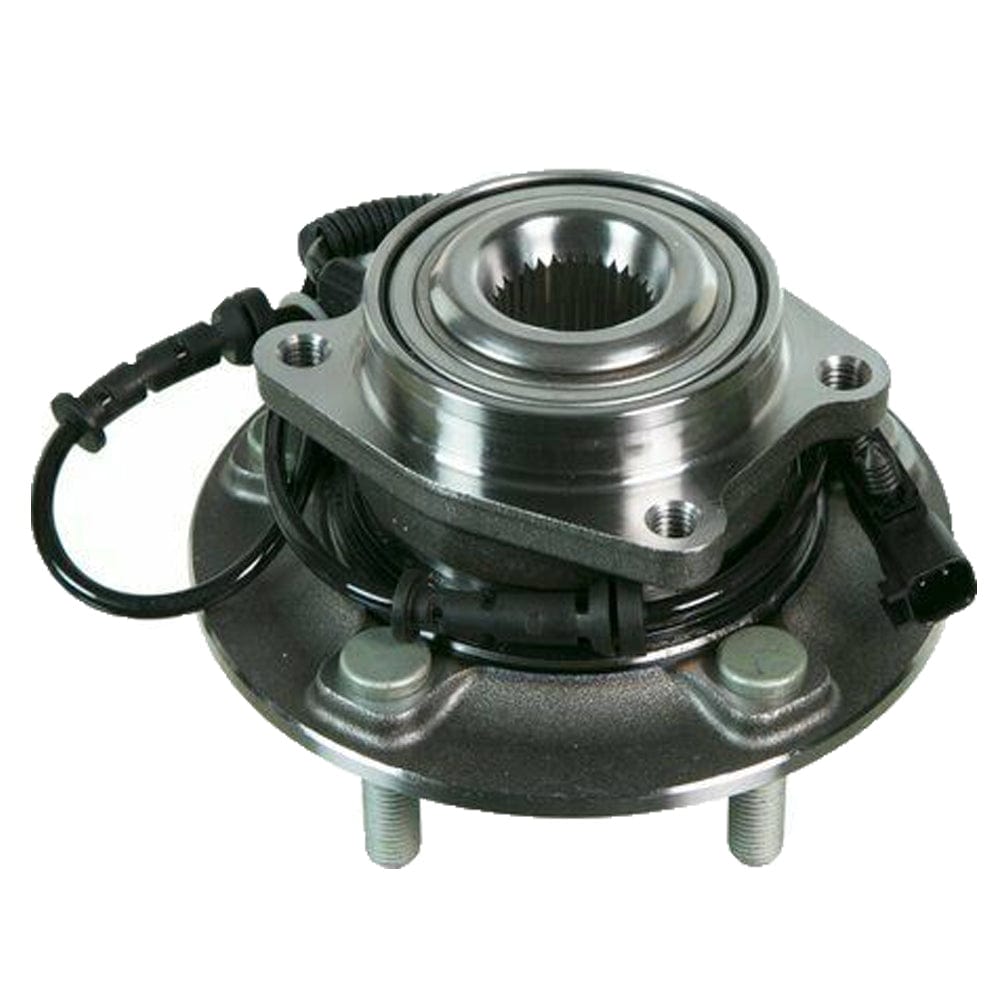

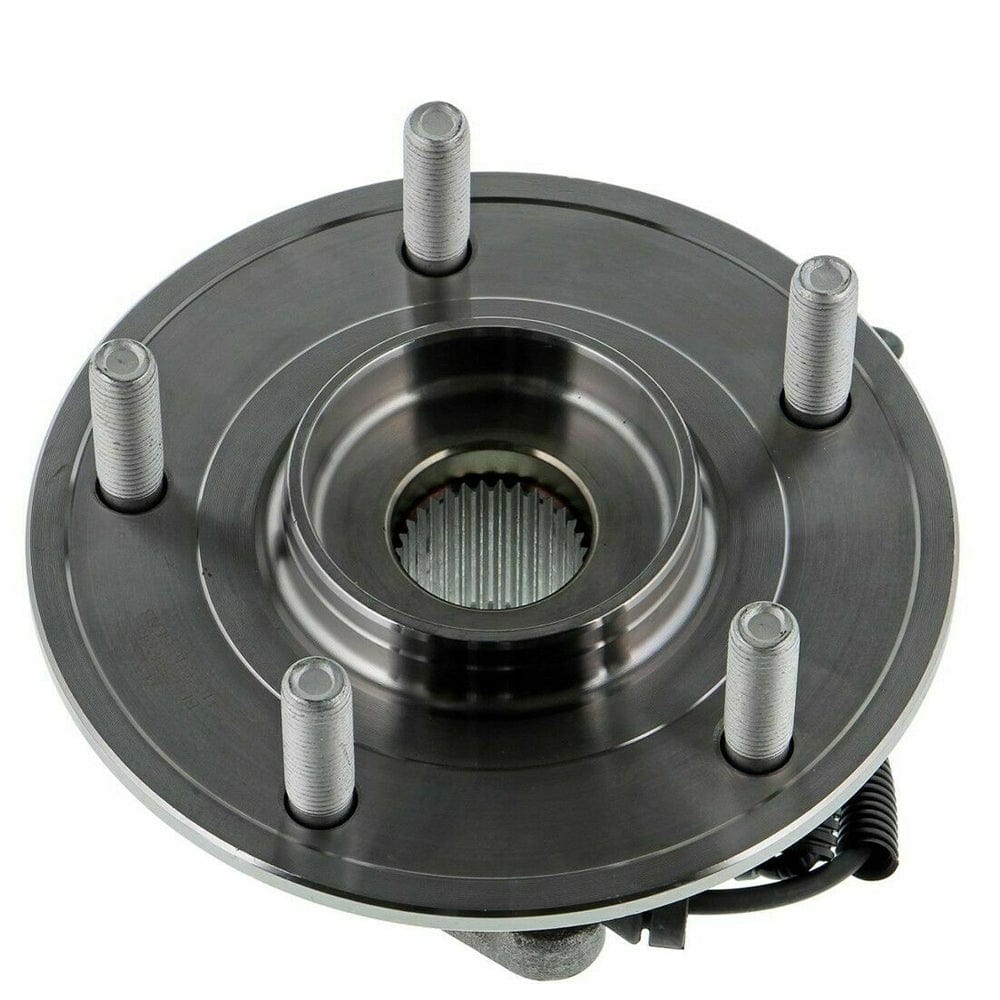

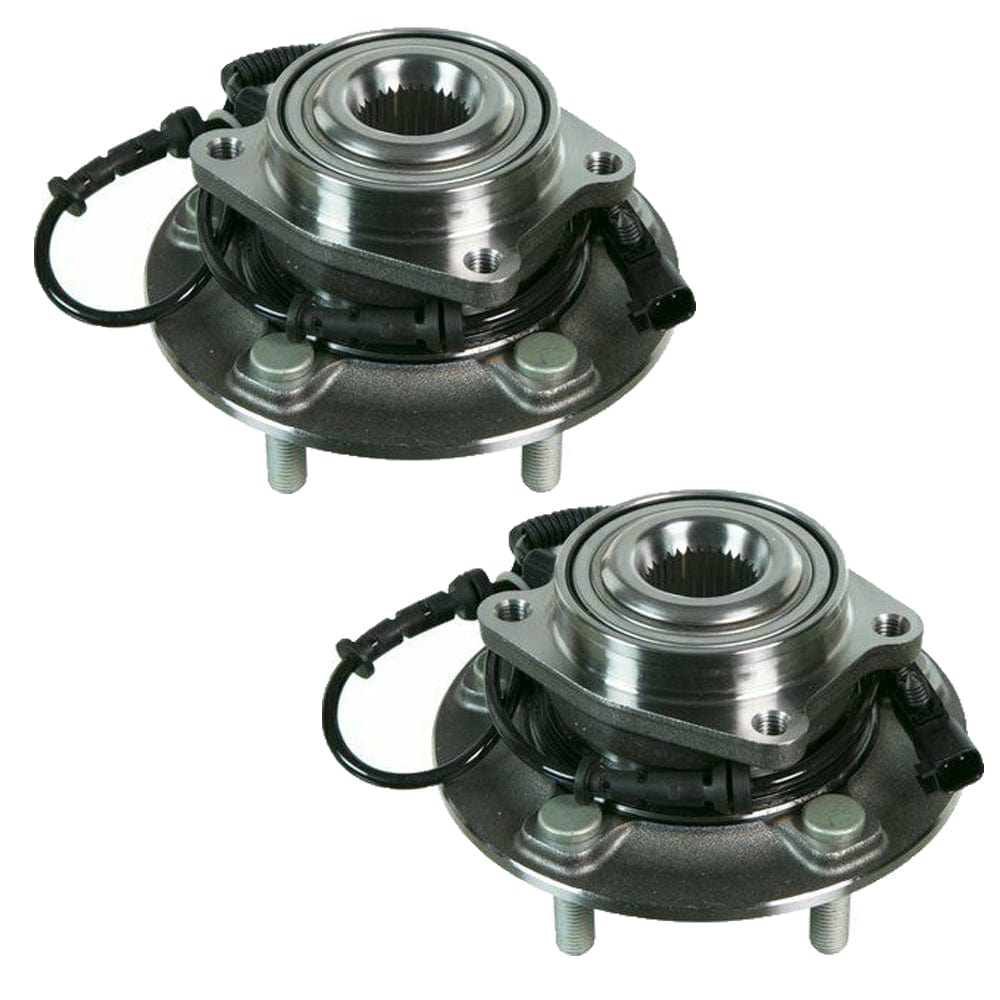

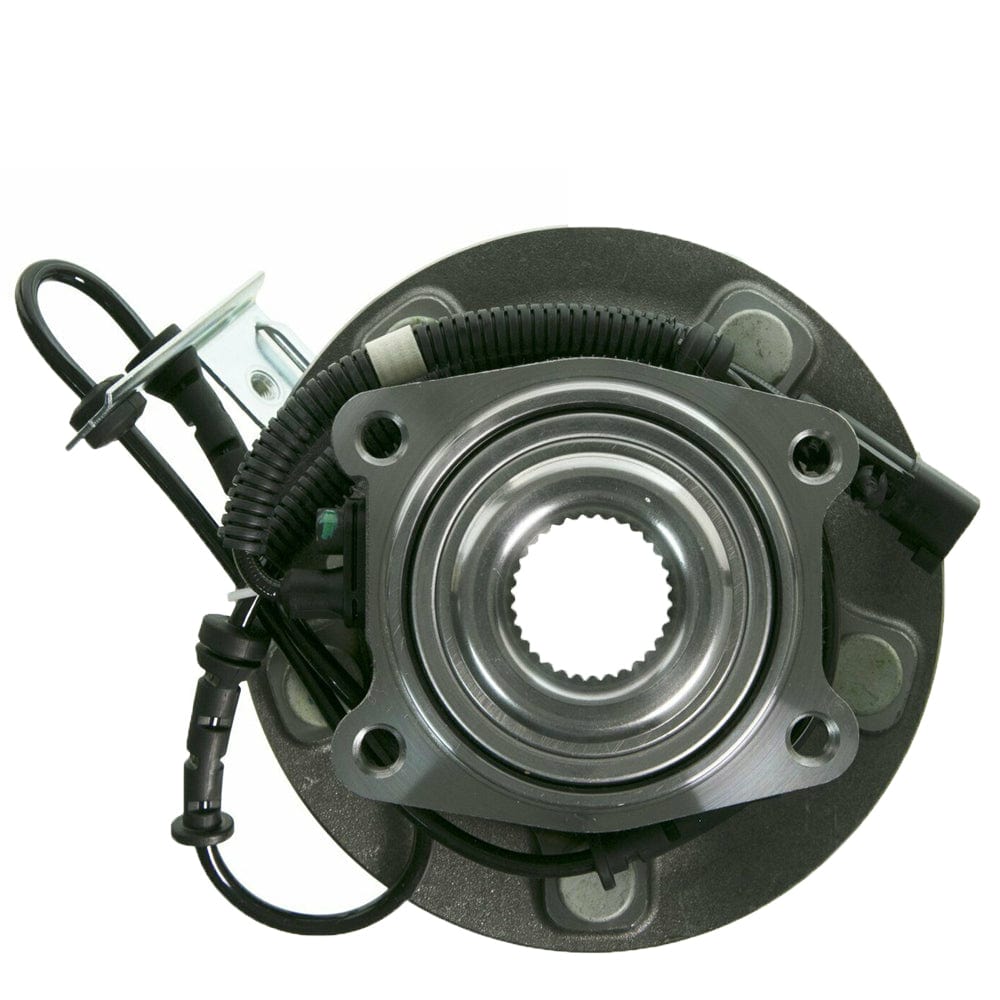

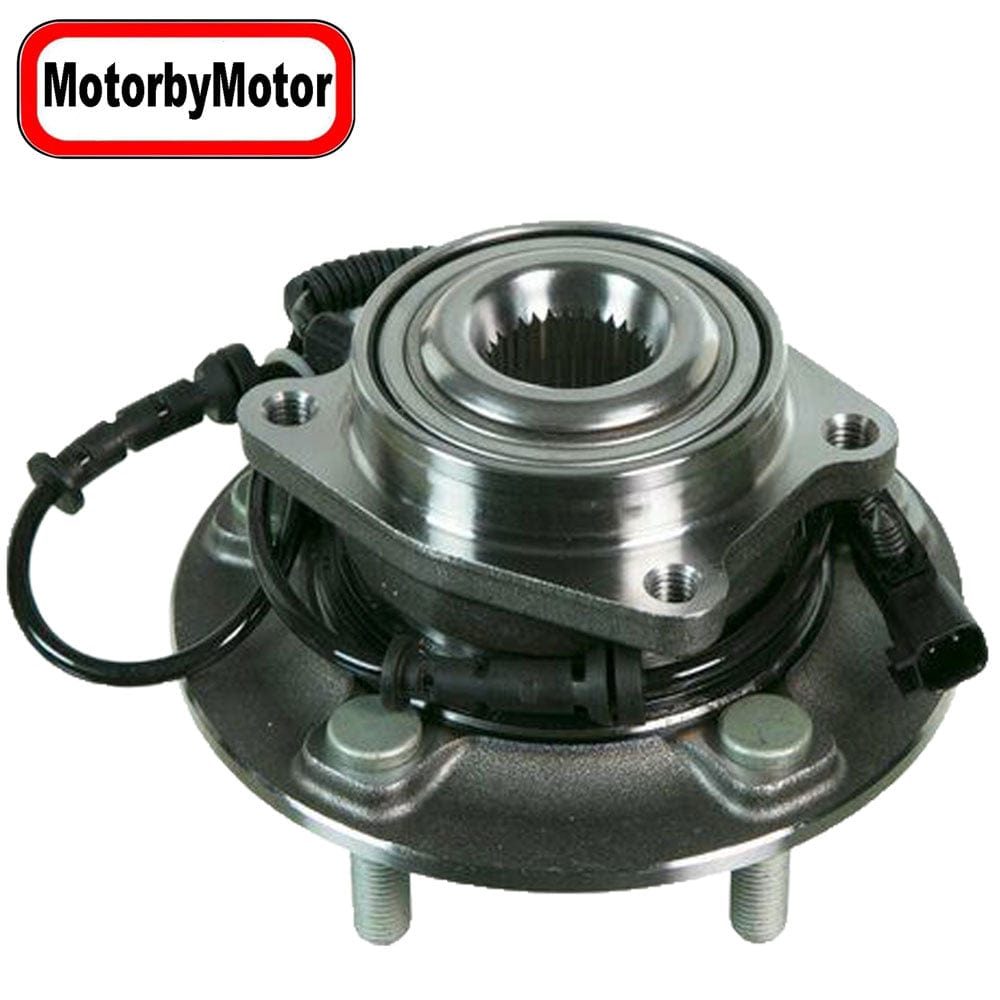

Wheel Bearing Fit Dodge Grand Caravan Ram C/V, Chrysler Town & Country Volkswagen Routan Wheel Hub w/ABS 5 Lugs, 515150

Wheel Bearing Fit Dodge Grand Caravan Ram C/V, Chrysler Town & Country Volkswagen Routan Wheel Hub w/ABS 5 Lugs,  515150

Fit:
2012 2013 2014 2015 2016 2017 2018? Dodge Grand Caravan
2012 2013 2014 2015 Ram C/V
2012 2013 2014 2015 2016 Chrysler Town & Country
2013 2014 Volkswagen Routan

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Square
Wiring Harness Included: Yes
Wiring Harness Length (in): 38.96 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 0
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 43
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 43
Total Hub Diameter (in): 6.36 Inch
Total Hub Diameter (mm): 161.6mm
Hub Centerbore Diameter (in): 5 Inch
Hub Centerbore Diameter (mm): 127mm
Total Hub Height (in): 4.12 Inch
Total Hub Height (mm): 104.6mm
Flange Diameter (in): 2.85 Inch
Flange Diameter (mm): 72.5mm
Flange Offset (in): 1.91 Inch
Flange Offset (mm): 48.5mm
Flange Shape: Round
Flange Bolt Size (in): 1.41 Inch
Flange Bolt Size (mm): 35.7mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.35 Inch
Hub Pilot Diameter (mm): 85mm
