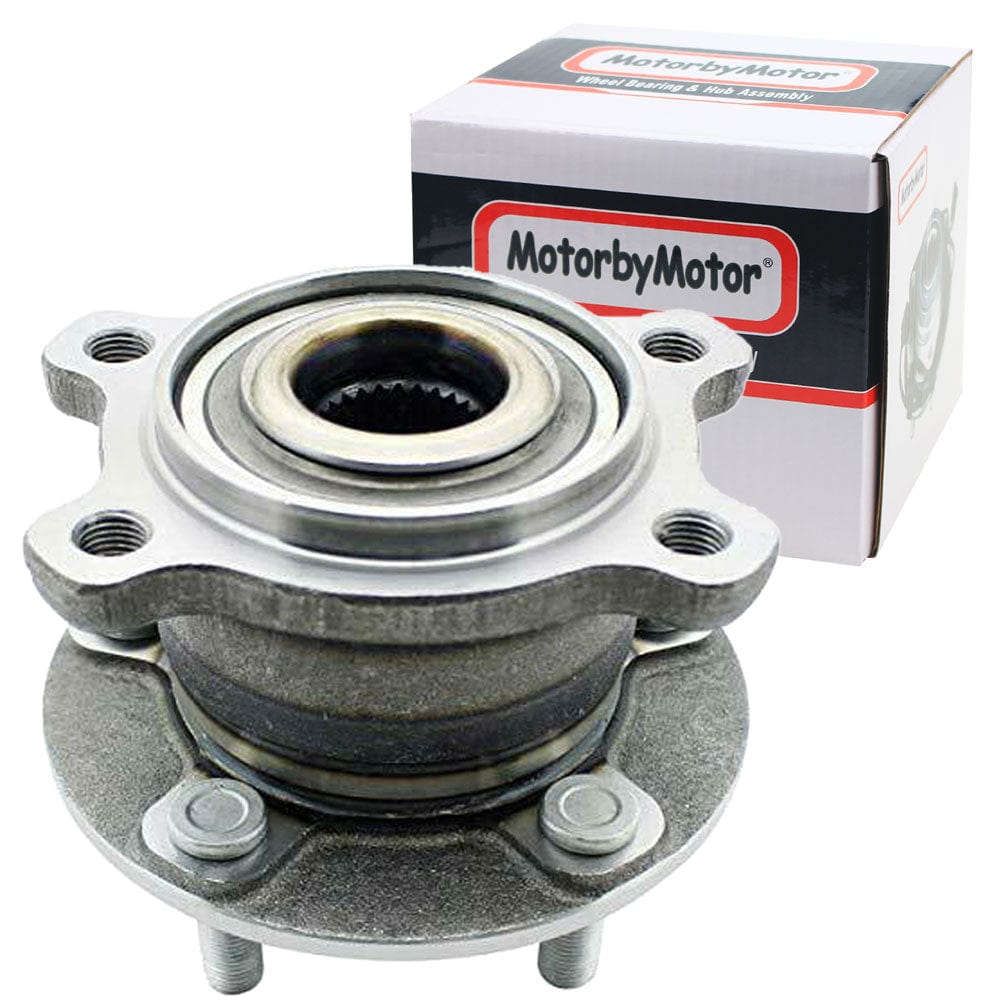

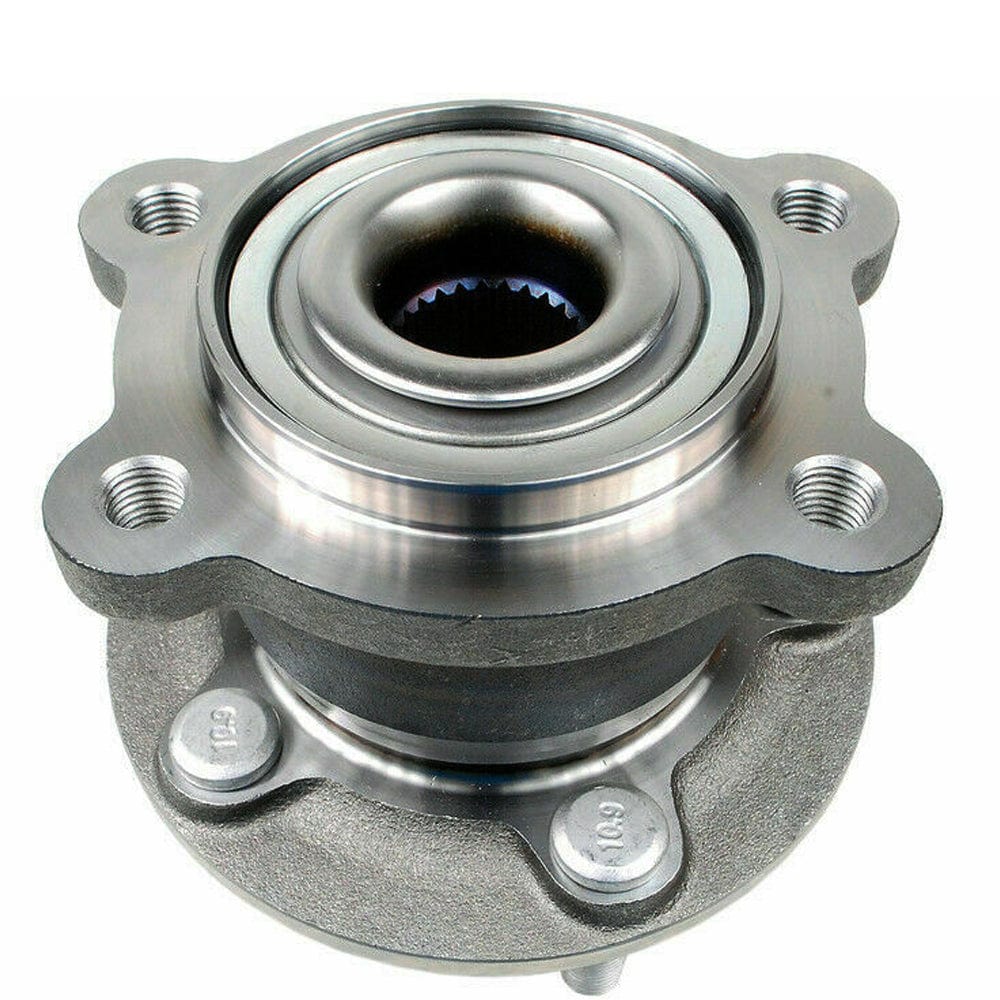

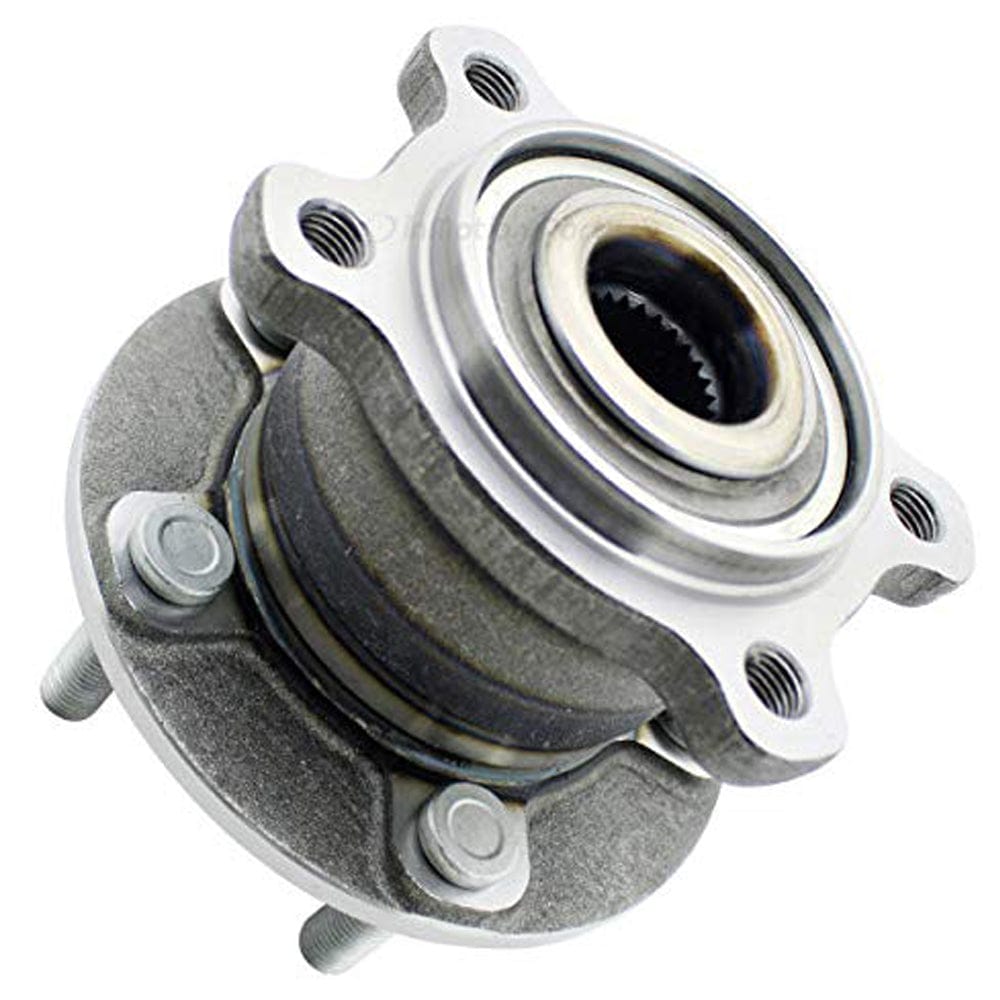

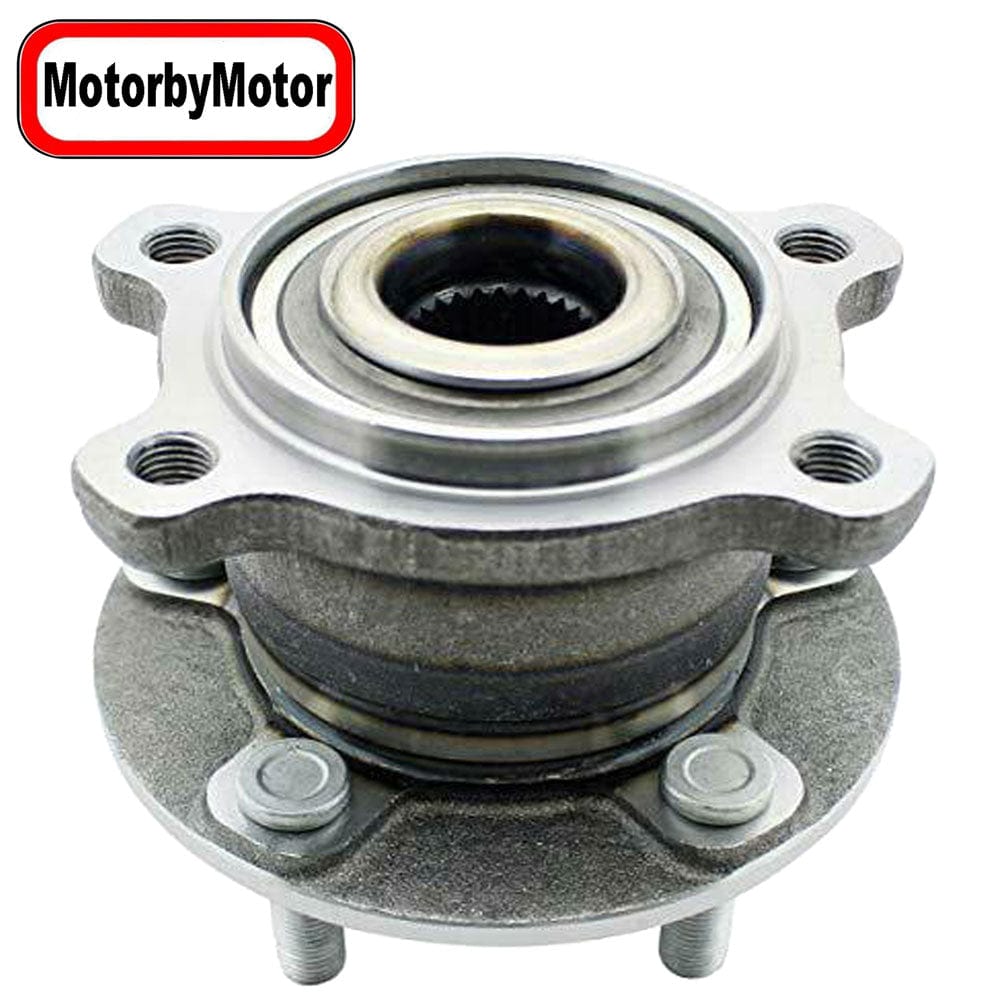

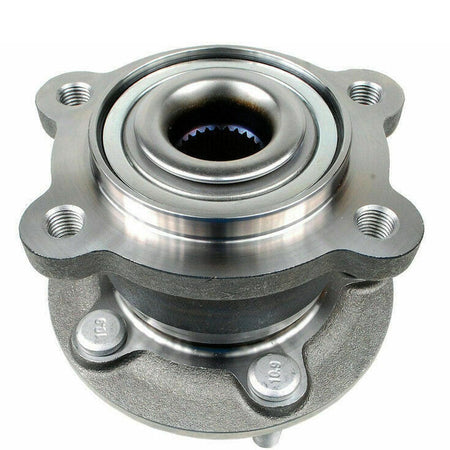

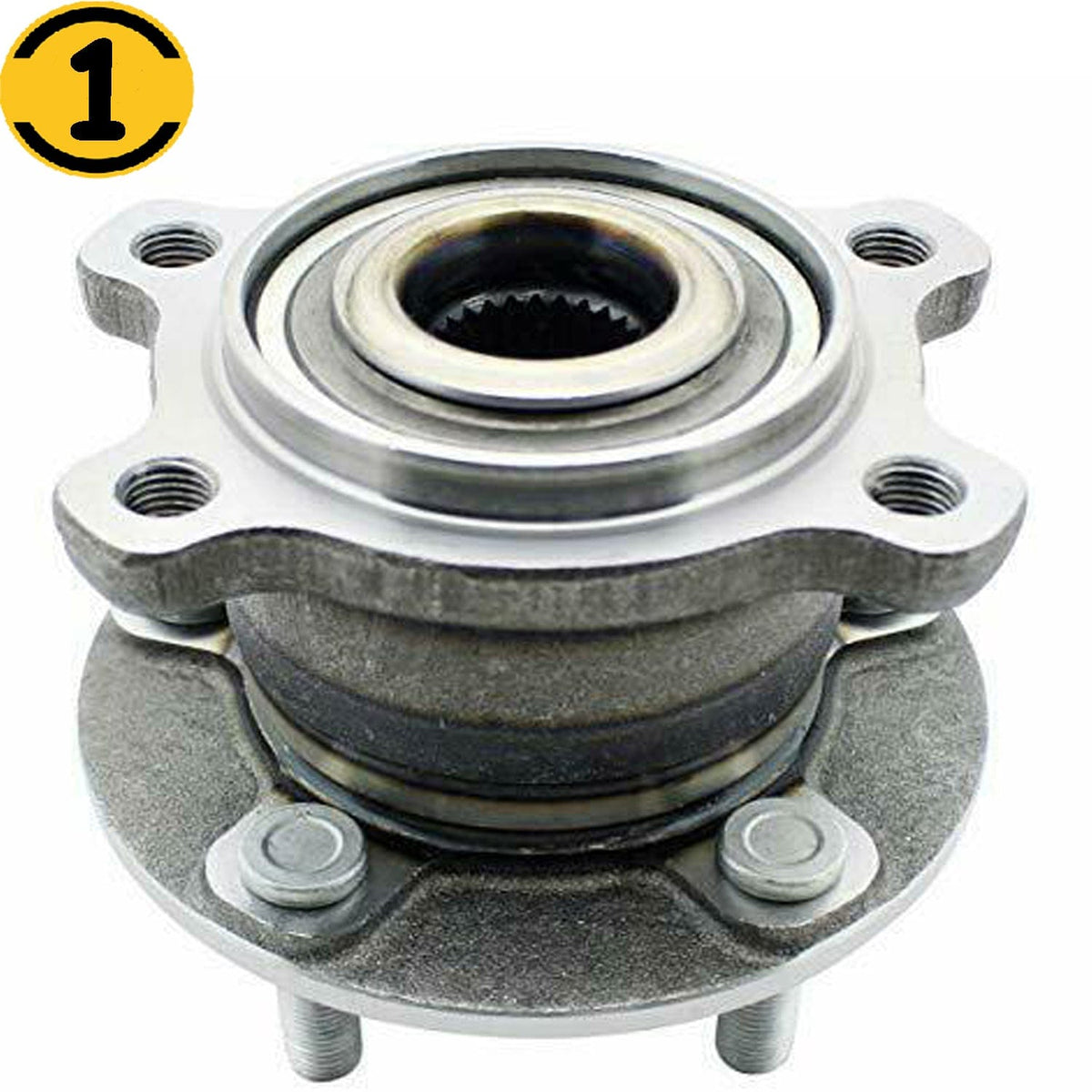

Motorbymotor 512500 Rear Wheel Bearing Hub Assembly
Rear wheel hub assembly with integrated ABS sensor. Designed for reliable performance and easy installation.
What's Included
- Rear wheel bearing hub assembly, part number 512500
Product Specifications
- Anti Lock Brake Sensor Included: Yes
- Bolt Circle Diameter (IN): 4.253
- Bolt Circle Diameter (MM): 108.000
- Brake Pilot Diameter (MM): 63.400
- Flange Bolt Hole Quantity: 4
- Flange Diameter (MM): 136.400
- Flange Offset (MM): 73.100
- Flange Shape: Rectangle
- Hub Pilot Diameter (MM): 81.300
- Spline Quantity: 27
- Wheel Pilot Diameter (MM): 63.200
- Wheel Stud Quantity: 5
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2013-2019 | Ford | Escape | AWD |
| 2015-2016, 2019 | Lincoln | MKC | AWD |
| 2017-2018 | Lincoln | MKC | Rear; Reserve; Select or Rear; AWD; Black Label |
Replaces Dealer Part Numbers
- 512500
- WA512500
- WB512500
- 712500
- 29512500
10-year warranty included.
3-7 days delivery, orders processed the next business day.
