Ford F-150 Front Wheel Bearing Hub Assembly 2017 515169
Regular price
$77.95
Regular price
$87.95
-11%
Sale price
$77.95

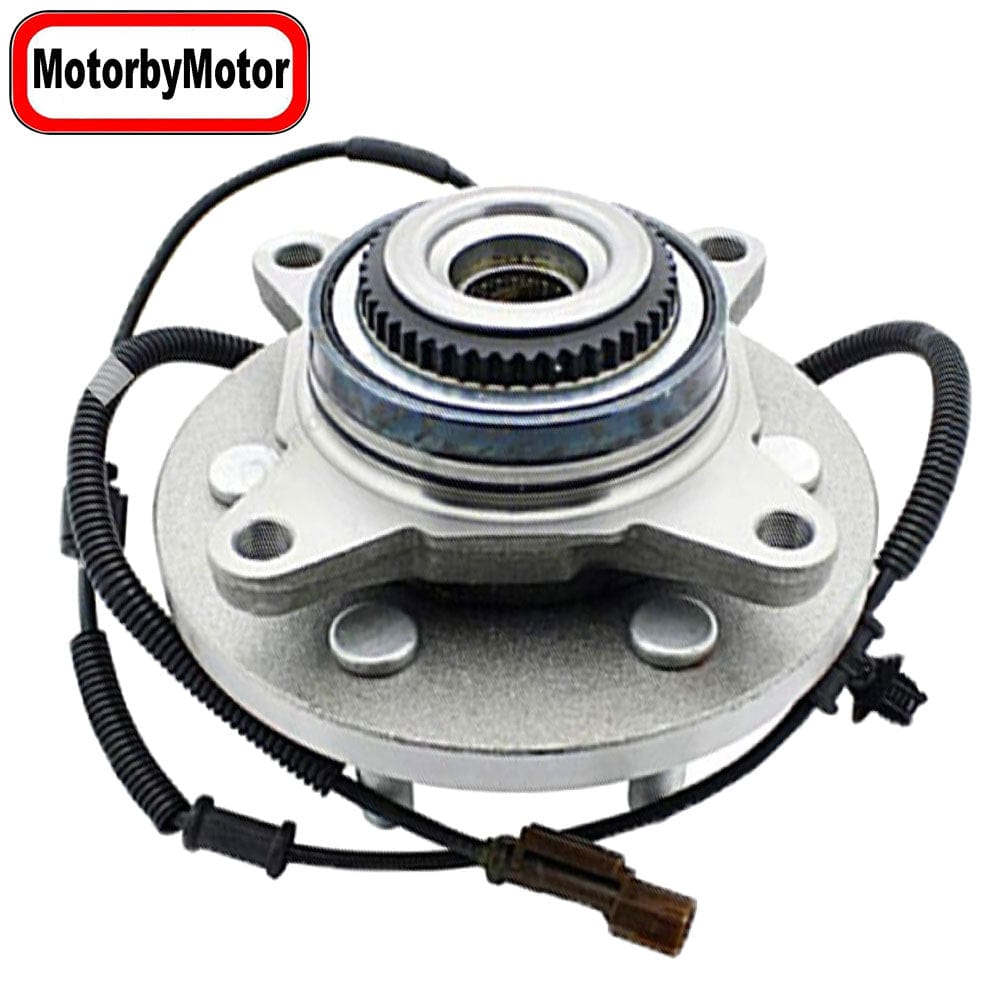

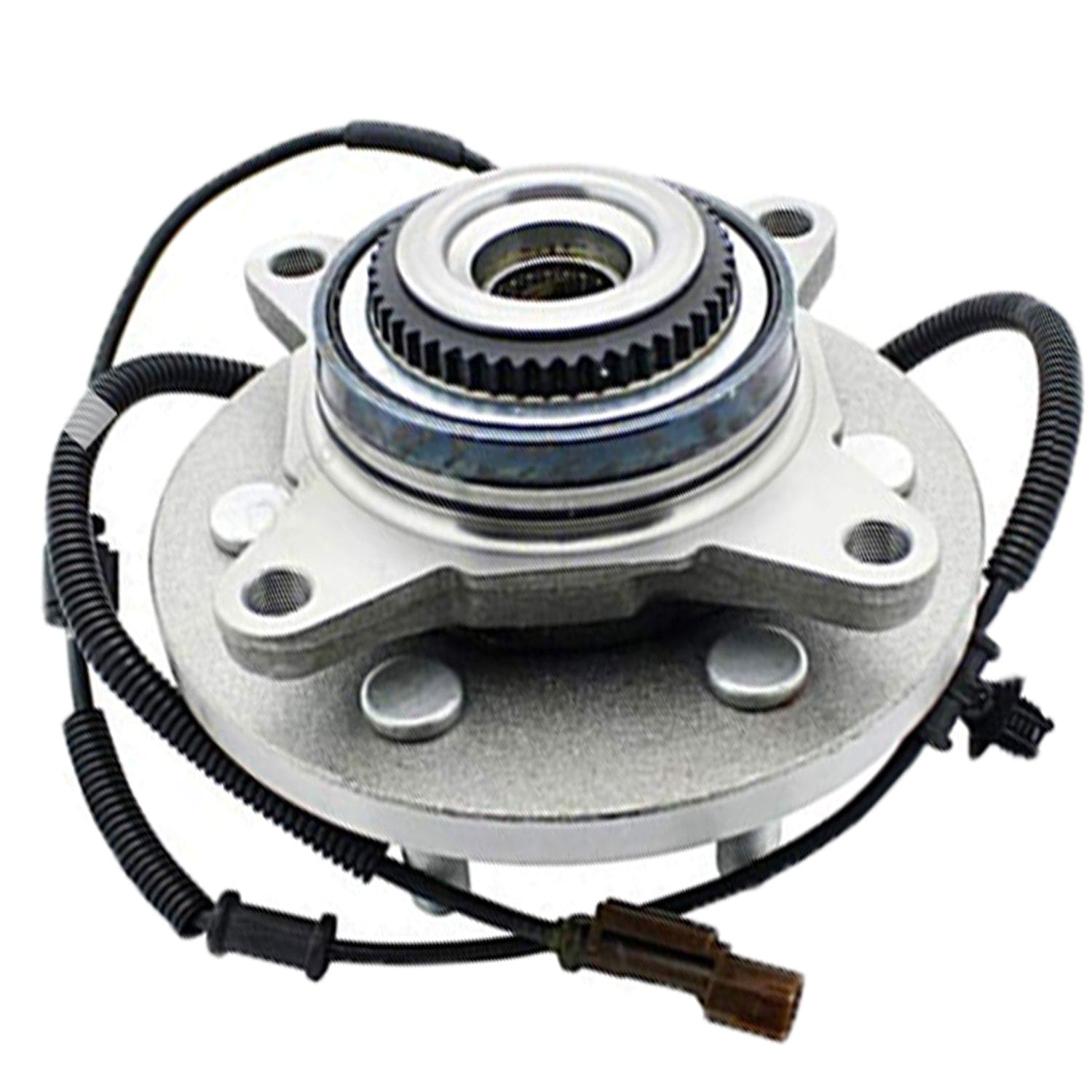

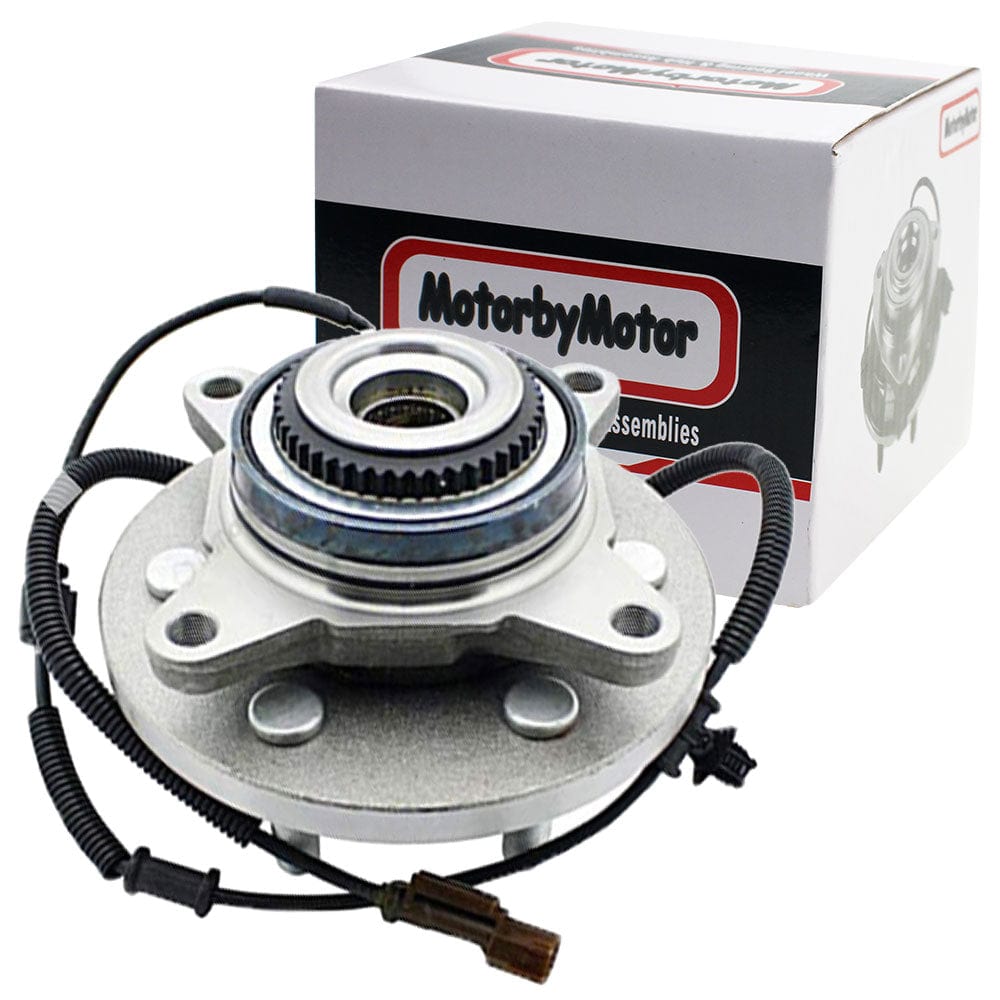

motorbymotor 515169 front wheel bearing hub asssembly
specifications:
| Wiring Harness Included | Yes |
| Greaseable | Yes |
| Bearing Type | Tapered |
| Hub Centerbore Diameter (in) | 5.315 Inch |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Wiring Harness Length (in) | 43-5/16 Inch |
| ABS Ring Type | Tone |
| Number Of ABS Sensor Ring Teeth | 54 |
| ABS Sensor Included | Yes |
| ABS Connector Shape | Octagon |
| Number Of Mounting Bolts To Knuckle | 4 |
| Lug Bolt Thread Size | M14-1.50 |
| Total Hub Diameter (in) | 7.205 Inch |
| Total Hub Diameter (mm) | 183mm |
| Hub Centerbore Diameter (mm) | 135mm |
| Total Hub Height (in) | 5.091 Inch |
| Total Hub Height (mm) | 129mm |
| Number Of Flange Bolts Included | 6 |
| Flange Bolt Size (in) | 1.811 Inch |
| Flange Bolt Size (mm) | 46mm |
| Flange Bolt Thread Size | M14-1.50 |
fitment for MotorbyMotor-515169:
2015 2016 2017 2018 2019 Ford F-150 (Front, 4WD)
