Ford F-350 4WD Front Wheel Hub Assembly 515020 Heavy Duty
Regular price
$133.00
Regular price
$201.89
-34%
Sale price
$133.00

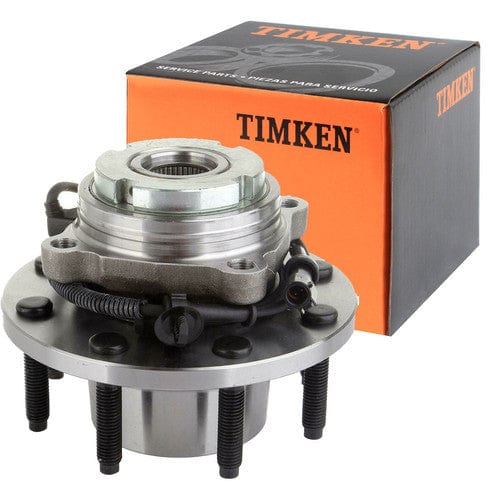

timken 515020 front wheel bearing hub assembly
specifications
| ABS/Non-ABS (Y/N) | Y |
| ABS Type | Sensor |
| Bearing Type | Tapered |
| Bolt Circle Diameter B (IN) | 6.693 |
| Bolt Circle Diameter H (IN) | 5.512 |
| Bolt Quantity | 4.000 |
| Bolt Size (IN) | M14x1.5 |
| Brake Pilot Dia (IN) | 5.080 |
| Driven or Non Driven? | Driven |
| Flange (#) | 2.000 |
| Flange Diameter (IN) | 7.992 |
| Flange Offset (IN) | 2.146 |
| Flange Shape | Square |
| Generation Type | 2 |
| Hub Pilot Dia G (IN) | 4.484 |
| Roll Form (Y) | N |
| Spline Quantity | 55.000 |
| Wheel Pilot Dia (MM) | 124.970 |
| Wheel Studs (Y/N) | Y |
| Wheel Stud Qty | 8.000 |
| Wheel Stud Size (IN) | M14x2 |
Fitment for timken - 515020
**with ABS - 4x4 ONLY**
**Single Rear Wheel - Course Thread**
Coarse Threaded Lugs on Bolts - Look at the bolts the Lug Nuts ride on....they must be Coarse Threaded!
Manufacturing Date After 03/22/1999
| MAKE | MODEL | YEAR RANGE |
SPECIFIC DETAILS
|
| FORD | F-350 SUPER DUTY | 1999 |
SRW; (Coarse Threads); From 03/22/99 - 4x4 Only w/ABS |
| FORD | F-350 SUPER DUTY | 2000-2004 | SINGLE REAR WHEEL, COARSE THREADS - 4x4 w/ABS |
| FORD | F-250 SUPER DUTY | 1999-2004 |
SRW; (Coarse Threads); From 03/22/99 - 4x4 Only w/ABS |
| FORD | EXCURSION | 2000-2005 | COARSE THREADS - 4x4 w/ABS |
Ford F-250 1999 - 2004
- Ford F-250 1999
- Ford F-250 2000
- Ford F-250 2001
- Ford F-250 2002
- Ford F-250 2003
- Ford F-250 2004
- Ford F-350 1999
- Ford F-350 2000
- Ford F-350 2001
- Ford F-350 2002
- Ford F-350 2003
- Ford F-350 2004
Ford Excursion 2000-2005
- Ford Excursion 2000
- Ford Excursion 2001
- Ford Excursion 2002
- Ford Excursion 2003
- Ford Excursion 2004
- Ford Excursion 2005
