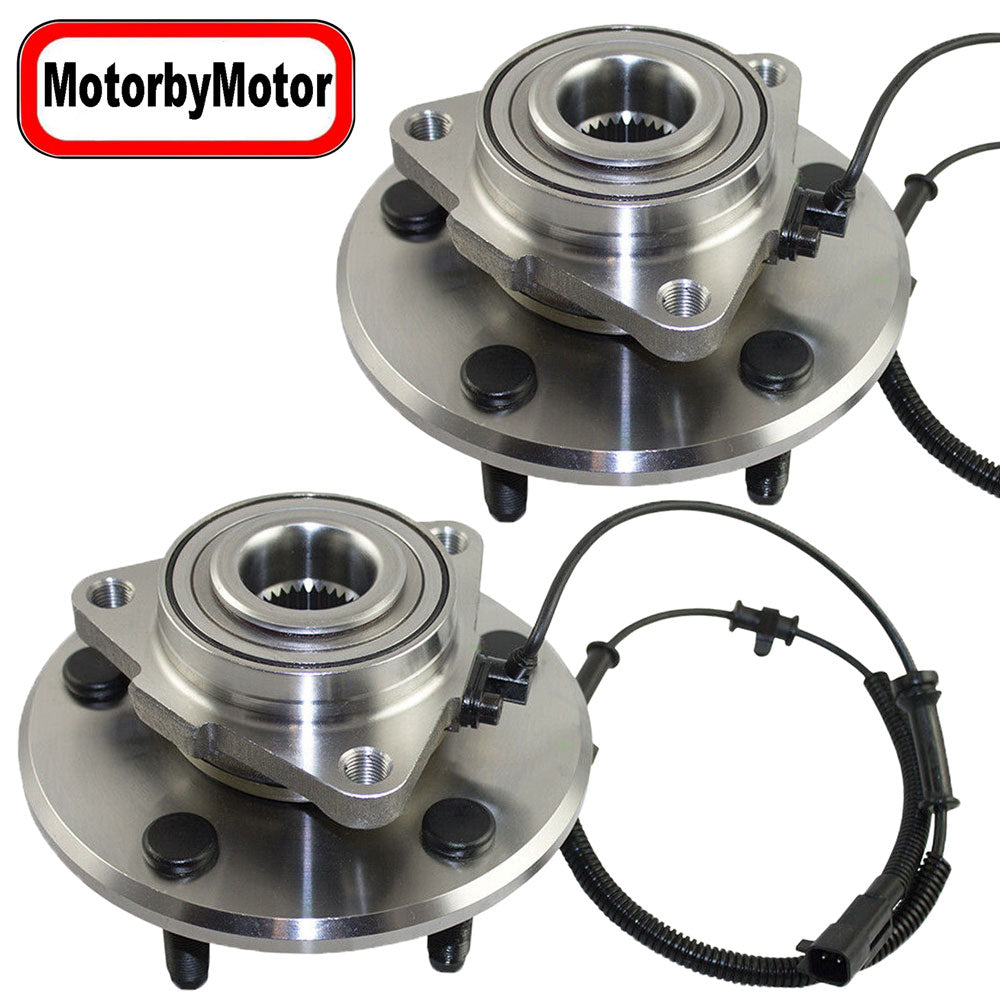

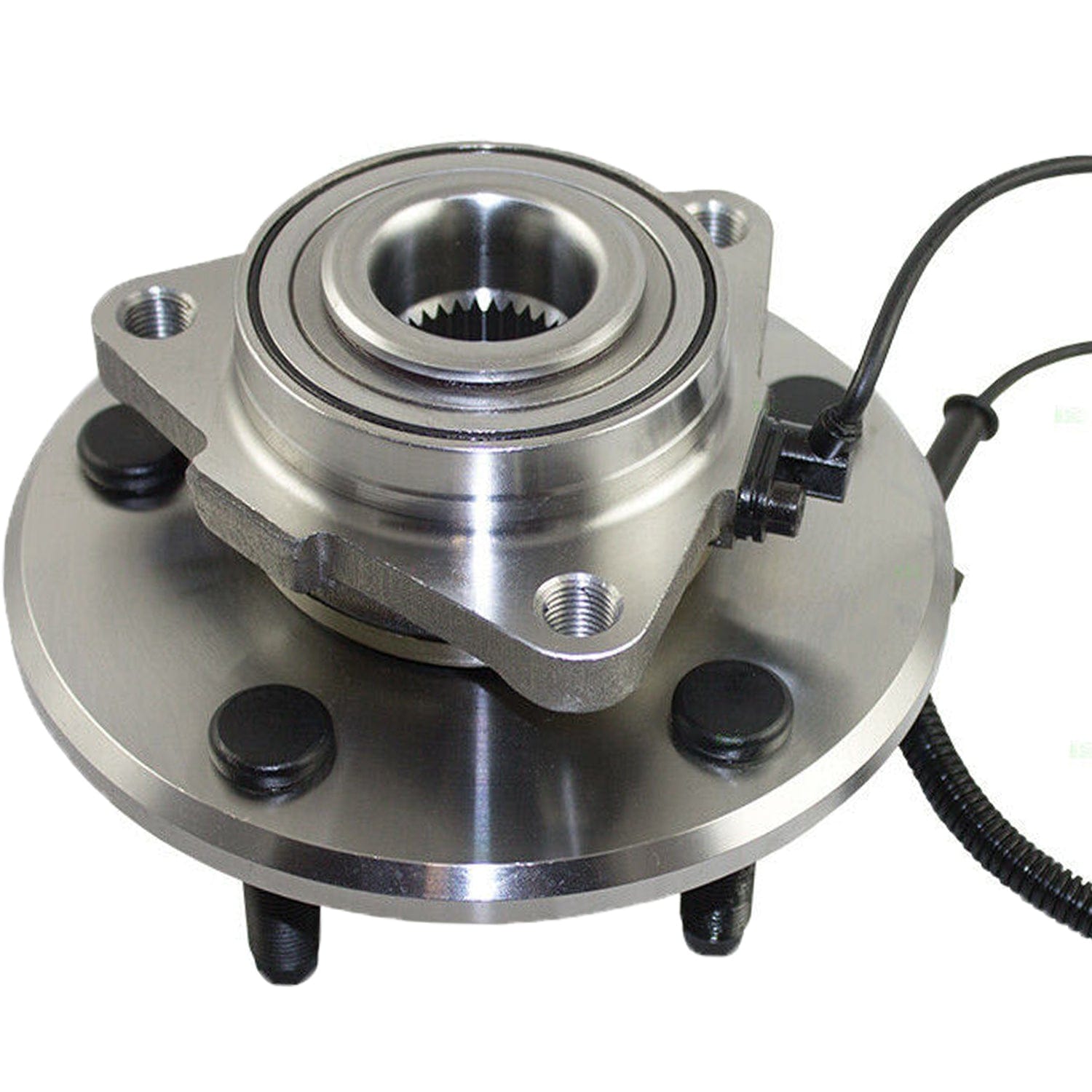

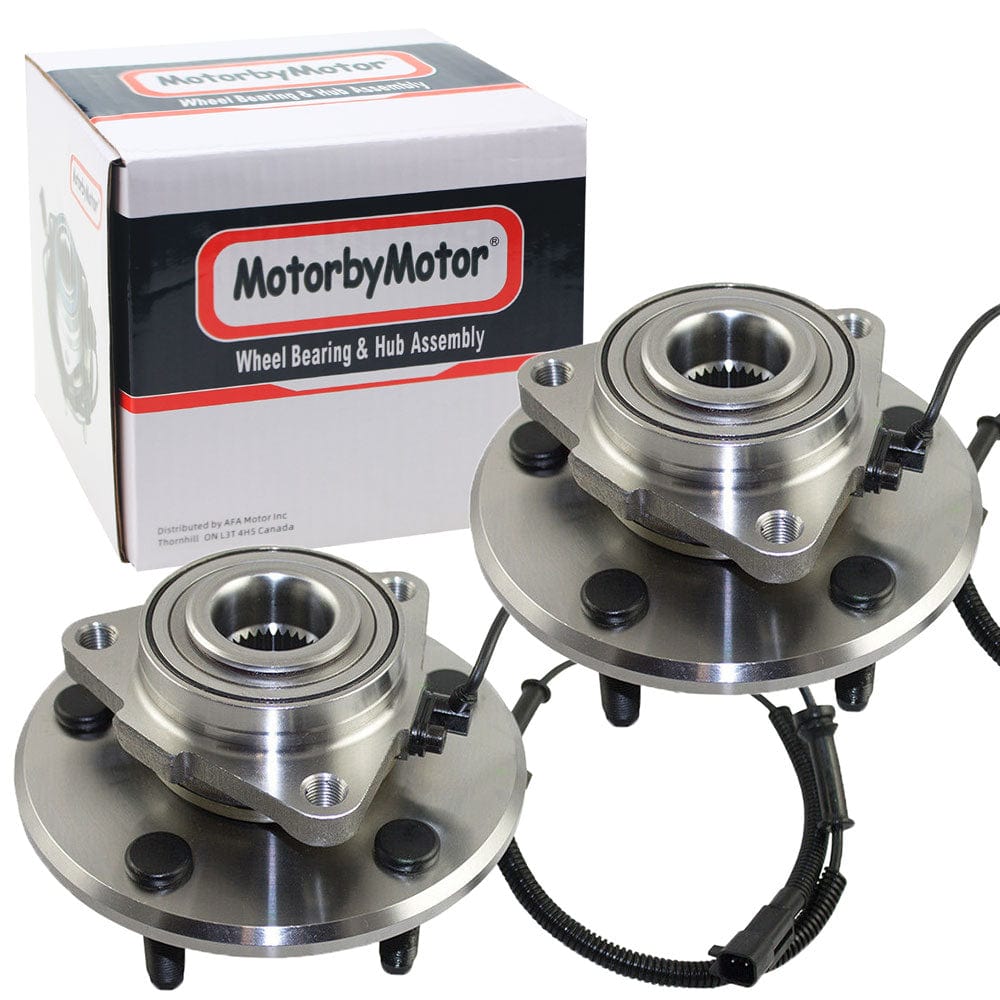

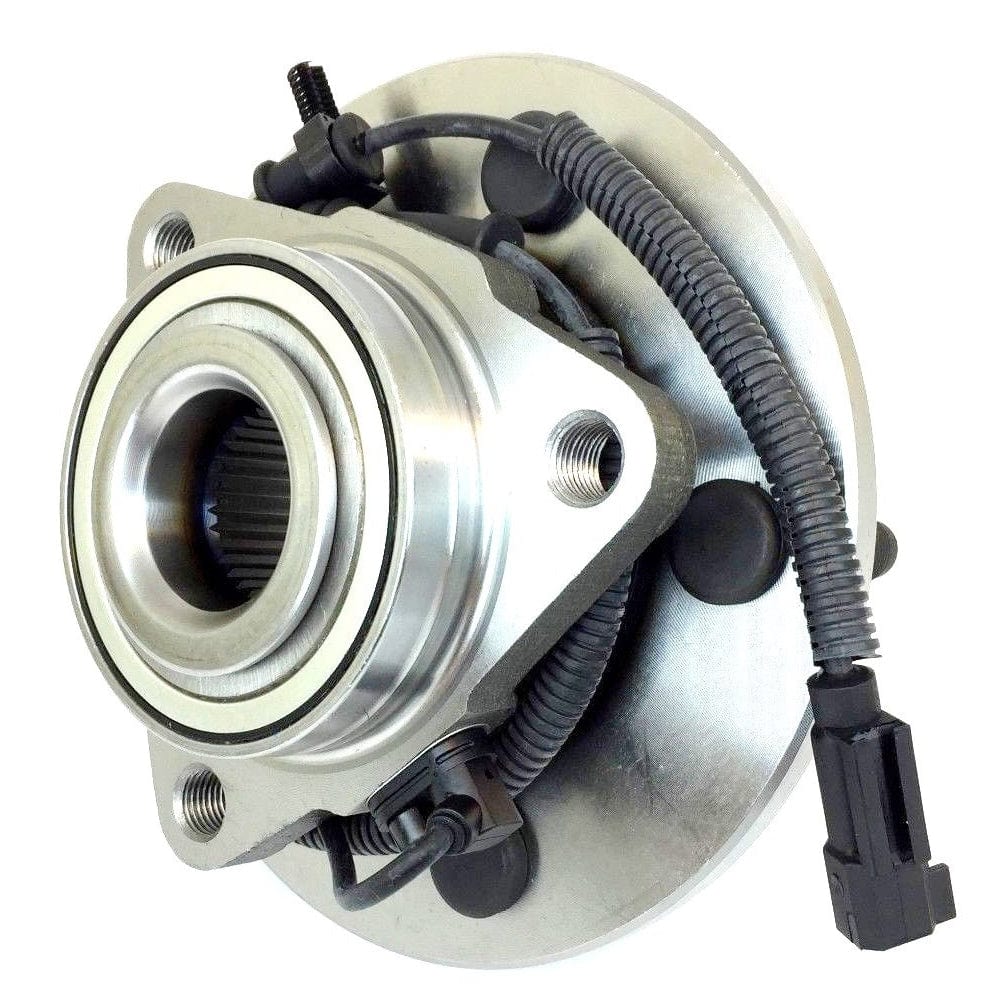

Front Wheel Bearing Fit 2006-2009 Dodge Ram 1500 Pickup Wheel Hub w/ABS, 5 Lugs , 515113 (2 PACK)

Front Wheel Bearing Fit 2006-2009 Dodge Ram 1500 Pickup Wheel Hub w/ABS, 5 Lugs , 515113 (2 PACK)

Fit:
2006-2009 Dodge Ram 1500 1/2 ton 2WD
2006-2009 Dodge Ram1500 1/2 ton 4WD

Description:

Position: Driver (LH Left) or Passenger(RH Right) Side FRONT
ABS Sensor Included:Yes
ABS Connector Shape:Square

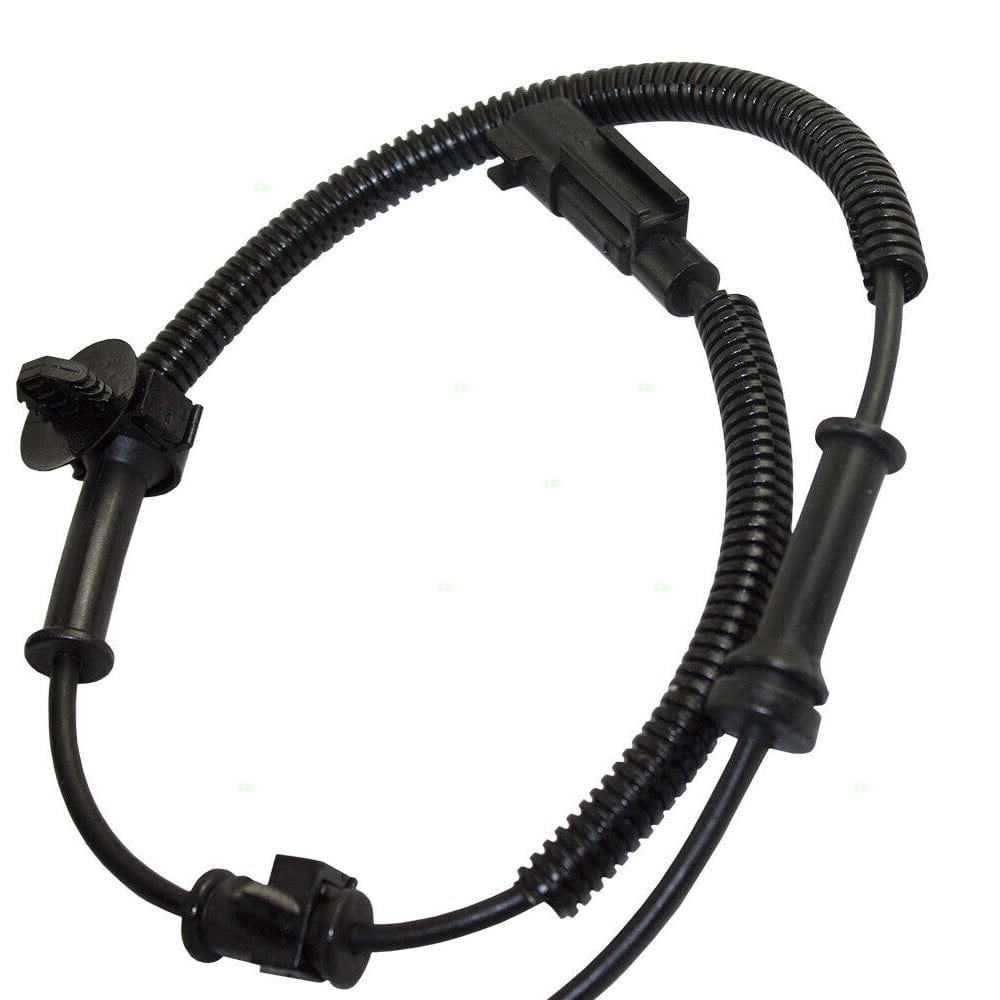

Wiring Harness Included:Yes
Wiring Harness Length (in):31.75 Inch
Number Of Mounting Bolts To Knuckle:3

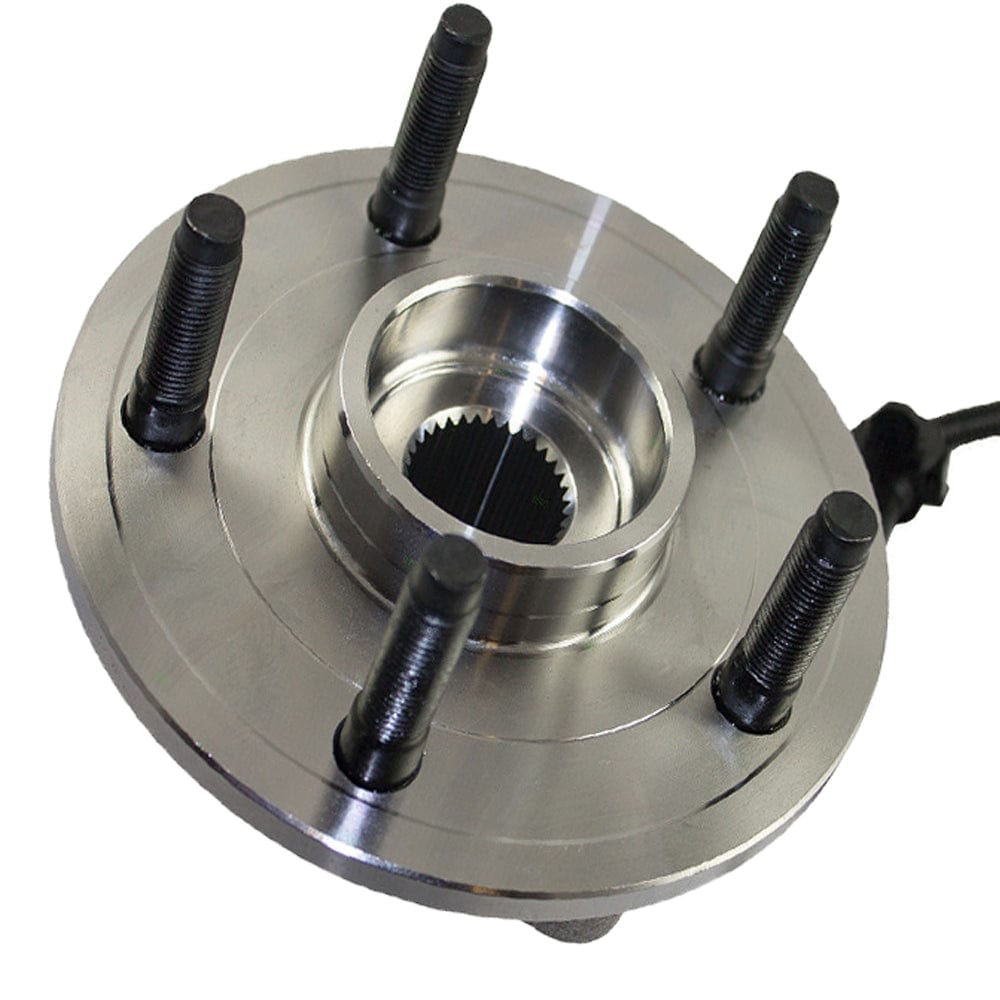

Number Of Lug Bolts Included:5
Number Of Flange Bolts Included:0
Driven Or Non-Driven:Driven
Number Of Splines:33
ABS Ring Type:Sensor
Lug Bolt Thread Size:9/16-18 Inch
Total Hub Diameter (in):7.203 Inch
Total Hub Height (in): 4.677 Inch
Flange Diameter (in): 7.203 Inch
Flange Offset (in):1.845 Inch
Hub Pilot Diameter (in): 3.544 Inch
Flange Shape: Triangle
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Direct Replacement
