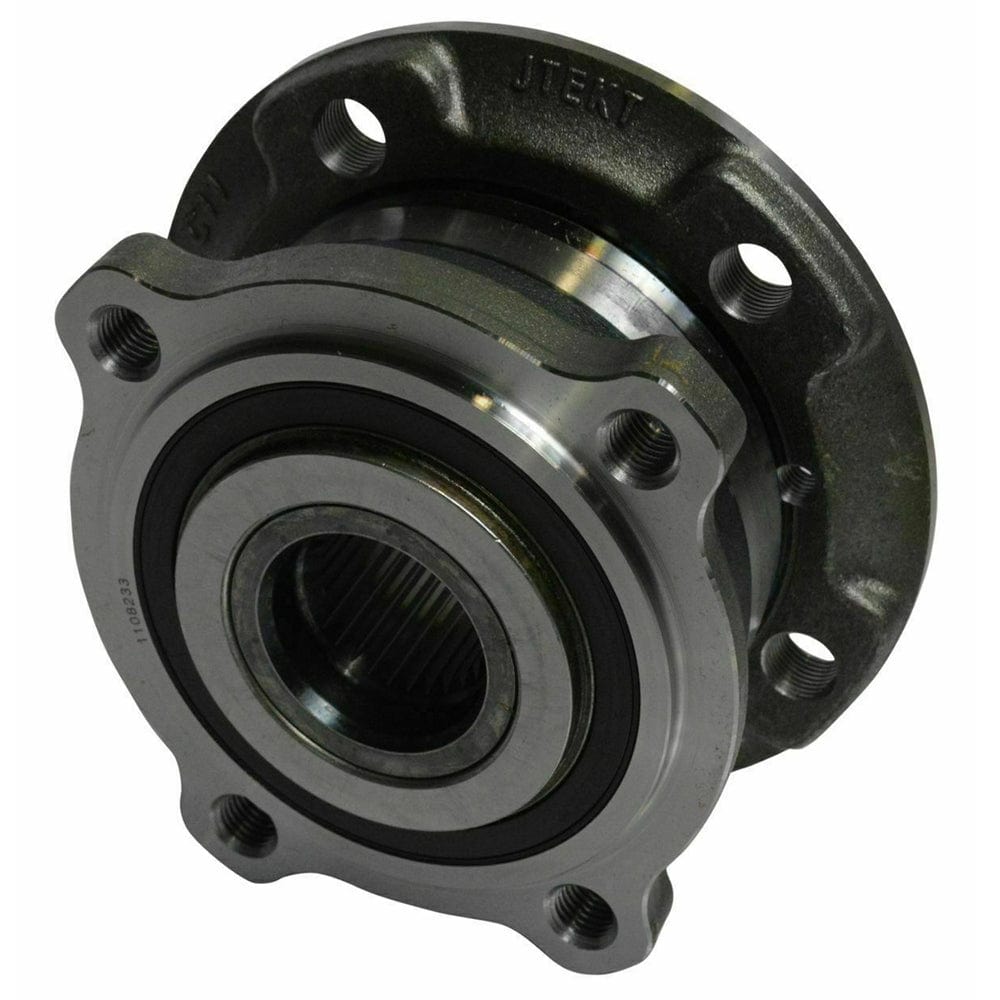

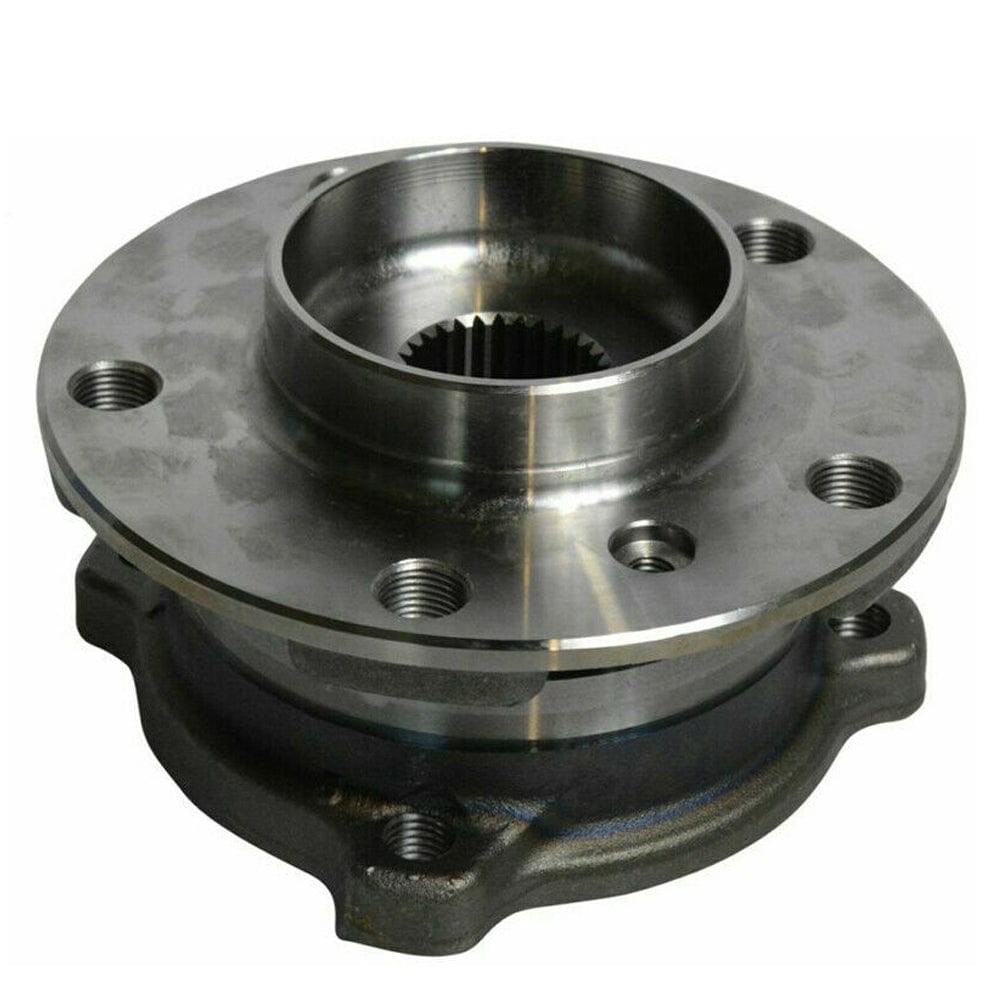

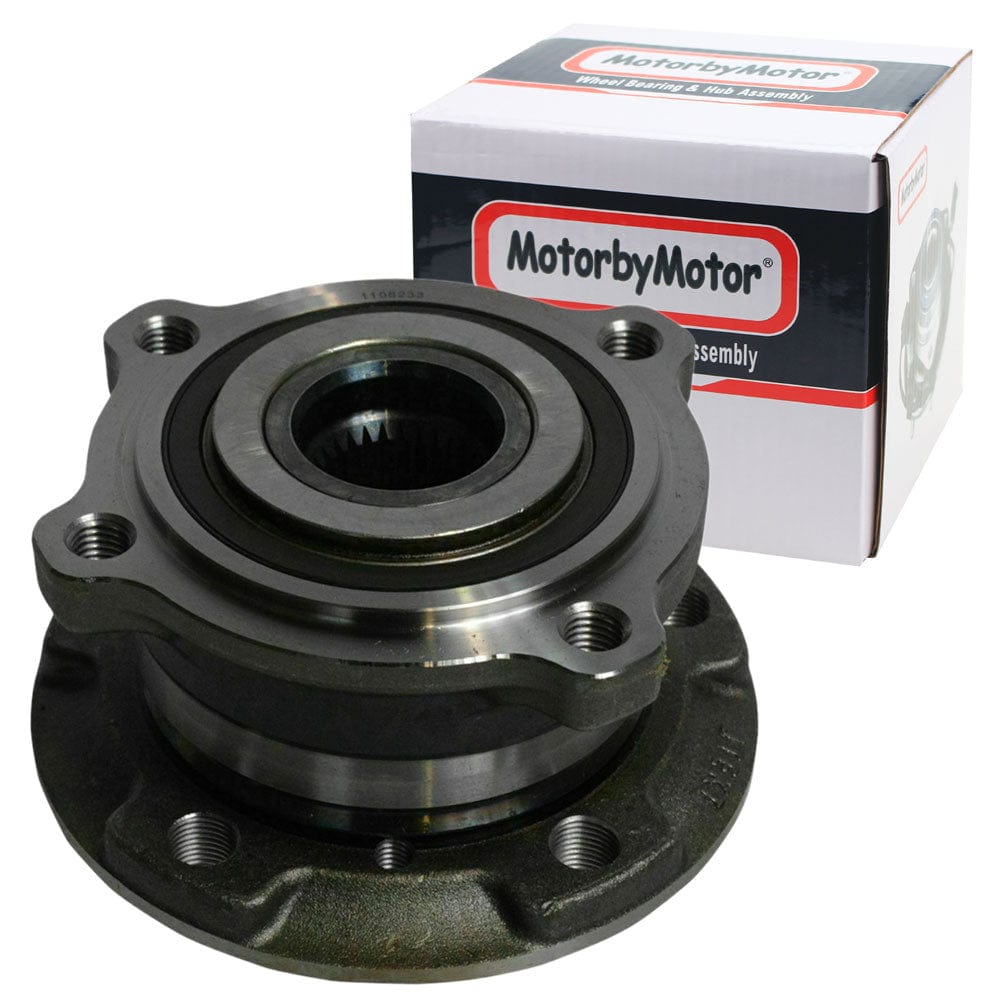

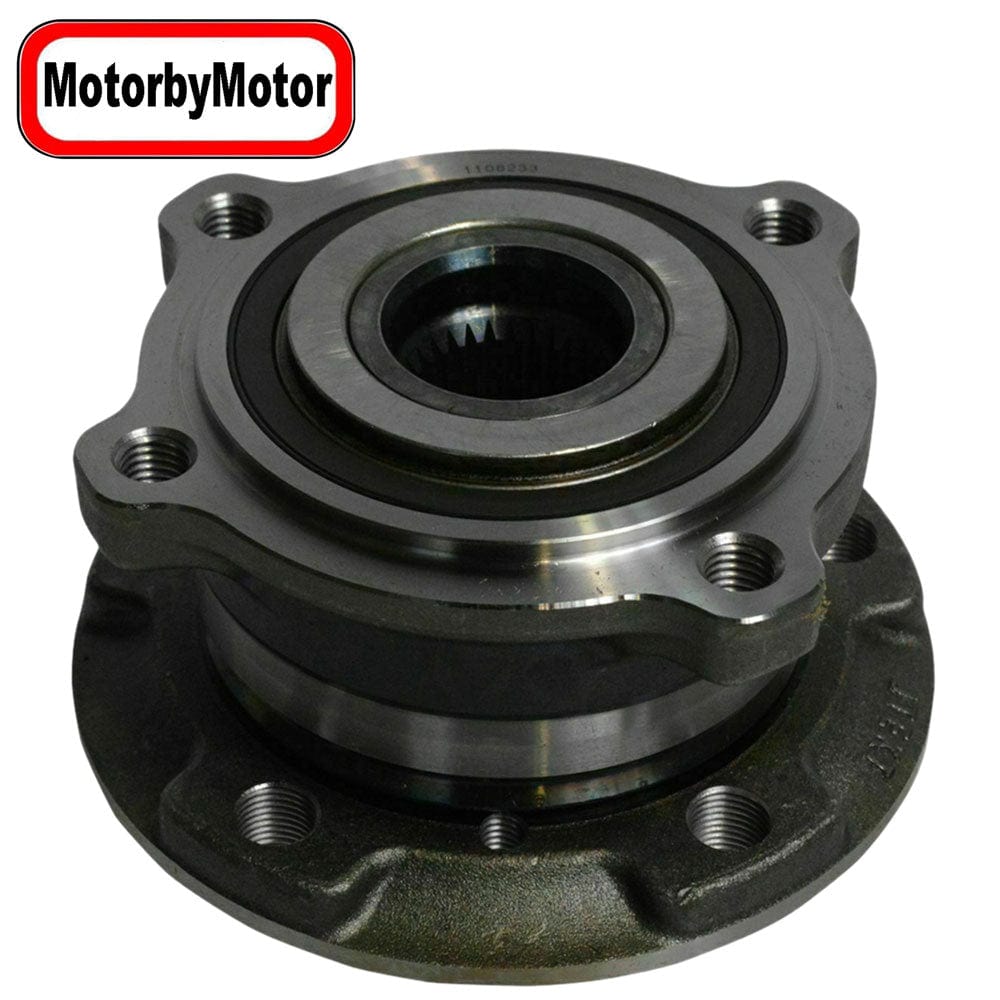

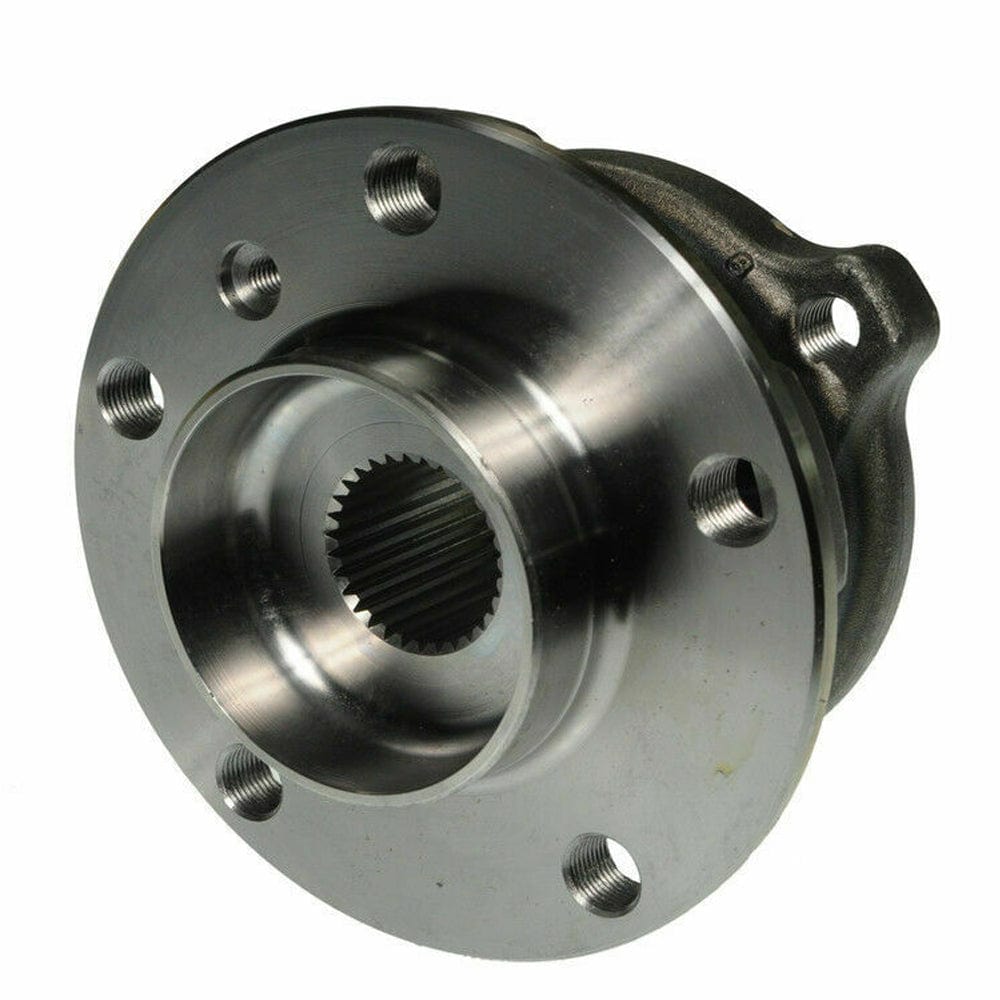

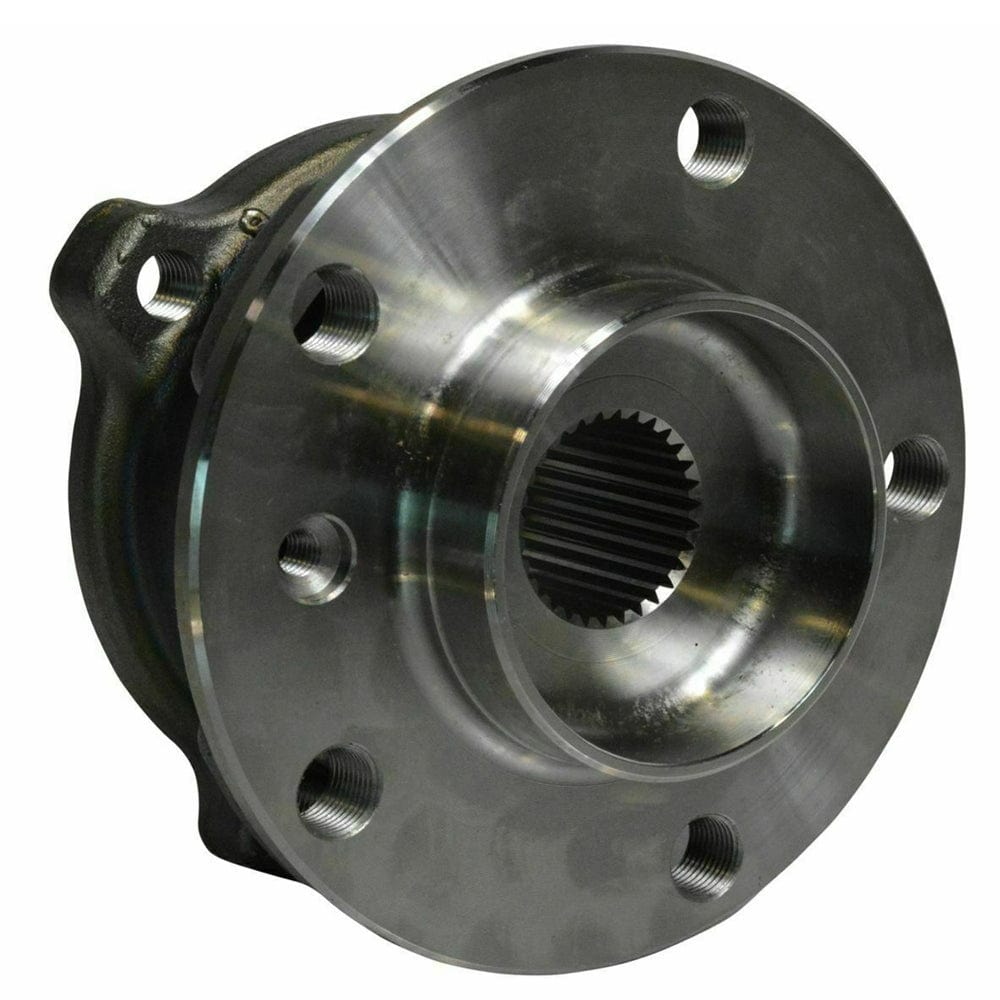

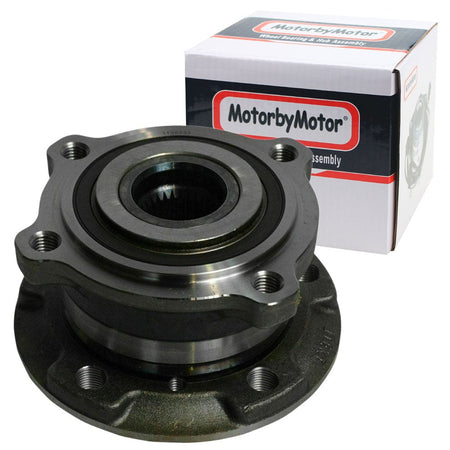

Front Wheel Bearing Fit 2007-2016 BMW X5, 2008-2016 BMW X6 Wheel Hub AWD, 513305
Front Wheel Bearing Fit 2007-2016 BMW X5, 2008-2016 BMW X6 Wheel Hub AWD, 513305
Fit:
2007-2016 BMW X5 AWD
2007-2016 BMW X5 xDrive 35d
2007-2016 BMW X5 xDrive AWD
2007-2016 BMW X5 xDrive35D AWD
2007-2016 BMW X5 xDrive35d AWD
2007-2016 BMW X5 xDrive35i
2007-2016 BMW X5 xDrive35i AWD
2007-2016 BMW X5 xDrive40e AWD
2007-2016 BMW X5 xDrive50i
2007-2016 BMW X5 xDrive50i AWD
2008-2016 BMW X6 AWD
2008-2016 BMW X6 xDrive AWD
2008-2016 BMW X6 xDrive35i AWD
2008-2016 BMW X6 xDrive50i AWD
Description:
Position: Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: No
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Driven Or Non-Driven: Driven
Number Of Splines: 30
Lug Bolt Thread Size: M14-1.25
Total Hub Diameter (in): 5.668 Inch
Total Hub Diameter (mm): 143.967mm
Total Hub Height (in): 3.478 Inch
Total Hub Height (mm): 88.341mm
Flange Diameter (in): 5.668 Inch
Flange Diameter (mm): 143.97mm
Flange Offset (in): 2.365 Inch
Flange Offset (mm): 60.071mm
Flange Shape: Trapezoid
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in):? 3.857 Inch
Hub Pilot Diameter (mm):? 97.968mm
