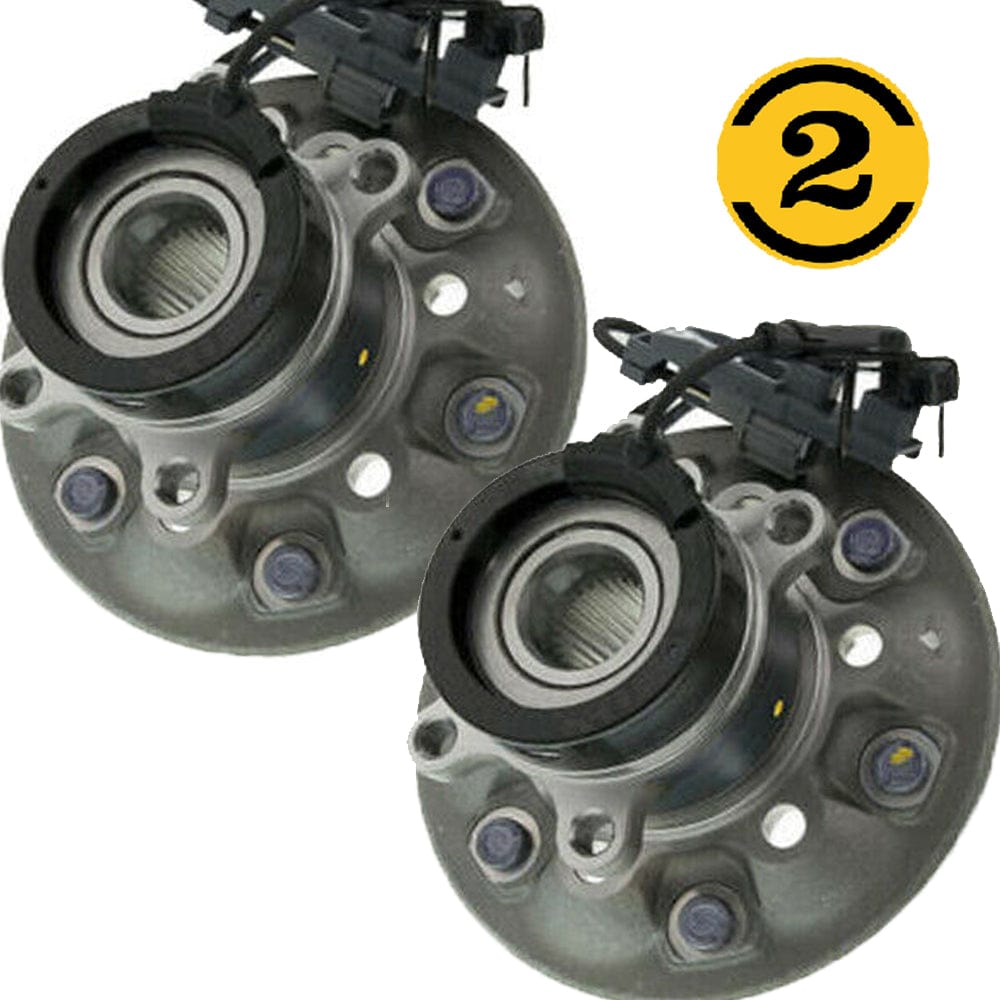

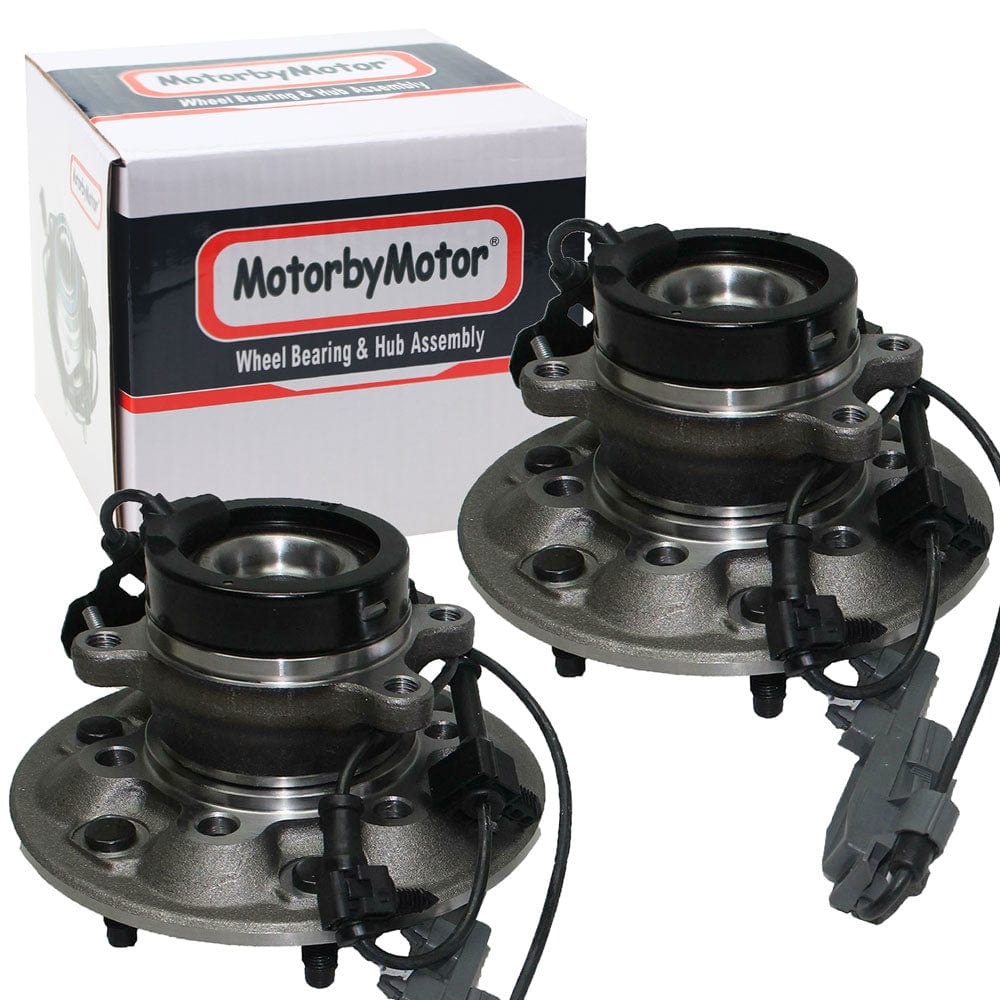

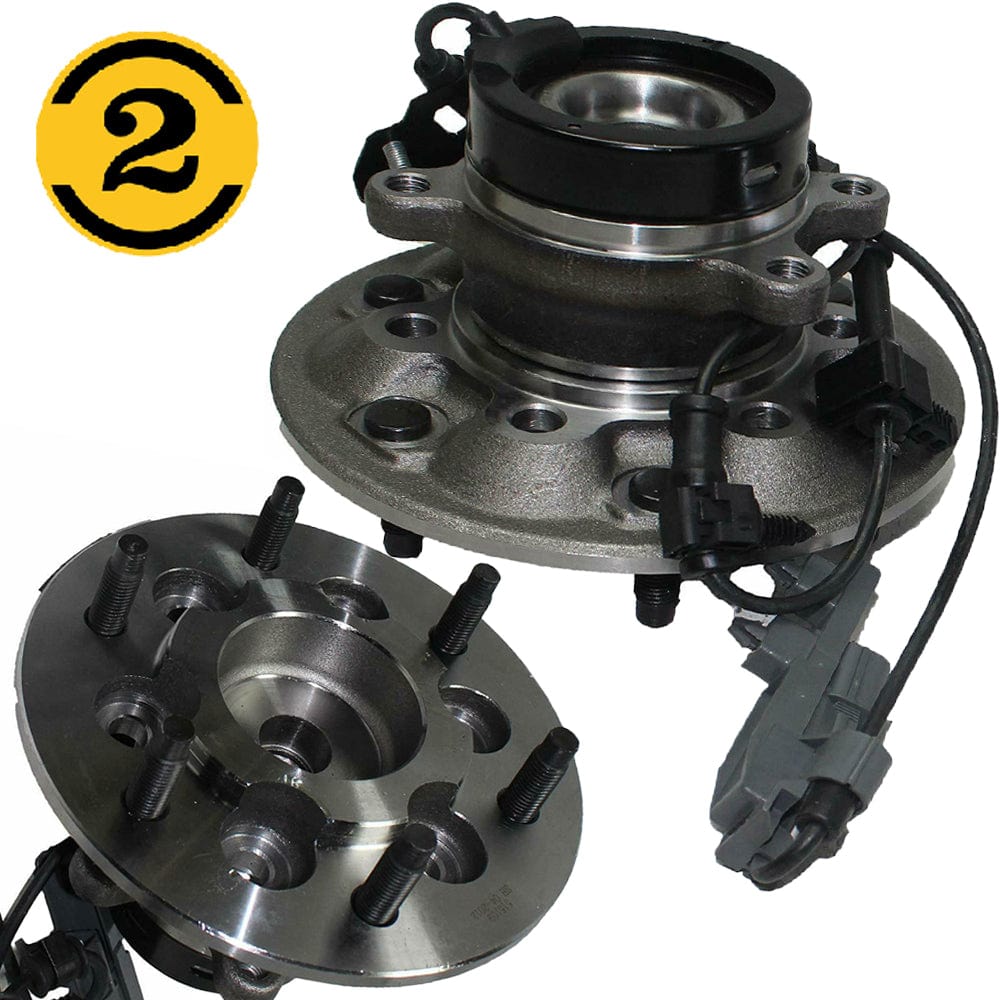

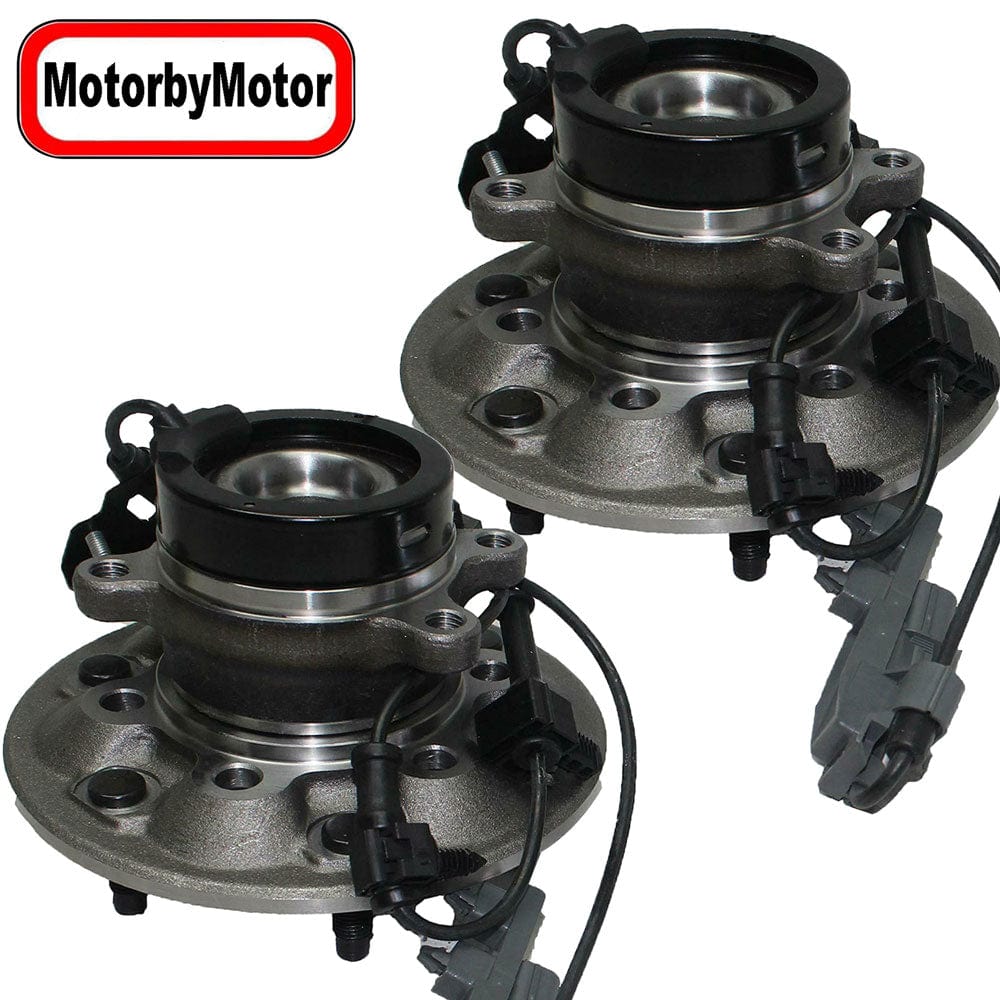

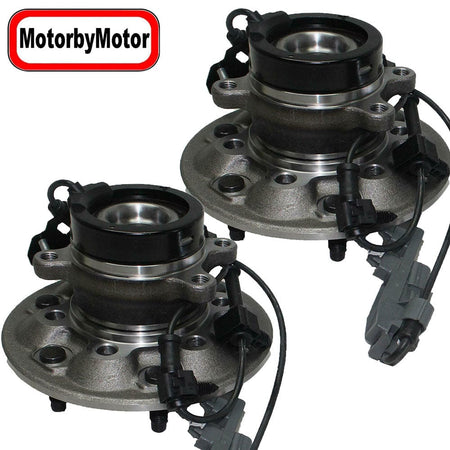

Front Wheel Bearing Fit Fit 2004-2008 Chevrolet Colorado GMC Canyon, Wheel Hub w/ABS, 6 Lugs, 515108 515109
Front Wheel Bearing Fit Fit 2004-2008 Chevrolet Colorado GMC Canyon, Wheel Hub w/ABS, 6 Lugs, 515108 515109
Fit:
2004 2005 2006 2007 2008 Chevy Colorado 2WD
2004 2005 2006 2007 2008 GMC Canyon 2WD
2007 2008 Isuzu I-370 2WD
Description:
Position: Driver(LH Left) and Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Square
Wiring Harness Included: Yes
Wiring Harness Length (in): 34.55 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 6
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Magnetic
Number Of ABS Sensor Ring Teeth: 50
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 7.244 Inch
Total Hub Diameter (mm): 184mm
Hub Centerbore Diameter (in): 5.5 Inch
Hub Centerbore Diameter (mm): 139.7mm
Total Hub Height (in): 4.944 Inch
Total Hub Height (mm): 125.6mm
Flange Diameter (in): 7.244 Inch
Flange Diameter (mm): 184mm
Flange Offset (in): 2.645 Inch
Flange Offset (mm): 67.2mm
Flange Shape: Rectangle
Flange Bolt Size (in): 1.322 Inch
Flange Bolt Size (mm): 33.6mm
Outer Ring Width (in): 2.36 Inch
Inner Ring Width (in): 1.18 Inch
Hub Pilot Diameter (in): 3.937 Inch
Hub Pilot Diameter (mm): 100mm
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Tapered
