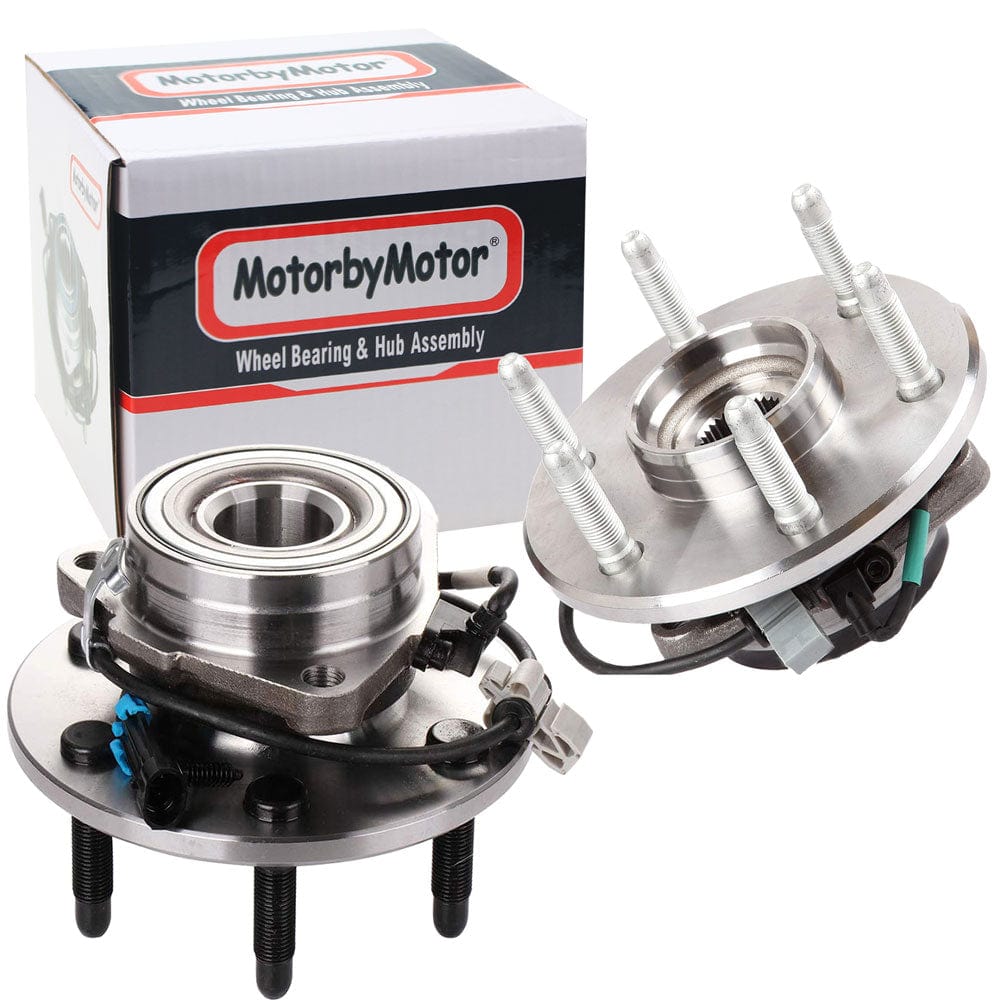

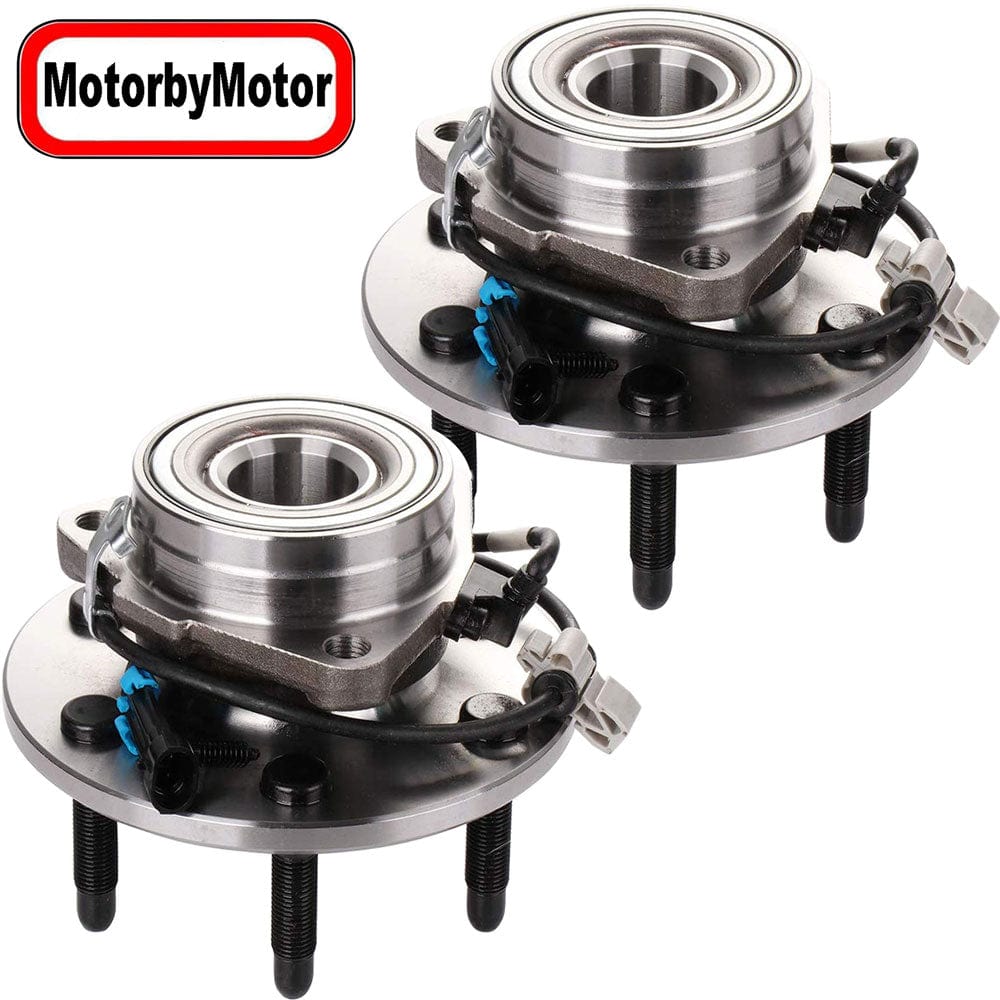

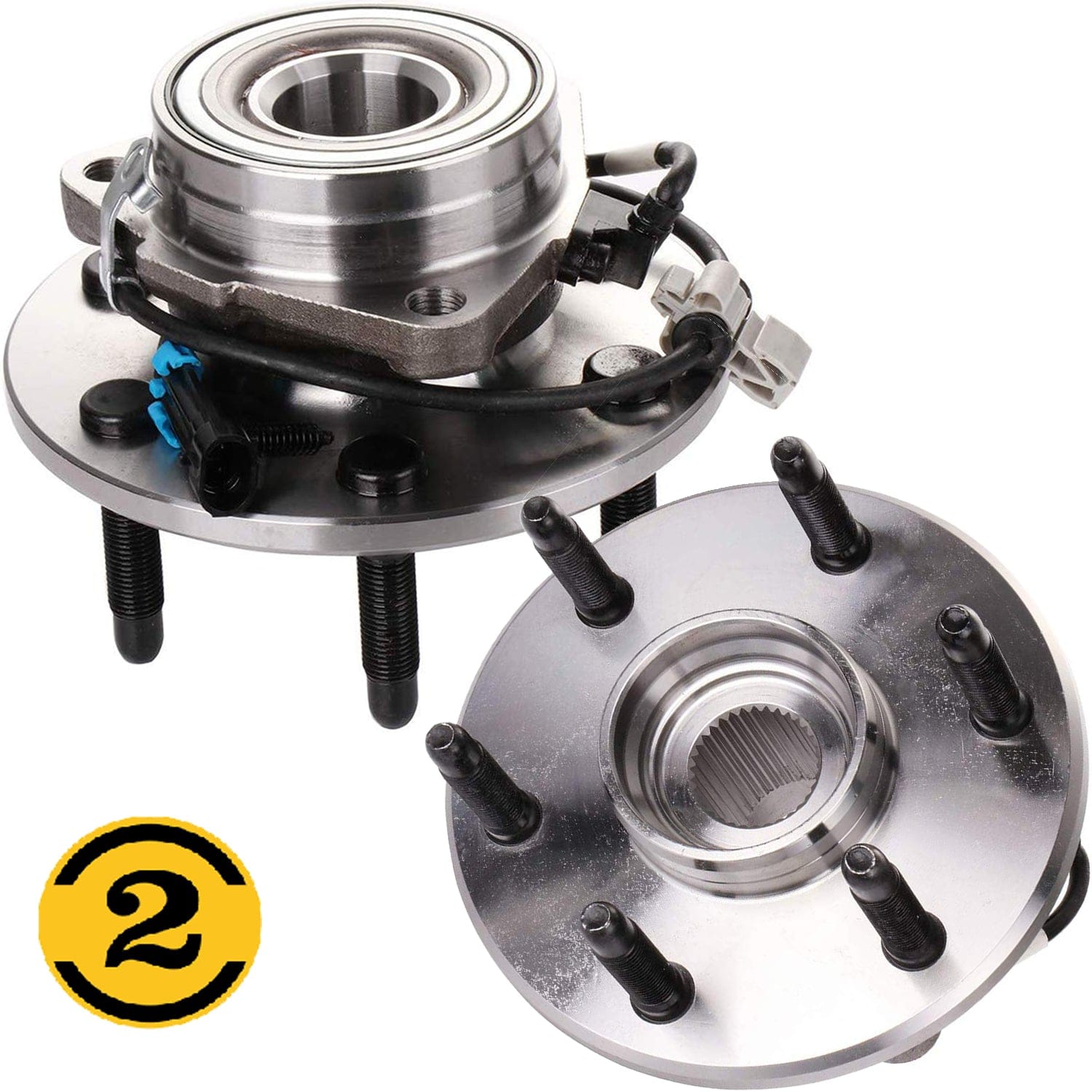

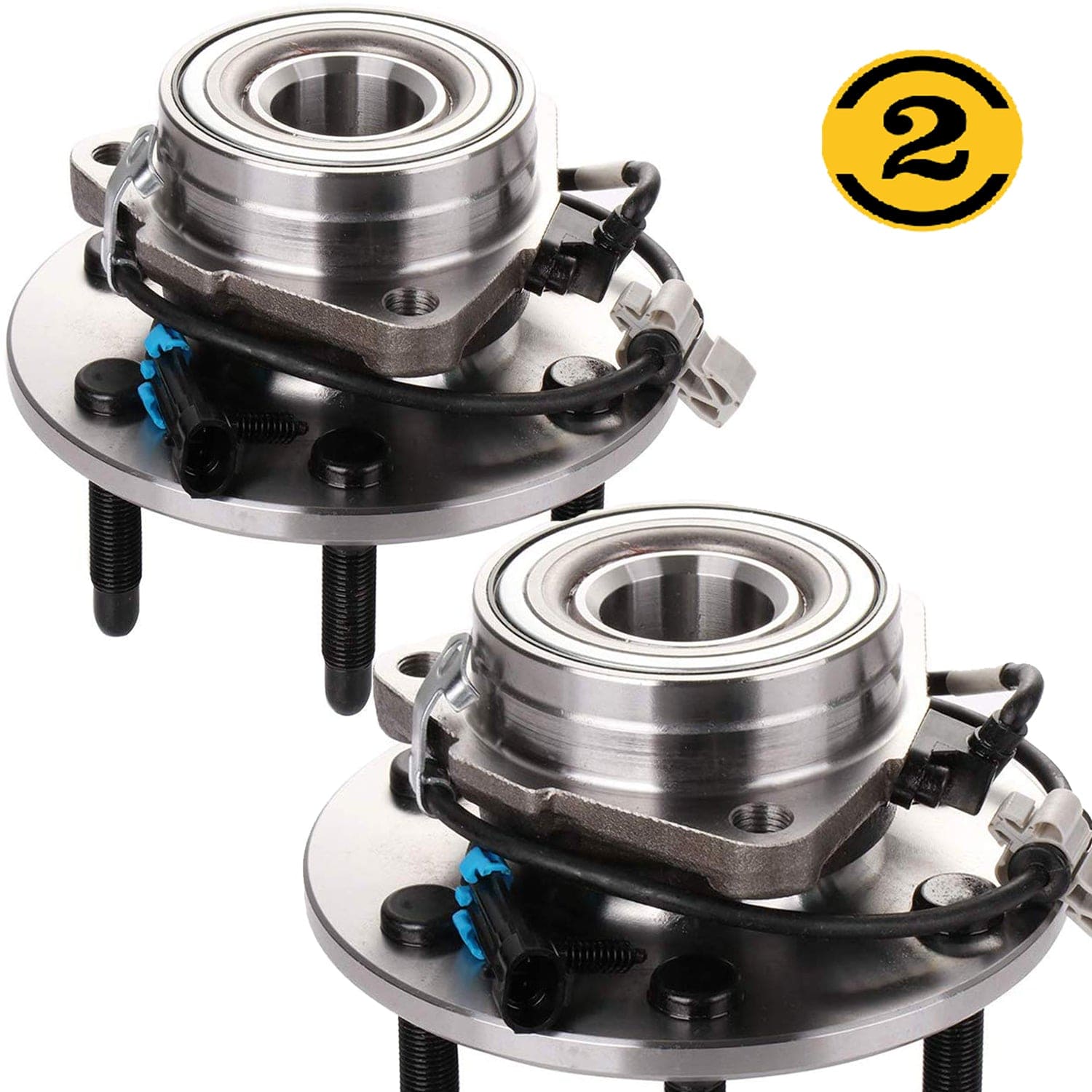

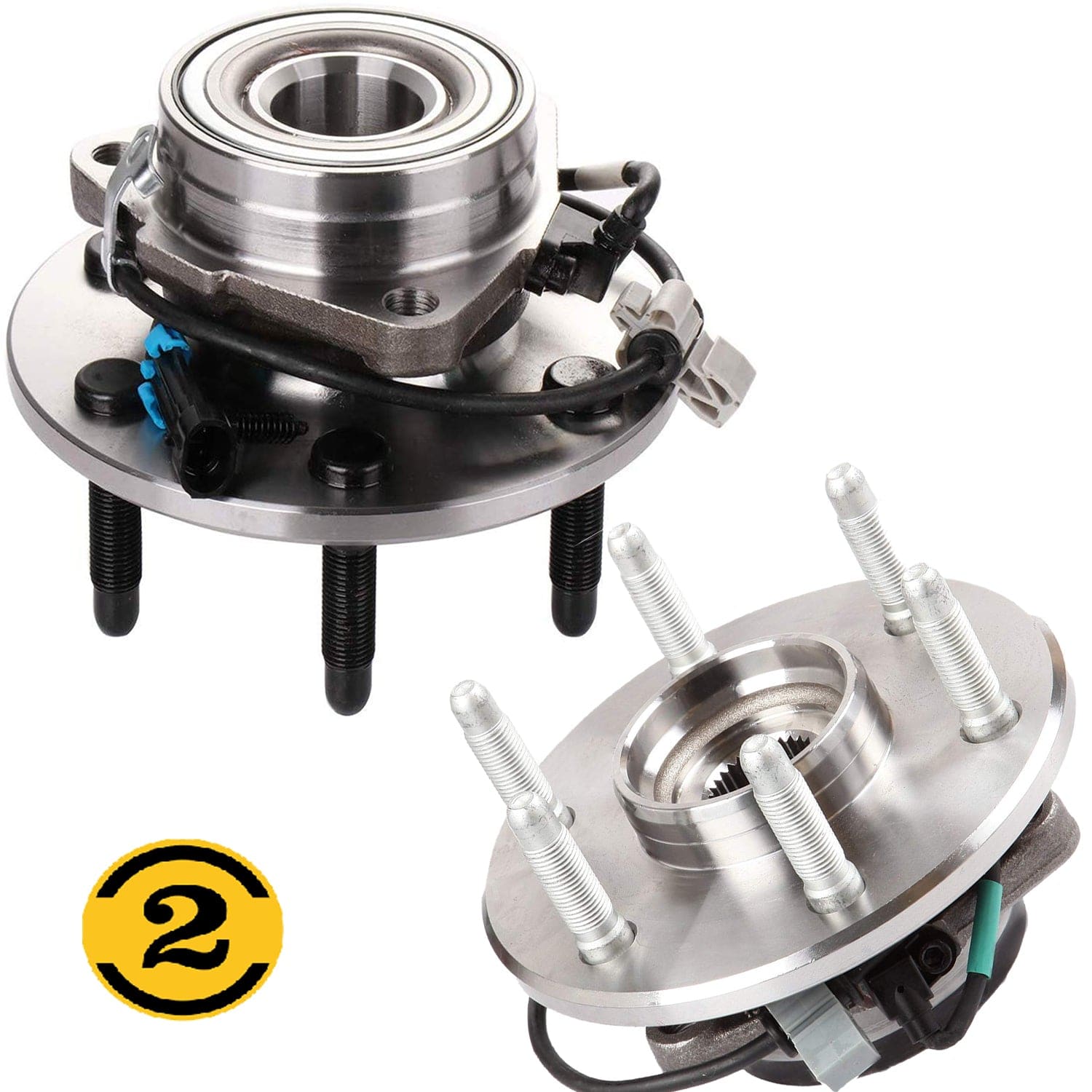

Front Wheel Bearing Fit 2003-2005 Chevrolet Astro GMC Safari Wheel Hub 6 Lugs w/ABS AWD, 515091 & 515092 (2 Pack)

Front Wheel Bearing Fit 2003-2005 Chevrolet Astro GMC Safari Wheel Hub 6 Lugs w/ABS AWD, 515091 & 515092 (2 Pack)

Fit:
2003-2005 Chevrolet Astro(Front, AWD)
2003-2005 GMC Safari(Front, AWD)

Description:

Position: Driver(LH Left) and Passenger (RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 28.74 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 6
Driven Or Non-Driven: Driven
Number Of Splines: 55
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: M14-1.50
Total Hub Diameter (in): 7.086 Inch
Total Hub Diameter (mm): 180mm
Hub Centerbore Diameter (in): 5.5 Inch
Hub Centerbore Diameter (mm): 139.7mm
Total Hub Height (in): 5.137 Inch
Total Hub Height (mm): 130.5mm
Flange Diameter (in): 7.047 Inch
Flange Diameter (mm): 179mm
Flange Offset (in): 1.952 Inch
Flange Offset (mm): 49.6mm
Flange Shape: Triangle
Flange Bolt Size (in): 2.133 Inch
Flange Bolt Size (mm): 54.2mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.082 Inch
Hub Pilot Diameter (mm): 78.3mm
