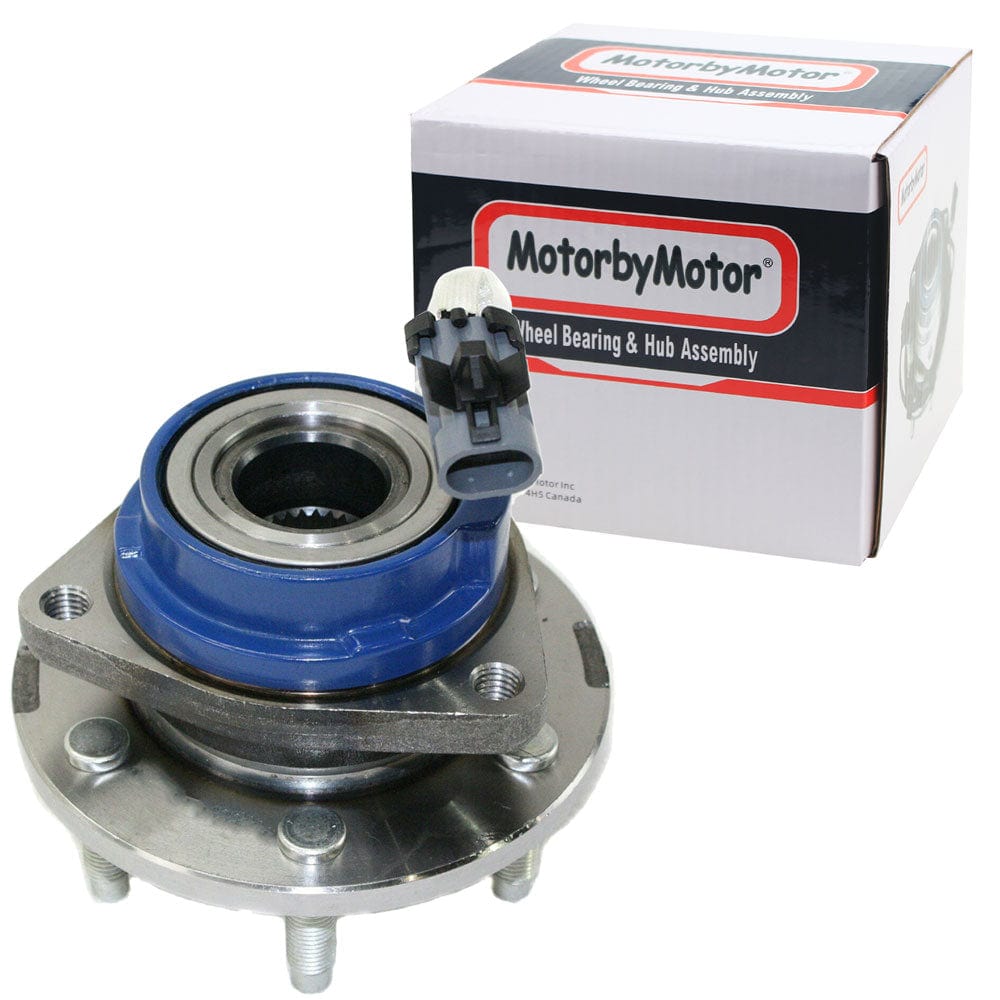

Front Wheel Bearing Hub Assembly Fit 2004 2005 2006 2007 2008 2009 Cadillac SRX Hub Bearing w/ABS, 6 Lugs AWD, Replace 513198

Front Wheel Bearing Hub Assembly Fit 2004-2009 Cadillac SRX Hub Bearing w/ABS, 6 Lugs AWD, Replace 513198

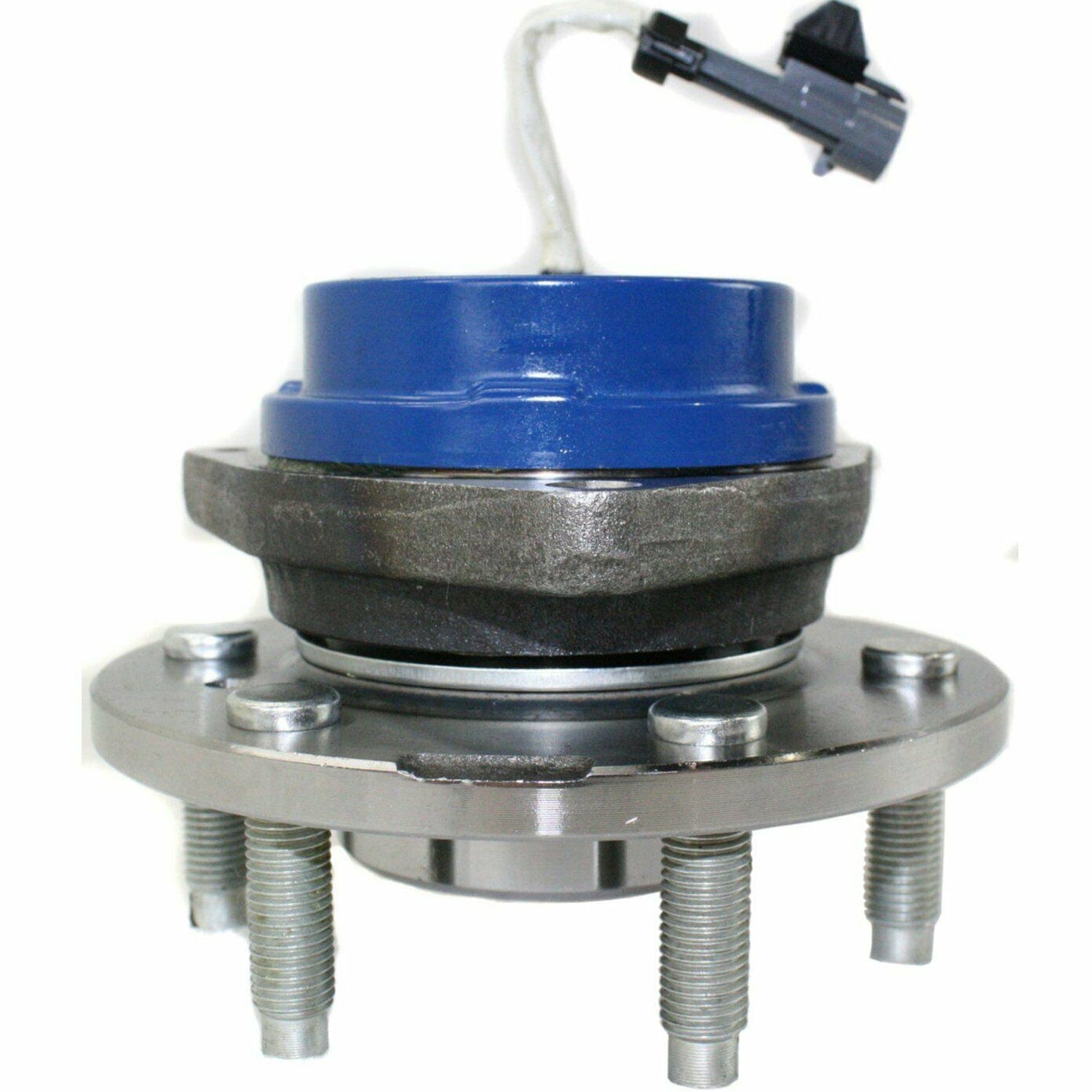

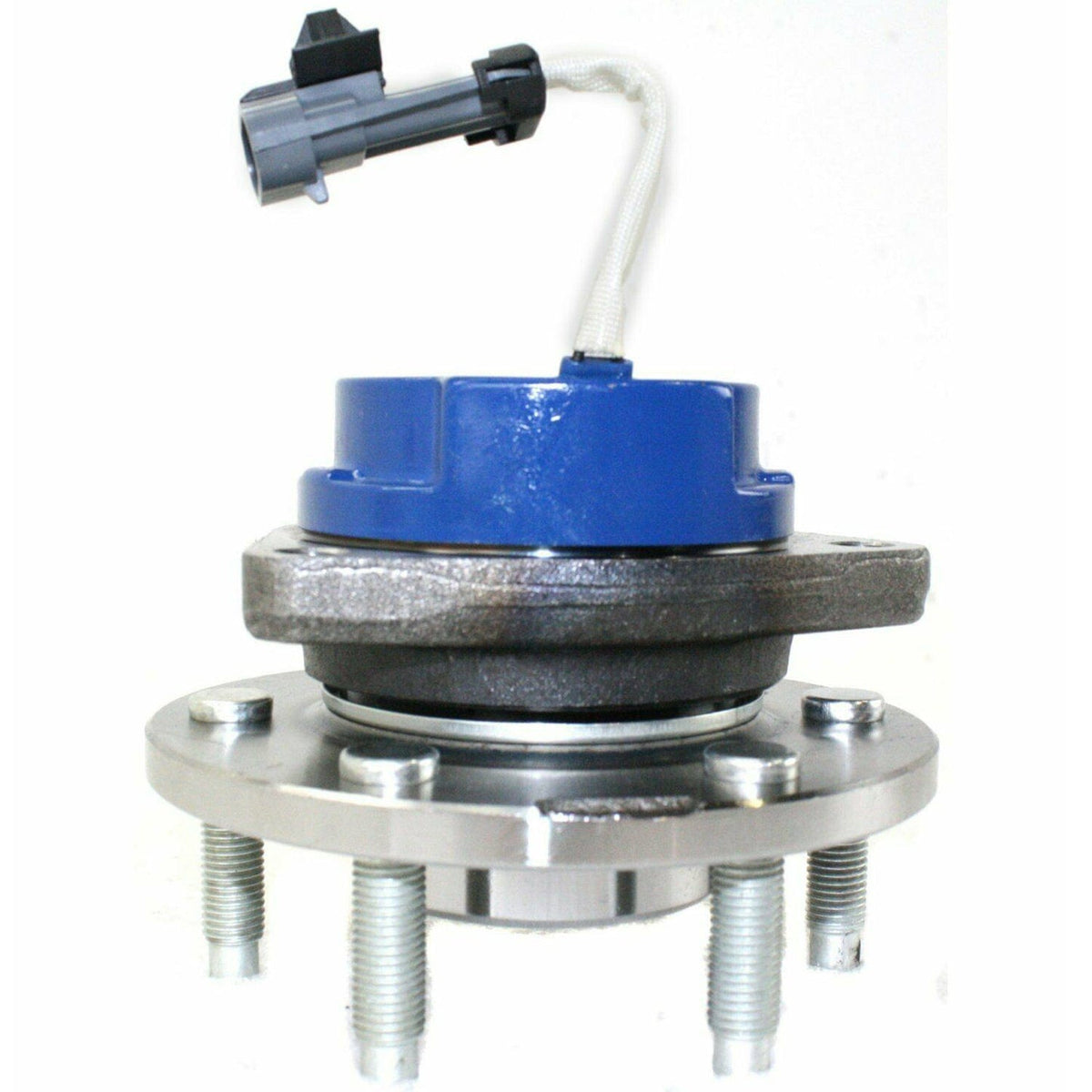

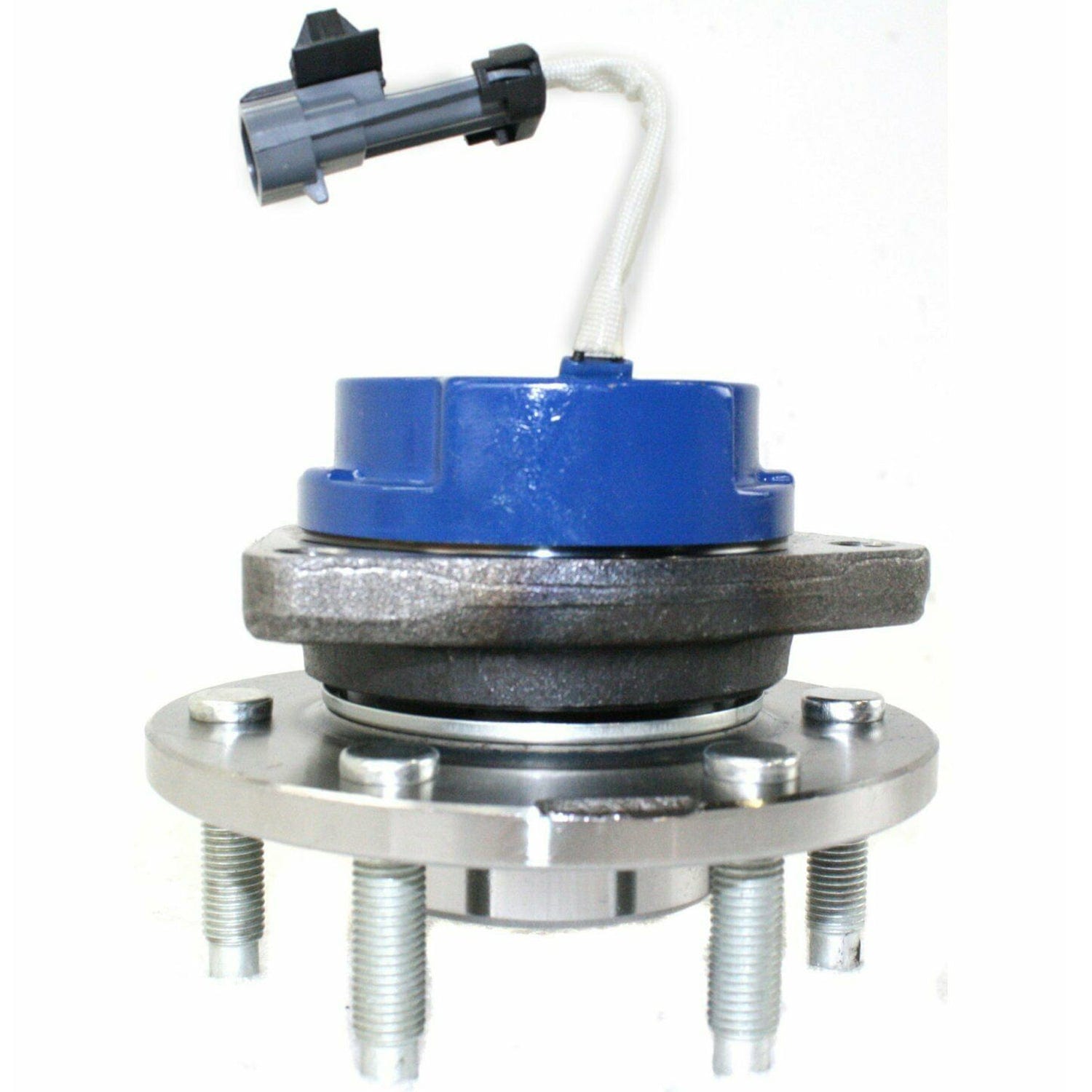

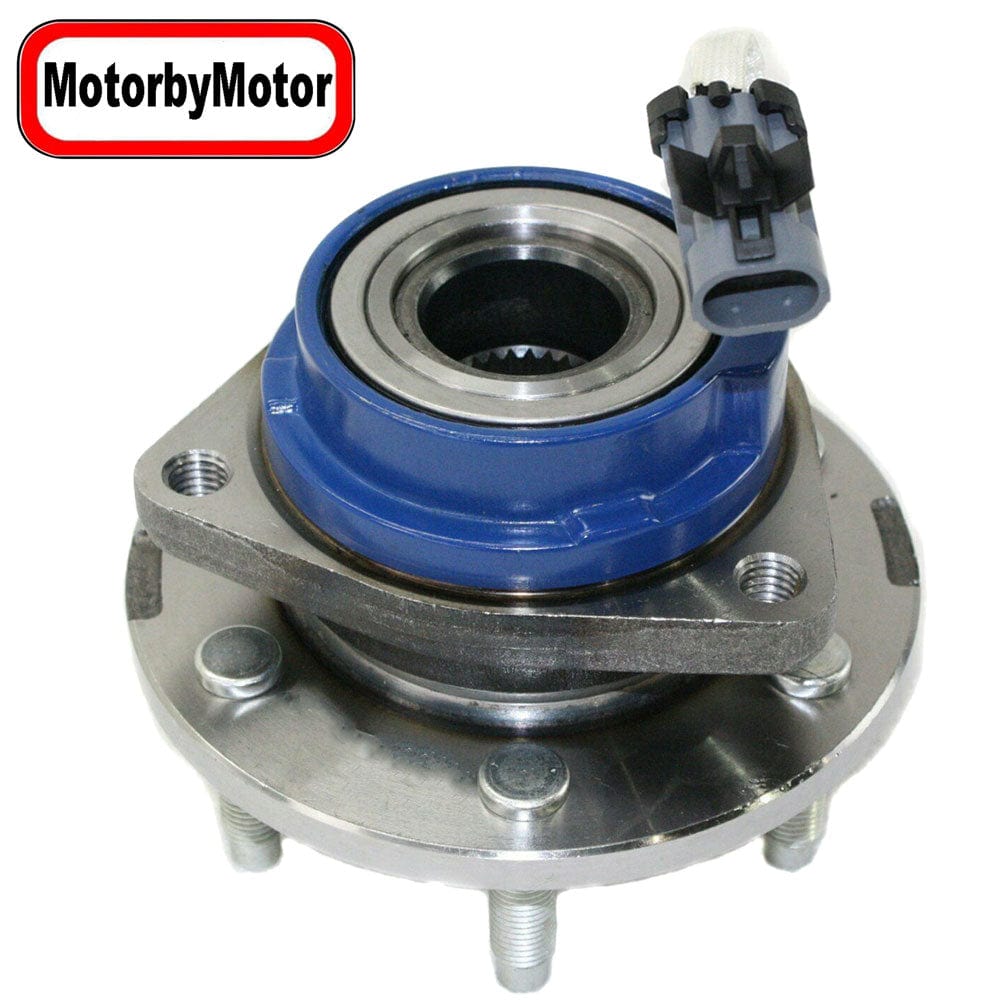

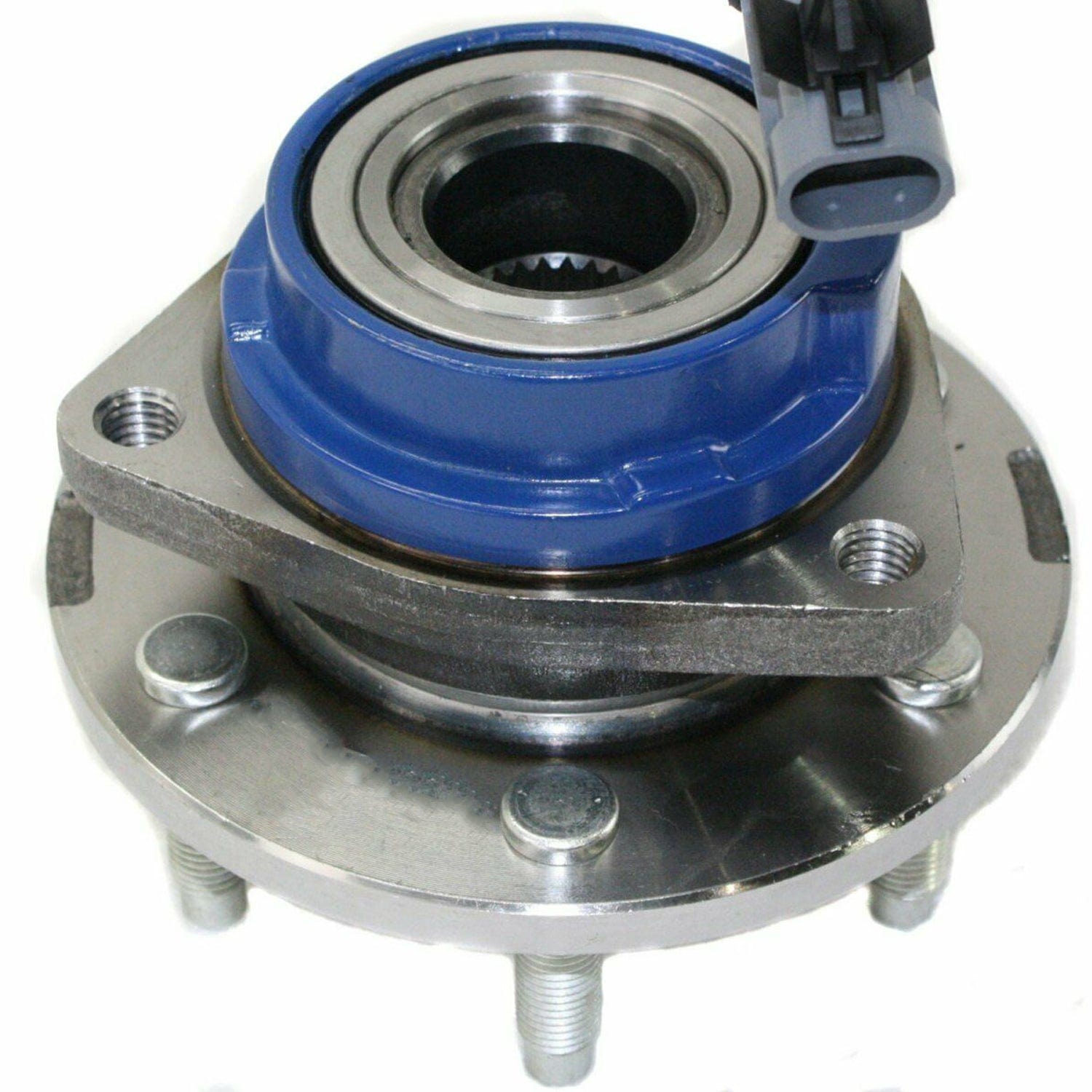

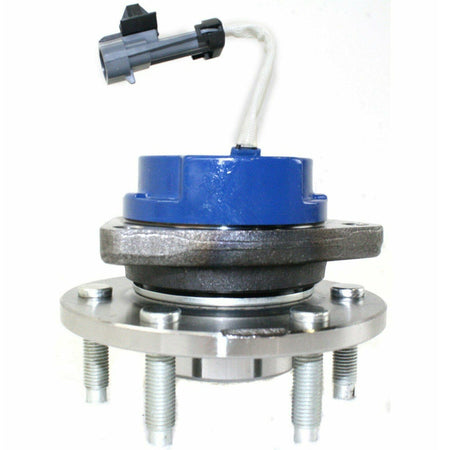

Front wheel hub assembly with ABS sensor for 2004-2009 Cadillac SRX AWD models. Durable steel construction with 6 lug bolts and 3 mounting bolts for secure fit.

What's Included

• 1 Front Wheel Bearing Hub Assembly (Driver or Passenger Side)
• ABS Sensor Included
• 6 Lug Bolts Included

Product Specifications

• Position: Driver (LH) or Passenger (RH) Side Front

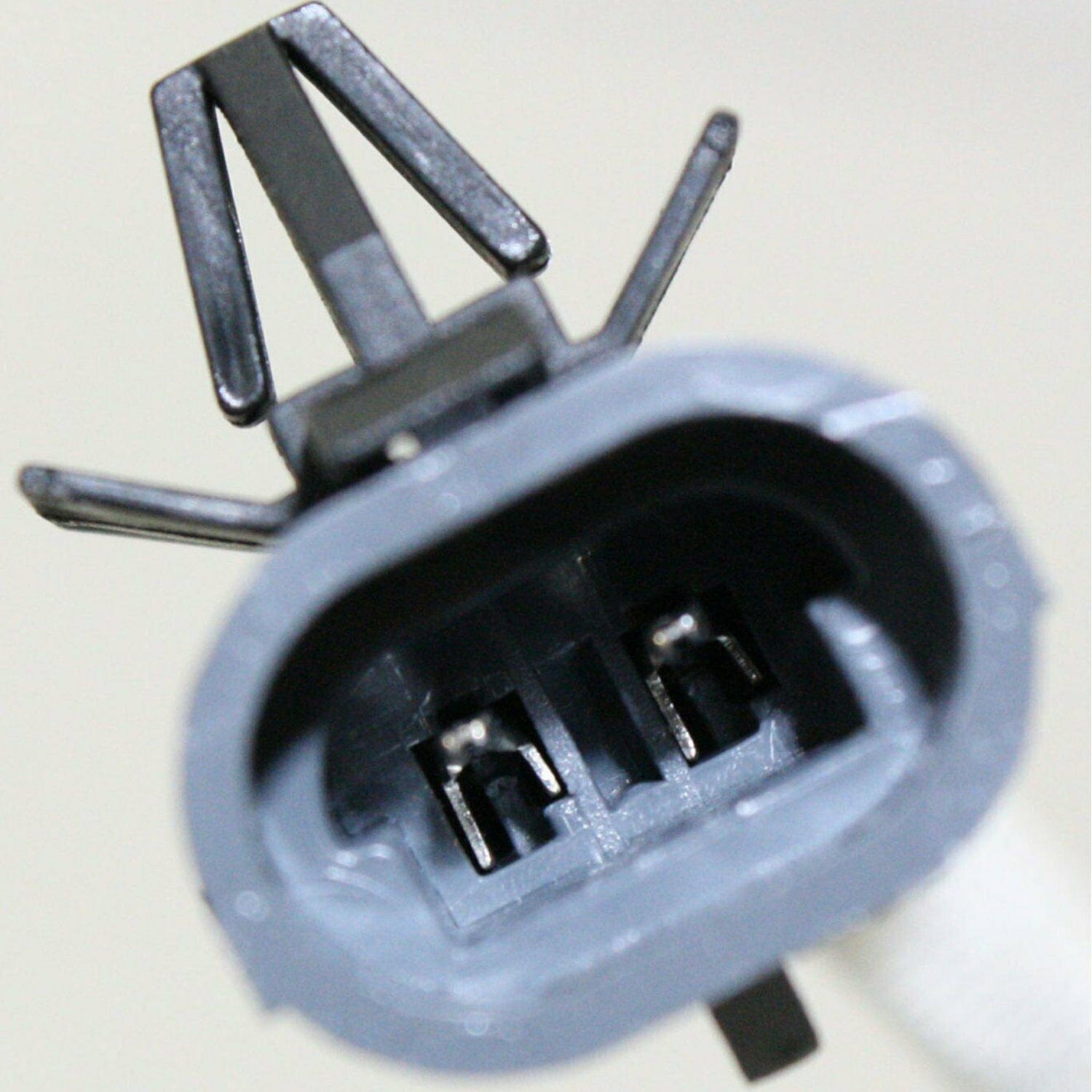

• ABS Connector Shape: Oval
• Mounting Bolts to Knuckle: 3
• Driven: Driven
• Number of Splines: 30
• ABS Sensor Ring Teeth: 47
• Total Hub Diameter: 5.73 Inch (145.5mm)
• Hub Centerbore Diameter: 4.53 Inch (115mm)
• Total Hub Height: 4.26 Inch (108.2mm)
• Flange Diameter: 2.78 Inch (70.6mm)
• Flange Offset: 1.65 Inch (42.01mm)
• Flange Bolt Size: 1.54 Inch (39.1mm), Thread M12-1.50
• Material: Steel
• Bearing Type: Ball
• Hub Pilot Diameter: 3.59 Inch (91.25mm)

Vehicle Compatibility
