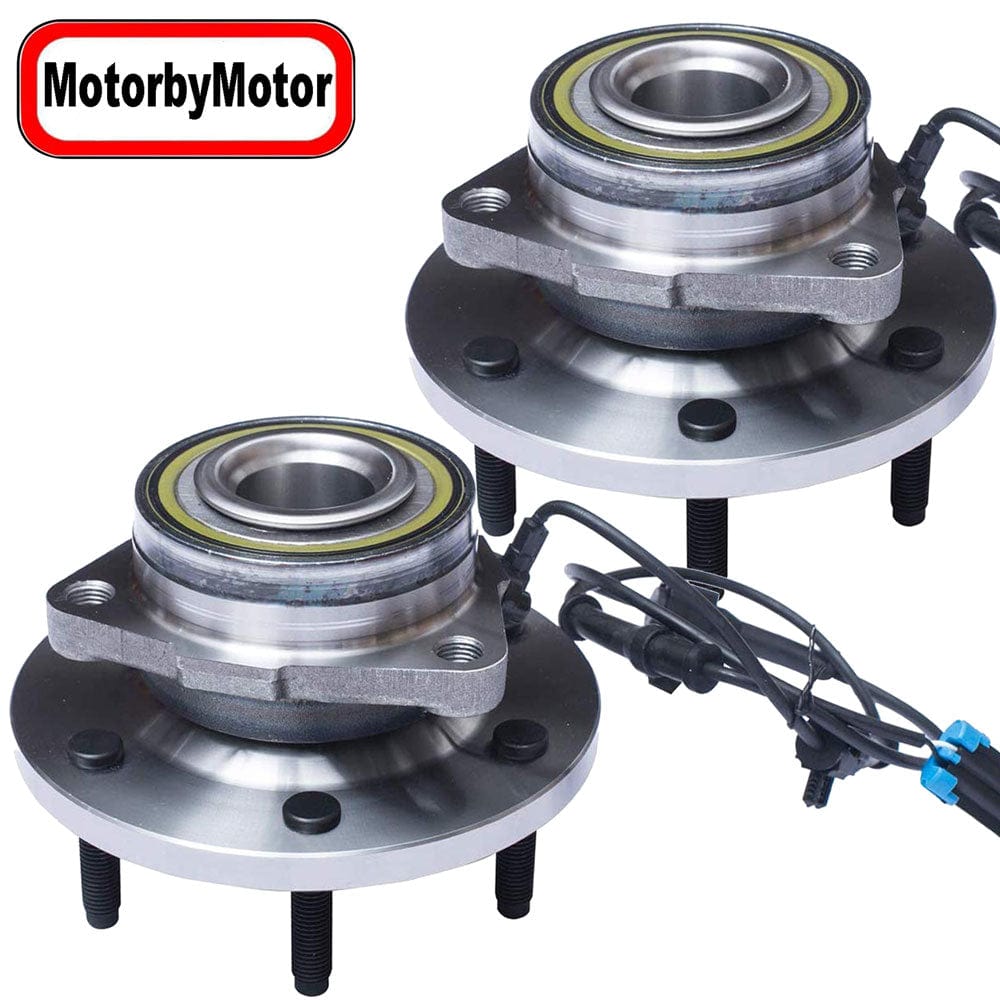

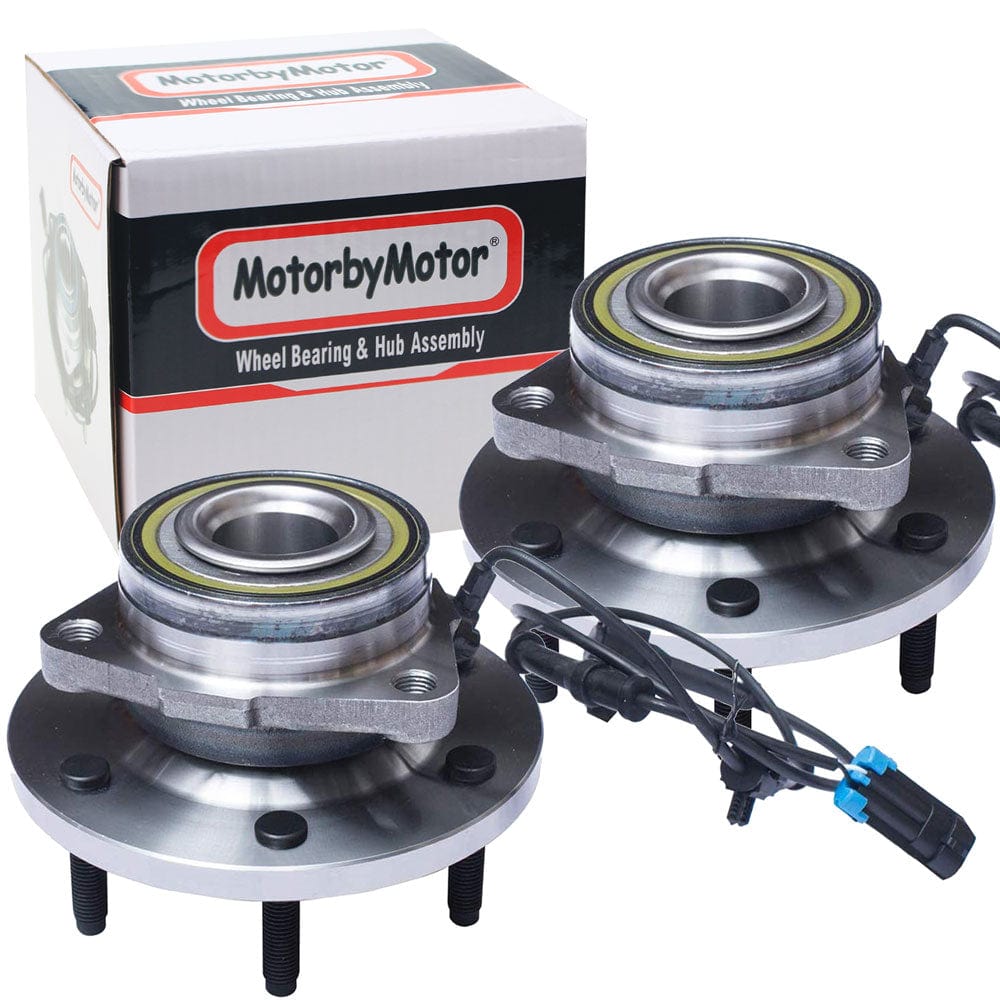

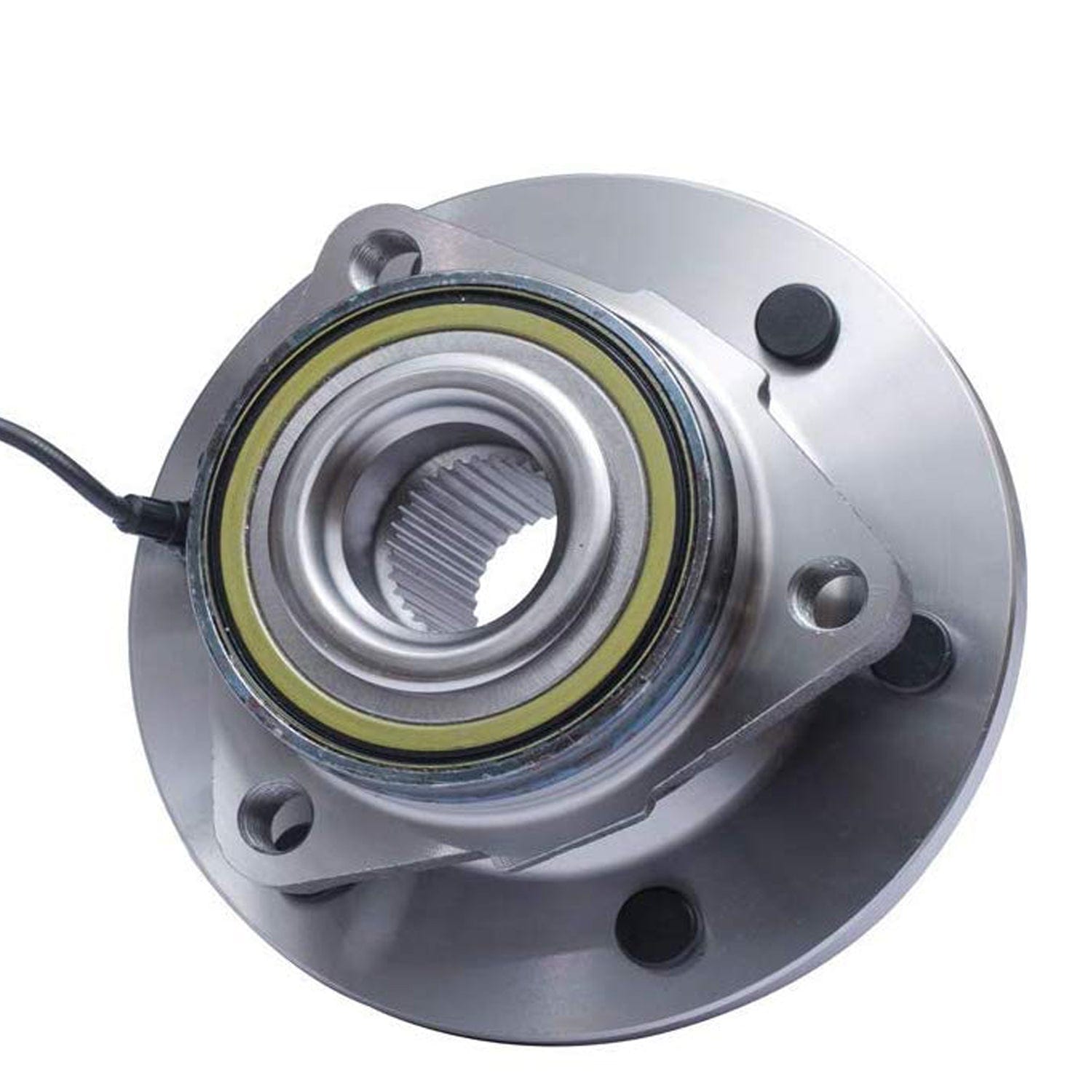

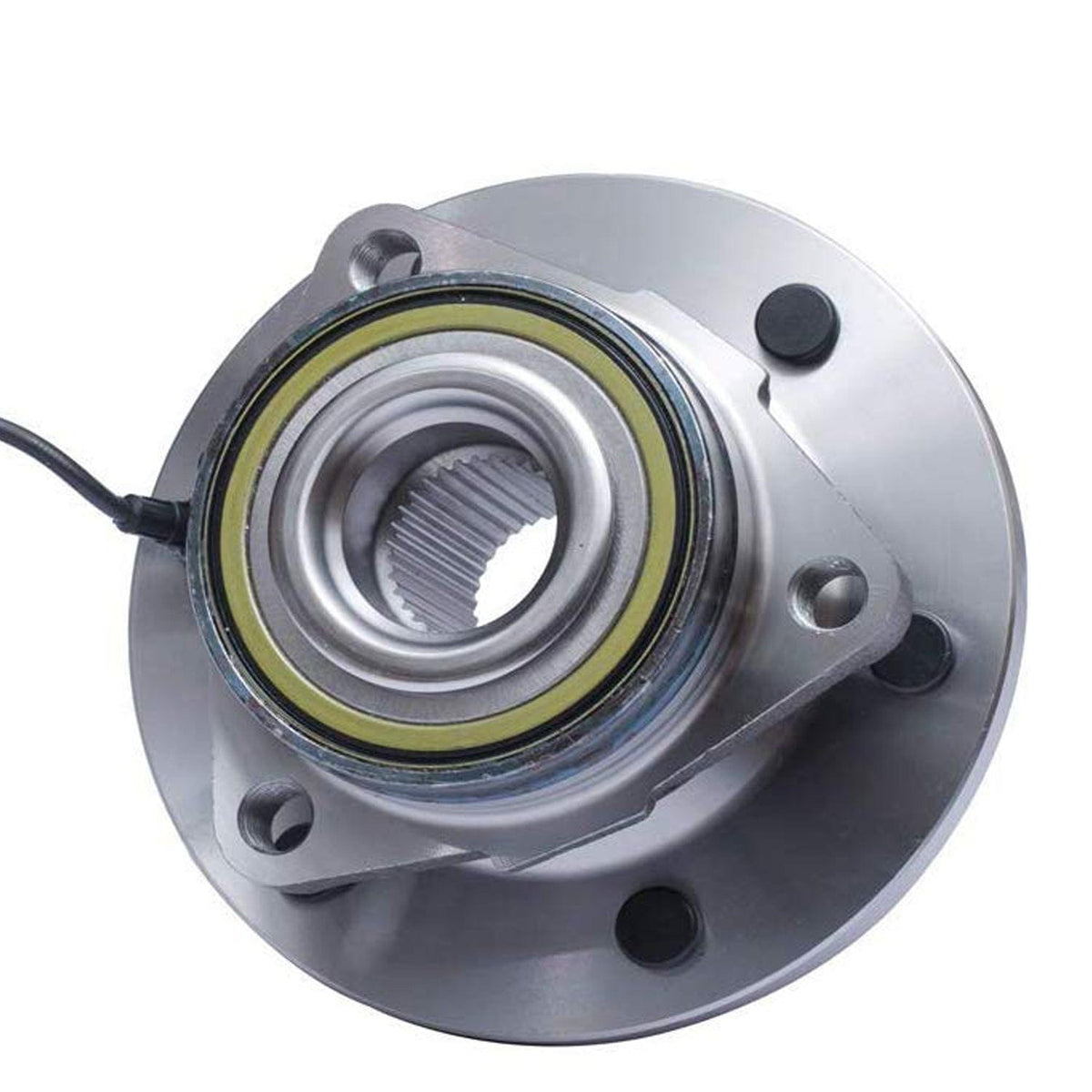

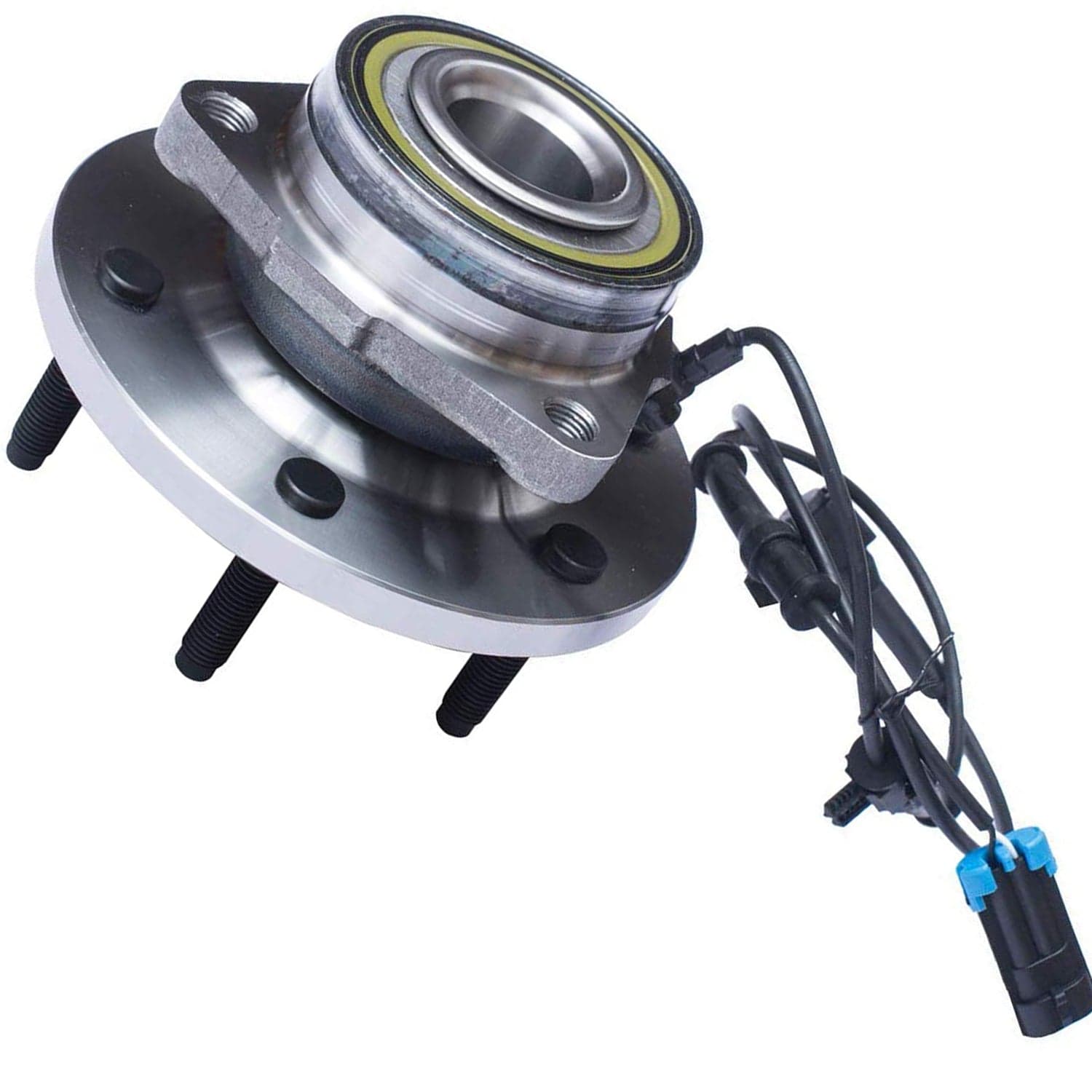

Front Wheel Bearing for 2006-2008 Hummer H3 Hub Wheel Hub w/ABS, 6 Lugs, 515093 (2 PACKs)
Front Wheel Bearing for 2006-2008 Hummer H3 Hub Wheel Hub w/ABS, 6 Lugs, 515093 (2 PACKs)
Fit:
2006 2007 2008 Hummer H3
Description:
Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes

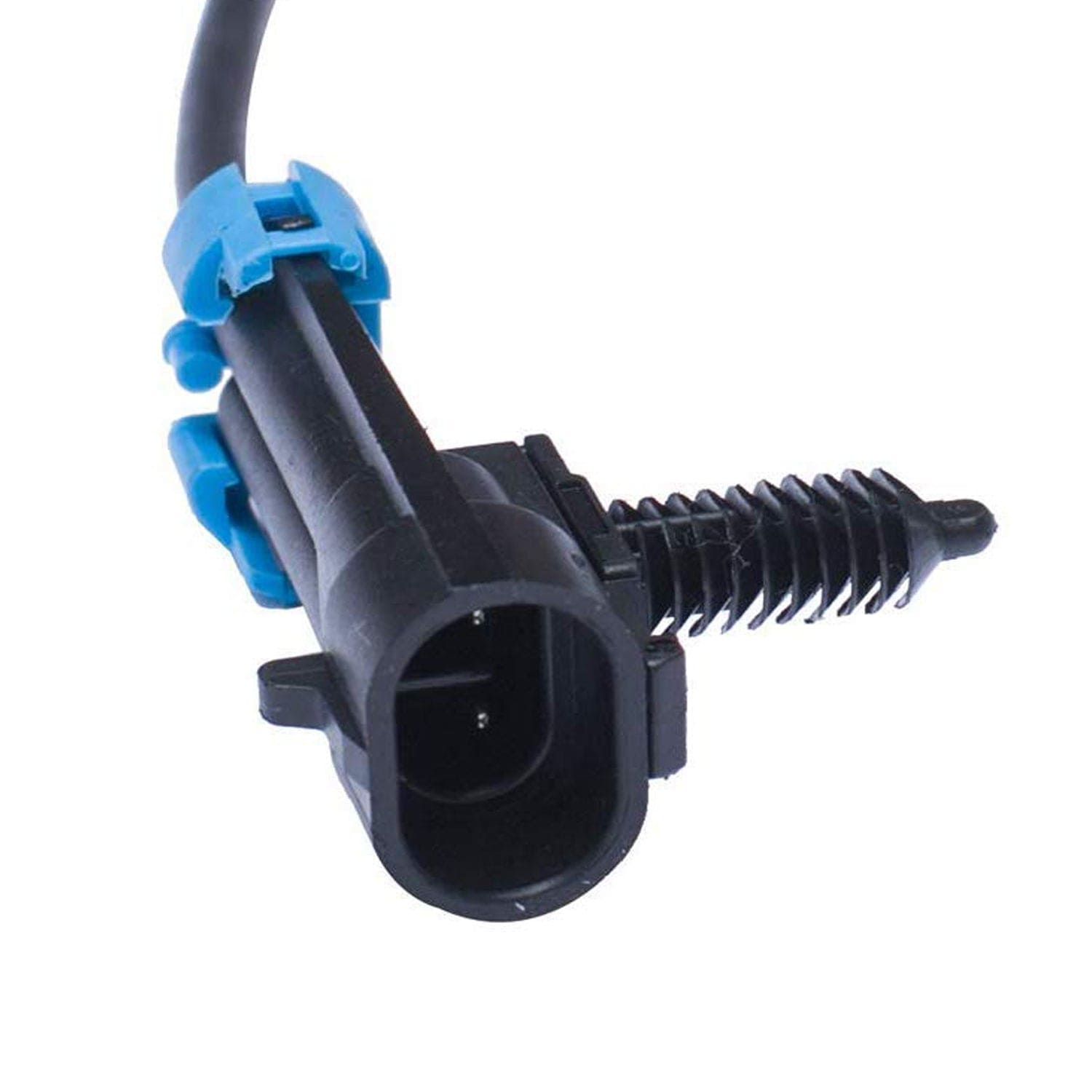

Wiring Harness Included: Yes
Wiring Harness Length (in): 39.17 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 55
Total Hub Diameter (in): 7.02 Inch
Total Hub Diameter (mm): 178.4mm
Hub Centerbore Diameter (in): 5.5 Inch
Hub Centerbore Diameter (mm): 139.7mm
Total Hub Height (in): 4.83 Inch
Total Hub Height (mm): 122.6mm
Flange Diameter (in): 3.96 Inch
Flange Diameter (mm): 100.65mm
Flange Offset (in): 1.96 Inch
Flange Offset (mm): 49.8mm
Flange Shape: Round
Flange Bolt Size (in): 1.65 Inch
Flange Bolt Size (mm): 42mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.91 Inch
Hub Pilot Diameter (mm): 99.3mm
