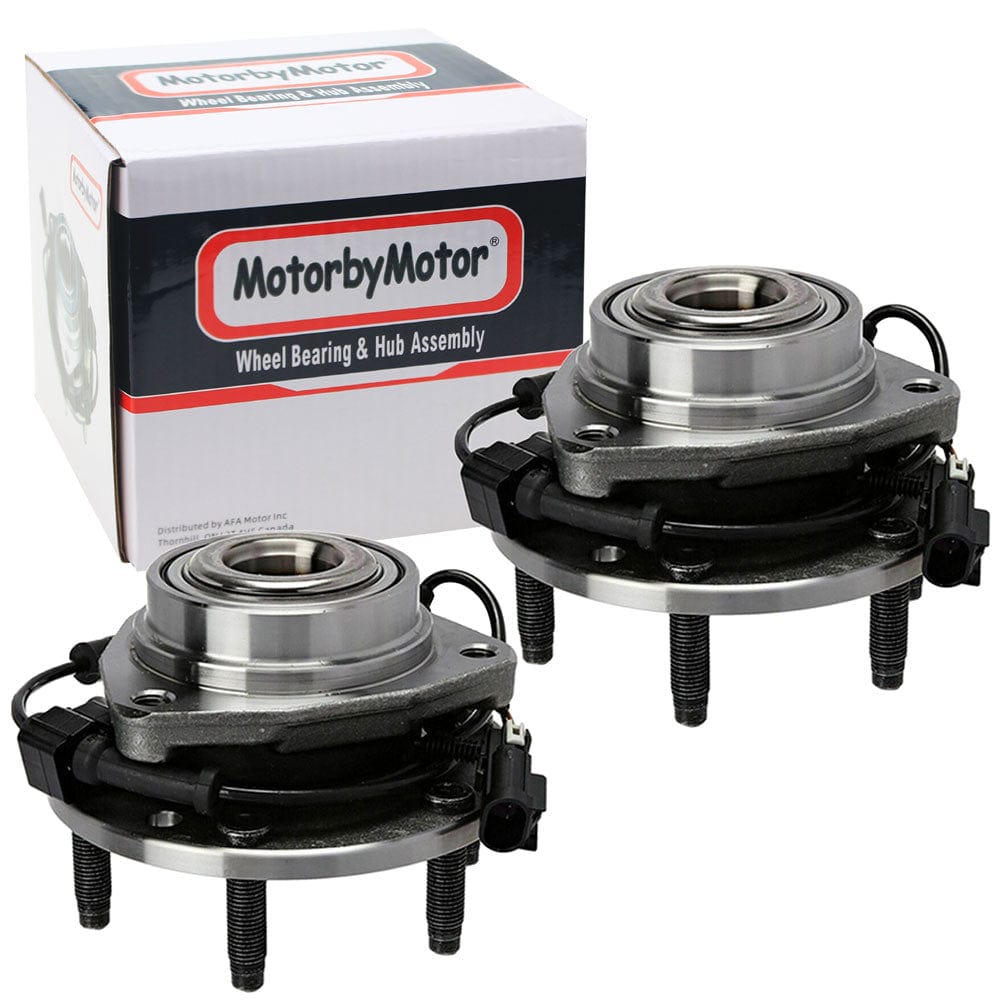

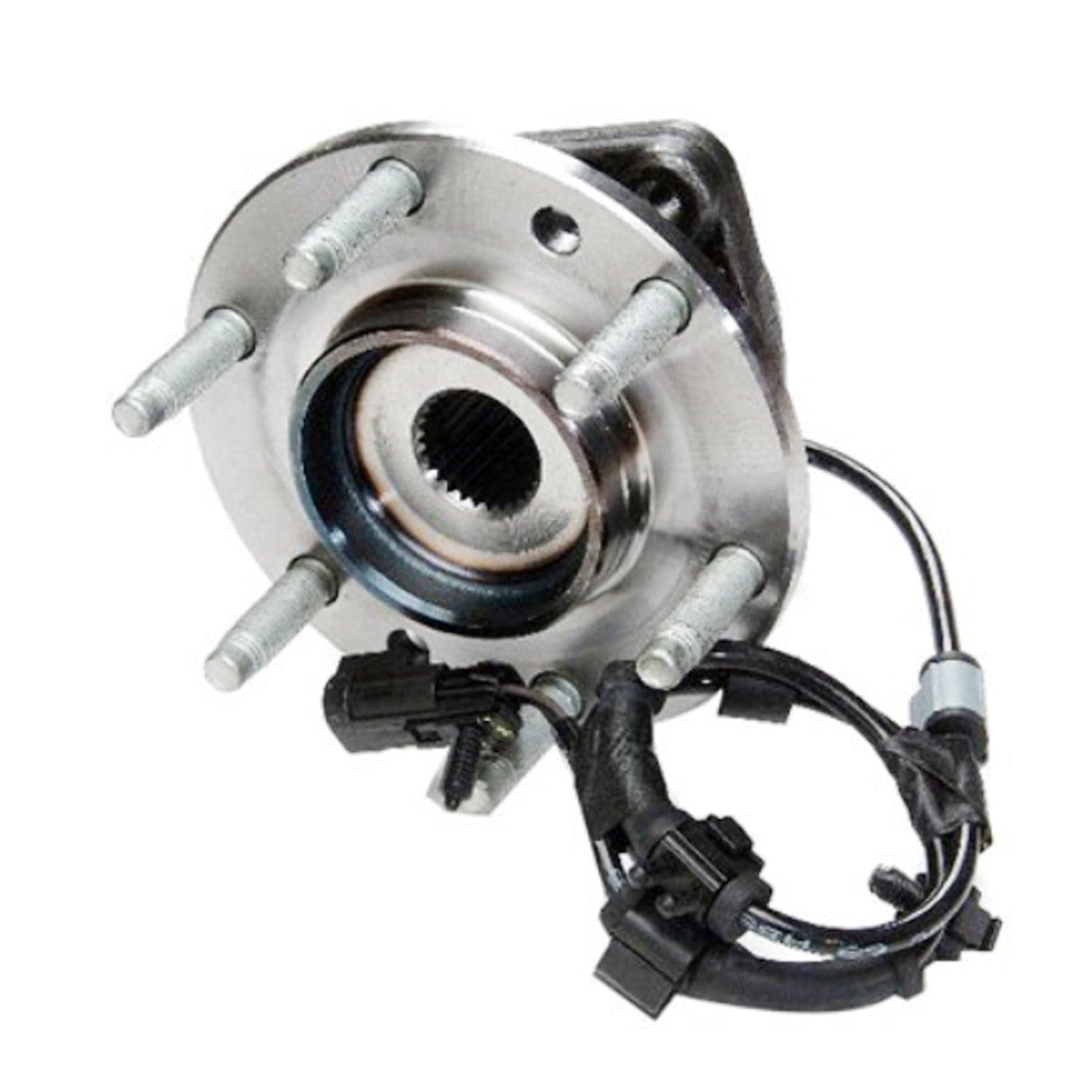

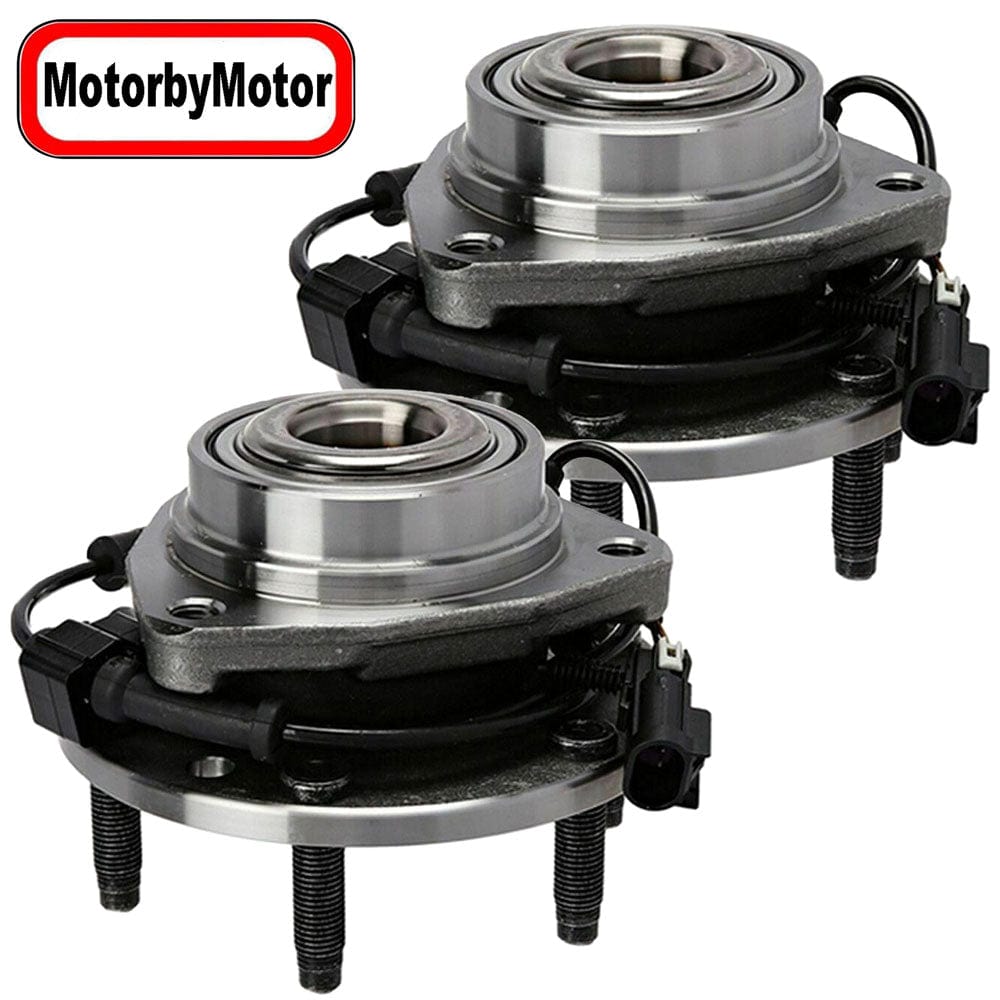

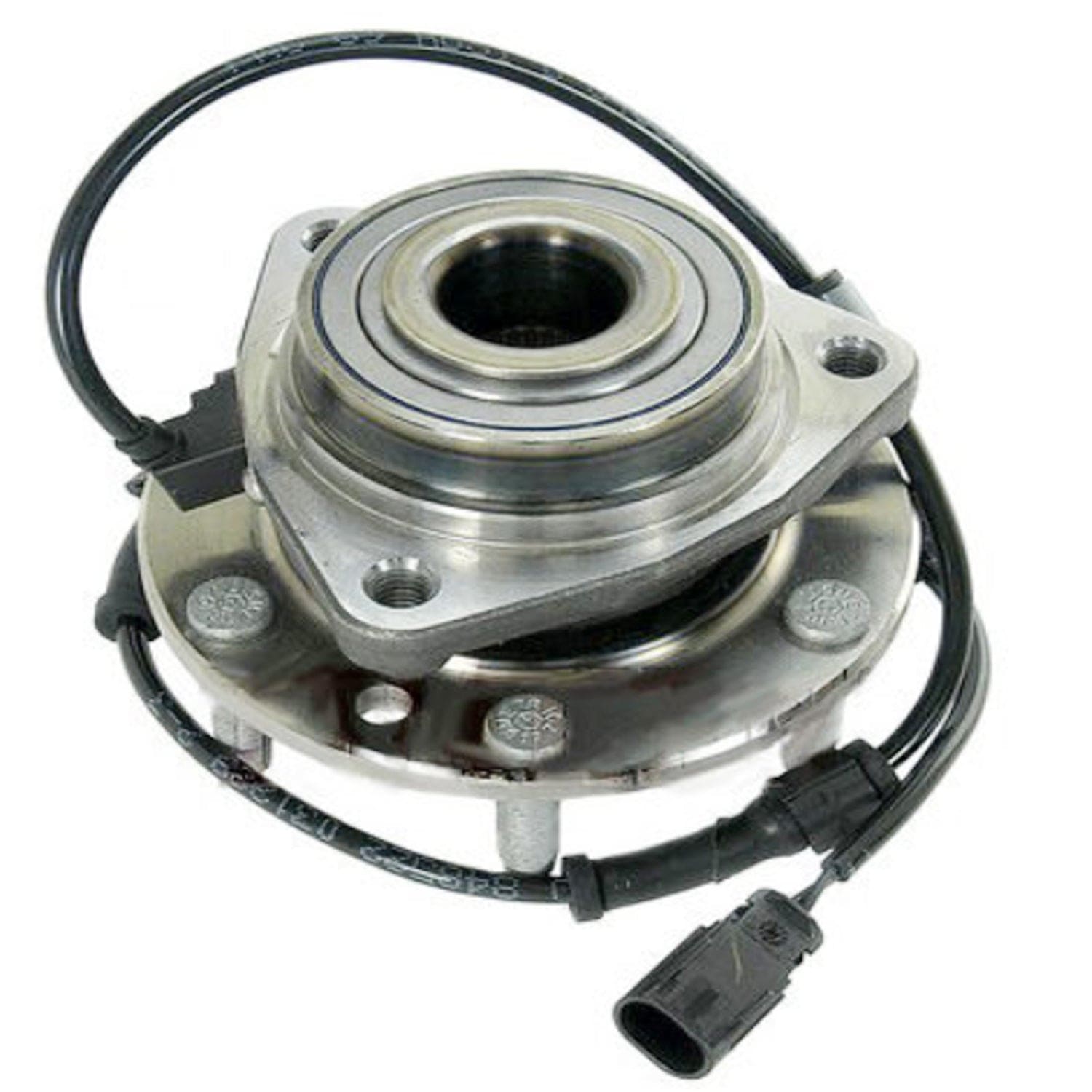

Front Wheel Bearing Fit Chevy, GMC Envoy, Isuzu Ascender, Buick Rainier, SAAB 9-7X,Oldsmobile Bravada Wheel Hub w/ABS, 6 Lugs-513188 (2PACK)
Front Wheel Bearing Fit Chevy, GMC Envoy, Isuzu Ascender, Buick Rainier, SAAB 9-7X,Oldsmobile Bravada Wheel Hub w/ABS, 6 Lugs-513188 (2PACK)
Fit:
2004 2005 2006 2007 Buick Rainier 2WD,AWD
2003 2004 2005 2006 Chevrolet SSR
2002 2003 2004 2005 2006 2007 2008 2009 Chevrolet Trailblazer 2WD,4WD,AWD
2002 2003 2004 2005 2006 2007 2008 2009 GMC Envoy 2WD,4WD
2002 2003 2004 2005 2006 2007 2008 2009 GMC Envoy Denali 2WD,4WD
2003 2004 2005 2006 2007 2008 Suzu Ascender 2WD,4WD
2002 2003 2004 Oldsmobile Bravada 2WD,4WD
2005 2006 2007 2008 2009 Saab 9-7Xv
Description:
Position:Driver(LH Left) or Passenger(RH Right)Side Front
ABS Sensor Included: Yes

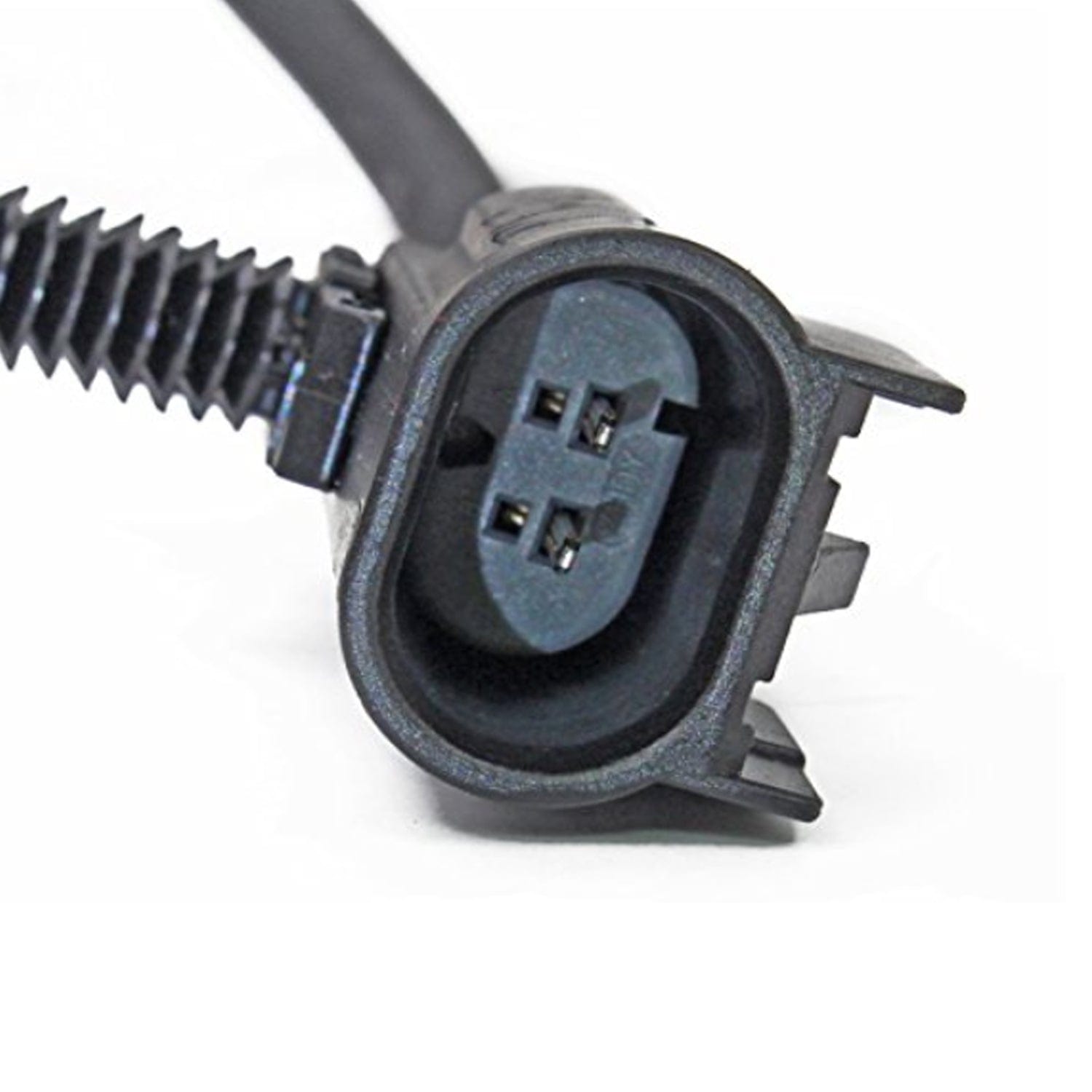

ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 37.4 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 3
Driven Or Non-Driven: Non-Driven
Number Of Splines: 27
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.905 Inch
Total Hub Diameter (mm): 150mm
Hub Centerbore Diameter (in): 5 Inch
Hub Centerbore Diameter (mm): 127mm
Total Hub Height (in): 4.649 Inch
Total Hub Height (mm): 118.1mm
Flange Diameter (in): 5.925 Inch
Flange Diameter (mm): 150.5mm
Flange Offset (in): 1.850 Inch
Flange Offset (mm): 47mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.645 Inch
Flange Bolt Size (mm): 41.8mm
Outer Ring Width (in): 3.67 Inch
Inner Ring Width (in): 0.75 Inch
Hub Pilot Diameter (in): 3.61 Inch
Hub Pilot Diameter (mm): 91.8mm
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Ball
