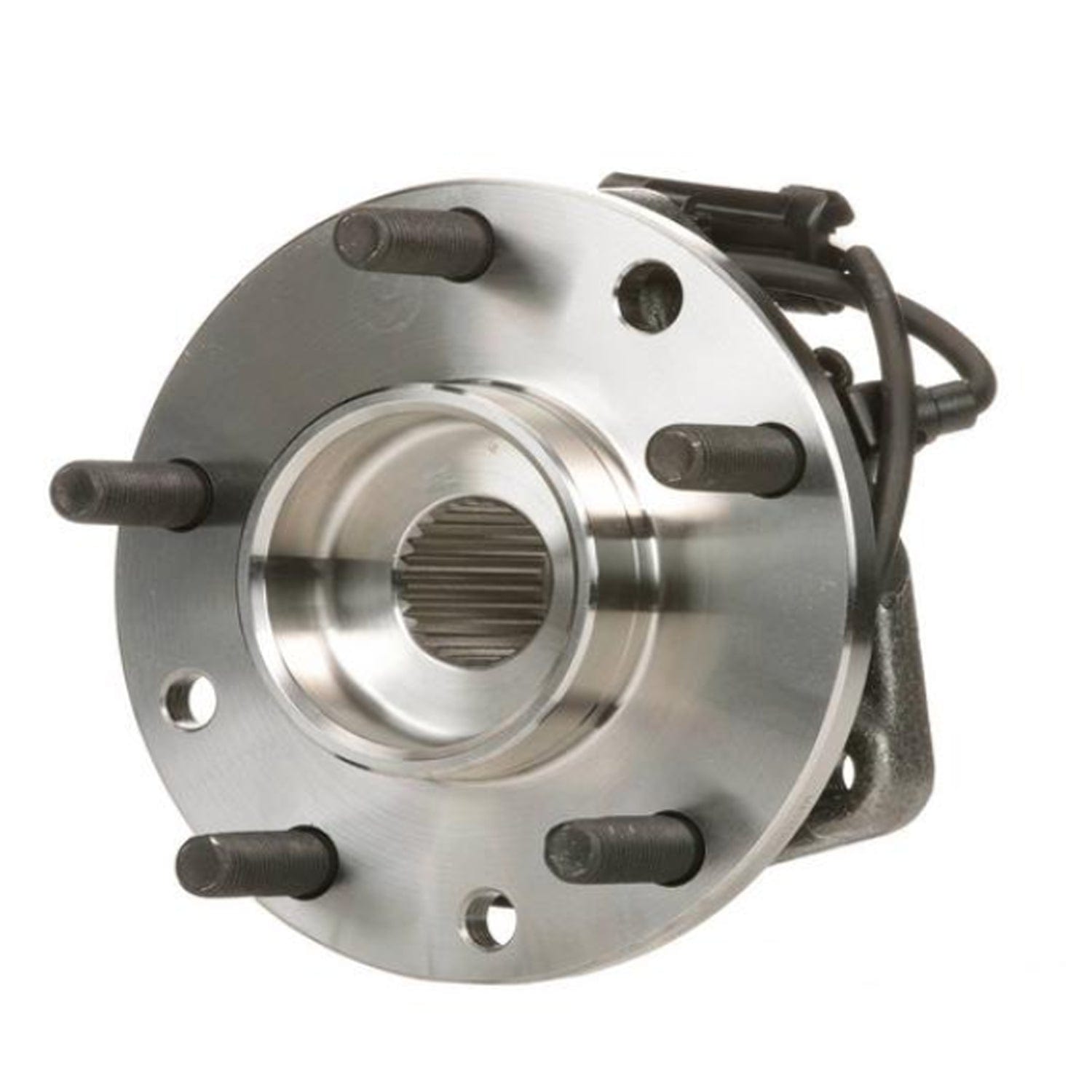

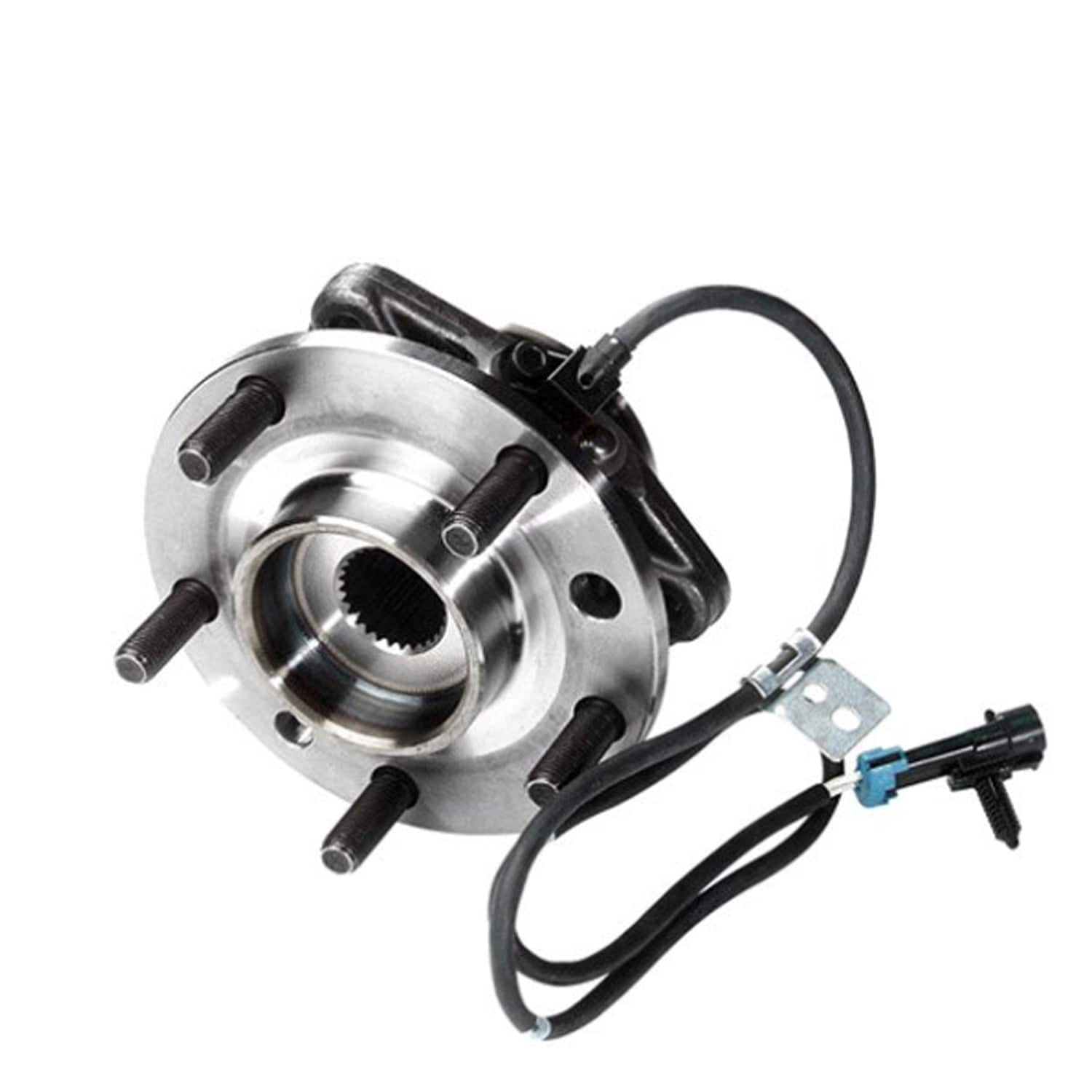

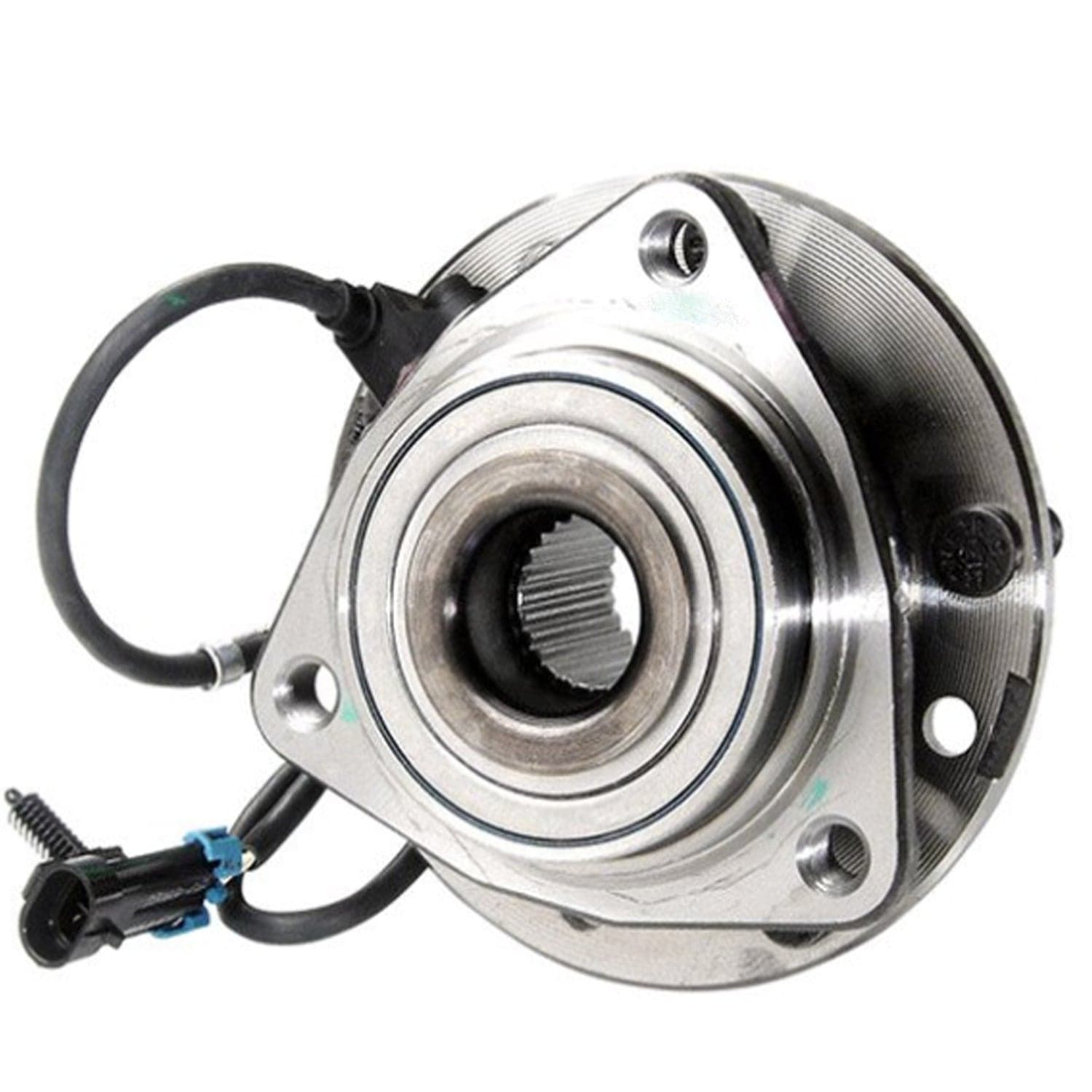

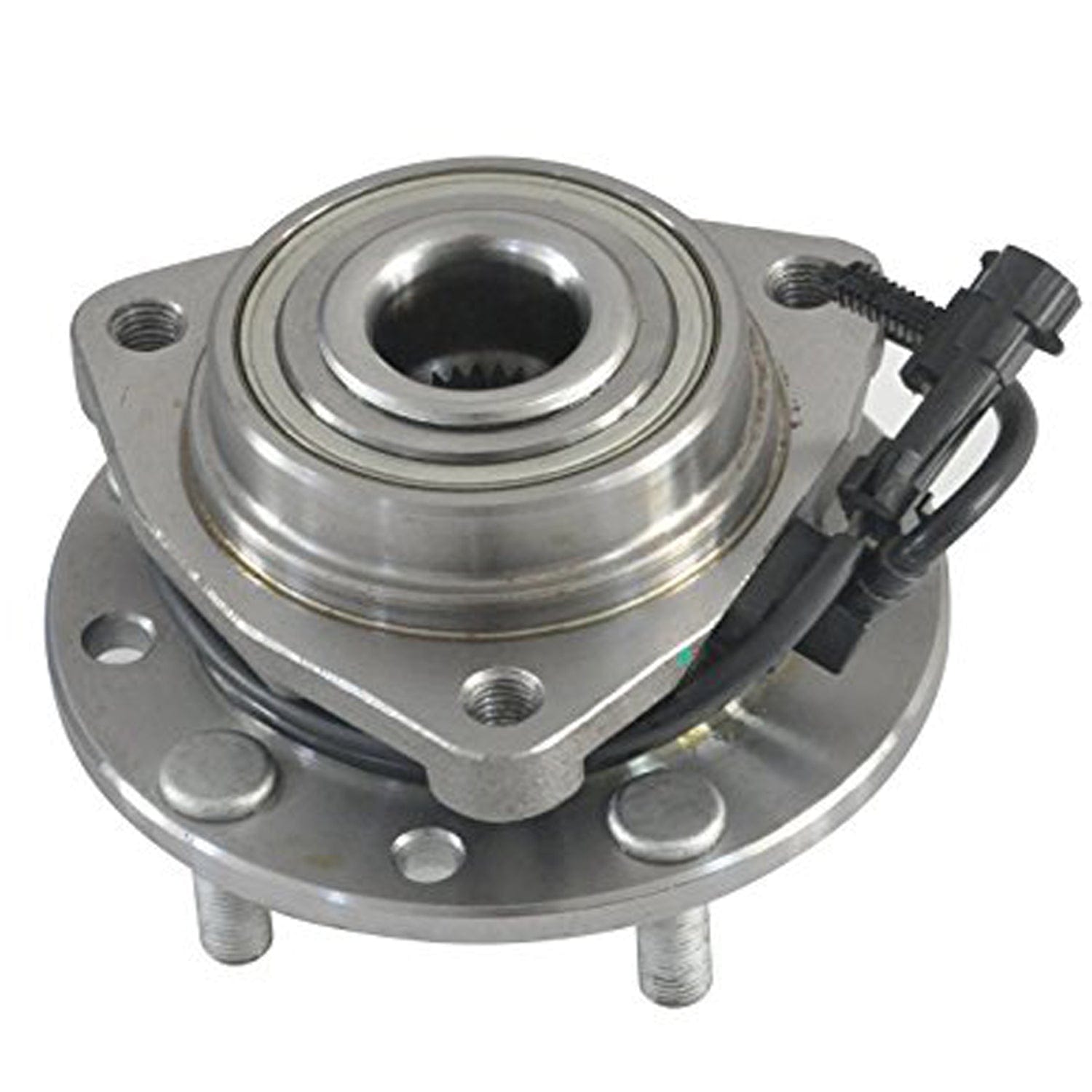

GMC Jimmy Front Wheel Bearing Hub Assembly 1997-2005, 513124

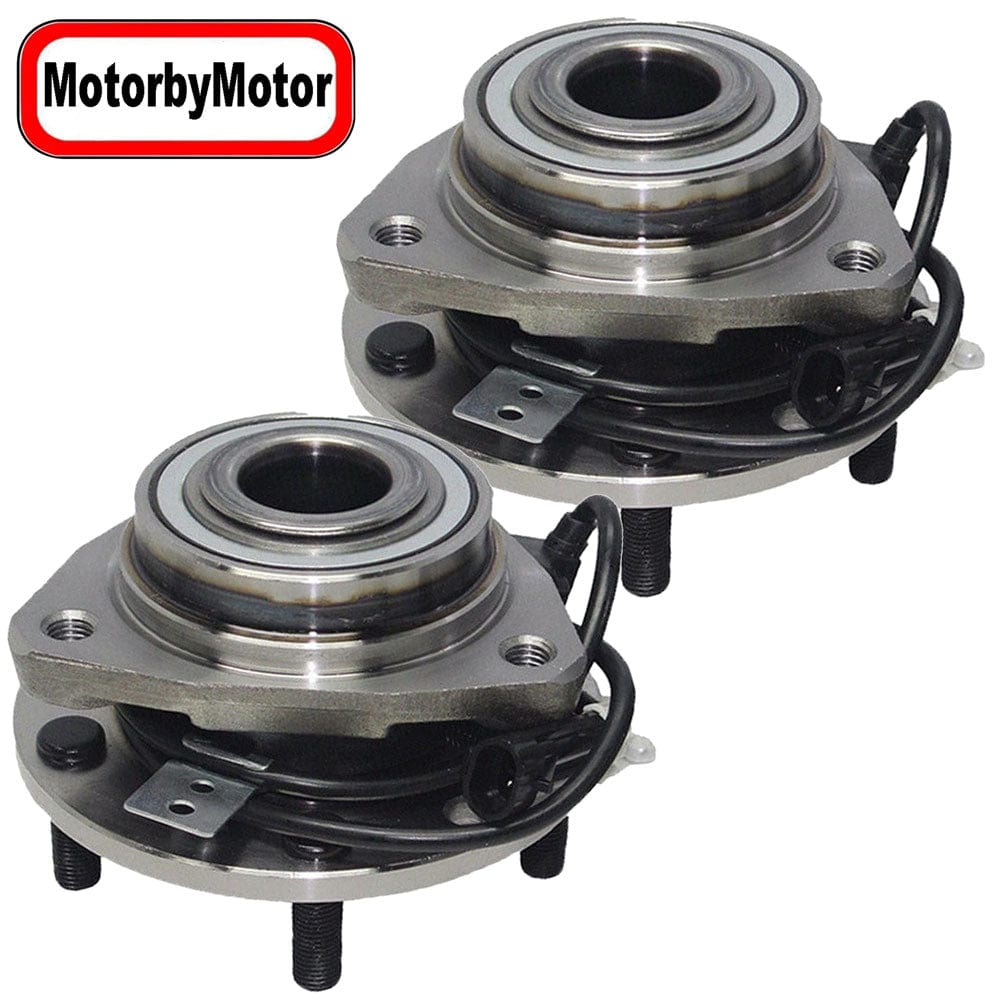

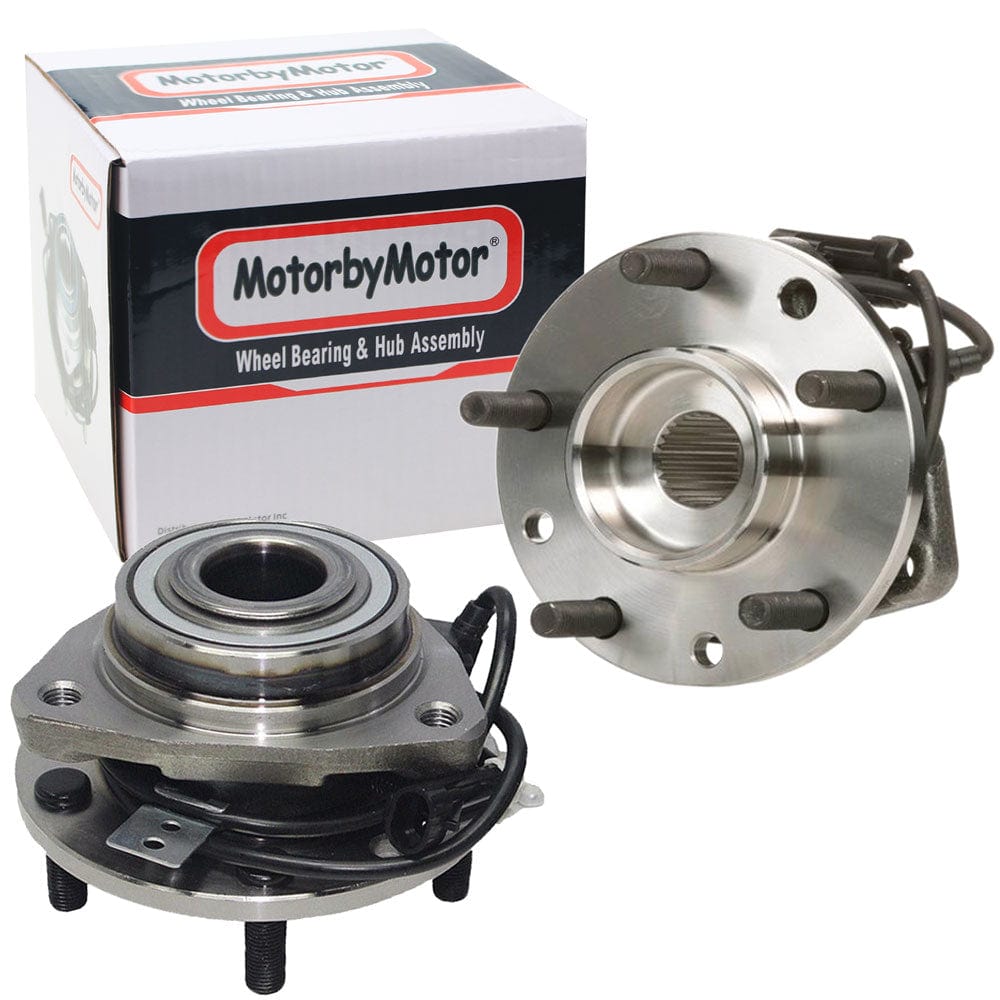

Front Wheel Bearing Fit Chevy Blazer, Chevy S10, GMC Jimmy, GMC Sonoma, Isuzu Hombre, Oldsmobile Bravada Wheel Hub-5 Lug W/ABS, 513124 (2 Pack)

Fit:
1997 1998 1999 2000 2001 2002 2003 2004 2005 Chevrolet Blazer
1997 1998 1999 2000 2001 2002 2003 2004 Chevrolet? S10 Pickup
1997 1998 1999 2000 2001 2002 2003 2004 2005 GMC Jimmy
1997 1998 1999 2000 2001 2002 2003 2004 GMC Sonoma
1998 1999 2000 Isuzu Hombre
1997 1998 1999 2000 2001 Oldsmobile Bravada

Description:
Position:Driver (LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Oval
Wiring Harness Included: Yes
Wiring Harness Length (in): 32.25 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 27
ABS Ring Type: Sensor
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.68 Inch
Total Hub Height (in): 4.30 Inch
Flange Diameter (in): 5.68 Inch
Flange Offset (in): 1.85 Inch
Flange Offset (mm): 46.99mm
Hub Pilot Diameter (in): 3.61 Inch
Flange Shape: Triangle
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Ball
