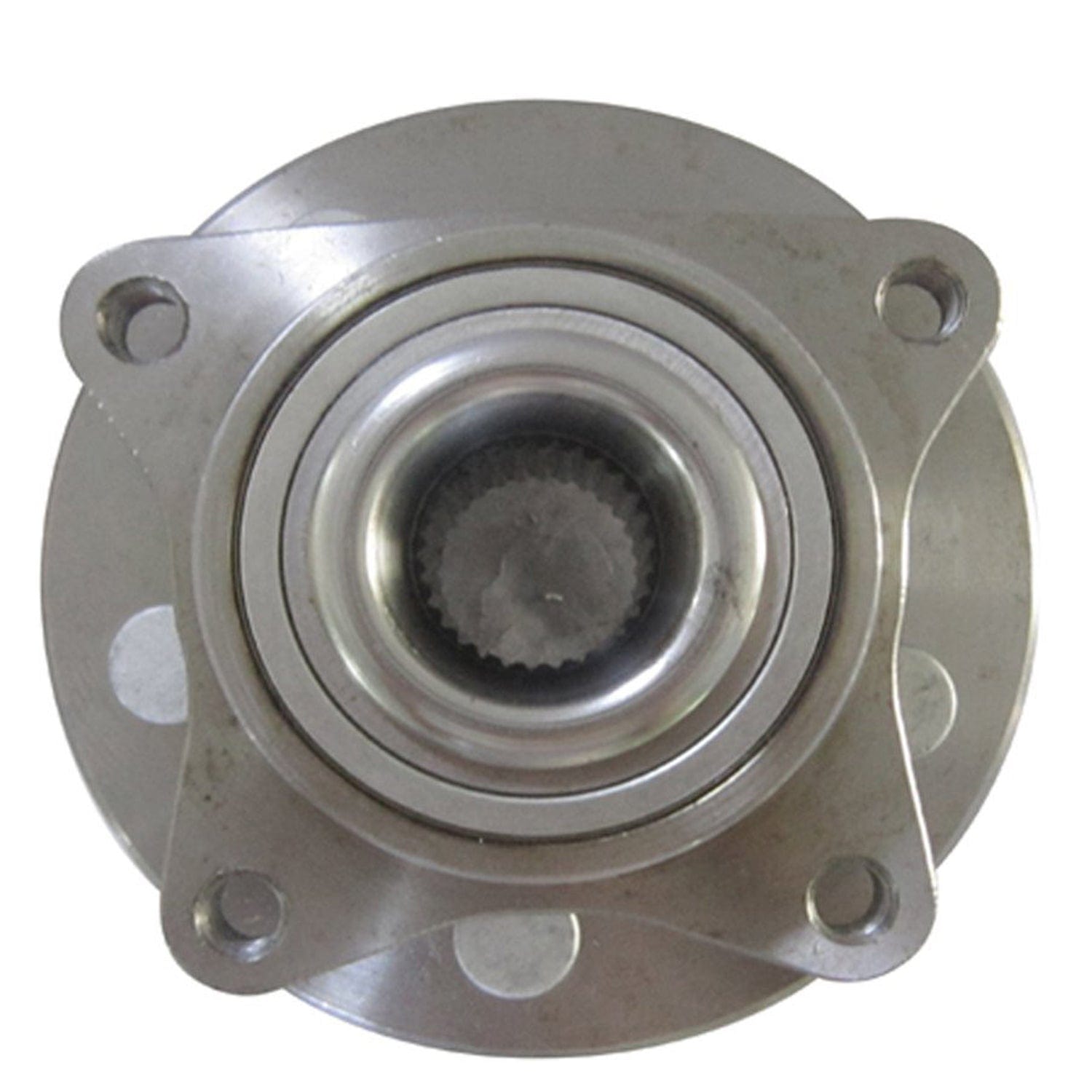

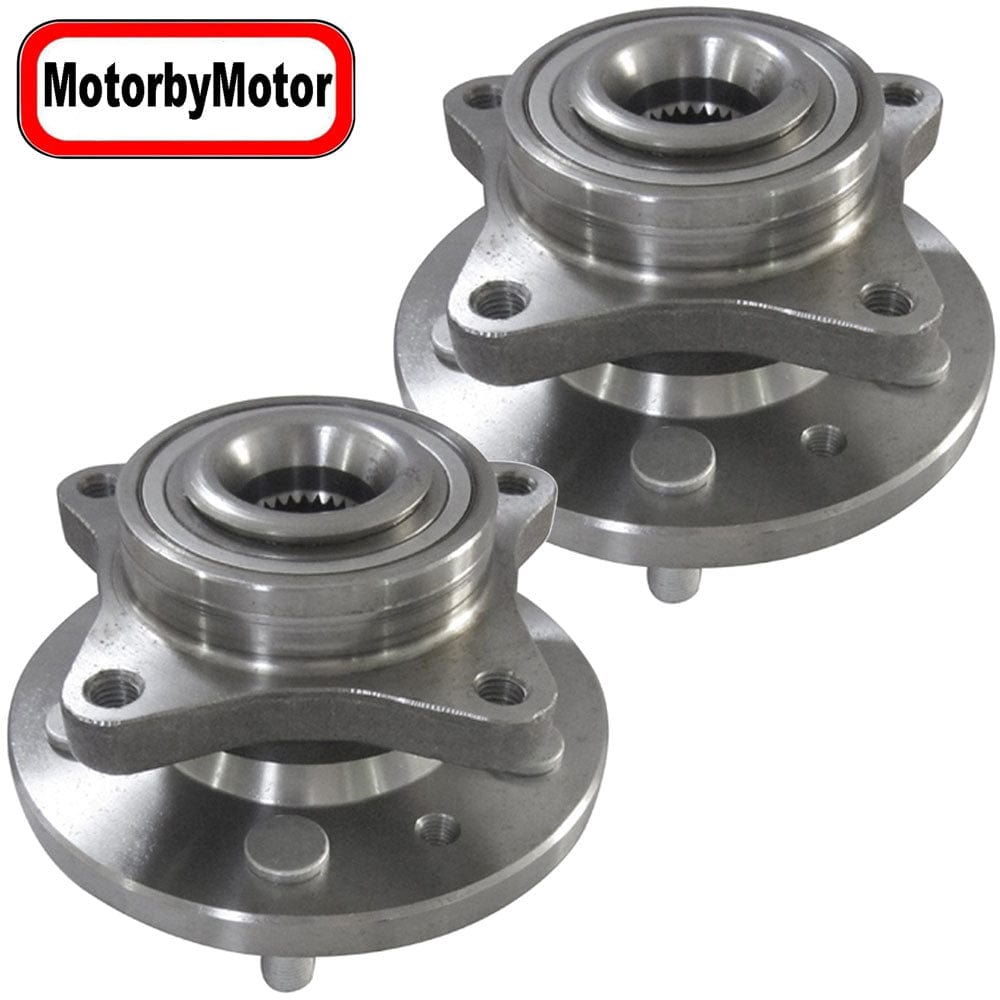

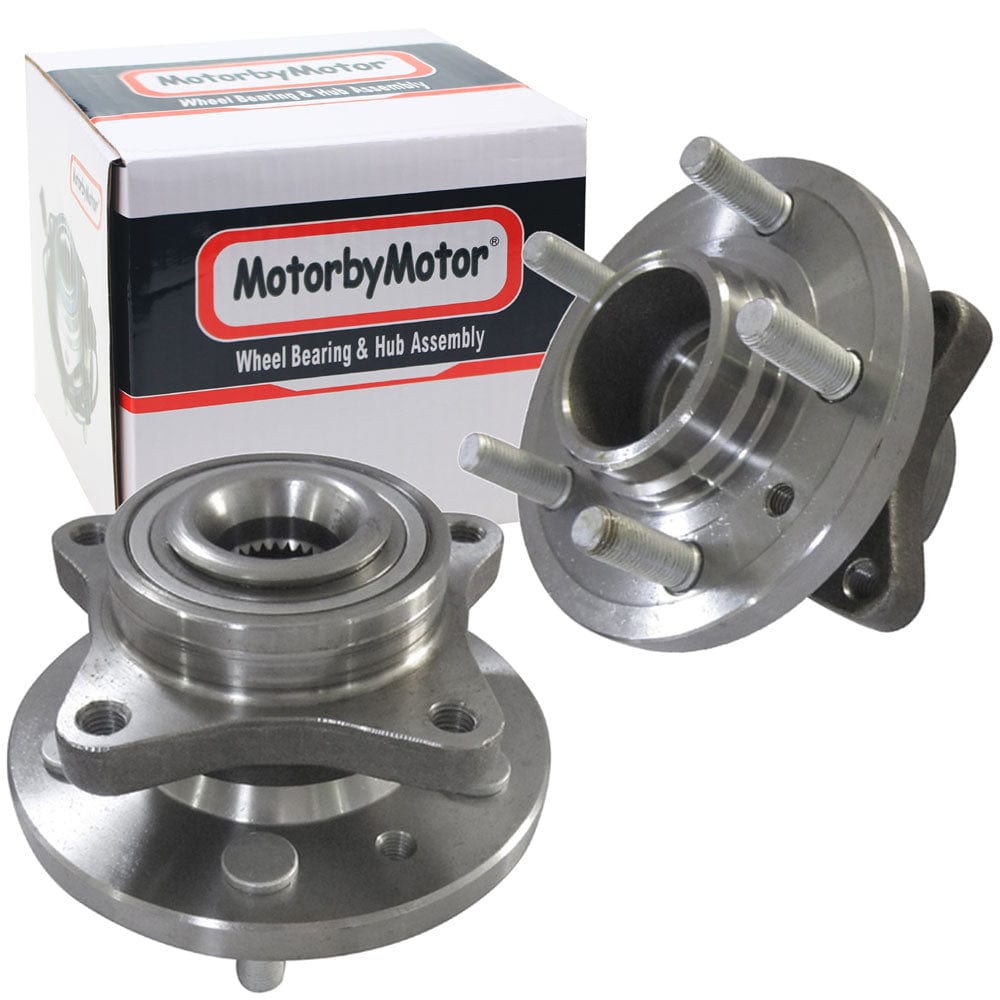

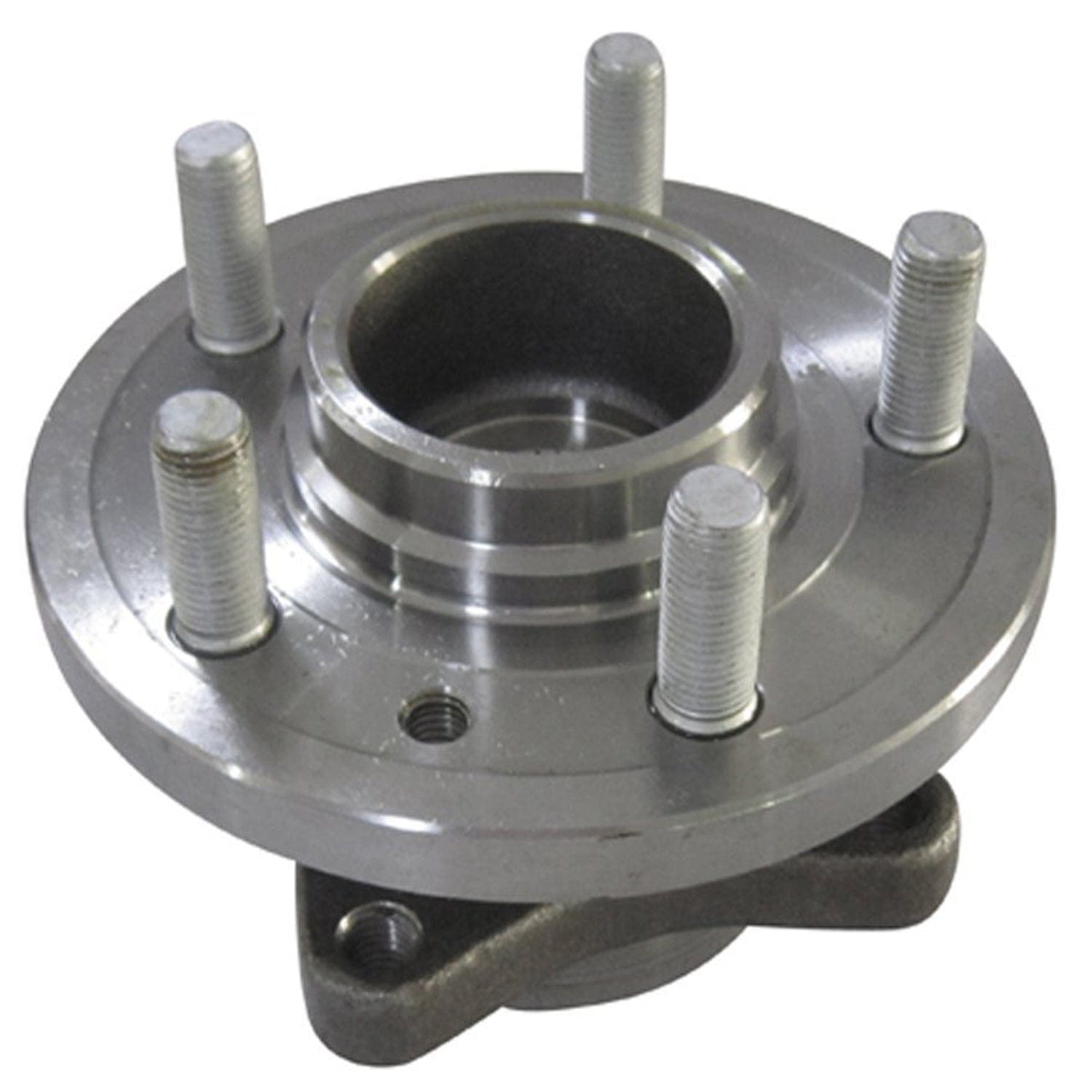

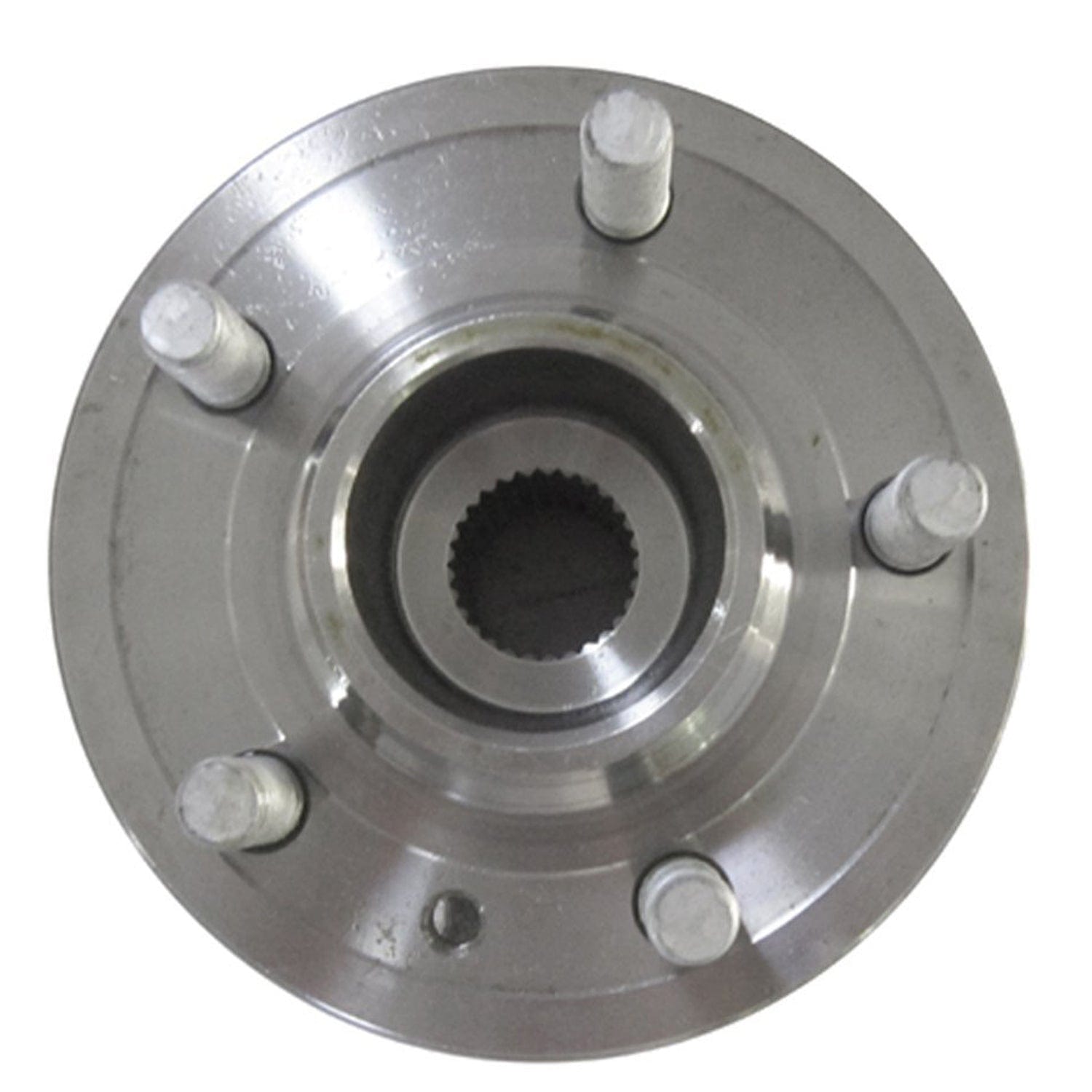

Front Wheel Bearing Fit Land Rover LR3, Land Rover LR4, Land Rover Range Rover Sport Wheel Hub w/5 Lugs, 515067 (2 Pack)
Front Wheel Bearing Fit Land Rover LR3, Land Rover LR4, Land Rover Range Rover Sport Wheel Hub w/5 Lugs, 515067 (2 Pack)
Fit:
2005 2006 2007 2008 2009 Land Rover LR3
2010 2011 2012 2013 Land Rover LR4
2006 2007 2008 2009 2010 2011 2012 2013 Land Rover Range Rover Sport
Description
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: No
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 29
Total Hub Diameter (in): 6.24 Inch
Total Hub Diameter (mm): 158.5mm
Hub Centerbore Diameter (in): 4.72 Inch
Hub Centerbore Diameter (mm): 120mm
Total Hub Height (in): 4.54 Inch
Total Hub Height (mm): 115.2mm
Flange Diameter (in): 3.11 Inch
Flange Diameter (mm): 79mm
Flange Offset (in): 2.28 Inch
Flange Offset (mm): 57.8mm
Flange Shape: Round
Flange Bolt Size (in): 1.25 Inch
Flange Bolt Size (mm): 31.8mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.50 Inch
Hub Pilot Diameter (mm): 89mm
