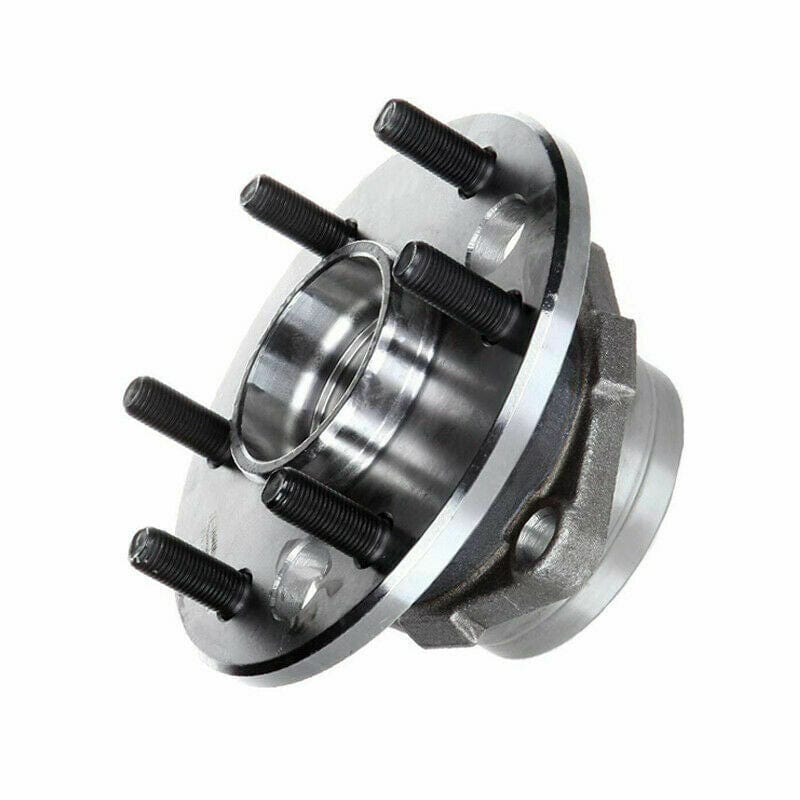

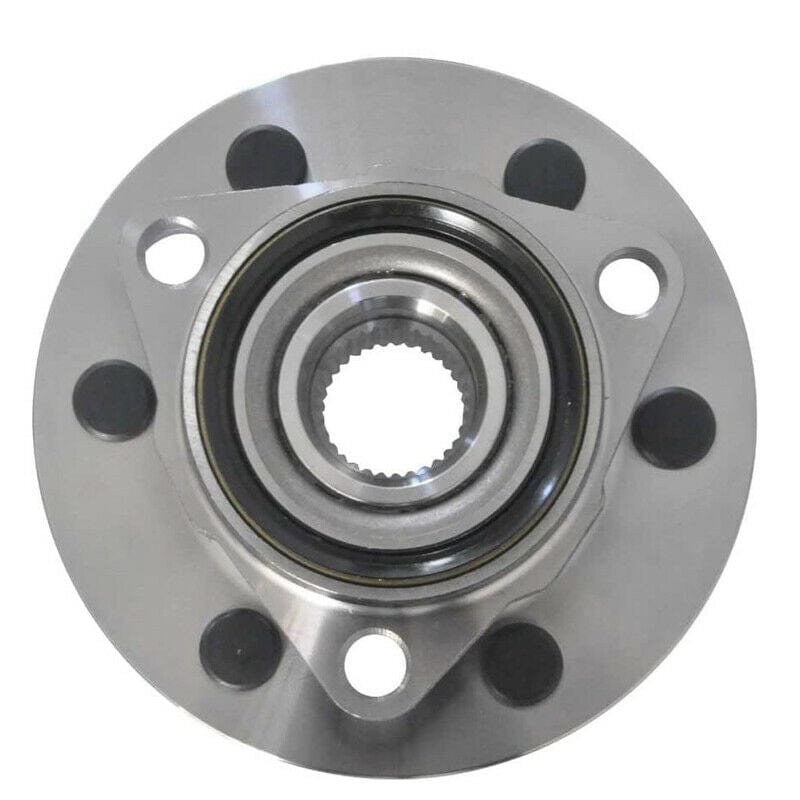

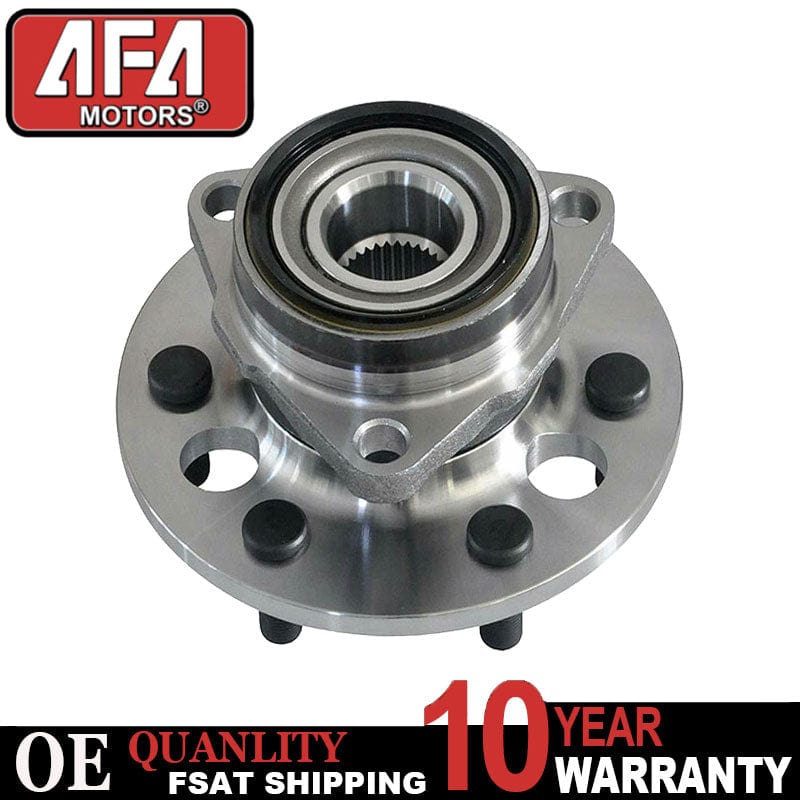

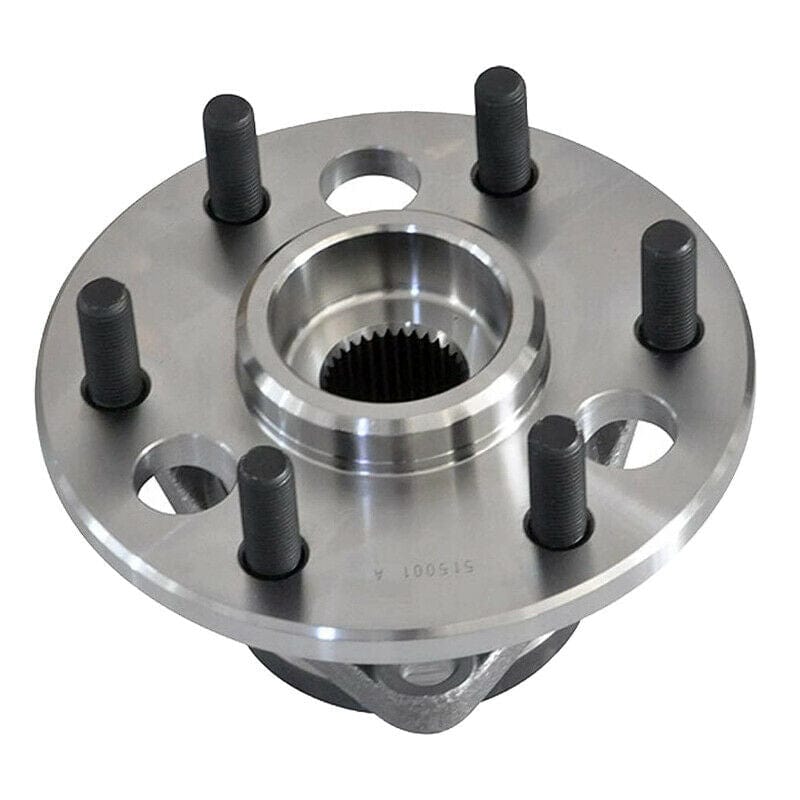

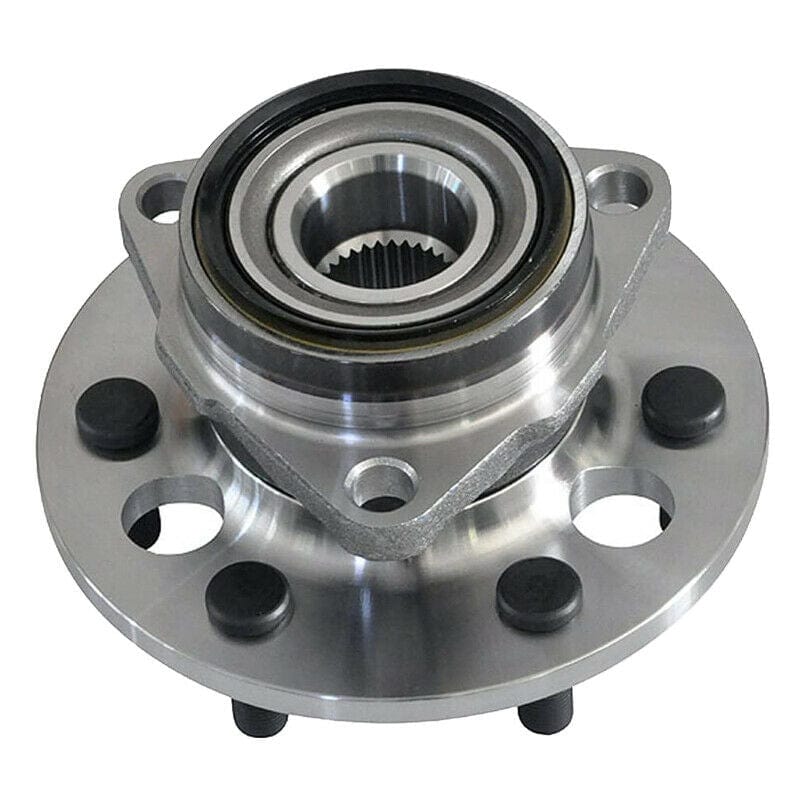

afa-motors 515001 Front Wheel Bearing Hub Assembly 4WD
specifications:
| ABS Sensor Included | No |
| Wiring Harness Included | No |
| Number Of Mounting Bolts To Knuckle | 3 |
| Number Of Lug Bolts Included | 6 |
| Number Of Flange Bolts Included | 6 |
| Driven Or Non-Driven | Driven |
| Number Of Splines | 33 |
| Lug Bolt Thread Size | M14-1.50 |
| Total Hub Diameter (in) | 7.165 Inch |
| Total Hub Diameter (mm) | 182mm |
| Hub Centerbore Diameter (in) | 5.5 Inch |
| Hub Centerbore Diameter (mm) | 139.7mm |
| Total Hub Height (in) | 4.622 Inch |
| Total Hub Height (mm) | 117.4mm |
| Flange Diameter (in) | 7.165 Inch |
| Flange Diameter (mm) | 182mm |
| Flange Offset (in) | 2.232 Inch |
| Flange Offset (mm) | 56.7mm |
| Flange Shape | Triangle |
| Flange Bolt Size (in) | 1.354 Inch |
| Flange Bolt Size (mm) | 34.4mm |
| Material | Steel |
| Bearing Type | Tapered |
| Outer Ring Width (in) | 2.12 Inch |
| Inner Ring Width (in) | 0.94 Inch |
| Hub Pilot Diameter (in) | 3.082 Inch |
| Hub Pilot Diameter (mm) | 78.3mm |
Fitment for afa-motors - 515001:
1992 1993 1994 Chevrolet Blazer
1988 1989 1990 1991 1992 1993 1994 Chevrolet K1500 Pickup
1988 1989 1990 1991 1992 1993 1994 Chevrolet K2500 Pickup
1992 1993 1994 Chevrolet K1500 Suburban
1992 1993 1994 Chevrolet K2500 Suburban
1992 1993 1994 GMC Yukon
1988 1989 1990 1991 1992 1993 1994 GMC K1500 Pickup
1988 1989 1990 1991 1992 1993 1994 GMC K2500 Pickup
1992 1993 1994 GMC K1500? Suburban
1992 1993 1994 GMC K2500 Suburban
