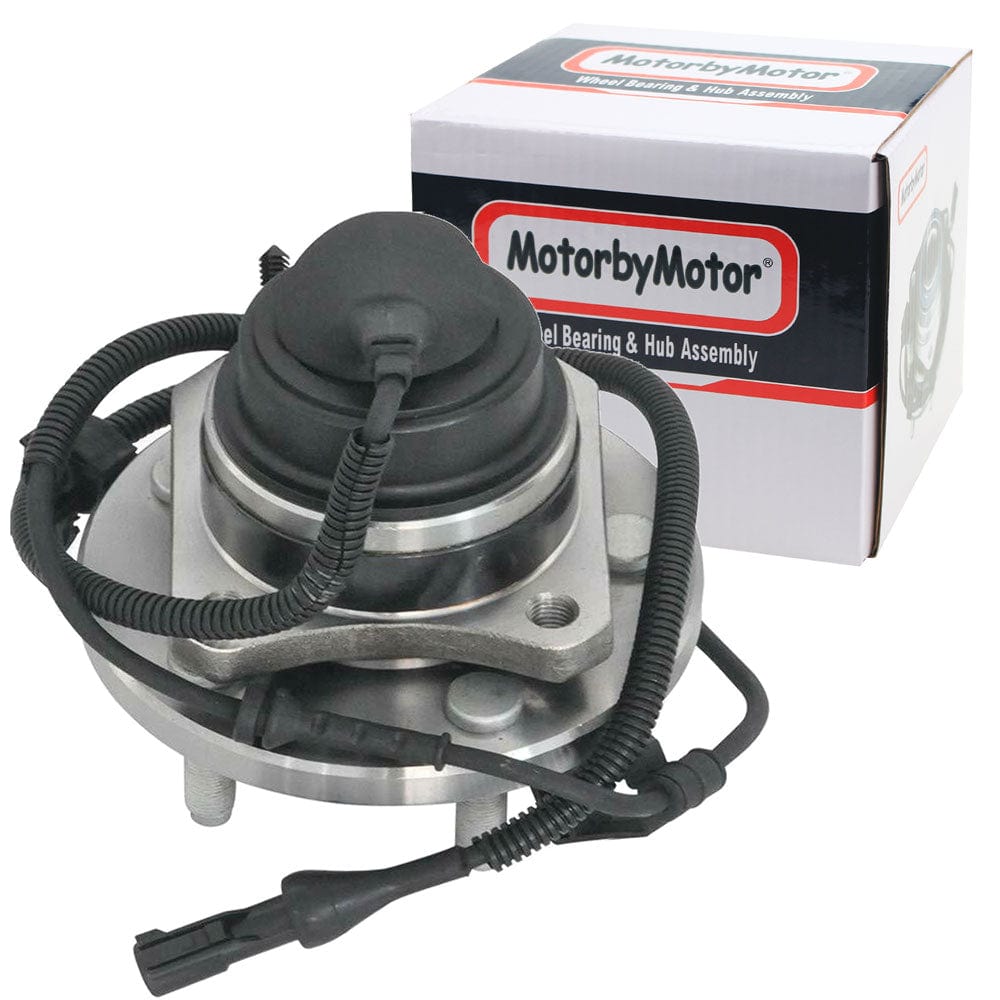

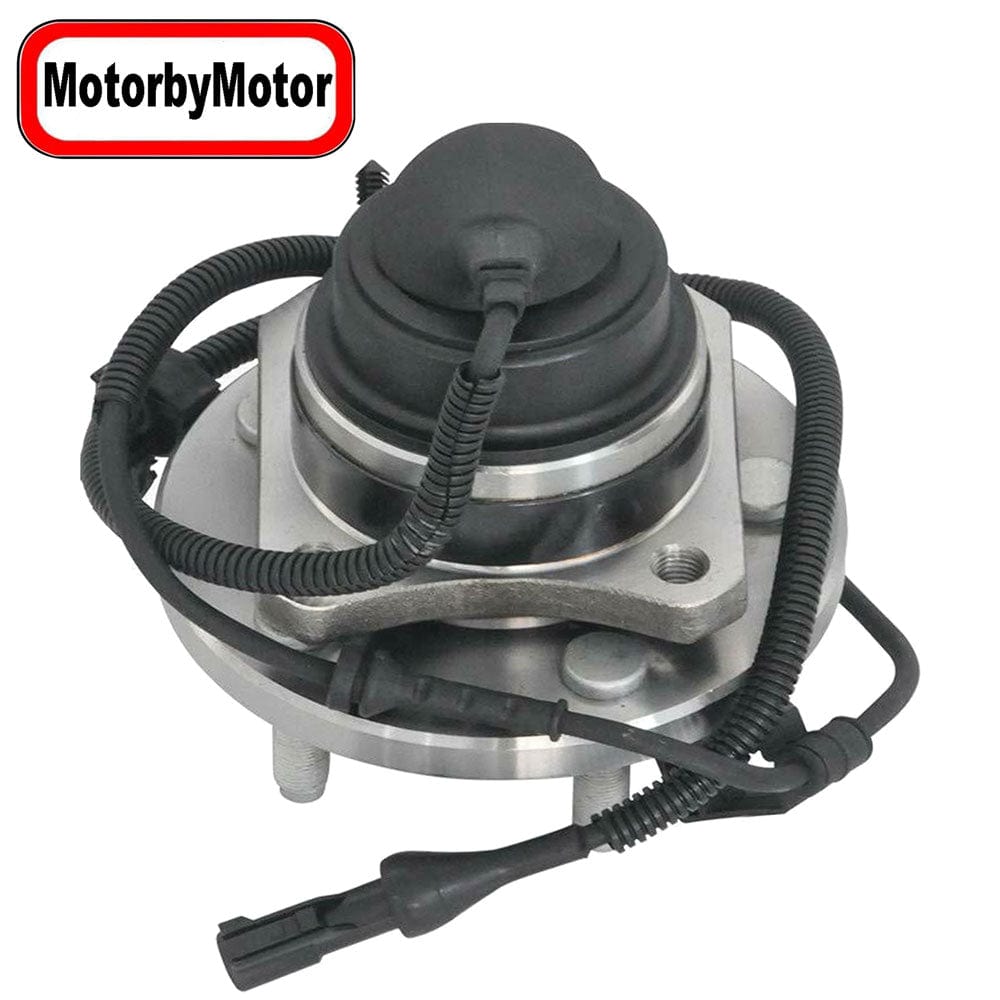

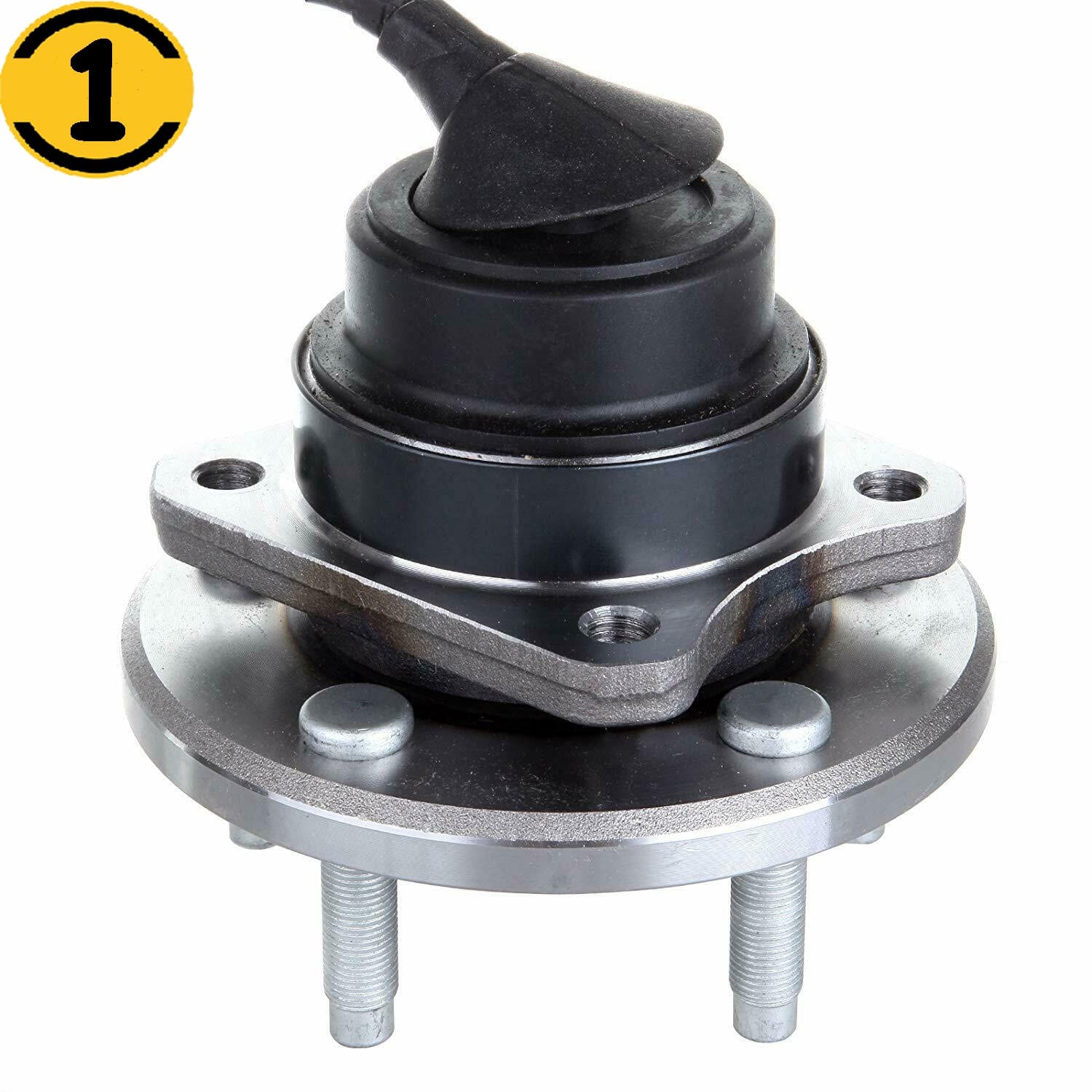

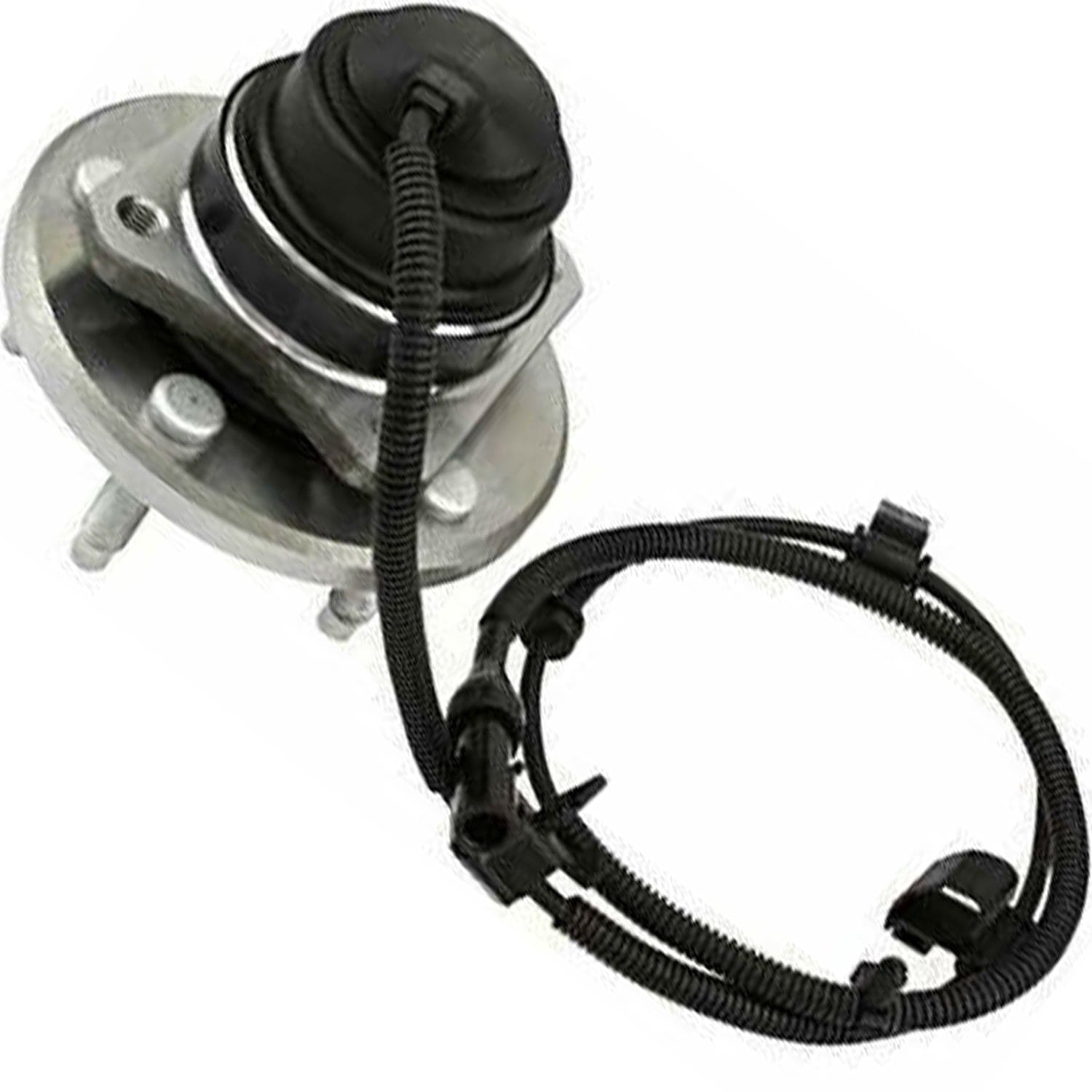

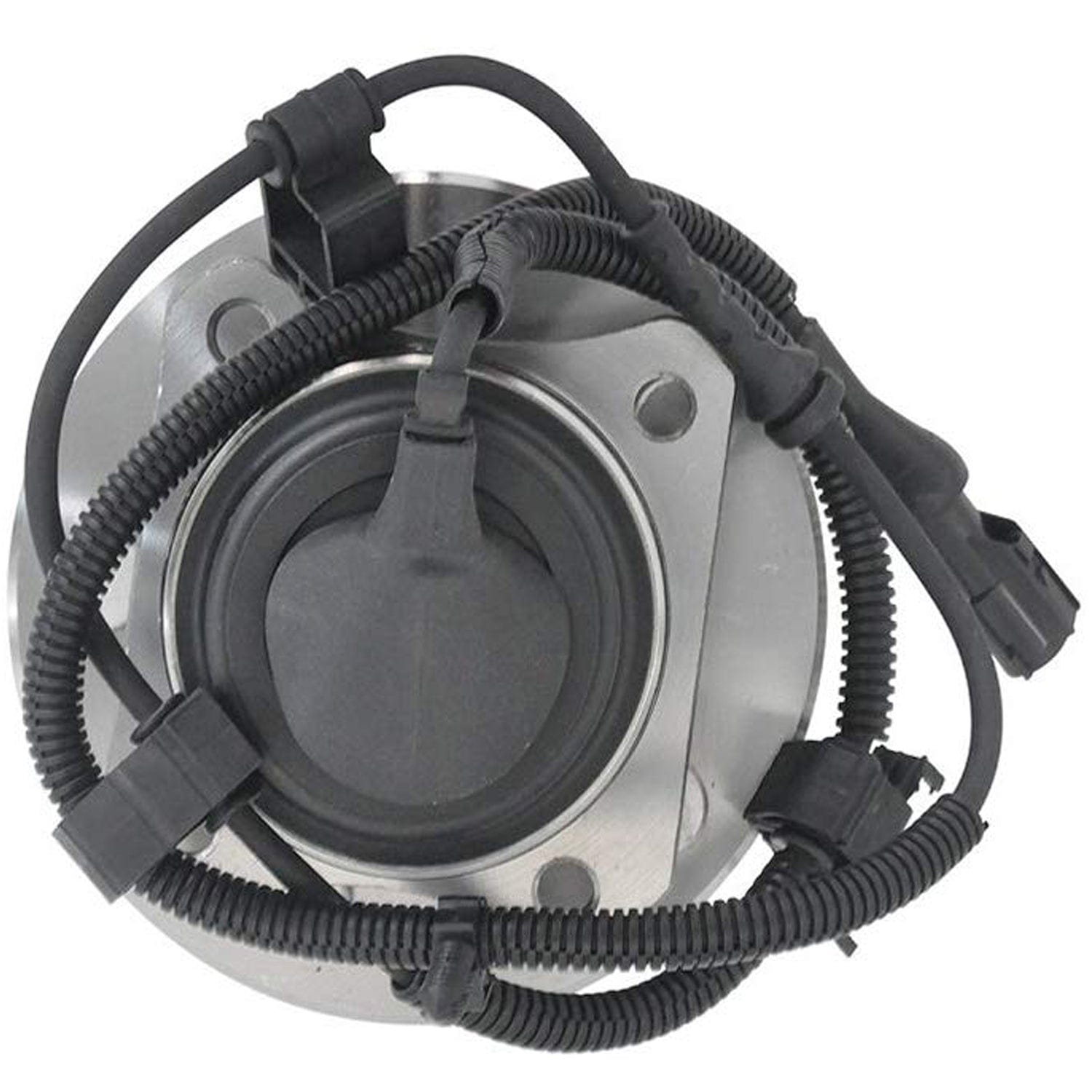

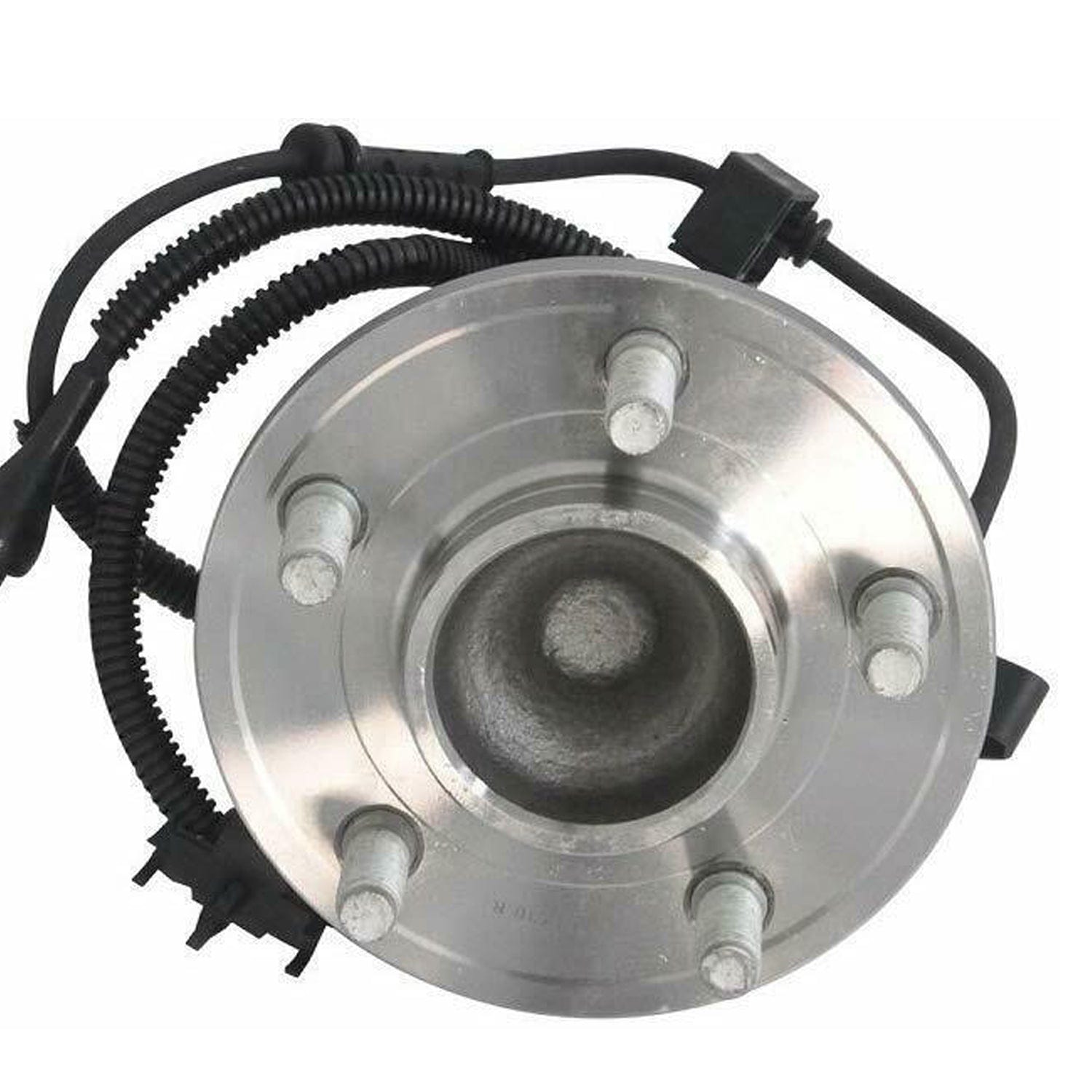

Lincoln Town Car Front Wheel Bearing Hub Assembly 2005-2011 513230

motorbymotor 513230 Front Wheel Bearing Hub Assembly

Front wheel hub assembly with ABS sensor and wiring harness. Designed for non-driven wheels, ensuring reliable performance and compatibility with select Ford, Mercury, and Lincoln models.

What's Included

• Front Wheel Bearing Hub Assembly (Part Number: 513230)
• ABS Sensor Included
• Wiring Harness Included (49.21 Inch)
• Mounting Bolts: 4 to Knuckle
• Lug Bolts: 5 Included

Product Specifications

• ABS Sensor Included: Yes
• ABS Connector Shape: Round
• Wiring Harness Length: 49.21 Inch
• Mounting Bolts to Knuckle: 4
• Lug Bolts Included: 5
• Driven or Non-Driven: Non-Driven
• ABS Ring Type: Sensor
• Number of ABS Sensor Ring Teeth: 50
• Total Hub Diameter: 5.94 Inch (151 mm)
• Hub Centerbore Diameter: 4.5 Inch (114.3 mm)
• Total Hub Height: 5.57 Inch (141.5 mm)
• Flange Diameter: 2.82 Inch (71.65 mm)
• Flange Offset: 1.48 Inch (37.5 mm)
• Flange Shape: Round
• Flange Bolt Size: 1.73 Inch (43.9 mm)
• Flange Bolt Thread Size: 1/2-20 Inch
• Material: Steel
• Bearing Type: Ball
• Hub Pilot Diameter: 3.53 Inch (89.6 mm)

Vehicle Compatibility
