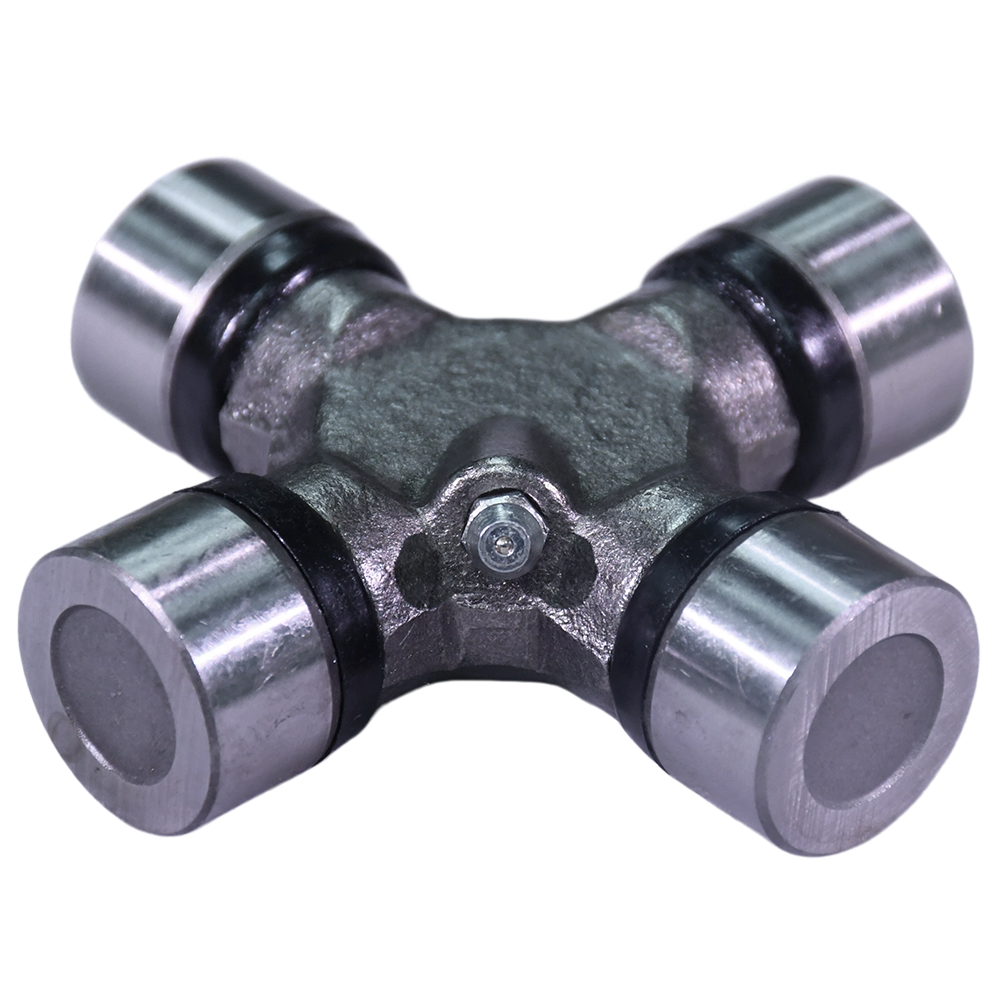

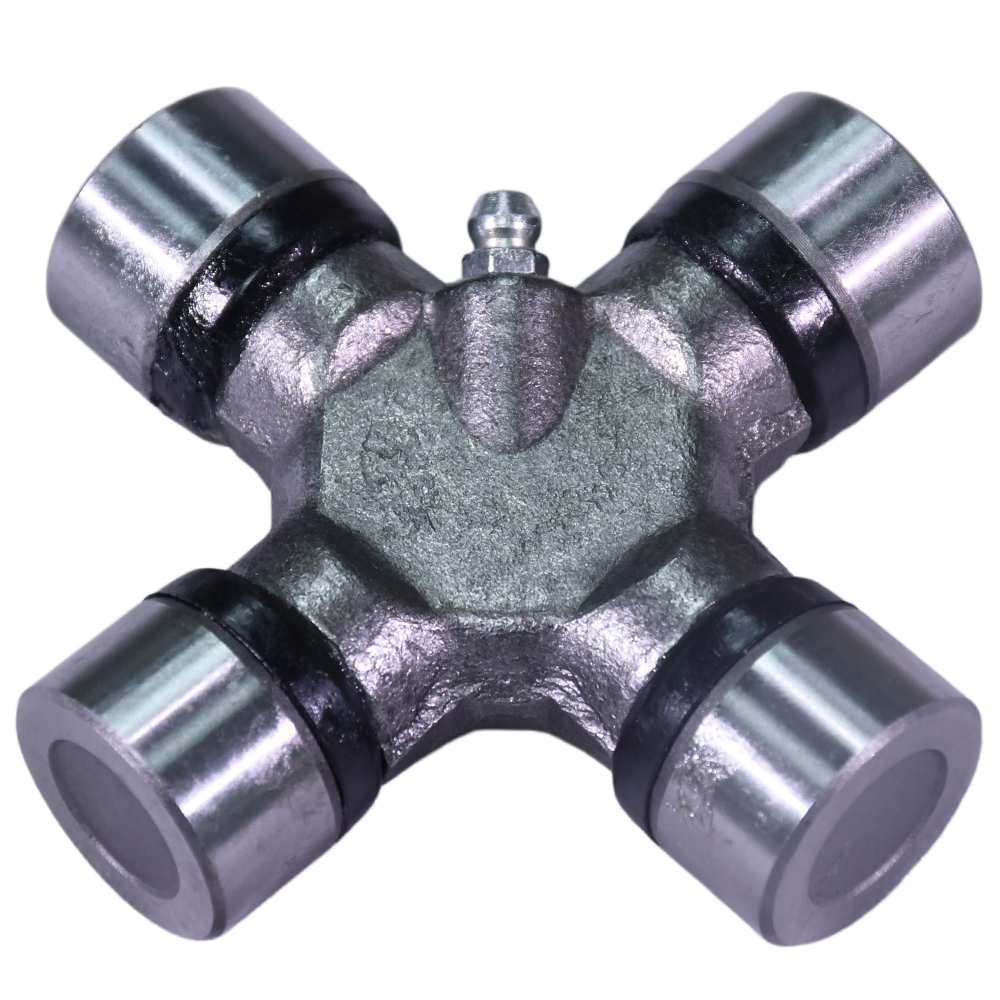

Spicer 1330 Greaseable Universal Joint U-Joint 1.063 Inch Bearing
Greaseable universal joint designed for compatible driveshaft applications using the Spicer 1330 series configuration. Features four plain round bearing caps, a flush-type lubrication fitting, and precision dimensions for dependable driveline operation.
Product Specifications
| Product Type | Universal Joint / U-Joint |
| OE Series | Spicer 1330 |
| Bearing Cap Type | 4 Plain Round Bearings |
| Bearing Type | Round Plain |
| Bearing Cap Diameter | 1.063 in. / 27.0 mm |
| Length - Axis 1 | 3.62 in. / 91.9 mm |
| Length - Axis 2 | 3.62 in. / 91.9 mm |
| Length Measurement | Outside of Bearing to Outside of Bearing |
| Greaseable | Yes |
| Lubricateable | Yes |
| Lube Fitting Location | Flush-Type Lube Fitting in Bearing |
| U-Joint Identification | 4 Plain Round Bearings |
| Quantity | 1 Piece |
| Condition | Brand New |
Interchange / Reference Numbers
| Reference Numbers | 4L5Z4635AA, 5014733AA, 5175392AA, 5175392AB, 530, 68048401AA, 68048401AB, 89040245, 89058950, F2AZ4635C, F2TZ4635B, F6ZZ4635A, F6ZZ4635AA, G5213X |
Product Features
✔ Spicer 1330 Series Size
Designed around the commonly used Spicer 1330 dimensional configuration for compatible driveshaft applications.
✔ 1.063 Inch Bearing Caps

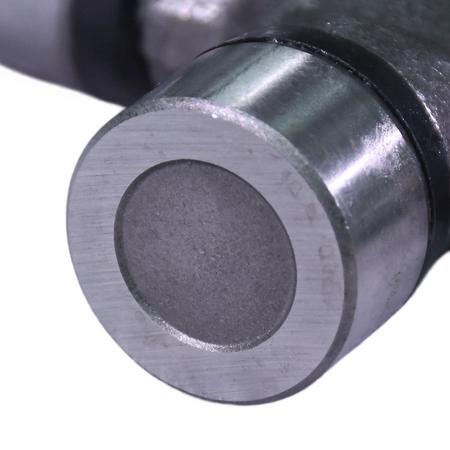

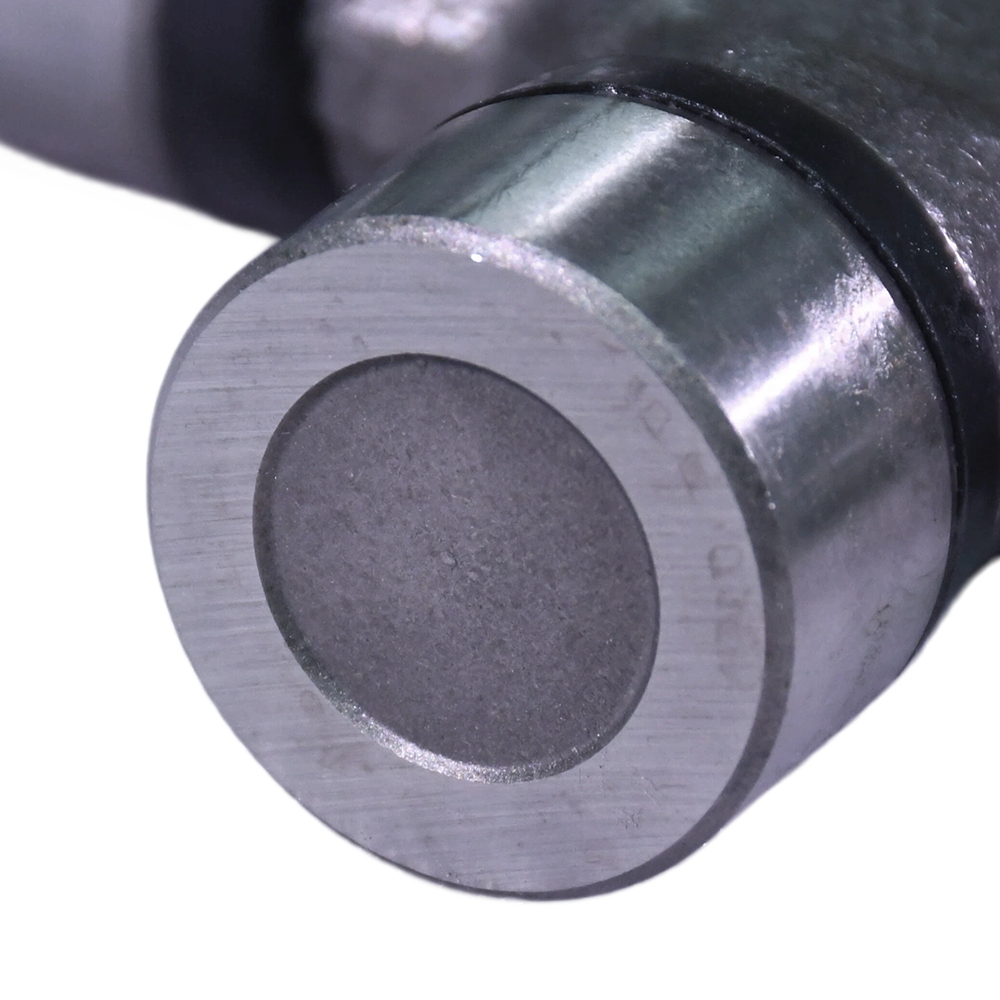

Uses four round plain bearing caps measuring approximately 1.063 inches / 27.0 mm in diameter.
✔ 3.62 Inch Overall Span
Measures approximately 3.62 inches / 91.9 mm from outside of bearing to outside of bearing on both axes.
✔ Greaseable Design

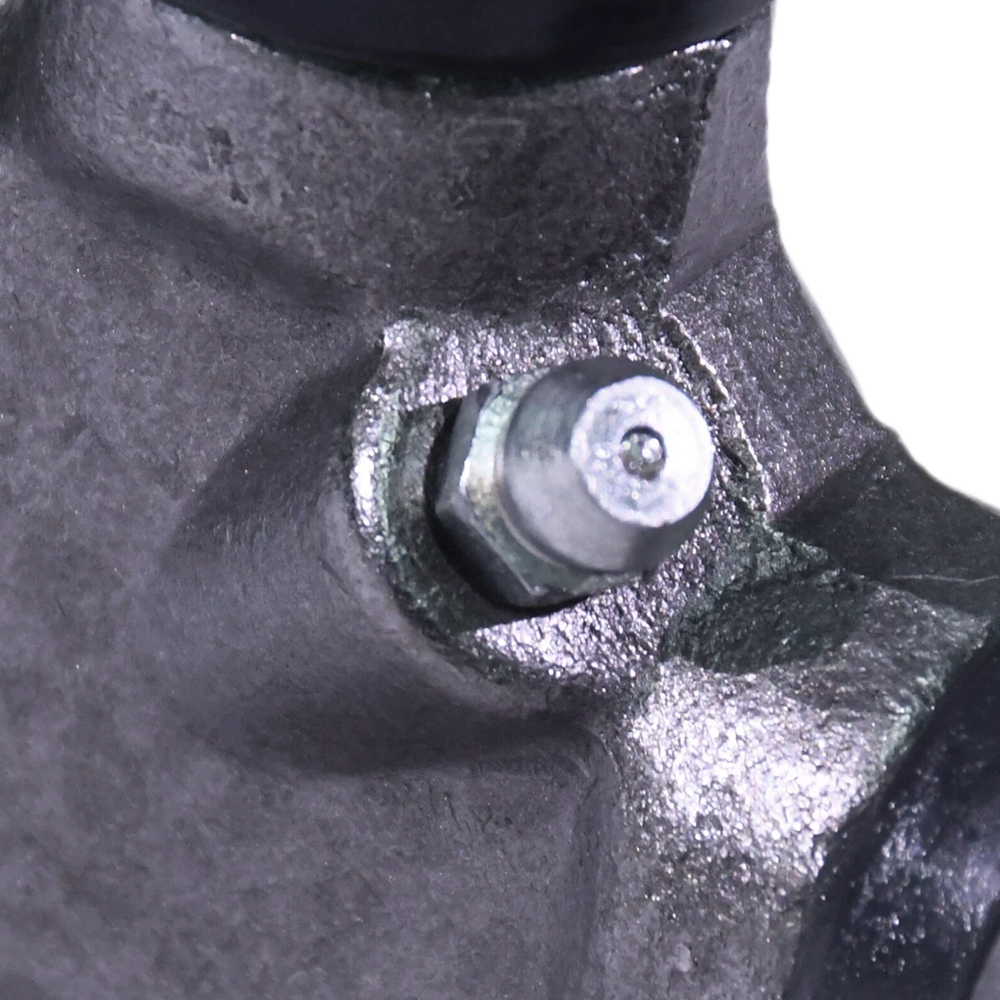

Equipped with a flush-type lubrication fitting located in the bearing for periodic maintenance.
✔ Smooth Power Transfer
Helps transmit rotational force through the driveshaft while allowing normal changes in driveline operating angle.
✔ Direct Replacement Application
Suitable for compatible vehicles and driveshaft assemblies that use the same U-joint dimensions and configuration.
Package Includes

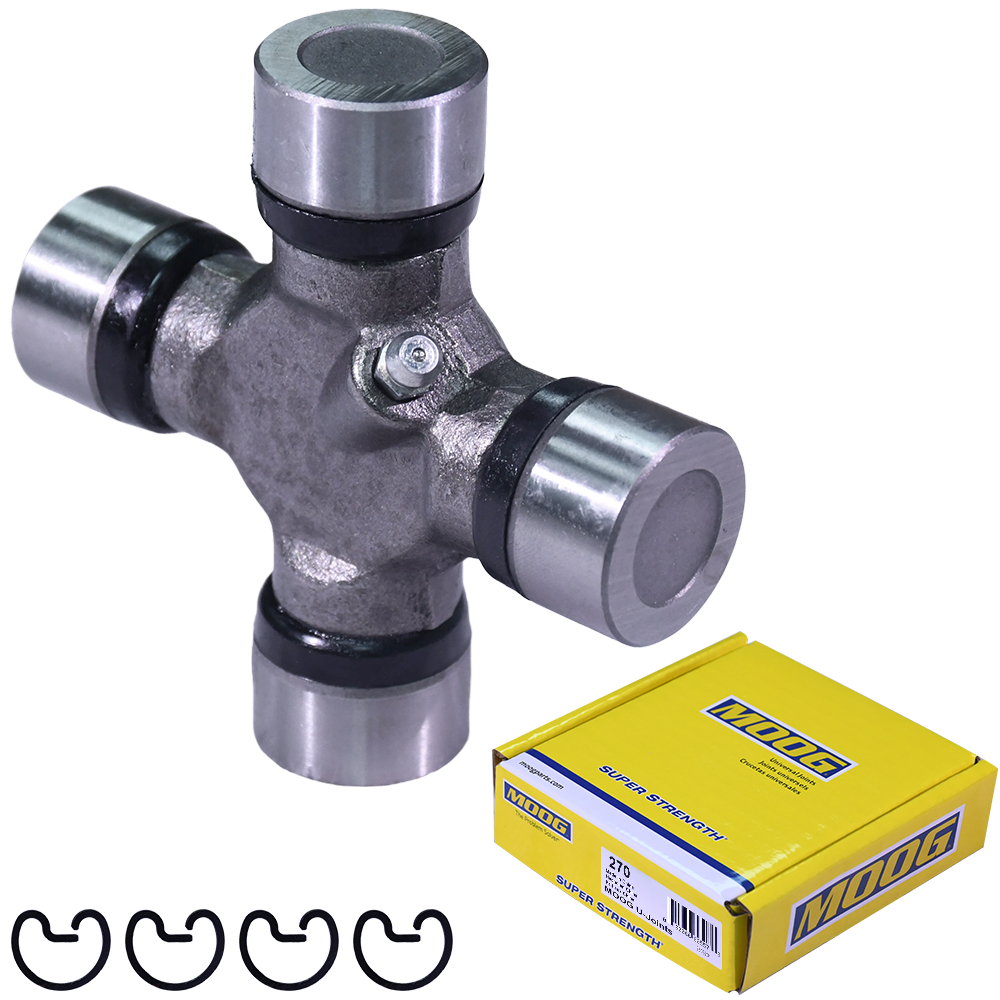

- 1 × Greaseable Spicer 1330 Series Universal Joint

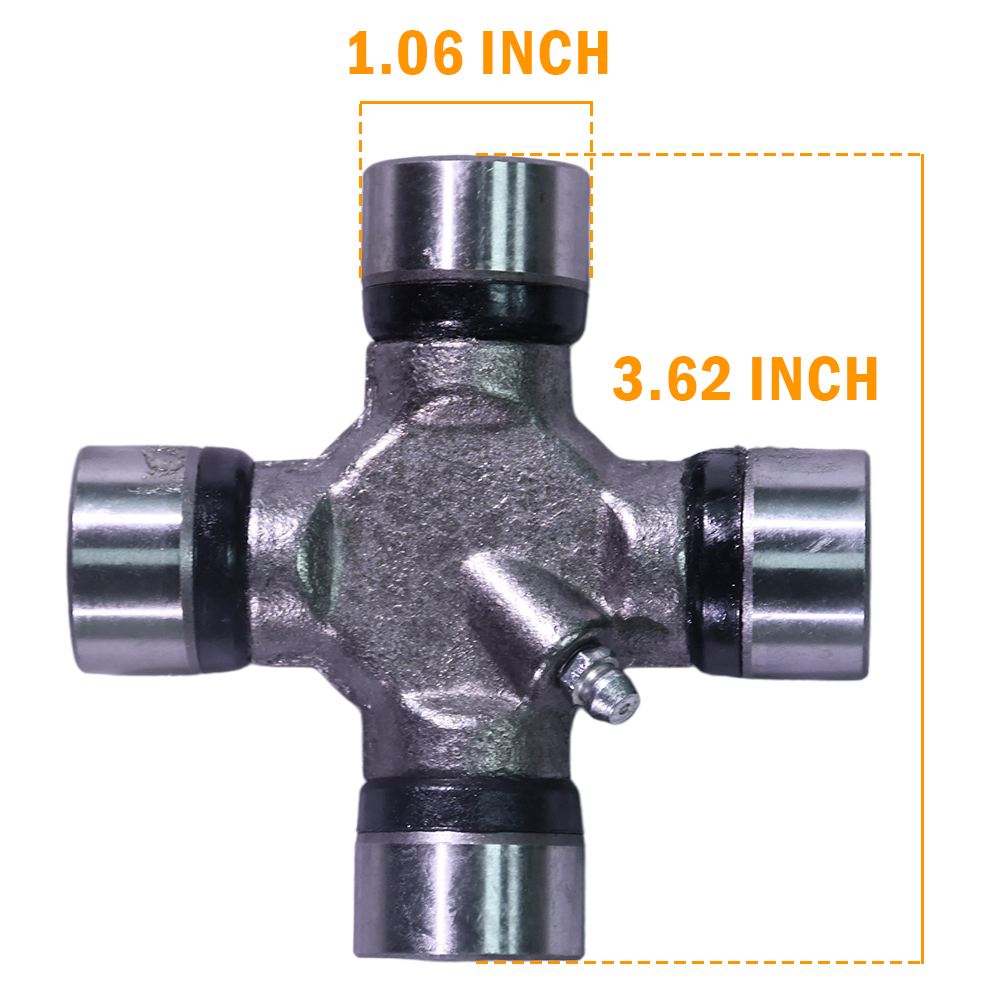

How to Verify Fitment
| Measurement | Required Specification |
|---|---|
| Bearing Cap Diameter | 1.063 in. / 27.0 mm |
| Outside-to-Outside Width - Axis 1 | 3.62 in. / 91.9 mm |
| Outside-to-Outside Width - Axis 2 | 3.62 in. / 91.9 mm |
| Bearing Style | 4 Plain Round Bearings |
| Series | Spicer 1330 |
Installation Notes
- Measure the original U-joint before purchasing.
- Confirm all four bearing caps are 1.063 in. / 27.0 mm in diameter.
- Confirm overall outside-to-outside width is approximately 3.62 in. / 91.9 mm.
- Verify the original U-joint uses four plain round bearing caps.
- Lubricate the joint according to proper service procedures after installation.
- Professional installation is recommended.
