MOOG 512153 - Cherolet Corvette Rear Wheel Bearing Hub Assembly

In stock
$130.00
$140.00 -7% $130.00

Dear Customer,

Thank you for your interest in our store!

If you have specific requirements or need bulk pricing, please feel free to contact us. Our team is here to assist you and provide the best possible pricing tailored to your needs.

Product details

  • Vendor MOOG
  • SKU 512153x2

Please contact us if you are unsure about the fitment.

Description Warranty

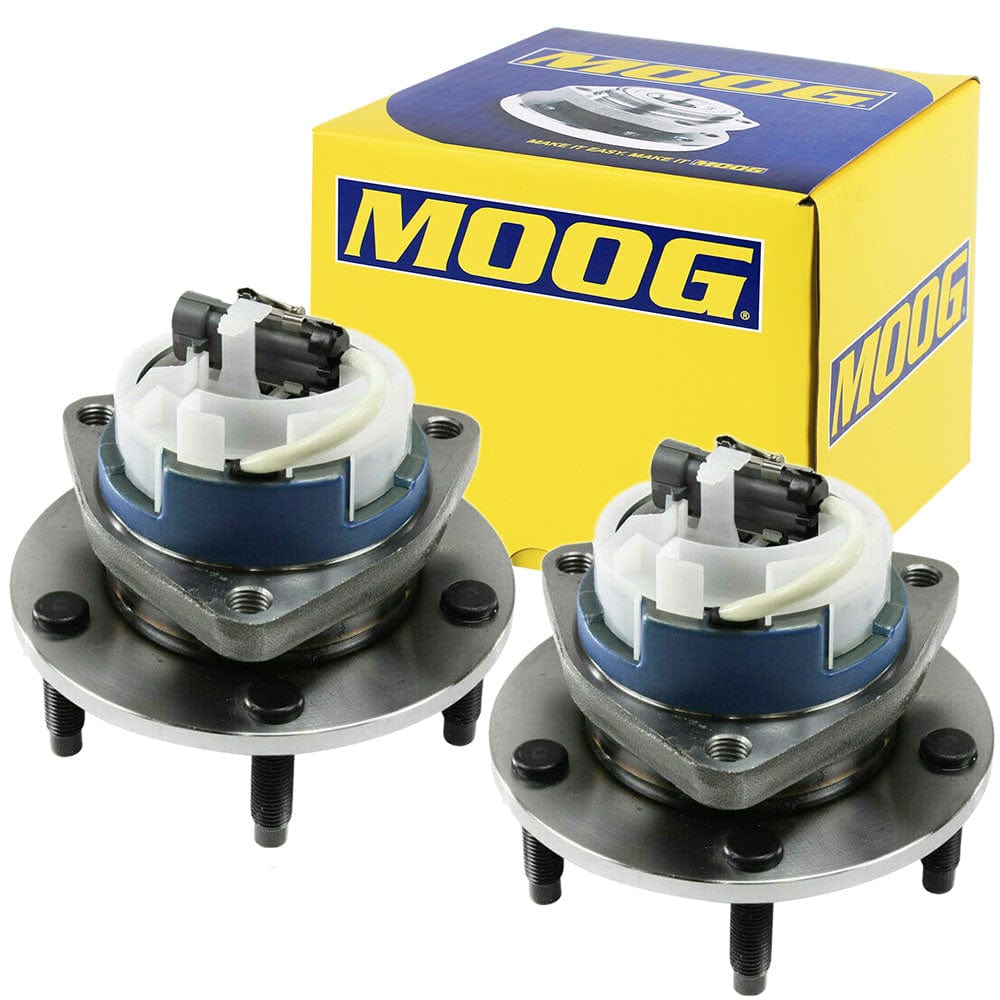

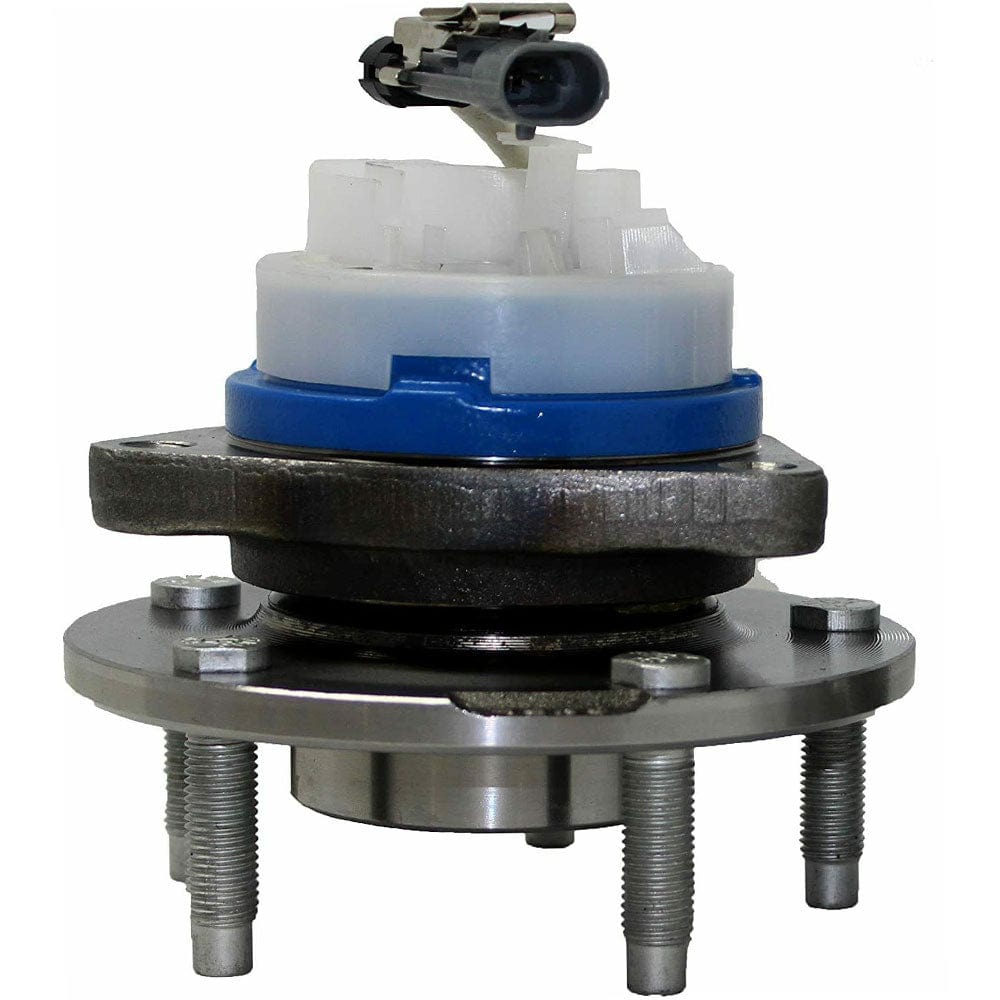

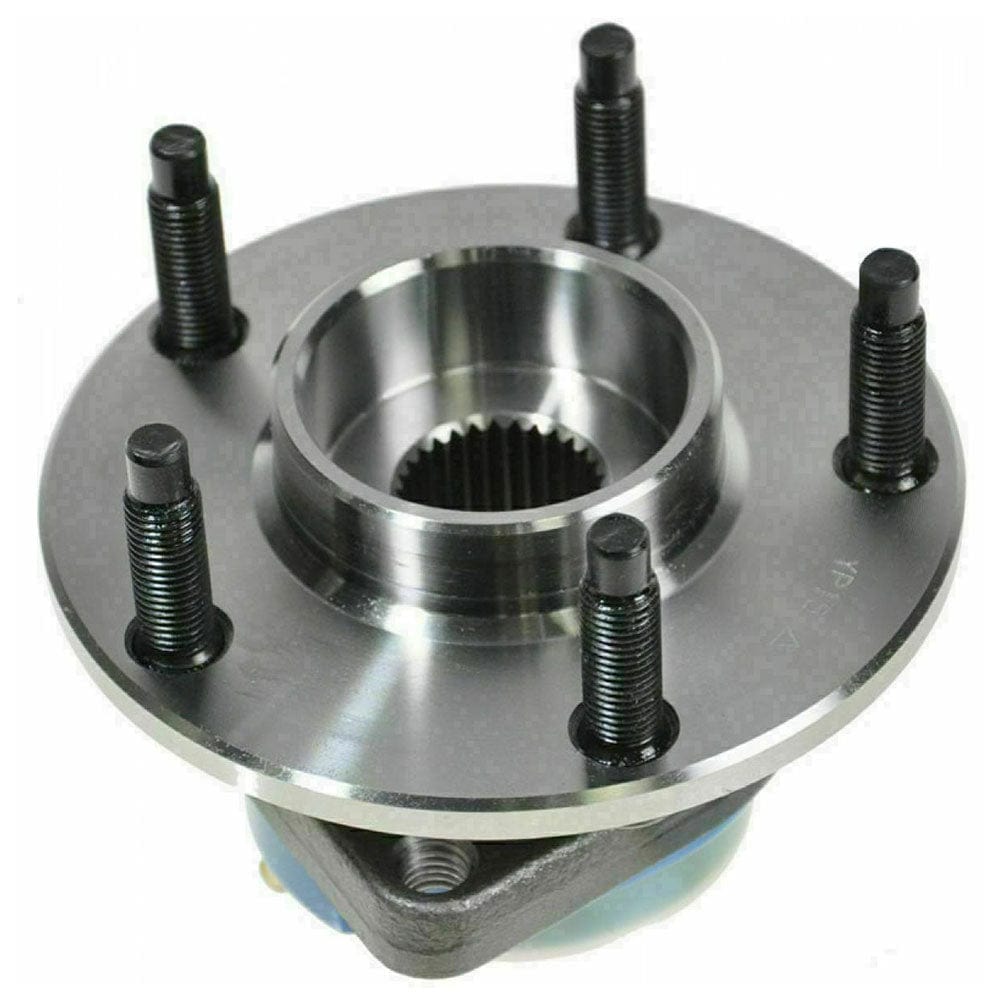

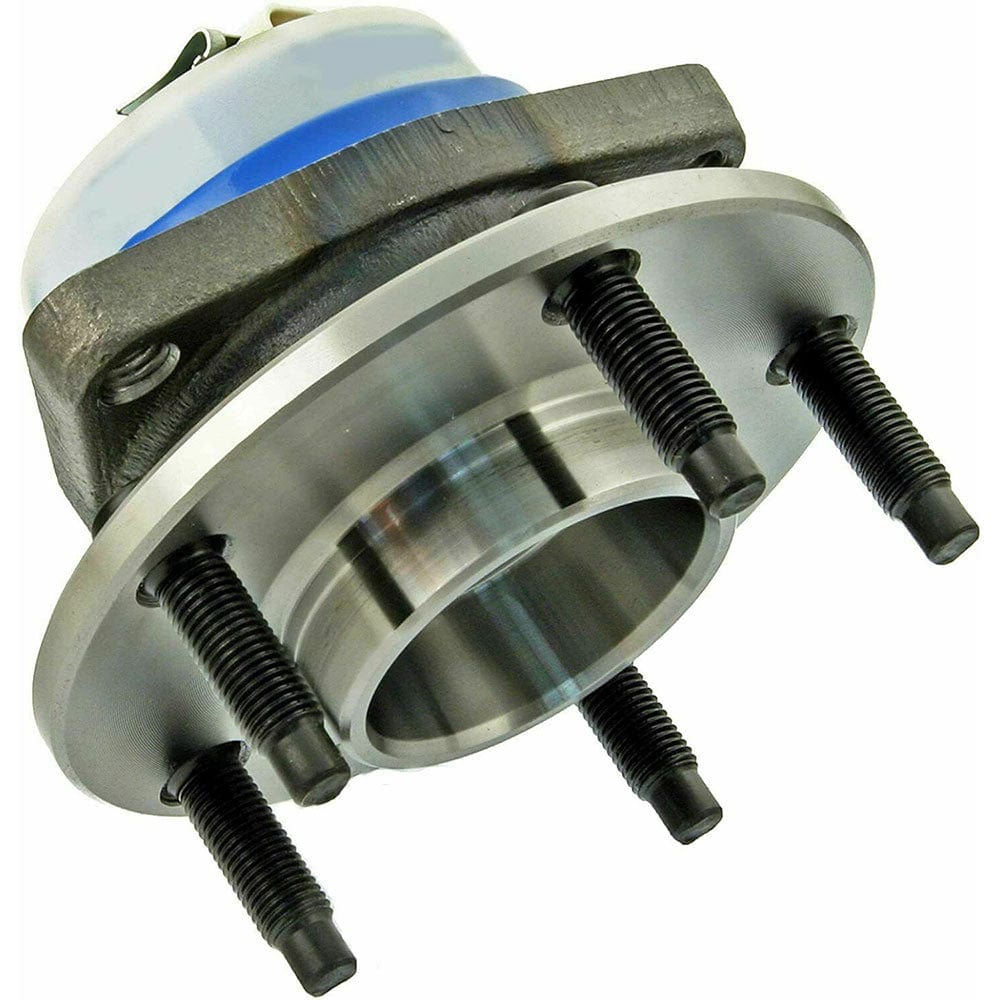

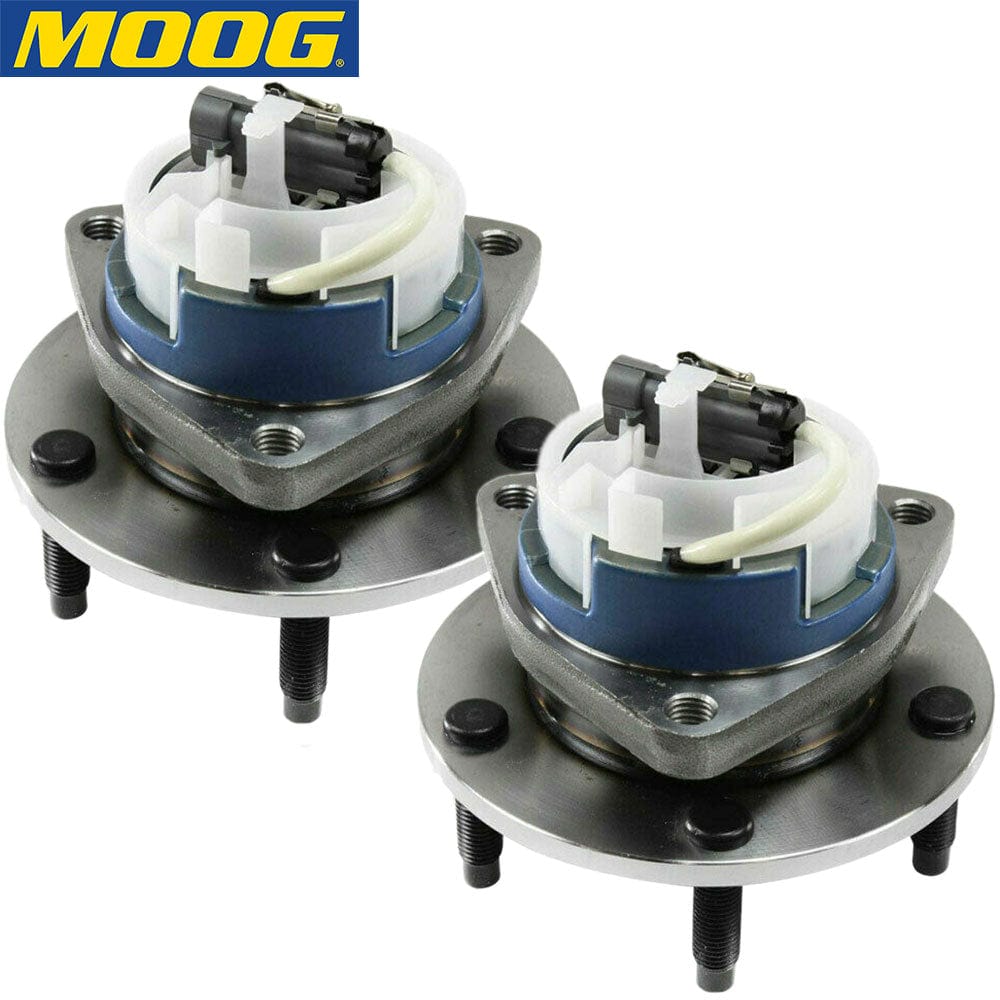

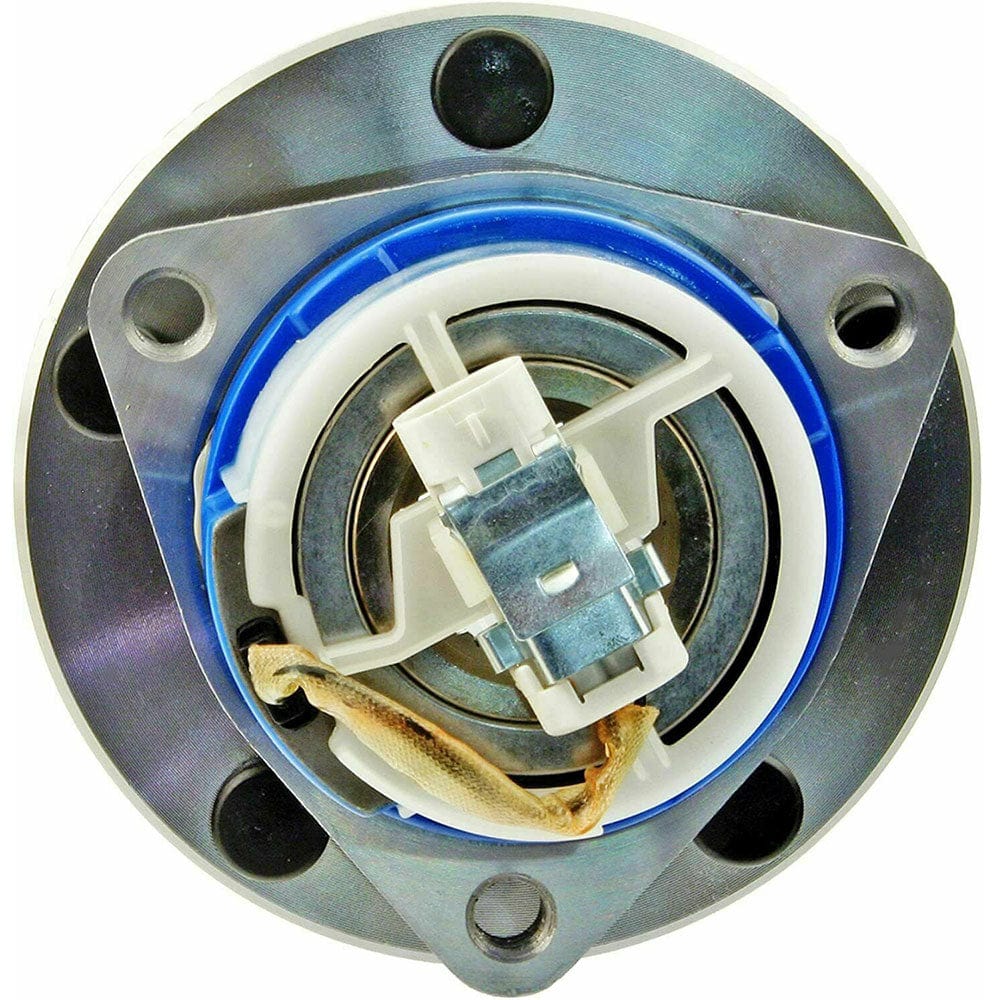

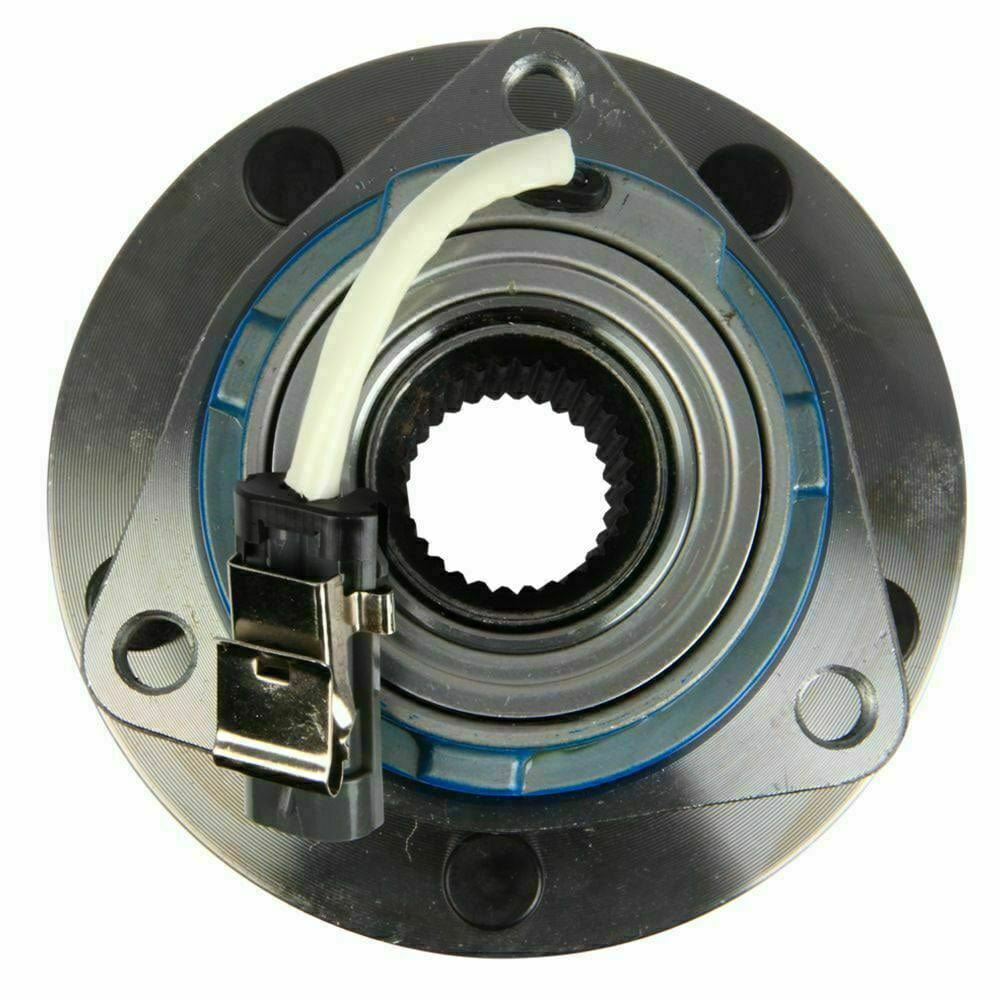

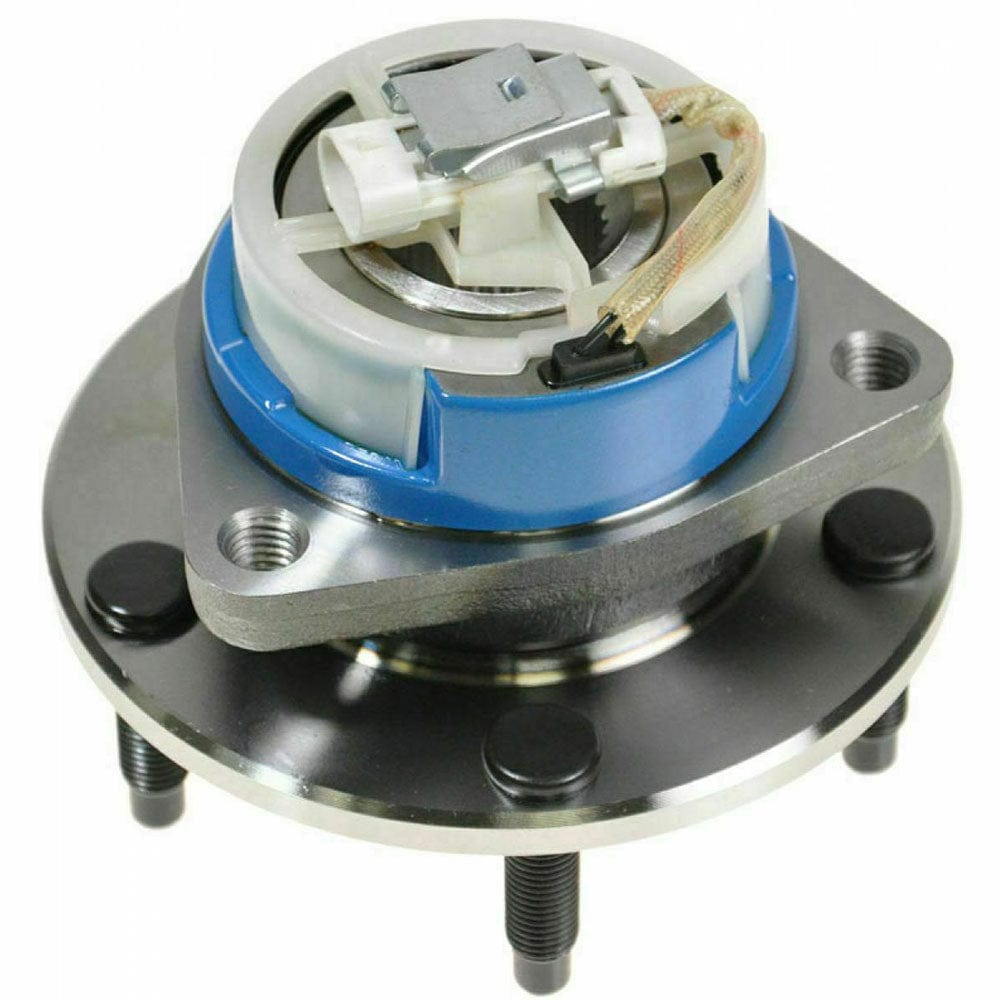

MOOG 512153 Rear Wheel Bearing Hub Assembly fits 1997-2008 Chevy Corvette and 2004-2008 Cadillac XLR 2pcs

Specifications:

Anti Lock Brake Sensor Included Yes
Bolt Circle Diameter (IN) 4.750
Bolt Circle Diameter (MM) 120.700
Brake Pilot Diameter (MM) 70.600
Flange Bolt Hole Quantity 3
Flange Diameter (MM) 145.500
Flange Offset (MM) 42.100
Flange Shape TRIANGULAR
Hub Pilot Diameter (MM) 91.300
Spline Quantity 30
Wheel Pilot Diameter (MM) 70.100
Wheel Stud Quantity 5



Fitment for Moog 512153:

CADILLAC XLR 2004-2008

  • Cadillac XLR 2004
  • Cadillac XLR 2005
  • Cadillac XLR 2006
  • Cadillac XLR 2007
  • Cadillac XLR 2008

CHEVROLET CORVETTE 1997-2008

  • Chevrolet Corvette 1997
  • Chevrolet Corvette 1998
  • Chevrolet Corvette 1999
  • Chevrolet Corvette 2000
  • Chevrolet Corvette 2001
  • Chevrolet Corvette 2002
  • Chevrolet Corvette 2003
  • Chevrolet Corvette 2004
  • Chevrolet Corvette 2005
  • Chevrolet Corvette 2006
  • Chevrolet Corvette 2007
  • Chevrolet Corvette 2008
